Lexus ES300 1994 Quick Reference
Manufacturer: LEXUS, Model Year: 1994, Model line: ES300, Model: Lexus ES300 1994Pages: 5, PDF Size: 1.57 MB
Page 1 of 5
BASIC OPERATION
1
QUICK REFERENCE
Driver’s seat2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper switch5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 2 of 5
BASIC OPERATION − QUICK REFERENCE
Seat adjustment
Seat
position
Seat
cushion
angle
Seat cushion
height
Seatback
angle
Lumbar
support
Head
height
Head
angle
Pull on
the top
BASIC OPERATION − QUICK REFERENCE
Lock release lever
Unlock
2
1. DRIVER’S SEAT 2. STEERING WHEEL
TILT STEERING WHEEL
To tilt the steering wheel up or down to the desired
angle:
1. Push the lever up while holding the steering wheel.
2. Push or pull the steering wheel to the desired angle.
3. Release the lever.
Page 3 of 5
BASIC OPERATION − QUICK REFERENCE
With the brake pedal depressed, shift
while holding the lock release button in
(The ignition switch must be in “ON” position.)
Shift while pressing the lock release button in
Shift without pressing the button
ON position
(Shifting into overdrive possible)
OFF position
(Shifting into overdrive not possible)
Lock release button
to prevent misshifting
Selector lever
Overdrive switch
SELECTOR LEVER
POSITIONINDI-
CATIONOPERATION OF SELECTOR LEVER
Parking, engine starting
and key removal position
Reverse position
Neutral position
Normal driving position
Position for engine braking
Position for stronger engine
braking than that in “2” position
3
3. AUTOMATIC TRANSMISSION
OPERATION OF OVERDRIVE SWITCH
For selecting either a three-speed or four-speed
transmission
Page 4 of 5
BASIC OPERATION − QUICK REFERENCE
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
High beam
Headlight flasher
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Parking, tail, license plate,
side maker and instrument
panel lights turn on.
Headlights turn on
at full intensity.
High beam
Headlight flasher
Right or left turn
Lane change
(Right or left)
4
4. HEADLIGHT AND TURN SIGNAL
SWITCH
HEADLIGHT SWITCH (FOR U.S.A.)
HEADLIGHT SWITCH (FOR CANADA)
With the ignition OFFWith the engine started and parking brake released
TURN SIGNAL SWITCH
Page 5 of 5
BASIC OPERATION − QUICK REFERENCE

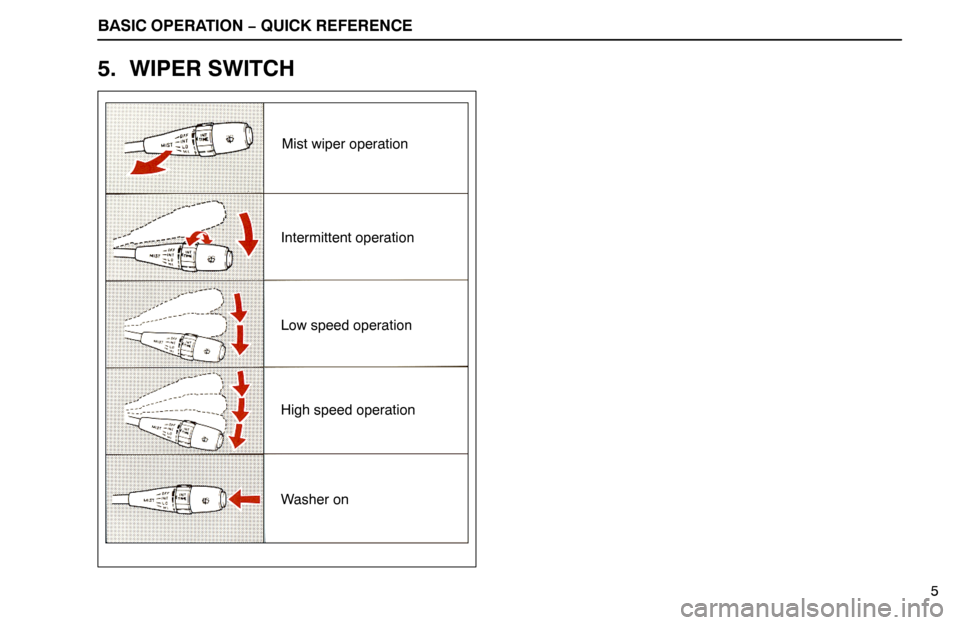

Mist wiper operation
Intermittent operation
Low speed operation
High speed operation
Washer on
5
5. WIPER SWITCH
