Lexus ES300 1995 Quick Reference

BASIC OPERATION
1
QUICK REFERENCE
Driver’s seat2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper switch5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BASIC OPERATION − QUICK REFERENCE
Seat adjustment
Seat
position
Seat
cushion
angle
Seat cushion
height
Seatback
angle
Lumbar
support
Headrest
height
Headrest
angle
Lock release lever
Unlock
2
1. DRIVER’S SEAT 2. STEERING WHEEL

TILT STEERING WHEEL
To tilt the steering wheel up or down to the desired angle:
1. Pull the lever up while holding the steering wheel.
2. Push or pull the steering wheel to the desired angle.
3. Release the lever.

BASIC OPERATION − QUICK REFERENCE
With the brake pedal depressed, shift
while pressing the lock release button in
(The ignition switch must be in “ON”
position.)
Shift while pressing the lock release
button in
Shift without pressing the button
ON position
(Shifting into overdrive possible)
OFF position
(Shifting into overdrive not possible)
Lock release button
to prevent misshiftingSelector lever
Overdrive switch
3
3. AUTOMATIC TRANSMISSION
OPERATION OF OVERDRIVE SWITCH
For selecting either a three-speed or four-speed
transmission
SELECTOR LEVER
POSITIONINDI-
CATIONOPERATION OF SELECTOR LEVER
Parking, engine starting and key
removal position
Reverse position
Neutral position
Normal driving position
Position for engine braking
Position for stronger engine
braking than that in “2” position

BASIC OPERATION − QUICK REFERENCE

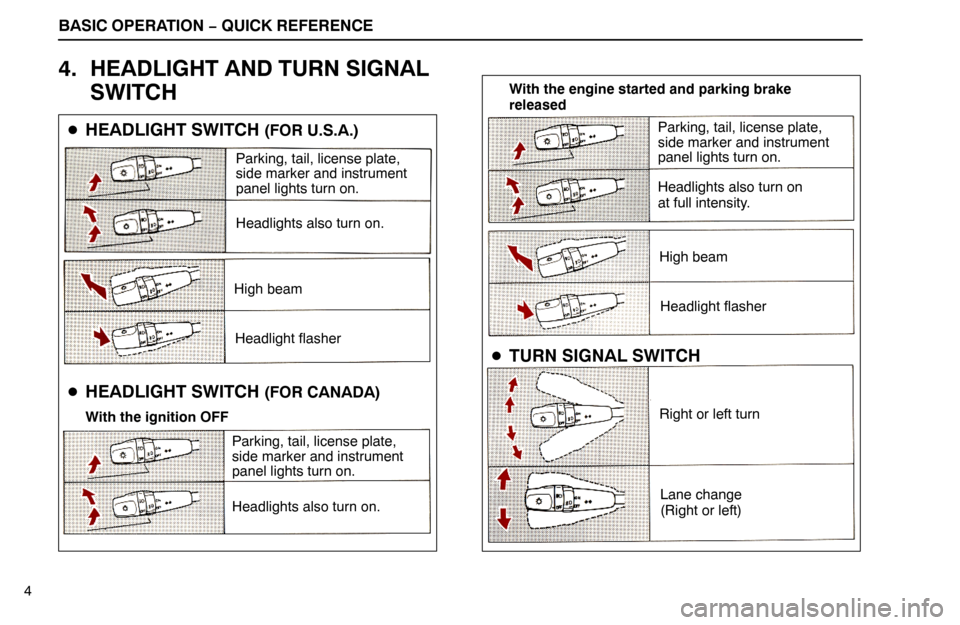

Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
High beam
Headlight flasher
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on
at full intensity.
High beam
Headlight flasher
Right or left turn
Lane change
(Right or left)
4
4. HEADLIGHT AND TURN SIGNAL
SWITCH

HEADLIGHT SWITCH (FOR U.S.A.)

HEADLIGHT SWITCH (FOR CANADA)
With the ignition OFFWith the engine started and parking brake
released

TURN SIGNAL SWITCH

BASIC OPERATION − QUICK REFERENCE

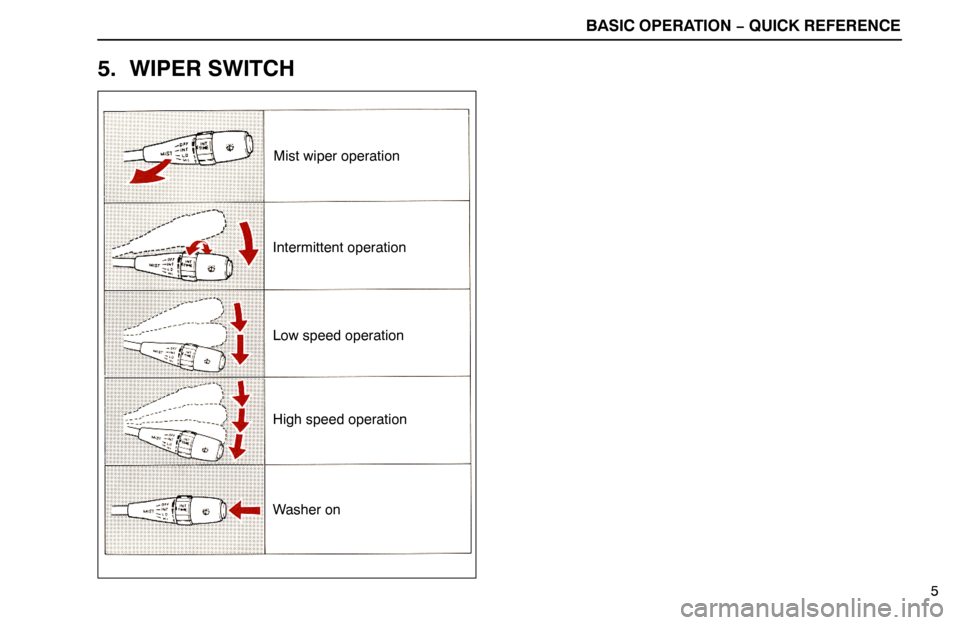

Mist wiper operation
Intermittent operation
Low speed operation
High speed operation
Washer on
5
5. WIPER SWITCH
