GAUGES, METERS AND SERVICE REMINDER INDICATORS
28
FUEL GAUGE
13E001

Low fuel level warning light
The gauge is displayed when the ignition switch is on and indicates the
approximate quantity of fuel remaining in the tank.
It is a good idea to keep the tank over 1/4 full.
This fuel gauge has a non±return type needle which remains at the last
indicated position when the ignition switch is turned off.
If the fuel level approaches ºEº or the low fuel level warning light\
comes on,
fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank, the fuel g\
auge
needle may fluctuate or the low fuel level warning light may come on earlier
than usual.
If the fuel tank is completely empty, the malfunction indicator lamp comes on.
Fill the fuel tank immediately.
The indicator lamp goes off after driving several times. If the indicator lamp
does not go off, contact your Lexus dealer as soon as possible.
See the inner back cover for fuel capacity and recommended fuel selectio\
n.
ENGINE COOLANT
TEMPERATURE GAUGE
13E002±1

Normal range
The gauge indicates the engine coolant temperature when the ignition
switch is on. The engine operating temperature will vary with changes in
weather and engine load.
If the needle points to the red zone or higher, stop your vehicle and allow the
engine to cool.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
30
ODOMETER AND TRIP METER
13E004

ºODO/TRIPº knob
This meter displays the odometer and two trip meters. To change the
mode indication, push the ºODO/TRIPº knob briefly. Each time you
push the knob, the mode changes in order from the odometer to trip meter
A to trip meter B, then back to the odometer, etc.
The odometer records the total distance the vehicle has been driven. The
twin trip meter records two different distances independently.
For example, you can use one meter to calculate the fuel economy and the\
other to measure the distance on each trip.
To set the A trip meter to zero, display the A meter reading, push the knob
and hold it. The same applies for the B trip meter.
The data of trip meters will be cancelled if the electrical power source is\
disconnected.
SERVICE REMINDER INDICATORS AND WARNING BUZZERS
IF THIS INDICATOR
OR BUZZER COMES
ON ... DO THIS.
(a)
If parking brake is off, stop and
check.
(b) Fasten seat belts.
(Indicator and buzzer)
(c) Take vehicle to Lexus dealer
immediately.
(d) Stop and check.
(e) Stop and check.
or

AIR CONDITIONING AND AUDIO
104
1 Air intake control button
2 Temperature display (in degrees Fahrenheit or Centigrade)
3 Fan speed display
4 Air flow display
5 Front windshield button
6 Air conditioning on±off button
7 Air flow control button
8 Fan speed control button
9 OFF button
10 Automatic control button
11 Temperature control and outside temperature knob

AIR CONDITIONING AND AUDIO
106
(a) Climate control
SETTING OPERATION ± automatic control
20E003

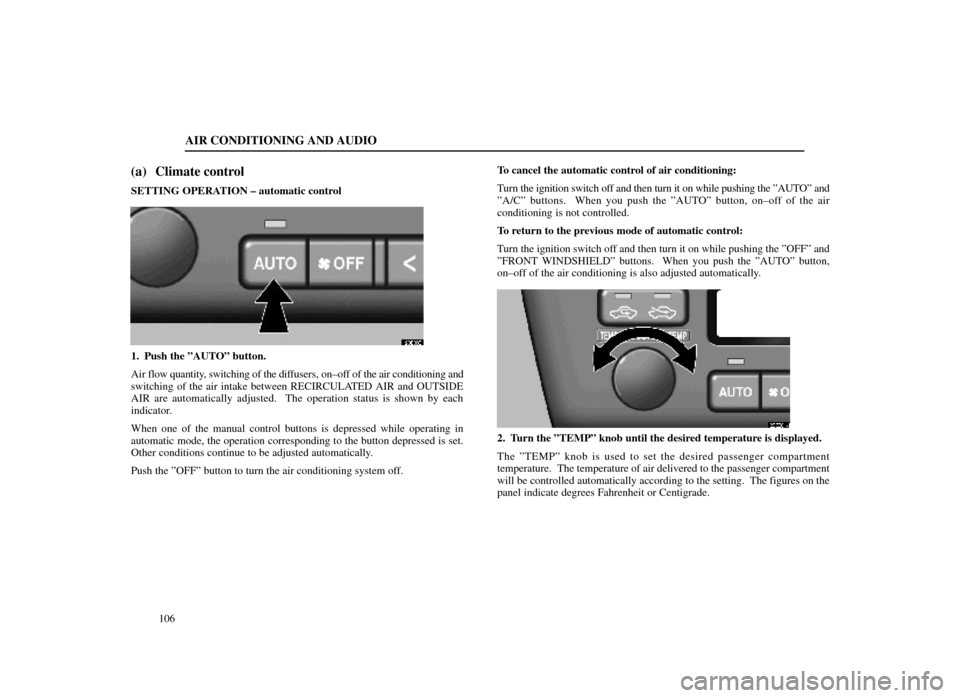

1. Push the ºAUTOº button.
Air flow quantity, switching of the diffusers, on±off of the air conditioning and
switching of the air intake between RECIRCULATED AIR and OUTSIDE
AIR are automatically adjusted. The operation status is shown by each
indicator.
When one of the manual control buttons is depressed while operating in
automatic mode, the operation corresponding to the button depressed is set.
Other conditions continue to be adjusted automatically.
Push the ºOFFº button to turn the air conditioning system off.To cancel the automatic control of air conditioning:
Turn the ignition switch off and then turn it on while pushing the ºAUTOº and
ºA/Cº buttons. When you push the ºAUTOº button, on±off of the air
conditioning is not controlled.
To return to the previous mode of automatic control:
Turn the ignition switch off and then turn it on while pushing the ºOFFº and
ºFRONT WINDSHIELDº buttons. When you push the ºAUTOº button,
on±off of the air conditioning is also adjusted automatically.20E004±1
2. Turn the ºTEMPº knob until the desired temperature is displayed.
The ºTEMPº knob is used to set the desired passenger compartment
temperature. The temperature of air delivered to the passenger compartment
will be controlled automatically according to the setting. The figures on the
panel indicate degrees Fahrenheit or Centigrade.

AIR CONDITIONING AND AUDIO107
SETTING OPERATION ± manual control
If manual air flow selection is desired ±
20E005±1
The outlets from which air is delivered can be selected manually by pushing\
the button. The function of each mode is as follows:
1
Panel ± Air flows mainly from the instrument panel vents.
2
Bi±level ± Air flows from both the floor vents and the instrument panel
vents.
3 Floor ± Air flows mainly from the floor vents.
4
Floor/Windshield ± Air flows mainly from the floor vents and
windshield vents. If quick heating or cooling is desired ±
Turn the ºTEMPº knob until ºMAX. HOTº or ºMAX. COLDº appea\
rs on the
display.
When the ºMAX. COLDº is selected, the air intake is automatically set \
to
ºRECIRCULATED AIRº mode.
To cancel the automatic control of the ºRECIRCULATED AIRº mode; turn
the ignition switch off and then turn it on while pushing the ºAUTOº and the
fan speed control button on the left side. To return to the previous mode of
automatic control; turn the ignition switch off and then turn it on while
pushing the ºOFFº and ºFRONT WINDSHIELDº buttons.
If manual fan speed control is desired ±
20E006±2

1
Fan speed at low 2Fan speed at high
The fan speed can be set to your desired speed by pushing the appropriate s\
ide
of fan speed control button. The higher the fan speed is, the more air \
is
delivered. Pushing the ºOFFº button turns off the fan.
To remove exterior windshield frost, use the high speed setting.
If manual switching of air intake is desired ±

AIR CONDITIONING AND AUDIO
108
20E007±1
The air intake control button is used to switch the air intake between the
OUTSIDE AIR mode and RECIRCULATED AIR mode.
With the button in the OUTSIDE AIR mode, the OUTSIDE AIR mode
indicator light will come on and the system will take fresh outside air into the
vehicle.
If quick circulation of cooled air is desired, push the air intake control\
button
for RECIRCULATED AIR. The RECIRCULATED AIR mode indicator light
will come on.
For normal use, it is best to keep the air intake control button set to OUT\
SIDE
AIR mode. If recirculated air is used during heating, the windows will \
fog up
more easily.If the engine coolant temperature becomes extremely high, the
RECIRCULATED AIR mode is automatically selected. This is not a
malfunction. When the engine coolant temperature is lowered, the previous
mode resumes.
If manual on±off of the air conditioning is desired ±
Push the ºA/Cº button to turn the air conditioning on and push it agai\
n to turn
the air conditioning off.
The air conditioning does not work if the outside temperature is lowered do\
wn
to around 0C (32F).
If the system is used for ventilation, heating in dry weather or removing \
frost
or exterior fog on the windshield, turn the air conditioning off once it is no
longer required. This will improve fuel economy. The air conditioning can
be used for year±round automatic temperature control including cooling \
and
dehumidifying operation.
If the air conditioning compressor does not operate, the indicator of the \
ºA/Cº
button will blink. If the indicator of the ºA/Cº button blinks even wh\
en the
ºA/Cº button is pushed again, have the compressor checked by your \
nearest
Lexus dealer.
Displaying the outside temperature ±
When you push the ºOUTSIDE TEMPº knob, the temperature display shows
the outside temperature. To return to the display of the current set
temperature, push the knob again. The temperature display ranges from
±30 C (±22F) up to 50C (122F).

AIR CONDITIONING AND AUDIO
112
1Turning the system on and adjusting volume
(See page 113 for details.)
2Stopping and ejecting a cassette tape
(See page 118 for details.)
3Function buttons
1 ± 6: Station selector buttons
(See page 117 for details.)
SCAN: Scan tuning
(See page 118 for details.)
P. SCAN: Preset scan tuning (See page 118 for details.)
4Display of functions in TAPE mode

:
Side change
(See page 119 for details.)
: DOLBY NR
(See page 119 for details.)
 :Rewinding
(See page 119 for details.)


:Fast forwarding
(See page 119 for details.)
RPT: Automatic repeat
(See page 120 for details.)
SKIP: Automatic skip of blank portions of tape
(See page 120 for details.)
SCAN: Scan selection
(See page 120 for details.)
4
Display of functions in CD mode
:Disc selection
(See page 124 for details.)
 :Reversing
(See page 126 for details.)


:Fast forwarding
(See page 126 for details.)
RPT: Automatic repeat
(See page 126 for details.)
RAND: Random access
(See page 126 for details.)
SCAN: Scan selection
(See page 125 for details.)
5
Mode selectors
(See page 113 for details.)
6Cassette tape slot
(See page 118 for details.)
7Tone and balance knobs
(See page 114 for details.)
8Radio mode: Frequency tuning
(See page 116 or 117 for details.)
TAPE mode: Direct access to a desired program
(See page 121 for details.)
CD mode: Direct access to a desired program
(See page 126 for details.)

AIR CONDITIONING AND AUDIO
114
lowest part of the display. Push the switch just below to turn on each
function.
(b) Tone and balance
How good an audio program sounds to you is largely determined by the mix
of the treble, mid±range, and bass levels. In fact, different kinds of music and
vocal programs usually sound better with different mixes of treble,
mid±range, and bass.
A good balance of the left and right stereo channels and of the front an\
d rear
sound levels is also important.
Keep in mind that if you are listening to a stereo recording or broadcast,
changing the right/left balance will increase the volume of one group of
sounds while decreasing the volume of another.

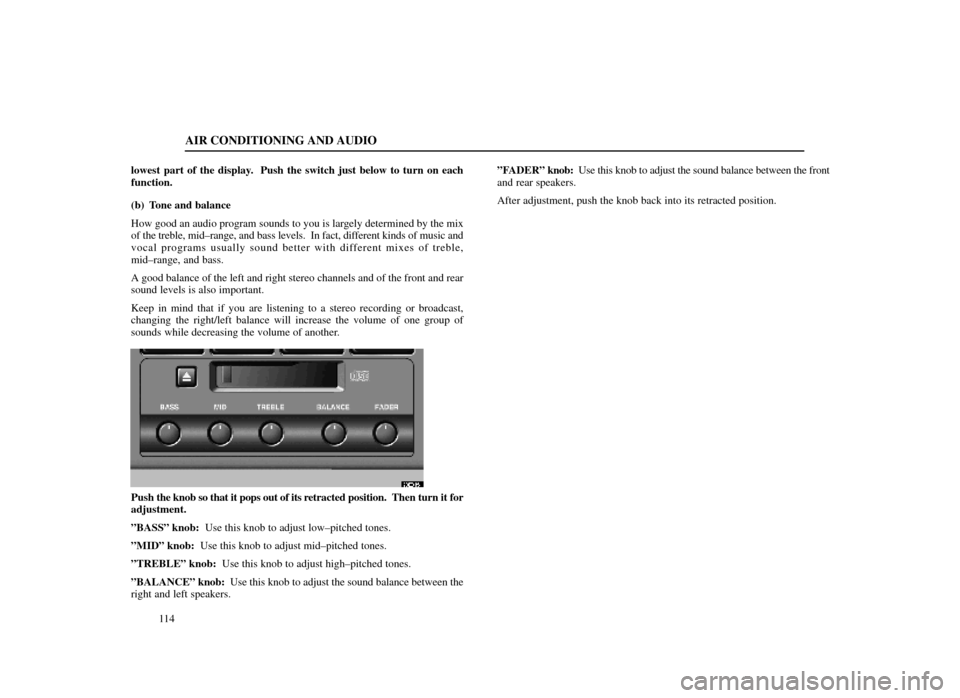

20E015±1
Push
the knob so that it pops out of its r etracted position. Then turn it for
adjustment.
ºBASSº knob: Use this knob to adjust low±pitched tones.
ºMIDº knob: Use this knob to adjust mid±pitched tones.
ºTREBLEº knob: Use this knob to adjust high±pitched tones.
ºBALANCEº knob: Use this knob to adjust the sound balance between the
right and left speakers. ºFADERº
knob: Use this knob to adjust the sound balance between the front
and rear speakers.
After adjustment, push the knob back into its retracted position.

AIR CONDITIONING AND AUDIO115
(c) Your radio antenna
The wire antenna is mounted inside the rear window.
NOTICE

When cleaning the inside of the rear window, be careful not to scratch
or damage the wire antenna.
 Putting a window tint (especially, conductive or metallic type) on the
rear window may affect the reception of radio. For the installation of
the window tint, consult with your Lexus dealer.
(d) Your cassette player
When you insert a cassette, the exposed tape should be to the right.
NOTICE
Do not oil any part of the cassette player, and do not insert anything except
a cassette tape into the slot.
(e) Your automatic changer
20E016±2
If your Lexus is equipped with an automatic changer, it can play selected discs
or continuously play all the discs set in the magazine.
When you set discs into the magazine, make sure they face the correct wa\
y.
If not, the player will display ºErrº and the disc number.
NOTICE
Never try to disassemble or oil any part of the compact disc player. Do not
insert anything except a compact disc into the magazine.
The player is intended for use with 12 cm (4.7 in.) discs only.

AIR CONDITIONING AND AUDIO
116
Radio operation

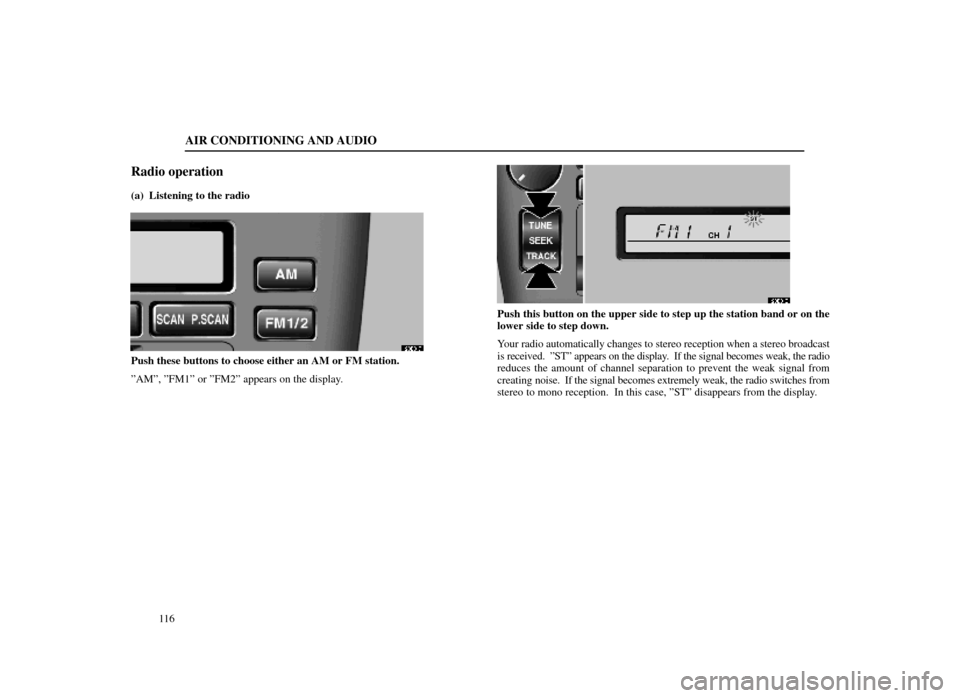

(a) Listening to the radio
20E017
Push these buttons to choose either an AM or FM station.
ºAMº, ºFM1º or ºFM2º appears on the display.
20E018
Push this button on the upper side to step up the station band or on the\
lower side to step down.
Your radio automatically changes to stereo reception when a stereo broadcast\
is received. ºSTº appears on the display. If the signal becomes weak, the radio
reduces the amount of channel separation to prevent the weak signal from
creating noise. If the signal becomes extremely weak, the radio switches from
stereo to mono reception. In this case, ºSTº disappears from the displa\
y.
