1.
PICTORIAL INDEX1
INSTRUMENT PANEL
PE001±6
Page 2 of 249
For detailed information, refer to the description given in each section.
2.
PICTORIAL INDEX
2Page
1
Door lock switch and power window
switches 14, 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
2 Headlight, turn signal and fog light switch 17
. . . . . . . . . . . .
3 Power rear view mirror control switch 63
. . . . . . . . . . . . . . .
4 Instrument panel light control 35
. . . . . . . . . . . . . . . . . . . . . .
5 Trunk lid opener 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Fuel filler door opener 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Hood lock release lever 50
. . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Parking brake 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Windshield wiper and washer switch 20
. . . . . . . . . . . . . . . . .
10 Cruise control switch 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Page
11 Traction control system off switch
34
. . . . . . . . . . . . . . . . . . .
12 Emergency flasher switch 25
. . . . . . . . . . . . . . . . . . . . . . . . .
13 Clock 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
14 Car audio 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
15 Automatic air conditioning controls 103
. . . . . . . . . . . . . . . .
16 Ashtray 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
17 Automatic transmission selector lever 137
. . . . . . . . . . . . . . .
18 Seat heater switches 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Electronic modulated suspension
control switch 146 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20 Glovebox/CD automatic changer 41/122
. . . . . . . . . . . . . . . . .
Page 3 of 249
3.
PICTORIAL INDEX3

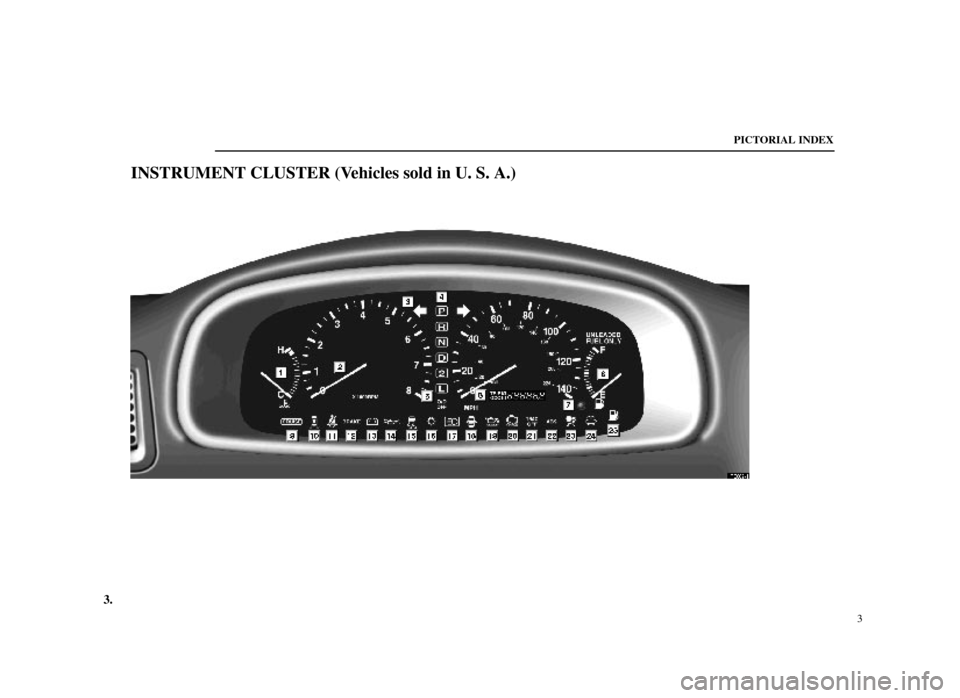

INSTRUMENT CLUSTER (Vehicles sold in U. S. A.)
PE002±1
Page 4 of 249
4.
For detailed information, refer to the description given in each section.
PICTORIAL INDEX
4Page
1
Engine coolant temperature gauge 28
. . . . . . . . . . . . . . . . . .
2 Tachometer 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
3 Turn signal indicator light 19
. . . . . . . . . . . . . . . . . . . . . . . . .
4 Automatic transmission indicator lights 137
. . . . . . . . . . . . .
5 Overdrive off indicator light 139
. . . . . . . . . . . . . . . . . . . . . . .
6 Odometer and trip meter 30
. . . . . . . . . . . . . . . . . . . . . . . . . .
7 ODO/TRIP knob 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Fuel gauge 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
9 Cruise control indicator light 144
. . . . . . . . . . . . . . . . . . . . . .
10 Rear light failure warning light 34
. . . . . . . . . . . . . . . . . . . . .
11 Seat belt reminder light 32
. . . . . . . . . . . . . . . . . . . . . . . . . . .
12 Brake system warning light 31
. . . . . . . . . . . . . . . . . . . . . . . . Page
13 Discharge warning light
32
. . . . . . . . . . . . . . . . . . . . . . . . . . .
14 Low oil pressure warning light 33
. . . . . . . . . . . . . . . . . . . . .
15 Slip indicator light 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16 Headlight indicator light 17
. . . . . . . . . . . . . . . . . . . . . . . . . .
17 Headlight high beam indicator light 18
. . . . . . . . . . . . . . . . .
18 Open door warning light 34
. . . . . . . . . . . . . . . . . . . . . . . . . .
19 Low engine oil level warning light 33
. . . . . . . . . . . . . . . . . . .
20 Malfunction indicator lamp 33
. . . . . . . . . . . . . . . . . . . . . . . .
21 Traction control system off
indicator/warning light 34 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22 Anti±lock brake system warning light 33
. . . . . . . . . . . . . . . .
23 SRS warning light 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24 Low washer fluid warning light 34
. . . . . . . . . . . . . . . . . . . . .
25 Low fuel level warning light 34
. . . . . . . . . . . . . . . . . . . . . . .
Page 5 of 249
5.
PICTORIAL INDEX5
INSTRUMENT CLUSTER (Vehicles sold in Canada)
PE003±1
Page 6 of 249
6.
For detailed information, refer to the description given in each section.
PICTORIAL INDEX
6Page
1
Engine coolant temperature gauge 28
. . . . . . . . . . . . . . . . . .
2 Tachometer 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
3 Turn signal indicator light 19
. . . . . . . . . . . . . . . . . . . . . . . . .
4 Automatic transmission indicator lights 137
. . . . . . . . . . . . .
5 Overdrive off indicator light 139
. . . . . . . . . . . . . . . . . . . . . . .
6 Odometer and trip meter 30
. . . . . . . . . . . . . . . . . . . . . . . . . .
7 ODO/TRIP knob 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Fuel gauge 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
9 Cruise control indicator light 144
. . . . . . . . . . . . . . . . . . . . . .
10 Rear light failure warning light 34
. . . . . . . . . . . . . . . . . . . . .
11 Seat belt reminder light 32
. . . . . . . . . . . . . . . . . . . . . . . . . . .
12 Brake system warning light 31
. . . . . . . . . . . . . . . . . . . . . . . . Page
13 Discharge warning light
32
. . . . . . . . . . . . . . . . . . . . . . . . . . .
14 Low oil pressure warning light 33
. . . . . . . . . . . . . . . . . . . . .
15 Slip indicator light 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16 Tail light indicator light 17
. . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Headlight high beam indicator light 18
. . . . . . . . . . . . . . . . .
18 Open door warning light 34
. . . . . . . . . . . . . . . . . . . . . . . . . .
19 Low engine oil level warning light 33
. . . . . . . . . . . . . . . . . . .
20 Malfunction indicator lamp 33
. . . . . . . . . . . . . . . . . . . . . . . .
21 Traction control system off
indicator/warning light 34 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22 Anti±lock brake system warning light 33
. . . . . . . . . . . . . . . .
23 SRS warning light 32
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24 Low washer fluid warning light 34
. . . . . . . . . . . . . . . . . . . . .
25 Low fuel level warning light 34
. . . . . . . . . . . . . . . . . . . . . . .
Page 7 of 249
7.
PE004±3
PICTORIAL INDEX7

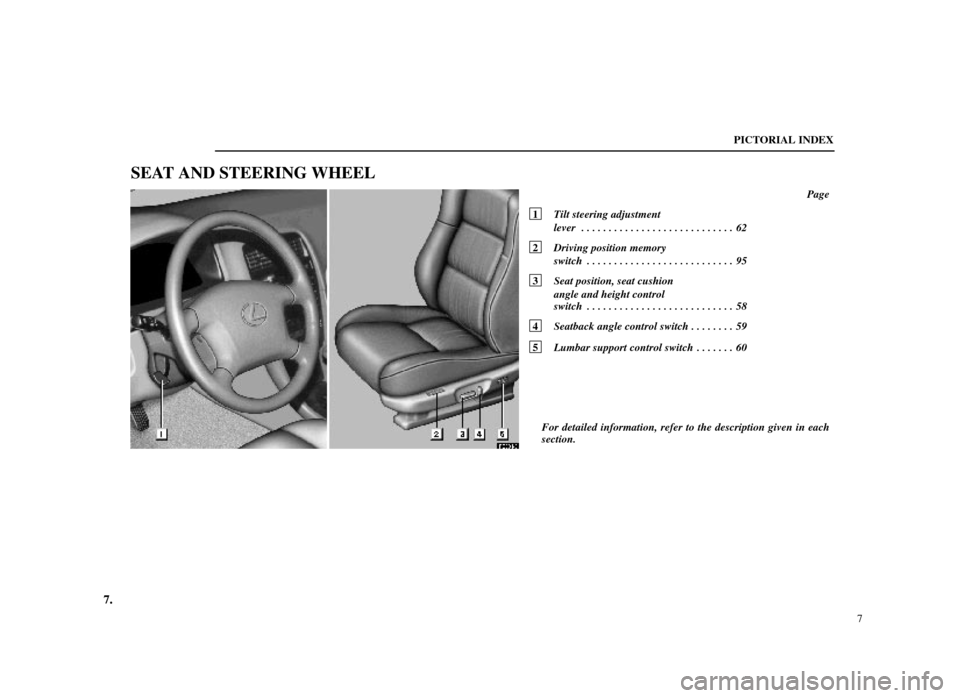

SEAT AND STEERING WHEEL
Page
1 Tilt steering adjustment
lever 62
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Driving position memory
switch 95
. . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Seat position, seat cushion
angle and height control
switch 58
. . . . . . . . . . . . . . . . . . . . . . . . . . .
4 Seatback angle control switch 59 . . . . . . . .
5 Lumbar support control switch 60 . . . . . . .
For detailed information, refer to the description given in each
section.
Page 8 of 249
8.
PE005±3
PICTORIAL INDEX
8

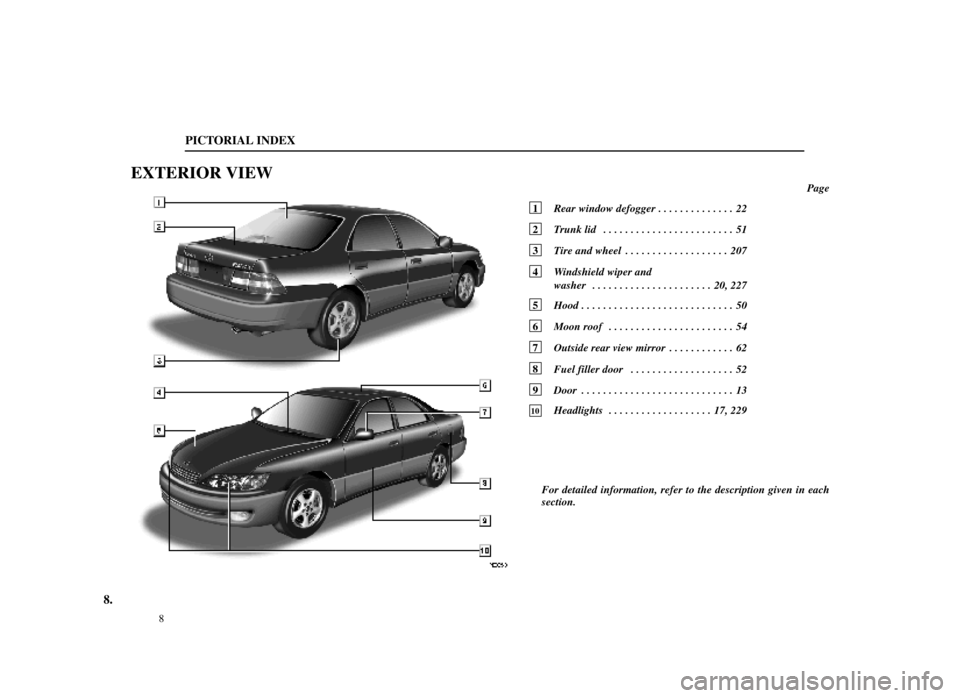

EXTERIOR VIEW
Page
1 Rear window defogger 22
. . . . . . . . . . . . . .
2 Trunk lid 51
. . . . . . . . . . . . . . . . . . . . . . . .
3 Tire and wheel 207
. . . . . . . . . . . . . . . . . . .
4 Windshield wiper and
washer 20, 227
. . . . . . . . . . . . . . . . . . . . . .
5 Hood 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Moon roof 54
. . . . . . . . . . . . . . . . . . . . . . .
7 Outside rear view mirror 62
. . . . . . . . . . . .
8 Fuel filler door
. . . . . . . . . . . . . . . . . . . 52
9 Door 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 Headlights 17, 229
. . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each
section.
Page 9 of 249
BASIC OPERATION
1
QUICK REFERENCE
Driver's seat2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Steering wheel 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Automatic transmission 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper switch 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Page 10 of 249
BE0018

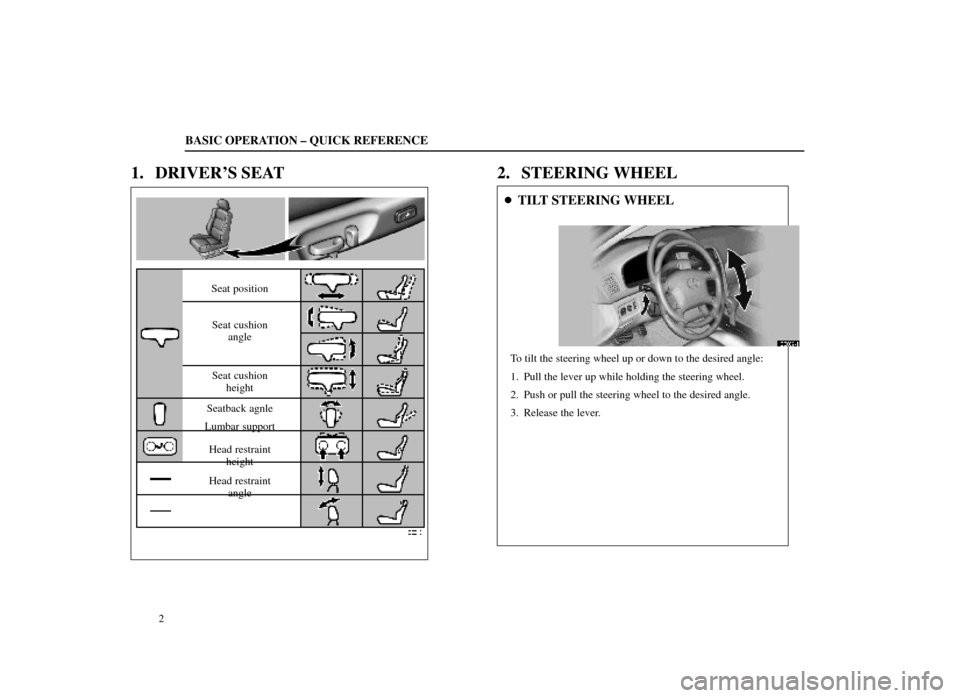

Seat positionSeat cushion angle
Seat cushion height
Seatback agnle
Lumbar support
Head restraint height
Head restraint angle
BASIC OPERATION ± QUICK REFERENCE
2
1. DRIVER'S SEAT 2. STEERING WHEEL
TILT STEERING WHEEL
BE002±1
To tilt the steering wheel up or down to the desired angle:
1. Pull the lever up while holding the steering wheel.
2. Push or pull the steering wheel to the desired angle.
3. Release the lever.
