Page 49 of 249
INTERIOR EQUIPMENT41

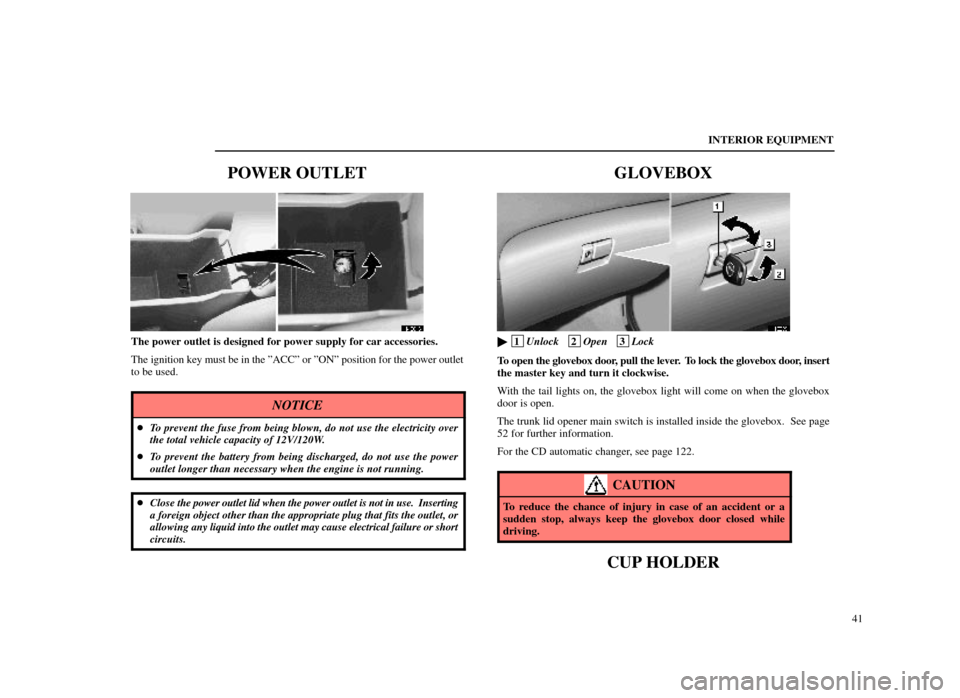

POWER OUTLET
14E016
The power outlet is designed for power supply for car accessories.
The ignition key must be in the ºACCº or ºONº position for the \
power outlet
to be used.
NOTICE
To prevent the fuse from being blown, do not use the electricity over
the total vehicle capacity of 12V/120W.
To prevent the battery from being discharged, do not use the power
outlet longer than necessary when the engine is not running.
Close the power outlet lid when the power outlet is not in use. Inserting
a foreign object other than the appropriate plug that fits the outlet, or\
allowing any liquid into the outlet may cause electrical failure or short
circuits.
GLOVEBOX
14E0039
1 Unlock 2Open 3Lock
To open the glovebox door, pull the lever. To lock the glovebox door, insert
the master key and turn it clockwise.
With the tail lights on, the glovebox light will come on when the glovebo\
x
door is open.
The trunk lid opener main switch is installed inside the glovebox. See \
page
52 for further information.
For the CD automatic changer, see page 122.
CAUTION
To reduce the chance of injury in case of an accident or a
sudden stop, always keep the glovebox door closed while
driving.
CUP HOLDER
Page 195 of 249
61E004±6
INTRODUCTION187

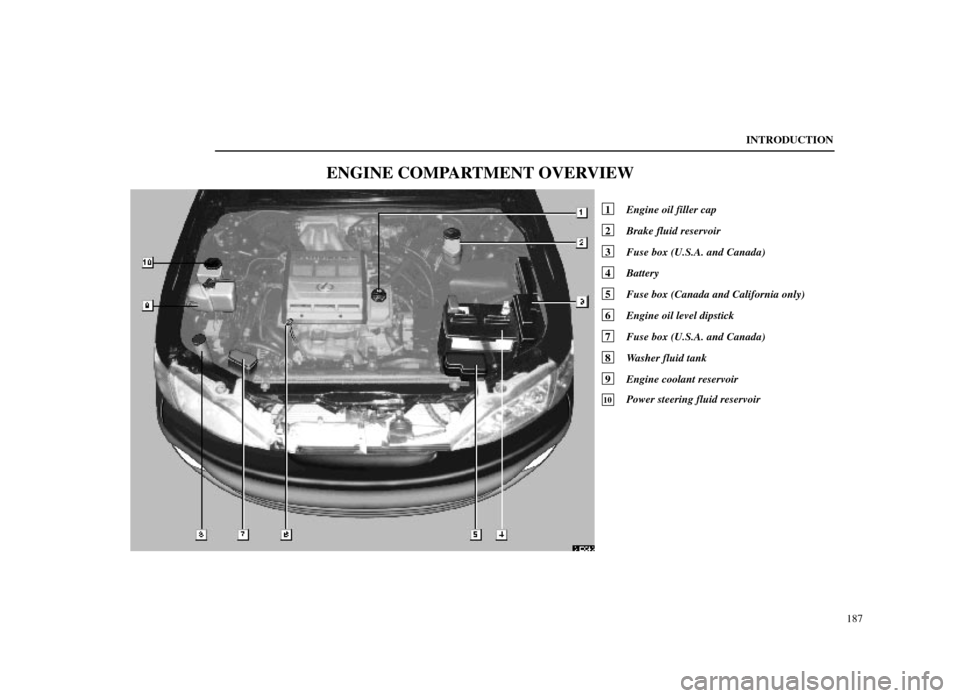

ENGINE COMPARTMENT OVERVIEW
1 Engine oil filler cap
2 Brake fluid reservoir
3 Fuse box (U.S.A. and Canada)
4 Battery
5 Fuse box (Canada and California only)
6 Engine oil level dipstick
7 Fuse box (U.S.A. and Canada)
8 Washer fluid tank
9 Engine coolant reservoir
10 Power steering fluid reservoir
Page 226 of 249
ELECTRICAL COMPONENTS
218
No.FUSEAMPERECIRCUIT
27 M/HTR10Outside rear view mirror defogger
28 ECU±IG15
Cruise control system, Anti±lock brake
system, Shift lock system, Power antenna,
Theft deterrent system, Electronic modulated
suspension, Wireless remote control
29 IGN5SRS, Multiport fuel injection
30 STOP15
Stop lights, High mounted stoplight, Cruise
control system, Electronic modulated
suspension, Anti±lock brake system, Shift
lock system, Power seat system, Multiport
fuel injection
31 TAIL10Tail light, Side marker lights, License plate
lights
32 PWR
OUTLET15Power outlet
33 OBD7.5On±board diagnosis system
34 FOG15Fog lights
35 ST5Starting system
36 DOOR25Door courtesy light, Theft deterrent system,
Power door lock system, Trunk lid opener,
Fuel filler door opener
No.FUSEAMPERECIRCUIT
37 PANEL7.5Instrument panel lights, Glovebox light
38 TURN7.5Emergency flashers, Turn signal lights
39 RAD NO.27.5Audio system
40 CIG15Cigarette lighter, Clock, SRS
41 DEF40Rear window defogger, Outside rear view
mirror defogger
42 PWR30Power window, Electronic moon roof, Power
seat system
43 AM140No circuit
SPARESpare fuse
Page 232 of 249
ELECTRICAL COMPONENTS
224

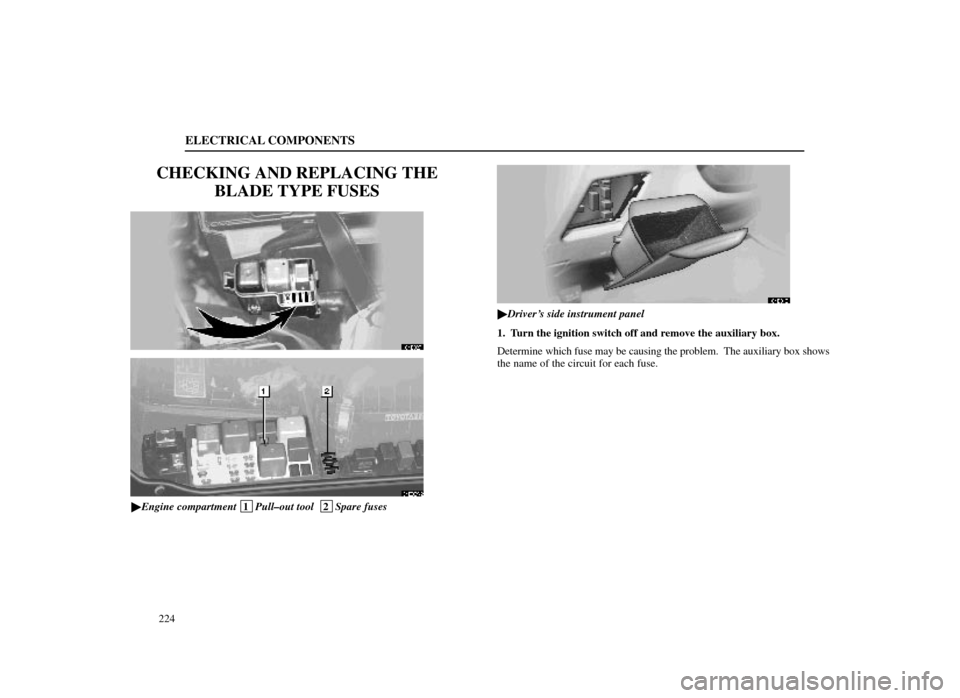

CHECKING AND REPLACING THEBLADE TYPE FUSES
64E027
64E029±2
Engine compartment 1
Pull±out tool 2Spare fuses
64E013
Driver's side instrument panel
1. Turn the ignition switch off and remove the auxiliary box.
Determine which fuse may be causing the problem. The auxiliary box shows
the name of the circuit for each fuse.
Page 233 of 249
ELECTRICAL COMPONENTS225

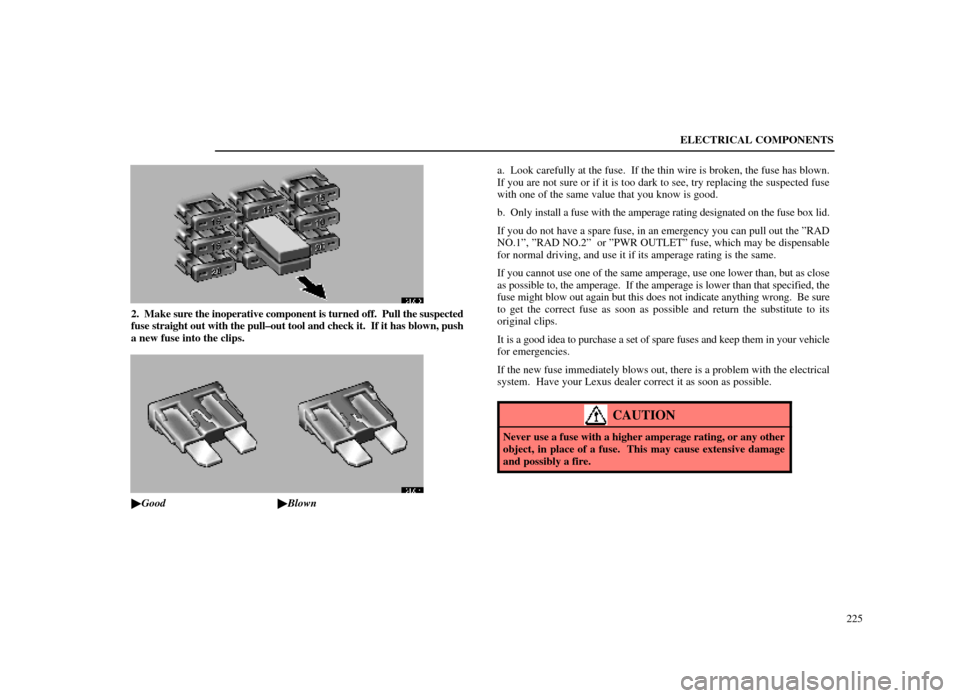

64L013
2. Make sure the inoperative component is turned off. Pull the suspected
fuse straight out with the pull±out tool and check it. If it has blown, \
push
a new fuse into the clips.
64L014
Good Blown a. Look carefully at the fuse. If the thin wire is broken, the fuse has blown.\
If you are not sure or if it is too dark to see, try replacing the suspe\
cted fuse
with one of the same value that you know is good.
b. Only
install a fuse with the amperage rating designated on the fuse box lid.
If you do not have a spare fuse, in an emergency you can pull out the ºRAD
NO.1º, ºRAD NO.2º or ºPWR OUTLETº fuse, which may be dispensable
for normal driving, and use it if its amperage rating is the same.
If you cannot use one of the same amperage, use one lower than, but as clo\
se
as possible to, the amperage. If the amperage is lower than that specifie\
d, the
fuse might blow out again but this does not indicate anything wrong. Be\
sure
to get the correct fuse as soon as possible and return the substitute to\
its
original clips.
It is a good idea to purchase a set of spare fuses and keep them in your vehicle
for emergencies.
If the new fuse immediately blows out, there is a problem with the elect\
rical
system. Have your Lexus dealer correct it as soon as possible.
CAUTION
Never use a fuse with a higher amperage rating, or any other
object, in place of a fuse. This may cause extensive damage
and possibly a fire.
