KEYS AND DOORS
11
11E016
When starting the engine, do not use the keywith other transponder keys around (includingkeys of other vehicles) and do not press otherkey plates against the key grip. Otherwise theengine may not start, or may stop soon after itstarts. If this happens, remove the key onceand then insert it again after taking off other
transponder keys (including keys of othervehicles) from the ring or while gripping orcovering them with your hand to start theengine.

KEYS AND DOORS
12
11L023-2
Do not bend the key grip.
Do not cover the key grip with any material thatcuts off electromagnetic waves.
Do not knock the key hard against otherobjects.
Do not leave the key exposed to hightemperatures for a long period, such as on the
dashboard and hood under the direct sunlight.
Do not put the key in water or wash it in an
ultrasonic washer.
Do not use the key with electromagneticmaterials.
ENGINE IMMOBILISER SYSTEM

KEYS AND DOORS
13
11L024±2

KEYS AND DOORS
14The engine immobiliser system is a theft prevention
system. When you insert the key in the ignition
switch, the transponder chip in the key's head
transmits an electronic code to the vehicle. The
engine will start, only when the electronic code in
the chip corresponds to the registered ID code for
the vehicle.
The system is automatically set when the key is
removed from the ignition switch. At this time, the
security indicator light at the bottom of the instrument
cluster flashes. When you insert the key in the ignition
switch, the security indicator light goes out and the
system is canceled automatically, which enables the
engine to start.
For your Lexus dealer to make you a new key with
built±in
transponder chip, your dealer will need your key
number and master key. However, there is a limit to the
number of additional keys your Lexus dealer can make
for you. If you make your own duplicate key, you will not be
able to cancel the system or start the engine.
For vehicles sold in U.S.A.
FCC ID: MOZ RI±4ATY MADE IN JAPAN
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.

KEYS AND DOORS
15
For vehicles sold in Canada
This device complies with RSS±210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
WIRELESS REMOTE CONTROL TRANSMITTER
11E007

KEYS AND DOORS
16This transmitter has 4 functions.
1
Locking the doors
2Unlocking the doors
3Unlocking the trunk lid
4Sounding an alarm
When you operate a button on the transmitter, push it
slowly and surely.
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may
vary with different conditions.
If you lose the transmitter, contact your Lexus dealer as
soon as possible to avoid the possibility of theft, or an
accident. You can use up to 4 wireless remote control transmitters
for the same vehicle. Contact your Lexus dealer for
detailed information.
The wireless remote control transmitter is an
electronic component. Observe the following
instructions in order not to cause damage to the
transmitter.

Do not leave the transmitter on places where the
temperature becomes high such as on the
dashboard.
 Do not disassemble it.
 Avoid knocking it hard against other objects or
dropping it.
 Avoid putting it in water.

KEYS AND DOORS
17
Locking/Unlocking the doors
When you push the ºLOCKº button on the
transmitter, all the doors can be locked from outside
the vehicle.
At this time, the parking, tail, side marker and license
plate lights flash 1 time sounding 1 beep. However,
when you push the ºLOCKº button with any door not
closed securely, the buzzer sounds for 10 seconds or
until all the doors are closed securely. If the key is in the
ignition switch or any of the doors are open, locking
cannot be done.
Make sure all the doors are locked when you leave the
vehicle.
When you push the ºUNLOCKº button, the driver's
door is unlocked. Pushing that button once again
within 3 seconds from the first push, all other doors
also unlock.
At this time, two beeps sound. Together with the
activation of unlocking, the interior light comes on for 15
seconds if the interior light switch is in ºDOORº position.
However, this function does not work when the ignition
key is in the ºONº position. For further information, see
ºInterior lightsº on page 70.
You have 30 seconds to open a door after using the
wireless remote unlock feature. If a door is not opened
by then, all the doors will be automatically locked again.
If the ºLOCKº or ºUNLOCKº switch is kept pressed in, the

KEYS AND DOORS
18locking or unlocking operation is not repeated. Release
the button and then push again.
11E001±2

1Off 2Louder
When you push the remote control switch, the vehicle
sounds one beep when the doors are locked by remote
control, and two beeps when the doors are unlocked.
You can adjust the beep loudness with the knob under
the instrument panel. Turning the knob clockwise
increases the volume and turning it counterclockwise
until it stops turns the buzzer off.

KEYS AND DOORS
19

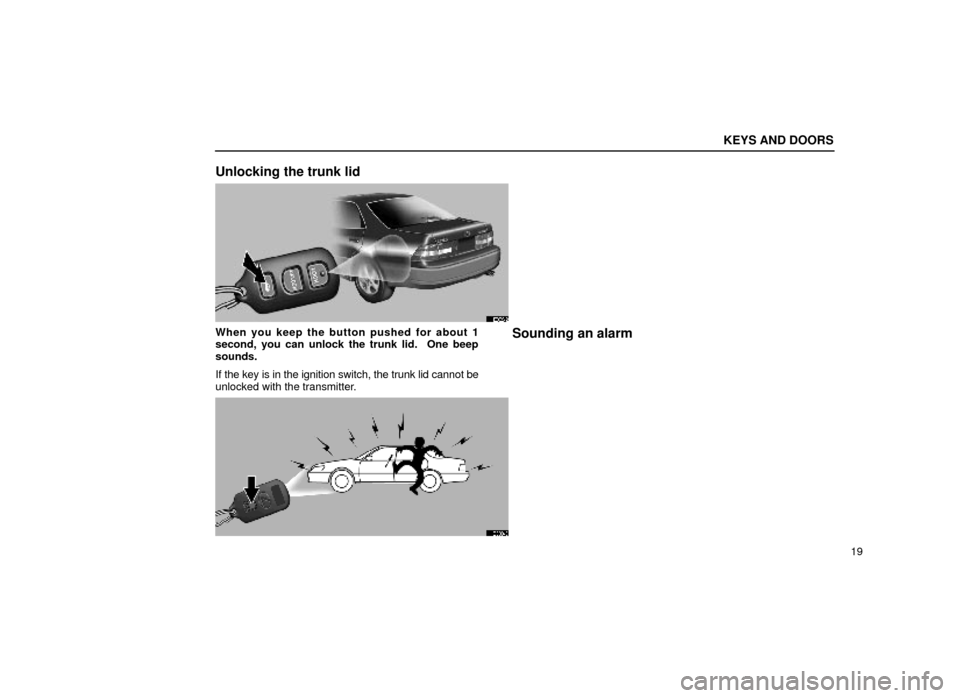

Unlocking the trunk lid
11E002±2
When you keep the button pushed for about 1
second, you can unlock the trunk lid. One beep
sounds.
If the key is in the ignition switch, the trunk lid cannot be
unlocked with the transmitter.Sounding an alarm
11E003±3

KEYS AND DOORS
20When you push the ºPANICº button, an alarm
sounds to deter any person trying to break into or
damage your vehicle.
This feature works when the key is removed from the
ignition switch.
If you want to stop the alarm, push the ºPANICº or
ºUNLOCKº button.
If the remote control features do not function correctly,
or do not operate from a normal distance, the battery
may have been consumed. Contact your Lexus dealer.

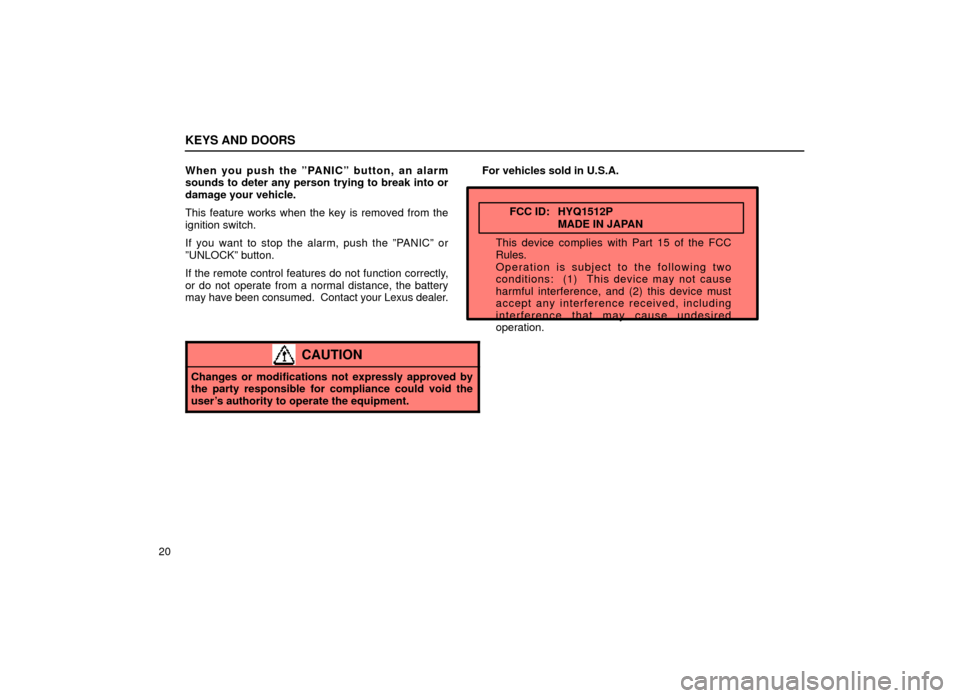

For vehicles sold in U.S.A.
FCC ID: HYQ1512P MADE IN JAPAN
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
