Lexus ES300 1999 s (in English) Service Manual

KEYS AND DOORS
21

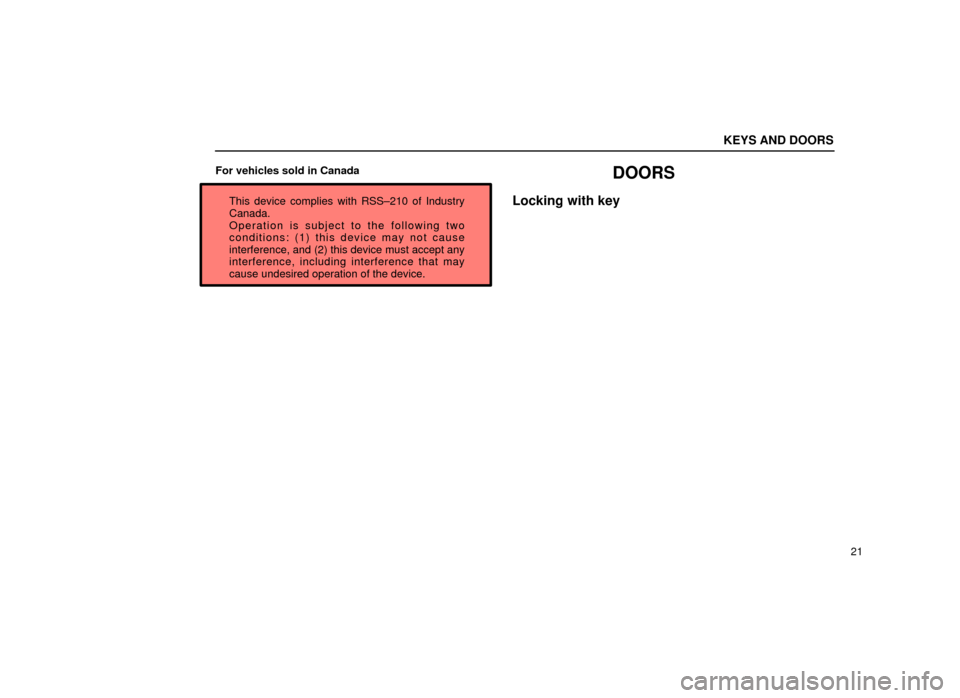

For vehicles sold in Canada
This device complies with RSS±210 of Industry
Canada.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
DOORS

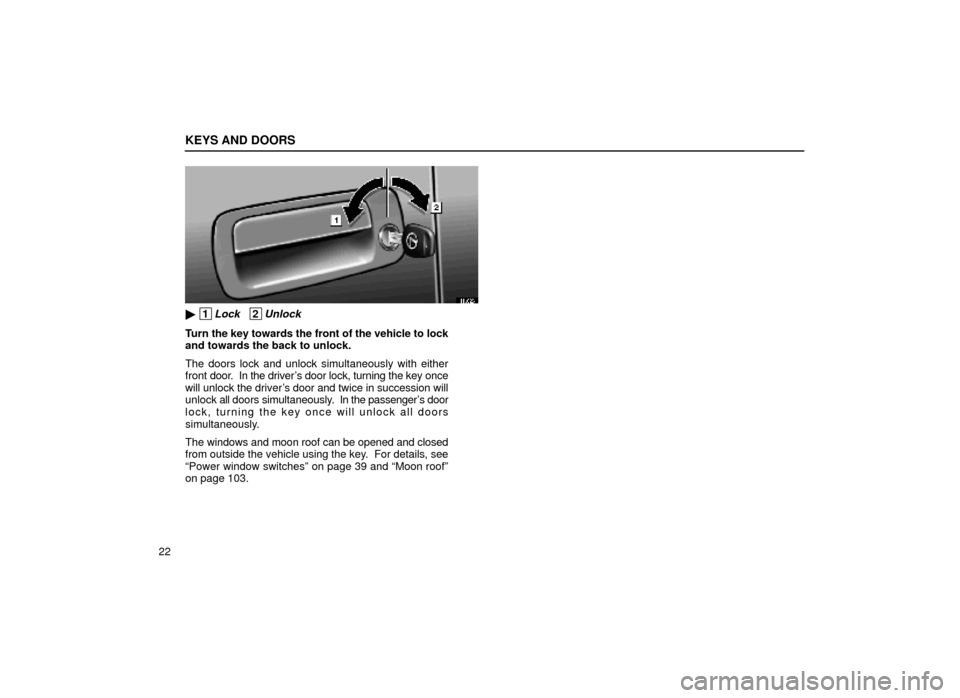

Locking with key

KEYS AND DOORS
22
11L026

1Lock 2Unlock
Turn the key towards the front of the vehicle to lock
and towards the back to unlock.
The doors lock and unlock simultaneously with either
front door. In the driver's door lock, turning the key once
will unlock the driver's door and twice in succession will
unlock all doors simultaneously. In the passenger's door
lock, turning the key once will unlock all doors
simultaneously.
The windows and moon roof can be opened and closed
from outside the vehicle using the key. For details, see
ªPower window switchesº on page 39 and ªMoon roofº
on page 103.

KEYS AND DOORS
23

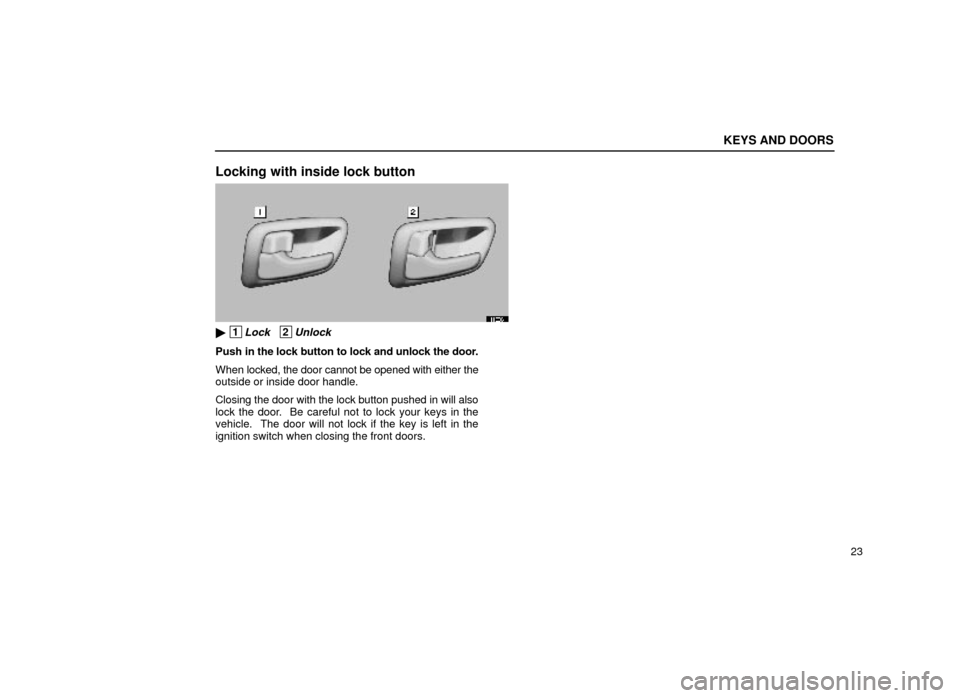

Locking with inside lock button
11E004

1Lock 2Unlock
Push in the lock button to lock and unlock the door.
When locked, the door cannot be opened with either the
outside or inside door handle.
Closing the door with the lock button pushed in will also
lock the door. Be careful not to lock your keys in the
vehicle. The door will not lock if the key is left in the
ignition switch when closing the front doors.

KEYS AND DOORS
24
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.

KEYS AND DOORS
25

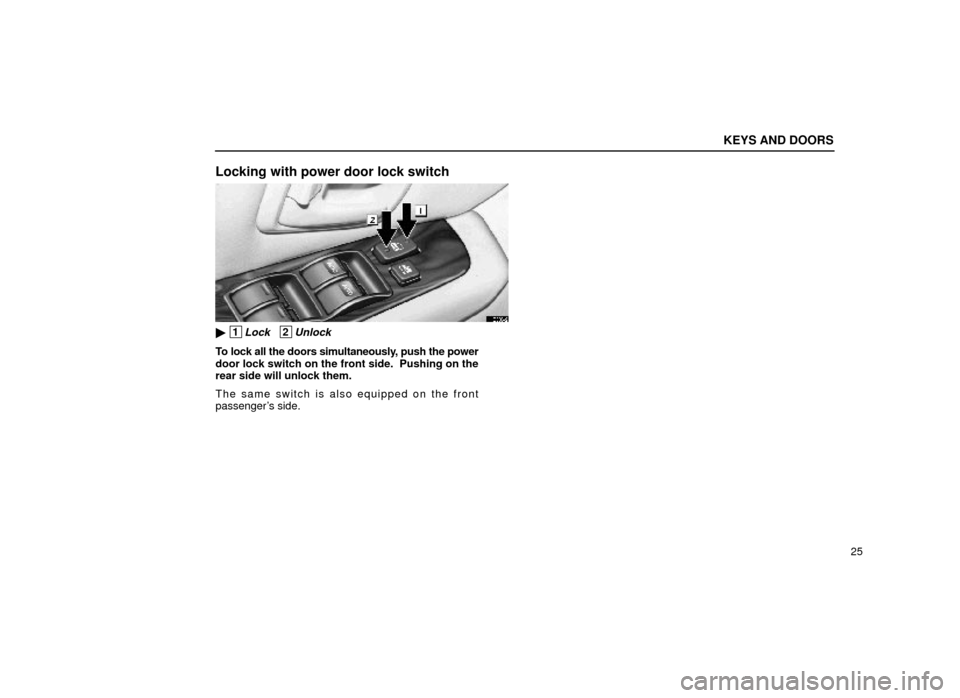

Locking with power door lock switch
11E005±2

1Lock 2Unlock
To lock all the doors simultaneously, push the power
door lock switch on the front side. Pushing on the
rear side will unlock them.
The same switch is also equipped on the front
passenger's side.

KEYS AND DOORS
26

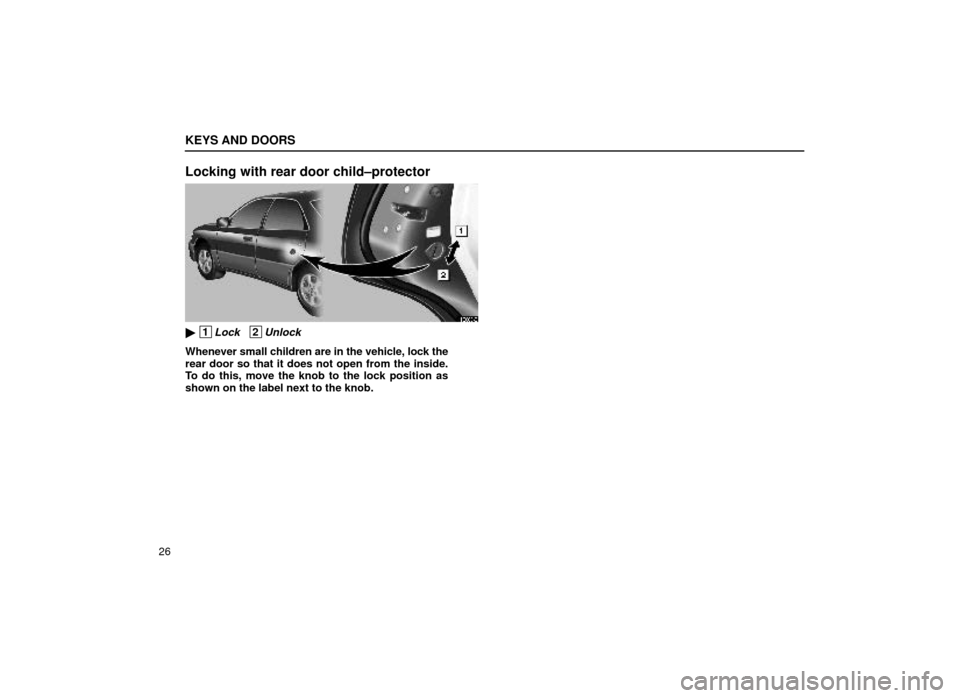

Locking with rear door child±protector
11E006±2

1Lock 2Unlock
Whenever small children are in the vehicle, lock the
rear door so that it does not open from the inside.
To do this, move the knob to the lock position as
shown on the label next to the knob.

KEYS AND DOORS
27

SECTION 1 ± 2
28
INSTRUMENTS AND CONTROLS
Switches
Headlight switch28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 31
. . . . . . . . . .
Fog light switch 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch 33
. . . . . . . . . . . . . .
Rear window and outside rear view mirror defogger
switch 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Power window switches 39
. . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 45
. . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 46
. . . . . . . . . . . . . . . . . . . . . . . . . . .

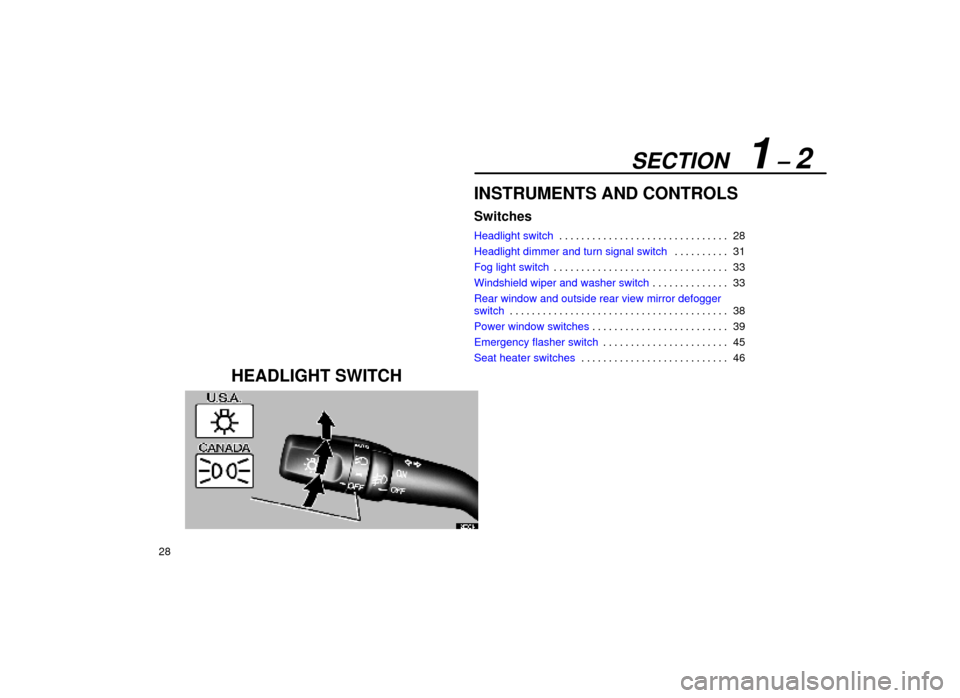

HEADLIGHT SWITCH
12E001±1

SWITCHES
29
To turn the lights on, twist the knob on the end of the
lever.
FIRST CLICKSTOP: Only the parking, tail, license
plate, side marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (ºAUTOº): The headlights and all
other lights automatically turn on depending on the
darkness of the surroundings.
Vehicles sold in U.S.A.:
When the headlights are on,
the headlight indicator lights up in the instrument cluster.
Vehicles sold in Canada: When the tail lights are on,
the tail light indicator lights up in the instrument cluster.
Manually twist the knob to the second clickstop to
turn on the headlights if they are needed
immediately when entering a dark tunnel, parking
structure, etc. When
the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control
knob is turned fully on.
12E002

SWITCHES

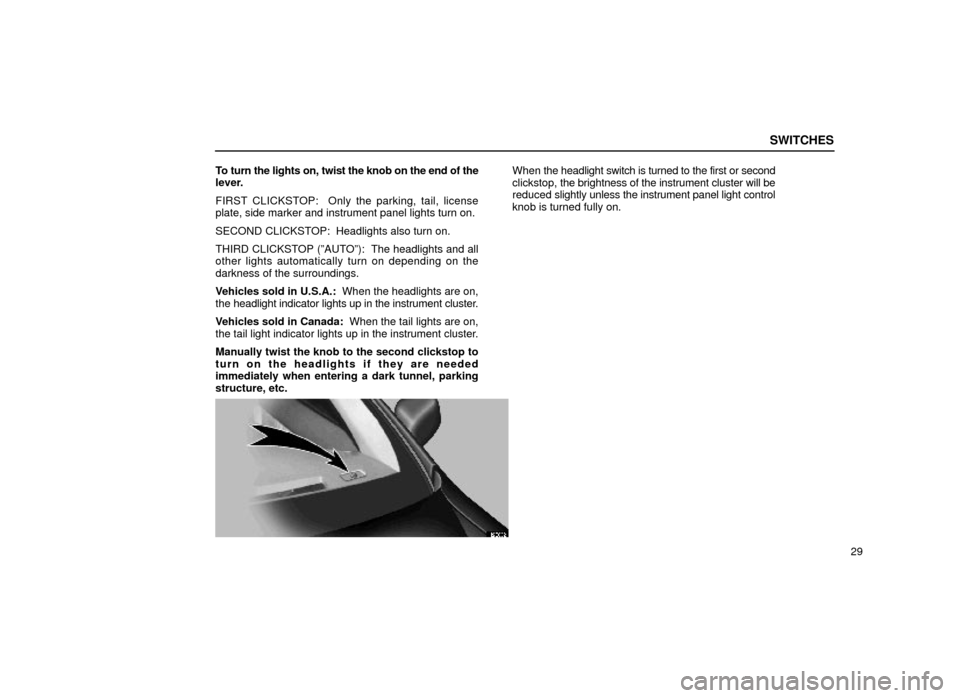

30The automatic light control sensor is on top of the
driver's side instrument panel.
Do not place anything on the instrument panel, and/or do
not affix anything on the windshield to block this sensor.
When the headlights come on, the lights automatically
turn off about 30 seconds after any of the doors is
opened and closed with the ignition key turned to the
ºACCº or ºLOCKº position. To turn them on again, turn
the ignition key to the ºONº position, or turn the headlight
switch off
and then twist the knob until the first or second
clickstop. If you are going to park for over one week,
make sure the headlight switch is off.
When the headlight switch is on with all the doors locked,
pushing the ºLOCKº button on the wireless remote
control transmitter turns off the headlights.
Daytime Running Light System
The headlights turn on at reduced intensity when the
parking brake is released with the engine started, even
with the light switch in the ºOFFº position. They will not
go off until the ignition switch is turned off.
To turn on the other exterior lights and instrument panel
lights, twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the
headlights to full intensity for driving at night.
When setting the knob to the third clickstop (ºAUTOº),
the headlights will automatically adjust to full intensity
and/or turn on the other lights depending on the darkness of the surroundings. Likewise, as the
surroundings be
come brighter, the headlights will turn to
reduced intensity, ultimately turning off the other lights.
NOTICE
To prevent the battery from being discharged, do not leave the lights on longer than necessarywhen the engine is not running.
