EXTERIOR EQUIPMENT
101
HOOD
15E016
1. To open the hood, pull the hood lock release lever
under the instrument panel. The hood will spring up
slightly.
15E023
2. Insert your fingers under the hood, push up the
auxiliary catch lever and lift the hood.

EXTERIOR EQUIPMENT
102Before
closing the hood, check to see that you have not
forgotten any tools, rags, etc. Then lower the hood and
make sure it locks.

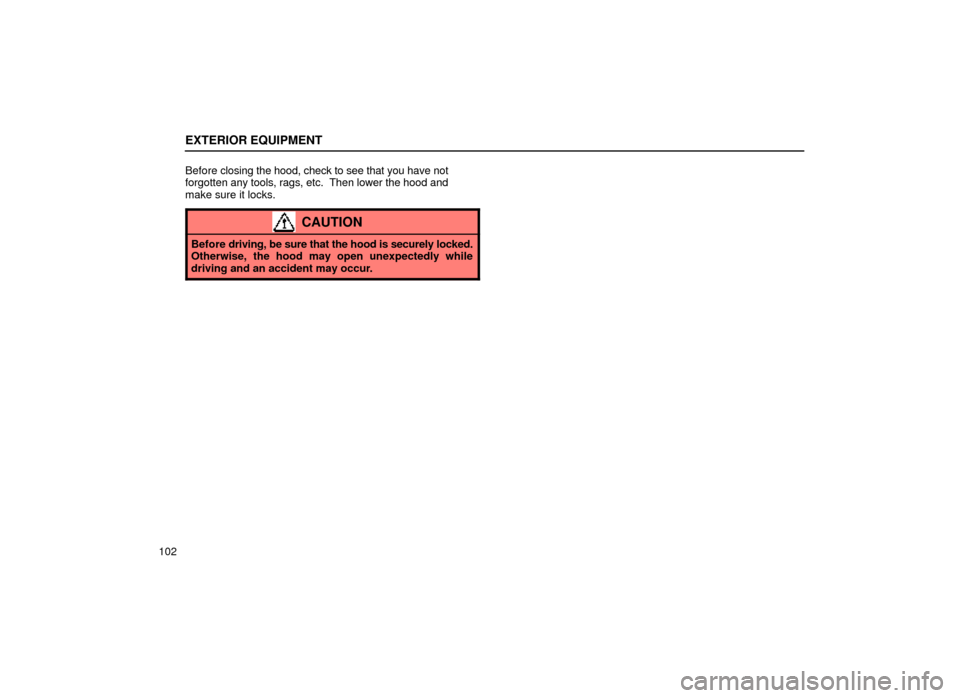

CAUTION
Before driving, be sure that the hood is securely locked.
Otherwise, the hood may open unexpectedly while
driving and an accident may occur.

EXTERIOR EQUIPMENT
103

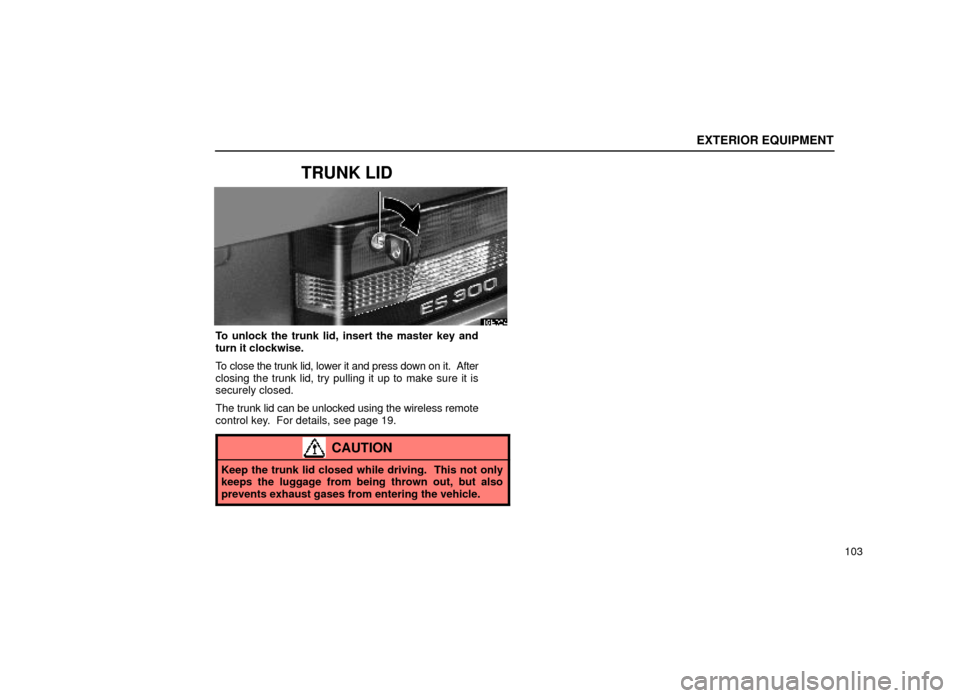

TRUNK LID
15E024
To unlock the trunk lid, insert the master key and
turn it clockwise.
To close the trunk lid, lower it and press down on it. After
closing the trunk lid, try pulling it up to make sure it is
securely closed.
The trunk lid can be unlocked using the wireless remote
control key. For details, see page 19.
CAUTION
Keep the trunk lid closed while driving. This not only
keeps the luggage from being thrown out, but also
prevents exhaust gases from entering the vehicle.

EXTERIOR EQUIPMENT
104

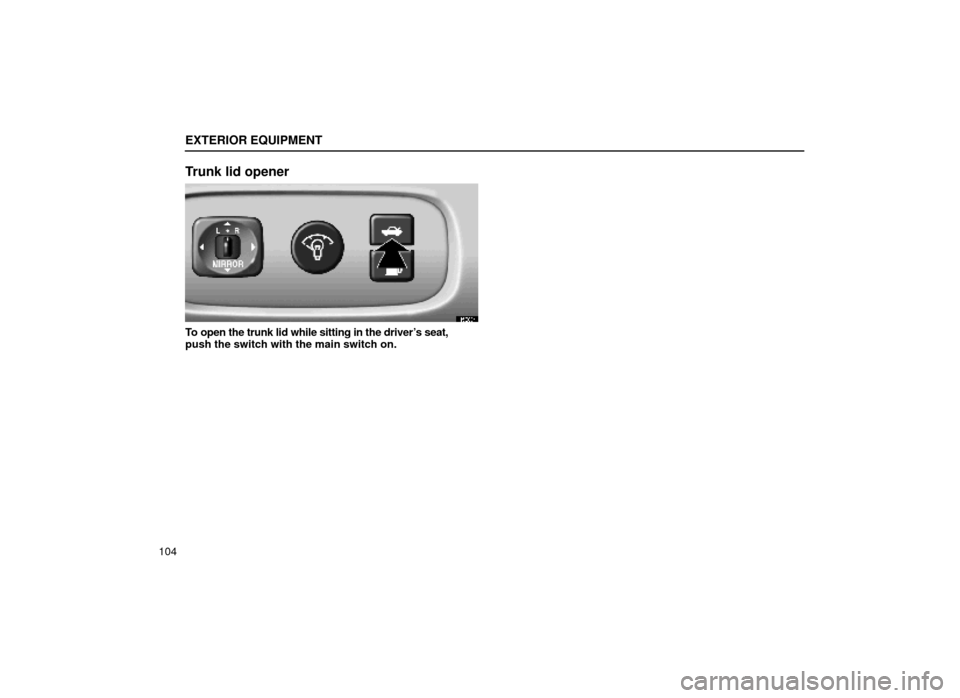

Trunk lid opener
15E004
To open the trunk lid while sitting in the driver's seat,
push the switch with the main switch on.

EXTERIOR EQUIPMENT
105

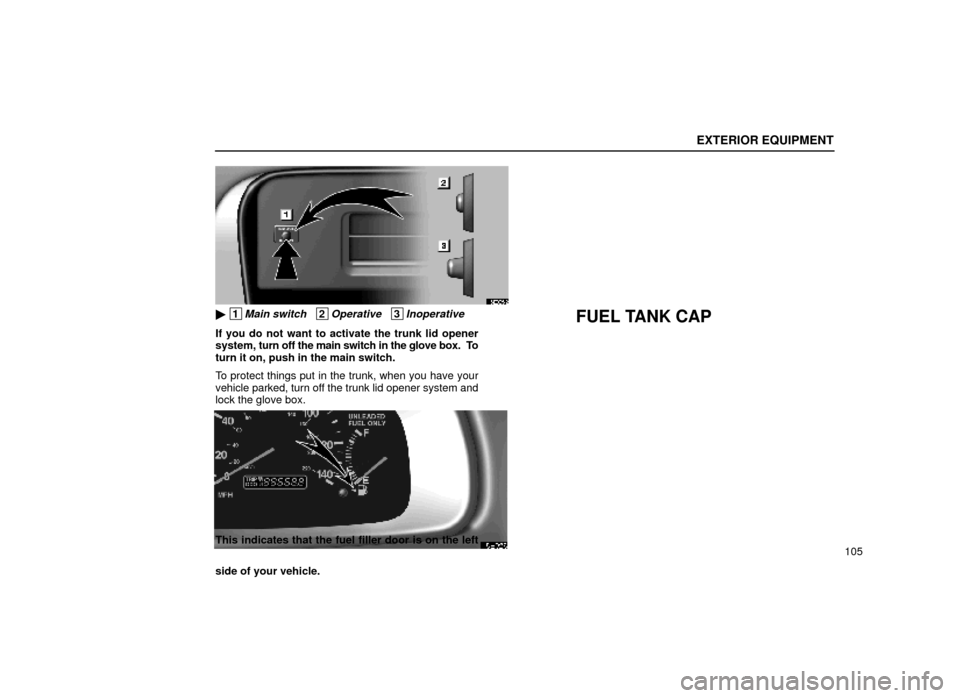

15E005±2

1Main switch 2Operative 3Inoperative
If you do not want to activate the trunk lid opener
system, turn off the main switch in the glove box. To
turn it on, push in the main switch.
To protect things put in the trunk, when you have your
vehicle parked, turn off the trunk lid opener system and
lock the glove box.
FUEL TANK CAP
15E026
This indicates that the fuel filler door is on the left
side of your vehicle.

EXTERIOR EQUIPMENT
106

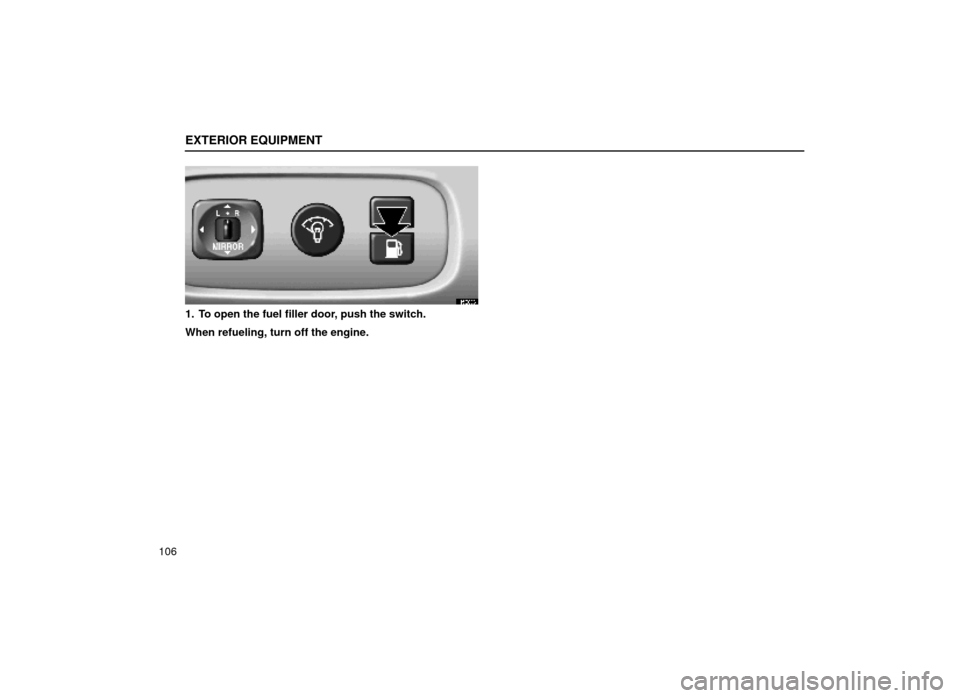

15E006
1. To open the fuel filler door, push the switch.
When refueling, turn off the engine.

EXTERIOR EQUIPMENT
107

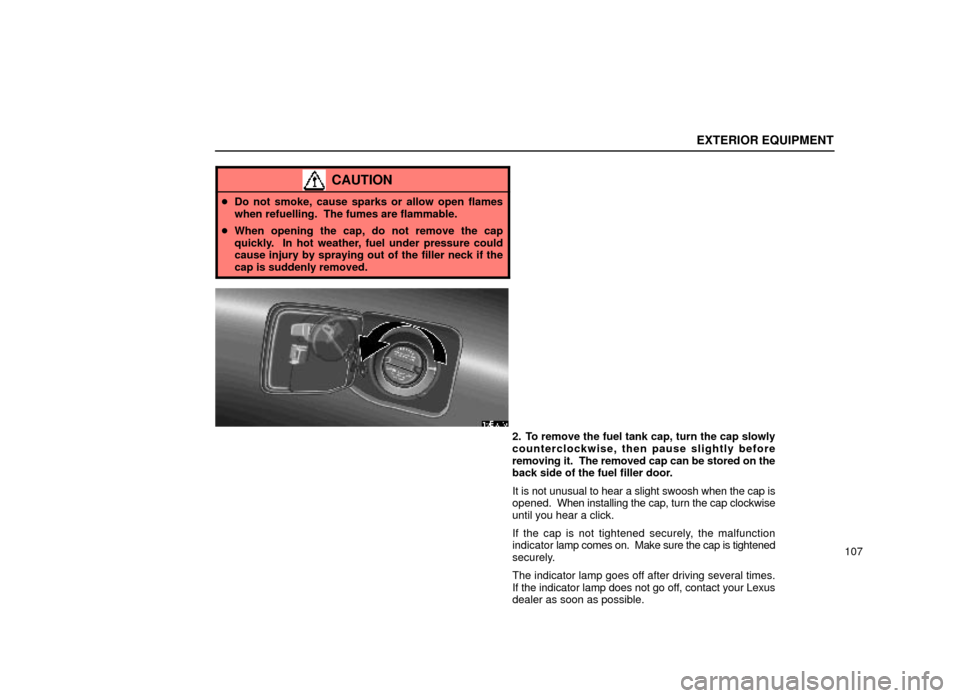

CAUTION
Do not smoke, cause sparks or allow open flames
when refuelling. The fumes are flammable.
 When opening the cap, do not remove the cap
quickly. In hot weather, fuel under pressure could
cause injury by spraying out of the filler neck if the
cap is suddenly removed.
15E007a
2. To remove the fuel tank cap, turn the cap slowly
counterclockwise, then pause slightly before
removing it. The removed cap can be stored on the
back side of the fuel filler door.
It is not unusual to hear a slight swoosh when the cap is
opened. When installing the cap, turn the cap clockwise
until you hear a click.
If the cap is not tightened securely, the malfunction
indicator lamp comes on. Make sure the cap is tightened
securely.
The indicator lamp goes off after driving several times.
If the indicator lamp does not go off, contact your Lexus
dealer as soon as possible.

EXTERIOR EQUIPMENT
108

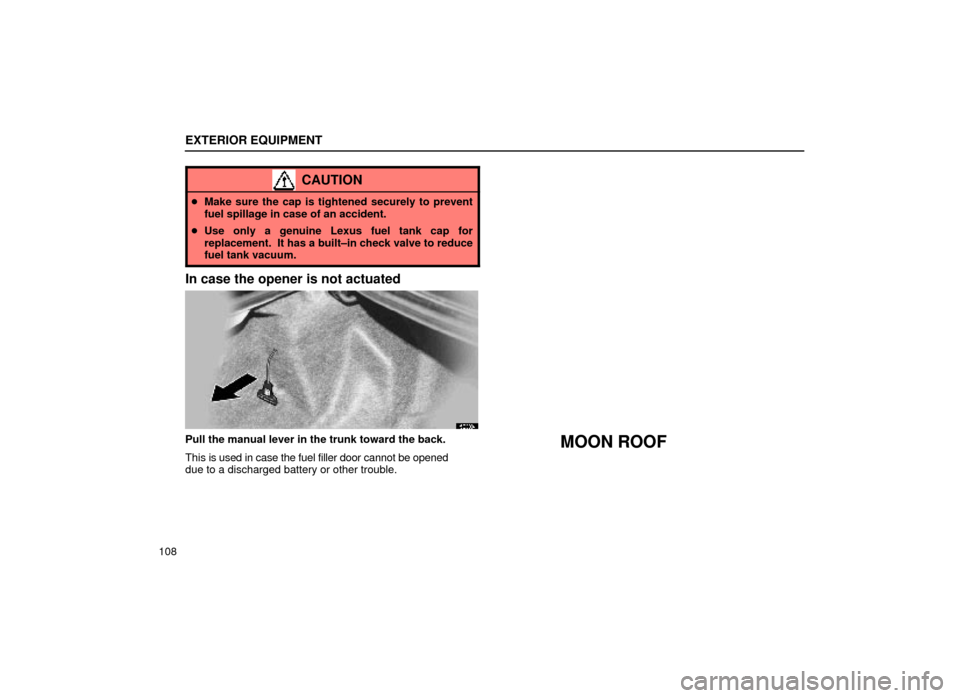

CAUTION
Make sure the cap is tightened securely to prevent
fuel spillage in case of an accident.
 Use only a genuine Lexus fuel tank cap for
replacement. It has a built±in check valve to reduce
fuel tank vacuum.
In case the opener is not actuated
15E008±1
Pull the manual lever in the trunk toward the back.
This is used in case the fuel filler door cannot be opened
due to a discharged battery or other trouble.MOON ROOF

EXTERIOR EQUIPMENT
109

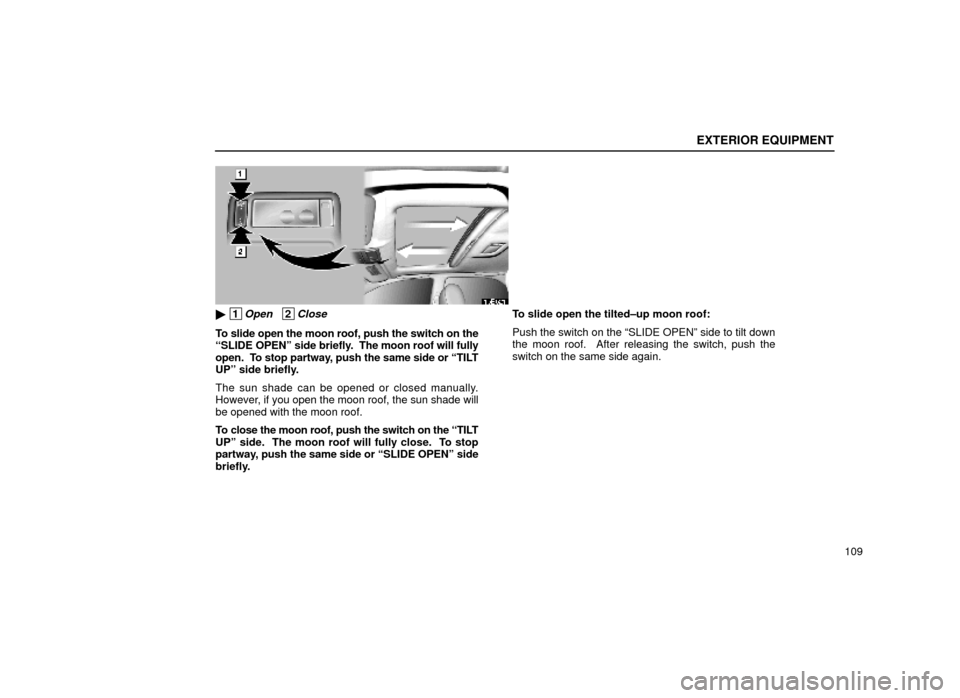

15E021

1Open 2Close
To slide open the moon roof, push the switch on the
ªSLIDE OPENº side briefly. The moon roof will fully
open. To stop partway, push the same side or ªTILT
UPº side briefly.
The sun shade can be opened or closed manually.
However, if you open the moon roof, the sun shade will
be opened with the moon roof.
To close the moon roof, push the switch on the ªTILT
UPº side. The moon roof will fully close. To stop
partway, push the same side or ªSLIDE OPENº side
briefly. To slide open the tilted±up moon roof:
Push the switch on the ªSLIDE OPENº side to tilt down
the moon roof. After releasing the switch, push the
switch on the same side again.

EXTERIOR EQUIPMENT
11 0

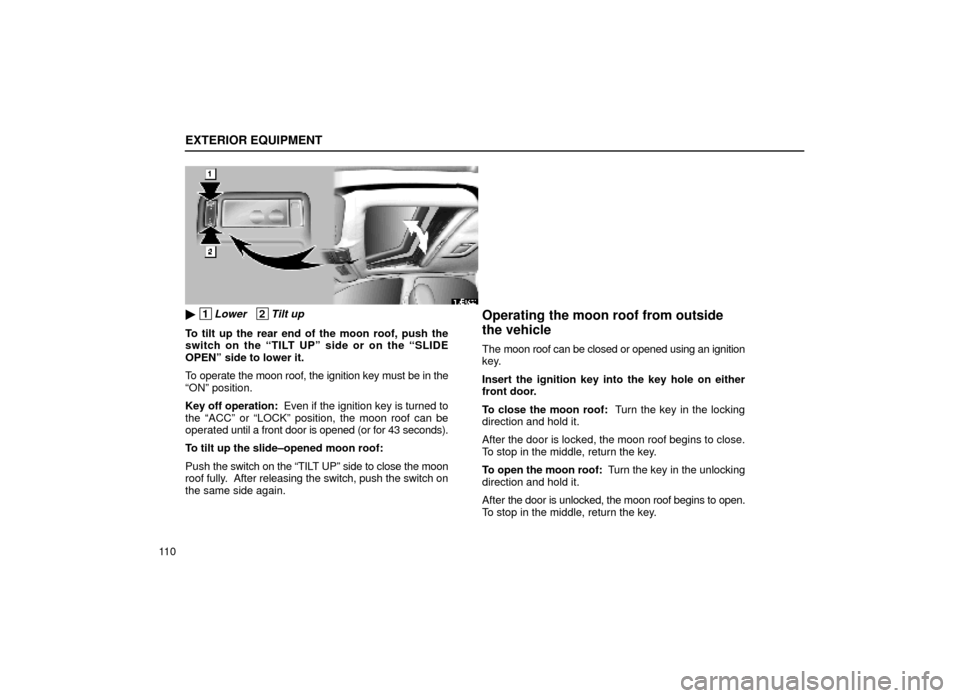

15E022

1Lower 2Tilt up
To tilt up the rear end of the moon roof, push the
switch on the ªTILT UPº side or on the ªSLIDE
OPENº side to lower it.
To operate the moon roof, the ignition key must be in the
ªONº position.
Key off operation: Even if the ignition key is turned to
the ªACCº or ªLOCKº position, the moon roof can be
operated until a front door is opened (or for 43 seconds).
To tilt up the slide±opened moon roof:
Push the switch on the ªTILT UPº side to close the moon
roof fully. After releasing the switch, push the switch on
the same side again.
Operating the moon roof from outside
the vehicle
The moon roof can be closed or opened using an ignition
key.
Insert the ignition key into the key hole on either
front door.
To close the moon roof: Turn the key in the locking
direction and hold it.
After the door is locked, the moon roof begins to close.
To stop in the middle, return the key.
To open the moon roof: Turn the key in the unlocking
direction and hold it.
After the door is unlocked, the moon roof begins to open.
To stop in the middle, return the key.
