Lexus ES300 2000 s (in English) Owners Manual

SECTION 1 ± 4
71
INSTRUMENTS AND CONTROLS
Interior equipment
Vanity mirrors71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal light 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Cigarette lighter and ashtray 81
. . . . . . . . . . . . . . . . . . . . .
Power outlet 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 85
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Rear console box 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overhead console box 93
. . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary box 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Luggage stowage precautions 97
. . . . . . . . . . . . . . . . . . .
VANITY MIRRORS

INTERIOR EQUIPMENT
72
14E001±1

Sun visor with garage door opener

INTERIOR EQUIPMENT
73
14E047

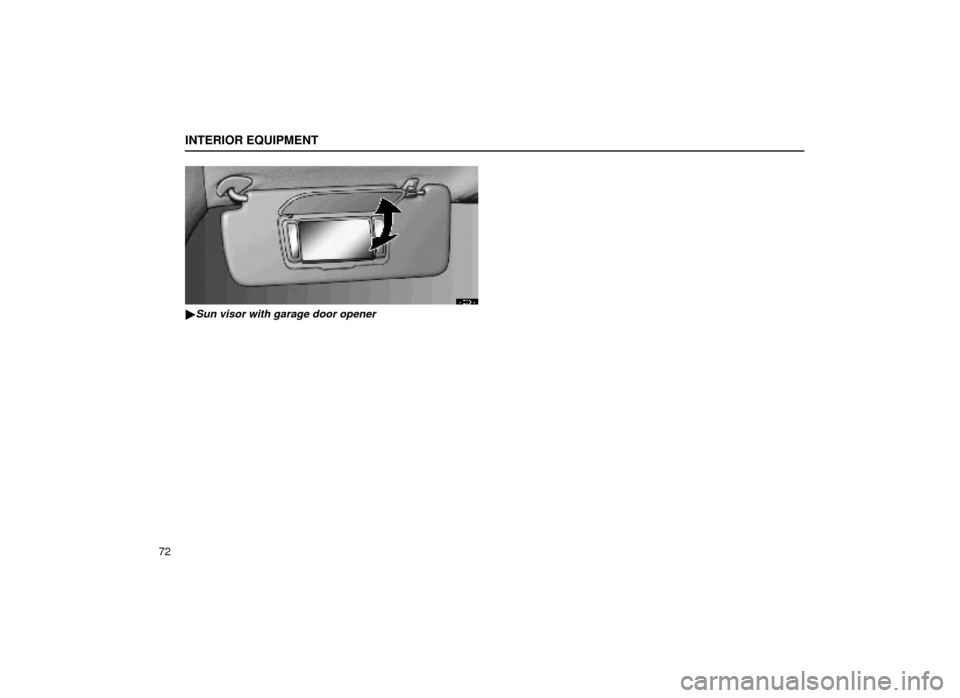

Sun visor without garage door opener
To use the vanity mirrors, swing the sun visor down
and open the cover.
The vanity lights come on when you open the cover.

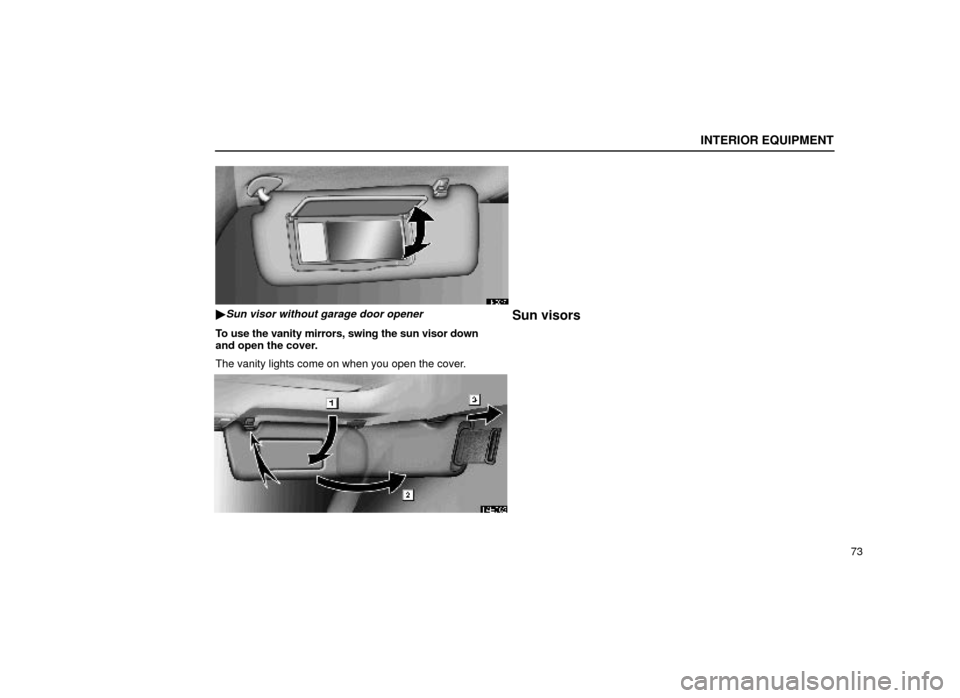

Sun visors
14E062

INTERIOR EQUIPMENT
74
1To block out glare from the front , swing the sun
visor down.
2To block out glare from the side, remove the
sun visor from the hook and swing it to the side.
3To block out glare coming obliquely from
behind you, pull out an extension plate from the
inside of the sun visor.
CAUTION
Do not pull out the extension plate when the visor is in
the position 1. It can cover the inside rear view mirror
and obstruct the rear view.

INTERIOR EQUIPMENT
75
NOTICE
Take care not to swing back the sun visor withoutpushing back the extension plate so as not todamage the extension plate.
INTERIOR LIGHT

INTERIOR EQUIPMENT
76
14E003

INTERIOR EQUIPMENT
77

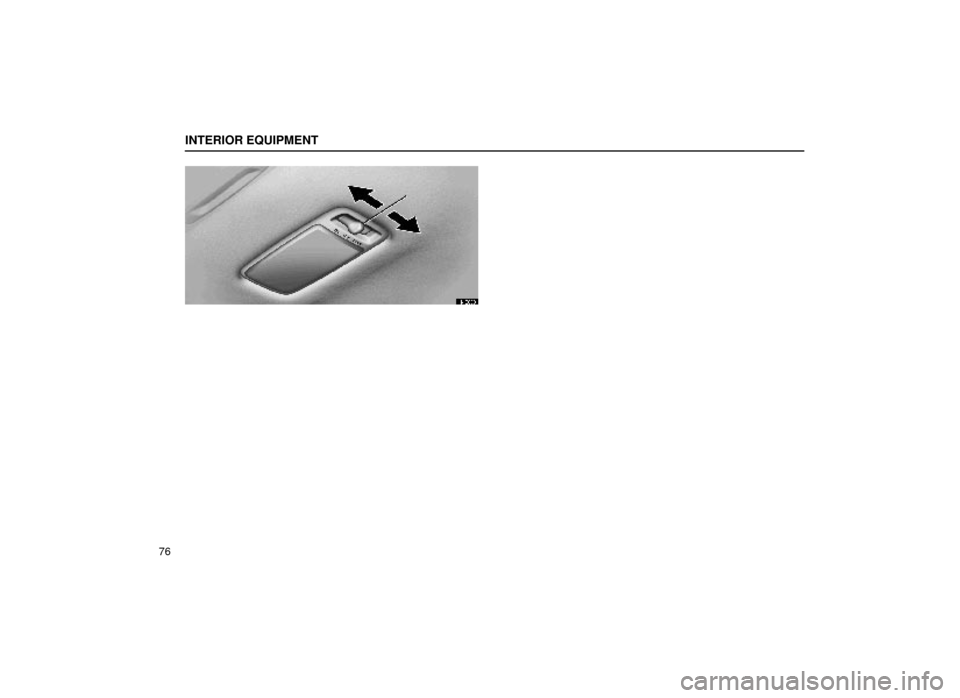

To turn on the interior light, slide the switch.
With the switch in the ªDOORº position, the light comes
on when any of the doors are opened. After all the doors
are closed, the light remains on for about 15 seconds
and then goes out.
However, in the following cases, the light goes out
immediately:
1. All the doors are closed when the ignition key is in
ªACCº or ªONº position.
2. The ignition key is turned to ªACCº or ªONº when the
light is still on.
3. All the doors are locked when the light is still on.
4. One door is closed with the lock button pushed in
while the other doors are locked.
PERSONAL LIGHT
14E033a

INTERIOR EQUIPMENT
78

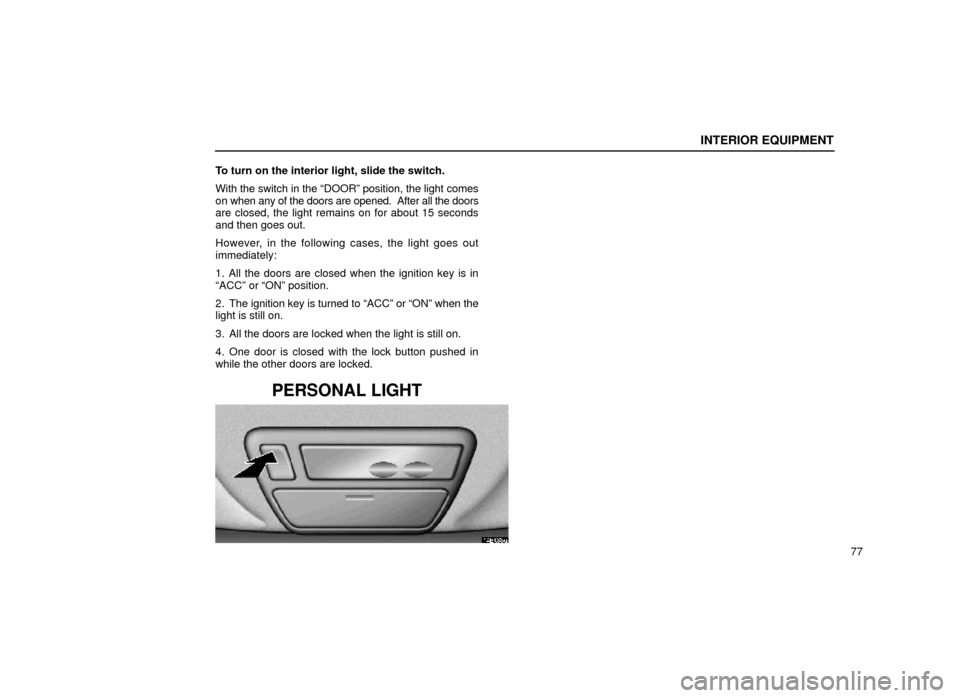

Vehicles without moon roof
To turn on the personal light, push the switch. To
turn it off, push the switch again.

INTERIOR EQUIPMENT
79
14E052

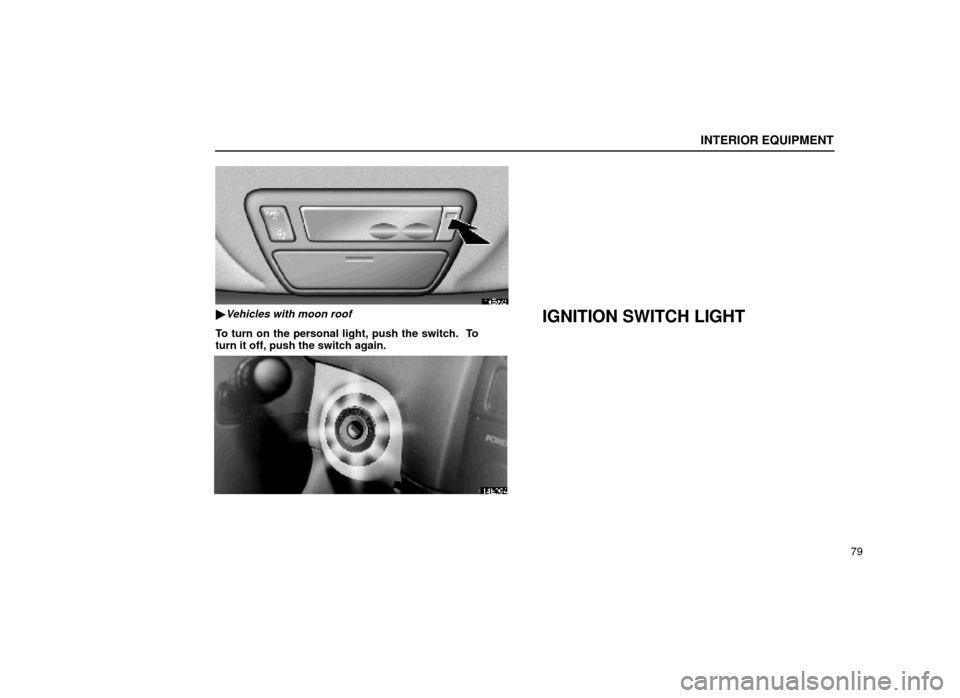

Vehicles with moon roof
To turn on the personal light, push the switch. To
turn it off, push the switch again.
IGNITION SWITCH LIGHT
14E054

INTERIOR EQUIPMENT
80For easy access to the ignition switch, the ignition
switch light comes on when any of the doors are
opened.
The light remains on for about 15 seconds and goes out
after all the doors are closed. However, the light goes
out immediately when all the doors are locked or the
ignition key is in the ªACCº or ªONº position.
