Lexus ES300 2000 Owner's Manuals (in English)

AIR CONDITIONING
231

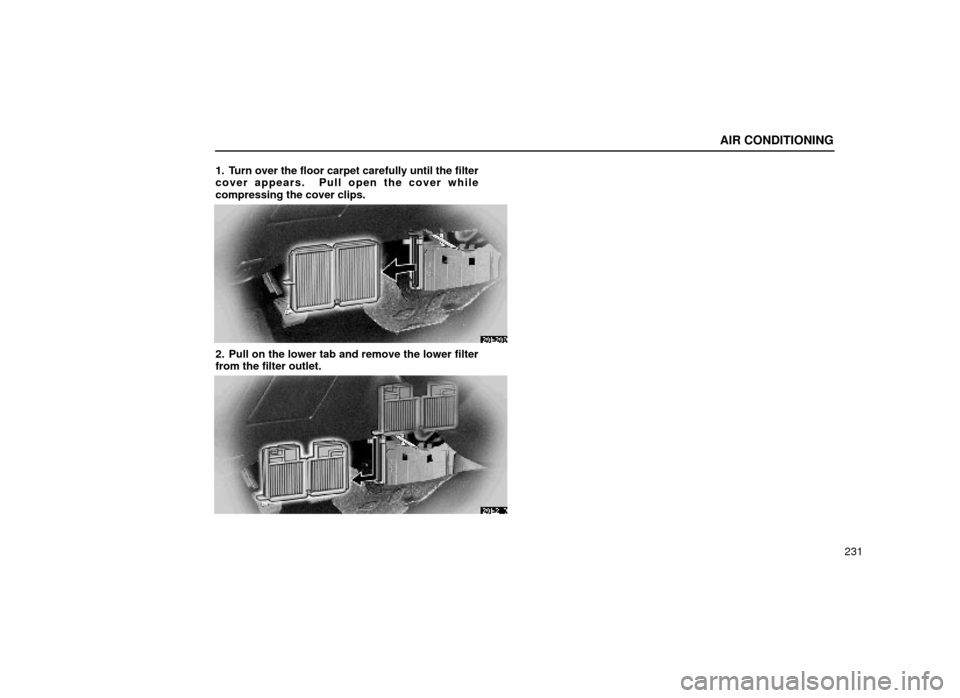

1. Turn over the floor carpet carefully until the filter
cover appears. Pull open the cover while
compressing the cover clips.
20E209
2. Pull on the lower tab and remove the lower filter
from the filter outlet.
20E210

AIR CONDITIONING
2323. Remove the
upper filter by pulling down on its tab
then pulling it out.
4. Inspect the filter on the surface facing the front of
the vehicle.
If it is the just moderately dusty, it may be cleaned by
blowing compressed air from the reverse surface. Do
not wash or oil the filter.
If it the dirty, it should be replaced.
CAUTION
Make sure the floor mat and carpet are properly placed
on its original place. If the floor mat and carpet
interferes with the movement of the pedals during
driving, it may cause an accident.

AIR CONDITIONING
233
NOTICE
Do not drive with the air conditioning filterremoved, or the efficiency of the air conditioningmay be lost.

SECTION 2 ± 2
234
AIR CONDITIONING AND AUDIO
Audio
Audio system235
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AUDIO
235
AUDIO SYSTEM

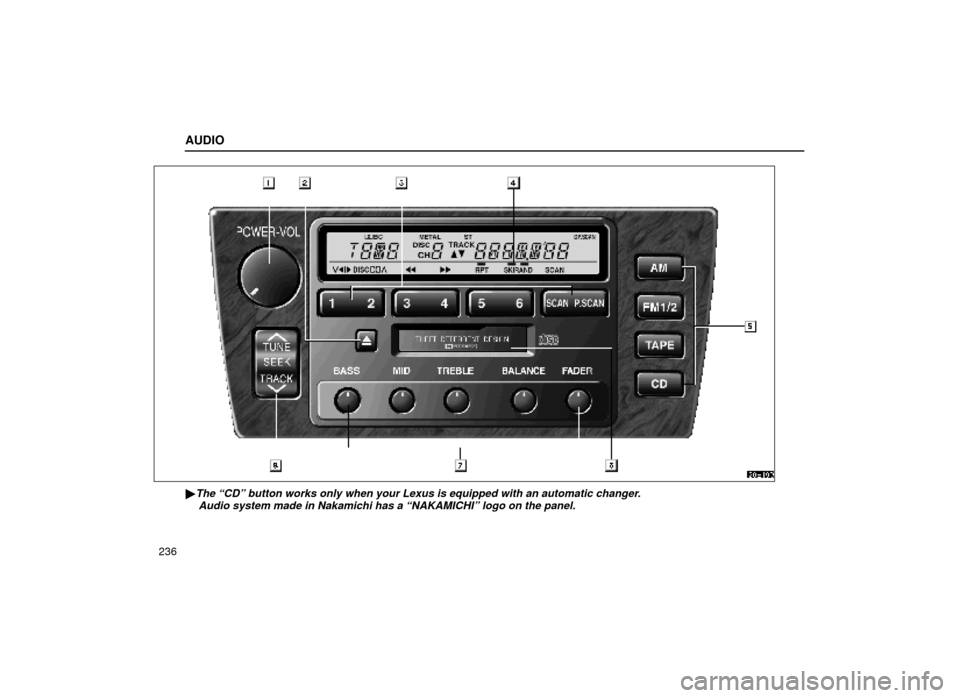

Quick reference for your audio system

AUDIO
236
20E100

The ªCDº button works only when your Lexus is equipped with an aut\
omatic changer.Audio system made in Nakamichi has a ªNAKAMICHIº logo on the panel\
.

AUDIO
237
1Turning the system on and adjusting volume
(See page 238 for details.)
2Stopping and ejecting a cassette tape
(See page 247 for details.)
3Function buttons
1 ± 6: Station selector buttons
(See page 244 for details.)
SCAN: Scan tuning
(See page 247 for details.)
P. SCAN: Preset scan tuning (See page 247 for details.)
4Display of functions in TAPE mode

:
Side change
(See page 249 for details.)
: DOLBY NR
(See page 249 for details.)
 :Rewinding
(See page 250 for details.)


:Fast forwarding
(See page 250 for details.)
RPT: Automatic repeat
(See page 251 for details.)
SKIP: Automatic skip of blank portions of tape
(See page 251 for details.)
SCAN: Scan selection
(See page 252 for details.)
4
Display of functions in CD mode
:Disc selection
(See page 258 for details.)
 :Reversing
(See page 262 for details.)


:Fast forwarding
(See page 262 for details.)
RPT: Automatic repeat
(See page 263 for details.)
RAND: Random access
(See page 263 for details.)
SCAN: Scan selection
(See page 260 for details.)
5
Mode selectors
(See page 239 for details.)
6Cassette tape slot
(See page 247 for details.)
7Tone and balance knobs
(See page 240 for details.)
8Radio mode: Frequency tuning
( S e e p a g e 243 o r 245 f o r
details.)
TAPE mode: Direct access to a desired
program (See page 253 for details.)
CD mode: Direct access to a desired

AUDIO
238program
(See page 261 for details.)
Using your audio system: some basics
This section describes some of the basic features of the
Lexus audio system. Some information may not pertain
to your system.
Your audio system works when the ignition key is in the
ªACCº or ªONº position.
NOTICE
To prevent the battery from being discharged, do not leave the car audio on longer than necessarywhen the engine is not running.
(a) Turning the system on and off
20E101
Push this knob to turn the audio system on and off.
Turn this knob to adjust the volume.
The system turns on in the last mode used.
20E102

AUDIO
239
Push
ªAMº, ªFM1/2º, ªTAPEº or ªCDº to turn on that
mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode
to another.
If the tape or disc is not set, the cassette player or
compact disc player does not turn on.
You can turn off the cassette player by ejecting the
cassette tape. If the audio system was previously off,
then the entire audio system will be turned off when you
eject the cassette tape. If another function was
previously playing, it will come on again.
20E014a

AUDIO

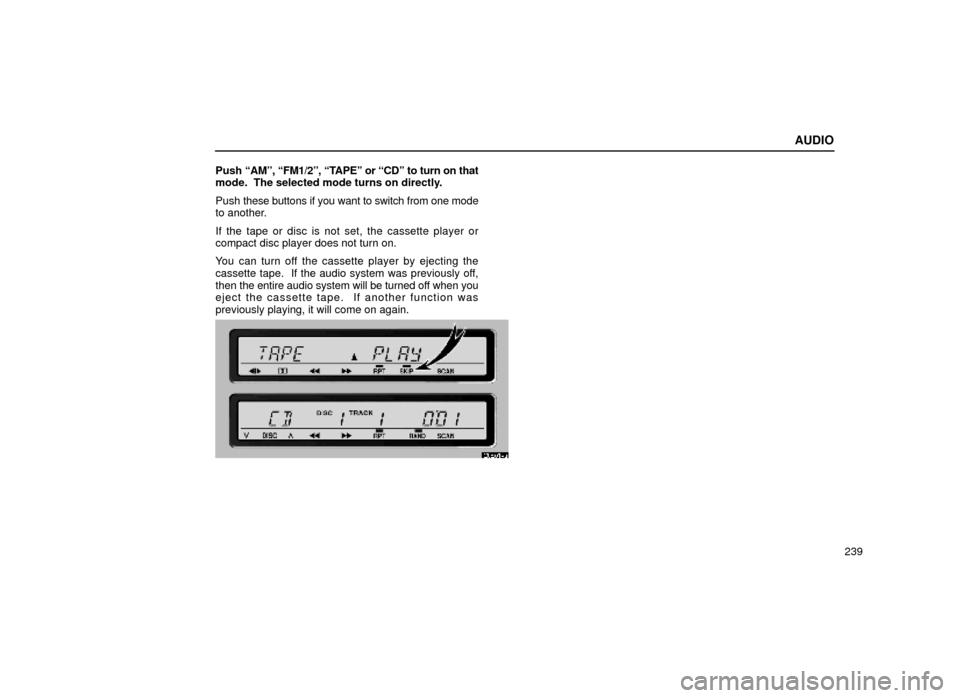

240In the ªTAPEº or ªCDº mode, the applicable
functions
are shown in the lowest part of the display.
Push the switch just below to turn on each function.

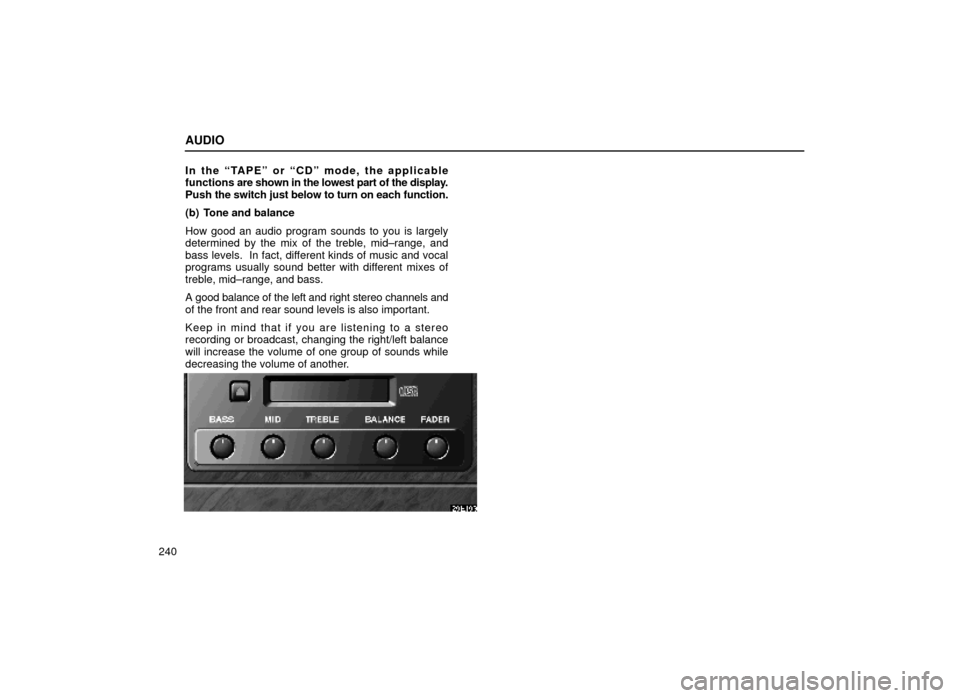

(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid±range, and
bass levels. In fact, different kinds of music and vocal
programs usually sound better with different mixes of
treble, mid±range, and bass.
A good balance of the left and right stereo channels and
of the front and rear sound levels is also important.
Keep in mind that if you are listening to a stereo
recording or broadcast, changing the right/left balance
will increase the volume of one group of sounds while
decreasing the volume of another.
20E103
