Lexus ES300 2000 Owner's Manuals (in English)

CHASSIS
431

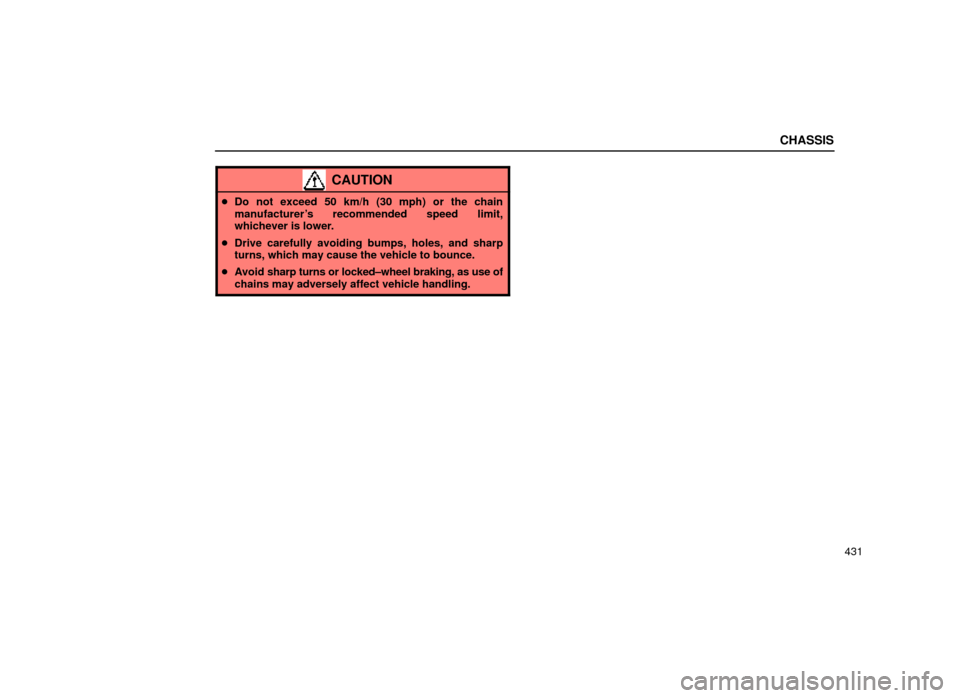

CAUTION
Do not exceed 50 km/h (30 mph) or the chain
manufacturer's recommended speed limit,
whichever is lower.
 Drive carefully avoiding bumps, holes, and sharp
turns, which may cause the vehicle to bounce.
 Avoid sharp turns or locked±wheel braking, as use of
chains may adversely affect vehicle handling.

CHASSIS
432
REPLACING WHEELS
When to replace your wheels
If you have wheel damage such as bending, cracks
or heavy corrosion, the wheel should be replaced.
If you fail to replace damaged wheels, a tire may slip off
a wheel or cause loss of handling control.
Replacement with used wheels is not recommended as
they may have been subjected to rough treatment or
high mileage and could fail without warning. Also, bent
wheels which have been straightened may have hidden
structural damage and therefore should not be used.
Never use an inner tube in a leaking wheel which is
designed for a tubeless tire.
Wheel selection
When replacing wheels, care should be taken to
ensure that they are equivalent to those removed in
load capacity, diameter, rim width, and offset.
Correct replacement wheels are available at your Lexus
dealer.
A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability,
headlight aim, bumper height, vehicle ground clearance,
and tire or snow chain clearance to the body and
chassis.
ALUMINUM WHEEL PRECAUTIONS
 After driving your vehicle the first 1600 km (1000
miles), check that the wheel nuts are tight.
 If you have rotated, repaired, or changed your tires,
check that the wheel nuts are still tight after driving
1600 km (1000 miles).
 When using tire chains, be careful not to damage the
aluminum wheels.
 Use only the Lexus wheel nuts and wrench designed
for your aluminum wheels.
 When balancing your wheels, use only Lexus
balance weights or equivalent and a plastic or rubber
hammer.
 As with any wheel, periodically check your aluminum
wheels for damage. If damaged, replace
immediately.

CHASSIS
433
SUSPENSION AND CHASSIS

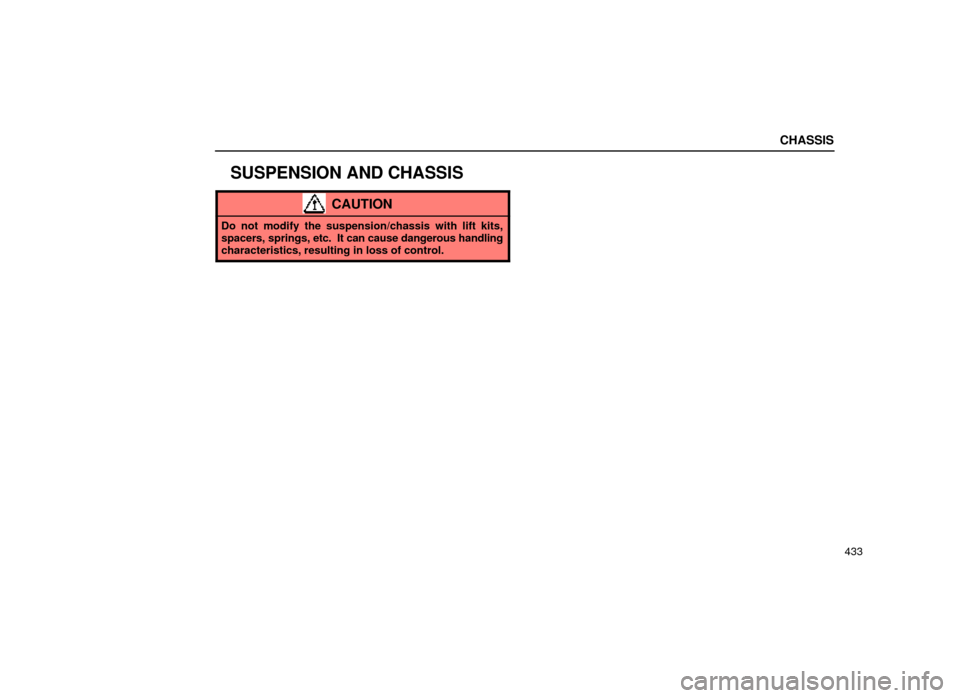

CAUTION
Do not modify the suspension/chassis with lift kits,
spacers, springs, etc. It can cause dangerous handling
characteristics, resulting in loss of control.

CHASSIS
434

SECTION 6 ± 4
435
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications436
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking battery condition 443
. . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 449
. . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 450 . . . . .
Checking the cartridge type fuses 456
. . . . . . . . . . . . . . .
Adding washer fluid 459
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the headlight aim 459
. . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 462
. . . . . . . . . . . . . . . . . . . . . . . . . .

ELECTRICAL COMPONENTS
436
SPECIFICATIONS
± FUSE LOCATIONS
64E043

ELECTRICAL COMPONENTS
437


1 2 3Engine compartment
4Driver's side instrument panel
± FUSES
64E025a
1Engine compartment
64E065
2Engine compartment

ELECTRICAL COMPONENTS
438
64E066

64E067
ELECTRICAL COMPONENTS
439
3Engine compartment
4Driver's side instrument panel

ELECTRICAL COMPONENTS
440
No.FUSEAMPERECIRCUIT
1 ABS60Anti±lock brake system
2 INJ20No circuit
3 DRL NO.25Daytime Running Light System
4H±LP15*1Left±hand headlight (low beam)4 HLPLH(LWR)10*2
5H±LP15*1Right±hand headlight (lowbeam)5 HLPRH(LWR)10*2beam)
6 ALT100Charging system
7 T±STK30No circuit
8 HTR50Air conditioning system, Seat
heater
9 MAIN40Headlight, Starting system
10 DOME7.5
Theft deterrent system, Clock,
Door courtesy light, Interior
light, Ignition switch light, Vanity
light, Wireless remote control
system
11 ECU±B10Air conditioning system,
Power seat system
12 RADIO
NO.120Audio system
13 HAZARD15Emergency flashers, Turn
signal lights
