Lexus ES300 2000 Owner's Manuals (in English)

ELECTRICAL COMPONENTS
441
*1: Vehicles with discharge headlight*2: Vehicles without discharge headlightNo.FUSEAMPERECIRCUIT
14 AM230Starting system
15 TEL5Telephone
16 HEAD
LH(UPR)20Left±hand headlight (high
beam)
17 ALT±S5Charging system
18 HEAD
RH(UPR)20Right±hand headlight
(high beam)
19 EFI15Multiport fuel injection
20 HORN10Theft deterrent system
21 RDI30Electronic cooling fan
system
22 CDS30Air conditioning system
23 A/F HTR25Air fuel ratio sensor
24 A/C10No circuit
25 SEAT
±HEATER20Seat heater system
26 HEATER10Air conditioning system
27 GAUGE10
Gauges and meters,
Service reminder
indicators and warning
buzzers, Back±up light,
Door courtesy light, Seat
heater, Power window
system

ELECTRICAL COMPONENTS
442
No.FUSEAMPERECIRCUIT
28 WIPER25Windshield wipers and
washer
29 MIRROR
±HEATER10Outside rear view mirror
defogger
30 ECU±IG15
Cruise control system,
Anti±lock brake system,
Shift lock system, Theft
deterrent system,
Electronic modulated
suspension, Wireless
remote control
31 IGN5SRS, Multiport fuel
injection
32 STOP15
Stop lights, High mounted
stoplight, Cruise control
system, Electronic
modulated suspension,
Anti±lock brake system,
Shift lock system, Power
seat system, Multiport
fuel injection
33 TAIL10Tail light, Side marker
lights, License plate lights
34 POWER
±OUTLET15Power outlet
35 OBD7.5On±board diagnosis
system
36 FOG15Fog lights
No.FUSEAMPERECIRCUIT
37 STARTER5Starting system
38 DOOR25
Door courtesy light, Theft
deterrent system, Power
door lock system, Trunk
lid opener, Fuel filler door
opener
39 PANEL7.5Instrument panel lights,
Glove box light
40 TURN7.5Emergency flashers, Turn
signal lights
41 RAD± NO.27.5Audio system
42 CIG15Cigarette lighter, Clock,
SRS
43 DEF40Rear window defogger,
Outside rear view mirror
defogger
44 PWR30Power window, Electronic
moon roof, Power seat
system
45 AM140No circuit
SPARESpare fuse

ELECTRICAL COMPONENTS
443
CHECKING BATTERYCONDITION
Precautions

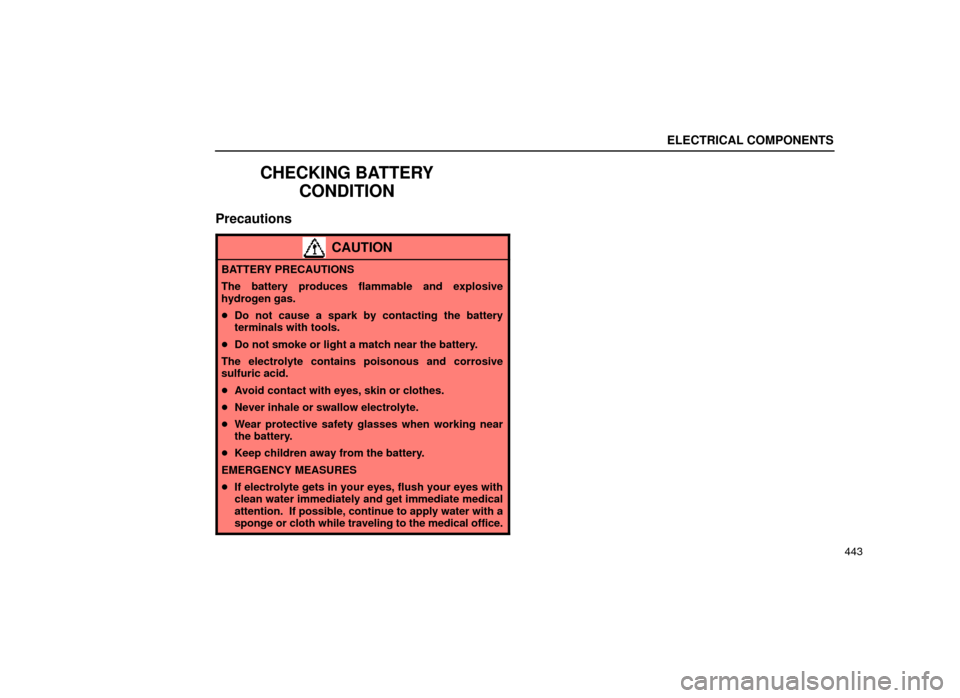

CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and explosive
hydrogen gas.
Do not cause a spark by contacting the battery
terminals with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive
sulfuric acid.
 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near
the battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with
clean water immediately and get immediate medical
attention. If possible, continue to apply water with a
sponge or cloth while traveling to the medical office.

ELECTRICAL COMPONENTS
444
If electrolyte gets on your skin, thoroughly
wash the contacted area. If you feel a pain or
burn, get medical attention immediately.
 If electrolyte gets on your clothes, there is a
possibility of its soaking through to your skin,
so immediately take off the exposed clothing
and follow the procedure above, if necessary.
 If you accidentally swallow electrolyte, drink a
large quantity of water or milk. Follow with milk
of magnesia, beaten raw egg or vegetable oil.
Then go immediately for emergency help.Checking battery exterior
64E068

ELECTRICAL COMPONENTS
445

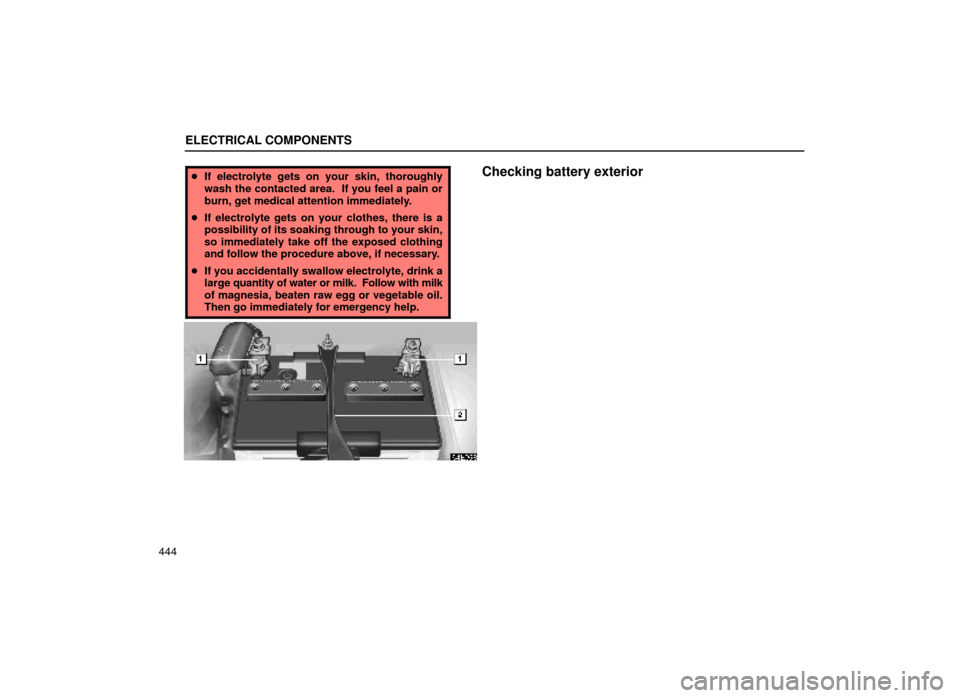

1Terminals 2Hold±down clamp
Check the battery for corroded or loose
connections, cracks, or loose hold±down clamps.
1. If the battery is corroded, wash it off with a solution of
warm water and baking soda. Coat the terminals with
grease to prevent further corrosion.
2. If the connections are loose, tighten the clamp bolts
± but do not overtighten.
3. Tighten the hold±down clamp only enough to keep
the battery firmly in place. Overtightening may damage
the battery case.NOTICE
Make sure the engine and all accessories are
turned off before performing maintenance.
When checking the battery, remove the ground
cable first and reinstall it last.
Be careful not to cause a short circuit with tools.
Take care no solution gets into the batterywhen washing it.
Checking battery fluid
There are 2 types of batteries: maintenance type
and non±maintenance type.
A non±maintenance battery has ªMAINTENANCE
FREE BATTERYº on its top. A maintenance type battery
does not have such indication.
Maintenance type battery
Check the fluid condition by the fluid level lines on the
side of the battery. Or if the battery has a hydrometer on
its top, you can also check the hydrometer.
Non±maintenance battery
Check the battery condition by the hydrometer on the top
of the battery.

ELECTRICAL COMPONENTS

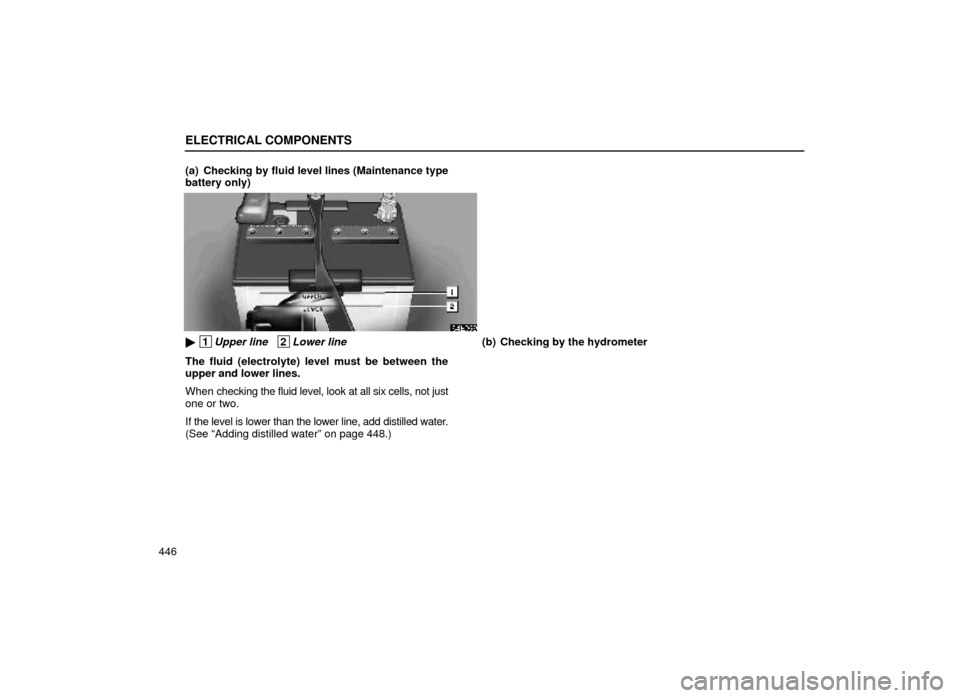

446(a) Checking by fluid level lines (Maintenance type
battery only)
64E069

1Upper line 2Lower line
The fluid (electrolyte) level must be between the
upper and lower lines.
When
checking the fluid level, look at all six cells, not just
one or two.
If the level is lower than the lower line, add distilled water.
(See ªAdding distilled waterº on page 448.) (b) Checking by the hydrometer

ELECTRICAL COMPONENTS
447
64E070
Check the battery condition by hydrometer color.
Maintenance type battery
1RED ± Add distilled water. (See ªAdding distilled
waterº on page 448.)
2BLUE ± Good condition.
3WHITE ± Charging necessary. Have the battery
checked by your Lexus dealer.
Non±maintenance type battery
1 RED ± Have the battery checked by your Lexus
dealer.
2BLUE ± Good condition.
3WHITE ± Charging necessary. Have the battery
checked by your Lexus dealer.
NOTICE
For non±maintenance battery:
Do not refill the battery with water.

ELECTRICAL COMPONENTS
448
Adding distilled water
(Maintenance type battery only)
64L062

ELECTRICAL COMPONENTS
449


1Low 2O.K.
1. Remove the vent plugs.
2. Add distilled water to cells needing fluid.
If the side of your battery is covered, check the water
level by looking down directly above the cell as
illustrated above.
3. Retighten the vent plugs securely.
NOTICE
Do not overfill the cells. Excess electrolyte
could squirt out of the battery during heavycharging, causing corrosion or damage.
Use a cover on the battery for longer life.
BATTERY RECHARGING PRECAUTIONS
During recharging, the battery is producing
hydrogen gas.
Therefore, before recharging:
1. Maintenance type batteries ± Remove the vent plugs.
2. If recharging with the battery installed on the vehicle,
be sure to disconnect the ground cable.
3. Make sure the power switch on the recharger is off
when connecting the charger cables to the battery and
when disconnecting them.
CAUTION
 Always charge the battery in an unconfined area. Do
not charge the battery in a garage or closed room
where there is not sufficient ventilation.
 Non±maintenance batteries: Only do a slow charge
(5 A or less). Charging at a quicker rate is dangerous.
The battery may explode causing personal injuries.
Maintenance type batteries: Be sure to remove the
vent plugs before recharging.

ELECTRICAL COMPONENTS
450
NOTICE
Never recharge the battery while the engine isrunning. Also, be sure all accessories are turnedoff.
CHECKING AND REPLACING THE BLADE TYPE FUSES
