COMFORT ADJUSTMENT
139

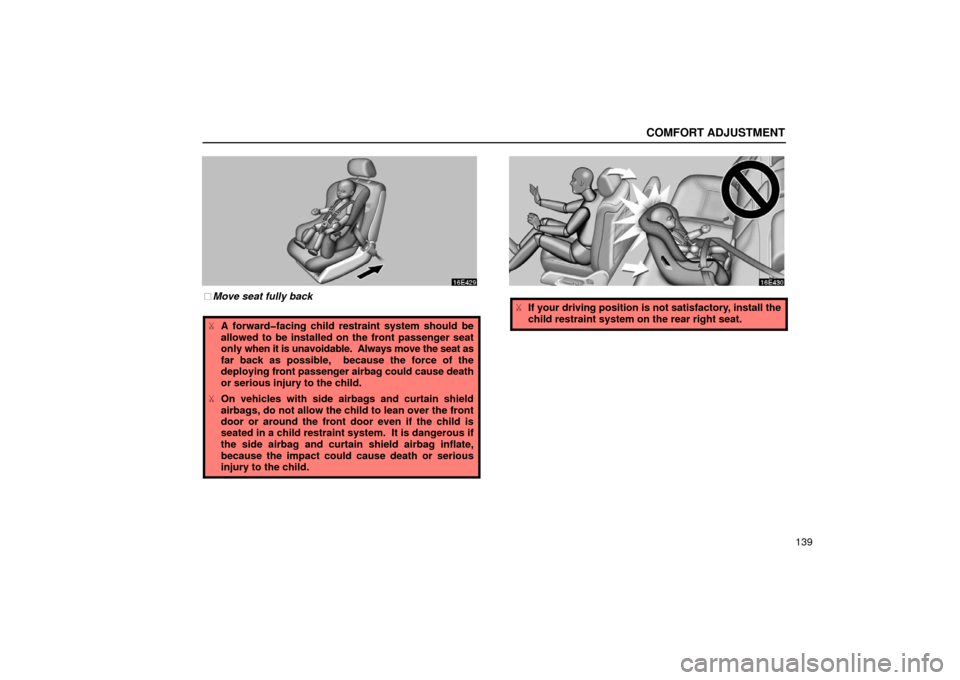

Move seat fully back
A forwardfacing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat as
far back as possible, because the force of the
deploying front passenger airbag could cause death
or serious injury to the child.
 On vehicles with side airbags and curtain shield
airbags, do not allow the child to lean over the front
door or around the front door even if the child is
seated in a child restraint system. It is dangerous if
the side airbag and curtain shield airbag inflate,
because the impact could cause death or serious
injury to the child.
If your driving position is not satisfactory, install the
child restraint system on the rear right seat.

COMFORT ADJUSTMENT
140

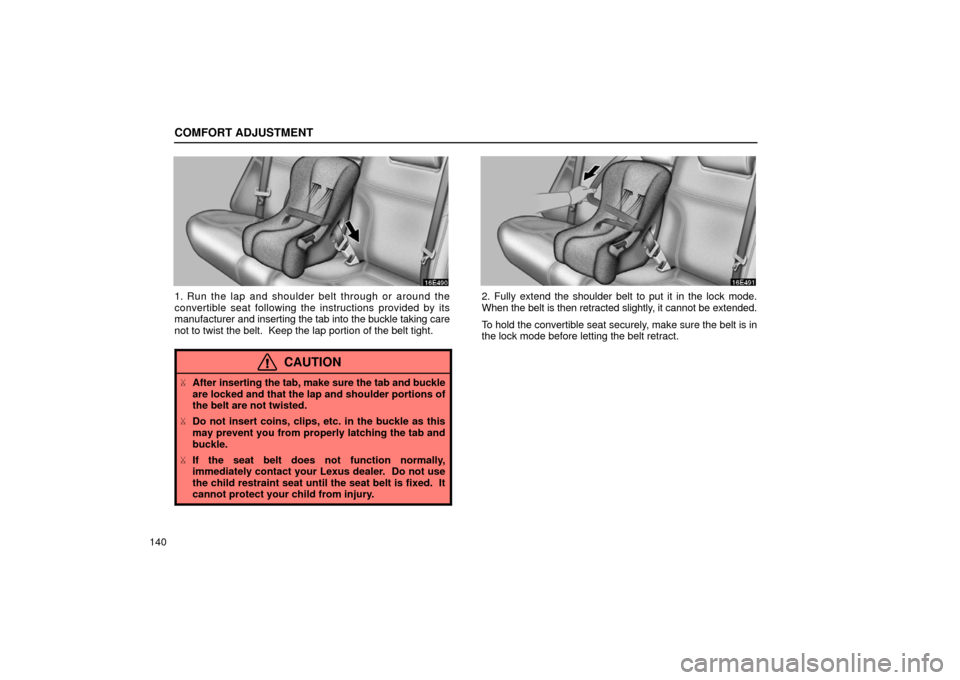

1. Run the lap and shoulder belt through or around the
convertible seat following the instructions provided by its
manufacturer and inserting the tab into the buckle taking care
not to twist the belt. Keep the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the child restraint seat until the seat belt is fixed. It
cannot protect your child from injury.
2. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retracted slightly, it cannot be extended.
To hold the convertible seat securely, make sure the belt is in
the lock mode before letting the belt retract.

COMFORT ADJUSTMENT
141

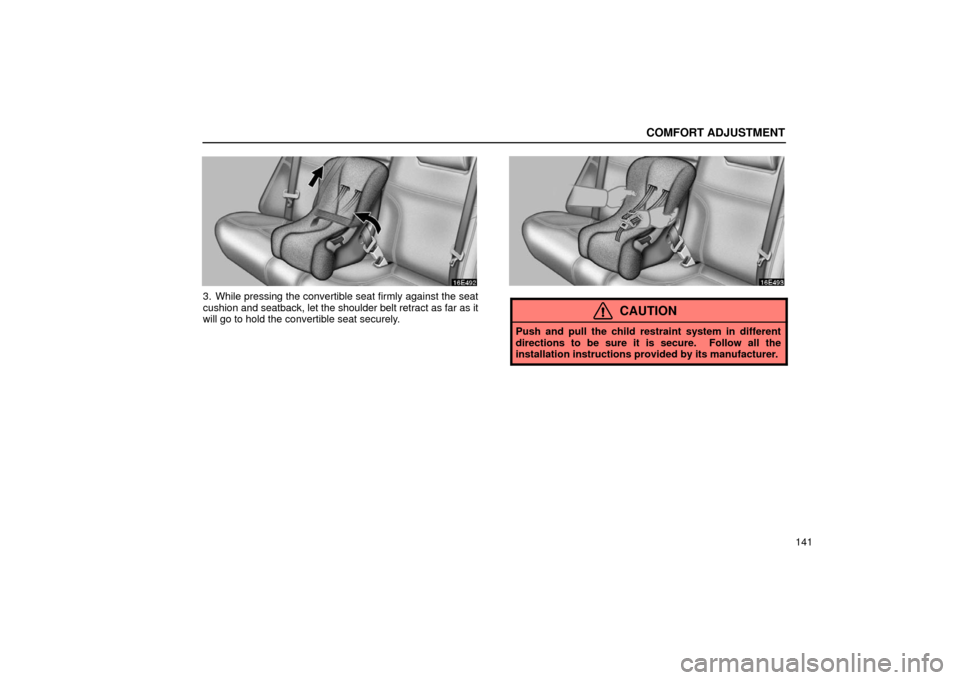

3. While pressing the convertible seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the convertible seat securely.
CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.

COMFORT ADJUSTMENT
142

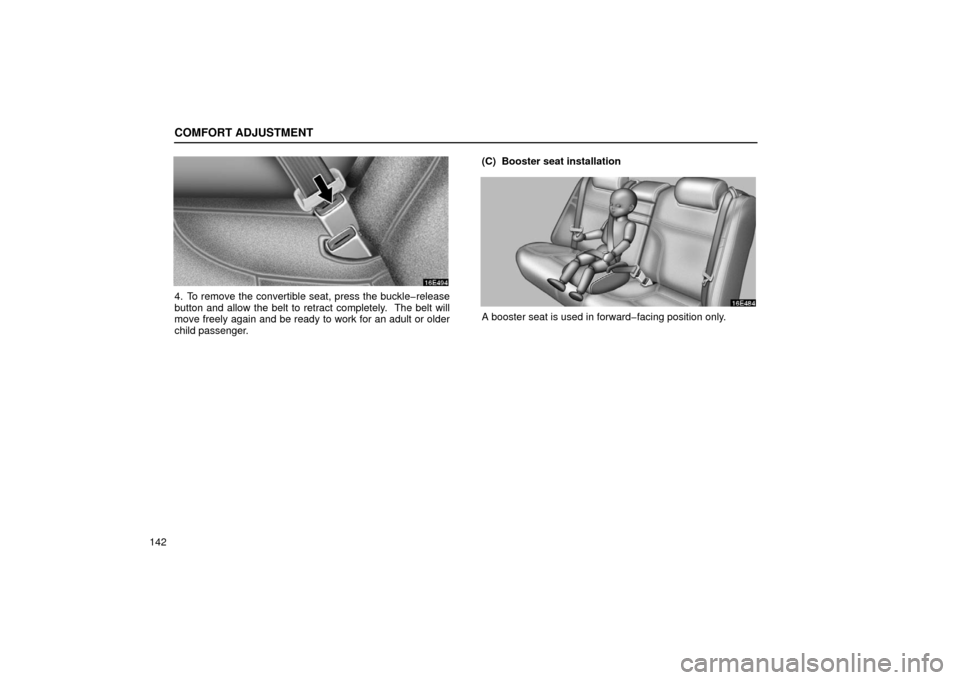

4. To remove the convertible seat, press the bucklerelease
button and allow the belt to retract completely. The belt will
move freely again and be ready to work for an adult or older
child passenger.(C) Booster seat installation
A booster seat is used in forwardfacing position only.

COMFORT ADJUSTMENT
143

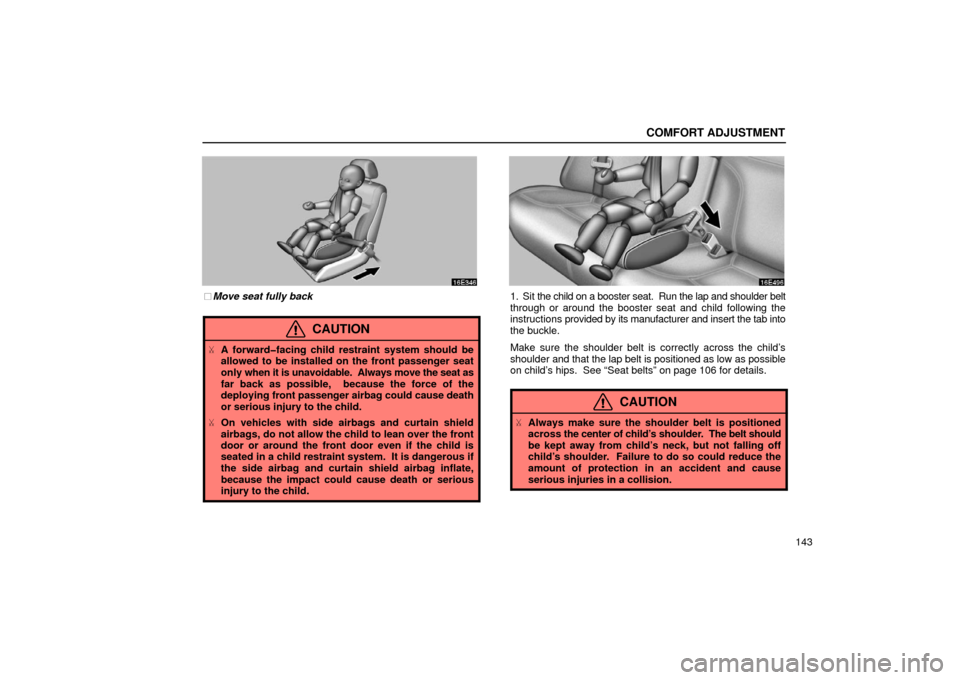

Move seat fully back
CAUTION
A forwardfacing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat as
far back as possible, because the force of the
deploying front passenger airbag could cause death
or serious injury to the child.
 On vehicles with side airbags and curtain shield
airbags, do not allow the child to lean over the front
door or around the front door even if the child is
seated in a child restraint system. It is dangerous if
the side airbag and curtain shield airbag inflate,
because the impact could cause death or serious
injury to the child.
1. Sit the child on a booster seat. Run the lap and shoulder belt
through or around the booster seat and child following the
instructions provided by its manufacturer and insert the tab into
the buckle.
Make sure the shoulder belt is correctly across the child’s
shoulder and that the lap belt is positioned as low as possible
on child’s hips. See “Seat belts” on page 106 for details.
CAUTION
 Always make sure the shoulder belt is positioned
across the center of child’ s shoulder. The belt should
be kept away from child’s neck, but not falling off
child’s shoulder. Failure to do so could reduce the
amount of protection in an accident and cause
serious injuries in a collision.

COMFORT ADJUSTMENT
144

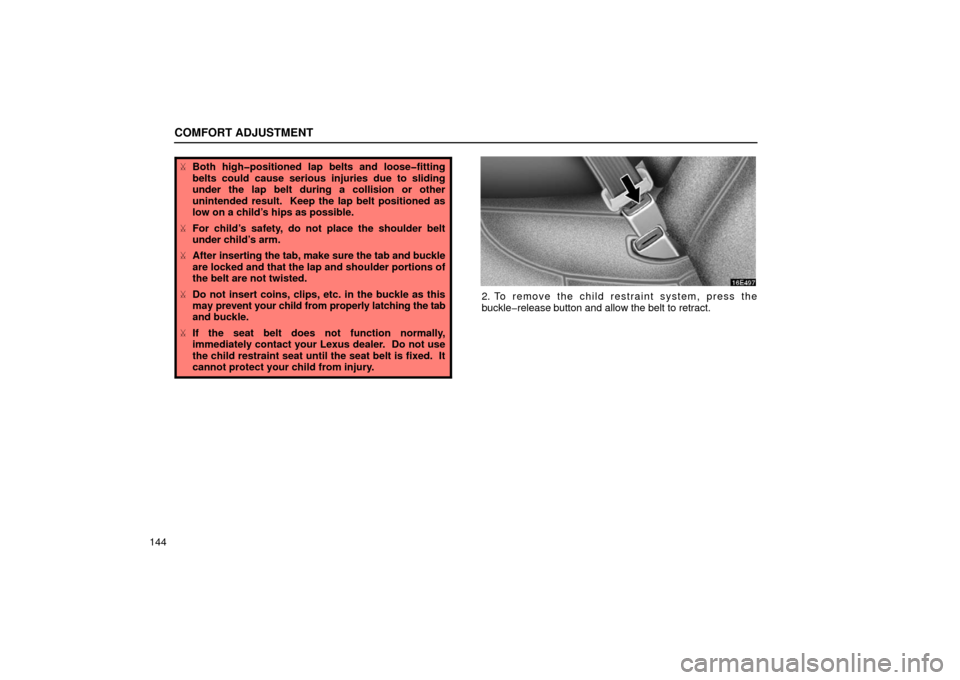

Both highpositioned lap belts and loosefitting
belts could cause serious injuries due to sliding
under the lap belt during a collision or other
unintended result. Keep the lap belt positioned as
low on a child’s hips as possible.
 For child’s safety, do not place the shoulder belt
under child’s arm.
 After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the child restraint seat until the seat belt is fixed. It
cannot protect your child from injury.
2. To remove the child restraint system, press the
bucklerelease button and allow the belt to retract.

COMFORT ADJUSTMENT
145

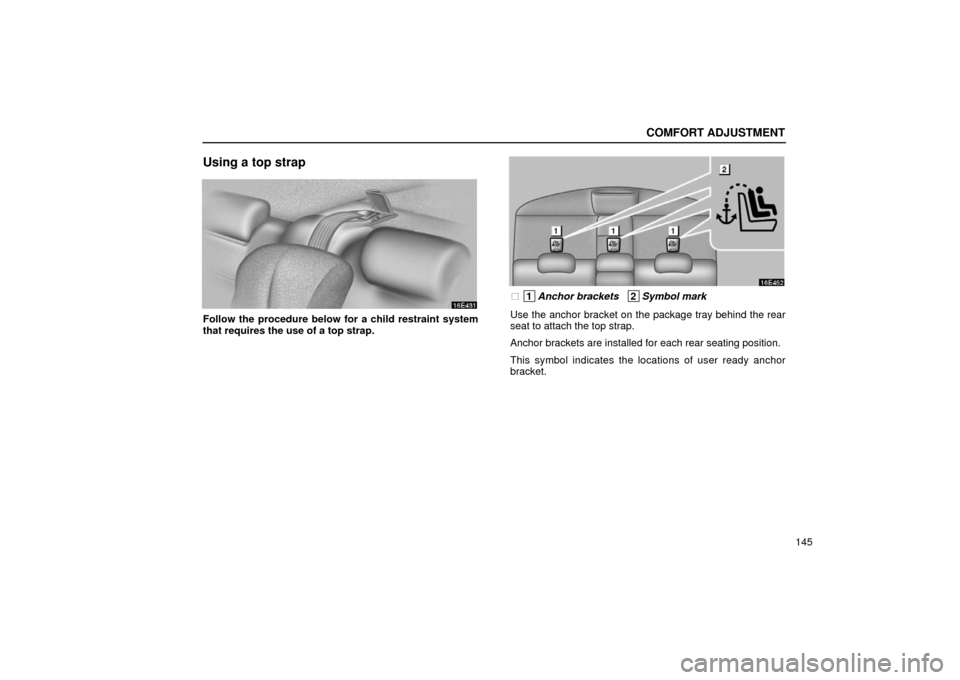

Using a top strap
Follow the procedure below for a child restraint system
that requires the use of a top strap.
 1Anchor brackets 2Symbol mark
Use the anchor bracket on the package tray behind the rear
seat to attach the top strap.
Anchor brackets are installed for each rear seating position.
This symbol indicates the locations of user ready anchor
bracket.

COMFORT ADJUSTMENT
146

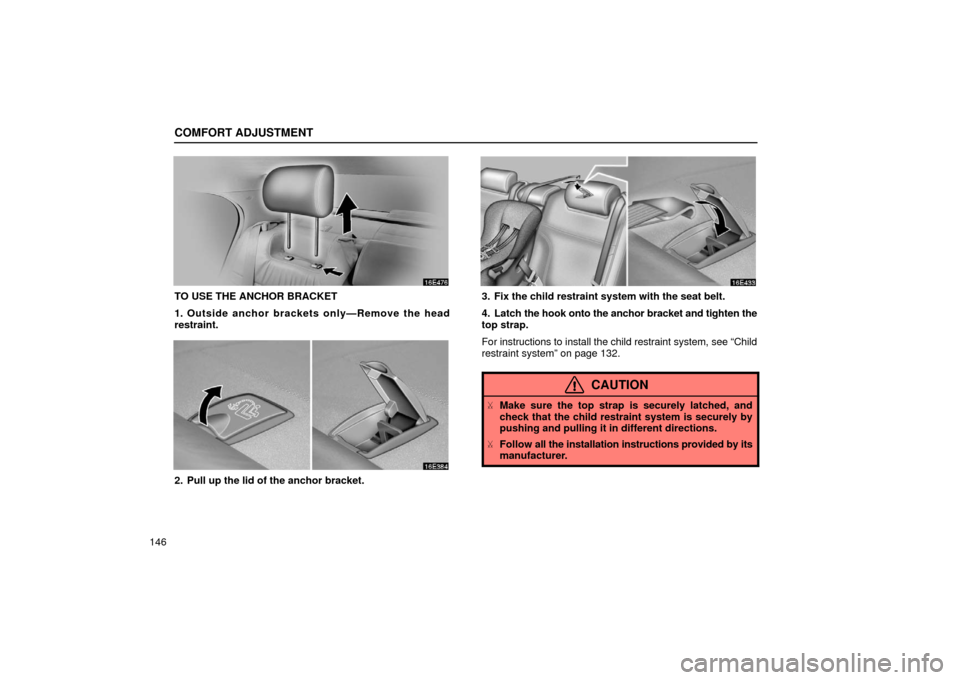

TO USE THE ANCHOR BRACKET
1. Outside anchor brackets only—Remove the head
restraint.
2. Pull up the lid of the anchor bracket.
3. Fix the child restraint system with the seat belt.
4. Latch the hook onto the anchor bracket and tighten the
top strap.
For instructions to install the child restraint system, see “Child
restraint system” on page 132.
CAUTION
 Make sure the top strap is securely latched, and
check that the child restraint system is securely by
pushing and pulling it in different directions.
 Follow all the installation instructions provided by its
manufacturer.

COMFORT ADJUSTMENT
147
5. Outside anchor brackets only—Replace the head
restraint.
Installation with child restraint lower
anchorages
The lower anchorages for the child restraint system
interfaced with the FMVSS225 specification are installed
in the rear seat.
The anchorages are installed in the clearance between the
seat cushion and seatback of both outside rear seats.
Child restraint system interfaced with the FMVSS225
specification can be fixed with these anchorages. In this case,
it is not necessary to fix the child restraint system with a seat
belt on the vehicle.

COMFORT ADJUSTMENT
149
CHILD RESTRAINT SYSTEM INSTALLATION
Type A—
1. Widen the clearance between the seat cushion and
seatback a little and confirm the position of the lower
anchorages below the tag in the seatback.
2. Latch the hooks of lower straps onto the anchorages
and tighten the lower straps.
Type B—
1. Widen the clearance between the seat cushion and
seatback a little and confirm the position of the lower
anchorages below the tag in the seatback.
2. Latch the buckles onto the anchorages.
If your child restraint system has a top strap, it should be
anchored.
(For the installation of the top strap, see “Using a top
strap” on page 145.)
For the installation details, refer to the instruction manual
equipped with each product.
CAUTION
 When using the lower anchorages for the child
restraint system, be sure that there are no irregular
objects around the anchorages or that the seat belt is
not caught.
 Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its
manufacturer.
 Do not install a child restraint system on the rear seat
if it interferes with the lock mechanism of the front
seats. This can cause death or serious injury to the
child and front passenger in case of sudden braking
or a collision.
