HOW TO USE THIS MANUAL
iii
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner’s Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 INSTRUMENTS AND CONTROLS
The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Comfort adjustment
7. Theft deterrent
SECTION 2 AIR CONDITIONING AND AUDIO
The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to read this section so that you can
make full use of them.
SECTION 3 STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this section, and remember drive safely!
SECTION 4 IN CASE OF AN EMERGENCY
This section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occu rs, check the contents of this
Owner’s Manual and follow the instructions given.
SECTION 5 MAINTENANCE
This section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.

For detailed information, refer to the description given in each section\
.
PICTORIAL INDEX
viPage
1
Door lock switch and power window
switches 21, 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Driving position memory switches 150
. . . . . . . . . . .
3 Power rear view mirror control switches 100 . . . . . .
4 Side vents 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Instrument panel light control dial 59
. . . . . . . . . . . . .
6 Headlight, turn signal and
fog light switches 26, 28, 31, 32
. . . . . . . . . . . . . . . . . . .
7 Multiinformation display control switches 57 . . . .
8 Ignition switch 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Wiper and washer switches 32
. . . . . . . . . . . . . . . . . . .
10 Seat heater switches 42
. . . . . . . . . . . . . . . . . . . . . . . . .
11 Emergency flasher switch 41
. . . . . . . . . . . . . . . . . . . .
12 Clock 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
13 Car audio 172, 193
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14 Front passenger’s seat belt reminder light 51 . . . . .
15 Security indicator light 12, 154
. . . . . . . . . . . . . . . . . . . Page
16 Glove box
68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Automatic air conditioning controls 158
. . . . . . . . . .
18 Rear window and outside rear view mirror
defogger switch 37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Ashtray 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
20 Automatic transmission selector lever 223 . . . . . . . .
21 Rear electric sunshade switch 77
. . . . . . . . . . . . . . . .
22 Electronic modulated suspension
control switch 233 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23 Traction control system off switch 234
. . . . . . . . . . .
24 Cruise control switch 230
. . . . . . . . . . . . . . . . . . . . . . .
25 Power adjustable pedals switch 98
. . . . . . . . . . . . . . .
26 Parking brake pedal 221
. . . . . . . . . . . . . . . . . . . . . . . . .
27 Auxiliary box 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28 Hood lock release lever 82
. . . . . . . . . . . . . . . . . . . . . .
29 Trunk lid opener 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30 Fuel filler door opener 85
. . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
47
Your vehicle may overheat during severe operating conditions,
such as:

Driving up a long hill on a hot day.
 Reducing speed or stopping after high speed driving.
 Idling for a long period with the air conditioning on in
stopandgo traffic.
 Towing a trailer.
NOTICE
Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
 Do not continue driving with an overheated engine.
See “If your vehicle overheats” on page 263.
TACHOMETER
13E064
The tachometer indicates engine speed in thousands of
rpm (revolutions per minute). Use it while driving to
prevent engine overrevving.
Driving with the engine running too fast causes excessive
engine wear and poor fuel economy. Remember, in most
cases the slower the engine speed, the greater the fuel
economy.
NOTICE
Do not let the indicator needle get into the red zone. This
may cause severe engine damage.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
51
(c) Front Passenger’s Seat Belt ReminderLight
This light reminds you to buckle up the front passenger’s seat
belt.
Once the ignition key is tur ned to the “ON” position, the
reminder light flashes if a front passenger sits in the front
passenger seat and does not fasten the seat belt. Unless the
front passenger fastens the belt, the light keeps flashing.
If luggage load is placed on the front passenger seat,
depending on its weight and how it is placed on the seat,
builtin sensors in the seat cushion may detect the pressure,
causing the reminder light to come on.
(d) SRS Warning Light
This light comes on when the ignition key is turned to the
“ON” position. It goes off after about 6 seconds. This
means the SRS airbags and seat belt pretensioners are
operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
front seat belt pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources. If any of the following conditions occurs, this indicates a
malfunction
somewhere in the parts monitored by the warning
light system. Contact your Lexus dealer as soon as possible
to service the vehicle.
 The light does not come on as described above.
 The light stays on or flashes.
 The light comes on or starts flashing while driving.
If the light stays on, it indicates that the driver and front
passenger airbags fail. If the light flashes, the side and curtain
shield airbags and/or seat belt pretensioners fail.
(e) Discharge Warning Light
This light warns that the battery is being discharged.
If it comes on while you are driving, stop the vehicle, turn off the
engine, and check for the cause. Look first at the engine drive
belt.
 If it is loose or broken, the generator will not charge the
battery properly.
 If the belt is O.K., there is a problem somewhere in the
charging system.
The engine ignition will continue to operate, however, until the
battery is discharged. Turn off the air conditioning, blower,
radio, etc., and drive directly to the nearest Lexus dealer or
repair shop.

SECTION 2 – 1
157
AIR CONDITIONING AND AUDIO
Air conditioning
Automatic air conditioning controls158
. . . . . . . . . . . . . . . . . . . . . . . . .

AIR CONDITIONING
158

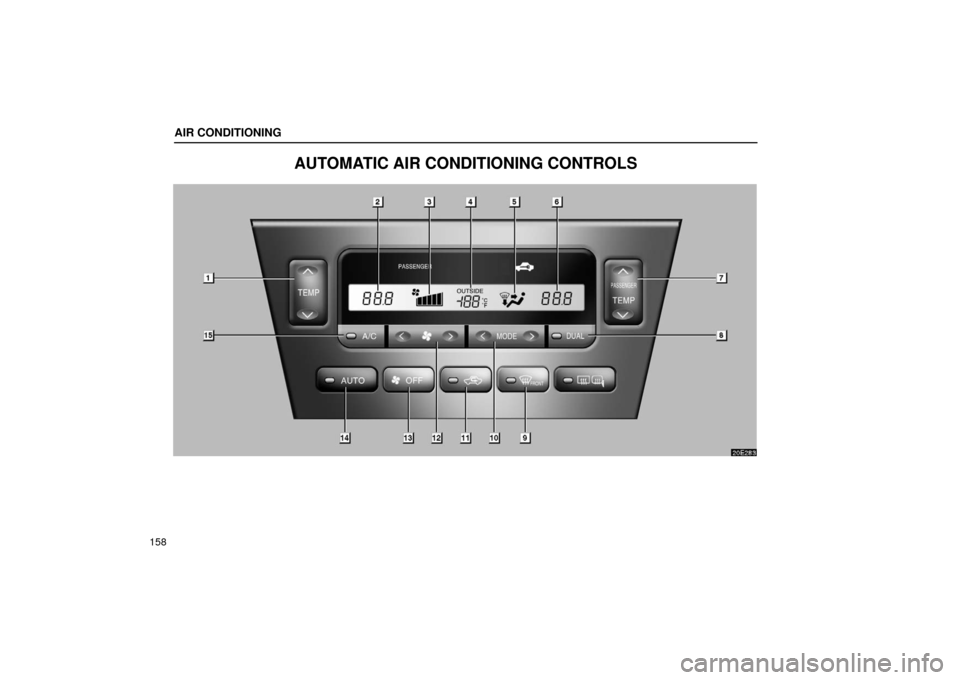

AUTOMATIC AIR CONDITIONING CONTROLS
20E283

AIR CONDITIONING
159
The automatic air conditioning automatically maintains
the set temperature.
In the automatic operation mode, the air conditioning selects
the most suitable fan speed, air flow, air intake and onoff the
air conditioning according to the temperature.
The ignition key must be in the “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessary
when the engine is not running.
1
“TEMP” (driver side temperature control) button
2 Driver side temperature display (in degrees
Fahrenheit or Centigrade)
3 Fan speed display
4 Outside temperature display
5 Air flow display
6 Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
7 “PASSENGER TEMP” (passenger side temperature
control) button
8 “DUAL” (temperature setting mode change) button
9 Windshield air flow button
10 “MODE”(air flow control) button
11 Air intake control button
12 Fan speed control button
13 “OFF” button
14 “AUTO” button
15 “A/C” button

AIR CONDITIONING
160
20E395

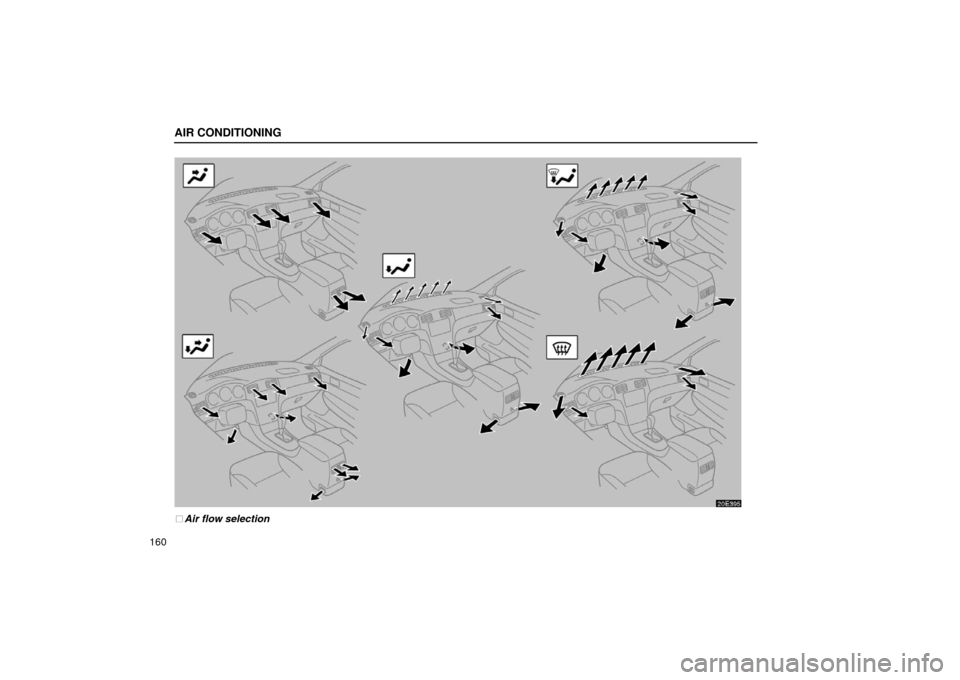

Air flow selection

AIR CONDITIONING
161
(a) Climate control
SETTING OPERATION automatic control
1. Push the “AUTO” button.
An indicator light will illuminate to show that the automatic
operation mode has been selected.
Air flow quantity, switching of the diffusers, onoff of the air
conditioning and switching of the air intake between
RECIRCULATED AIR and OUTSIDE AIR are automatically
adjusted. The operation status is shown by each indicator.
When one of the manual control buttons is depressed while
operating in automatic mode, the operation corresponding to
the button depressed is set. Other conditions continue to be
adjusted automatically.
Push the “OFF” button to turn the air conditioning system off.
2. Use the “TEMP” or “PASSENGER TEMP” button to set
the desired temperature.
The “TEMP” or “PASSENGER TEMP” button is used to set the
desired temperature. The temperature will be controlled on the
driver and passenger sides simultaneously or individually.
“TEMP” button—Changes the temperature on the driver and
passenger sides simultaneously or the driver side only.
“PASSENGER TEMP” button—Changes the temperature on
the passenger side only.
“DUAL” button— Changes the mode of the temperature
setting.
The indicator on the “DUAL” button has two modes:
 With the indicator on— For individual temperature setting
 With the indicator off— For simultaneous temperature
setting

AIR CONDITIONING
162
20E396
Driver side setting
Passenger side setting
Mixed settingSETTING OPERATION manual control
When one of the manual control buttons is depressed
while operating in automatic mode, the mode relevant to
the depressed button is set. Other conditions continue to
be adjusted automatically.

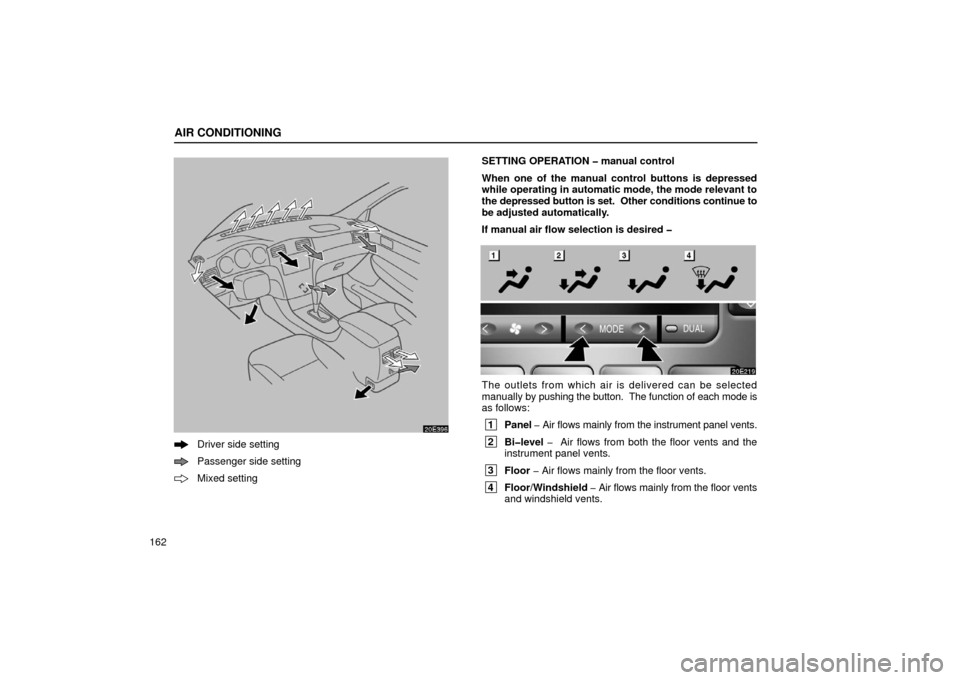

If manual air flow selection is desired
The outlets from which air is delivered can be selected
manually by pushing the button. The function of each mode is
as follows:
1
Panel Air flows mainly from the instrument panel vents.
2
Bilevel Air flows from both the floor vents and the
instrument panel vents.
3 Floor Air flows mainly from the floor vents.
4Floor/Windshield Air flows mainly from the floor vents
and windshield vents.
