Lexus ES300 2003 s (in English) User Guide

PICTORIAL INDEX
xi
SEAT AND STEERING WHEEL
Page
1 Tilt steering lock release
lever 99
. . . . . . . . . . . . . . . . . . . . . . . . . .
2 Seat position, seat cushion
angle and height control
switch 95, 96
. . . . . . . . . . . . . . . . . . . . . .
3 Seatback angle control switch 96 . . .
4 Lumbar support control switch 97 . .
For detailed information, refer to the
description given in each section.

PICTORIAL INDEX
xii
EXTERIOR VIEW
Page
1 Rear window defogger 39
. . . . . . . . . .
2 Trunk lid 85
. . . . . . . . . . . . . . . . . . . . . . .
3 Tire and wheel 324
. . . . . . . . . . . . . . . .
4 Moon roof 90
. . . . . . . . . . . . . . . . . . . . .
5 Outside rear view mirror 101 . . . . . . .
6 Fuel filler door 87
. . . . . . . . . . . . . . . . .
7 Door 22
. . . . . . . . . . . . . . . . . . . . . . . . . .
8 Headlights 28, 30, 350
. . . . . . . . . . . . . .
9 Hood 84
. . . . . . . . . . . . . . . . . . . . . . . . . .
10 Wiper and washer 34, 348
. . . . . . . . . .
For detailed information, refer to the
description given in each section.

PICTORIAL INDEX
xiii

GAS STATION INFORMATION
Fuel selection:
Select unleaded gasoline with an Octane Rating of 87
(Research Octane Number 91) or higher. For improved
vehicle performance, the use of premium unleaded
gasoline with an Octane Rating of 91 (Research Octane
Number 96) or higher is recommended.
 Fuel tank capacity:
70 L (18.5 gal., 15.4 lmp. gal.)
 Engine oil:
“Toyota Genuine Motor Oil” or equivalent
Oil grade: API grade SL “Energy −Conserving” or ILSAC
multigrade engine oil
Recommended oil viscosity: SAE 5W −30
Oil capacity: L (qt., lmp. qt.)
Drain and refill With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
See page 312 for detailed information.
Engine coolant:
Capacity: 9.2 L (9.7 qt., 8.2 lmp. qt.)
Coolant type − “Toyota Genuine Long Life Coolant” or
equivalent
With ethylene −glycol type coolant for a proper corrosion
protection of aluminum components
Do not use alcohol type antifreeze or plain water alone.
For checking the engine coolant, see page 315 .
 Automatic transaxle:
Fluid type − Toyota Genuine ATF Type T −IV
See page 319 for detailed information.
 Tire information:
See pages 324 through 331 for detailed information.
 Tire pressure:
Tire size: P215/60R16 94V
Tire pressure:
Front 200 kPa (2.0 kgf/cm
2 or bar, 29 psi)
Rear 200 kPa (2.0 kgf/cm2 or bar, 29 psi)
For sustained high speeds above 160 km/h (99 mph), in
countries where such speeds are permitted by law, add 40
kPa (0.4 kgf/cm
2 or bar, 6 psi) to the front tires and rear tires,
but never exceed the maximum cold tire pressure molded
on the tire sidewall.

BASIC OPERATION
1
QUICK REFERENCE
Quick reference
Driver’s seat2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Tilt steering wheel 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Power adjustable pedals 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Headlight and turn signal switch 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper switch 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .

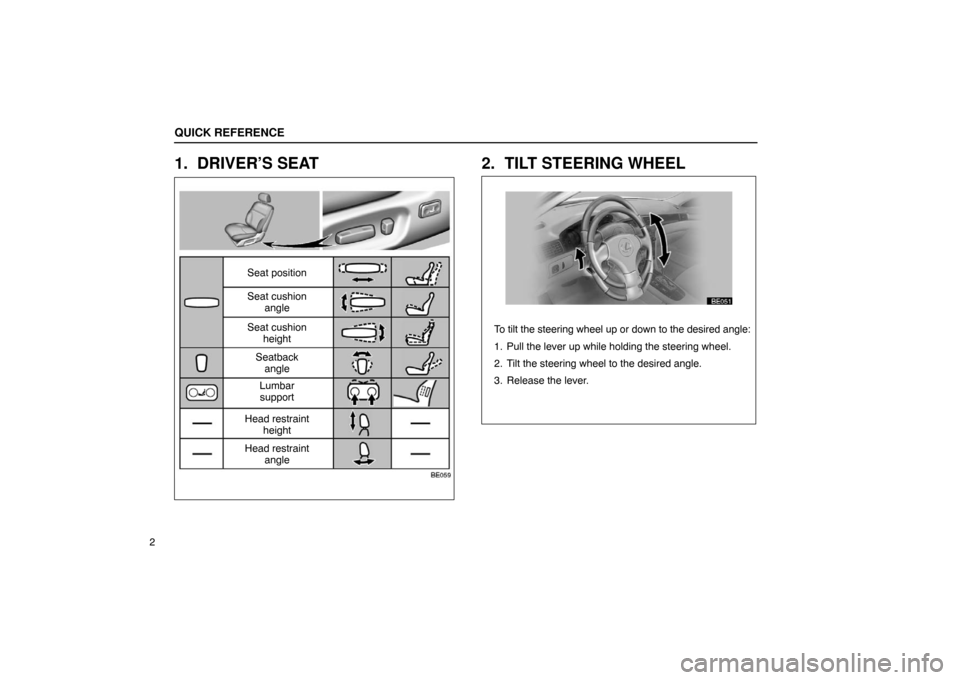

Seat position
Seat cushionangle
Seat cushion height
Seatback angle
Lumbar support
Head restraint height
Head restraint angle
QUICK REFERENCE
2
1. DRIVER’S SEAT 2. TILT STEERING WHEEL
To tilt the steering wheel up or down to the desired angle:
1. Pull the lever up while holding the steering wheel.
2. Tilt the steering wheel to the desired angle.
3. Release the lever.

QUICK REFERENCE
3

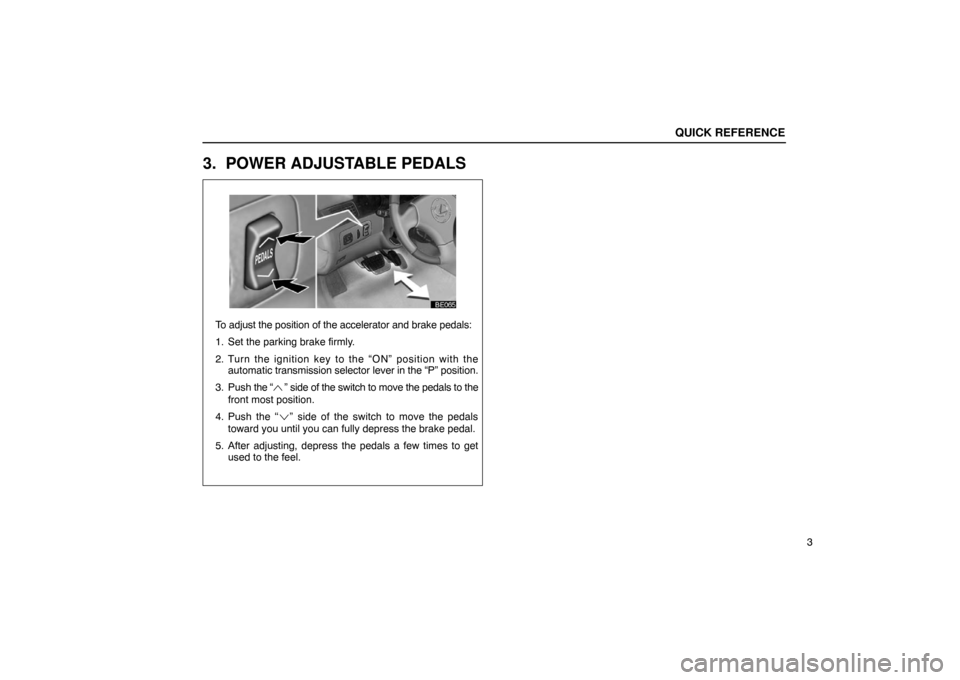

3. POWER ADJUSTABLE PEDALS
To adjust the position of the accelerator and brake pedals:
1. Set the parking brake firmly.
2. Turn the ignition key to the “ON” position with theautomatic transmission selector lever in the “P” position.
3. Push the “
” side of the switch to move the pedals to the
front most position.
4. Push the “
” side of the switch to move the pedals
toward you until you can fully depress the brake pedal.
5. After adjusting, depress the pedals a few times to get used to the feel.

BE056
BE057

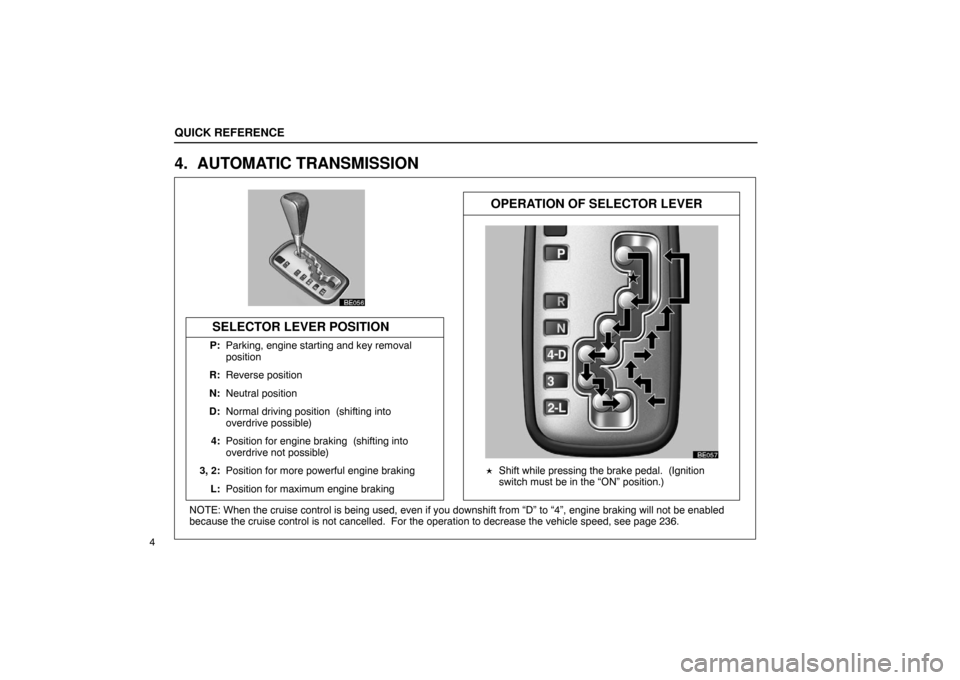

Shift while pressing the brake pedal. (Ignition
switch must be in the “ON” position.)
NOTE: When the cruise control is being used, even if you downshift from \
“D” to “4”, engine braking will not be enabled
because the cruise control is not cancelled. For the operation to decre\
ase the vehicle speed, see page 236.
OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal
position
R: Reverse position
N: Neutral position
D: Normal driving position (shifting into
overdrive possible)
4: Position for engine braking (shifting into
overdrive not possible)
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
QUICK REFERENCE
4
4. AUTOMATIC TRANSMISSION

Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights turn on at full
intensity.
Daytime running light
system off
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
BE004
BE004
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights turn on at full
intensity.
Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Automatic light control
QUICK REFERENCE
5
5. HEADLIGHT AND TURN SIGNAL SWITCH
HEADLIGHT SWITCH (U.S.A.)
With the ignition OFF
With the engine started and parking brake
released
 HEADLIGHT SWITCH (Canada)
With the ignition OFF
With the engine started and parking brake
released

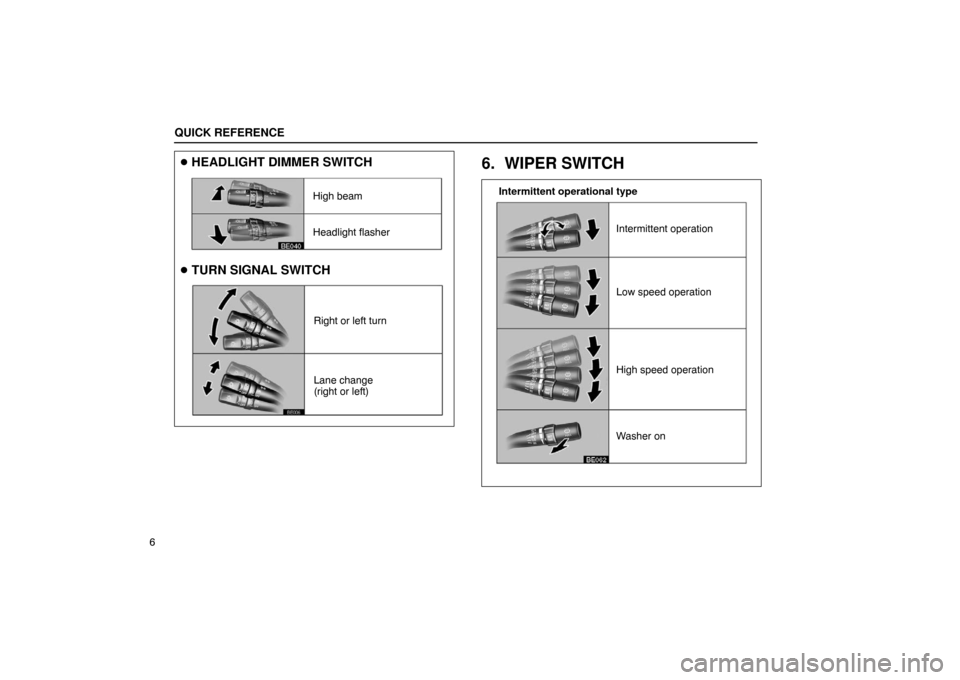

High beam
Headlight flasher
Right or left turn
Lane change
(right or left)
Intermittent operation
Low speed operation
High speed operation
Washer on
QUICK REFERENCE
6
HEADLIGHT DIMMER SWITCH
 TURN SIGNAL SWITCH6. WIPER SWITCH
Intermittent operational type
