Lexus ES300 2003 s (in English) Owner's Guide

Automatic operation
Low speed operation
High speed operation
Washer on
QUICK REFERENCE
7
Raindrop detection type

QUICK REFERENCE
8

SECTION 1 – 1
9
INSTRUMENTS AND CONTROLS
Keys and doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Engine immobiliser system 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .

KEYS AND DOORS
10
KEYS
1Master keys (black) These keys work in every lock.
For your Lexus dealer to make you a new key with
builtin transponder chip, your dealer will need it.
2Sub key (gray) This key will not open the glove box
and rear armrest door in the rear seat.
3Key number plate Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for engine immobiliser system has been
placed in the head of the master and sub keys. These chips
are needed to enable the system to function correctly, so be
careful not to lose these keys. If you make your own duplicate
key, you will not be able to cancel the system or start the
engine. To protect items locked in the trunk or glove box when using
valet parking, leave the sub key with the attendant.
The trunk lid can be opened using a loop of wire in the trunk
even with the trunk lid opener main switch in the glove box
turned off. When keeping items in
the trunk, be sure to turn off
the trunk lid opener main switch and lock the glove box and
rear armrest door. To turn off the main switch in the glove box,
see page 85. For locking the glove box, see page 70. For
locking the rear armrest door, see page 99.
Since the doors can be locked without a key, you should
always carry the flat key or spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.

KEYS AND DOORS
11
Flat key
As a transponder chip is built in its key case, you can start
the engine with this key.
The flat key works in every lock.
A transponder chip for engine immobiliser system has been
placed in the key case of the flat key. This chip is needed to
enable the system to function correctly, so be careful not to
lose this key. If you make your own duplicate key, you will not
be able to cancel the system or start the engine.

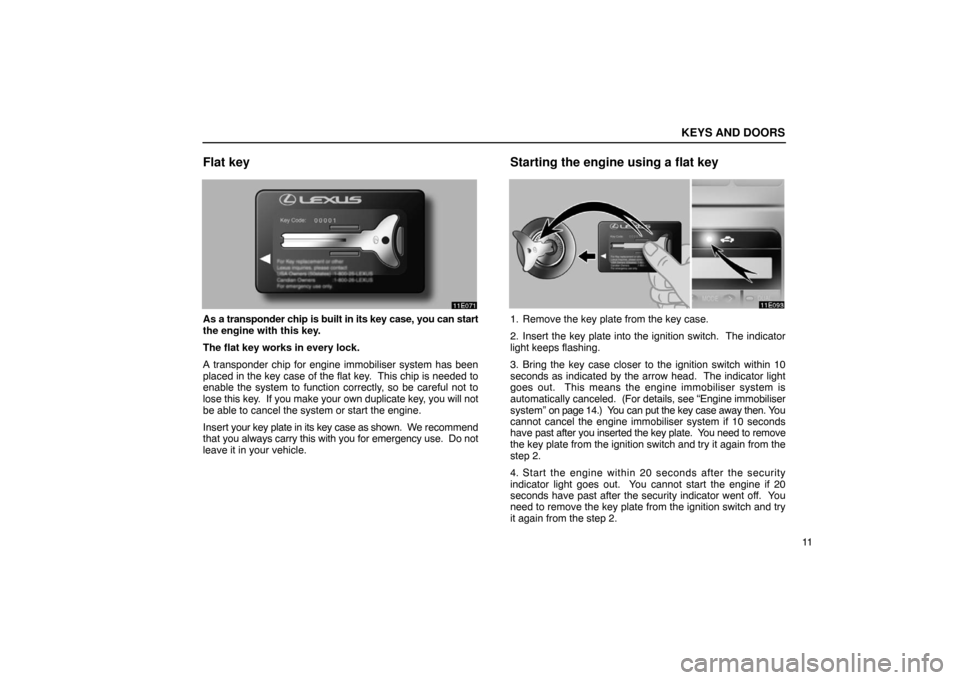

Insert your key plate in its key case as shown. We recommend
that you always carry this with you for emergency use. Do not
leave it in your vehicle.
Starting the engine using a flat key
1. Remove the key plate from the key case.
2. Insert the key plate into the ignition switch. The indicator
light keeps flashing.
3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobiliser system is
automatically canceled. (For details, see “Engine immobiliser
system” on page 14.) You can put the key case away then. You
cannot cancel the engine immobiliser system if 10 seconds
have past after you inserted the key plate. You need to remove
the key plate from the ignition switch and try it again from the
step 2.
4. Start the engine within 20 seconds after the security
indicator light goes out. You cannot start the engine if 20
seconds have past after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.

KEYS AND DOORS
12
NOTICE
Do not let the key case become bent as the key plate
may fall out or become bent also.
 The flat key is designed for emergency use only. So
do not use it regularly instead of other master keys.
When using a key containing a transponder chip,
observe the following precautions:
When starting the engine, do not use the key with a
key ring resting on the key grip and do not press the
key ring against the key grip. Doing so may prevent
the engine from starting, or may cause the engine to
stop soon after it starts.

KEYS AND DOORS
13
When starting the engine, do not use the key in
proximity with other transponder keys (including the
flat key and keys of other vehicles), and do not press
other key plates against the key grip. Doing so may
prevent the engine from starting, or may cause the
engine to stop soon after it starts. If this happens,
remove the key once and then insert it again after
taking off other transponder keys (including the flat
key and keys of other vehicles) from the ring or while
gripping or covering them with your hand to start the
engine. Do not bend the key grip or flat key.
 Do not cover the key grip or flat key with any material
that cuts off electromagnetic waves.
 Do not knock the key or flat key hard against other
objects.
 Do not leave the key or flat key exposed to high
temperatures for a long period, such as on the
dashboard and hood under the direct sunlight.
 Do not put the key or flat key in water or wash it in an
ultrasonic washer.
 Do not use the key or flat key with electromagnetic
materials.

KEYS AND DOORS
14
ENGINE IMMOBILISER SYSTEM
The engine immobiliser system is a theft prevention
system. When you insert the key in the ignition switch, the
transponder chip in the key’s head transmits an electronic
code to the vehicle. The engine will start, only when the
electronic code in the chip corresponds to the registered
ID code for the vehicle.

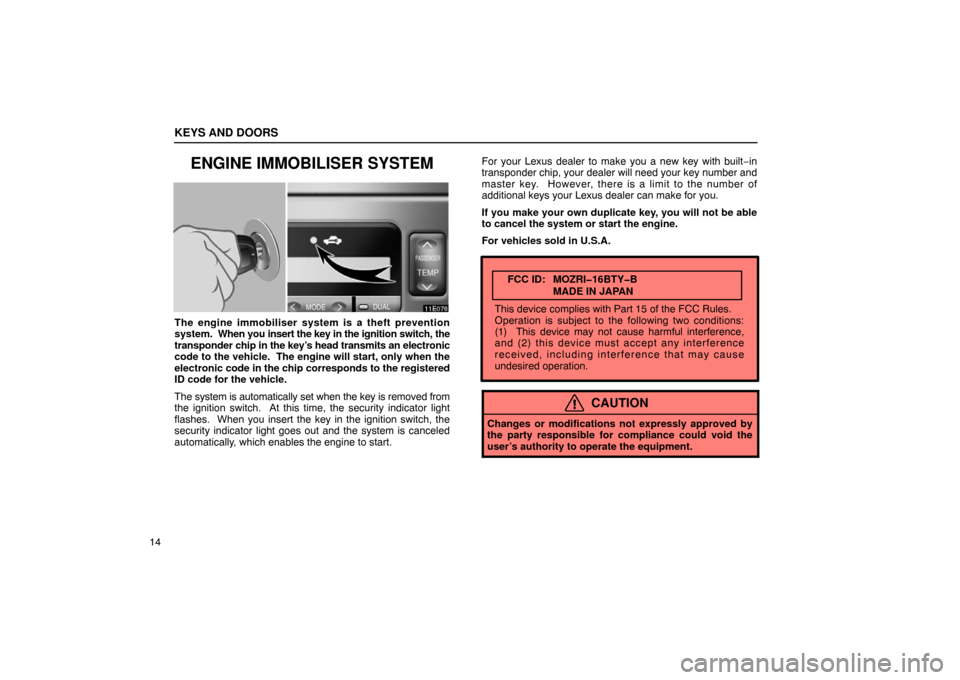

The system is automatically set when the key is removed from
the ignition switch. At this time, the security indicator light
flashes. When you insert the key in the ignition switch, the
security indicator light goes out and the system is canceled
automatically, which enables the engine to start.For your Lexus dealer to make you a new key with built
−in
transponder chip, your dealer will need your key number and
master key. However, there is a limit to the number of
additional keys your Lexus dealer can make for you.
If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
For vehicles sold in U.S.A.
FCC ID: MOZRI16BTYB MADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.

KEYS AND DOORS
15
For vehicles sold in Canada
This device complies with RSS− 210 of Industry
Canada.
Operation is subject to the following two conditions: (1)
This device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device.

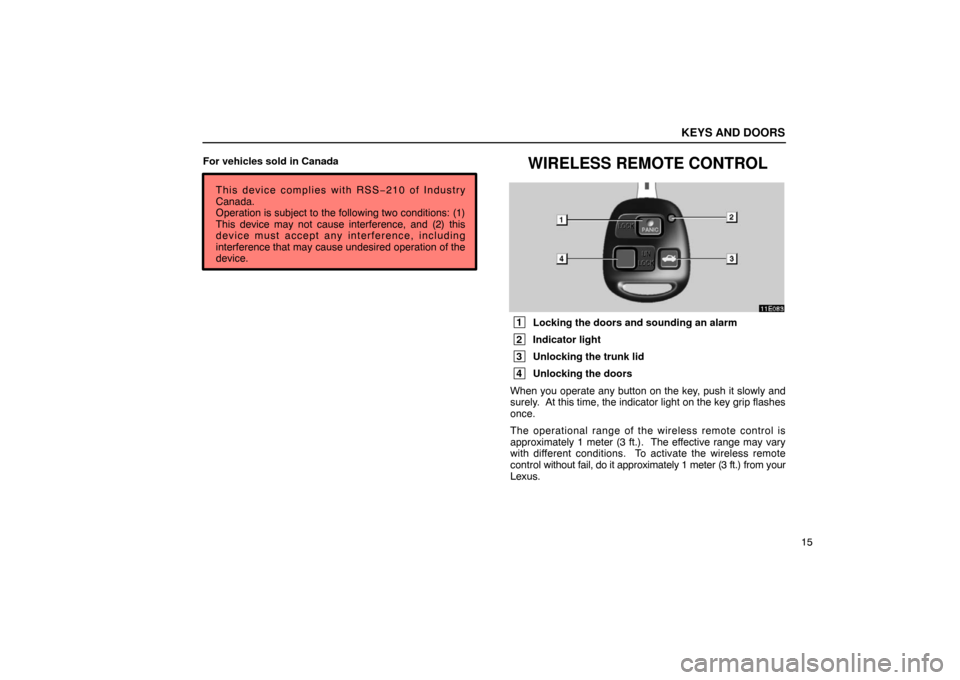

WIRELESS REMOTE CONTROL
1 Locking the doors and sounding an alarm
2Indicator light
3Unlocking the trunk lid
4Unlocking the doors
When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may vary
with different conditions. To activate the wireless remote
control without fail, do it approximately 1 meter (3 ft.) from your
Lexus.

KEYS AND DOORS
16In the following cases, th
e battery in the key may be
discharged. If this is a case, replace it using a special
screwdriver.
 The remote control does not work.
 The operational range of wireless remote control becomes
extremely short.
 The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see “Replacing the battery”
on page 20. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key , contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident. (See
“If you lose your keys or lock yourself out” on page 285.)
You can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information.
The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.
 Do not leave the wireless remote control key on places
where the temperature becomes high such as on the
dashboard.
 Do not disassemble it.
 Avoid knocking it hard against other objects or dropping it.
 Avoid putting it in water.
Locking/Unlocking the doors
When you push the “LOCK” button on the key briefly, all
the doors can be locked from outside the vehicle.
At this time, one beep sounds and the turn signal lights flash
once.* However, when you push the “LOCK” button with any
door not closed securely, the buzzer sounds for 10 seconds.**
To stop the buzzer, close all the doors securely or push the
“UNLOCK” button. If the key is in the ignition switch, locking
cannot be done.
Make sure all the doors are locked when you leave the vehicle.
Push the “LOCK” button once again.
NOTE:
* The turn signal lights can be set not to flash and the beep
volume can be changed.
** The buzzer can be set not to sound if a door is not closed
securely.
Ask your Lexus dealer for details.
NOTICE
Do not push the “LOCK” button any longer than 2 to 3
seconds. Pushing the button longer activates an alarm.
For details, see page 18.
