Lexus ES300h 2013 Owner's Manual

500
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system
■Receiving XM® Satellite Radio
Press .
The display changes as follows each time the button is pressed:
“SAT1” → “SAT2” → “SAT3”
Turn to select the desired channel in all the categories or
press “ >” or “ <” on to select the desired channel in the
current category.
■Setting XM® Satellite Radio channel presets
Select the desired channel. Press and hold the button (from to ) the channel is to be set to until you hear a beep.
■Changing the channel category
Press “>” or “ <” on .
XM® Satellite Radio (type A)
1
2

ES350 300h_OM_OM33A01U_(U)
5015-4. Using the audio system
5
Interior features
■Scanning the XM® Satellite Radio channels
●Scanning the channels in the current categoryPress .
When the desired channel is reached, press the button again.
●Scanning the preset channelsPress and hold until you hear a beep.
When the desired channel is reached, press the button again.
■Displaying text information
Press .
The display will show up to 10 characters.
The display changes as follows each time the button is pressed:
●
CH NAME
●TITLE (SONG/PROGRAM TITLE)
●NAME (ARTIST NAME/FEATURE)
●CH NUMBER
1
2
1
2

502
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system
■When the 12-volt battery is disconnected
All preset stations are erased.
■Reception sensitivity
●Cargo loaded on the roof luggage carrier, especially metal objects, may adversely
affect the reception of XM® Satellite Radio.
●It is difficult to maintain perfect radio reception at all times due to the continually
changing position of the antenna, differences in signal strength and surrounding
objects, such as trains and transmitters.
●The radio antenna is mounted inside the trunk and the rear window. To maintain
clear radio reception, do not attach metallic window tinting or other metallic
objects to the antenna wire mounted inside the rear window.
■Receiving XM® Satellite Radio
An XM
® Satellite Radio is a tuner designed exclusively to receive broadcasts pro-
vided under a separate subscription. Availability is limited to the 48 contiguous
states and 10 Canadian provinces.
●XM® subscriptions
For detailed information about XM® Satellite Radio or to subscribe:
U.S.A. 
Visit on the web at www.siriusxm.com
or call 1-866-635-2349.
Canada 
Visit on the web at www.xmradio.ca
or call 1-877-438-9677.
●Radio ID
You will need the radio ID when activating XM
® service or reporting a problem.
Select “CH000” using , and the receiver’s 8-character ID number will
appear.
●Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accompanying
Te x t I n f o r m a t i o n o f X M
® Satellite Radio.

ES350 300h_OM_OM33A01U_(U)
5035-4. Using the audio system
5
Interior features

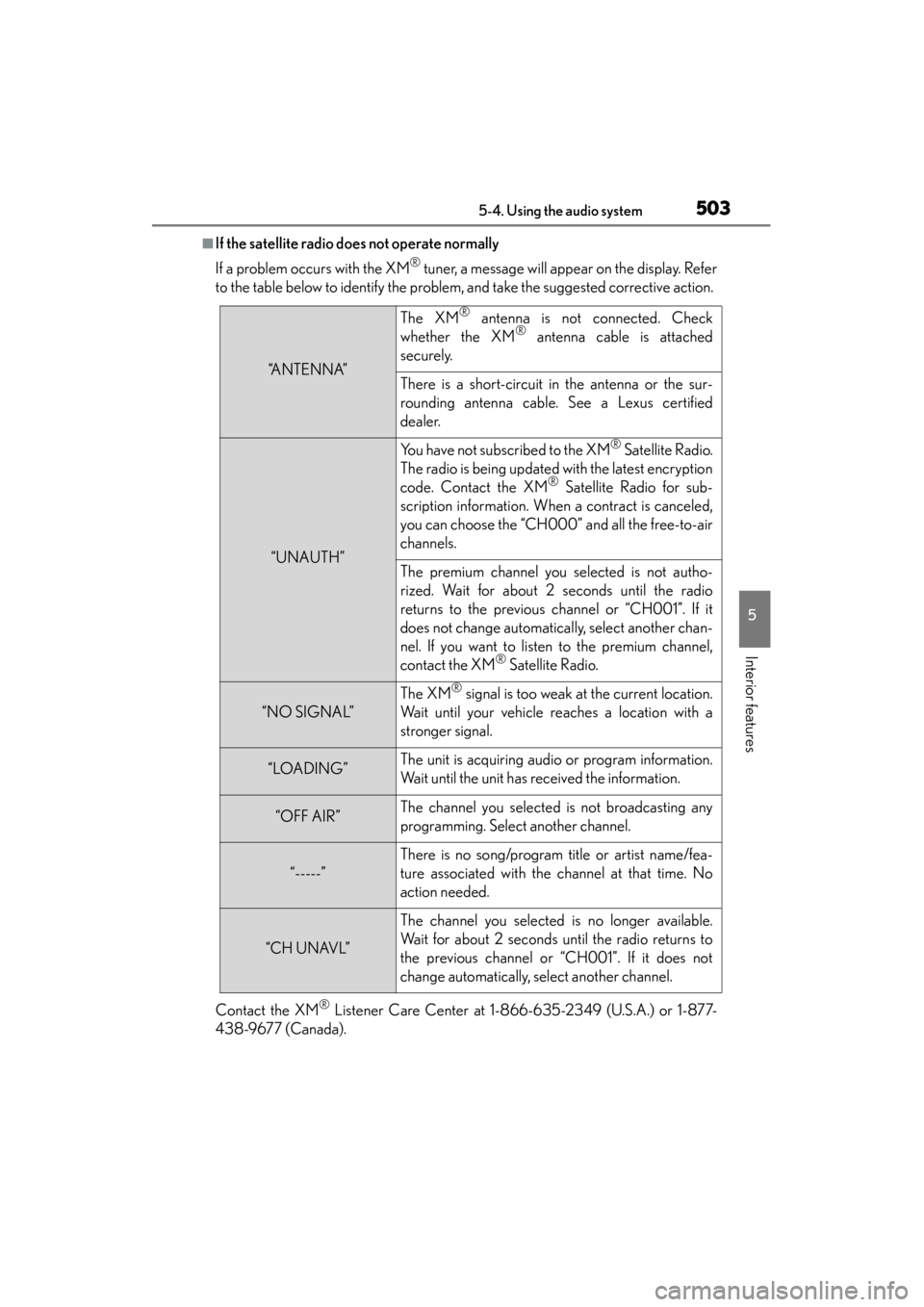

■If the satellite radio does not operate normally
If a problem occurs with the XM
® tuner, a message will appear on the display. Refer
to the table below to identify the problem, and take the suggested corrective action.
Contact the XM
® Listener Care Center at 1-866-635-2349 (U.S.A.) or 1-877-
438-9677 (Canada).
“ANTENNA”
The XM® antenna is not connected. Check
whether the XM® antenna cable is attached
securely.
There is a short-circuit in the antenna or the sur-
rounding antenna cable. See a Lexus certified
dealer.
“UNAUTH”
You have not subscribed to the XM® Satellite Radio.
The radio is being updated with the latest encryption
code. Contact the XM
® Satellite Radio for sub-
scription information. When a contract is canceled,
you can choose the “CH000” and all the free-to-air
channels.
The premium channel you selected is not autho-
rized. Wait for about 2 seconds until the radio
returns to the previous channel or “CH001”. If it
does not change automatically, select another chan-
nel. If you want to listen to the premium channel,
contact the XM
® Satellite Radio.
“NO SIGNAL”
The XM® signal is too weak at the current location.
Wait until your vehicle reaches a location with a
stronger signal.
“LOADING”The unit is acquiring audio or program information.
Wait until the unit has received the information.
“OFF AIR”The channel you selected is not broadcasting any
programming. Select another channel.
“-----”
There is no song/program title or artist name/fea-
ture associated with the channel at that time. No
action needed.
“CH UNAVL”
The channel you selected is no longer available.
Wait for about 2 seconds until the radio returns to
the previous channel or “CH001”. If it does not
change automatically, select another channel.

504
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system

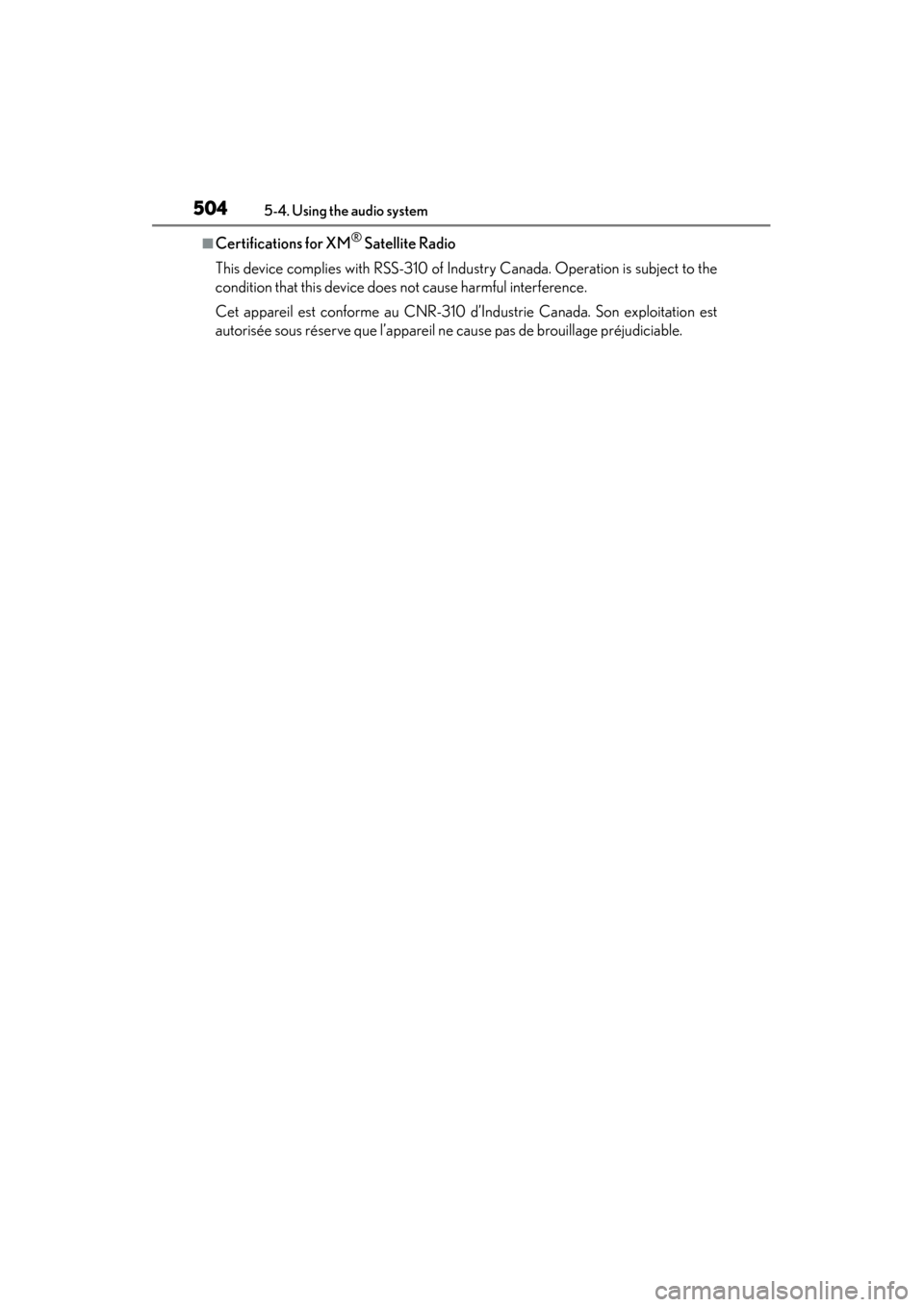

■Certifications for XM® Satellite Radio
This device complies with RSS-310 of Industry Canada. Operation is subject to the
condition that this device does not cause harmful interference.
Cet appareil est conforme au CNR-310 d’Industrie Canada. Son exploitation est
autorisée sous réserve que l’appareil ne cause pas de brouillage préjudiciable.

505
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system
5
Interior features

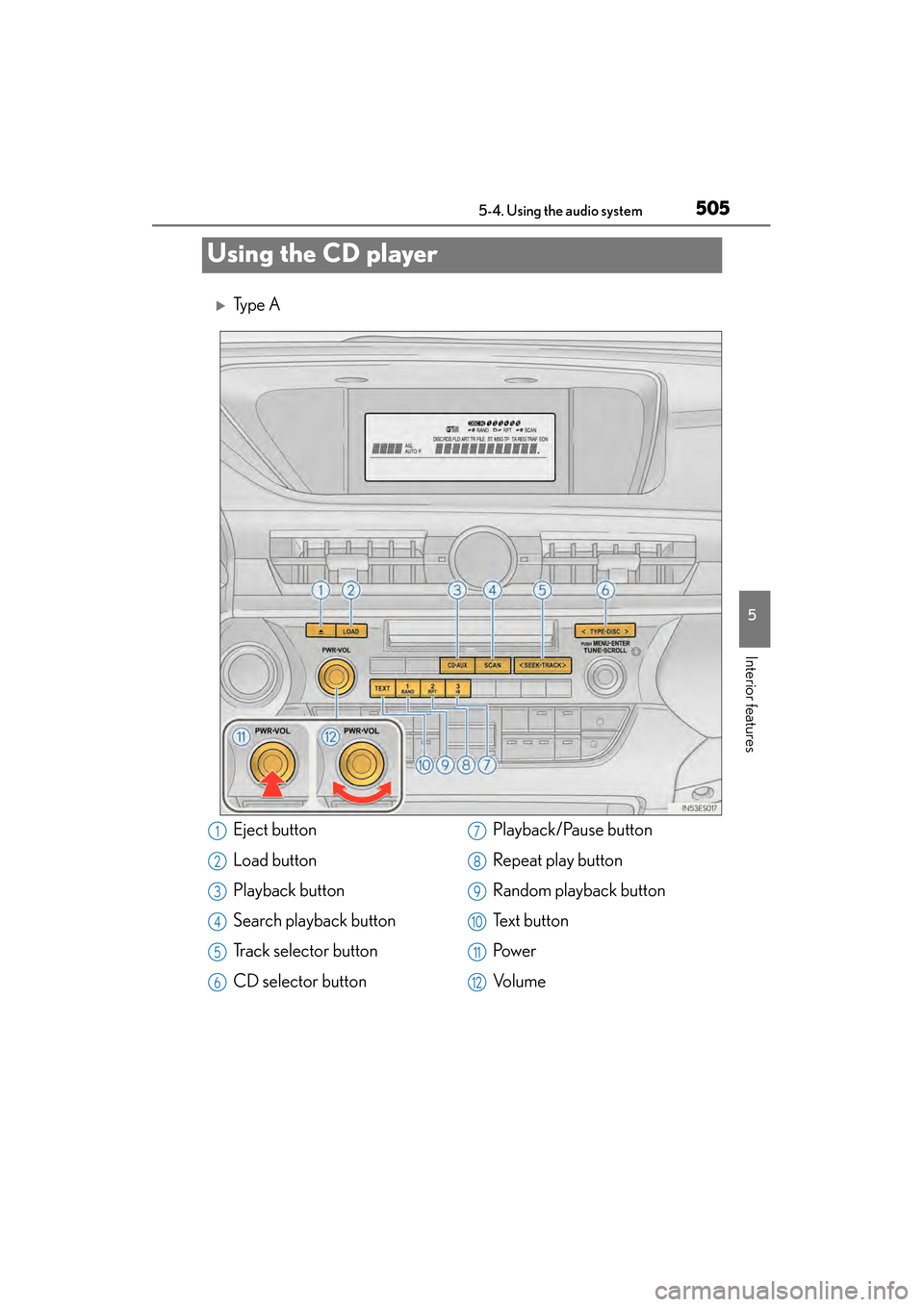

Using the CD player
XTy p e A
Eject button
Load button
Playback button
Search playback button
Track selector button
CD selector buttonPlayback/Pause button
Repeat play button
Random playback button
Te x t b u t t o n
Pow e r
Vo l u m e1
2
3
4
5
6
7
8
9
10
11
12

506
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system

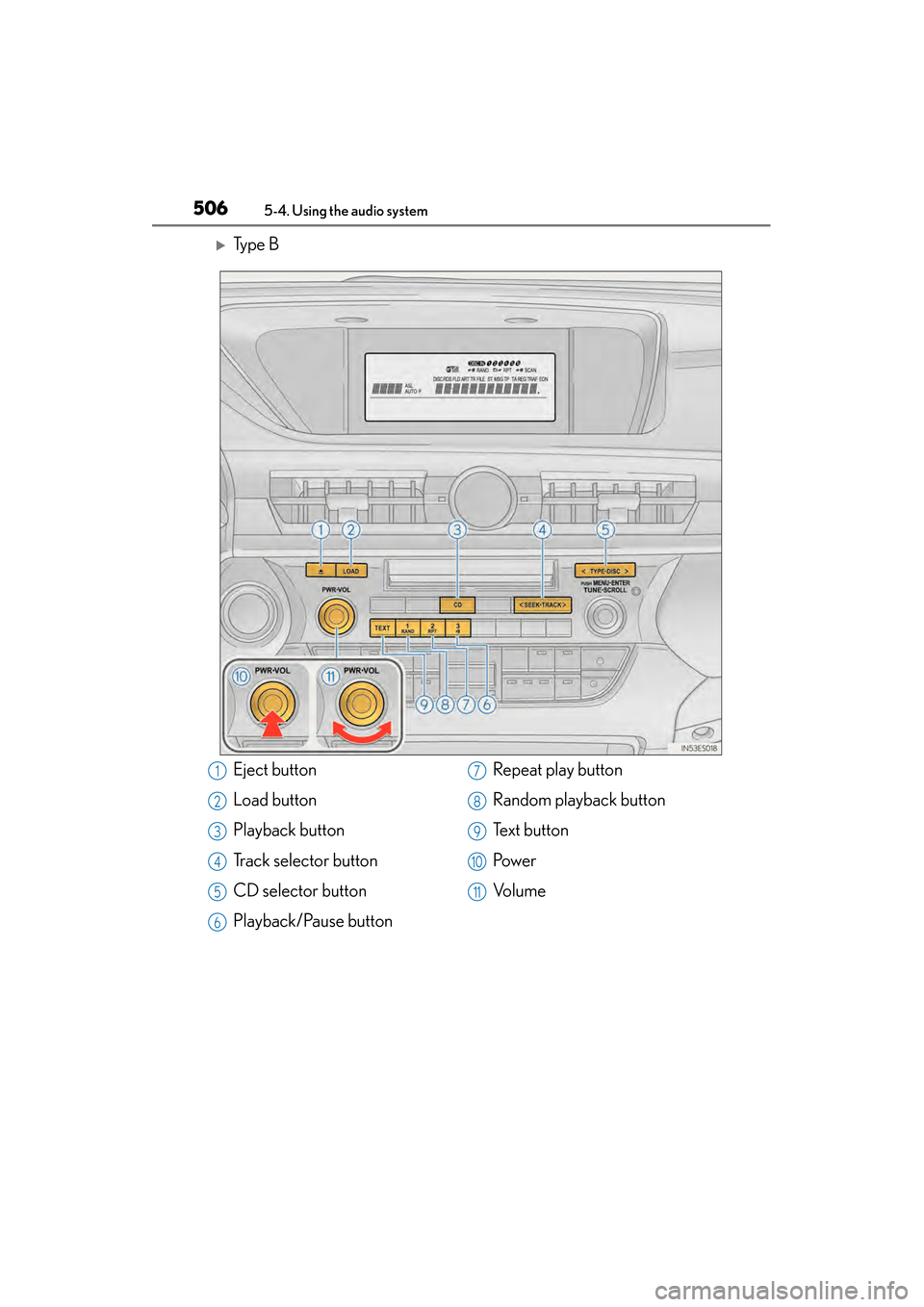

XTy p e B
Eject button
Load button
Playback button
Track selector button
CD selector button
Playback/Pause buttonRepeat play button
Random playback button
Te x t b u t t o n
Pow e r
Vo l u m e1
2
3
4
5
6
7
8
9
10
11

ES350 300h_OM_OM33A01U_(U)
5075-4. Using the audio system
5
Interior features
■Loading a CDPress .
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green, insert a
CD.
The display changes from “WAIT” to “LOAD”.
■Loading multiple CDsPress and hold until you hear a beep.
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green, insert a
CD.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the CD is being inserted.
When the indicator on the slot turns from amber to green, insert the
next CD.
Repeat the procedure for the remaining CDs.
To cancel the operation, press . If you do not insert a disc within 15 sec-
onds, loading will be canceled automatically.
Loading a CD
1
2
1
2
3

508
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system

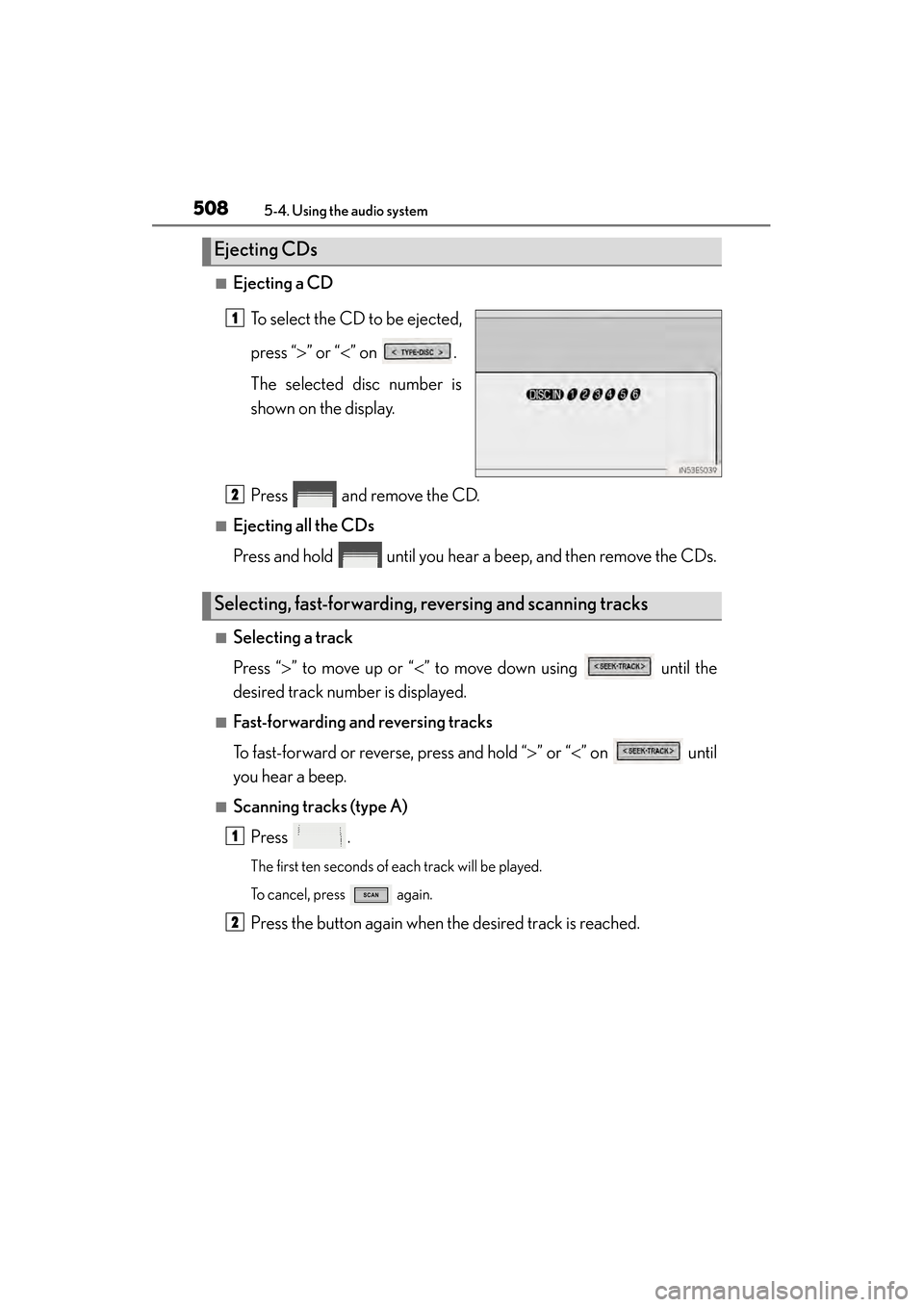

■Ejecting a CDTo select the CD to be ejected,
press “ >” or “ <” on .
The selected disc number is
shown on the display.
Press and remove the CD.
■Ejecting all the CDs
Press and hold until you hear a beep, and then remove the CDs.
■Selecting a track
Press “ >” to move up or “ <” to move down using until the
desired track number is displayed.
■Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “ >” or “ <” on until
you hear a beep.
■Scanning tracks (type A)
Press .
The first ten seconds of each track will be played.
To cancel, press again.
Press the button again when the desired track is reached.
Ejecting CDs
1
Selecting, fast-forwarding, reversing and scanning tracks
2
1
2

ES350 300h_OM_OM33A01U_(U)
5095-4. Using the audio system
5
Interior features

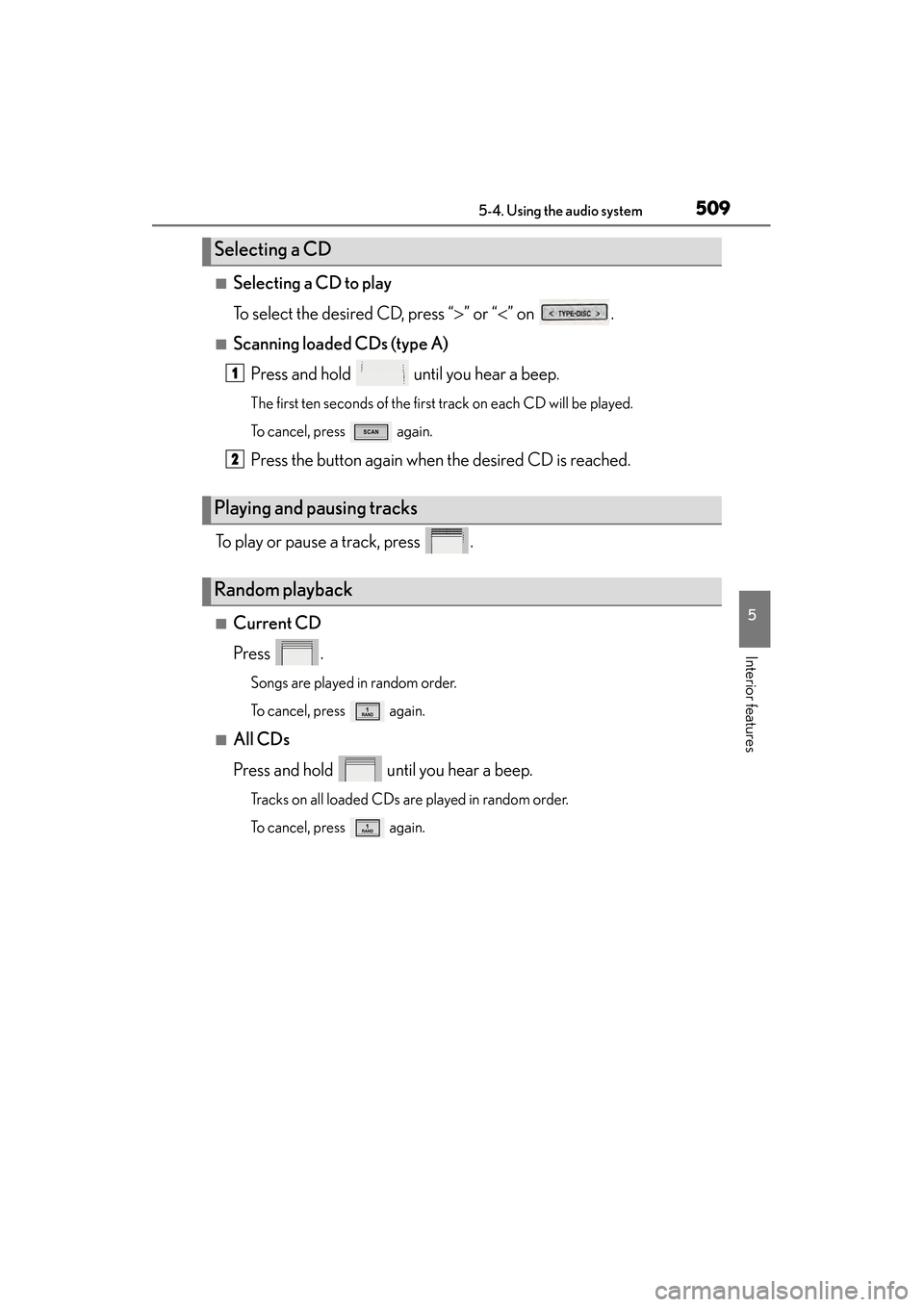

■Selecting a CD to play
To select the desired CD, press “>” or “ <” on .
■Scanning loaded CDs (type A)
Press and hold until you hear a beep.
The first ten seconds of the first track on each CD will be played.
To cancel, press again.
Press the button again when the desired CD is reached.
To play or pause a track, press .
■Current CD
Press .
Songs are played in random order.
To cancel, press again.
■All CDs
Press and hold until you hear a beep.
Tracks on all loaded CDs are played in random order.
To cancel, press again.
Selecting a CD
Playing and pausing tracks
Random playback
1
2
