Lexus ES300h 2013 Owner's Manual

510
ES350 300h_OM_OM33A01U_(U)

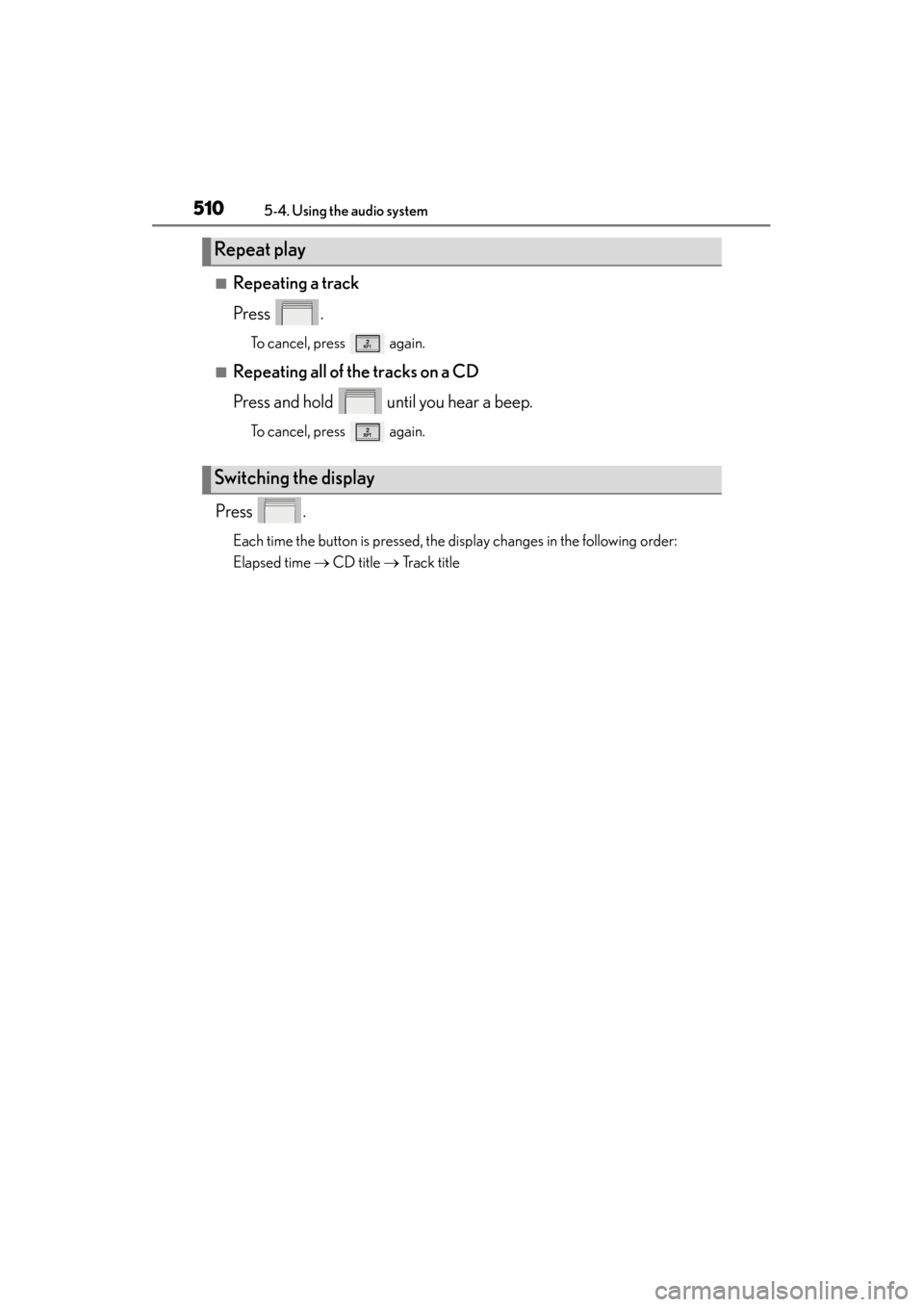

5-4. Using the audio system
■Repeating a track
Press .
To cancel, press again.
■Repeating all of the tracks on a CD
Press and hold until you hear a beep.
To cancel, press again.
Press .
Each time the button is pressed, the display changes in the following order:
Elapsed time → CD title → Track title
Repeat play
Switching the display

ES350 300h_OM_OM33A01U_(U)
5115-4. Using the audio system
5
Interior features

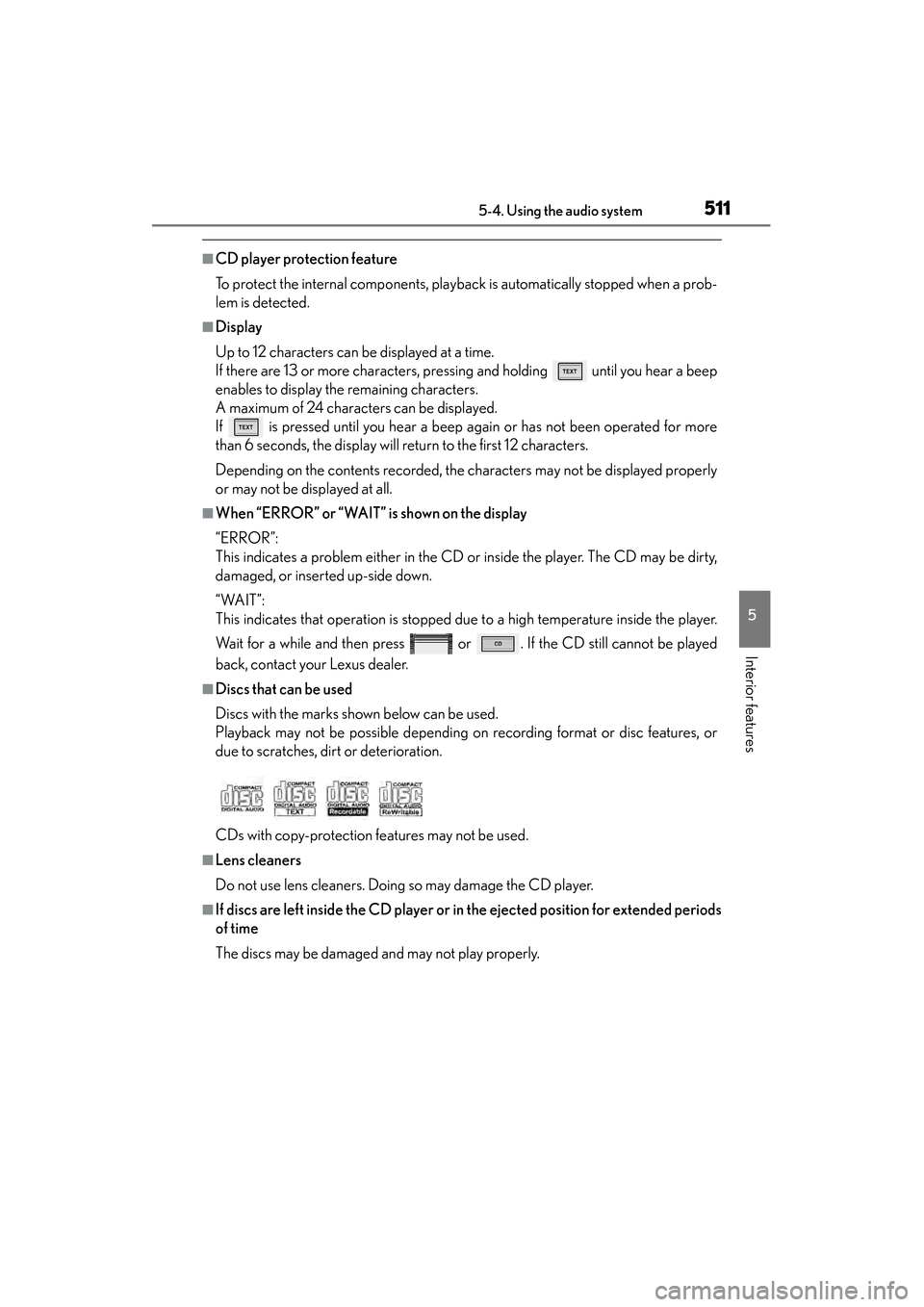

■CD player protection feature
To protect the internal components, playback is automatically stopped when a prob-
lem is detected.
■Display
Up to 12 characters can be displayed at a time.
If there are 13 or more characters, pressing and holding until you hear a beep
enables to display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed until you hear a beep again or has not been operated for more
than 6 seconds, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed properly
or may not be displayed at all.
■When “ERROR” or “WAIT” is shown on the display
“ERROR”:
This indicates a problem either in the CD or inside the player. The CD may be dirty,
damaged, or inserted up-side down.
“WAIT”:
This indicates that operation is stopped due to a high temperature inside the player.
Wait for a while and then press or . If the CD still cannot be played
back, contact your Lexus dealer.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
CDs with copy-protection features may not be used.
■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■If discs are left inside the CD player or in the ejected position for extended periods
of time
The discs may be damaged and may not play properly.

512
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system

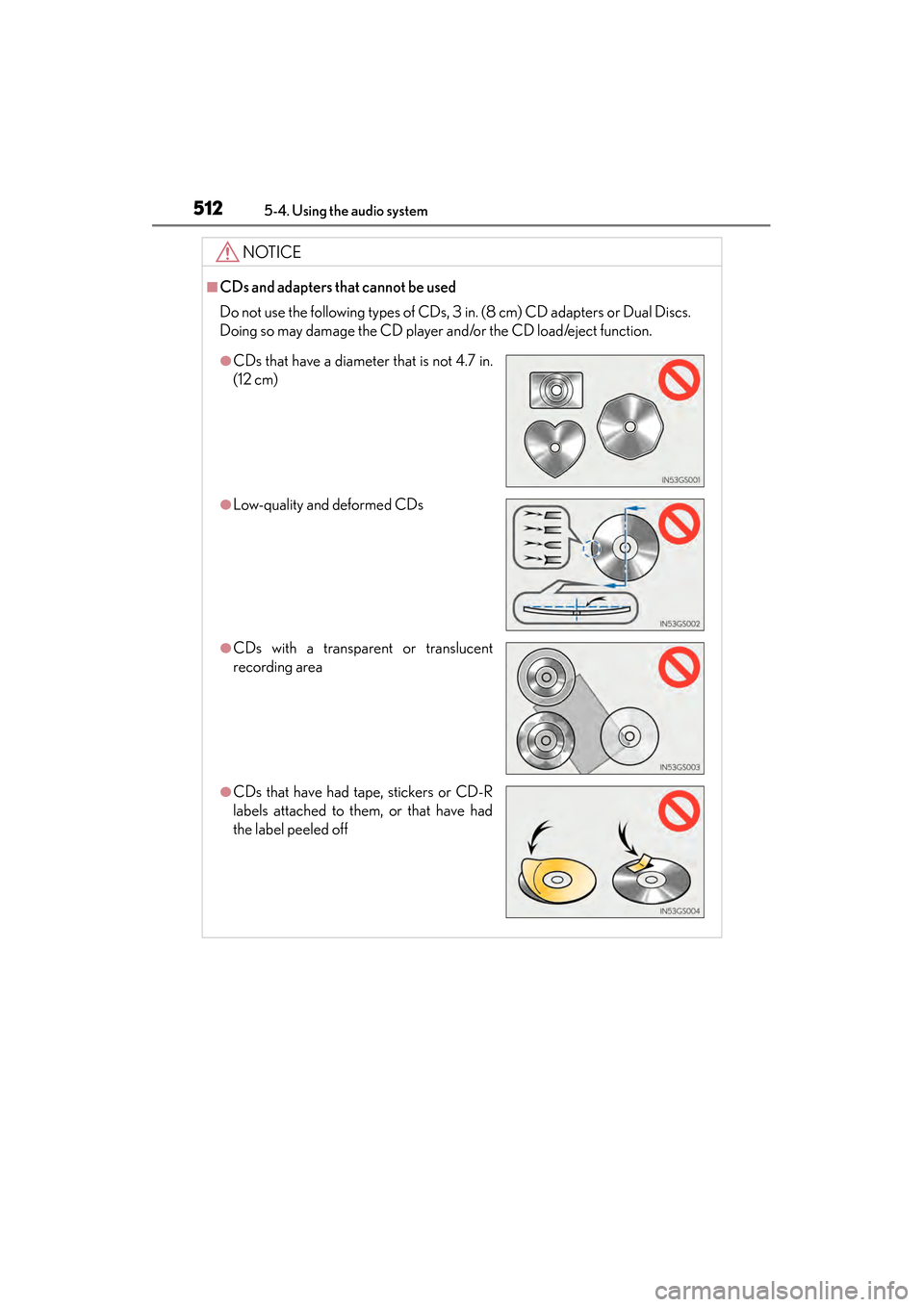

NOTICE
■CDs and adapters that cannot be used
Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual Discs.
Doing so may damage the CD player and/or the CD load/eject function.
●CDs that have a diameter that is not 4.7 in.
(12 cm)
●Low-quality and deformed CDs
●CDs with a transparent or translucent
recording area
●CDs that have had tape, stickers or CD-R
labels attached to them, or that have had
the label peeled off

ES350 300h_OM_OM33A01U_(U)
5135-4. Using the audio system
5
Interior features

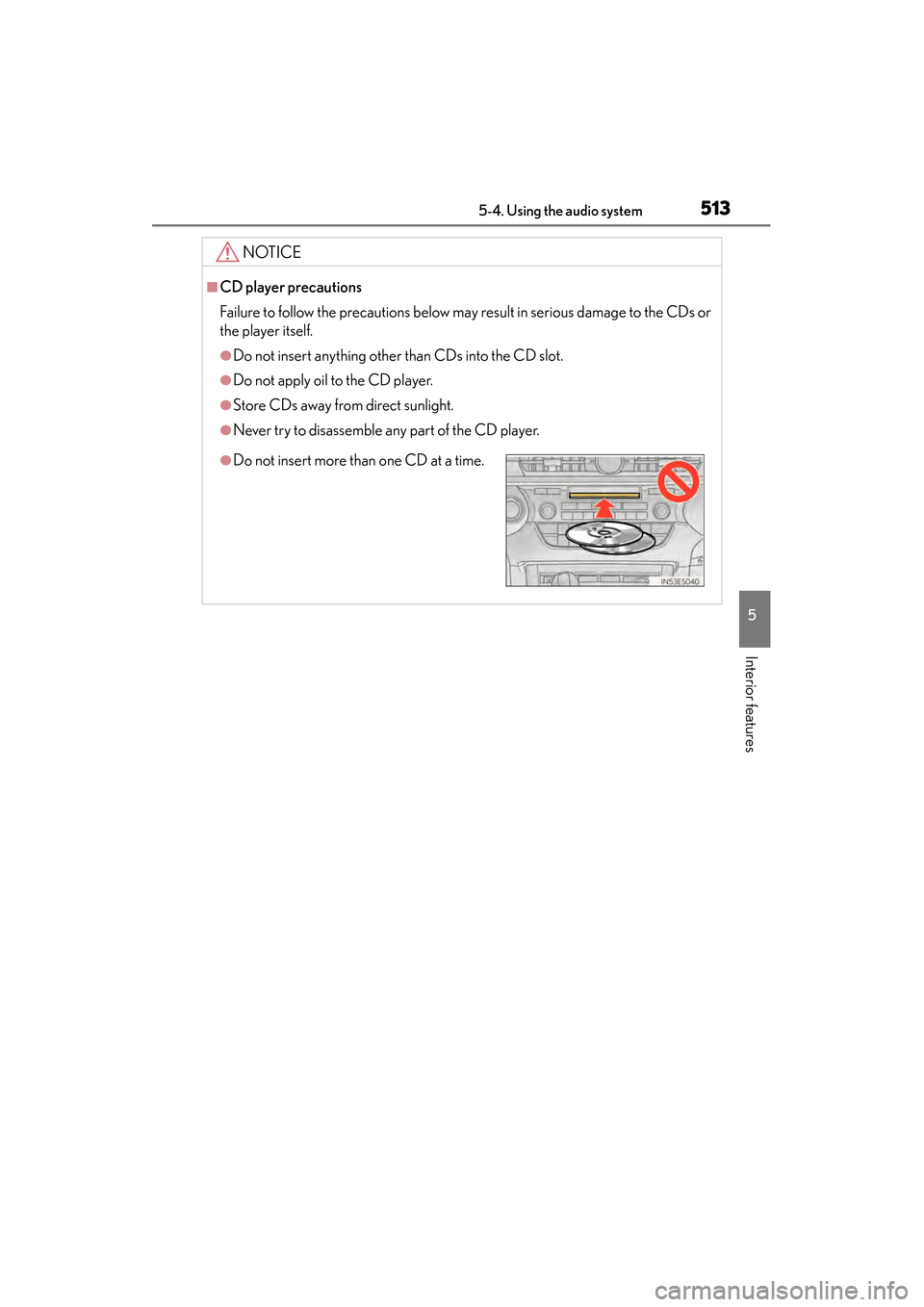

NOTICE
■CD player precautions
Failure to follow the precautions below may result in serious damage to the CDs or
the player itself.
●Do not insert anything other than CDs into the CD slot.
●Do not apply oil to the CD player.
●Store CDs away from direct sunlight.
●Never try to disassemble any part of the CD player.
●Do not insert more than one CD at a time.

514
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system

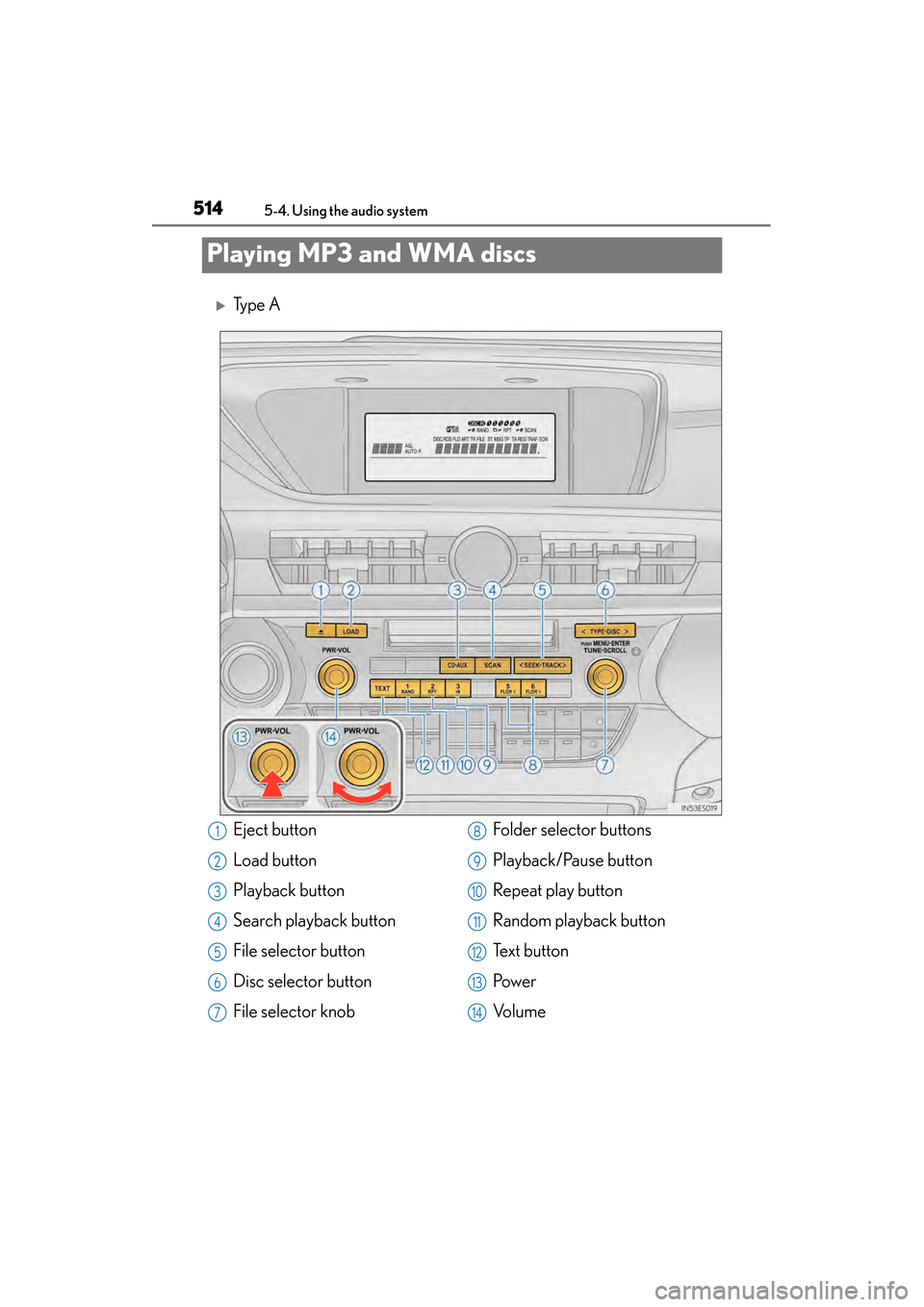

Playing MP3 and WMA discs
XTy p e A
Eject button
Load button
Playback button
Search playback button
File selector button
Disc selector button
File selector knobFolder selector buttons
Playback/Pause button
Repeat play button
Random playback button
Te x t b u t t o n
Pow e r
Vo l u m e1
2
3
4
5
6
7
8
9
10
11
12
13
14

ES350 300h_OM_OM33A01U_(U)
5155-4. Using the audio system
5
Interior features

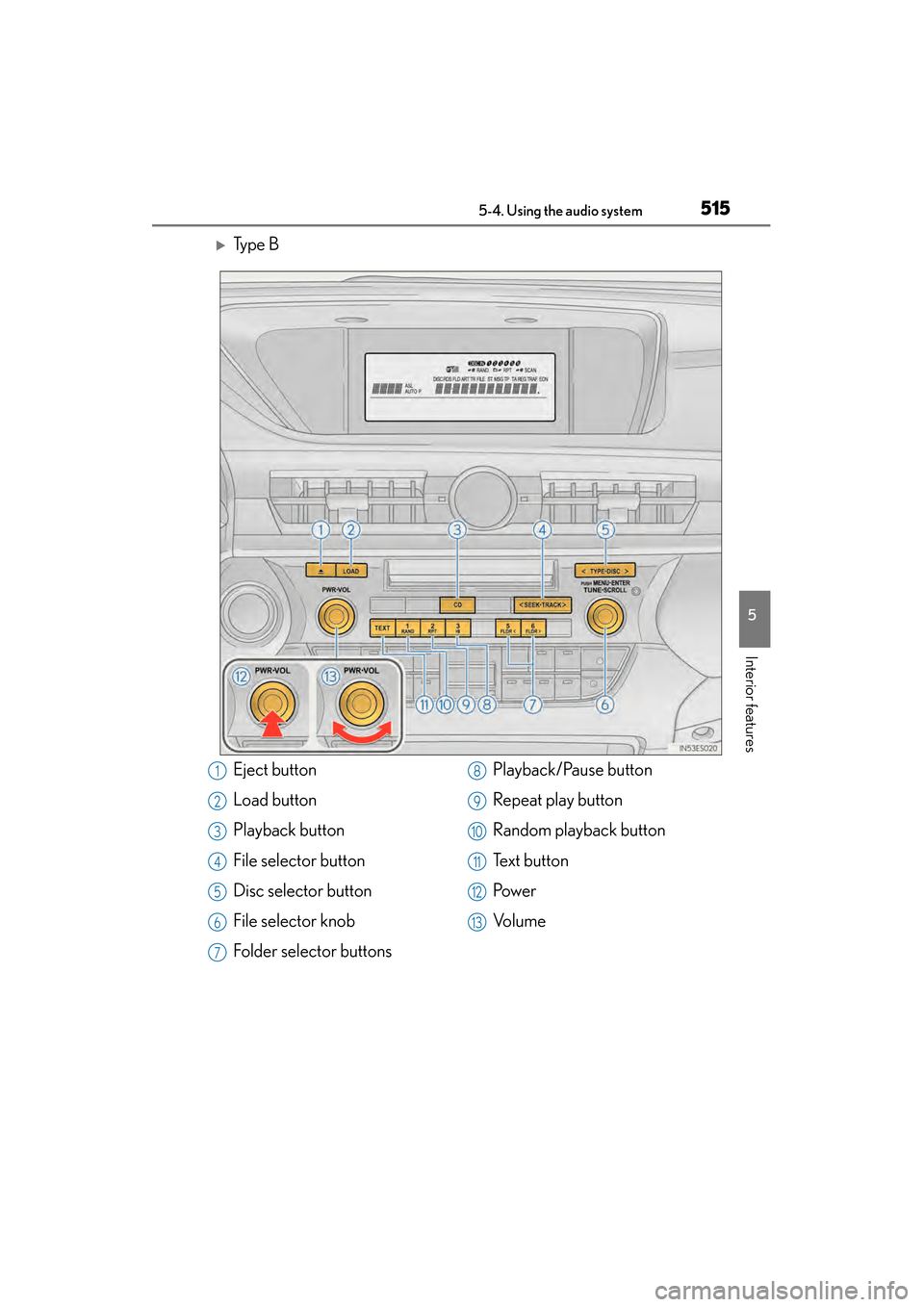

XTy p e B
Eject button
Load button
Playback button
File selector button
Disc selector button
File selector knob
Folder selector buttonsPlayback/Pause button
Repeat play button
Random playback button
Te x t b u t t o n
Pow e r
Vo l u m e1
2
3
4
5
6
7
8
9
10
11
12
13

516
ES350 300h_OM_OM33A01U_(U)

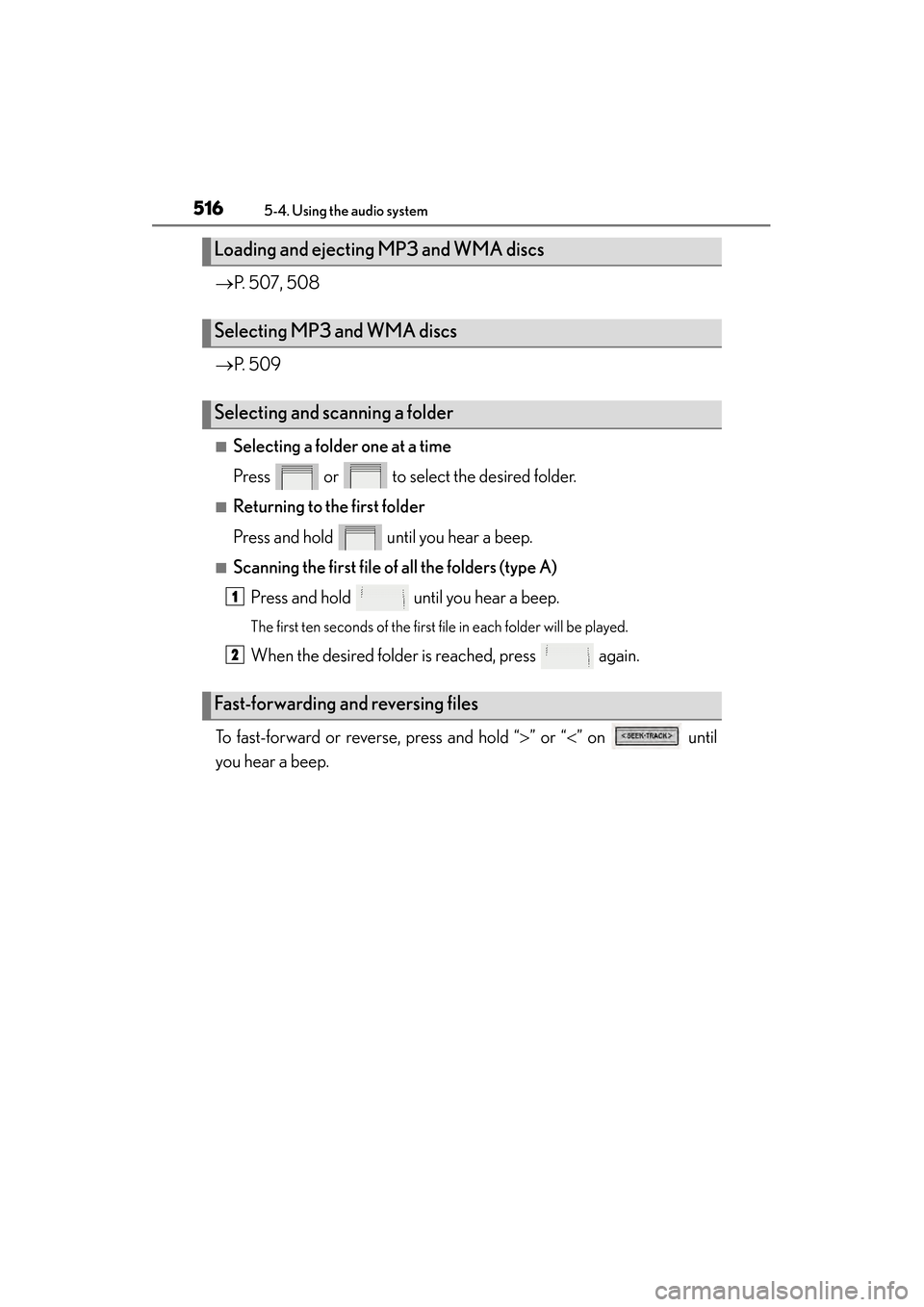

5-4. Using the audio system
→P. 507, 508
→ P. 509
■Selecting a folder one at a time
Press or to select the desired folder.
■Returning to the first folder
Press and hold until you hear a beep.
■Scanning the first file of all the folders (type A)
Press and hold until you hear a beep.
The first ten seconds of the first file in each folder will be played.
When the desired folder is reached, press again.
To fast-forward or reverse, press and hold “ >” or “< ” on until
you hear a beep.
Loading and ejecting MP3 and WMA discs
Selecting MP3 and WMA discs
Selecting and scanning a folder
Fast-forwarding and reversing files
1
2

ES350 300h_OM_OM33A01U_(U)
5175-4. Using the audio system
5
Interior features

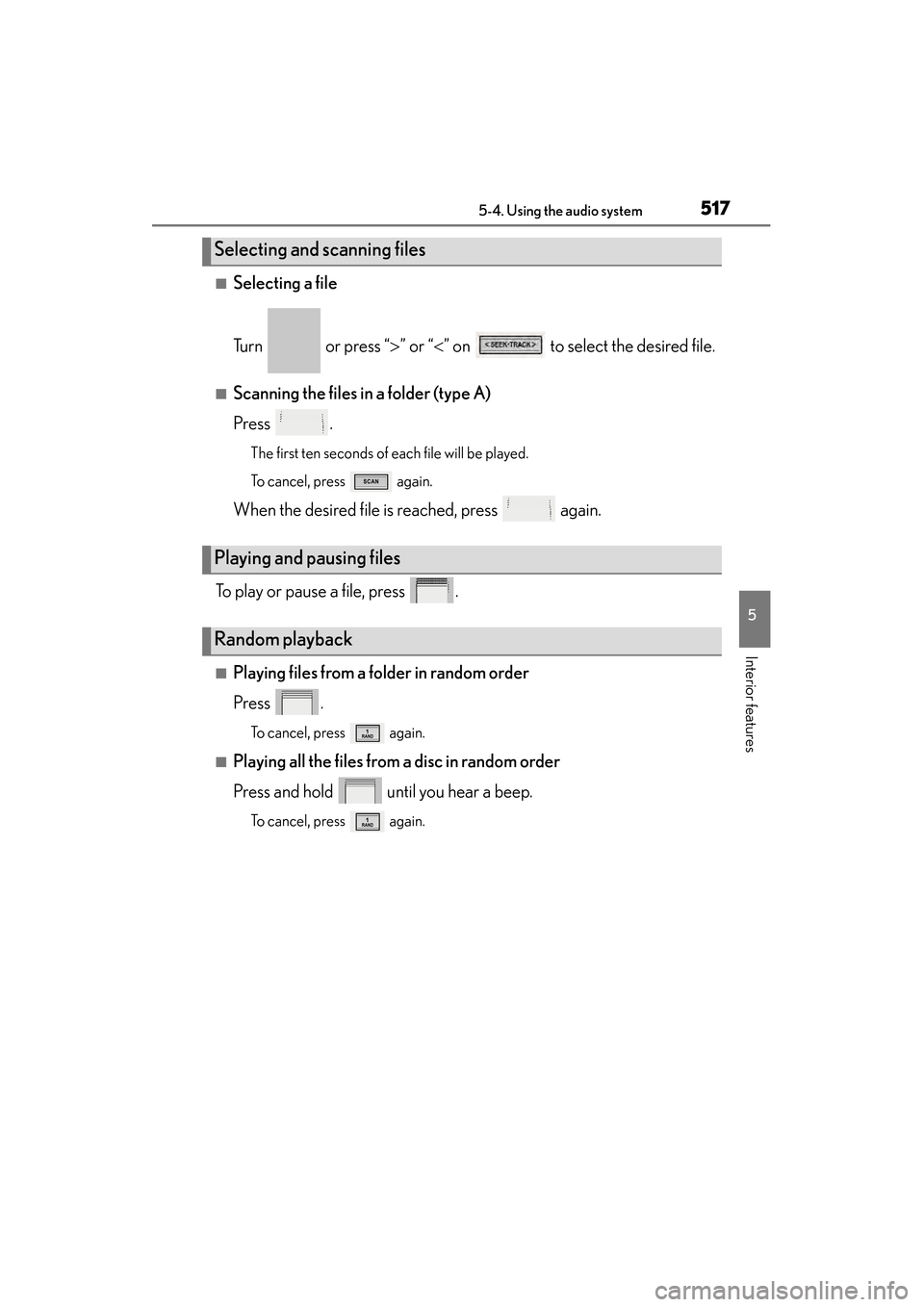

■Selecting a file
Turn or press “>” or “ <” on to select the desired file.
■Scanning the files in a folder (type A)
Press .
The first ten seconds of each file will be played.
To cancel, press again.
When the desired file is reached, press again.
To play or pause a file, press .
■Playing files from a folder in random order
Press .
To cancel, press again.
■Playing all the files from a disc in random order
Press and hold until you hear a beep.
To cancel, press again.
Selecting and scanning files
Playing and pausing files
Random playback

518
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system
■Repeating a file
Press .
To cancel, press again.
■Repeating all the files in a folder
Press and hold until you hear a beep.
To cancel, press again.
Press .
Each time the button is pressed, the display changes in the following order: Folder
no./File no./Elapsed time → Folder name → File name → Album title (MP3
only) → Track title → Artist name
Repeat play
Switching the display

ES350 300h_OM_OM33A01U_(U)
5195-4. Using the audio system
5
Interior features

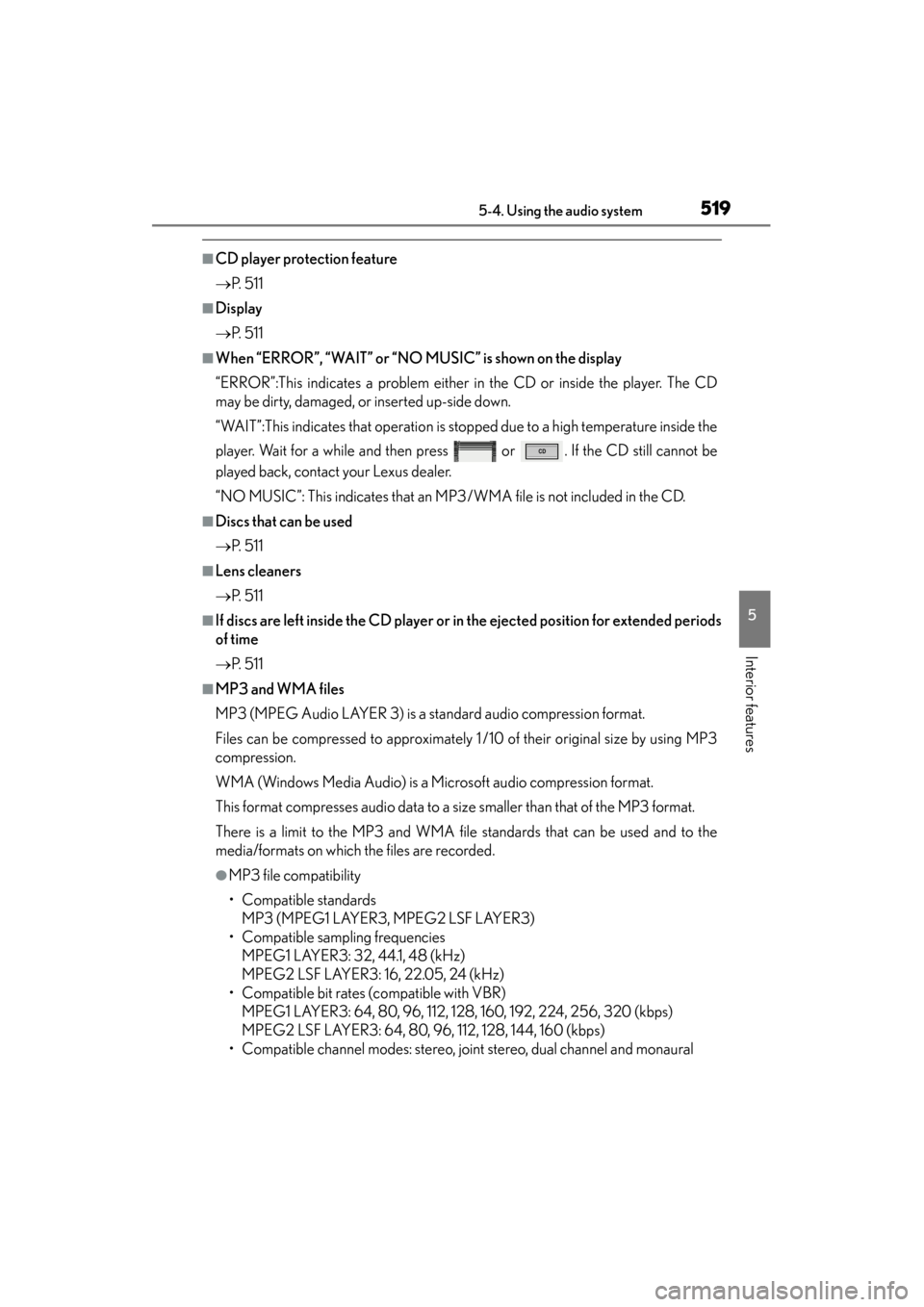

■CD player protection feature
→P. 5 1 1
■Display
→P. 5 1 1
■When “ERROR”, “WAIT” or “NO MUSIC” is shown on the display
“ERROR”:This indicates a problem either in the CD or inside the player. The CD
may be dirty, damaged, or inserted up-side down.
“WAIT”:This indicates that operation is stopped due to a high temperature inside the
player. Wait for a while and then press or . If the CD still cannot be
played back, contact your Lexus dealer.
“NO MUSIC”: This indicates that an MP3/WMA file is not included in the CD.
■Discs that can be used
→P. 5 1 1
■Lens cleaners
→P. 5 1 1
■If discs are left inside the CD player or in the ejected position for extended periods
of time
→ P. 5 1 1
■MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1 /10 of their original size by using MP3
compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 format.
There is a limit to the MP3 and WMA file standards that can be used and to the
media/formats on which the files are recorded.
●MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR) MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and monaural
