Lexus ES300h 2013 Owner's Manual

620
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features

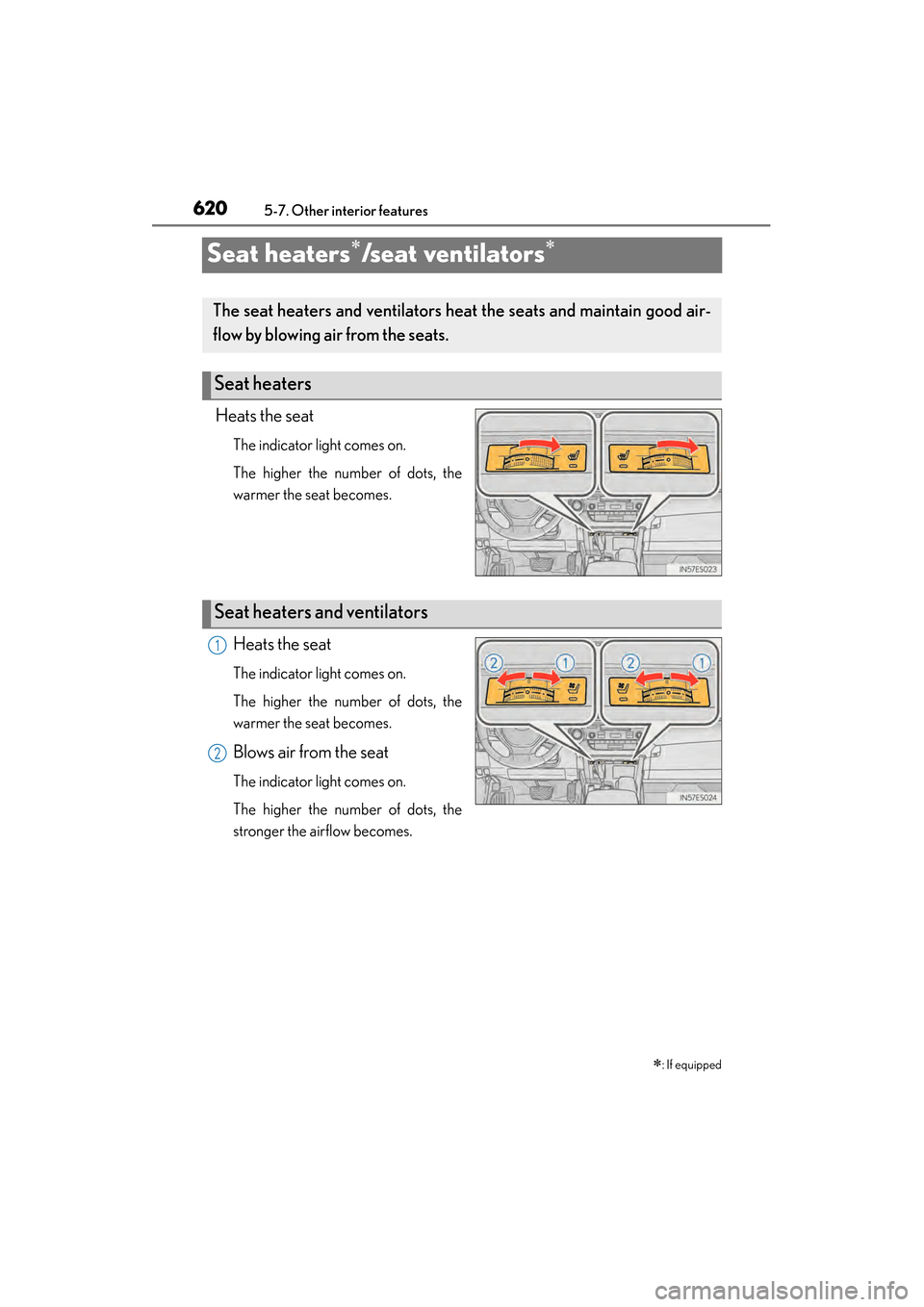

Seat heaters∗/s e a t v e n t i l a t o r s∗
Heats the seat
The indicator light comes on.
The higher the number of dots, the
warmer the seat becomes.
Heats the seat
The indicator light comes on.
The higher the number of dots, the
warmer the seat becomes.
Blows air from the seat
The indicator light comes on.
The higher the number of dots, the
stronger the airflow becomes.
∗: If equipped
The seat heaters and ventilators heat the seats and maintain good air-
flow by blowing air from the seats.
Seat heaters
Seat heaters and ventilators
1
2

ES350 300h_OM_OM33A01U_(U)
6215-7. Other interior features
5
Interior features

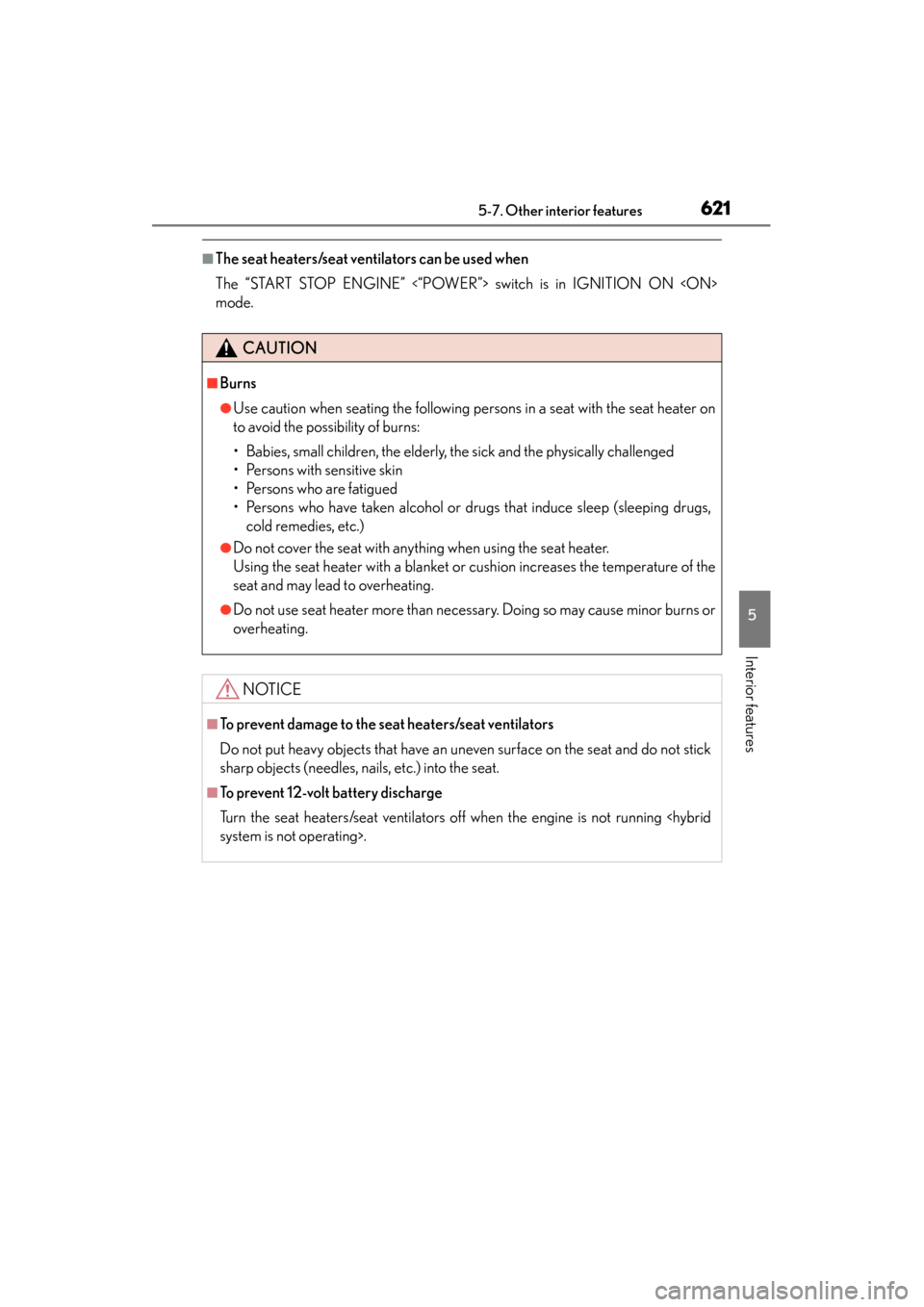

■The seat heaters/seat ventilators can be used when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
●Do not use seat heater more than necessary. Doing so may cause minor burns or
overheating.
NOTICE
■To prevent damage to the seat heaters/seat ventilators
Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects (needles, nails, etc.) into the seat.
■To prevent 12-volt battery discharge
Turn the seat heaters/seat ventilators off when the engine is not running system is not operating>.

622
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features

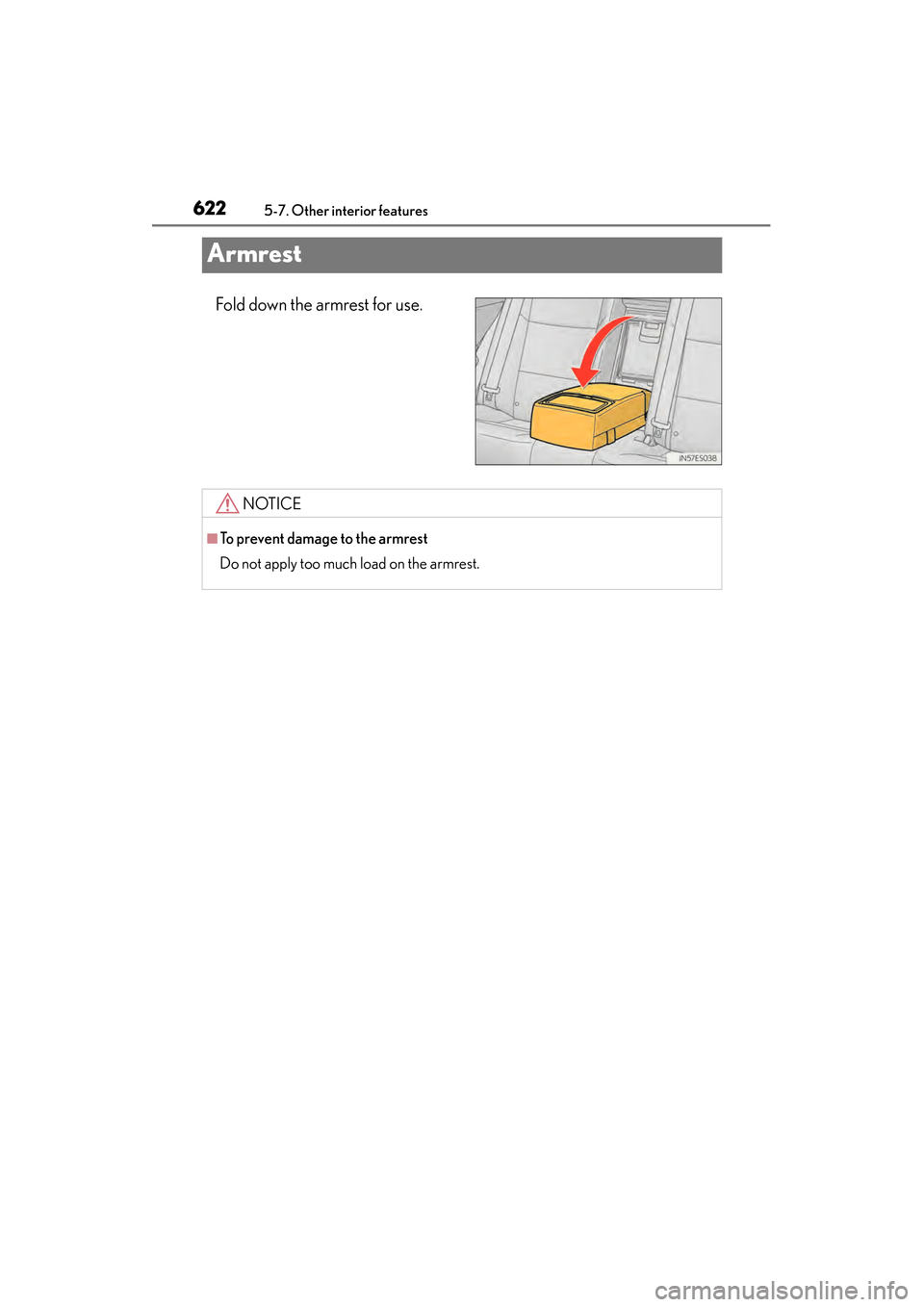

Armrest
Fold down the armrest for use.
NOTICE
■To prevent damage to the armrest
Do not apply too much load on the armrest.

623
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features
5
Interior features

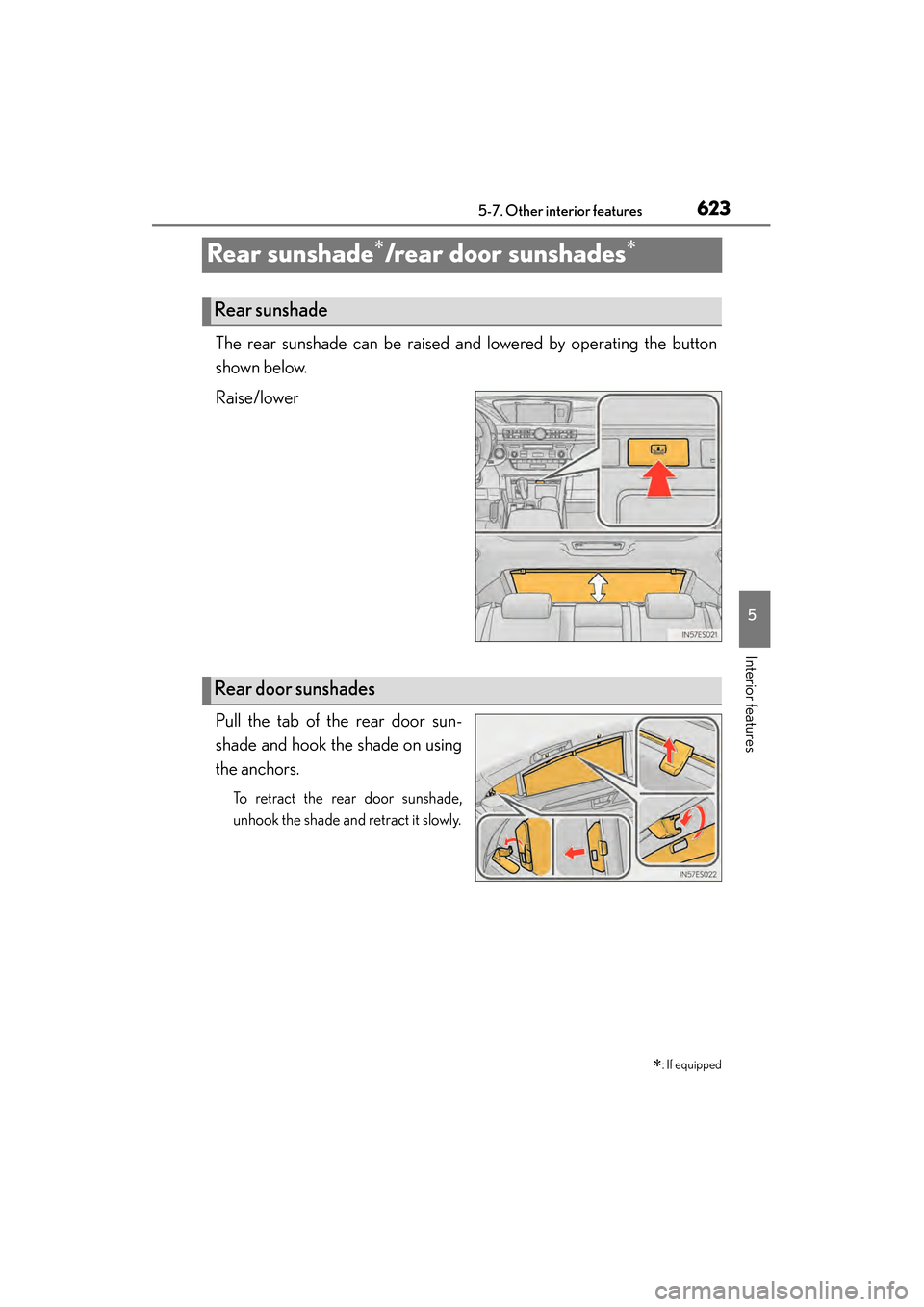

Rear sunshade∗/rear door sunshades∗
The rear sunshade can be raised and lowered by operating the button
shown below.
Raise/lower
Pull the tab of the rear door sun-
shade and hook the shade on using
the anchors.
To retract the rear door sunshade,
unhook the shade and retract it slowly.
∗: If equipped
Rear sunshade
Rear door sunshades

624
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features

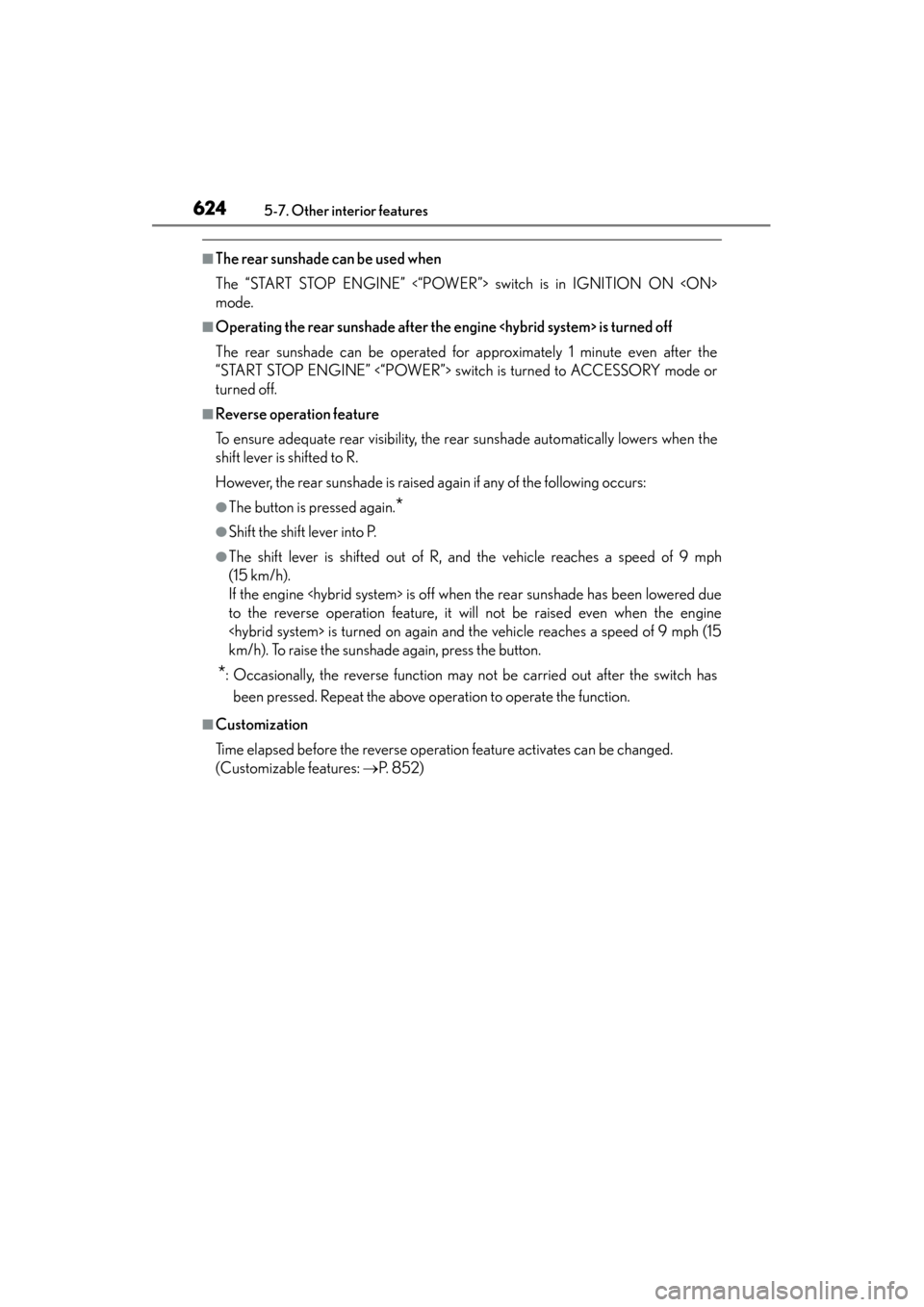

■The rear sunshade can be used when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■Operating the rear sunshade after the engine is turned off
The rear sunshade can be operated for approximately 1 minute even after the
“START STOP ENGINE” <“POWER”> switch is turned to ACCESSORY mode or
turned off.
■Reverse operation feature
To ensure adequate rear visibility, the rear sunshade automatically lowers when the
shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
●The button is pressed again.*
●Shift the shift lever into P.
●The shift lever is shifted out of R, and the vehicle reaches a speed of 9 mph
(15 km/h).
If the engine is off when the rear sunshade has been lowered due
to the reverse operation feature, it will not be raised even when the engine
is turned on again and the vehicle reaches a speed of 9 mph (15
km/h). To raise the sunshade again, press the button.
*: Occasionally, the reverse function may not be carried out after the switch has been pressed. Repeat the above operation to operate the function.
■Customization
Time elapsed before the reverse operation feature activates can be changed.
(Customizable features: → P. 8 5 2 )

ES350 300h_OM_OM33A01U_(U)
6255-7. Other interior features
5
Interior features

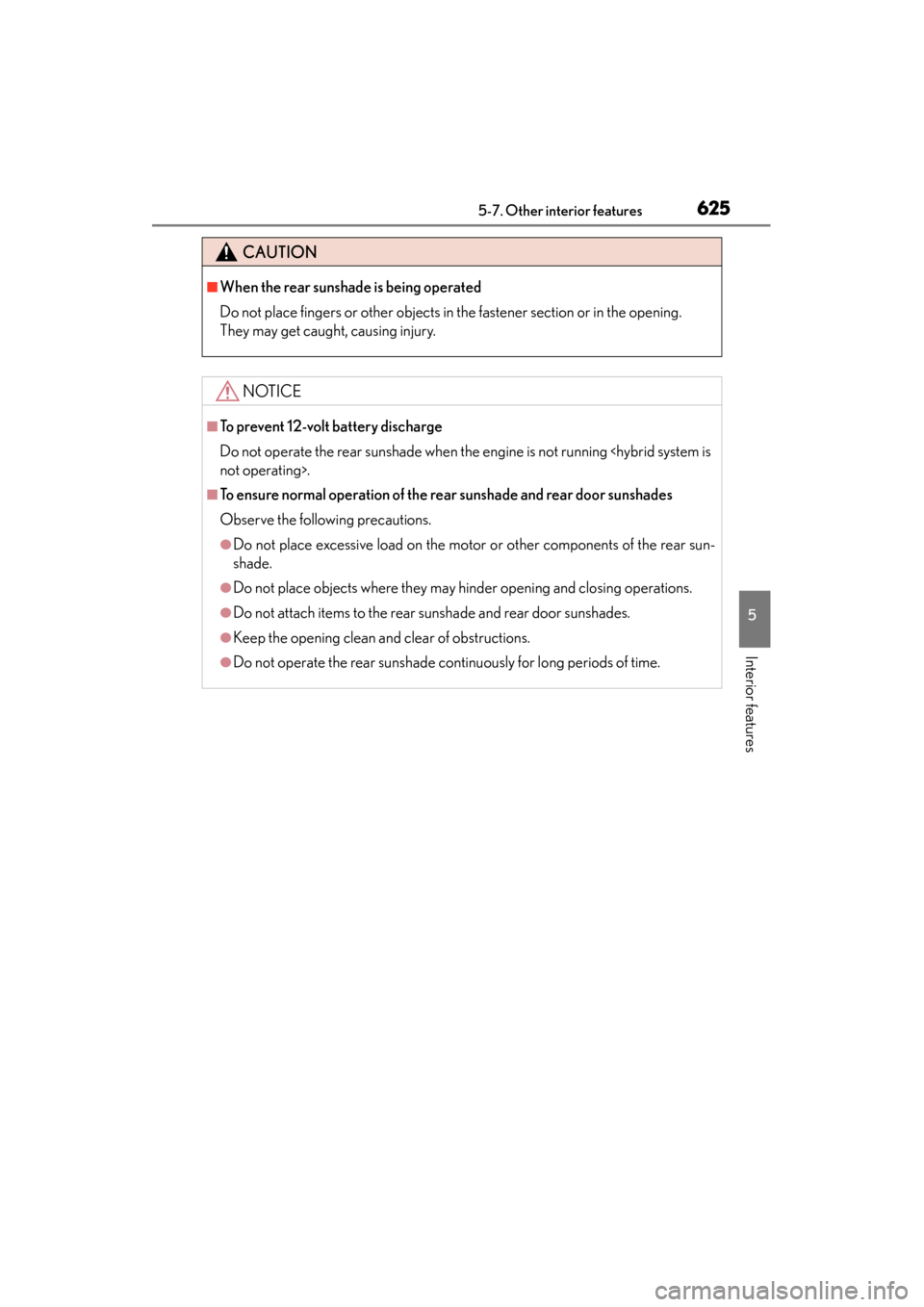

CAUTION
■When the rear sunshade is being operated
Do not place fingers or other objects in the fastener section or in the opening.
They may get caught, causing injury.
NOTICE
■To prevent 12-volt battery discharge
Do not operate the rear sunshade when the engine is not running not operating>.
■To ensure normal operation of the rear sunshade and rear door sunshades
Observe the following precautions.
●Do not place excessive load on the motor or other components of the rear sun-
shade.
●Do not place objects where they may hinder opening and closing operations.
●Do not attach items to the rear sunshade and rear door sunshades.
●Keep the opening clean and clear of obstructions.
●Do not operate the rear sunshade cont inuously for long periods of time.

626
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features

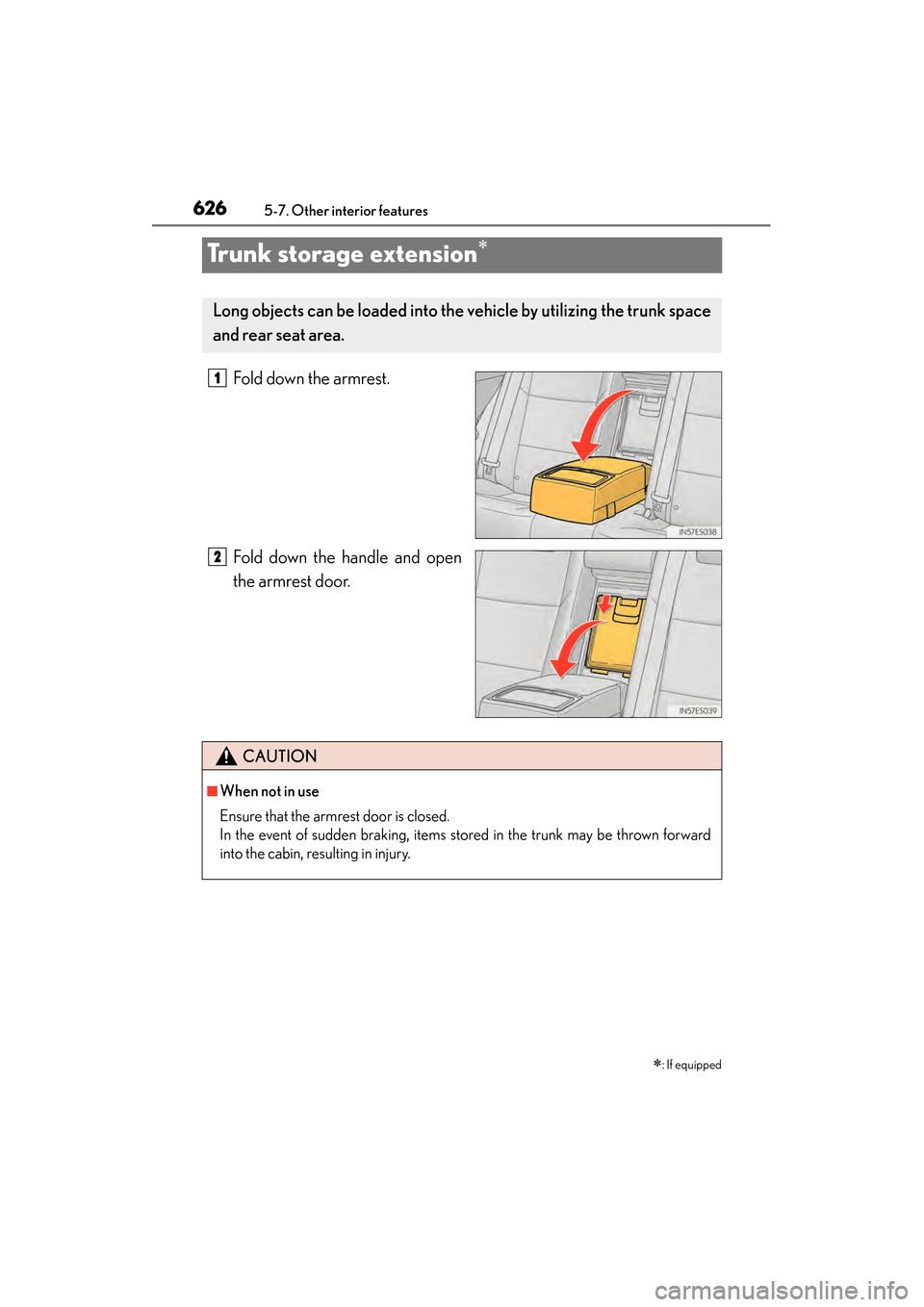

Trunk storage extension∗
Fold down the armrest.
Fold down the handle and open
the armrest door.∗
: If equipped
Long objects can be loaded into the vehicle by utilizing the trunk space
and rear seat area.
1
2
CAUTION
■When not in use
Ensure that the armrest door is closed.
In the event of sudden braking, items stored in the trunk may be thrown forward
into the cabin, resulting in injury.

627
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features
5
Interior features

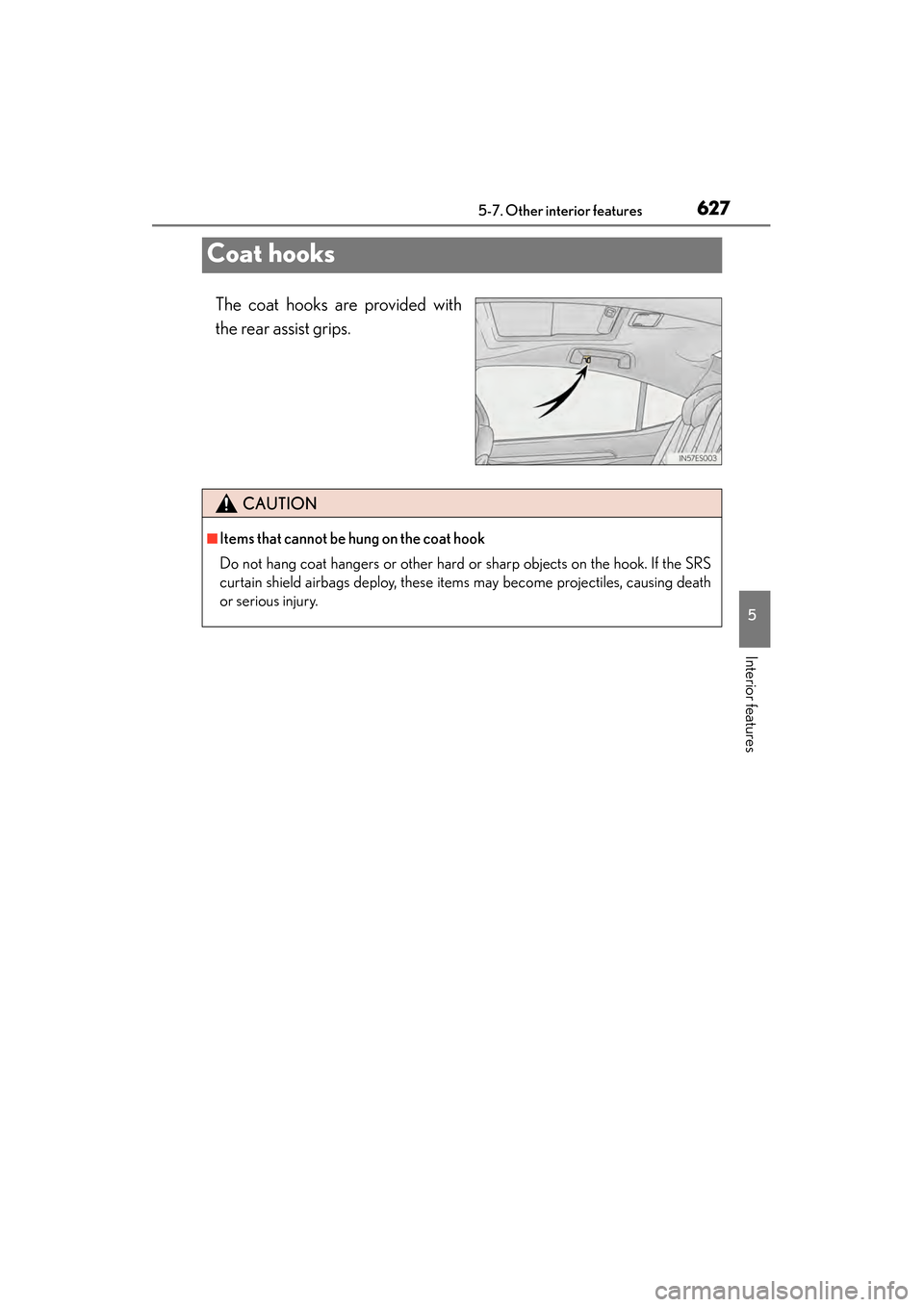

Coat hooks
The coat hooks are provided with
the rear assist grips.
CAUTION
■Items that cannot be hung on the coat hook
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS
curtain shield airbags deploy, these items may become projectiles, causing death
or serious injury.

628
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features

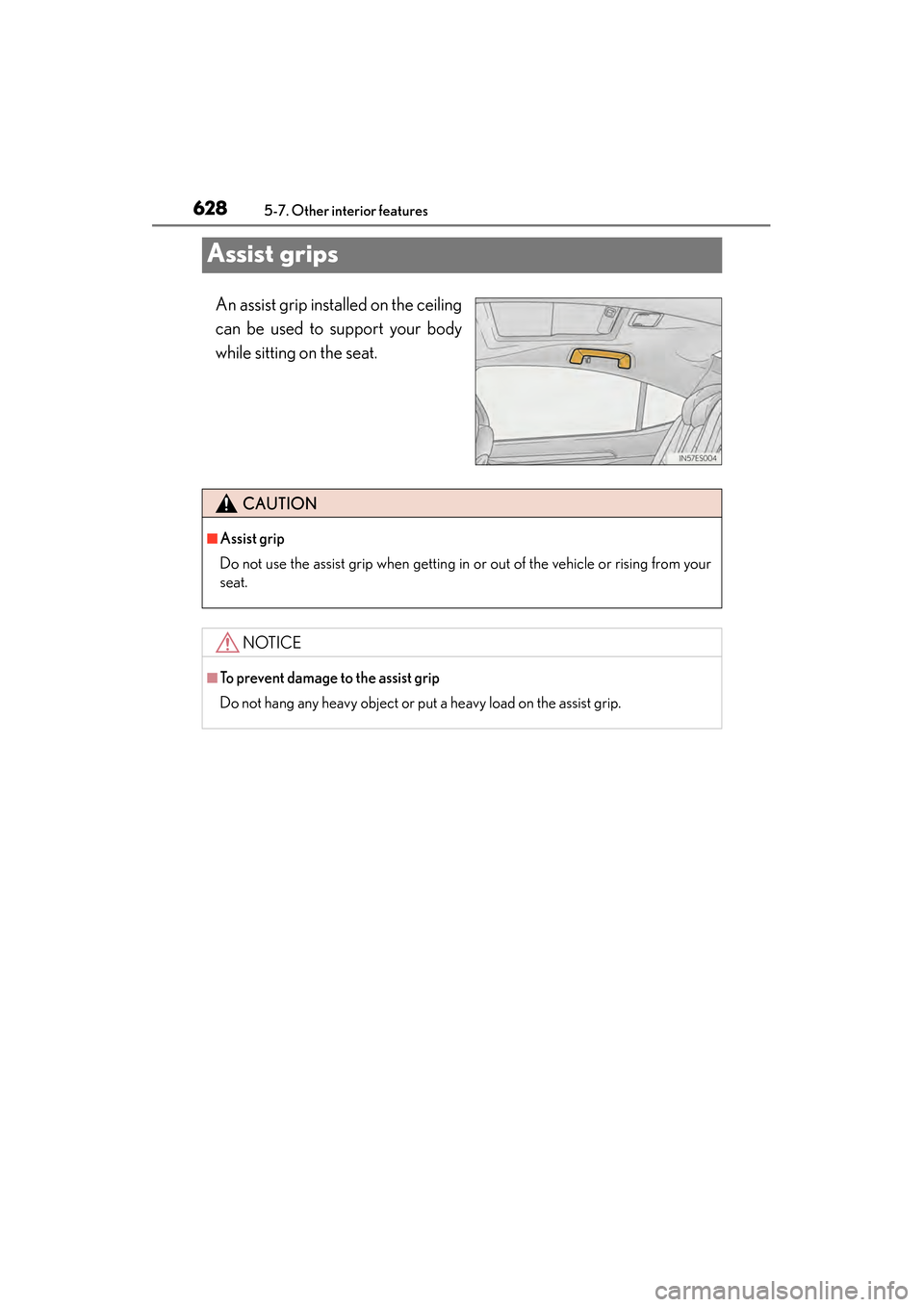

Assist grips
An assist grip installed on the ceiling
can be used to support your body
while sitting on the seat.
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from your
seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.

629
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features
5
Interior features

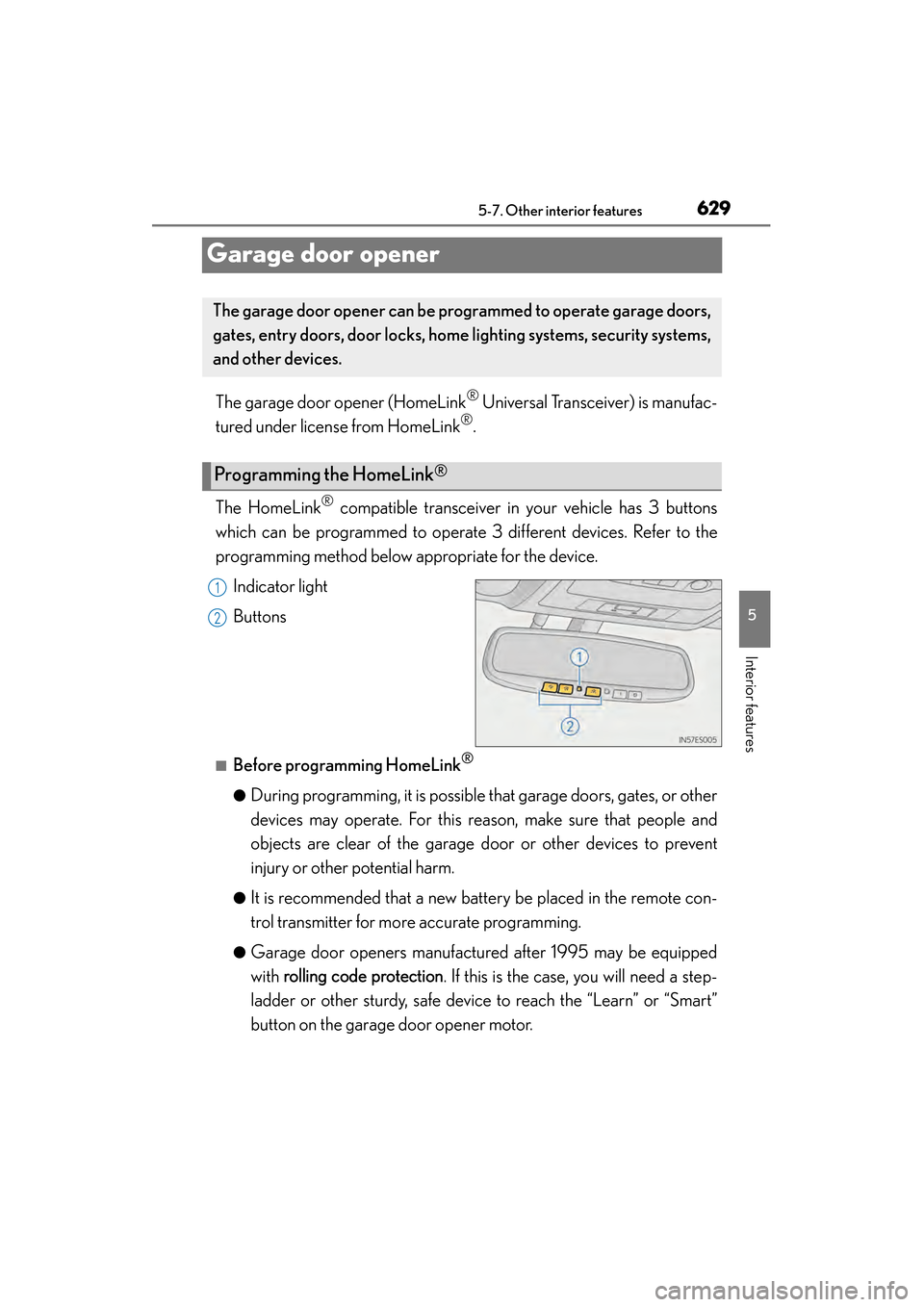

Garage door opener
The garage door opener (HomeLink® Universal Transceiver) is manufac-
tured under license from HomeLink
®.
The HomeLink
® compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator light
Buttons
■Before programming HomeLink®
●During programming, it is possible th at garage doors, gates, or other
devices may operate. For this reason, make sure that people and
objects are clear of the garage door or other devices to prevent
injury or other potential harm.
●It is recommended that a new battery be placed in the remote con-
trol transmitter for more accurate programming.
●Garage door openers manufactured after 1995 may be equipped
with rolling code protection . If this is the case, you will need a step-
ladder or other sturdy, safe device to reach the “Learn” or “Smart”
button on the garage door opener motor.
The garage door opener can be pr ogrammed to operate garage doors,
gates, entry doors, door locks, home lighting systems, security systems,
and other devices.
Programming the HomeLink®
1
2
