Lexus ES300h 2013 Owner's Manual

630
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features

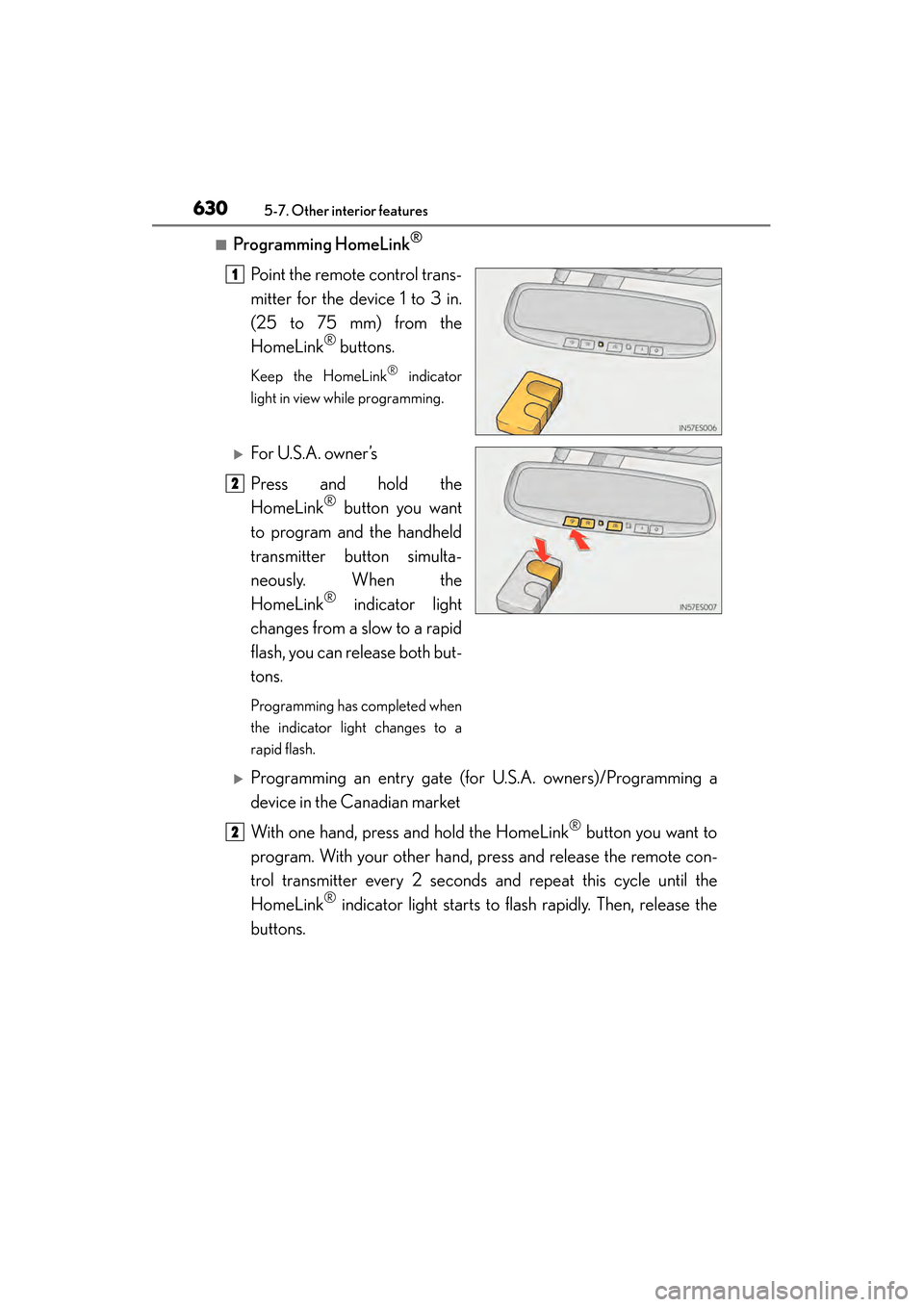

■Programming HomeLink®
Point the remote control trans-
mitter for the device 1 to 3 in.
(25 to 75 mm) from the
HomeLink
® buttons.
Keep the HomeLink® indicator
light in view while programming.
XFor U.S.A. owner’s
Press and hold the
HomeLink
® button you want
to program and the handheld
transmitter button simulta-
neously. When the
HomeLink
® indicator light
changes from a slow to a rapid
flash, you can release both but-
tons.
Programming has completed when
the indicator light changes to a
rapid flash.
XProgramming an entry gate (for U.S.A. owners)/Programming a
device in the Canadian market
With one hand, press and hold the HomeLink
® button you want to
program. With your other hand, press and release the remote con-
trol transmitter every 2 seconds and repeat this cycle until the
HomeLink
® indicator light starts to flash rapidly. Then, release the
buttons.
1
2
2

ES350 300h_OM_OM33A01U_(U)
6315-7. Other interior features
5
Interior features

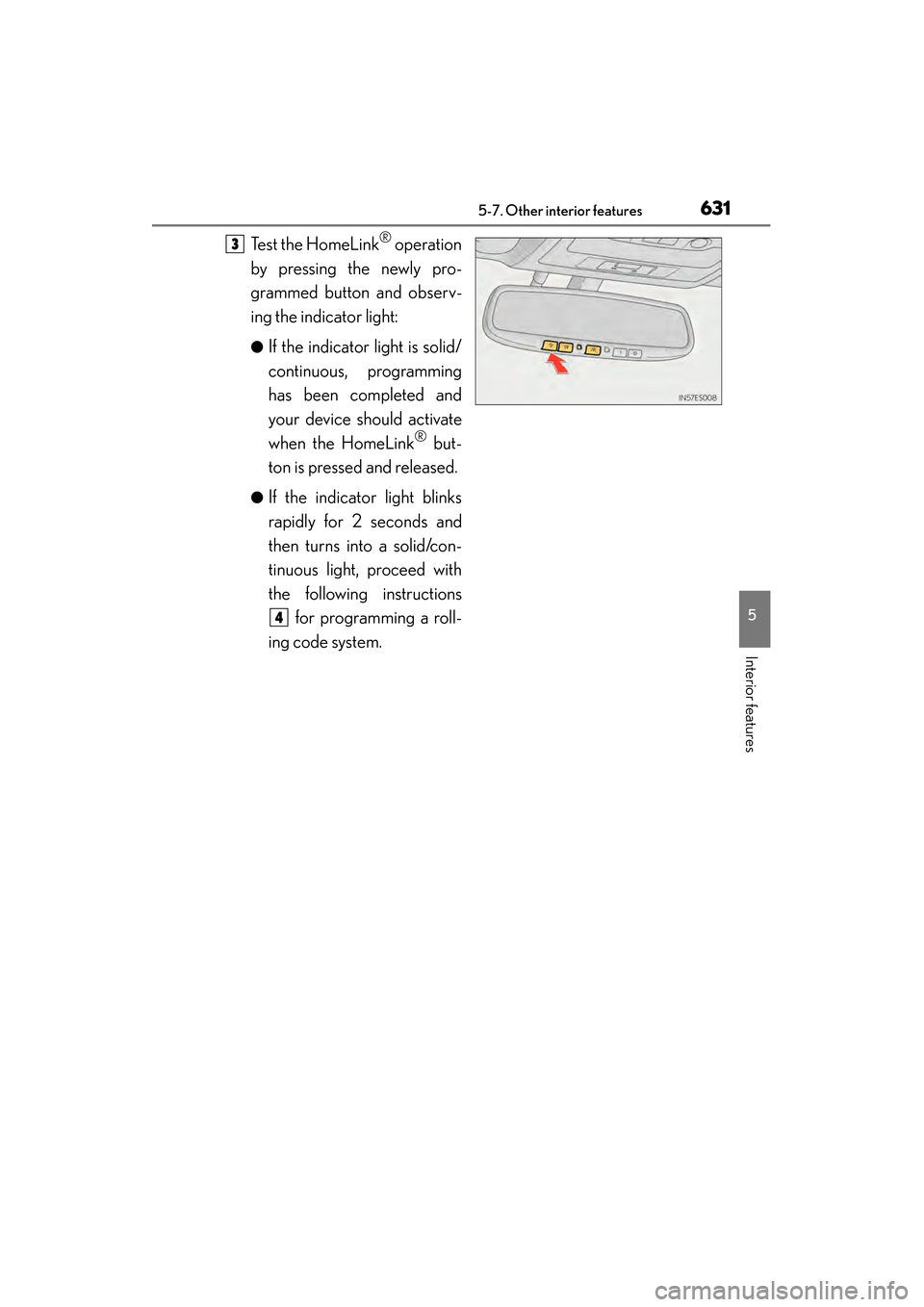

Test the HomeLink® operation
by pressing the newly pro-
grammed button and observ-
ing the indicator light:
●If the indicator light is solid/
continuous, programming
has been completed and
your device should activate
when the HomeLink
® but-
ton is pressed and released.
●If the indicator light blinks
rapidly for 2 seconds and
then turns into a solid/con-
tinuous light, proceed with
the following instructions for programming a roll-
ing code system.
3
4

632
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features

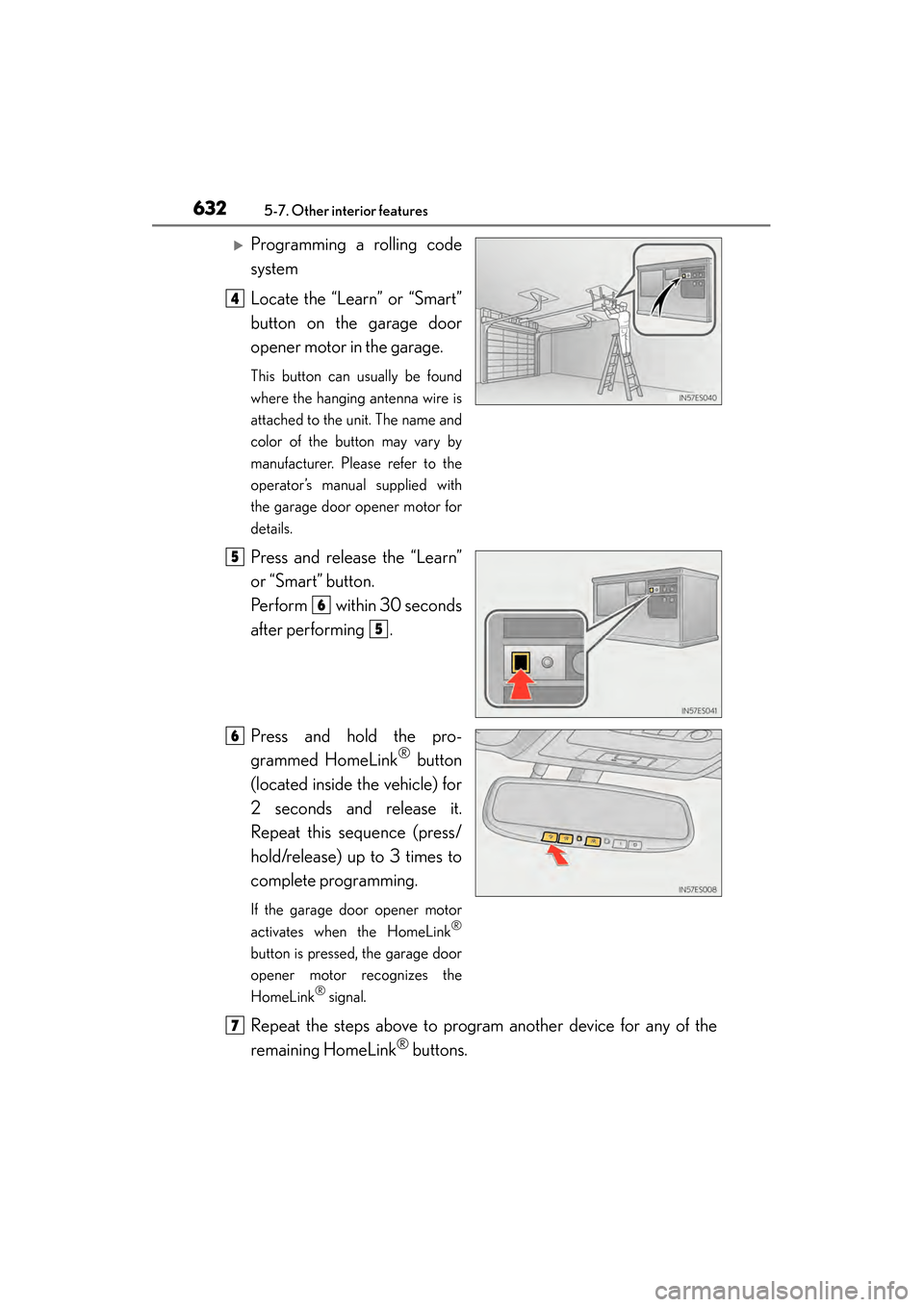

XProgramming a rolling code
system
Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.
This button can usually be found
where the hanging antenna wire is
attached to the unit. The name and
color of the button may vary by
manufacturer. Please refer to the
operator’s manual supplied with
the garage door opener motor for
details.
Press and release the “Learn”
or “Smart” button.
Perform within 30 seconds
after performing .
Press and hold the pro-
grammed HomeLink
® button
(located inside the vehicle) for
2 seconds and release it.
Repeat this sequence (press/
hold/release) up to 3 times to
complete programming.
If the garage door opener motor
activates when the HomeLink®
button is pressed, the garage door
opener motor recognizes the
HomeLink
® signal.
Repeat the steps above to program another device for any of the
remaining HomeLink
® buttons.
4
5
6
5
6
7

ES350 300h_OM_OM33A01U_(U)
6335-7. Other interior features
5
Interior features

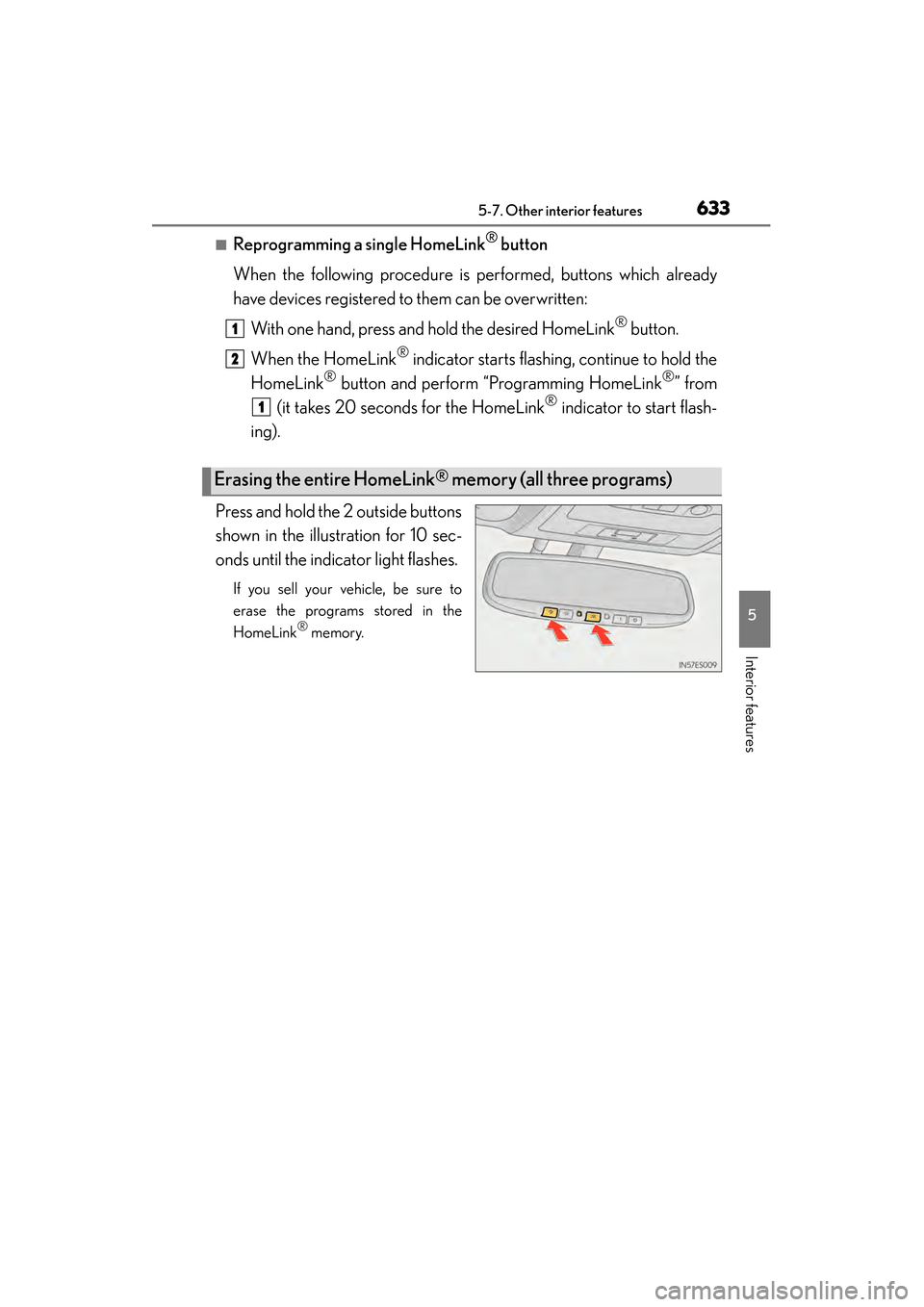

■Reprogramming a single HomeLink® button
When the following procedure is performed, buttons which already
have devices registered to them can be overwritten:
With one hand, press and hold the desired HomeLink
® button.
When the HomeLink
® indicator starts flashing, continue to hold the
HomeLink
® button and perform “Programming HomeLink®” from
(it takes 20 seconds for the HomeLink
® indicator to start flash-
ing).
Press and hold the 2 outside buttons
shown in the illustration for 10 sec-
onds until the indicator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
® memory.
Erasing the entire HomeLink® memory (all three programs)
1
2
1

634
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features

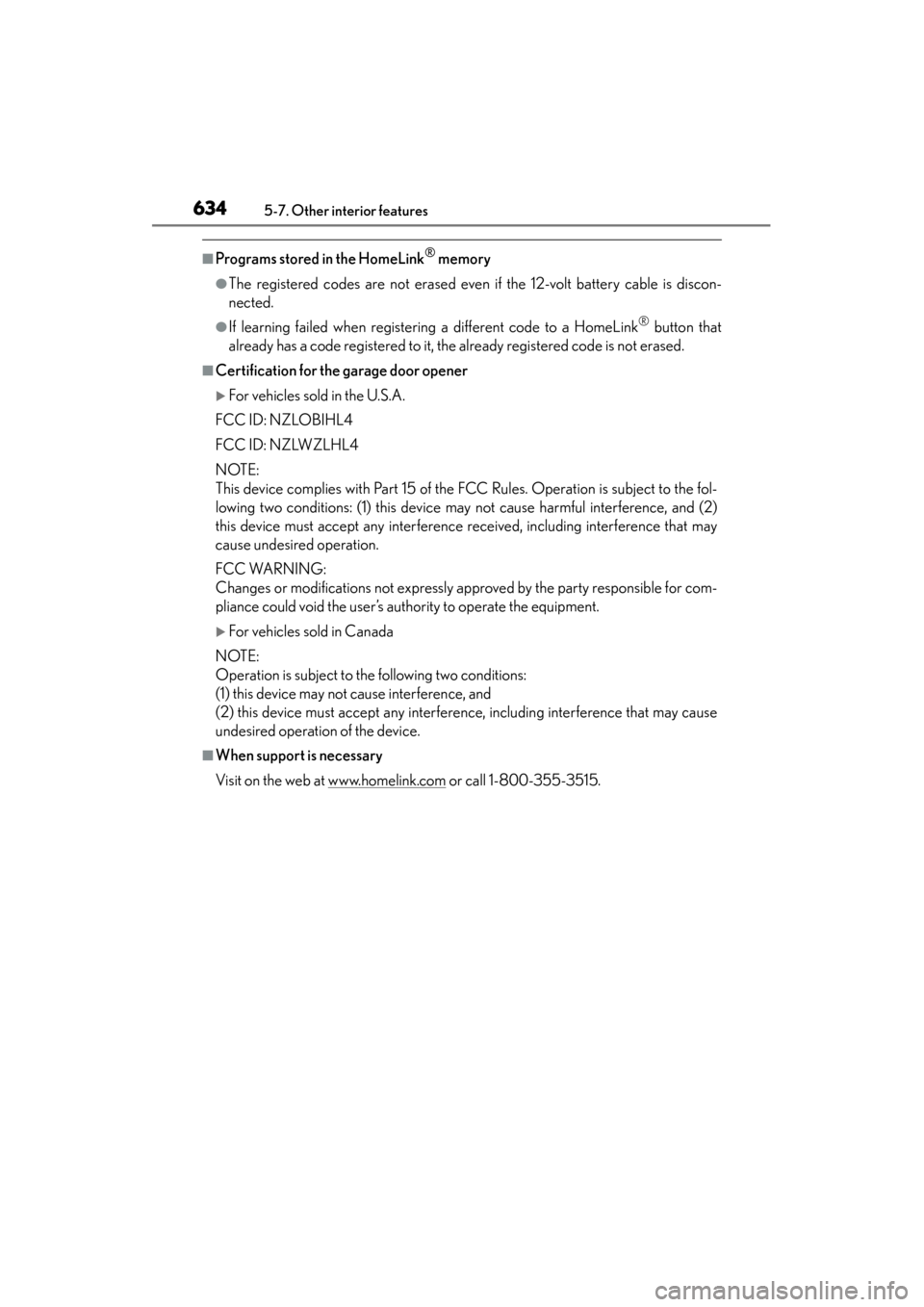

■Programs stored in the HomeLink® memory
●The registered codes are not erased even if the 12-volt battery cable is discon-
nected.
●If learning failed when registering a different code to a HomeLink® button that
already has a code registered to it, the already registered code is not erased.
■Certification for the garage door opener
XFor vehicles sold in the U.S.A.
FCC ID: NZLOBIHL4
FCC ID: NZLWZLHL4
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
XFor vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
■When support is necessary
Visit on the web at www.homelink.com
or call 1-800-355-3515.

ES350 300h_OM_OM33A01U_(U)
6355-7. Other interior features
5
Interior features

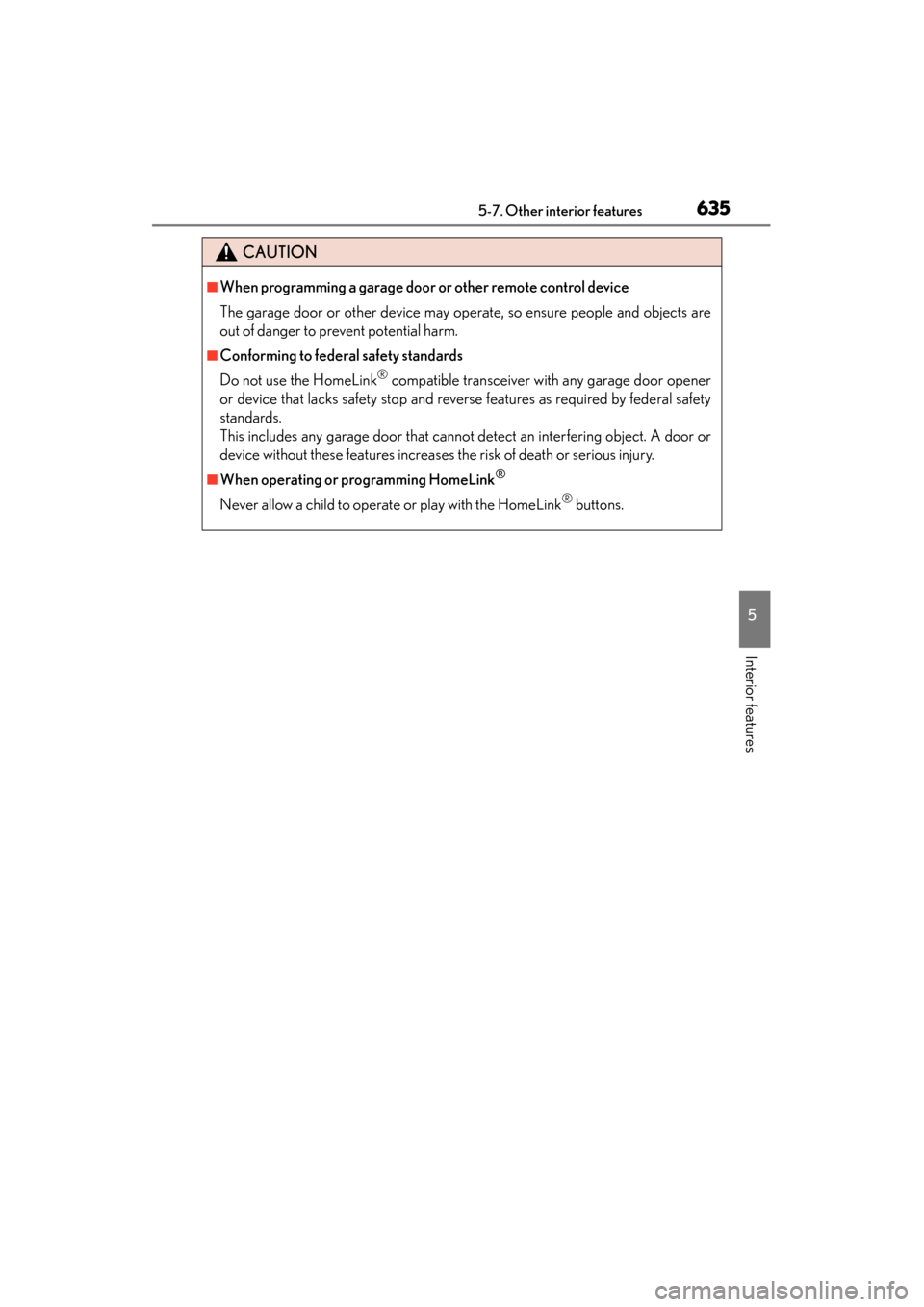

CAUTION
■When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and objects are
out of danger to prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
® compatible transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that cannot detect an interfering object. A door or
device without these features increases the risk of death or serious injury.
■When operating or programming HomeLink®
Never allow a child to operate or play with the HomeLink® buttons.

636
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features

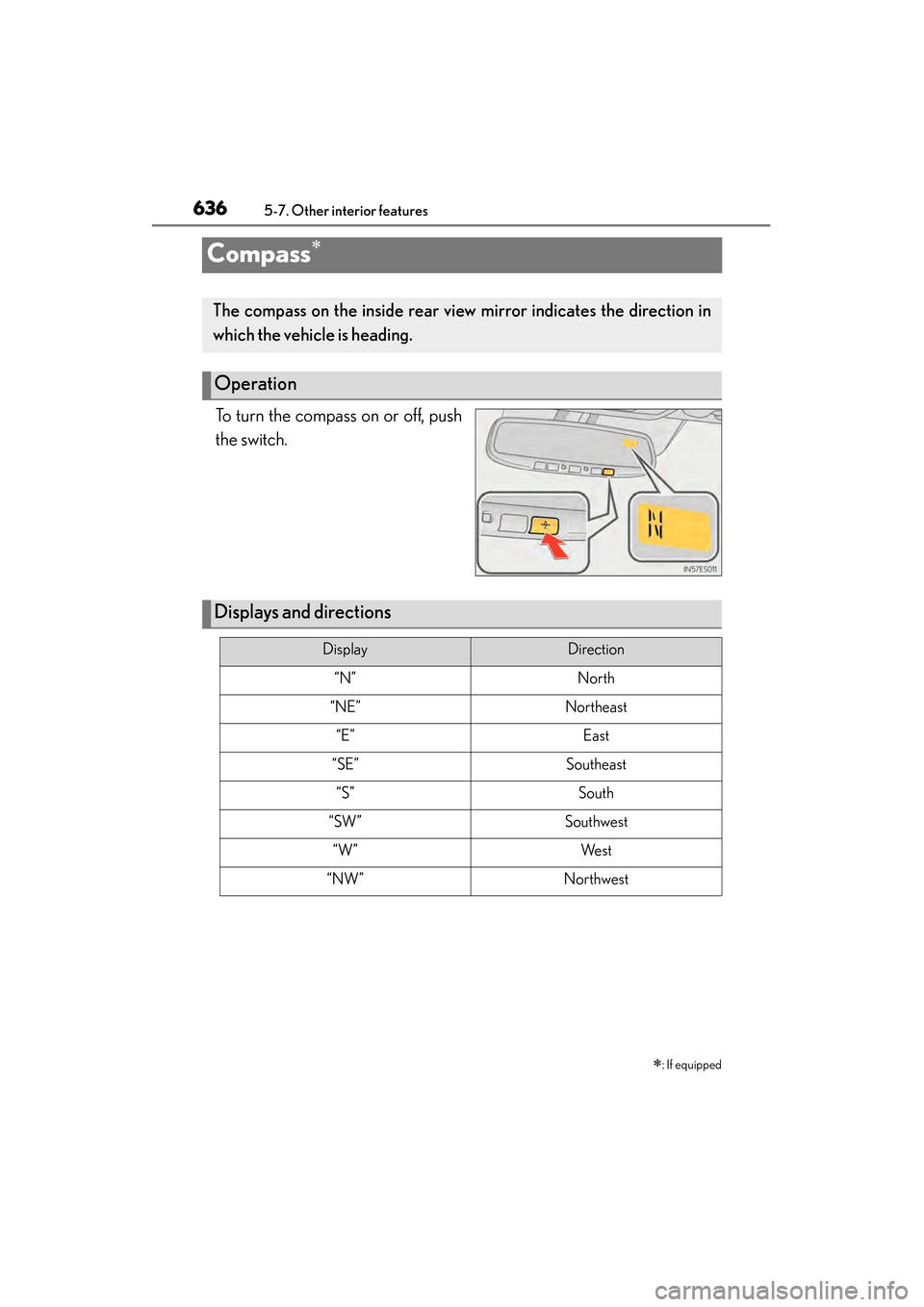

Compass∗
To turn the compass on or off, push
the switch.∗
: If equipped
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
Operation
Displays and directions
DisplayDirection
“N”North
“NE”Northeast
“E”East
“SE”Southeast
“S”South
“SW”Southwest
“W”We s t
“NW”Northwest

ES350 300h_OM_OM33A01U_(U)
6375-7. Other interior features
5
Interior features

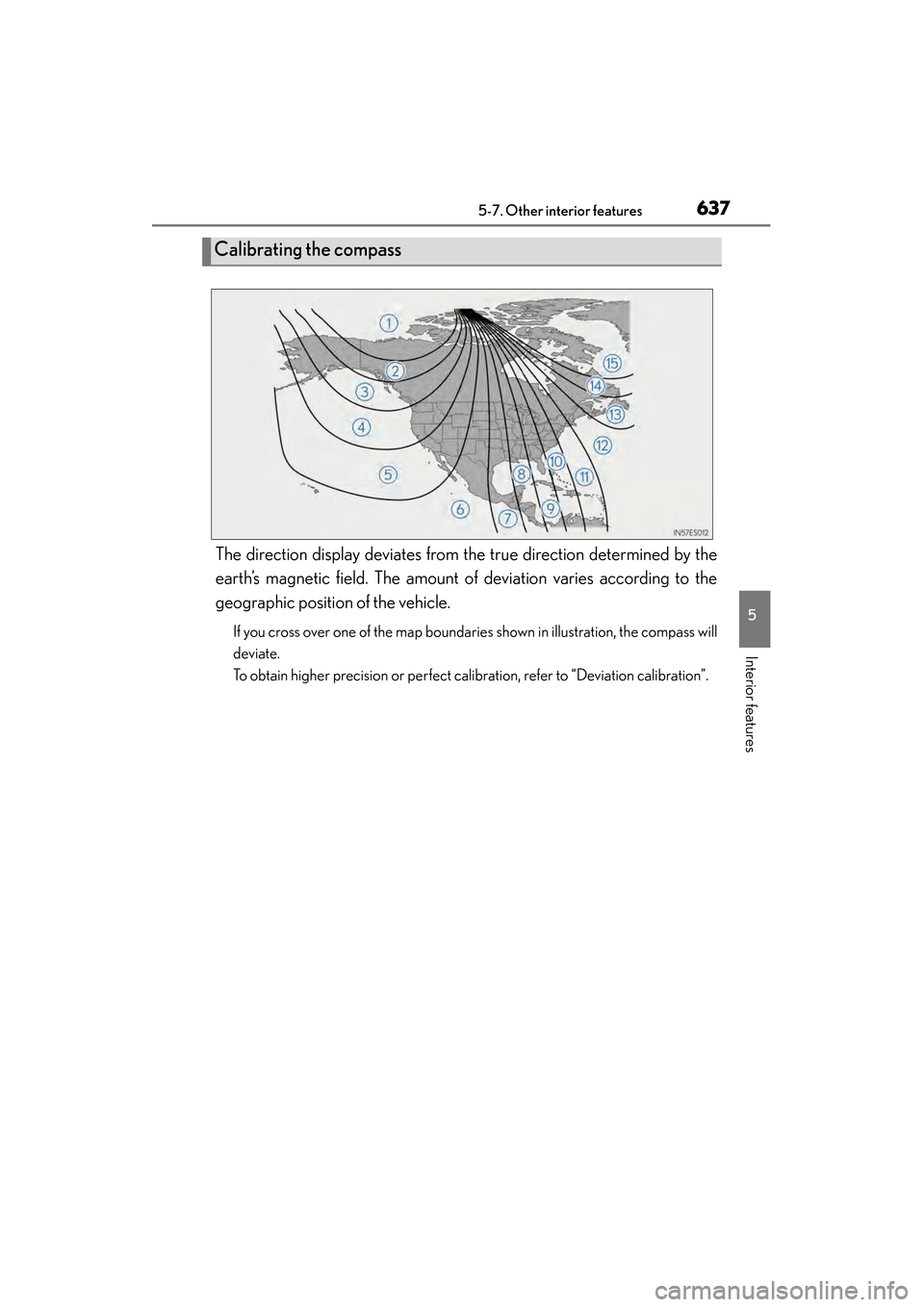

The direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies according to the
geographic position of the vehicle.
If you cross over one of the map boundaries shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to “Deviation calibration”.
Calibrating the compass

638
ES350 300h_OM_OM33A01U_(U)
5-7. Other interior features

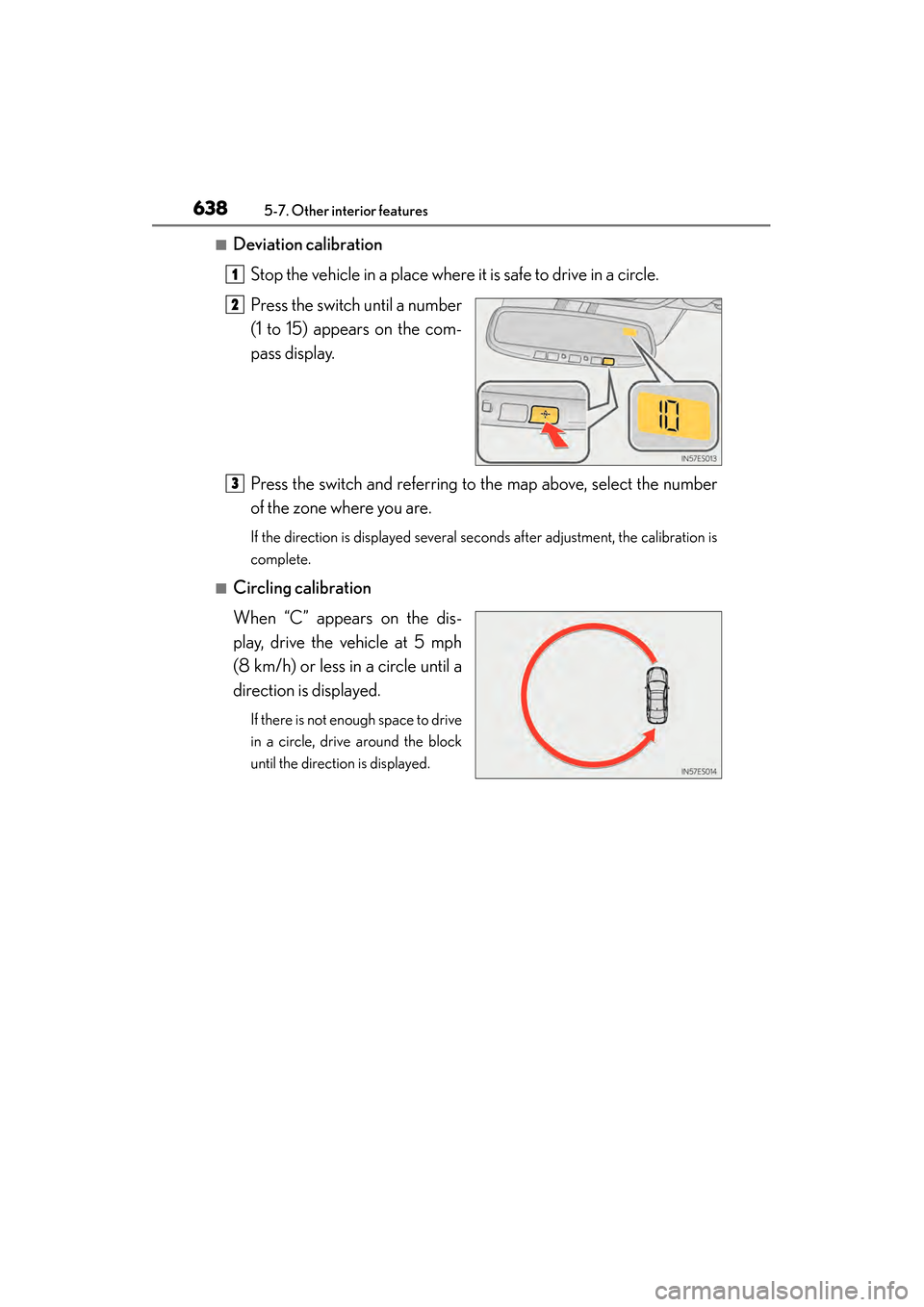

■Deviation calibrationStop the vehicle in a place where it is safe to drive in a circle.
Press the switch until a number
(1 to 15) appears on the com-
pass display.
Press the switch and referring to the map above, select the number
of the zone where you are.
If the direction is displayed several seconds after adjustment, the calibration is
complete.
■Circling calibration
When “C” appears on the dis-
play, drive the vehicle at 5 mph
(8 km/h) or less in a circle until a
direction is displayed.
If there is not enough space to drive
in a circle, drive around the block
until the direction is displayed.
1
2
3

ES350 300h_OM_OM33A01U_(U)
6395-7. Other interior features
5
Interior features

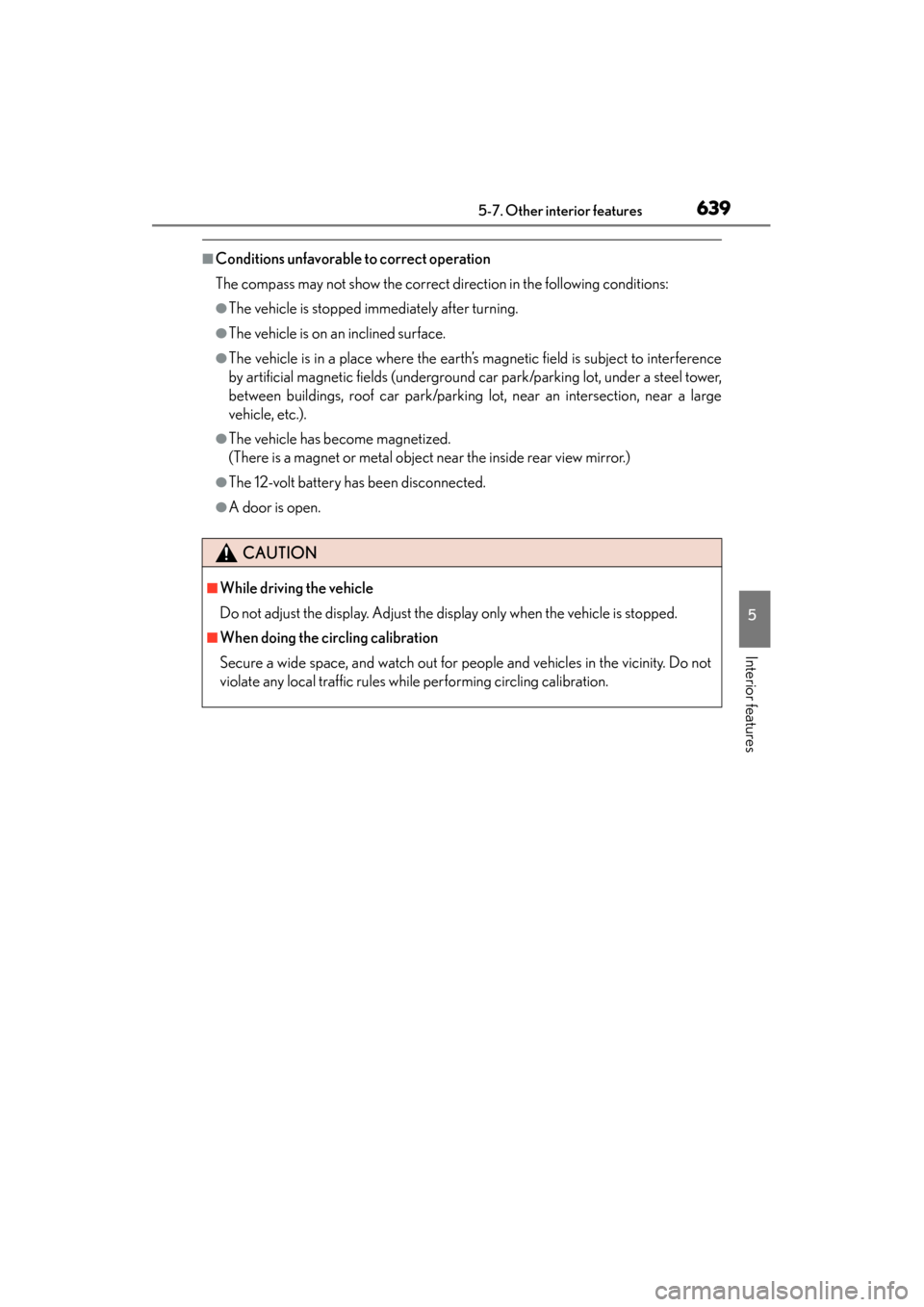

■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth’s magnetic field is subject to interference
by artificial magnetic fields (underground car park/parking lot, under a steel tower,
between buildings, roof car park/parking lot, near an intersection, near a large
vehicle, etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
●The 12-volt battery has been disconnected.
●A door is open.
CAUTION
■While driving the vehicle
Do not adjust the display. Adjust the display only when the vehicle is stopped.
■When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the vicinity. Do not
violate any local traffic rules while performing circling calibration.
