7-1. Essential information

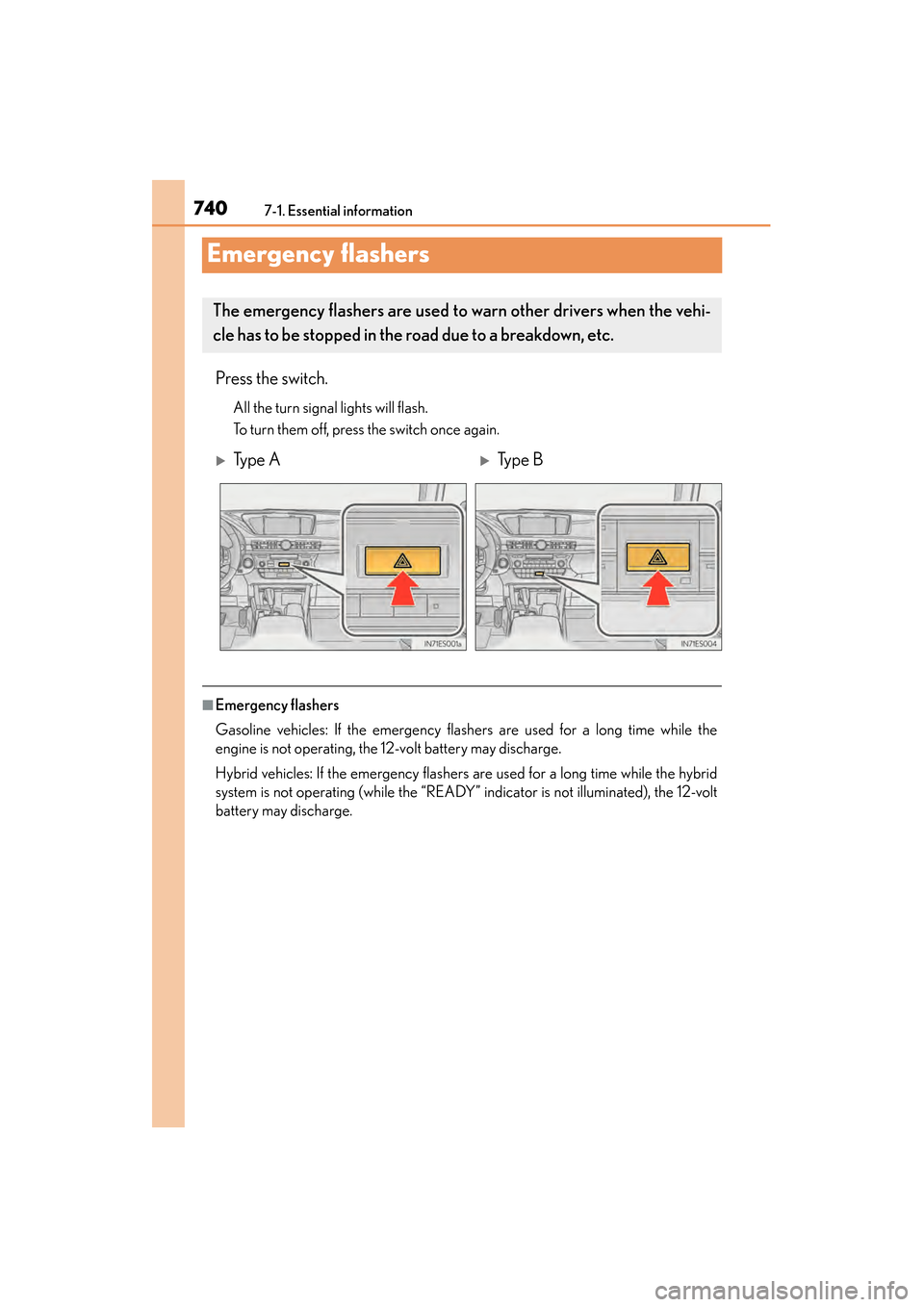

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once again.
■Emergency flashers
Gasoline vehicles: If the emergency flashers are used for a long time while the
engine is not operating, the 12-volt battery may discharge.
Hybrid vehicles: If the emergency flashers are used for a long time while the hybrid
system is not operating (while the “READY” indicator is not illuminated), the 12-volt
battery may discharge.
The emergency flashers are used to warn other drivers when the vehi-
cle has to be stopped in the road due to a breakdown, etc.
XTy p e AXType B

741
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises
7-1. Essential information

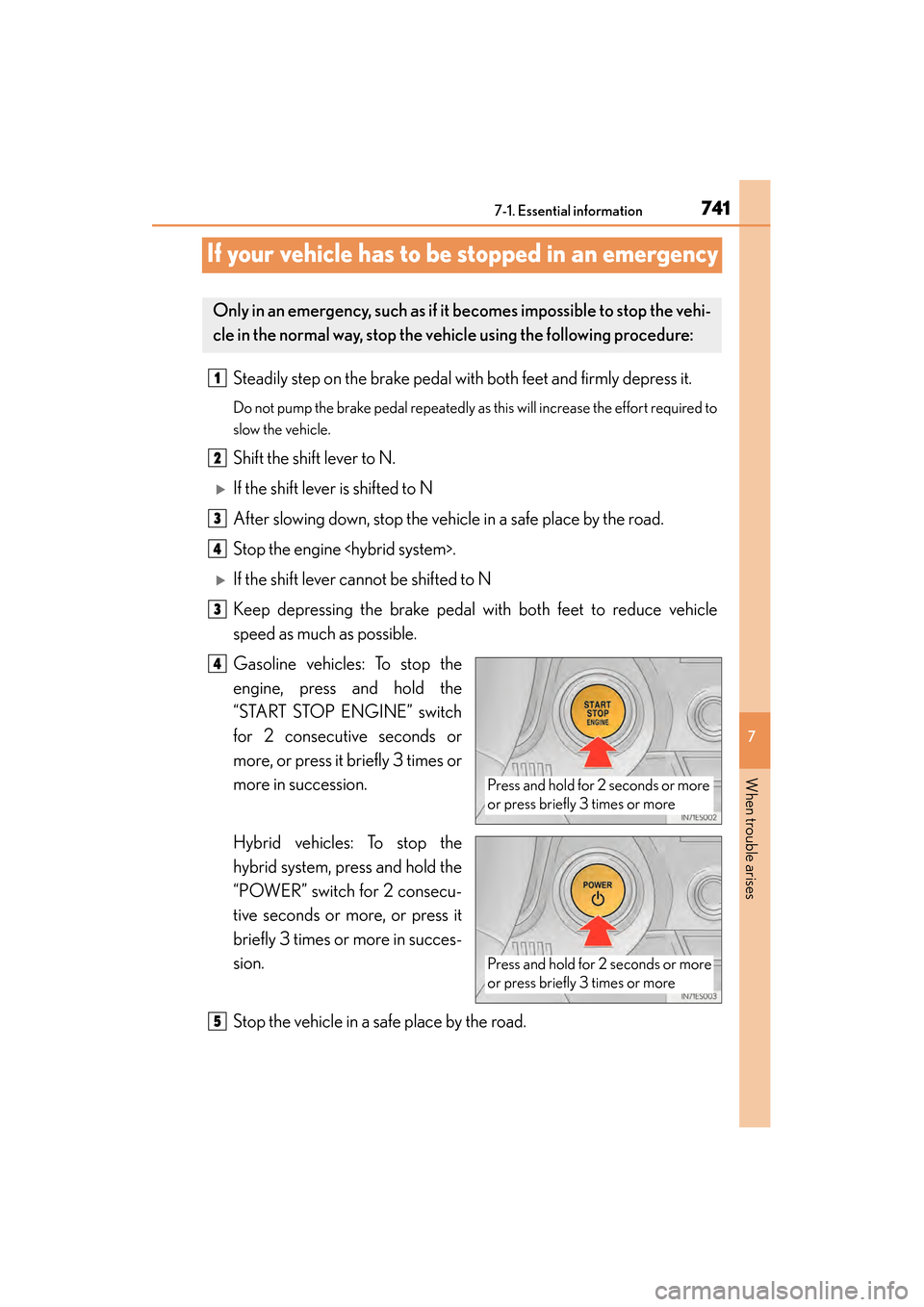

If your vehicle has to be stopped in an emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
XIf the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine .
XIf the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Gasoline vehicles: To stop the
engine, press and hold the
“START STOP ENGINE” switch
for 2 consecutive seconds or
more, or press it briefly 3 times or
more in succession.
Hybrid vehicles: To stop the
hybrid system, press and hold the
“POWER” switch for 2 consecu-
tive seconds or more, or press it
briefly 3 times or more in succes-
sion.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop the vehi-
cle in the normal way, stop the ve hicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more
or press briefly 3 times or more
4
Press and hold for 2 seconds or more
or press briefly 3 times or more
5

7427-1. Essential information
ES350 300h_OM_OM33A01U_(U)

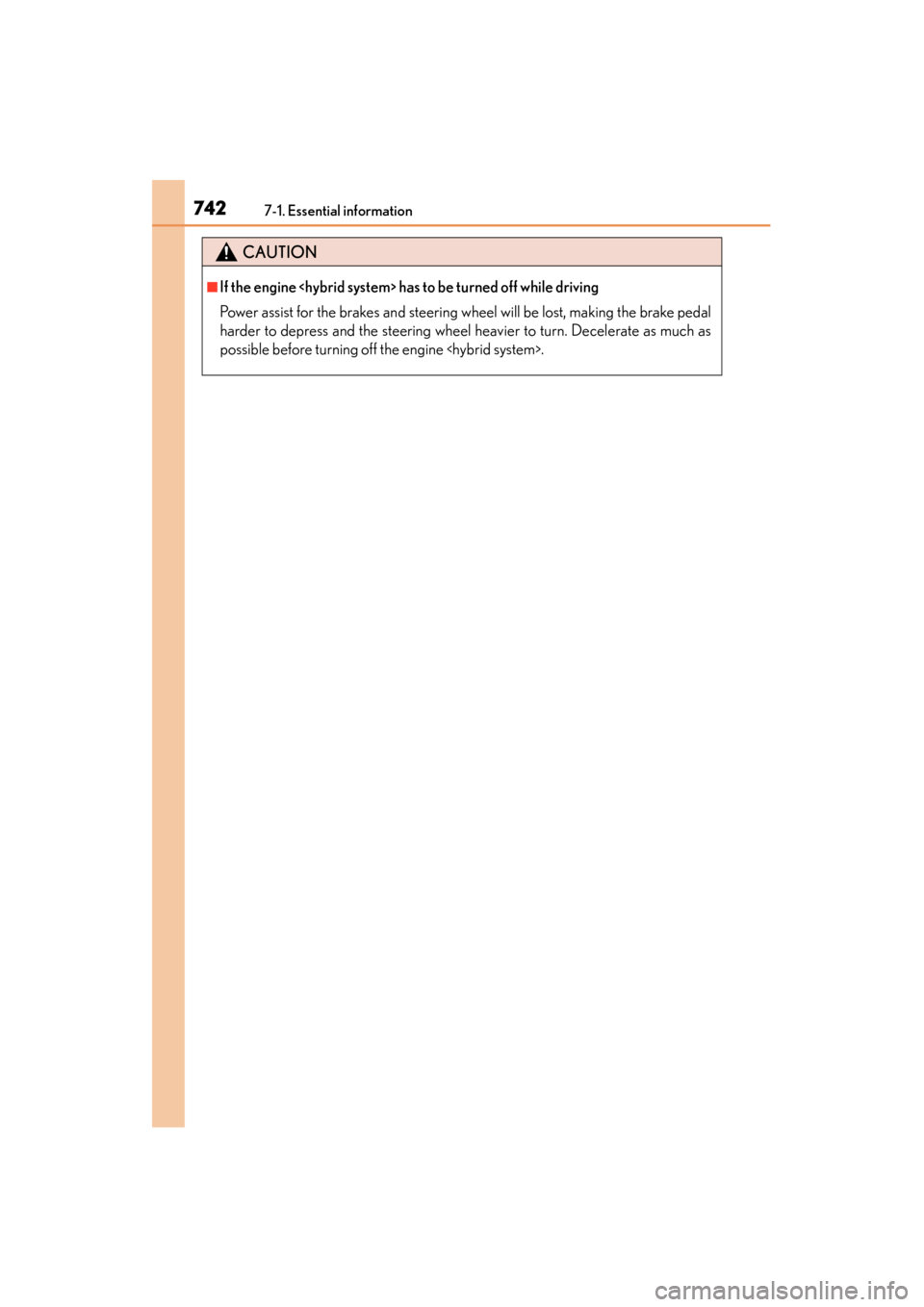

CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as
possible before turning off the engine .

743
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises
7-2. Steps to take in an emergency

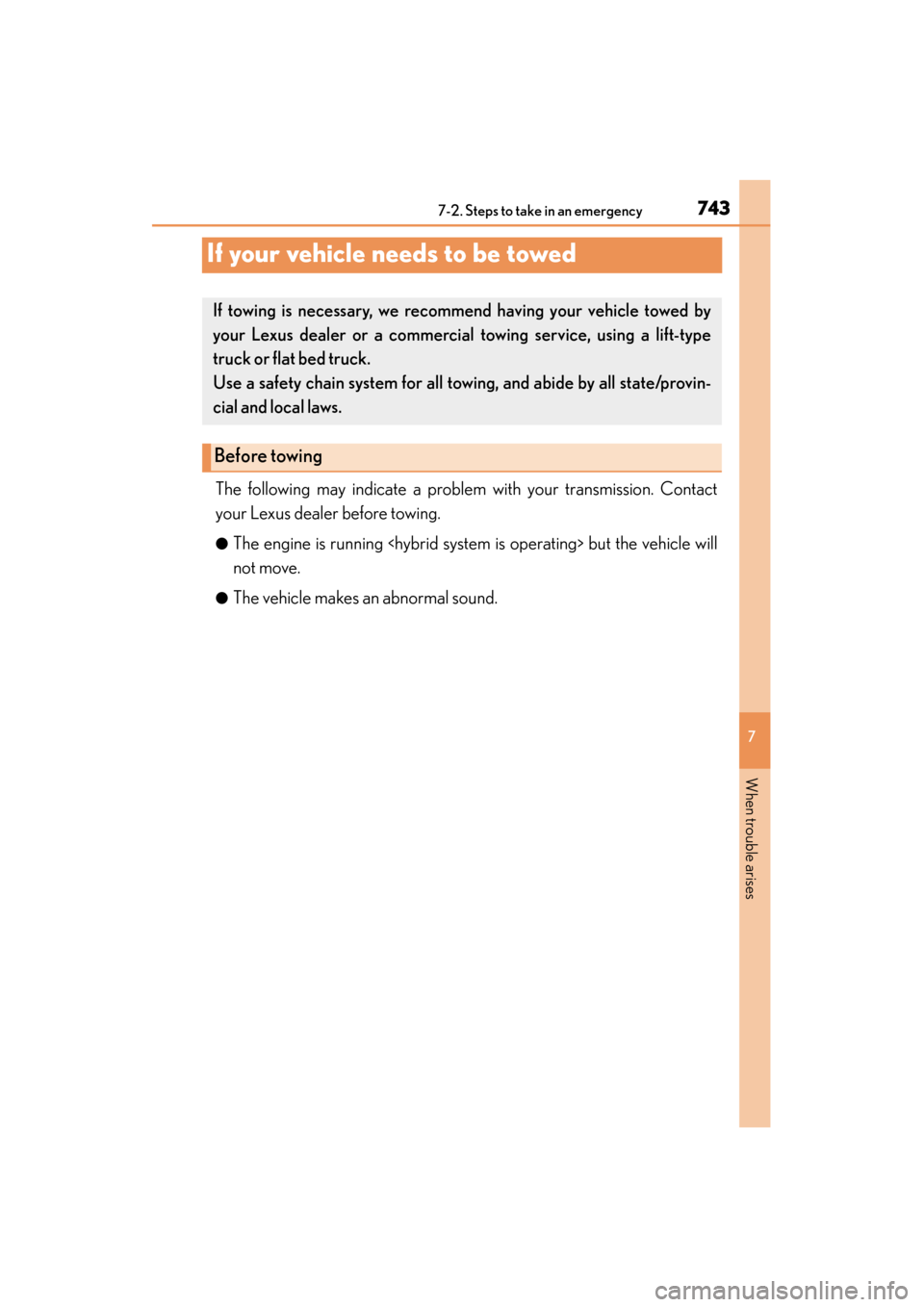

If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
●The engine is running but the vehicle will
not move.
●The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
your Lexus dealer or a commercial towing service, using a lift-type
truck or flat bed truck.
Use a safety chain system for all towing, and abide by all state/provin-
cial and local laws.
Before towing

7447-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)

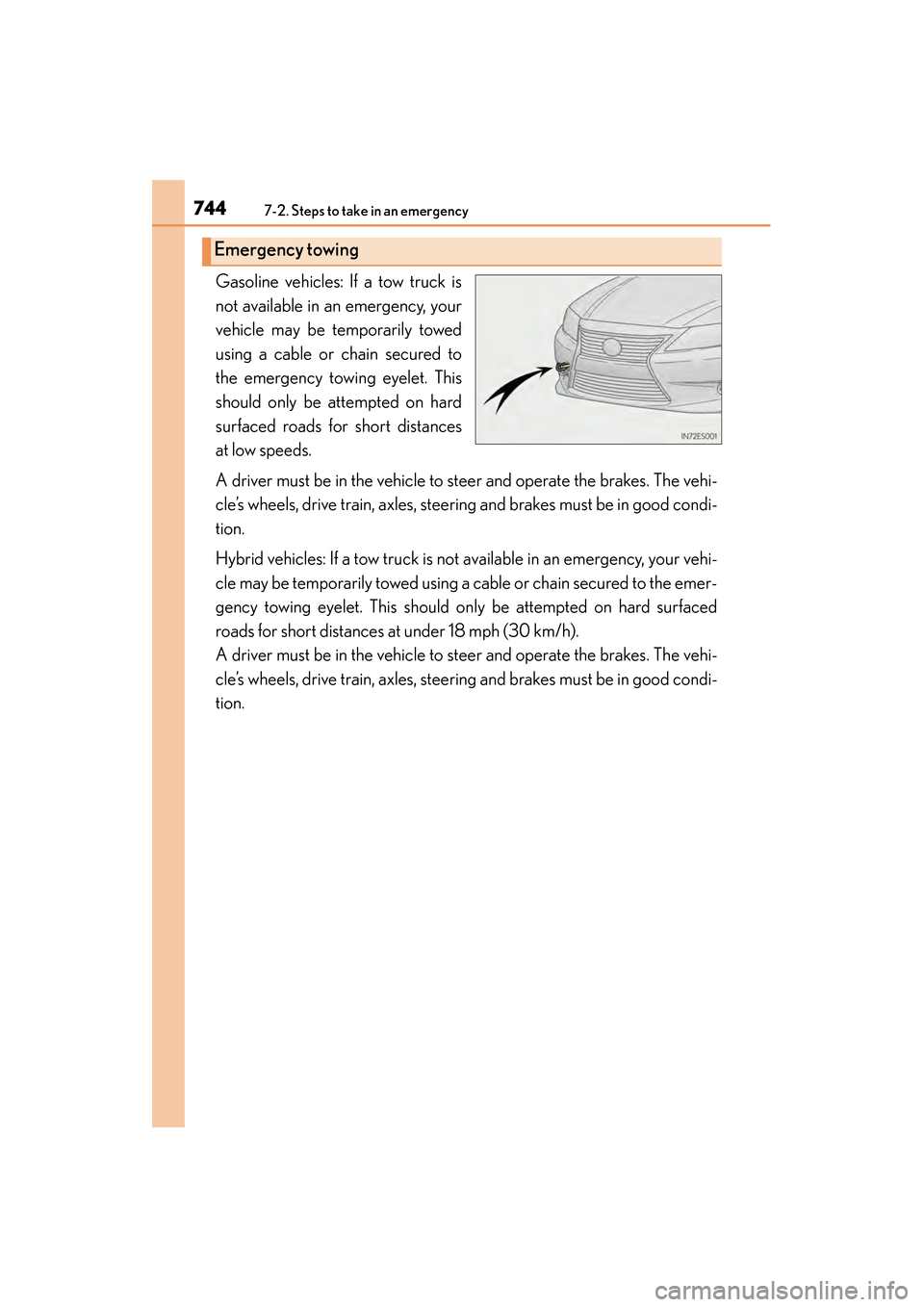

Gasoline vehicles: If a tow truck is
not available in an emergency, your
vehicle may be temporarily towed
using a cable or chain secured to
the emergency towing eyelet. This
should only be attempted on hard
surfaced roads for short distances
at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
Hybrid vehicles: If a tow truck is not available in an emergency, your vehi-
cle may be temporarily towed using a cable or chain secured to the emer-
gency towing eyelet. This should only be attempted on hard surfaced
roads for short distances at under 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
Emergency towing

7457-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises

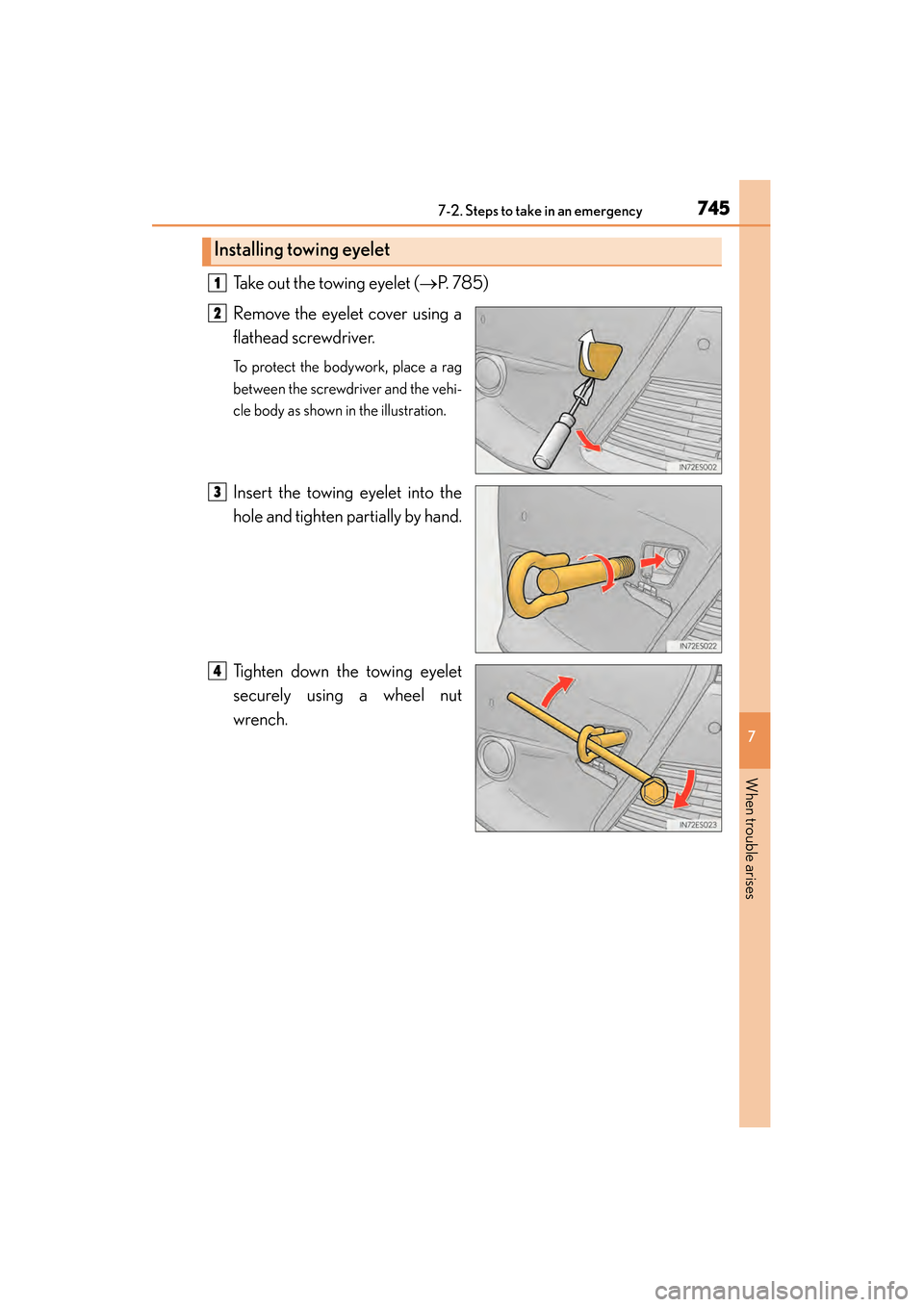

Take out the towing eyelet (→P. 785)
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a rag
between the screwdriver and the vehi-
cle body as shown in the illustration.
Insert the towing eyelet into the
hole and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.
Installing towing eyelet
1
2
3
4

7467-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)

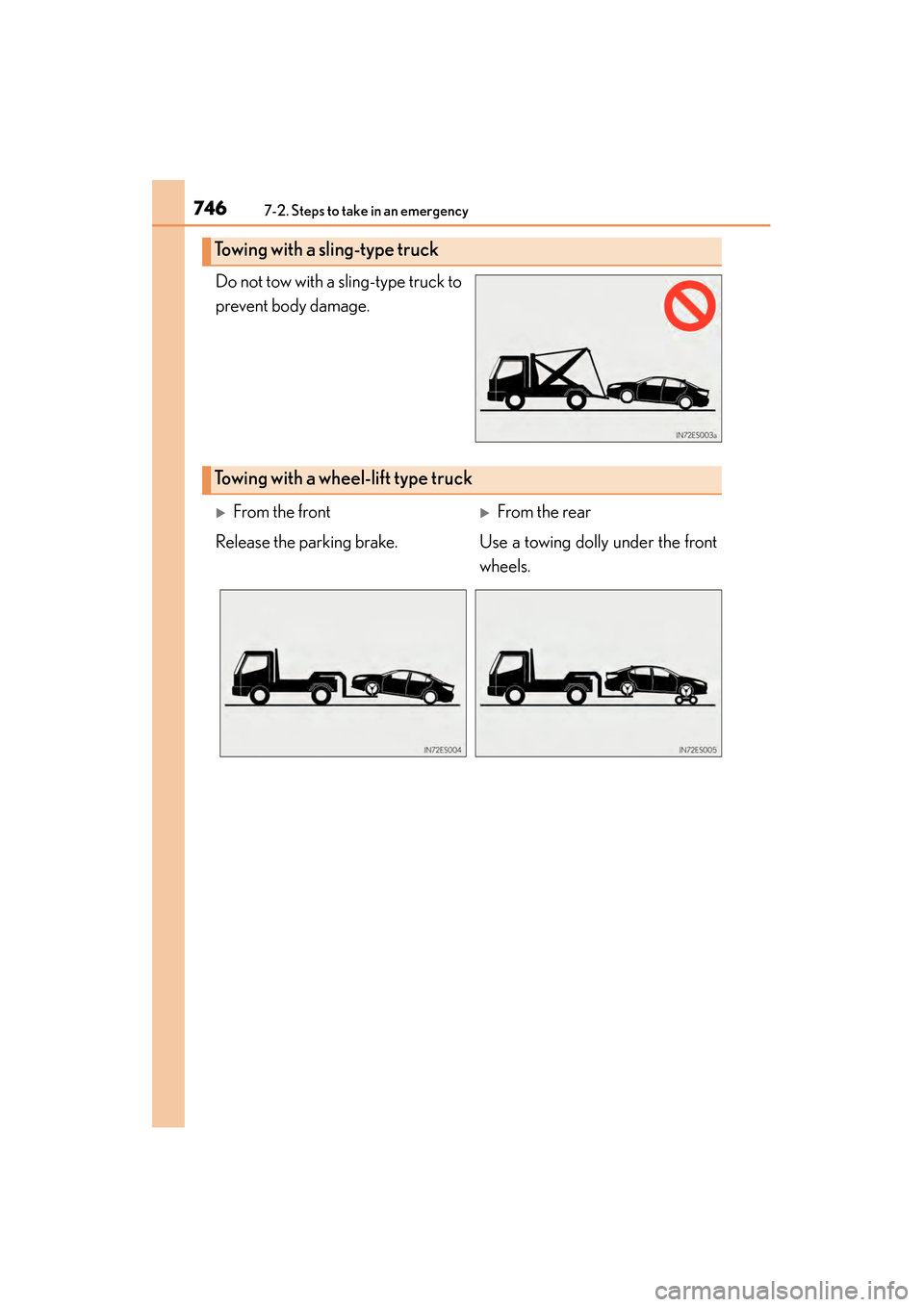

Do not tow with a sling-type truck to
prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
XFrom the frontXFrom the rear
Release the parking brake. Use a towing dolly under the front wheels.

7477-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises

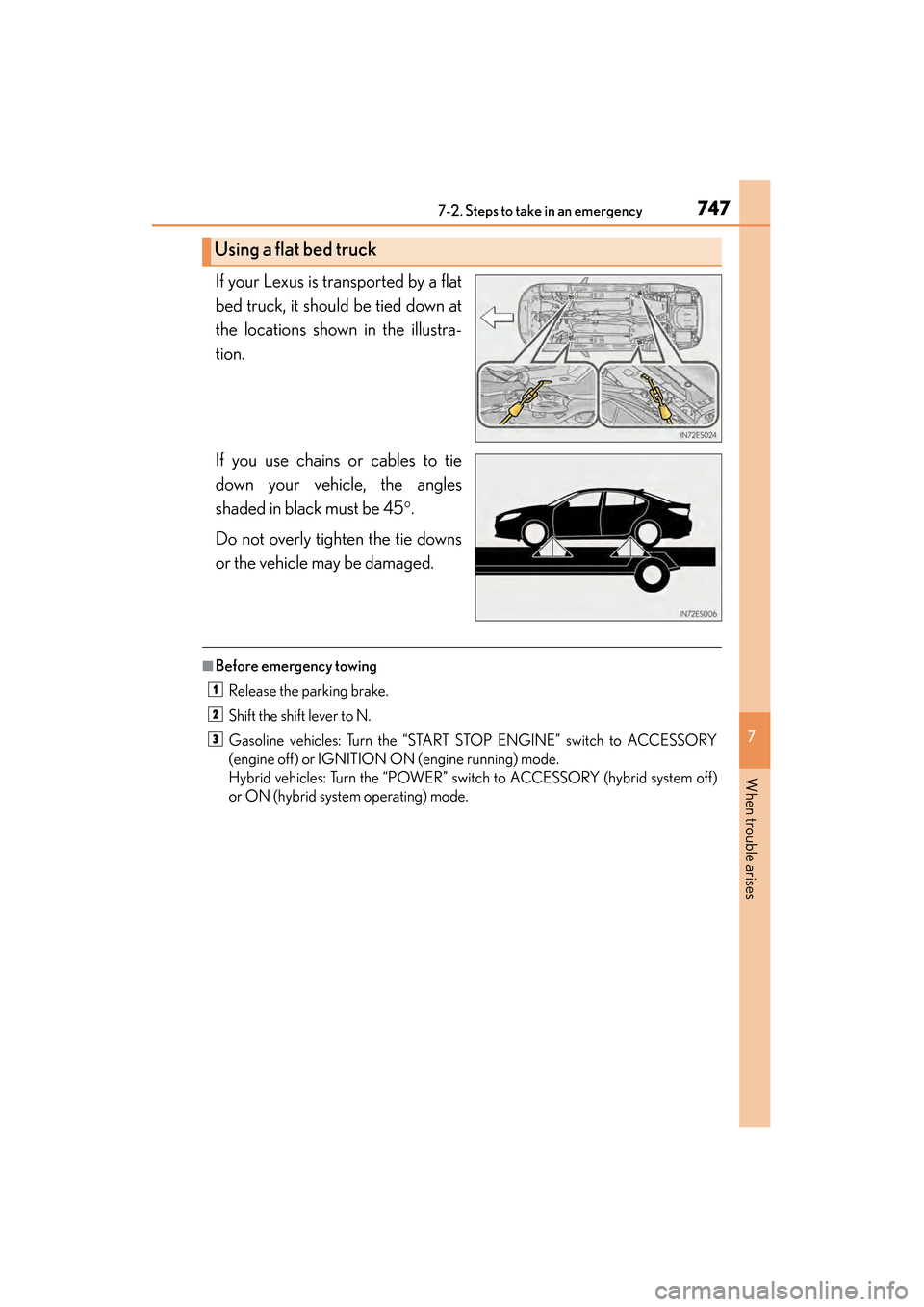

If your Lexus is transported by a flat
bed truck, it should be tied down at
the locations shown in the illustra-
tion.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie downs
or the vehicle may be damaged.
■Before emergency towing Release the parking brake.
Shift the shift lever to N.
Gasoline vehicles: Turn the “START STOP ENGINE” switch to ACCESSORY
(engine off) or IGNITION ON (engine running) mode.
Hybrid vehicles: Turn the “POWER” switch to ACCESSORY (hybrid system off)
or ON (hybrid system operating) mode.
Using a flat bed truck
1
2
3

7487-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)

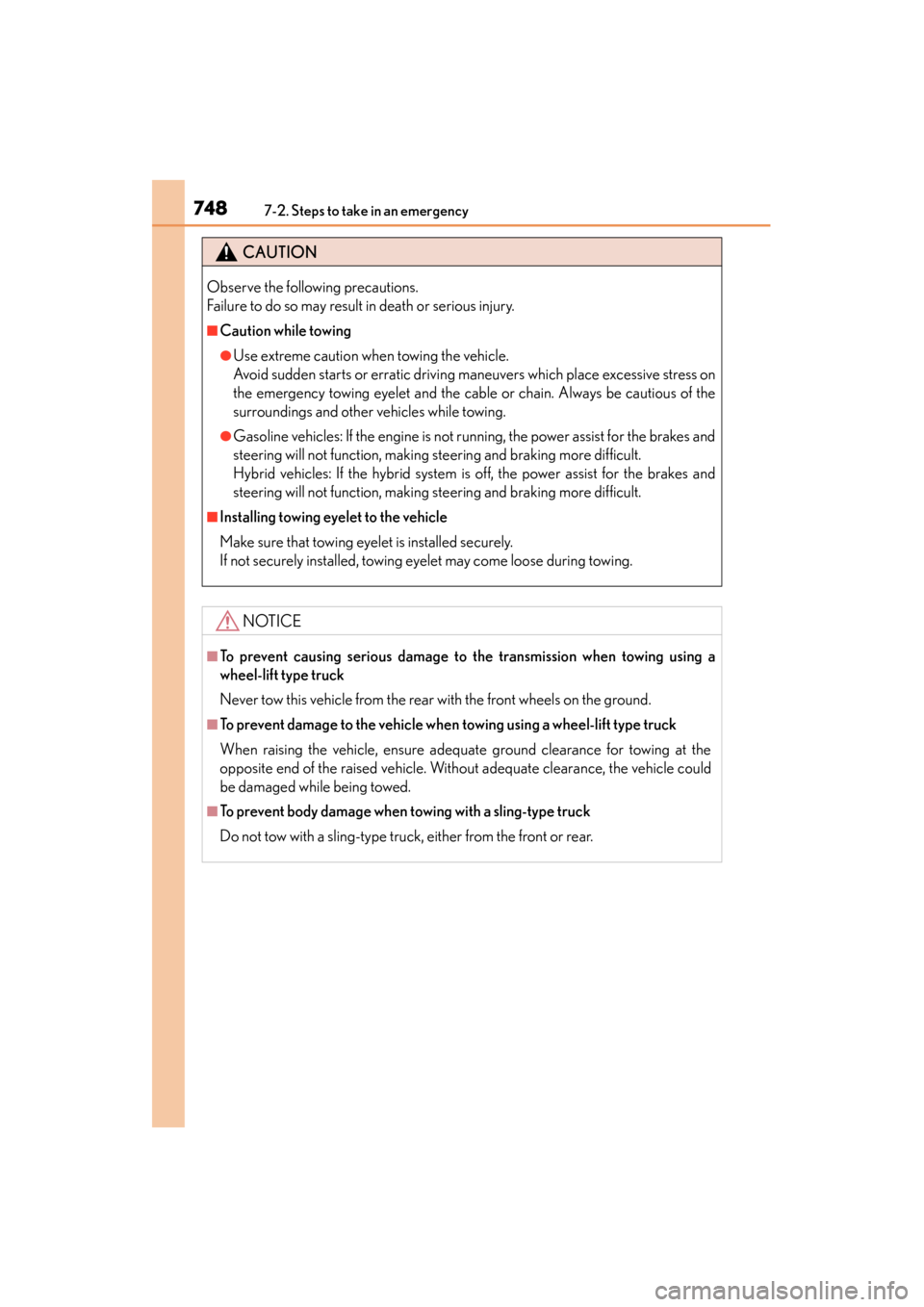

CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cable or chain. Always be cautious of the
surroundings and other vehicles while towing.
●Gasoline vehicles: If the engine is not running, the power assist for the brakes and
steering will not function, making steering and braking more difficult.
Hybrid vehicles: If the hybrid system is off, the power assist for the brakes and
steering will not function, making steering and braking more difficult.
■Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing.
NOTICE
■To prevent causing serious damage to the transmission when towing using a
wheel-lift type truck
Never tow this vehicle from the rear with the front wheels on the ground.
■To prevent damage to the vehicle when towing using a wheel-lift type truck
When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle could
be damaged while being towed.
■To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.

749
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises
7-2. Steps to take in an emergency

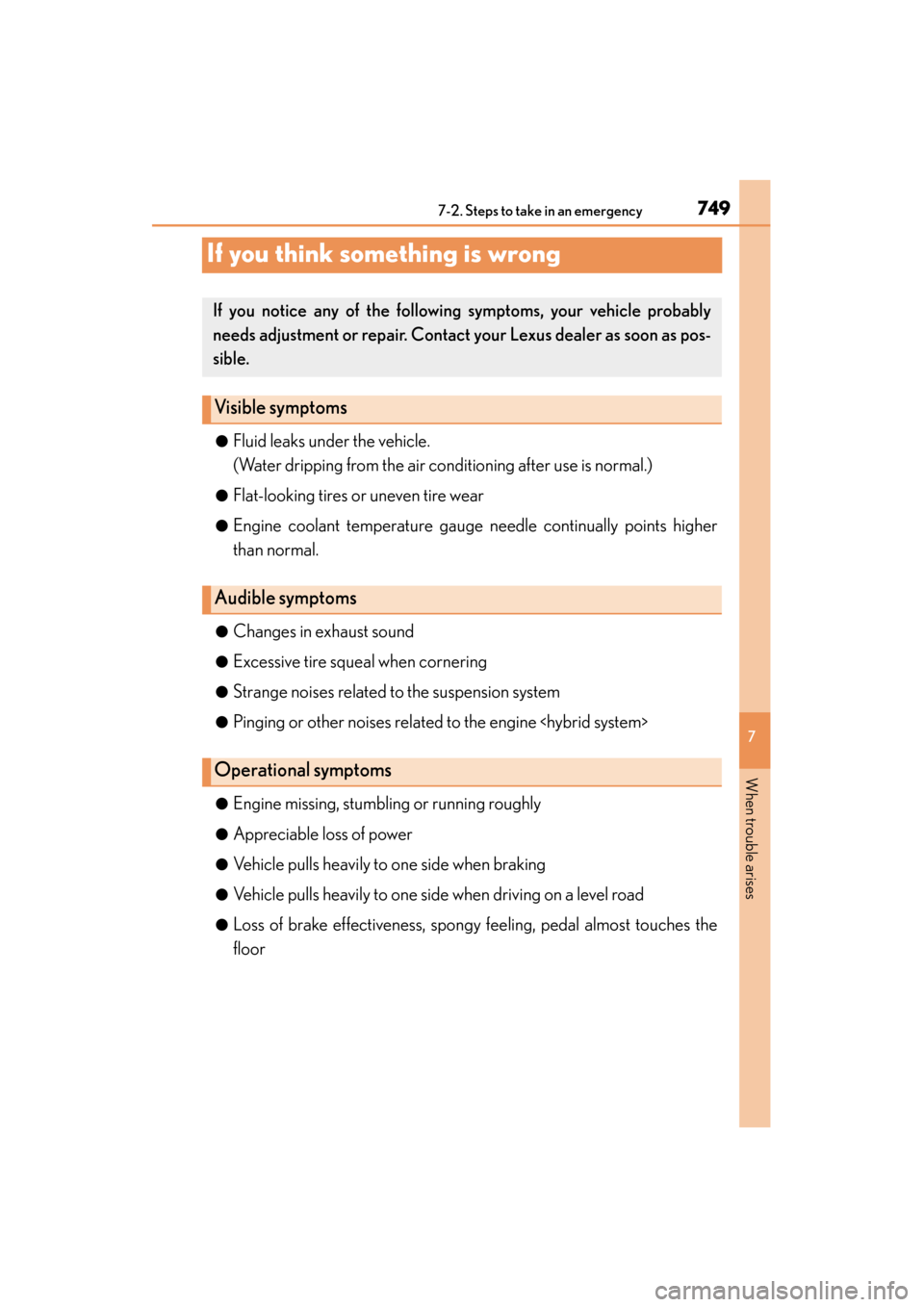

If you think something is wrong
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher
than normal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact your Lexus dealer as soon as pos-
sible.
Visible symptoms
Audible symptoms
Operational symptoms
