Lexus ES300h 2013 Owner's Manual

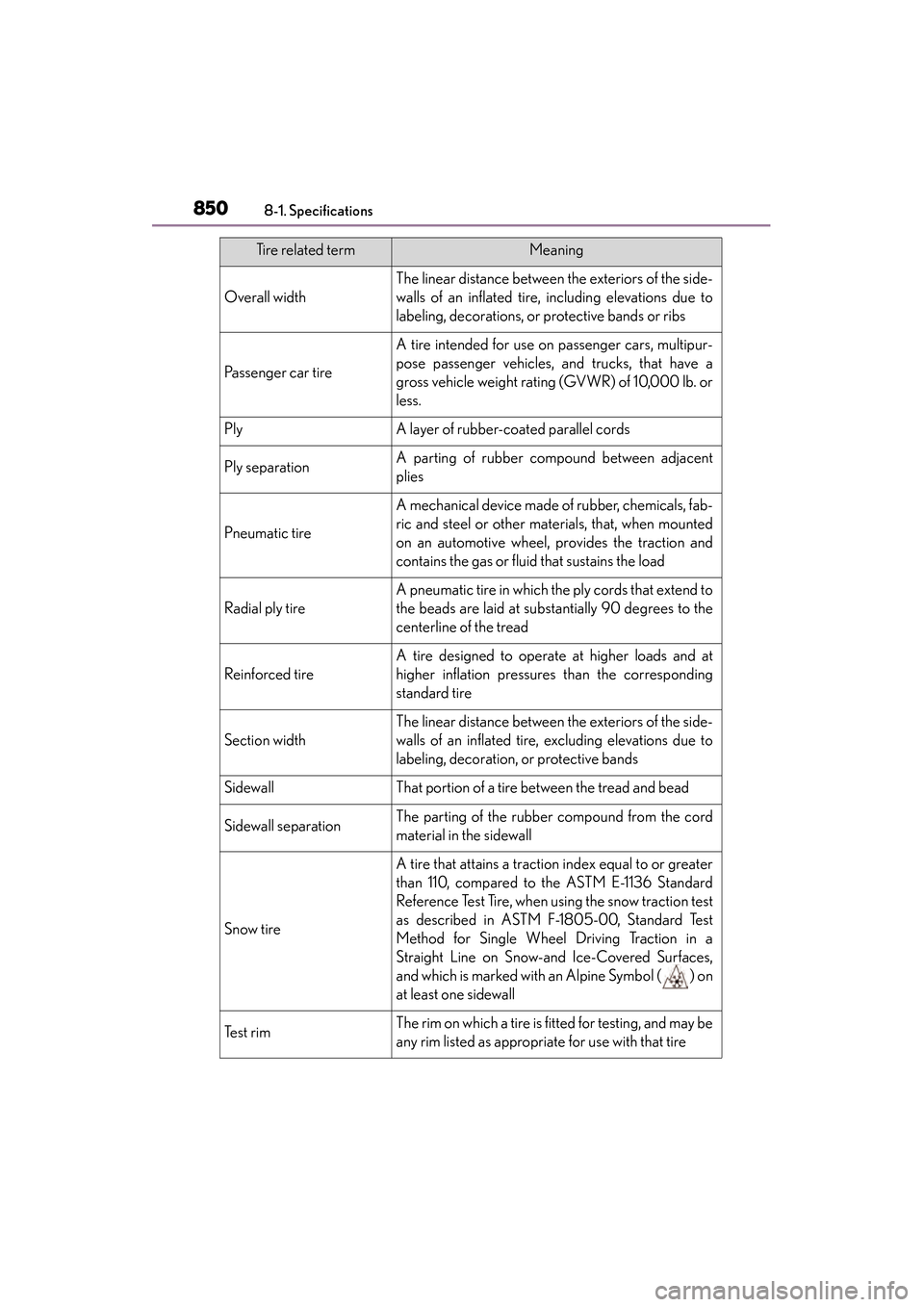

850
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications
Overall width
The linear distance between the exteriors of the side-
walls of an inflated tire, including elevations due to
labeling, decorations, or protective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipur-
pose passenger vehicles, and trucks, that have a
gross vehicle weight rating (GVWR) of 10,000 lb. or
less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent
plies
Pneumatic tire
A mechanical device made of rubber, chemicals, fab-
ric and steel or other materials, that, when mounted
on an automotive wheel, provides the traction and
contains the gas or fluid that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that extend to
the beads are laid at substantially 90 degrees to the
centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
Section width
The linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard
Reference Test Tire, when using the snow traction test
as described in ASTM F-1805-00, Standard Test
Method for Single Wheel Driving Traction in a
Straight Line on Snow-and Ice-Covered Surfaces,
and which is marked with an Alpine Symbol ( ) on
at least one sidewall
Te s t r i mThe rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
Tire related termMeaning

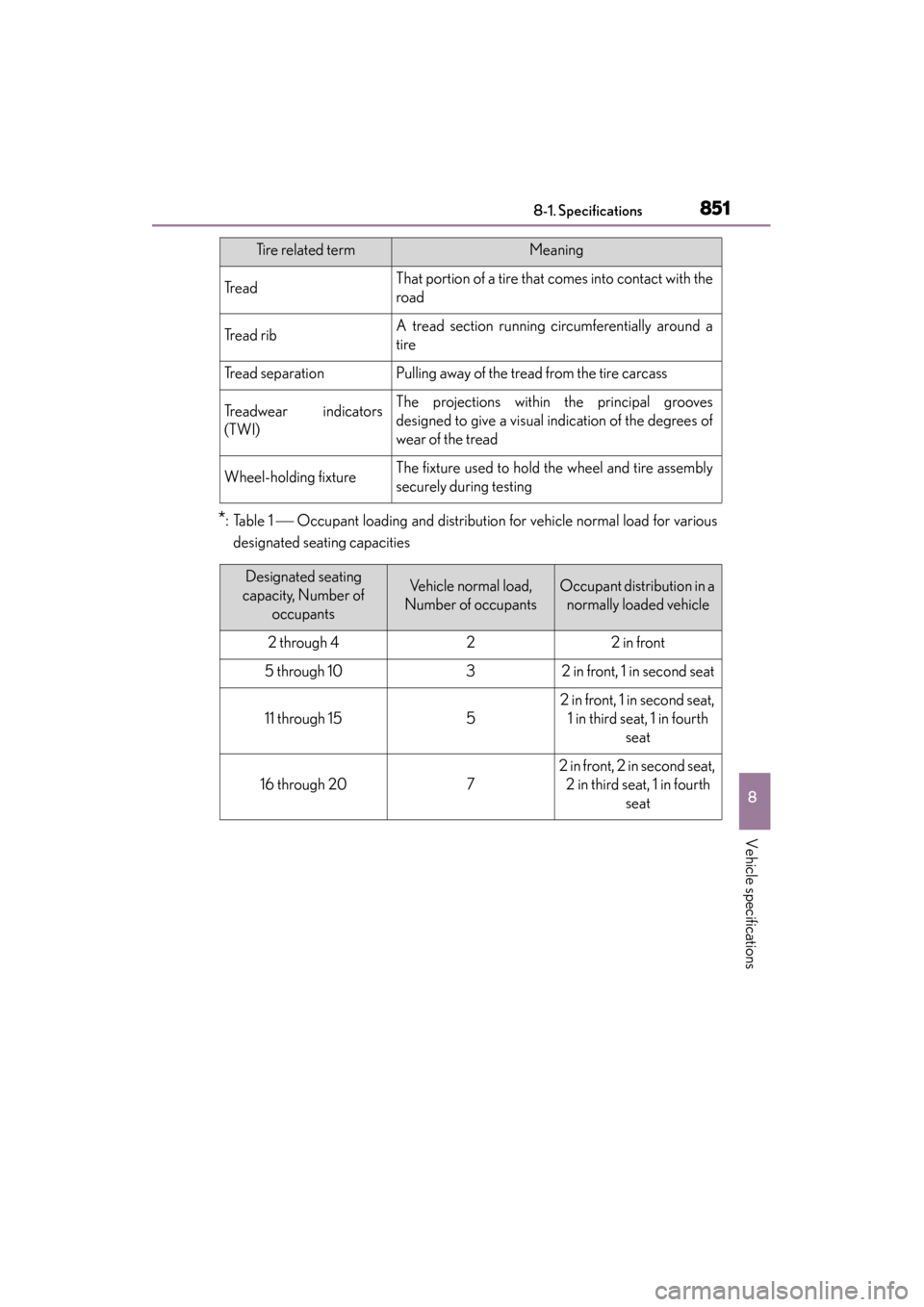

ES350 300h_OM_OM33A01U_(U)
8518-1. Specifications
8
Vehicle specifications
*:Table 1  Occupant loading and distribution for vehicle normal load for various
designated seating capacities
TreadThat portion of a tire that comes into contact with the
road
Tread ribA tread section running circumferentially around a
tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the degrees of
wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
Tire related termMeaning
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second seat, 2 in third seat, 1 in fourth seat

852
ES350 300h_OM_OM33A01U_(U)

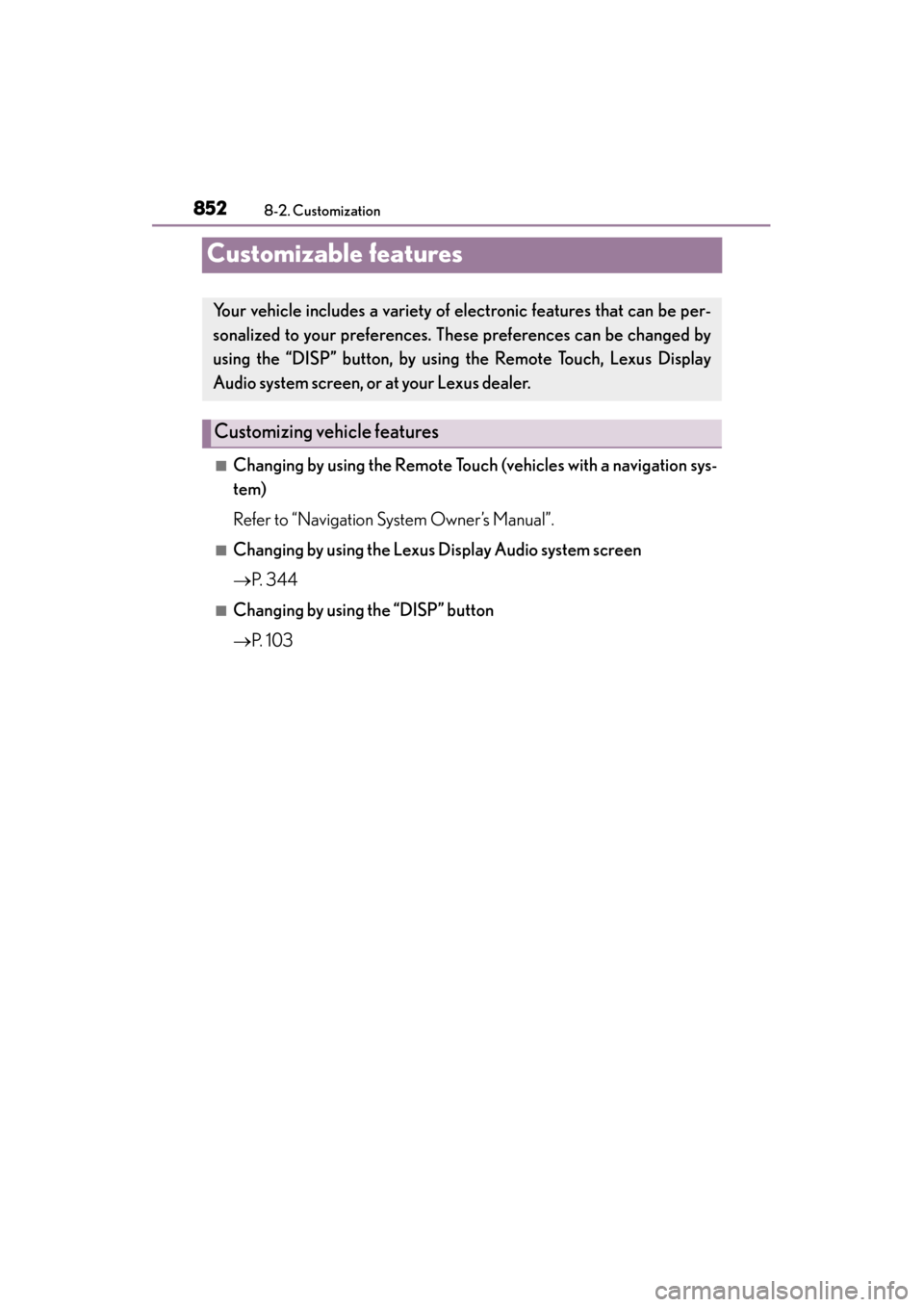

8-2. Customization
Customizable features
■Changing by using the Remote Touch (vehicles with a navigation sys-
tem)
Refer to “Navigation System Owner’s Manual”.
■Changing by using the Lexus Display Audio system screen
→ P. 3 4 4
■Changing by using the “DISP” button
→P. 1 0 3
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. These preferences can be changed by
using the “DISP” button, by using the Remote Touch, Lexus Display
Audio system screen, or at your Lexus dealer.
Customizing vehicle features

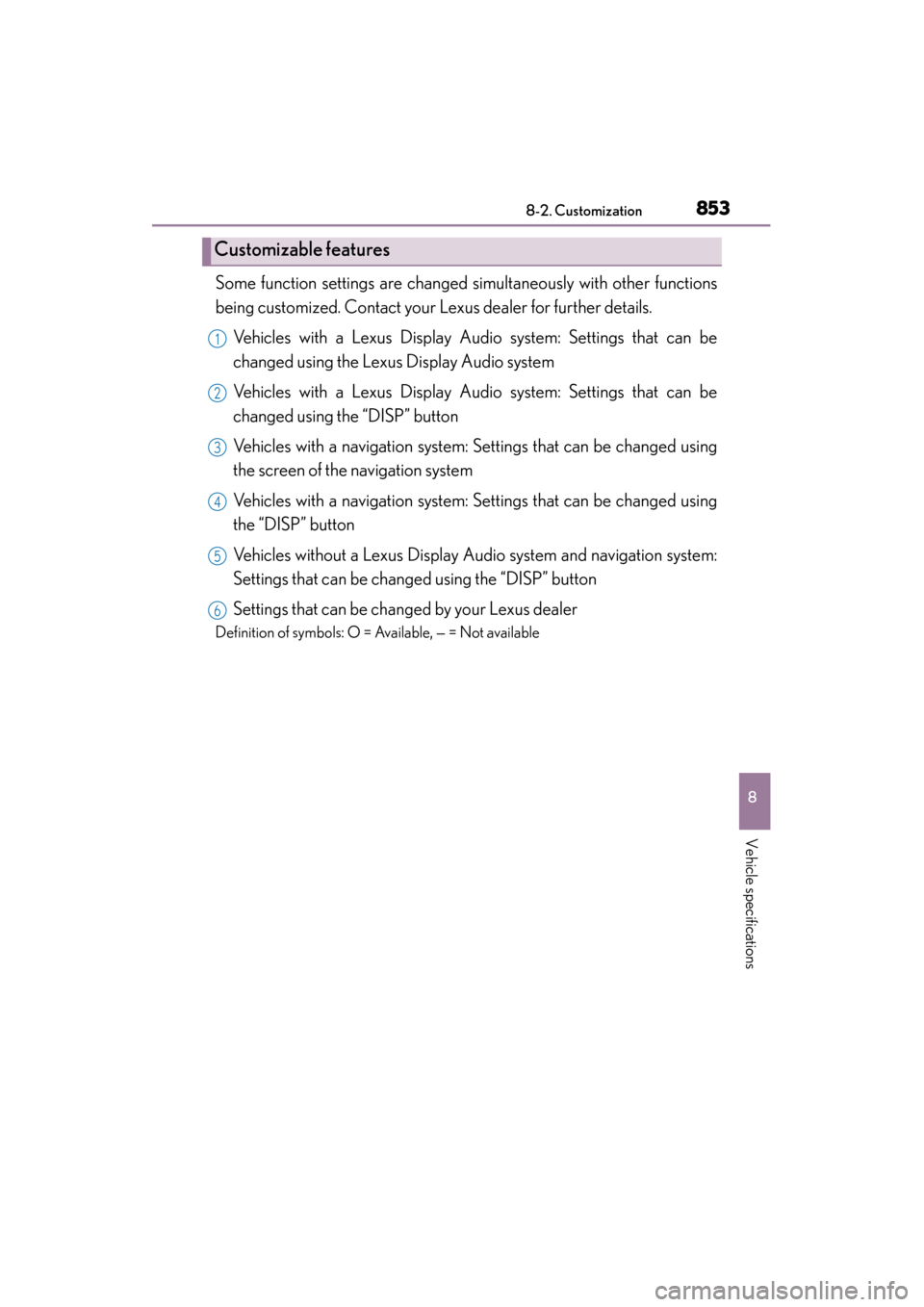

ES350 300h_OM_OM33A01U_(U)
8538-2. Customization
8
Vehicle specifications
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.
Vehicles with a Lexus Display Audio system: Settings that can be
changed using the Lexus Display Audio system
Vehicles with a Lexus Display Audio system: Settings that can be
changed using the “DISP” button
Vehicles with a navigation system: Settings that can be changed using
the screen of the navigation system
Vehicles with a navigation system: Settings that can be changed using
the “DISP” button
Vehicles without a Lexus Display Audio system and navigation system:
Settings that can be changed using the “DISP” button
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, — = Not available
Customizable features
1
2
3
4
5
6

854
ES350 300h_OM_OM33A01U_(U)
8-2. Customization

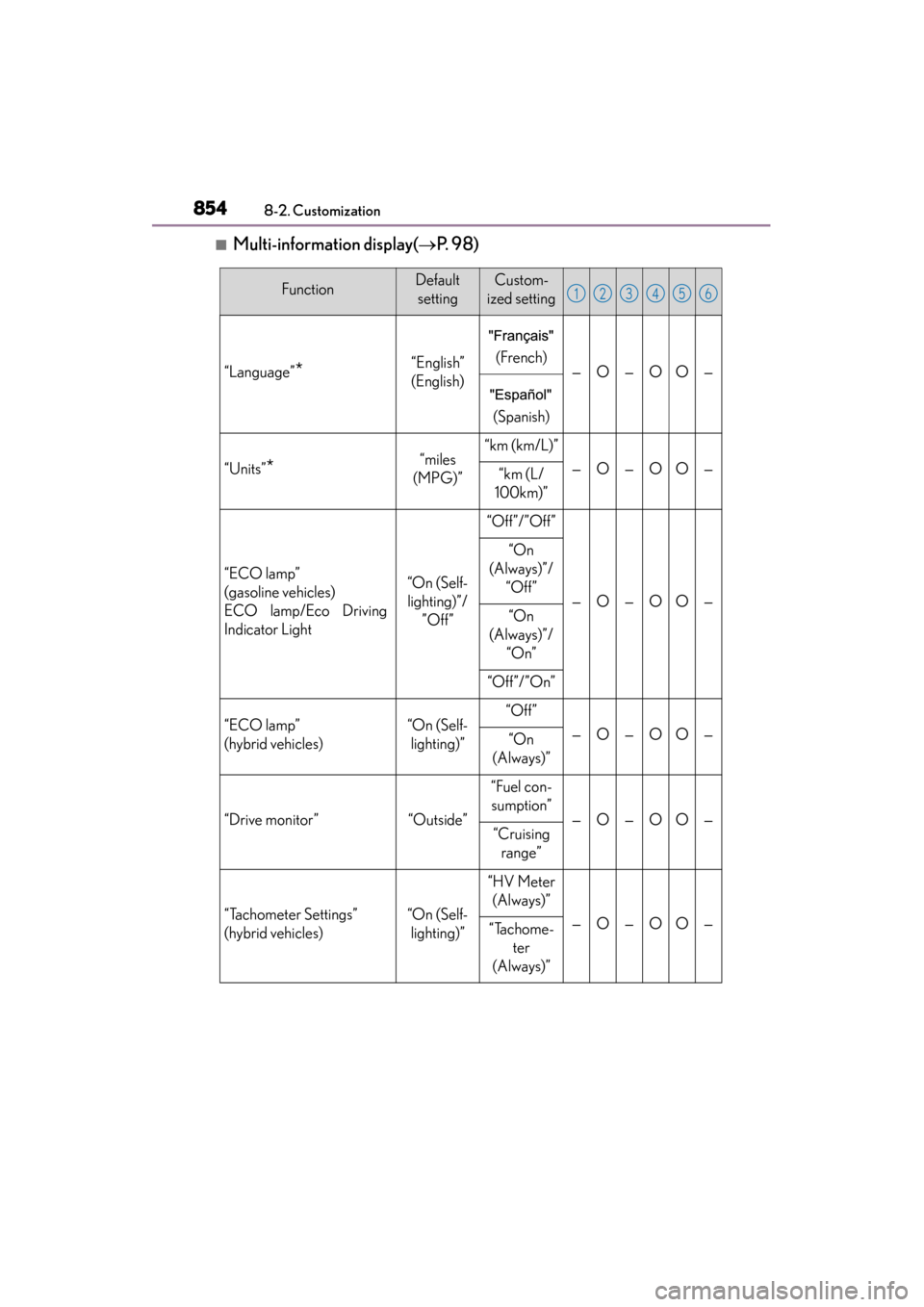

■Multi-information display(→P. 9 8 )
FunctionDefault
settingCustom-
ized setting
“Language”*“English”
(English)(French)—O—OO—
(Spanish)
“Units”*“miles
(MPG)”“km (km/L)”
—O—OO—“km (L/
100km)”
“ECO lamp”
(gasoline vehicles)
ECO lamp/Eco Driving
Indicator Light“On (Self- lighting)”/ ”Off”
“Off”/”Off”
—O—OO—
“On
(Always)”/ “Off”
“On
(Always)”/ “On”
“Off”/”On”
“ECO lamp”
(hybrid vehicles)“On (Self-lighting)”“Off”
—O—OO—“On
(Always)”
“Drive monitor”“Outside”
“Fuel con- sumption”
—O—OO—“Cruising range”
“Tachometer Settings”
(hybrid vehicles)“On (Self-lighting)”
“HV Meter (Always)”
—O—OO—“Tachome- ter
(Always)”
123456

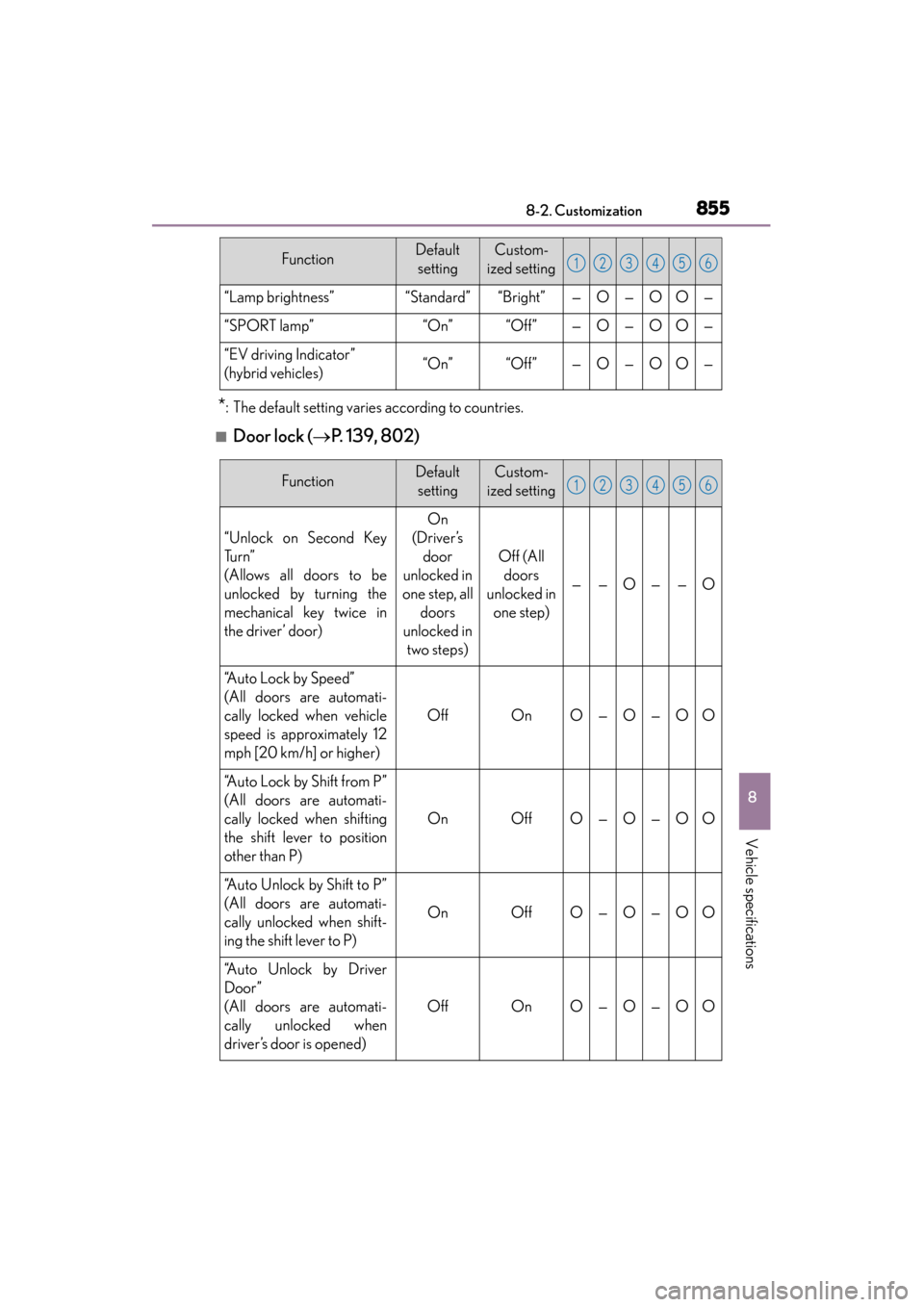

ES350 300h_OM_OM33A01U_(U)
8558-2. Customization
8
Vehicle specifications
*: The default setting varies according to countries.
■Door lock (→P. 139, 802)
“Lamp brightness”“Standard”“Bright”—O—OO—
“SPORT lamp”“On”“Off”—O—OO—
“EV driving Indicator”
(hybrid vehicles)“On”“Off”—O—OO—
FunctionDefault
settingCustom-
ized setting123456
FunctionDefault settingCustom-
ized setting
“Unlock on Second Key
Tu r n ”
(Allows all doors to be
unlocked by turning the
mechanical key twice in
the driver’ door)
On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off (All doors
unlocked in one step)
——O——O
“Auto Lock by Speed”
(All doors are automati-
cally locked when vehicle
speed is approximately 12
mph [20 km/h] or higher)
OffOnO—O—OO
“Auto Lock by Shift from P”
(All doors are automati-
cally locked when shifting
the shift lever to position
other than P)
OnOffO—O—OO
“Auto Unlock by Shift to P”
(All doors are automati-
cally unlocked when shift-
ing the shift lever to P)
OnOffO—O—OO
“Auto Unlock by Driver
Door”
(All doors are automati-
cally unlocked when
driver’s door is opened)
OffOnO—O—OO
123456

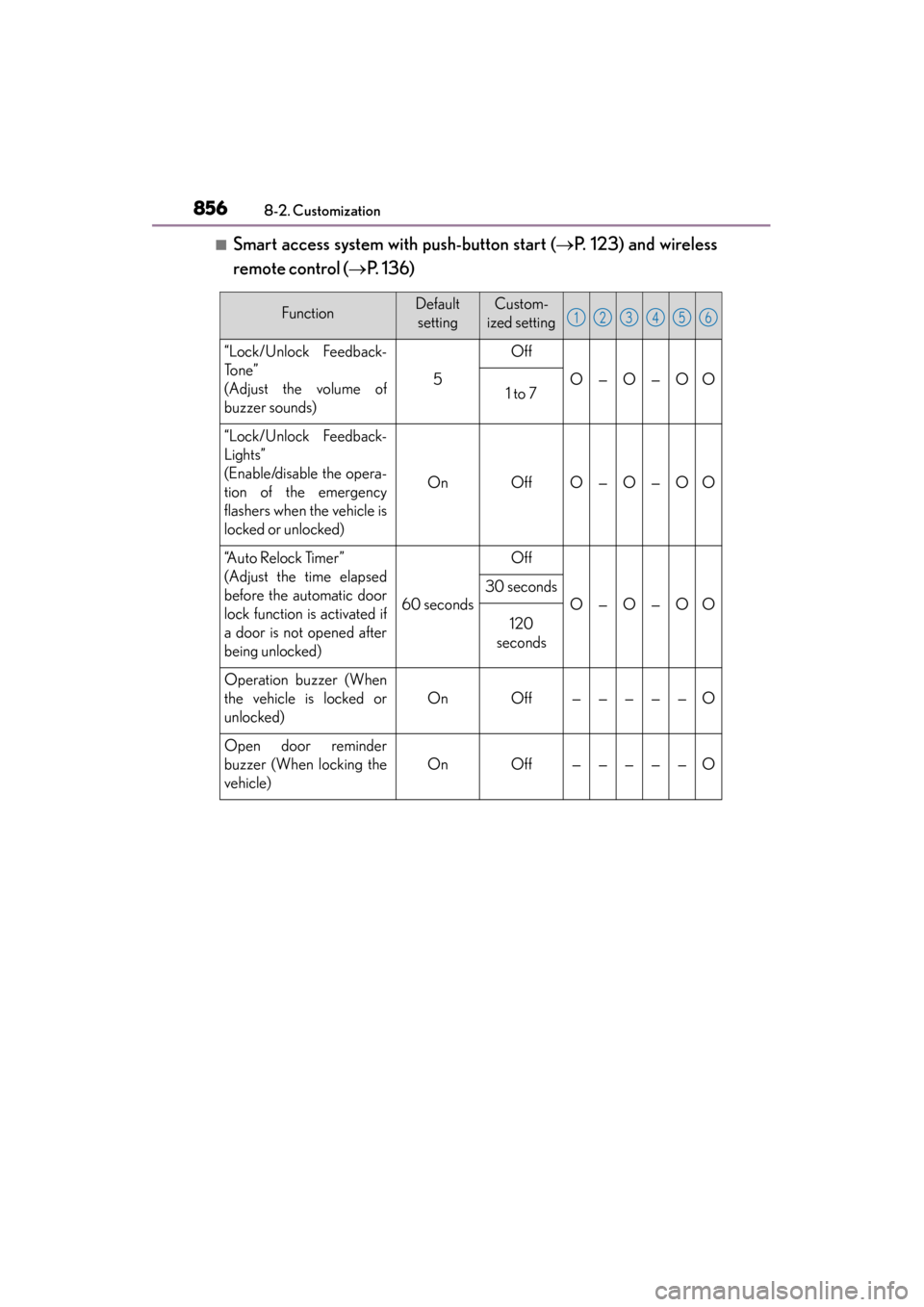

856
ES350 300h_OM_OM33A01U_(U)
8-2. Customization
■Smart access system with push-button start (→P. 123) and wireless
remote control ( →P. 1 3 6 )
FunctionDefault
settingCustom-
ized setting
“Lock/Unlock Feedback-
To n e ”
(Adjust the volume of
buzzer sounds)
5
Off
O—O—OO1 to 7
“Lock/Unlock Feedback-
Lights”
(Enable/disable the opera-
tion of the emergency
flashers when the vehicle is
locked or unlocked)
OnOffO—O—OO
“A u t o R e l o c k T i m e r ”
(Adjust the time elapsed
before the automatic door
lock function is activated if
a door is not opened after
being unlocked)
60 seconds
Off
O—O—OO
30 seconds
120
seconds
Operation buzzer (When
the vehicle is locked or
unlocked)
OnOff—————O
Open door reminder
buzzer (When locking the
vehicle)
OnOff—————O
123456

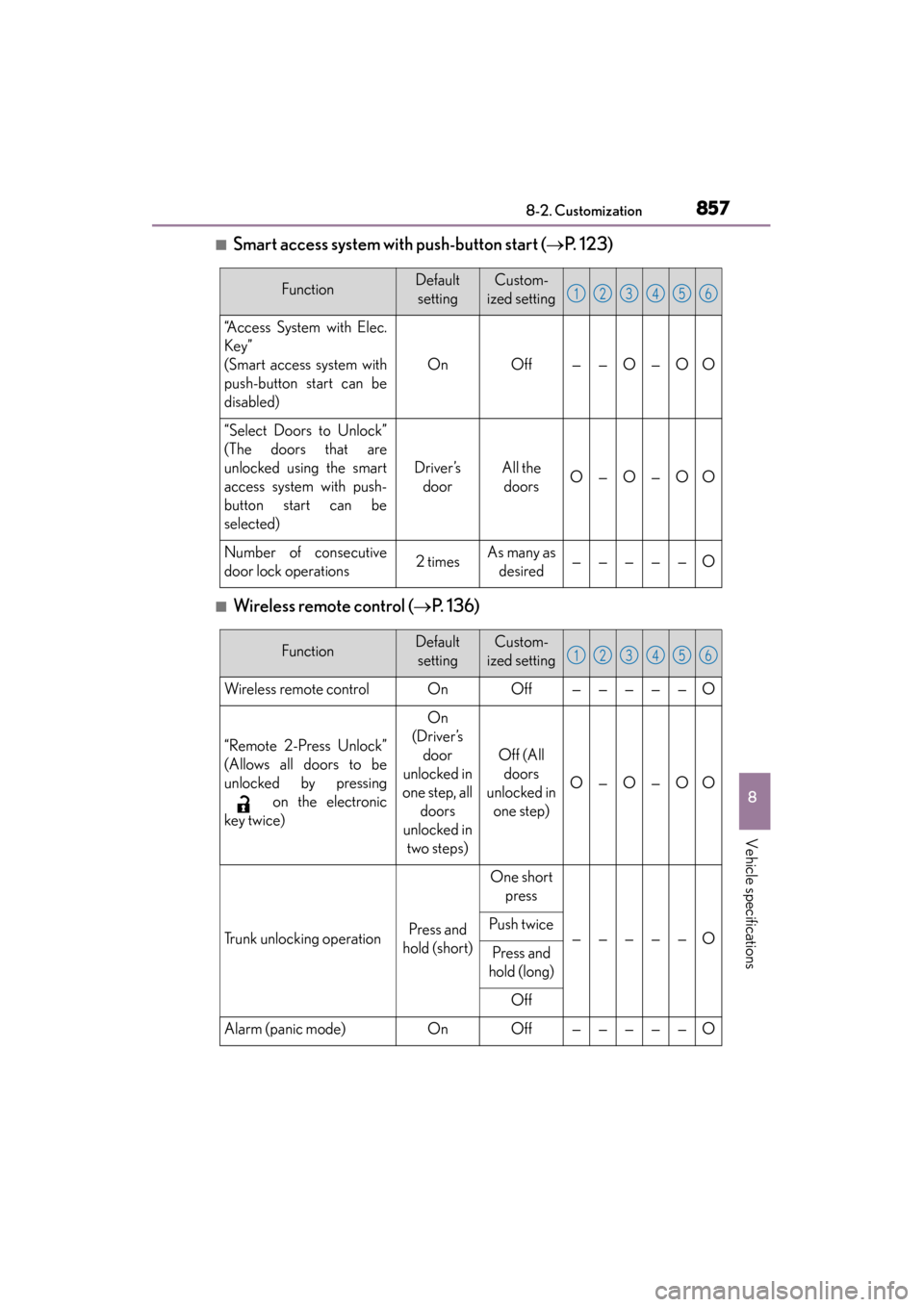

ES350 300h_OM_OM33A01U_(U)
8578-2. Customization
8
Vehicle specifications
■Smart access system with push-button start (→P. 123)
■Wireless remote control ( →P. 136)
FunctionDefault
settingCustom-
ized setting
“Access System with Elec.
Key”
(Smart access system with
push-button start can be
disabled)
OnOff——O—OO
“Select Doors to Unlock”
(The doors that are
unlocked using the smart
access system with push-
button start can be
selected)
Driver’s doorAll the doorsO—O—OO
Number of consecutive
door lock operations2 timesAs many as desired—————O
123456
FunctionDefaultsettingCustom-
ized setting
Wireless remote controlOnOff—————O
“Remote 2-Press Unlock”
(Allows all doors to be
unlocked by pressing on the electronic
key twice)
On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off (All doors
unlocked in one step)
O—O—OO
Trunk unlocking operationPress and
hold (short)
One short press
—————OPush twice
Press and
hold (long)
Off
Alarm (panic mode)OnOff—————O
123456

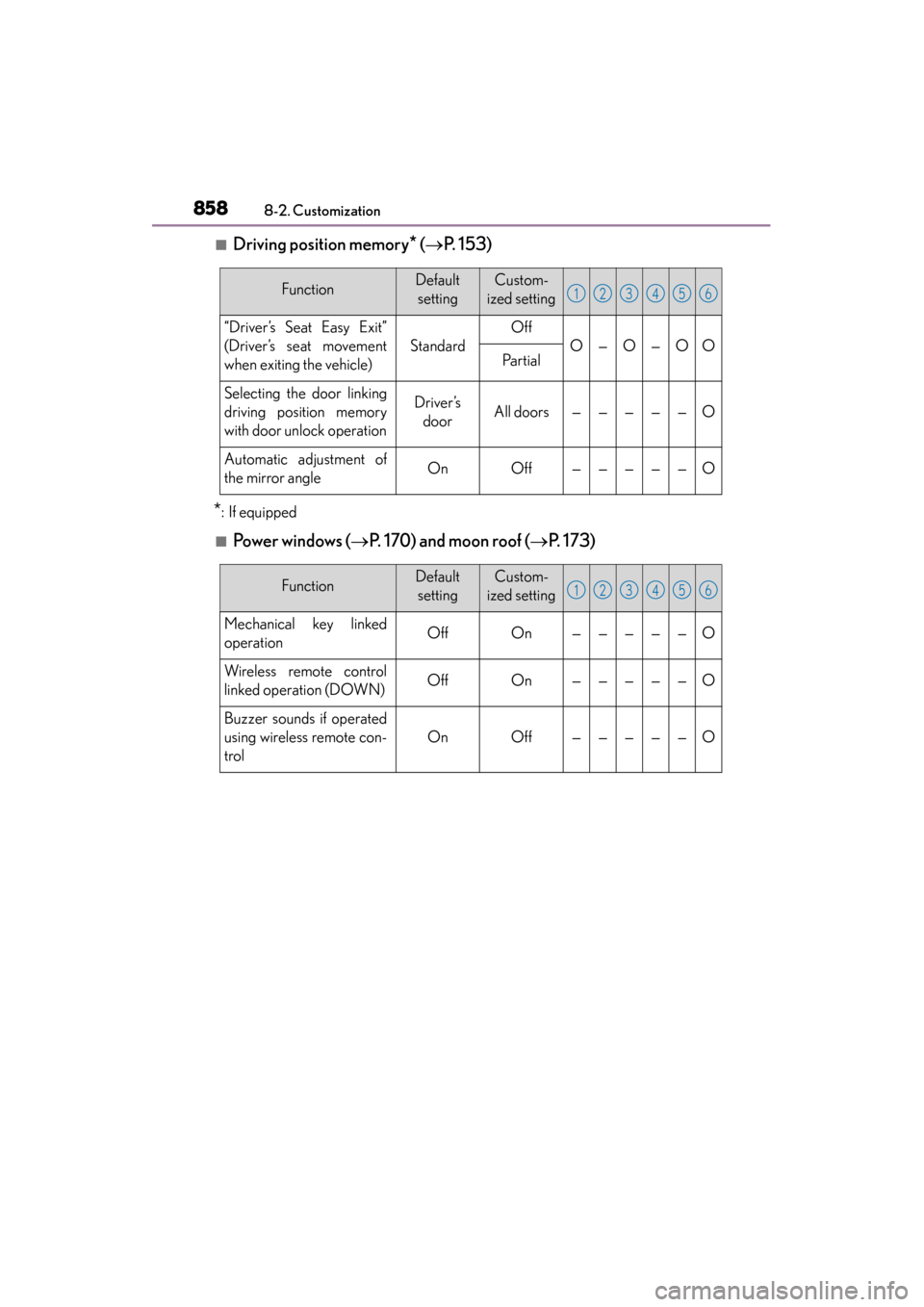

858
ES350 300h_OM_OM33A01U_(U)
8-2. Customization
■Driving position memory* (→ P. 1 5 3 )
*: If equipped
■Power windows ( →P. 170) and moon roof ( →P. 1 7 3 )
FunctionDefault
settingCustom-
ized setting
“Driver’s Seat Easy Exit”
(Driver’s seat movement
when exiting the vehicle)
Standard
Off
O—O—OOPa r t i a l
Selecting the door linking
driving position memory
with door unlock operationDriver’s doorAll doors—————O
Automatic adjustment of
the mirror angleOnOff—————O
123456
FunctionDefaultsettingCustom-
ized setting
Mechanical key linked
operationOffOn—————O
Wireless remote control
linked operation (DOWN)OffOn—————O
Buzzer sounds if operated
using wireless remote con-
trol
OnOff—————O
123456

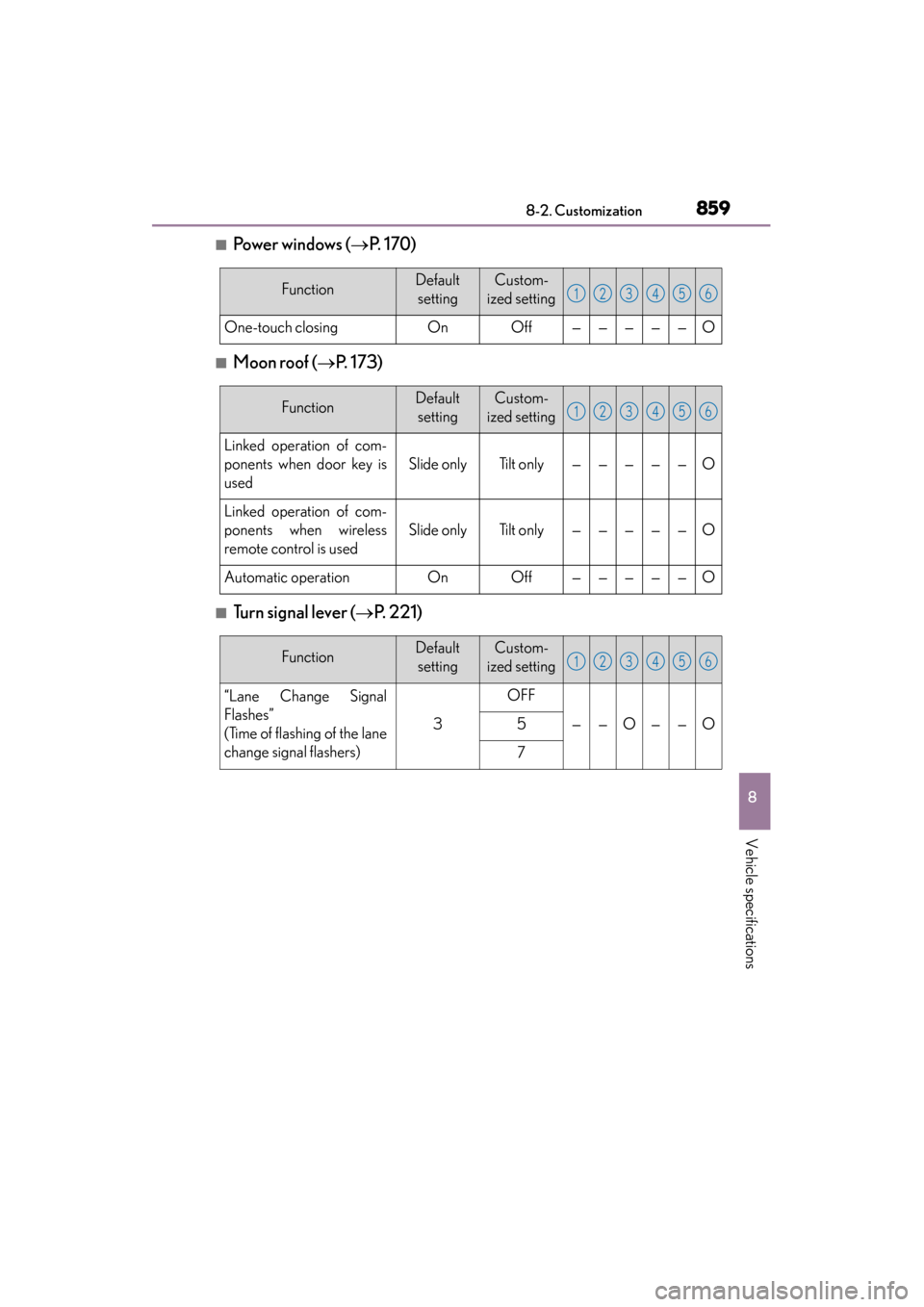

ES350 300h_OM_OM33A01U_(U)
8598-2. Customization
8
Vehicle specifications
■Power windows (→P. 1 7 0 )
■Moon roof ( →P. 1 7 3 )
■Turn signal lever ( →P. 221)
FunctionDefault
settingCustom-
ized setting
One-touch closingOnOff—————O
123456
FunctionDefault settingCustom-
ized setting
Linked operation of com-
ponents when door key is
used
Slide only Ti l t o n l y —————O
Linked operation of com-
ponents when wireless
remote control is used
Slide only Ti l t o n l y —————O
Automatic operationOnOff—————O
123456
FunctionDefault settingCustom-
ized setting
“Lane Change Signal
Flashes”
(Time of flashing of the lane
change signal flashers)
3
OFF
——O——O5
7
123456
