7-2. Steps to take in an emergency

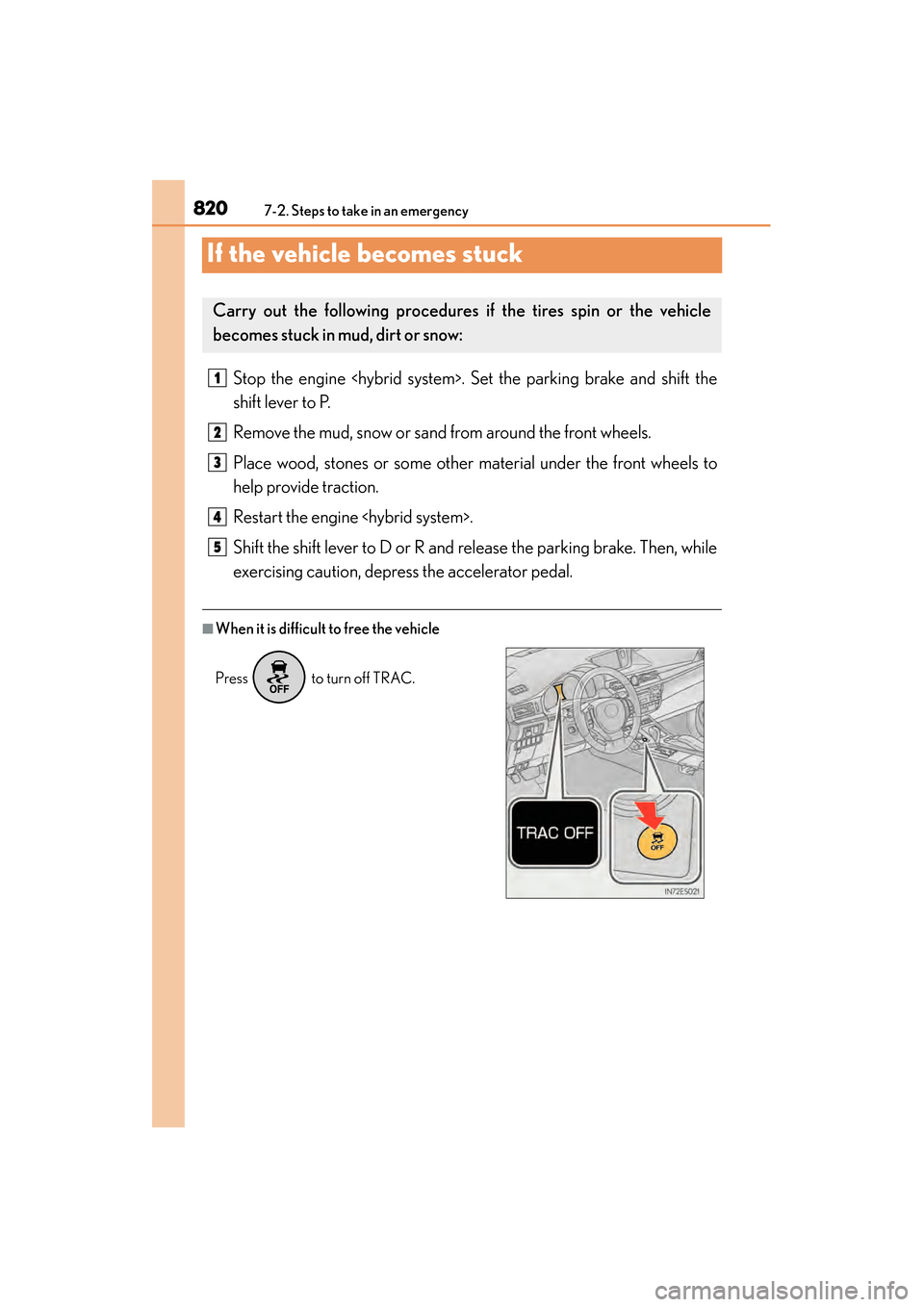

If the vehicle becomes stuck
Stop the engine . Set the parking brake and shift the
shift lever to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels to
help provide traction.
Restart the engine .
Shift the shift lever to D or R and release the parking brake. Then, while
exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC.
1
2
3
4
5

8217-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)
7
When trouble arises

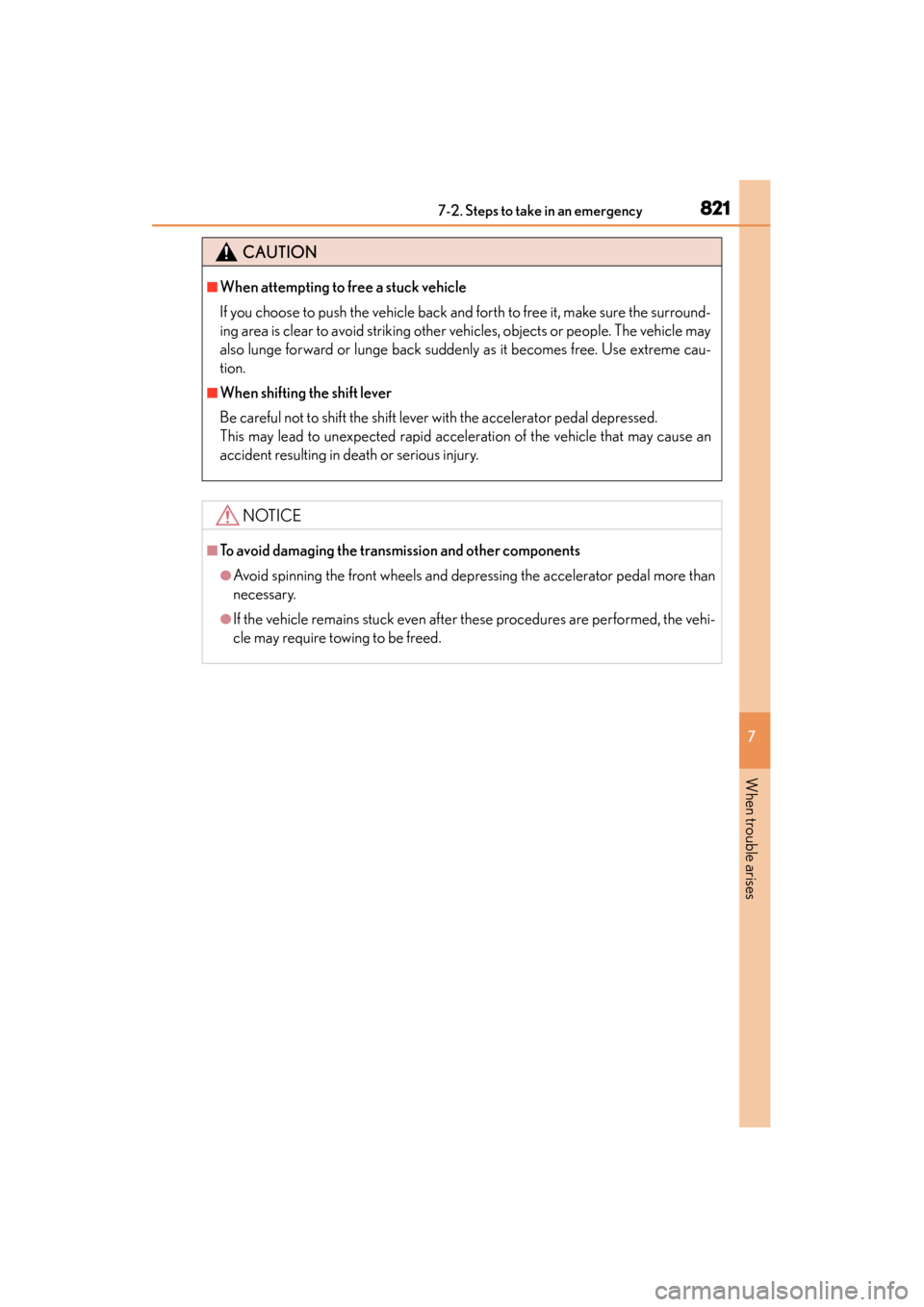

CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back suddenly as it becomes free. Use extreme cau-
tion.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the front wheels and depressing the accelerator pedal more than
necessary.
●If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.

8227-2. Steps to take in an emergency
ES350 300h_OM_OM33A01U_(U)

823
ES350 300h_OM_OM33A01U_(U)

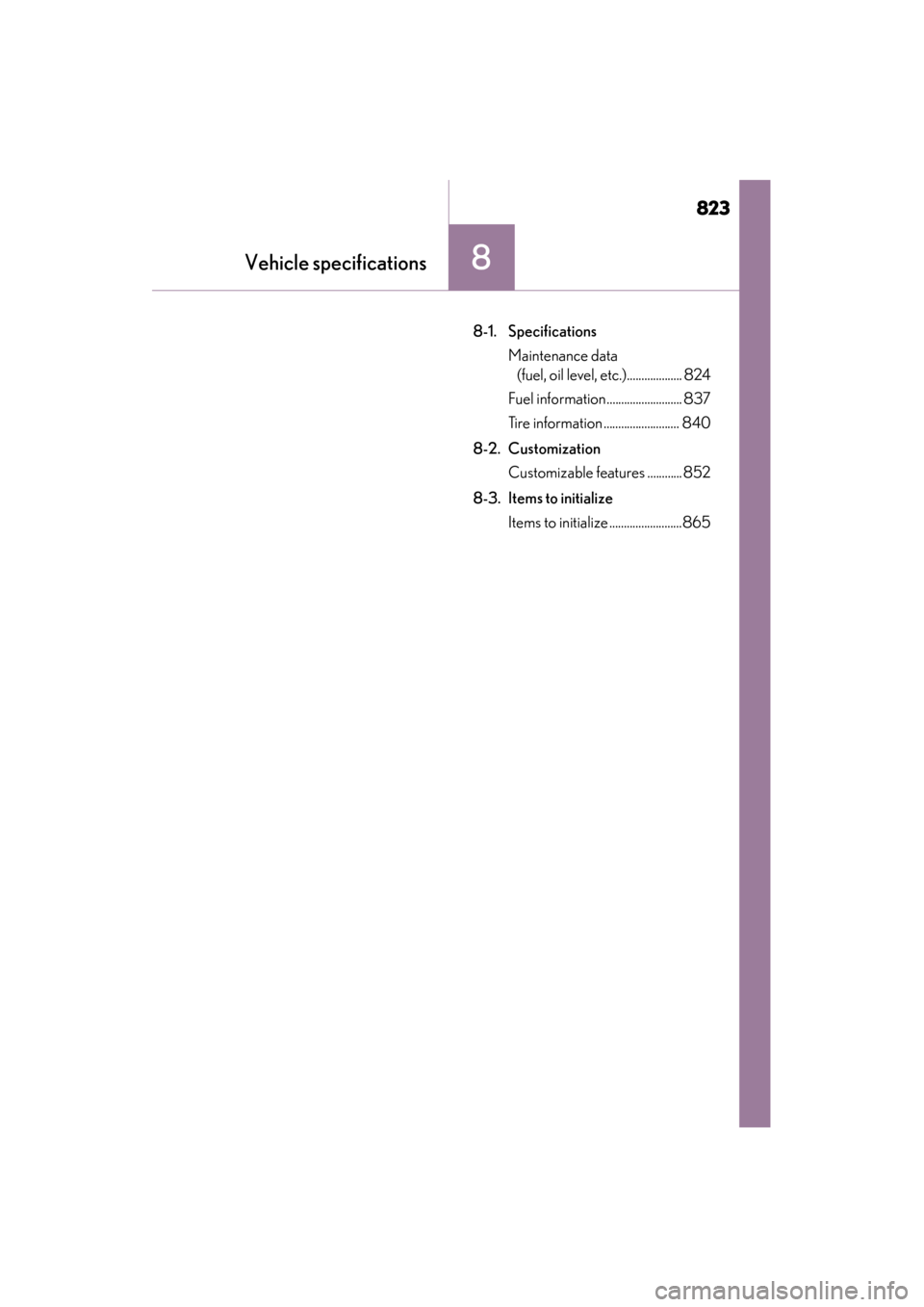

8Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.)................... 824
Fuel information.......................... 837
Tire information .......................... 840
8-2. Customization Customizable features ............ 852
8-3. Items to initialize Items to initialize .........................865

824
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications

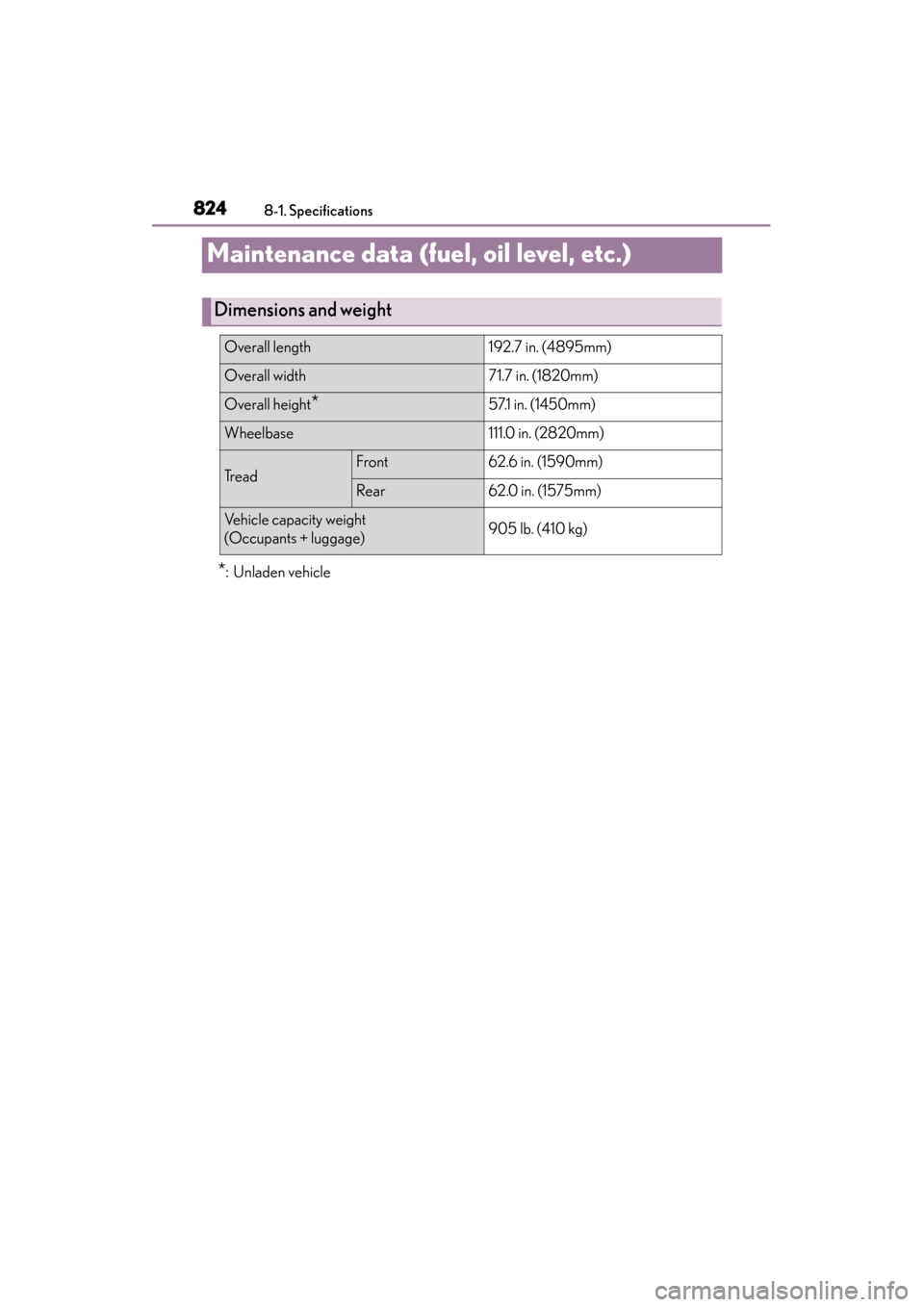

Maintenance data (fuel, oil level, etc.)
*: Unladen vehicle
Dimensions and weight
Overall length192.7 in. (4895mm)
Overall width71.7 in. (1820mm)
Overall height*57.1 in. (1450mm)
Wheelbase111.0 in. (2820mm)
TreadFront62.6 in. (1590mm)
Rear62.0 in. (1575mm)
Vehicle capacity weight
(Occupants + luggage)905 lb. (410 kg)

ES350 300h_OM_OM33A01U_(U)
8258-1. Specifications
8
Vehicle specifications

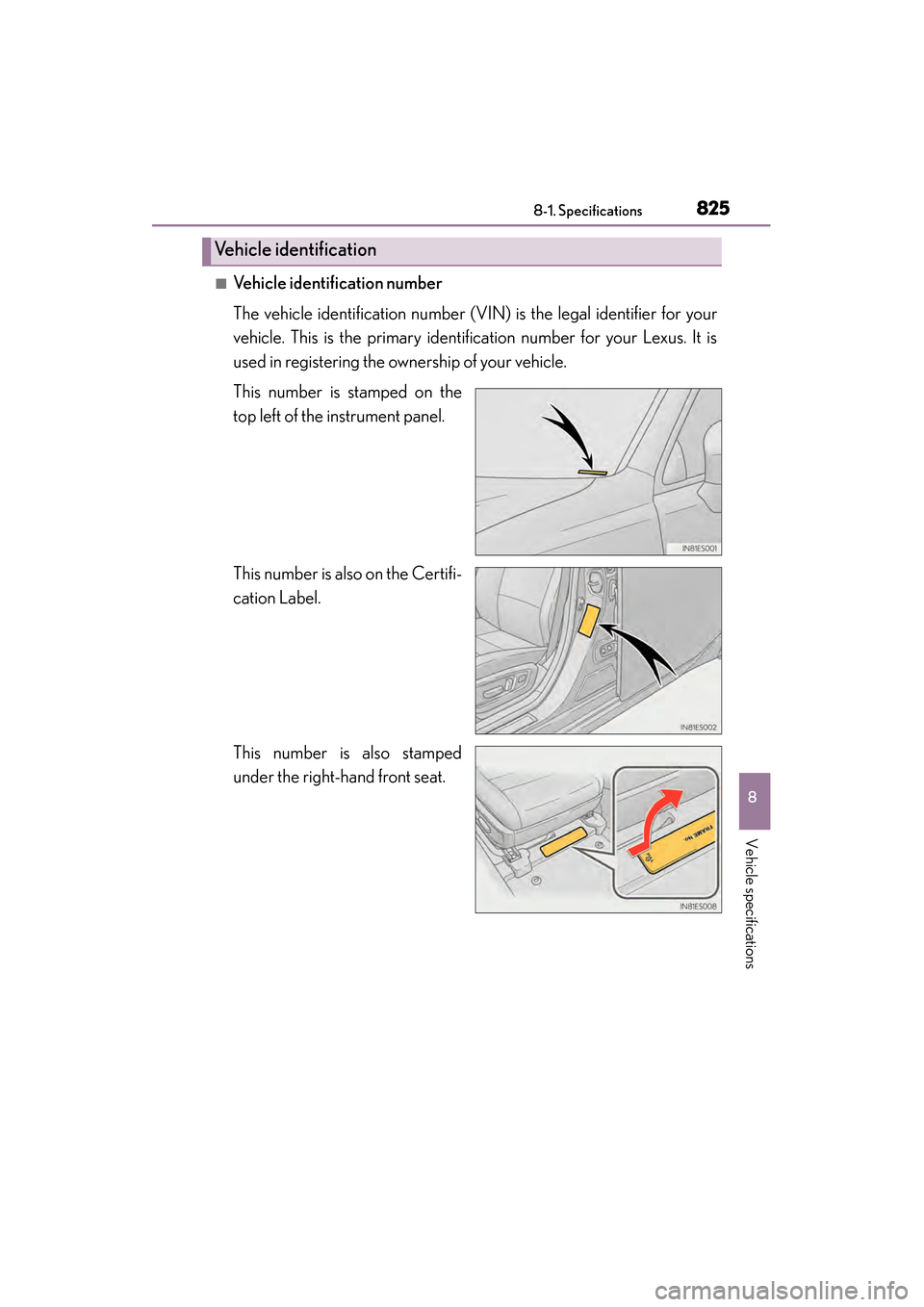

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certifi-
cation Label.
This number is also stamped
under the right-hand front seat.
Vehicle identification

826
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications

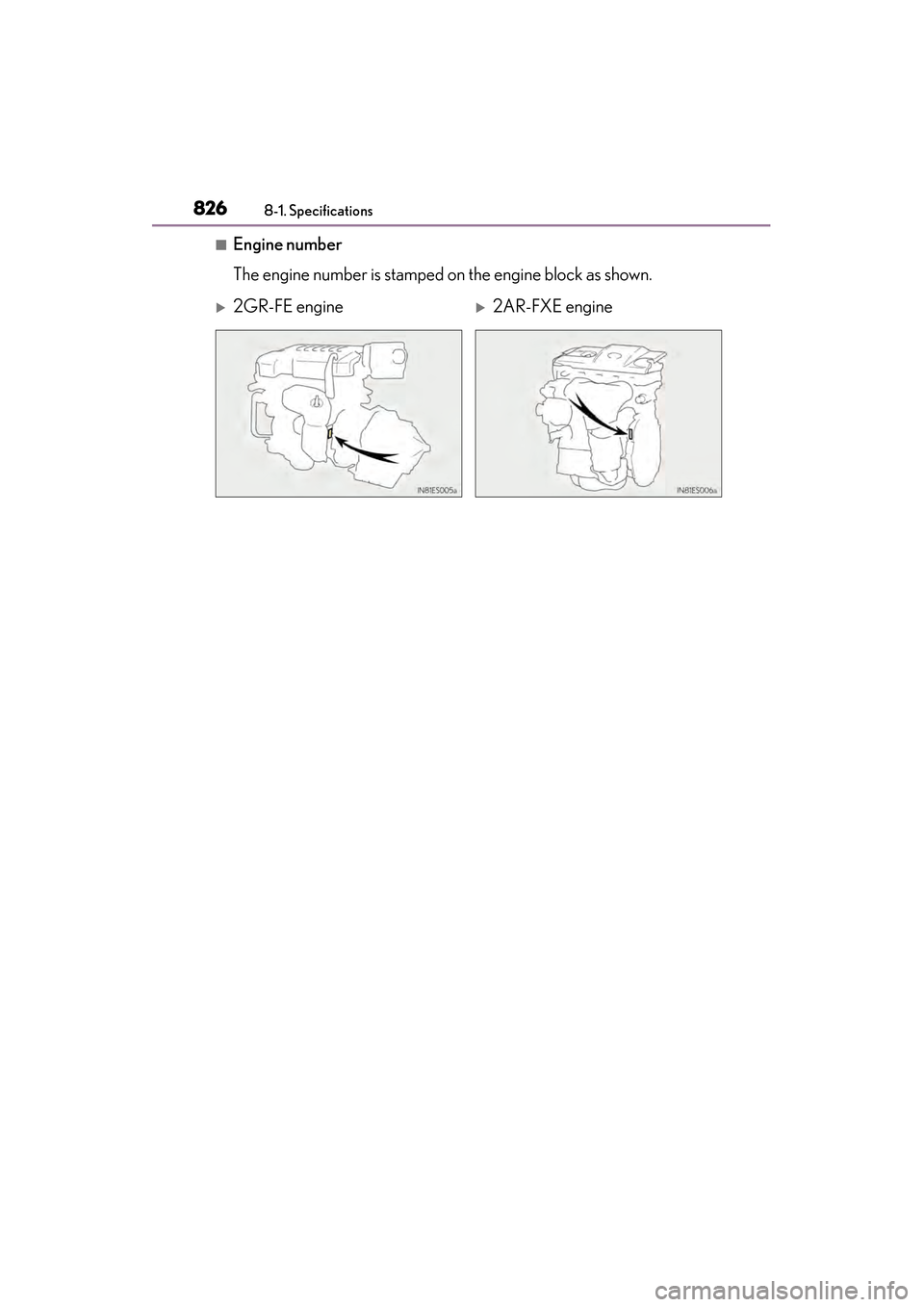

■Engine number
The engine number is stamped on the engine block as shown.
X2GR-FE engineX2AR-FXE engine

ES350 300h_OM_OM33A01U_(U)
8278-1. Specifications
8
Vehicle specifications
XGasoline vehicles
XHybrid vehicles

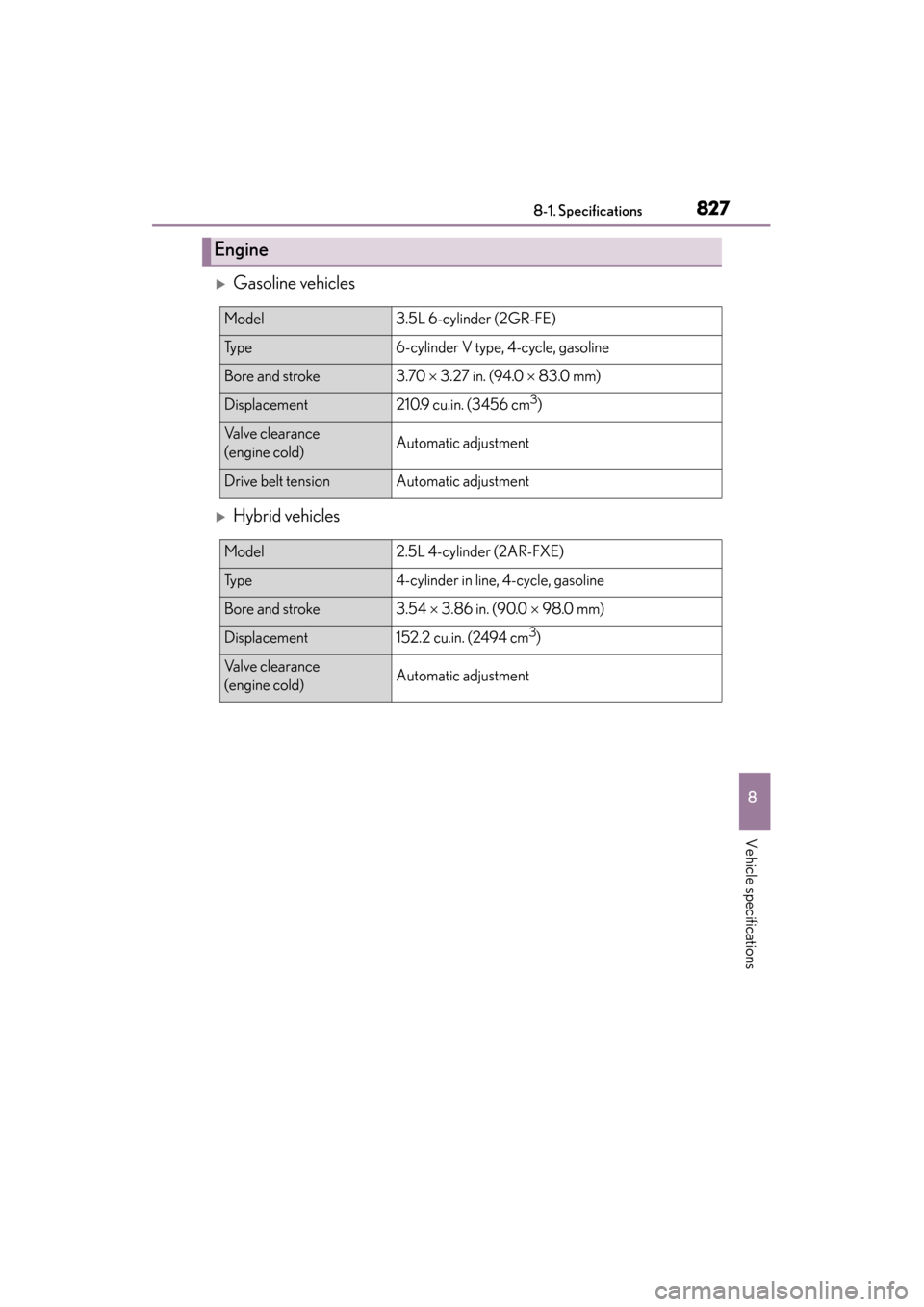

Engine
Model3.5L 6-cylinder (2GR-FE)
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Model2.5L 4-cylinder (2AR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.54 × 3.86 in. (90.0 × 98.0 mm)
Displacement152.2 cu.in. (2494 cm3)
Valve clearance
(engine cold)Automatic adjustment

828
ES350 300h_OM_OM33A01U_(U)
8-1. Specifications

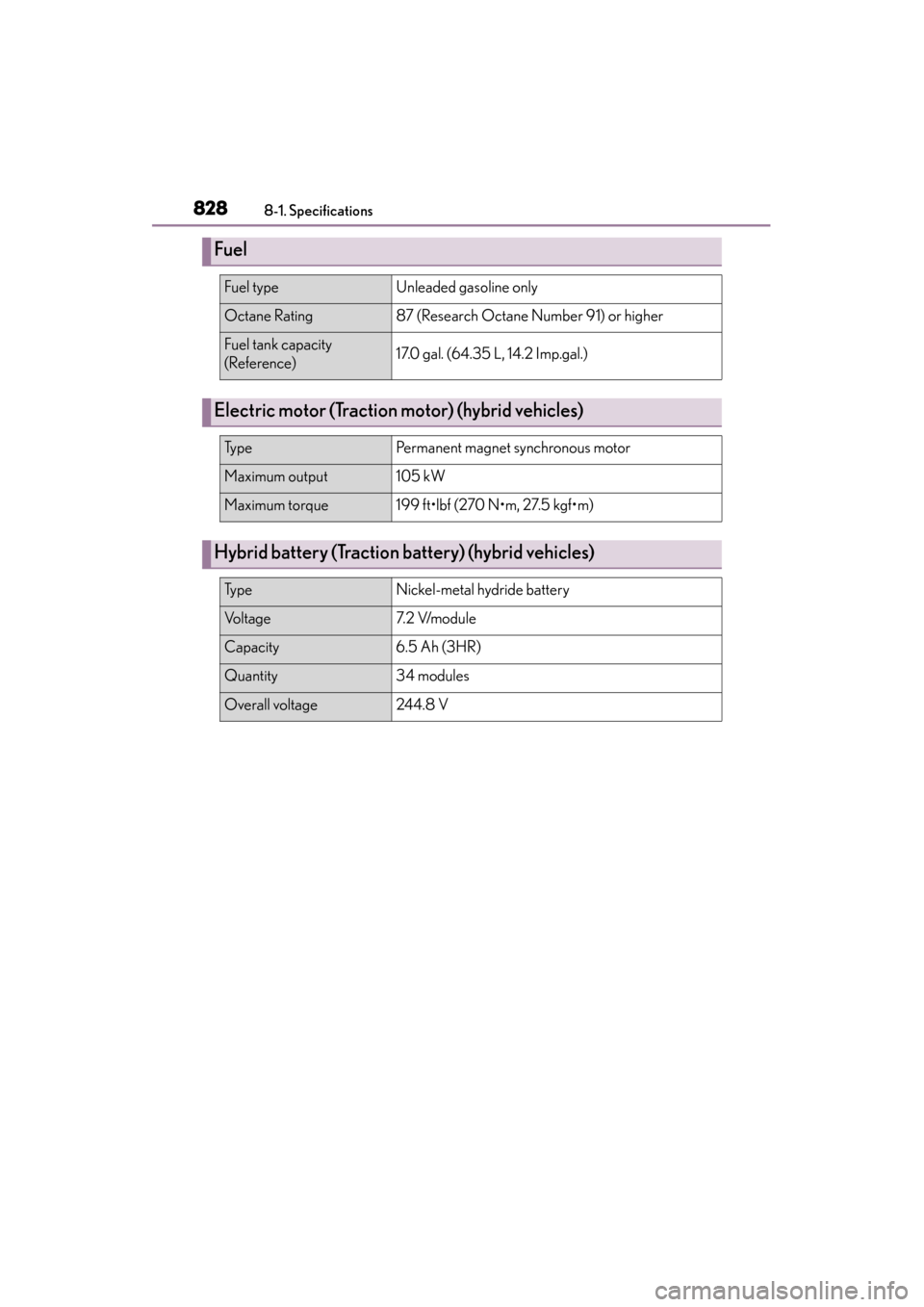

Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)17.0 gal. (64.35 L, 14.2 Imp.gal.)
Electric motor (Traction motor) (hybrid vehicles)
Ty p ePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque199 ft•lbf (270 N•m, 27.5 kgf•m)
Hybrid battery (Traction battery) (hybrid vehicles)
Ty p eNickel-metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity34 modules
Overall voltage244.8 V

ES350 300h_OM_OM33A01U_(U)
8298-1. Specifications
8
Vehicle specifications
XGasoline vehicles
*1: The engine oil capacity is a reference quantity to be used when changing theengine oil. Warm up and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.
XHybrid vehicles
*2: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn off the hybrid system, wait more than 5
minutes, and check the oil level on the dipstick.
Lubrication system
Oil capacity
(Drain and refill 
reference
*1)
With filter6.4 qt. (6.1 L, 5.4 Imp.qt.)
Witho ut filter6.0 qt. (5.7 L, 5.0 Imp.qt.)
Oil capacity
(Drain and refill 
reference
*2)
With filter4.6 qt. (4.4 L, 3.9 Imp.qt.)
Witho ut filter4.2 qt. (4.0 L, 3.5 Imp.qt.)
