5-3. Using the Lexus Display Audio system
5
Interior features
Using the AUX port
Push the knob to release the lock,
and lift the armrest to open fully.
Open the cover and connect the
portable audio device.
Press the “MEDIA” button or the “A UDIO” button on the Lexus Display
Audio controller and then select “AUX”.
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehi cle’s audio controls. All other adjustments
must be made on the portable audio device itself.
■When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable audio
device.
This port can be used to connect a portable audio device and listen to it
through the vehicle’s speakers.
1
2
3

430
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system
CAUTION
■Caution while driving
Do not connect portable audio device or operate the controls.
NOTICE
■If the armrest cannot be fully closed
Depending on the size and shape of the portable audio device that is connected to
the system, the armrest may not close fully. In this case, do not forcibly close the
armrest as this may damage the portab le audio device or the terminal, etc.
■To prevent damage to portable audio device
●Do not leave portable audio device in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.
●Do not push down on or apply unnecessary pressure to the portable audio
device while it is connected as this may damage the portable audio device or its
terminal.
●Do not insert foreign objects into the port as this may damage the portable audio
device or its terminal.

431
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system
5
Interior features
Listening to Bluetooth® audio
The Bluetooth® audio system enables users to enjoy music played on a
portable player from the vehicle speaker via wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable
of playing portable audio music without cables. If your portable player
does not support Bluetooth
®, the Bluetooth® audio system will not
function.
Press the “MEDIA” button or the “A UDIO” button on the Lexus Display
Audio controller and then select “Bluetooth
*”.
*: Bluetooth is a registered tr ademark of Bluetooth SIG, Inc.

432
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system
Control panel
Audio control screen
Playback/Pause button
Track selector knob
Track selector buttonAudio source selector button
Po w e r
Vo l u m e1
2
3
4
5
6
7

ES350_300h_OM_OM33A60U_(U)
4335-3. Using the Lexus Display Audio system
5
Interior features
Pressing the “MEDIA” button or the “AUDIO” button on the Lexus Display
Audio controller displays the audio cont rol screen from any screens of the
selected source.
Audio source selection screen
appears
Displaying the list
Connecting a Bluetooth
® audio
player
Displaying the track list
Select: Playing the previous track
Select and hold: Reversing a
track
Playback
Pa u s e
Select: Playing the next track
Select and hold: Fast-forwarding
a track
Repeat play
Random playback
Setting the sound ( P. 446)
Some titles and controls may not be
displayed depending on the type of
portable audio player.
Audio control screen
1
2
3
4
5
6
7
8
9
10
11

434
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system

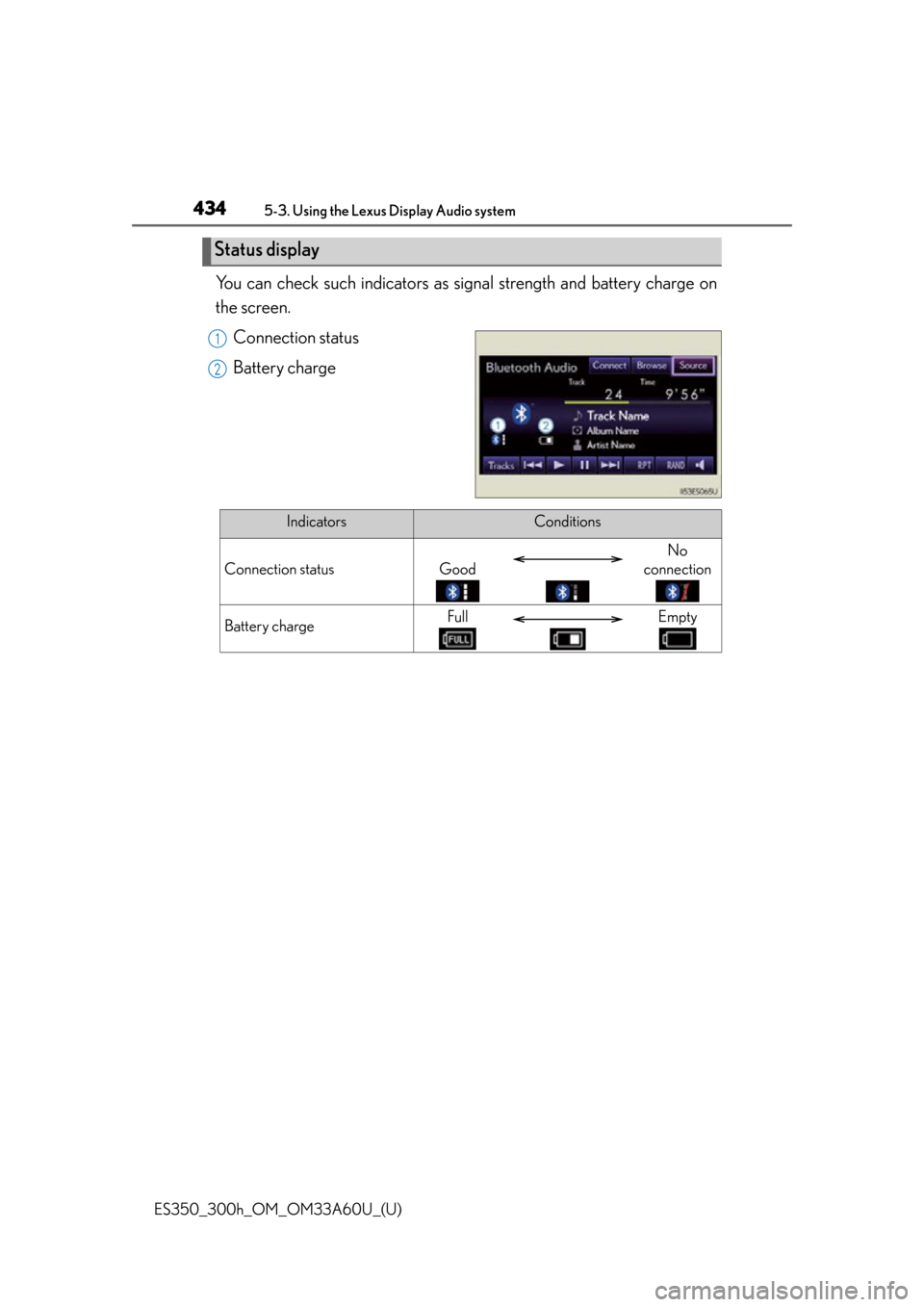

You can check such indicators as signal strength and battery charge on
the screen.
Connection status
Battery charge
Status display
1
2
IndicatorsConditions
Connection statusGood
No
connection
Battery chargeFullEmpty

ES350_300h_OM_OM33A60U_(U)
4355-3. Using the Lexus Display Audio system
5
Interior features
To use the Bluetooth® audio system, you need to register your portable
audio player into the system. Once registered, you can enjoy your music
on the vehicle’s audio system.
You can register up to 5 devices in the system.
Display the “Bluetooth* Audio” screen.
Select “Connect”.
Select “Yes”.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Registering a Bluetooth® audio player
1
2
3

436
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system
Input the passcode displayed on
the screen into your portable
audio player.
For the operation of the portable
audio player, see the manual that
comes with your portable audio
player.
Passcodes are not required for SSP
(Secure Simple Pairing) compatible
Bluetooth
® devices. Depending on
the device, you may need to select
“Yes” to register, or “No” to cancel on
your Bluetooth
® device.
If you want to cancel it, select “Can-
cel”.
If a completion message is displayed,
registration is complete.
If an error message is displayed, follow
the guidance on the screen to try
again.
4

ES350_300h_OM_OM33A60U_(U)
4375-3. Using the Lexus Display Audio system
5
Interior features
If multiple Bluetooth® devices are registered, follow the procedure below
to select the Bluetooth
® device to be used. You may only use one device
at a time.
Display the “Bluetooth
* Audio” screen.
Select “Connect”.
Select the device to connect.
“Add New”: Registering a Bluetooth®
device. ( P. 4 9 2 )
The selection indicator is displayed on
left side of the selected device name.
The Bluetooth
® mark is displayed
when you connected the device.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Selecting the Bluetooth® audio player
1
2
3

438
ES350_300h_OM_OM33A60U_(U)
5-3. Using the Lexus Display Audio system
There are two connection methods available.
■When the connection method is set to “From Vehicle”
When the portable audio player is on standby for the connection, it will
be automatically connected whenever the “START STOP ENGINE”
<“POWER”> switch is in either ACCESSORY or IGNITION ON
mode.
■When the connection method is set to “From Audio Player”
Operate the portable player and connect it to the Bluetooth
® audio
system.
Display the “Bluetooth
* Audio” screen.
Select “Connect”.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Connecting the Bluetooth® audio player
1
2
