display Lexus ES300h 2014 Owner's Manual

824
ES350_300h_OM_OM33A60U_(U)

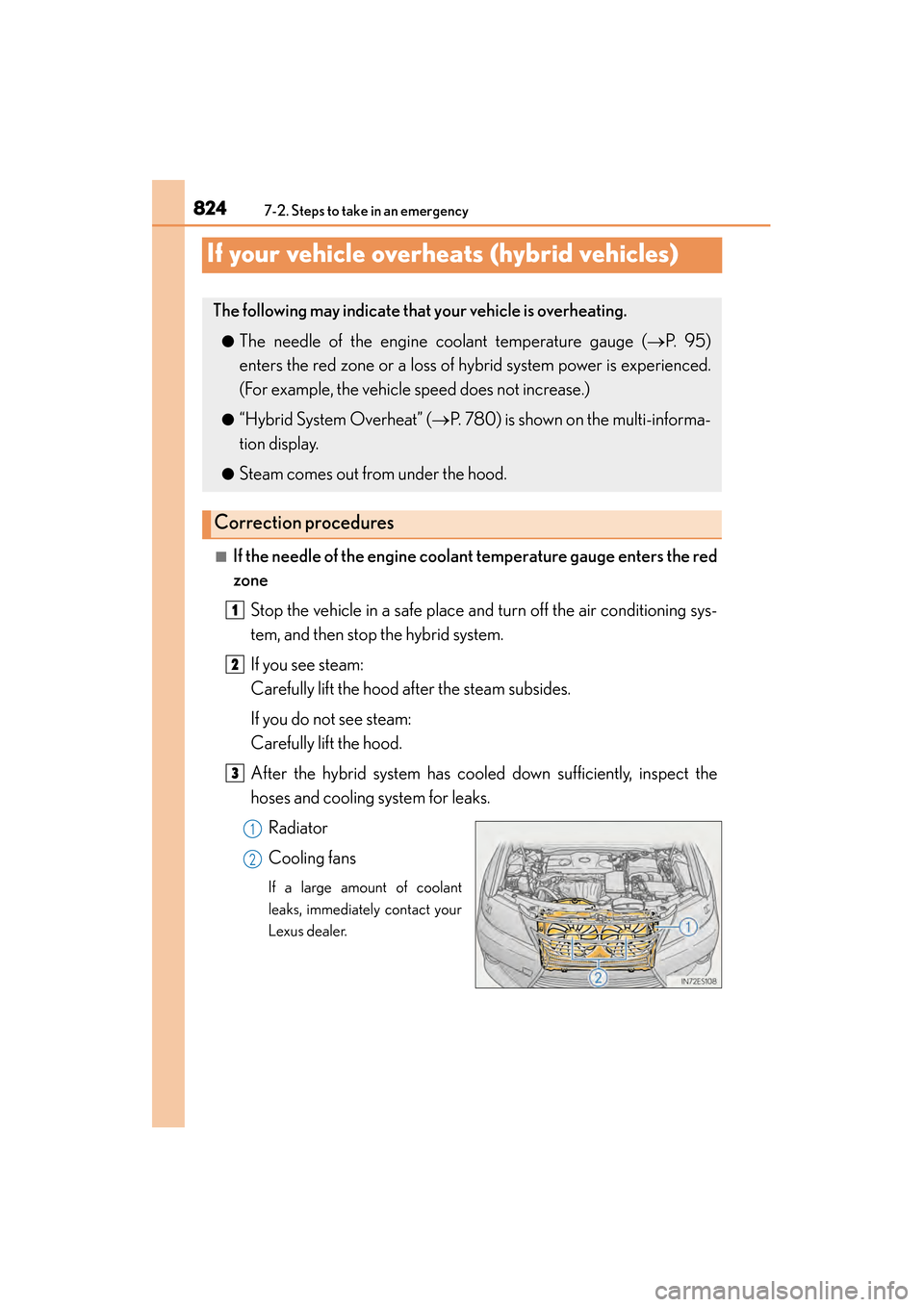

7-2. Steps to take in an emergency
If your vehicle overheats (hybrid vehicles)
■If the needle of the engine coolant temperature gauge enters the red
zone
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has cooled down sufficiently, inspect the
hoses and cooling system for leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact your
Lexus dealer.
The following may indicate that your vehicle is overheating.
●The needle of the engine coolant temperature gauge ( →P. 9 5 )
enters the red zone or a loss of hybrid system power is experienced.
(For example, the vehicle speed does not increase.)
●“Hybrid System Overheat” ( →P. 780) is shown on the multi-informa-
tion display.
●Steam comes out from under the hood.
Correction procedures
1
2
3
1
2

8277-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
7
When trouble arises
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the indicator on the
“POWER” switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically
start, or the cooling fan may suddenly operate even if the gasoline engine stops.
Do not touch or approach rotating parts such as the fan, which may lead to fin-
gers or clothing (especially a tie, a scarf or a muffler) getting caught, resulting in
serious injury.
●Do not loosen the radiator cap or the coolant reservoir cap while the hybrid sys-
tem and radiator are hot. High temperature steam or coolant could spray out.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too quickly can cause damage to the hybrid
system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additives.
6

862
ES350_300h_OM_OM33A60U_(U)
8-2. Customization
Customizable features
■Changing by using Remote Touch (vehicles with a navigation system)
Refer to “Navigation System Owner’s Manual”.
■Changing by using the Lexus Display Audio system screen
→ P. 3 4 8
■Changing by using the “DISP” button
→P. 1 0 5
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. These preferences can be changed by
using the “DISP” button, by using Re mote Touch, Lexus Display Audio
system screen, or at your Lexus dealer.
Customizing vehicle features

ES350_300h_OM_OM33A60U_(U)
8638-2. Customization
8
Vehicle specifications
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.
Vehicles with a Lexus Display Audio system: Settings that can be
changed using the Lexus Display Audio system
Vehicles with a Lexus Display Audio system: Settings that can be
changed using the “DISP” button
Vehicles with a navigation system: Settings that can be changed using
the screen of the navigation system
Vehicles with a navigation system: Settings that can be changed using
the “DISP” button
Vehicles without a Lexus Display Audio system and navigation system:
Settings that can be changed using the “DISP” button
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, — = Not available
Customizable features
1
2
3
4
5
6

864
ES350_300h_OM_OM33A60U_(U)
8-2. Customization
■Multi-information display (→P. 1 0 0 )
FunctionDefault
settingCustom-
ized setting
“Language”*“English”
(English)(French)—O—OO—
(Spanish)
“Units”*“miles
(MPG)”“km (km/L)”
—O—OO—“km (L/
100km)”
“ECO lamp”
(gasoline vehicles)
ECO lamp/Eco Driving
Indicator Light“On (Self- lighting)”/ ”Off”
“Off”/”Off”
—O—OO—
“On
(Always)”/ “Off”
“On
(Always)”/ “On”
“Off”/”On”
“ECO lamp”
(hybrid vehicles)“On (Self-lighting)”“Off”
—O—OO—“On
(Always)”
“Drive monitor”“Outside”
“Fuel con- sumption”
—O—OO—“Cruising range”
“Tachometer Settings”
(hybrid vehicles)“On (Self-lighting)”
“HV Meter (Always)”
—O—OO—“Tachome- ter
(Always)”
123456

ES350_300h_OM_OM33A60U_(U)
8718-2. Customization
8
Vehicle specifications
■Intuitive parking assist* (→ P. 2 7 5 )
*: If equipped
■Automatic air condit ioning system (→P. 353, 365)
FunctionDefault
settingCustom-
ized setting
“Distance (Front)”
(Detection distance of the
front center sensor)
Fa rNearO—O——O
“Distance (Rear)”
(Detection distance of the
rear center sensor)
Fa rNearO—O——O
“Alert Volume”
(Alert volume can be
adjusted)
31 to 5O—O——O
“Display”
(when intuitive parking
assist is operating)All sensors displayedDisplay offO—O——O
123456
FunctionDefaultsettingCustom-
ized setting
“Efficient Ventilation
Mode”
(Switching between out-
side air and recirculated air
mode linked to “AUTO”
switch operation)
OnOff——O——O
“A u t o A / C M o d e ”
(A/C Auto switch opera-
tion)
OnOffO—O——O
“Smog Sensor Sensitivity”
(Exhaust gas sensor sensi-
tivity)
Standard-3 to 3O—O——O
123456

896What to do if... (Troubleshooting)
ES350_300h_OM_OM33A60U_(U)●
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(→
P. 76 2 )
●The parking brake indicator is on
Is the parking brake released? (→ P. 2 2 6 )
Depending on the situation, othe r types of warning buzzer may
also sound. ( →P. 759, 769)
●Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. ( →P. 8 6 )
To stop the alarm, turn the “START STOP ENGINE” <“POWER”>
switch to IGNITION ON mode or start the engine system>.
●Is the electronic key left inside the vehicle or the moon roof
opened?
Check the message on the multi-information display.
(→ P. 76 9 )
A warning buzzer sounds during driving
An alarm is activated
and the horn sounds
A warning buzzer sounds wh en leaving the vehicle

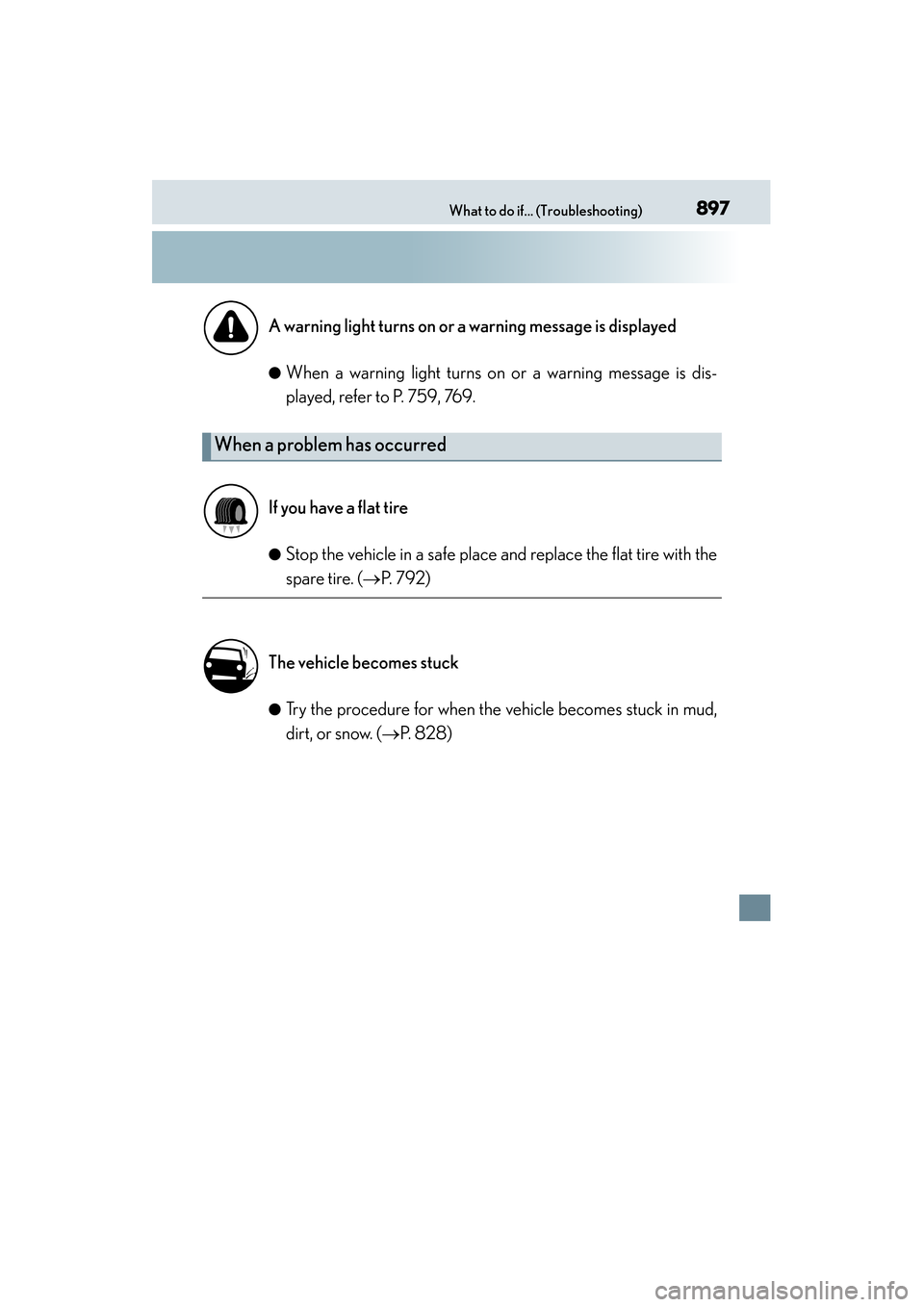

897What to do if... (Troubleshooting)
ES350_300h_OM_OM33A60U_(U)●
When a warning light turns on or a warning message is dis-
played, refer to P. 759, 769.
●Stop the vehicle in a safe place and replace the flat tire with the
spare tire. (
→P. 7 9 2 )
●Try the procedure for when the vehicle becomes stuck in mud,
dirt, or snow. (→ P. 8 2 8 )
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck

901Alphabetical index
ES350_300h_OM_OM33A60U_(U)
Cup holders ............................................. 618
Curtain shield airbags ........................... 39
Customizable features ....................... 862
Daytime running light system .......... 230
Defogger
*
Front windshield ................................ 369
Outside rear view mirrors .............378
Rear window ........................................378
Dimension ............................................... 832
Dinghy towing........................................ 200
Display Dynamic radar cruise control...... 252
LDA (Lane Departure Alert) .......269
Multi-information display ................ 100
Trip information ..................................... 101
Warning message .............................769
Display Audio system .........................338 Display settings ...................................343
Setup menu ...........................................345
Do-it-yourself maintenance ............. 673
Door courtesy lights Location ..................................................... 611
Wattage ................................................. 846
Doors
Automatic door locking and unlocking system.................... 144
Door glasses ..........................................174
Door lock .................................................142
Open door warning buzzer.......... 129
Open door warning light............... 762
Outside rear view mirrors ................ 171
Rear door child-protector.............. 143 Driver’s seat position memory.......... 156
Driving position memory................. 157
Memory recall function ....................159
Power easy access system .............156
Driving Break-in tips .......................................... 186
Correct driving posture .................... 30
Driving mode select switch ......... 300
Hybrid vehicle driving tips .............327
Procedures .............................................184
Winter drive tips ................................330
Dynamic radar cruise control
Function .................................................. 252
Warning message................... 771, 778
Eco drive mode..................................... 300
Eco Driving Indicator ........................... 107
EDR (Event data recorder).....................11
Electric motor (traction motor).......... 72
Electric Power Steering (EPS) Function ..................................................303
Warning light ......................................... 761
Warning message.............................. 772
Electronic key .......................................... 122 Battery-saving function ......................131
If the electronic key does not operate properly ............................. 810
Replacing the battery ........................ 719
D
E
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

902Alphabetical index
ES350_300h_OM_OM33A60U_(U)
Emergency, in case ofIf a warning buzzer
sounds..................................................759
If a warning light turns on...............759
If a warning message is displayed ........................................769
If the 12-volt battery is discharged ................................813, 817
If the electronic key does not operate properly .........810
If the engine will not start............... 805
If the hybrid system will not start ............................................... 807
If the shift lever
cannot be shifted from P ........... 809
If you have a flat tire .......................... 792
If you think something is wrong............................................... 757
If your vehicle becomes stuck ..................................................... 828
If your vehicle has to be stopped in an emergency .......... 749
If your vehicle needs to be towed ........................................ 751
If your vehicle overheats ..... 821, 824
Emergency flashers ............................. 748
Energy monitor ........................................ 112 Engine
Accessory mode ............................... 202
Compartment ...................................... 681
Engine switch ........................... 201, 208
Hood........................................................ 677
How to start the engine....................201
How to start the hybrid system ..................................................208
Identification number .......................834
If the engine will not start .............. 805
Ignition switch (“POWER” switch)..................................................208
Ignition switch (“START STOP ENGINE” switch) ...........................201
Overheating.............................. 821, 824
“Power” switch. ...................................208
“START STOP ENGINE” switch .....................................................201
Engine compartment cover............. 683
Engine coolant Capacity .................................................839
Checking .............................................. 689
Preparing and checking before winter ....................................330
Engine coolant temperature gauge ........................................................ 95
Engine immobilizer system ................. 82
Engine oil Capacity ................................................. 837
Checking ...............................................684
Oil level warning message ............ 777
Oil pressure warning message........................... 770
Preparing and checking
before winter ....................................330
