Lexus ES300h 2014 Owner's Manual

580
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system

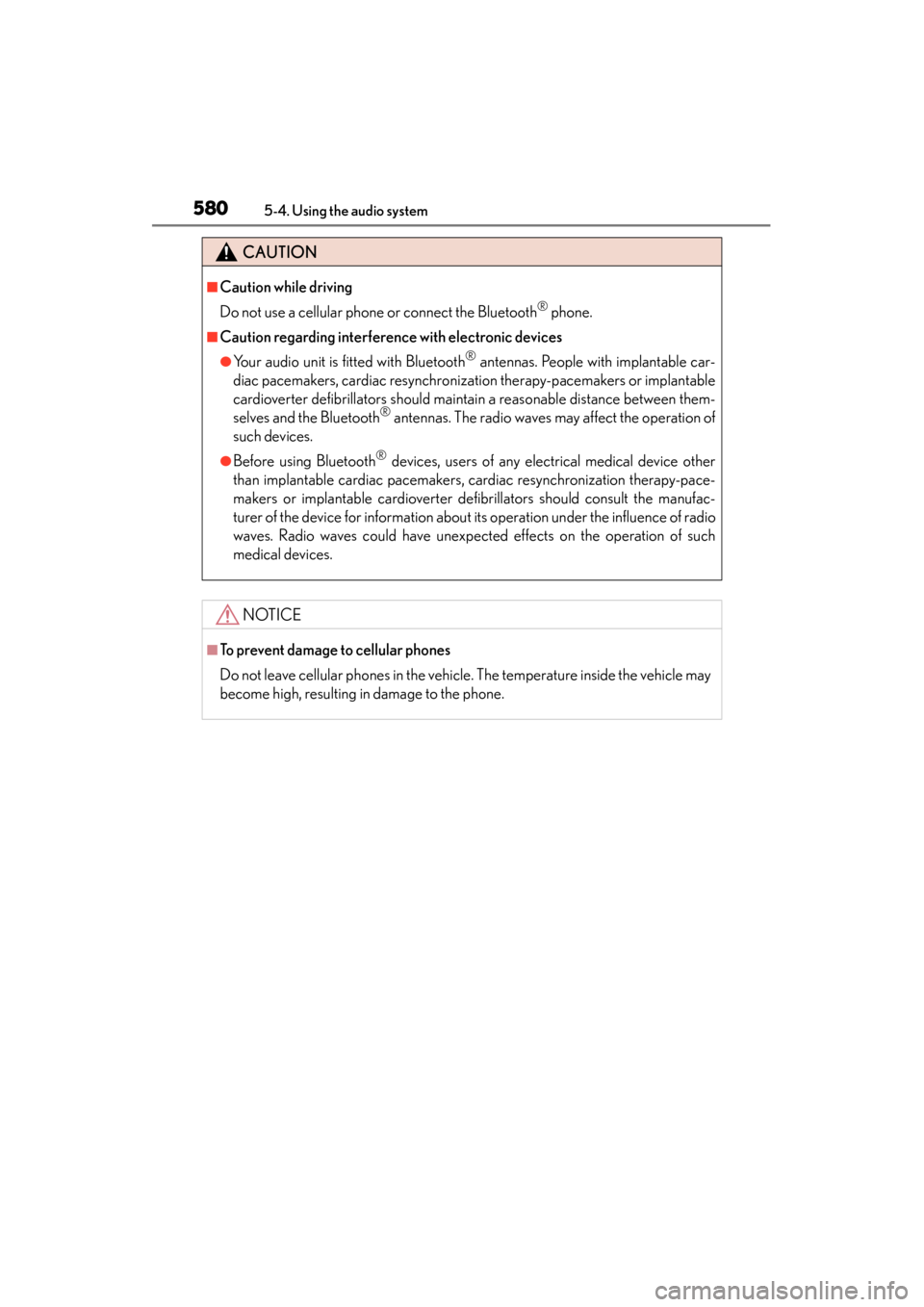

CAUTION
■Caution while driving
Do not use a cellular phone or connect the Bluetooth
® phone.
■Caution regarding interference with electronic devices
●Your audio unit is fitted with Bluetooth® antennas. People with implantable car-
diac pacemakers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should maintain a reasonable distance between them-
selves and the Bluetooth
® antennas. The radio waves may affect the operation of
such devices.
●Before using Bluetooth® devices, users of any electrical medical device other
than implantable cardiac pacemakers, cardiac resynchronization therapy-pace-
makers or implantable cardioverter defibrillators should consult the manufac-
turer of the device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of such
medical devices.
NOTICE
■To prevent damage to cellular phones
Do not leave cellular phones in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the phone.

581
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
5
Interior features
Using the hands-free system (for cellular phones)
Display
A message, name, phone num-
ber, etc. is displayed.
Lower-case characters and special
characters cannot be displayed.
Displays information that is too
long to be displayed at one time
on the display (press and hold)
Selects speed dials
Selects items such as menu and
number
Turn: Selects an item
Press: Inputs the selected item
Bluetooth
® connection condition
If “BT” is not displayed, the hands-free
phone system cannot be used.
Reception level
Audio unit
1
2
3
4
5
6

582
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
Vo l u m e
During an incoming call: Adjusts
the ring tone volume
During an ongoing call: Adjusts
the receiver volume
The voice guidance volume cannot be
adjusted using this button.
Talk switch
Turns the voice command system
on (press)/turns the voice com-
mand system off (press and hold)
Off-hook switch
Turns the hands-free system on/
starts a call
On-hook switch
Turns the hands-free system off/
ends a call/refuses a call
You can use the microphone when
talking on the phone.
The person you are speaking to can
be heard from the front speakers.
To use the hands-free system, you must register your Bluetooth
® phone in
the system. ( →P. 584)

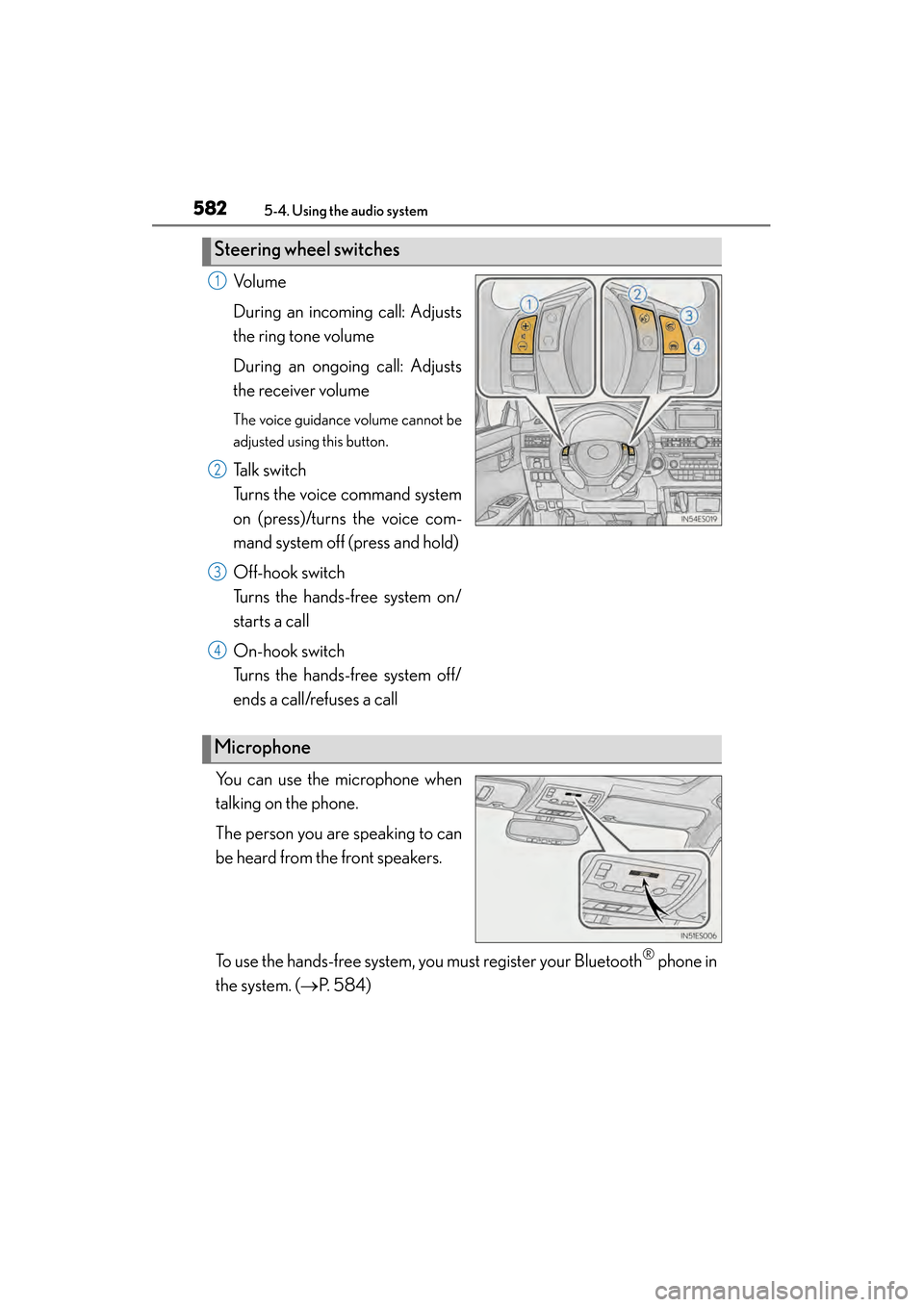

Steering wheel switches
1
2
3
4
Microphone

ES350_300h_OM_OM33A60U_(U)
5835-4. Using the audio system
5
Interior features
By following voice guidance instructions output from the speaker, voice
commands enable the operation of the hands-free phone system without
the need to check the display or operate .
■Operation procedure when using voice commands
Press the talk switch and follow voice guidance instructions.
■Auxiliary commands when using voice commands
The following auxiliary commands can be used when operating the sys-
tem using a voice command:
“Cancel”:
Exits the hands-free phone system
“Repeat”:
Repeats the previous voice guidance instruction
“Go back”:
Returns to the previous procedure
“Help”:
Reads aloud the function summary if a help comment is registered for
the selected function
Operating the system using voice commands

584
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
Before using the hands-free phone system, it is necessary to register a cel-
lular phone in the system. The system will enter phone registration mode
automatically when starting the system with no cellular phone registered.
Follow the procedure below to register (pair) a cellular phone:Press the off-hook switch or the talk switch.
The introductory guidance and phone name registration instructions are
heard.
Select “Pair Phone” using a voice command or .
Register a phone name by either of the following methods:
a. Select “Record Name” using , and say the name to be regis-
tered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the input is heard.
Select “Confirm” using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction for
inputting the passkey into the cellular phone is heard. Input the passkey into the cellular phone.
Refer to the manual that comes with the cellular phone for the operation of the
phone.
Guidance for registration completion is heard.
If the cellular phone has a Bluetooth
® audio player, the audio player can
be registered at the same time. A voice guidance instruction to register a
Bluetooth
® audio player is heard.
Using the hands-free phone system for the first time
1
2
3
4
5

ES350_300h_OM_OM33A60U_(U)
5855-4. Using the audio system
5
Interior features
Select “Yes” or “No” using a voice command or .
(Bluetooth
® audio player →P. 549)
■Normal operation

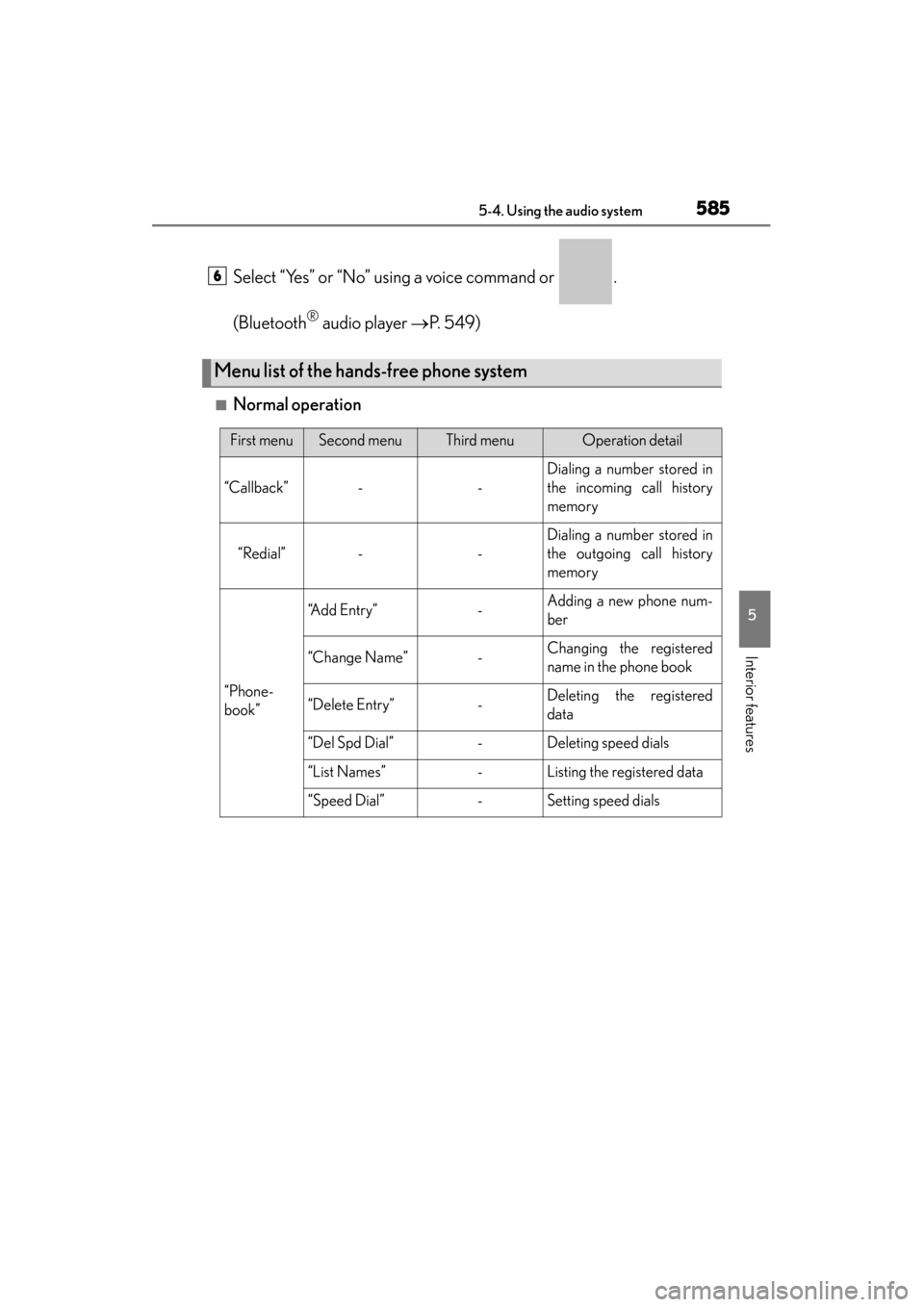

Menu list of the hands-free phone system
6
First menuSecond menuThird menuOperation detail
“Callback”--
Dialing a number stored in
the incoming call history
memory
“Redial”--
Dialing a number stored in
the outgoing call history
memory
“Phone-
book”
“Add Entry”-Adding a new phone num-
ber
“Change Name”-Changing the registered
name in the phone book
“Delete Entry”-Deleting the registered
data
“Del Spd Dial”-Deleting speed dials
“List Names”-Listing the registered data
“Speed Dial”-Setting speed dials

586
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
“Setup”
“Security”
“Set PIN”Setting a PIN code
“Phbk Lock”Locking the phone book
“Phbk Unlock”Unlocking the phone book
“Phone Setup”
“Pair Phone”Registering the cellular
phone to be used
“Connect”Selecting a cellular phone
to be used
“Change Name”Changing the registered
name of a cellular phone
“List Phones”Listing the registered cellu-
lar phones
“Set Passkey”Changing the passkey
“Delete Phone”Deleting a registered cellu-
lar phone
“System Setup”
“Guidance Vol”Setting voice guidance vol-
ume
“Device Name”Displaying the Bluetooth®
device address and name
“Initialize”Initializing the system
First menuSecond menuThird menuOperation detail

ES350_300h_OM_OM33A60U_(U)
5875-4. Using the audio system
5
Interior features

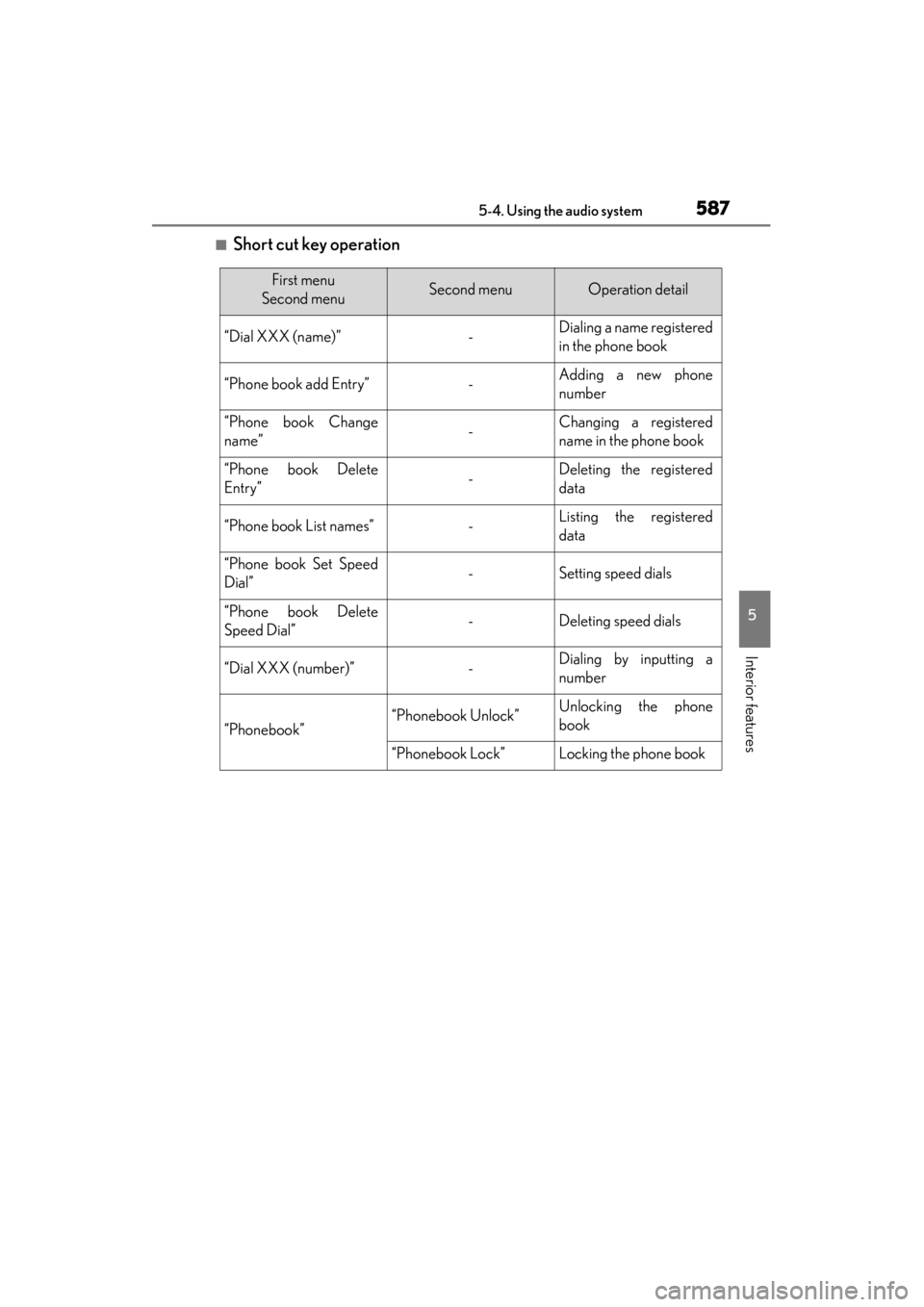

■Short cut key operation
First menu
Second menuSecond menuOperation detail
“Dial XXX (name)”-Dialing a name registered
in the phone book
“Phone book add Entry”-Adding a new phone
number
“Phone book Change
name”-Changing a registered
name in the phone book
“Phone book Delete
Entry”-Deleting the registered
data
“Phone book List names”-Listing the registered
data
“Phone book Set Speed
Dial”-Setting speed dials
“Phone book Delete
Speed Dial”-Deleting speed dials
“Dial XXX (number)”-Dialing by inputting a
number
“Phonebook”“Phonebook Unlock”Unlocking the phone
book
“Phonebook Lock”Locking the phone book

588
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
■Automatic volume adjustment
When vehicle speed reaches 50 mph (80 km/h) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle speed
drops to 43 mph (70 km/h) or less.
■When using a voice command
For numbers, say a combination of single digits from zero to nine, # (pound),
∗ (star), and + (plus).
Say the command correctly and clearly.
■Situations in which the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a cellular phone to the system
■Changing the passkey
→ P. 5 9 6

589
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
5
Interior features

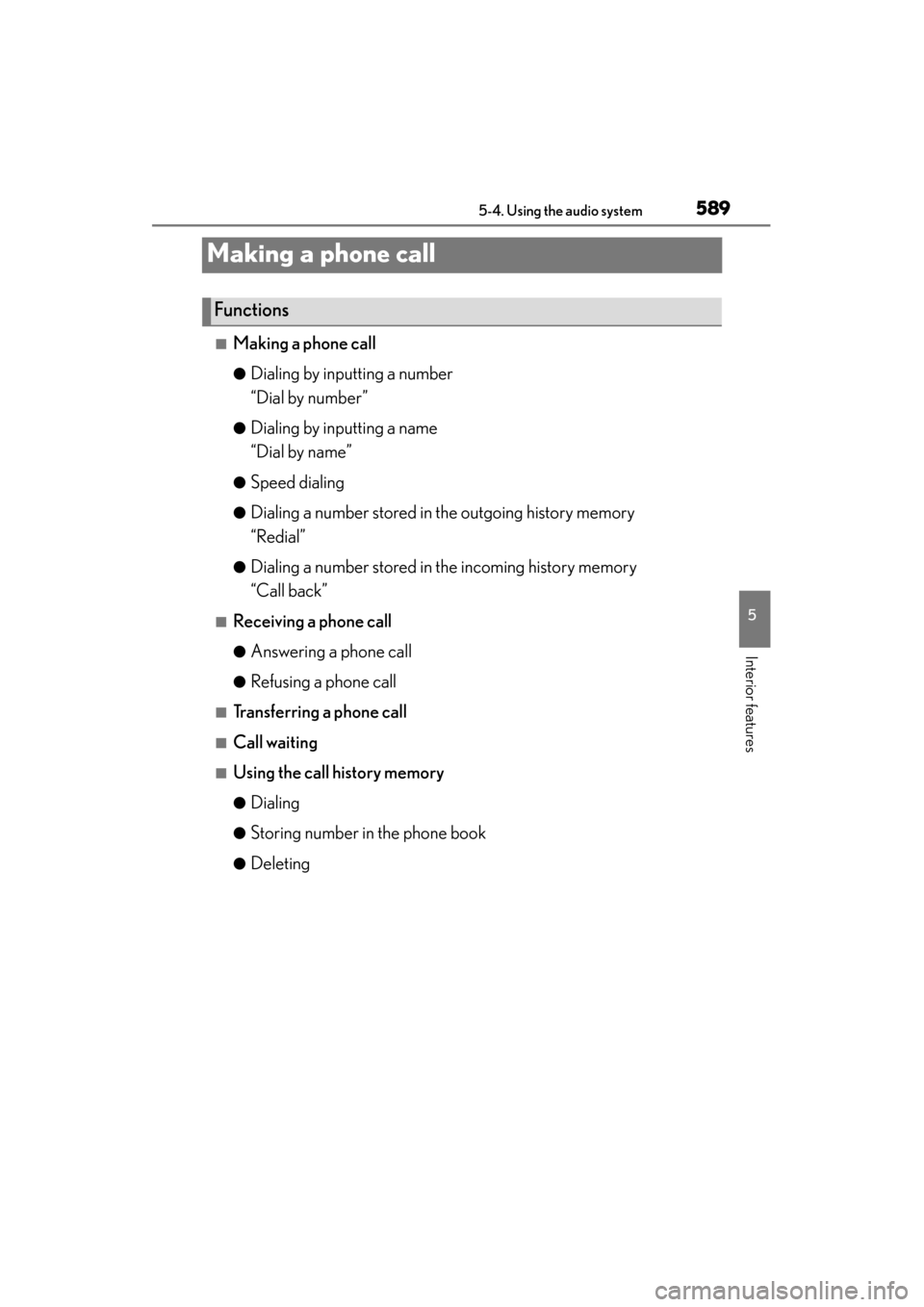

Making a phone call
■Making a phone call
●Dialing by inputting a number
“Dial by number”
●Dialing by inputting a name
“Dial by name”
●Speed dialing
●Dialing a number stored in the outgoing history memory
“Redial”
●Dialing a number stored in the incoming history memory
“Call back”
■Receiving a phone call
●Answering a phone call
●Refusing a phone call
■Transferring a phone call
■Call waiting
■Using the call history memory
●Dialing
●Storing number in the phone book
●Deleting
Functions
