Lexus ES300h 2014 Owner's Manual

560
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain functions
may not be available.
■Display
→ P. 5 1 8
■Error messages
“Memory Error”: This indicates a problem in the system.

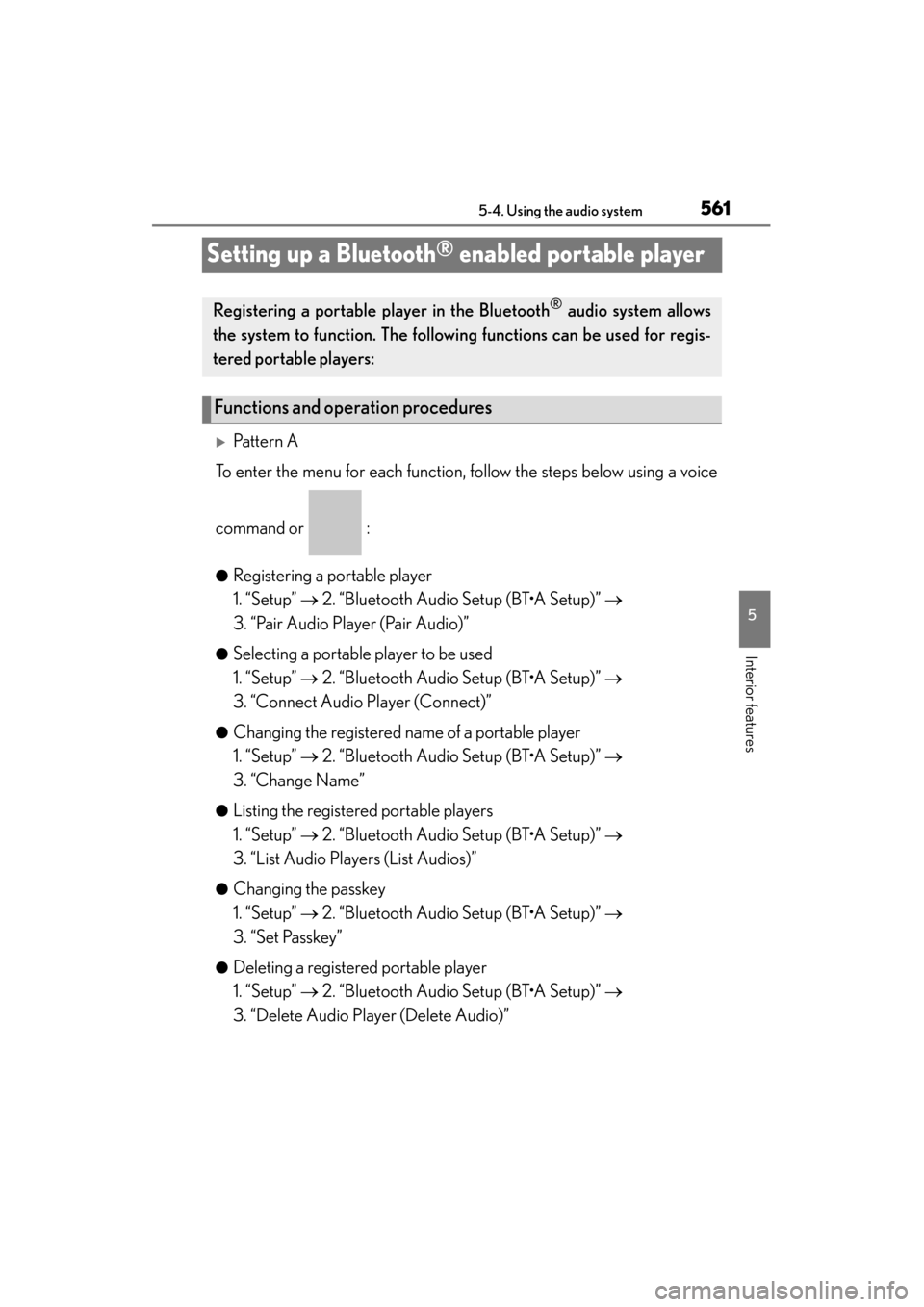

561
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
5
Interior features
Setting up a Bluetooth® enabled portable player
XPattern A
To enter the menu for each function, follow the steps below using a voice
command or :
●Registering a portable player
1. “Setup” → 2. “Bluetooth Audio Setup (BT•A Setup)” →
3. “Pair Audio Player (Pair Audio)”
●Selecting a portable player to be used
1. “Setup” → 2. “Bluetooth Audio Setup (BT•A Setup)” →
3. “Connect Audio Player (Connect)”
●Changing the registered name of a portable player
1. “Setup” → 2. “Bluetooth Audio Setup (BT•A Setup)” →
3. “Change Name”
●Listing the registered portable players
1. “Setup” → 2. “Bluetooth Audio Setup (BT•A Setup)” →
3. “List Audio Players (List Audios)”
●Changing the passkey
1. “Setup” → 2. “Bluetooth Audio Setup (BT•A Setup)” →
3. “Set Passkey”
●Deleting a registered portable player
1. “Setup” → 2. “Bluetooth Audio Setup (BT•A Setup)” →
3. “Delete Audio Player (Delete Audio)”
Registering a portable pl ayer in the Bluetooth® audio system allows
the system to function. The followin g functions can be used for regis-
tered portable players:
Functions and operation procedures

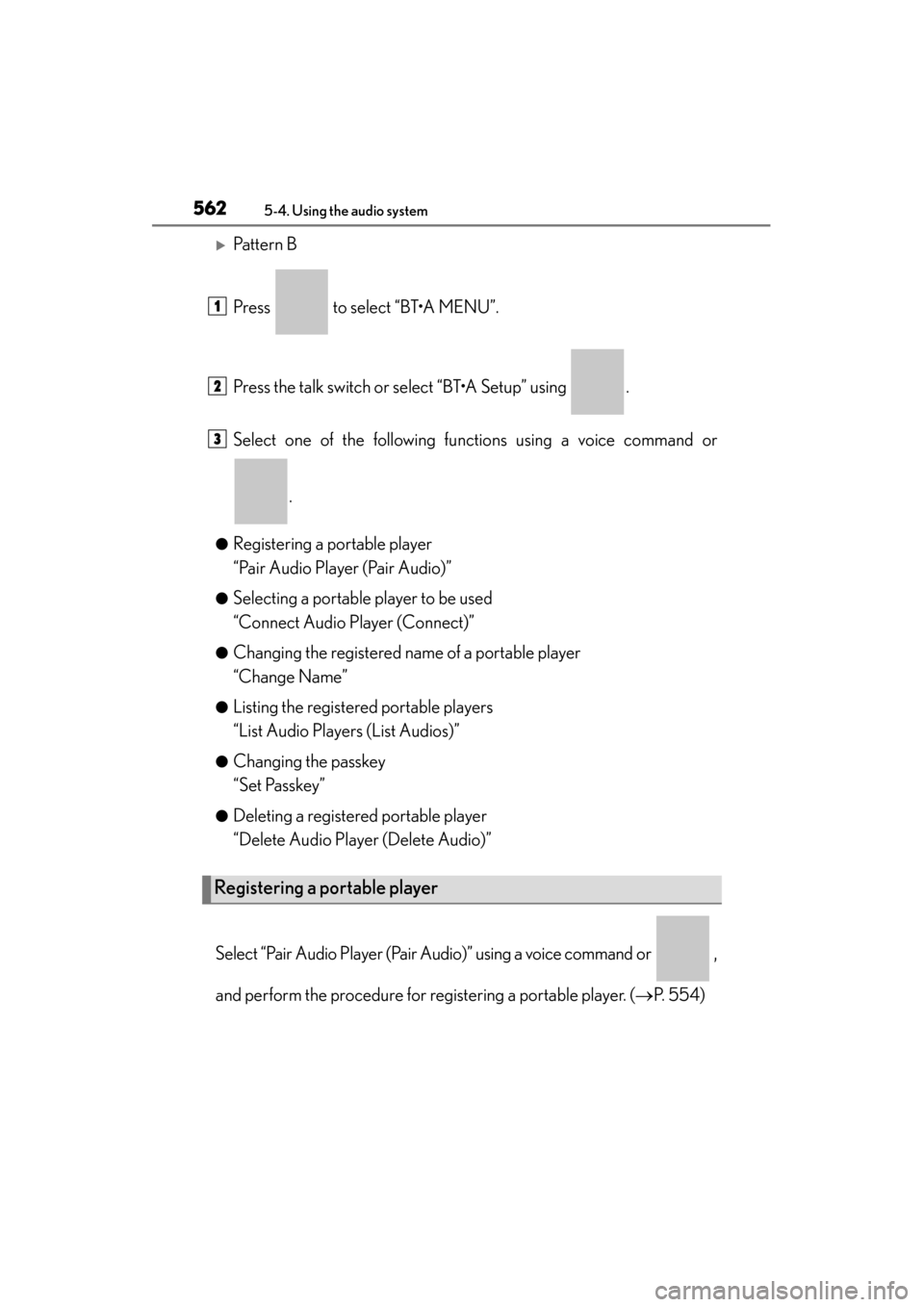

562
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
XPattern B
Press to select “BT•A MENU”.
Press the talk switch or select “BT•A Setup” using .
Select one of the following functions using a voice command or.
●Registering a portable player
“Pair Audio Player (Pair Audio)”
●Selecting a portable player to be used
“Connect Audio Player (Connect)”
●Changing the registered name of a portable player
“Change Name”
●Listing the registered portable players
“List Audio Players (List Audios)”
●Changing the passkey
“Set Passkey”
●Deleting a registered portable player
“Delete Audio Player (Delete Audio)”
Select “Pair Audio Player (Pair Audio)” using a voice command or ,
and perform the procedure for registering a portable player. ( →P. 5 5 4 )
Registering a portable player
1
2
3

ES350_300h_OM_OM33A60U_(U)
5635-4. Using the audio system
5
Interior features
Select “Connect Audio Player (Connect)” using a voice command or.
XPattern A
Select the portable player to be used by either of the following meth-
ods, and select “Confirm” by using a voice command or :
a. Press the talk switch and say the name of the desired portable player.
b. Press the talk switch and say “List Audio Players”. When the name ofthe desired portable player is read aloud, press the talk switch.
XPattern B
Select the portable player to be used using .
XPattern A
Press the talk switch and say “From Car” or “From Audio player”, and
select “Confirm” by using a voice command or .
XPattern B
Select “From Car” or “From Audio”, using .
If “From Car” is selected, the portable player will be automatically connected
whenever the “START STOP ENGINE” <“POWER”> switch is in either ACCES-
SORY or IGNITION ON mode.
Selecting a portable player to be used
1
2
2
3
3

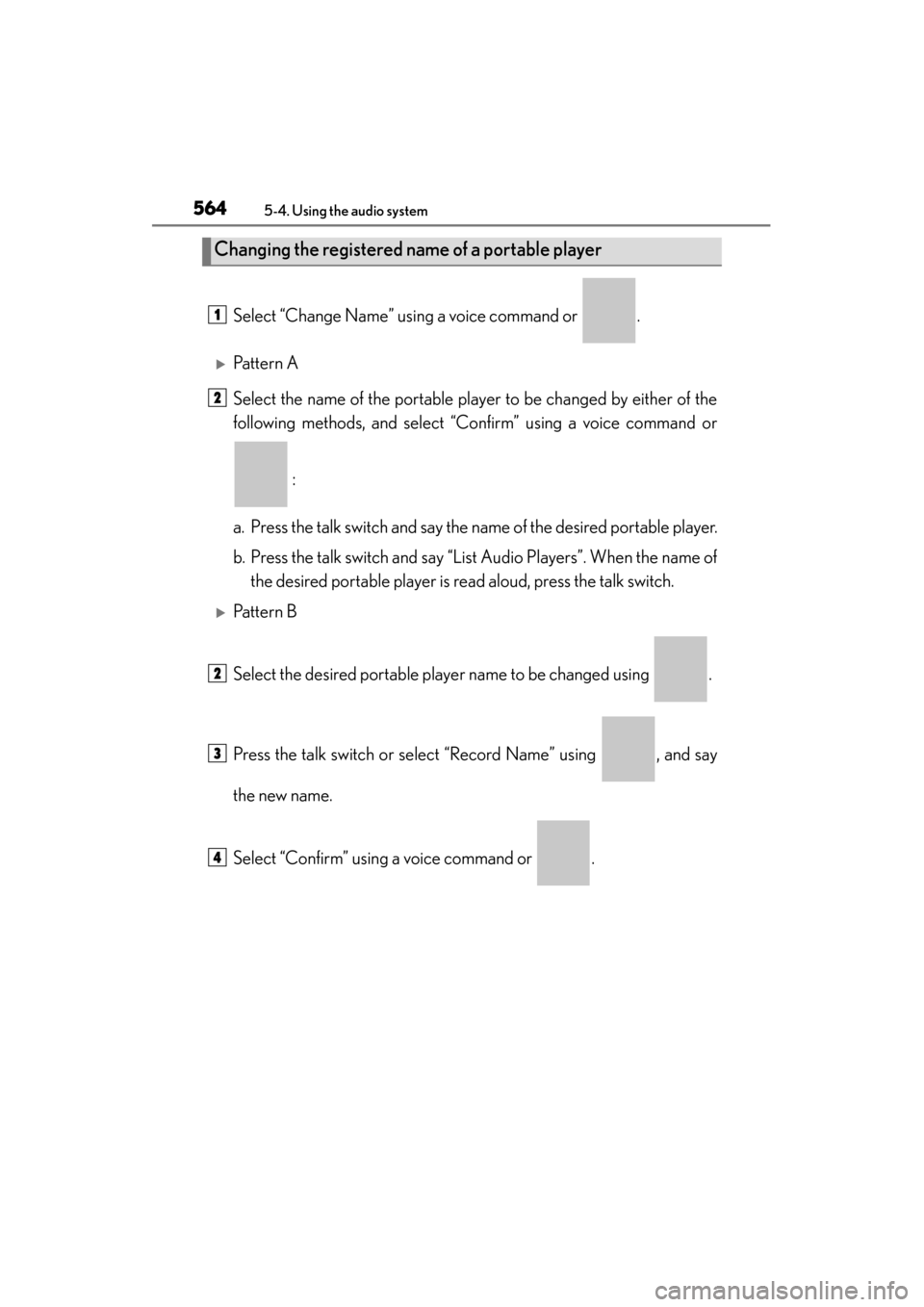

564
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
Select “Change Name” using a voice command or .
XPattern A
Select the name of the portable player to be changed by either of the
following methods, and select “Confirm” using a voice command or :
a. Press the talk switch and say the name of the desired portable player.
b. Press the talk switch and say “List Audio Players”. When the name of the desired portable player is read aloud, press the talk switch.
XPattern B
Select the desired portable player name to be changed using .
Press the talk switch or select “Record Name” using , and say
the new name.
Select “Confirm” using a voice command or .
Changing the registered name of a portable player
1
2
2
3
4

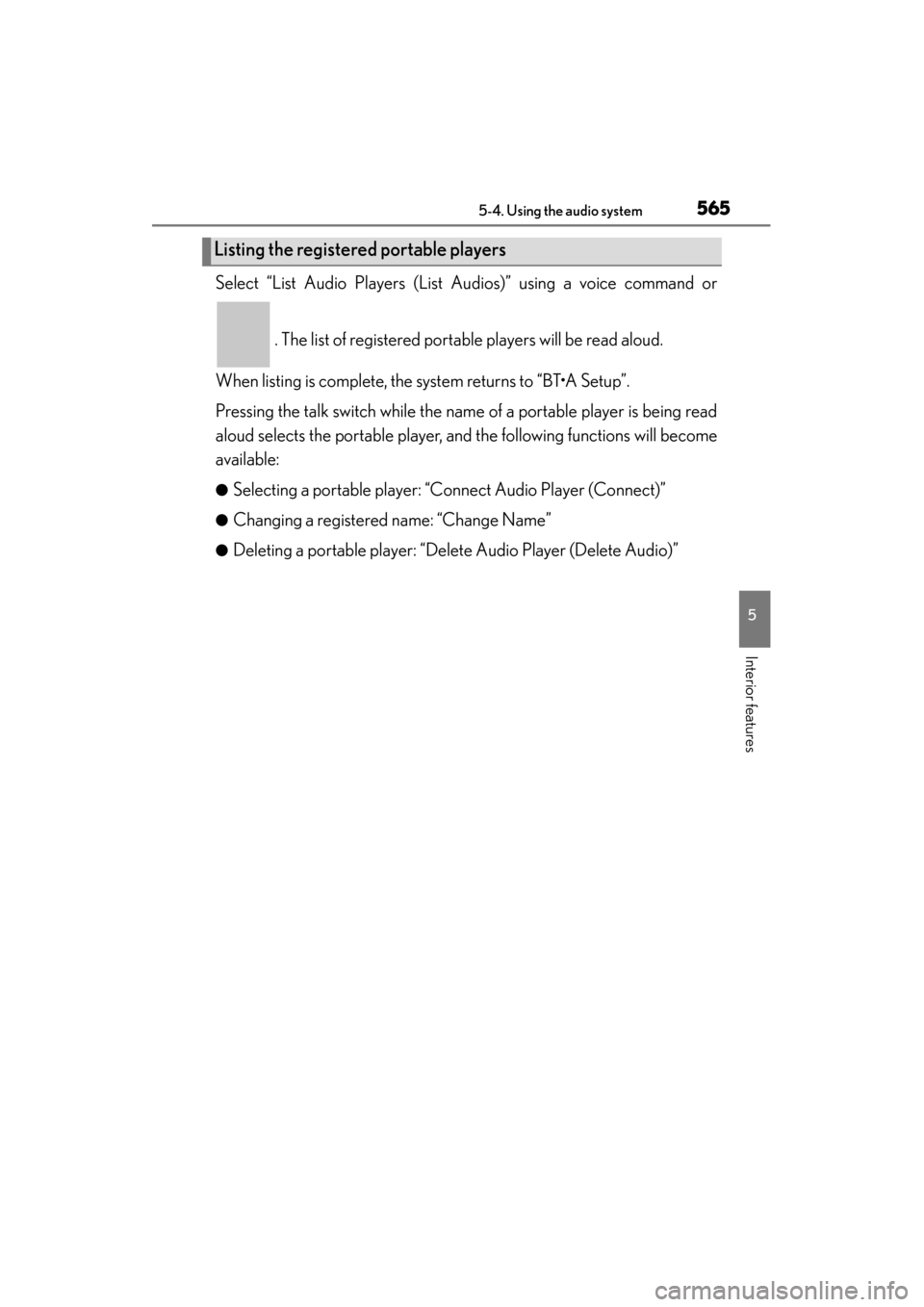

ES350_300h_OM_OM33A60U_(U)
5655-4. Using the audio system
5
Interior features
Select “List Audio Players (List Audios)” using a voice command or . The list of registered portable players will be read aloud.
When listing is complete, the system returns to “BT•A Setup”.
Pressing the talk switch while the name of a portable player is being read
aloud selects the portable player, and the following functions will become
available:
●Selecting a portable player: “Connect Audio Player (Connect)”
●Changing a registered name: “Change Name”
●Deleting a portable player: “Delete Audio Player (Delete Audio)”
Listing the registered portable players

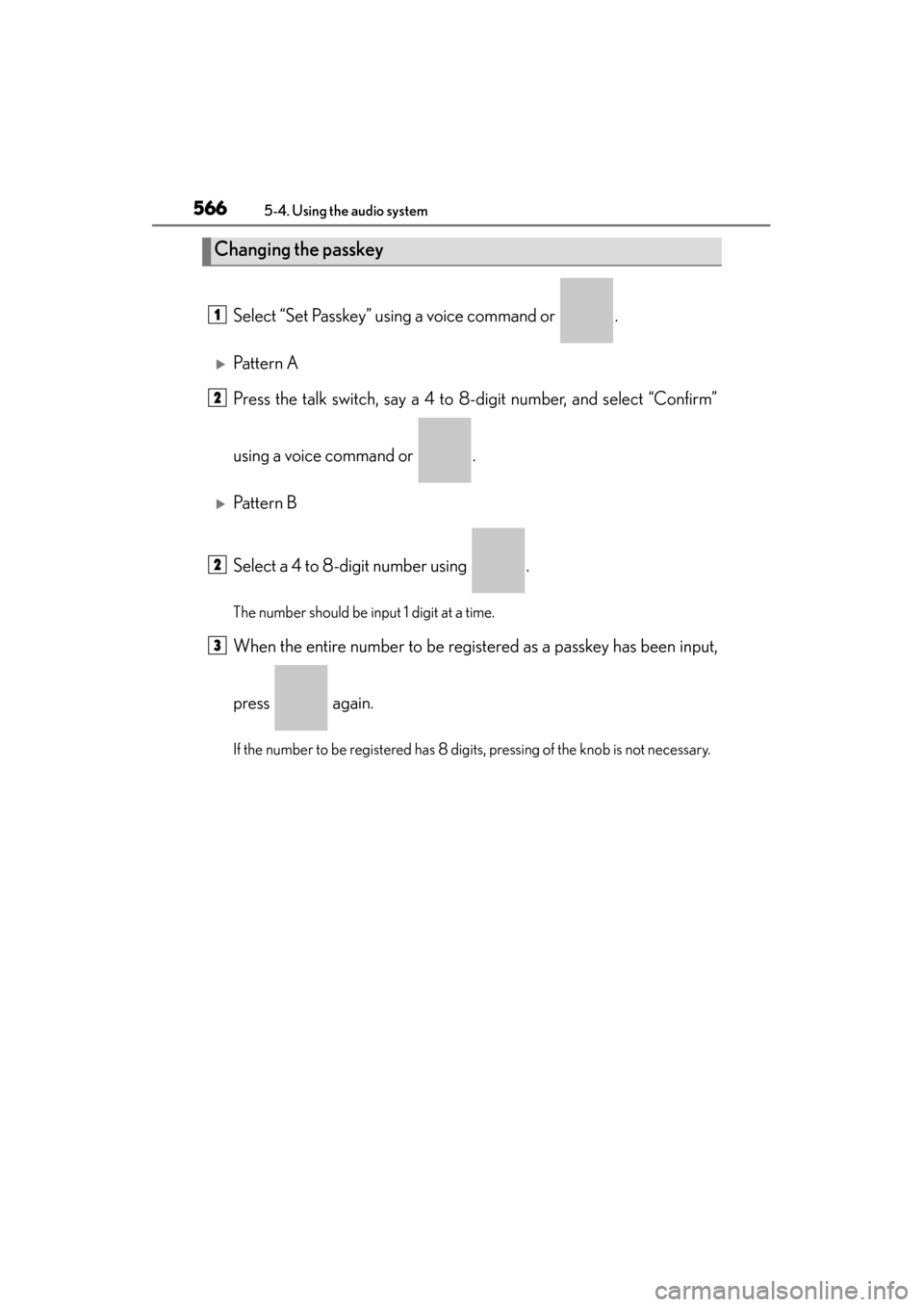

566
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
Select “Set Passkey” using a voice command or .
XPattern A
Press the talk switch, say a 4 to 8-digit number, and select “Confirm”
using a voice command or .
XPattern B
Select a 4 to 8-digit number using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been input,
press again.
If the number to be registered has 8 digits, pressing of the knob is not necessary.
Changing the passkey
1
2
2
3

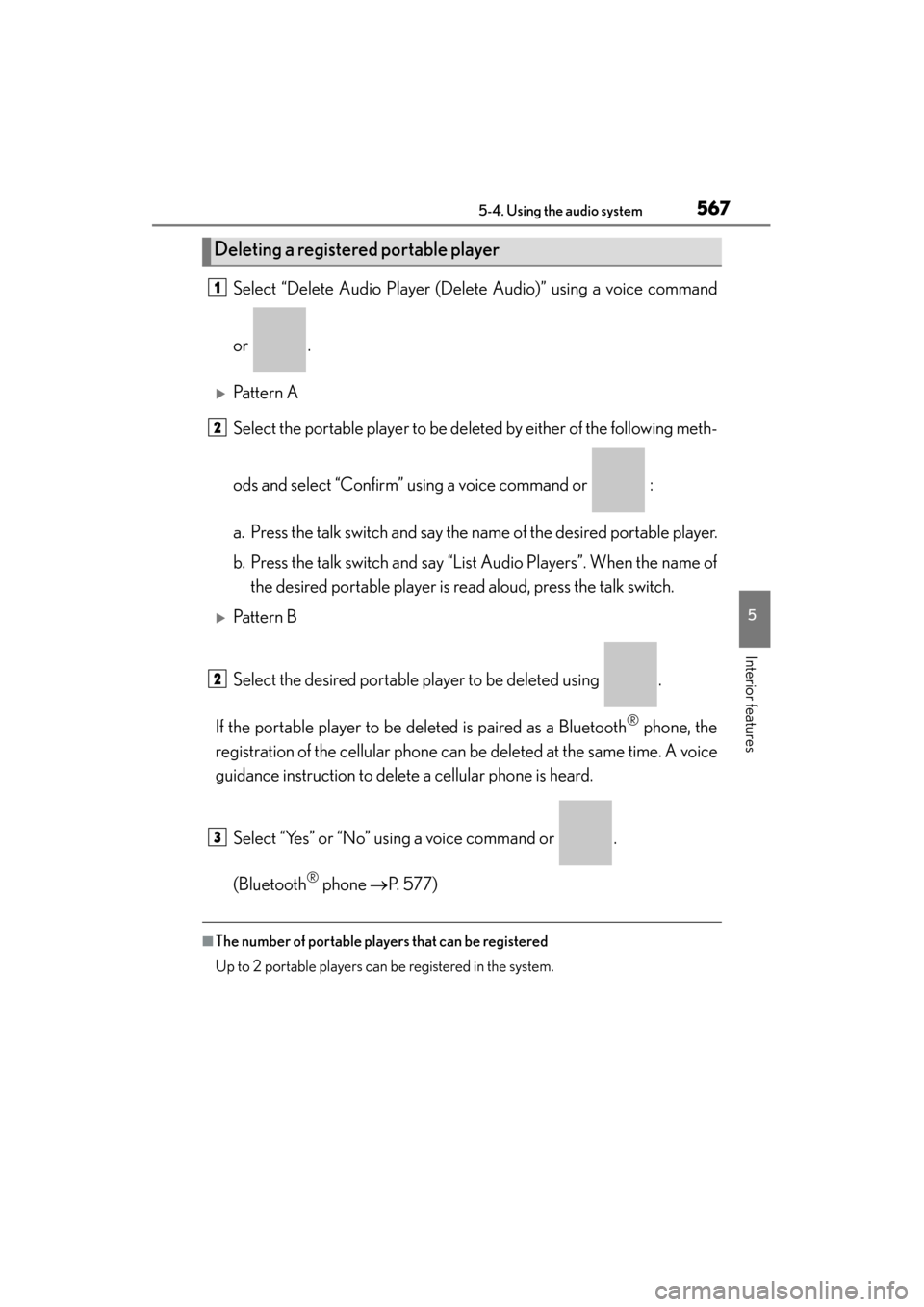

ES350_300h_OM_OM33A60U_(U)
5675-4. Using the audio system
5
Interior features
Select “Delete Audio Player (Delete Audio)” using a voice command
or .
XPattern A
Select the portable player to be deleted by either of the following meth-
ods and select “Confirm” using a voice command or :
a. Press the talk switch and say the name of the desired portable player.
b. Press the talk switch and say “List Audio Players”. When the name ofthe desired portable player is read aloud, press the talk switch.
XPattern B
Select the desired portable player to be deleted using .
If the portable player to be deleted is paired as a Bluetooth
® phone, the
registration of the cellular phone can be deleted at the same time. A voice
guidance instruction to delete a cellular phone is heard.
Select “Yes” or “No” using a voice command or .
(Bluetooth
® phone →P. 5 7 7 )
■The number of portable players that can be registered
Up to 2 portable players can be registered in the system.
Deleting a registered portable player
1
2
2
3

568
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
Bluetooth® audio system setup
XPattern A
To enter the menu for each function, follow the steps below using a voice
command or : ( →P. 5 9 8 )
XPattern B
Press to select “BT•A MENU”.
Select “System Setup” using .
Select one of the following items using :
●Setting voice guidance volume
“Guidance Vol” (
→P. 6 0 0 )
●Displaying the Bluetooth® device address and name
“Device Name” (
→P. 6 0 1 )
●Initializing the system
“Initialize” (
→P. 6 0 1 )
System setup items and operation procedures
1
2
3

569
ES350_300h_OM_OM33A60U_(U)
5-4. Using the audio system
5
Interior features
Optimal use of the audio system
Displays the current mode
Changes the following settings:• Sound quality and volume bal-
ance →P. 5 7 0
The sound quality and balance set-
ting can be changed to produce
the best sound.
• Automatic Sound Levelizer
on/off →P. 5 7 0
■Changing sound quality modes
Press .
Pressing the button changes sound modes in the following order:
“BAS” →“MID” →“TRE” →“FAD” →“BAL” →“A S L ”
1
2
Adjusting sound quality and volume balance
