Lexus ES300h 2014 Owner's Manual

730
ES350_300h_OM_OM33A60U_(U)
6-3. Do-it-yourself maintenance
12WIPER25Windshield wipers
13BKUP LP7. 5
Multiport fuel injection system, sequential
multiport fuel system, electronic controlled
transmission, audio system, navigation sys-
tem, back-up lights
14FUEL OPN10Fuel filler door opener
15EPS-IG110Electric power steering
16P/O U T L E T R R15Po w e r o u t l e t
17RADIO-ACC5Audio system, Remote Touch, multi-informa-
tion display, audio display, navigation system
18S / H T R & FA N F/ R10Seat heaters and ventilators
19S / H T R & FA N F/ L10Seat heaters and ventilators
20OBD7. 5On-Board diagnosis system
21ECU-B NO.210
Power window master switch, air condition-
ing system, smart access system with push-
button start, tire pressure warning system,
rear sunshade
22STRG HTR10Heated steering wheel
23PTL25Power trunk opener and closer ECU
24STOP7. 5
Power management system, multiport fuel
injection system, sequential multiport fuel
system, VSC, ABS, electronic controlled
transmission, driver support system, engine
room junction block assy, tail lights, high
mounted stoplight, smart access system with
push-button start, shift lock system
25P/ S E AT F/ L30Po w e r s e a t s
26A/C-B7. 5Air conditioning system
27S/ROOF10Moon roof
28P/ S E AT F/ R30Po w e r s e a t s
29PSB30Pre-collision seat belt
30D/L-A M120Main body ECU, power door lock system
FuseAmpereCircuit

ES350_300h_OM_OM33A60U_(U)
7316-3. Do-it-yourself maintenance
6
Maintenance and care

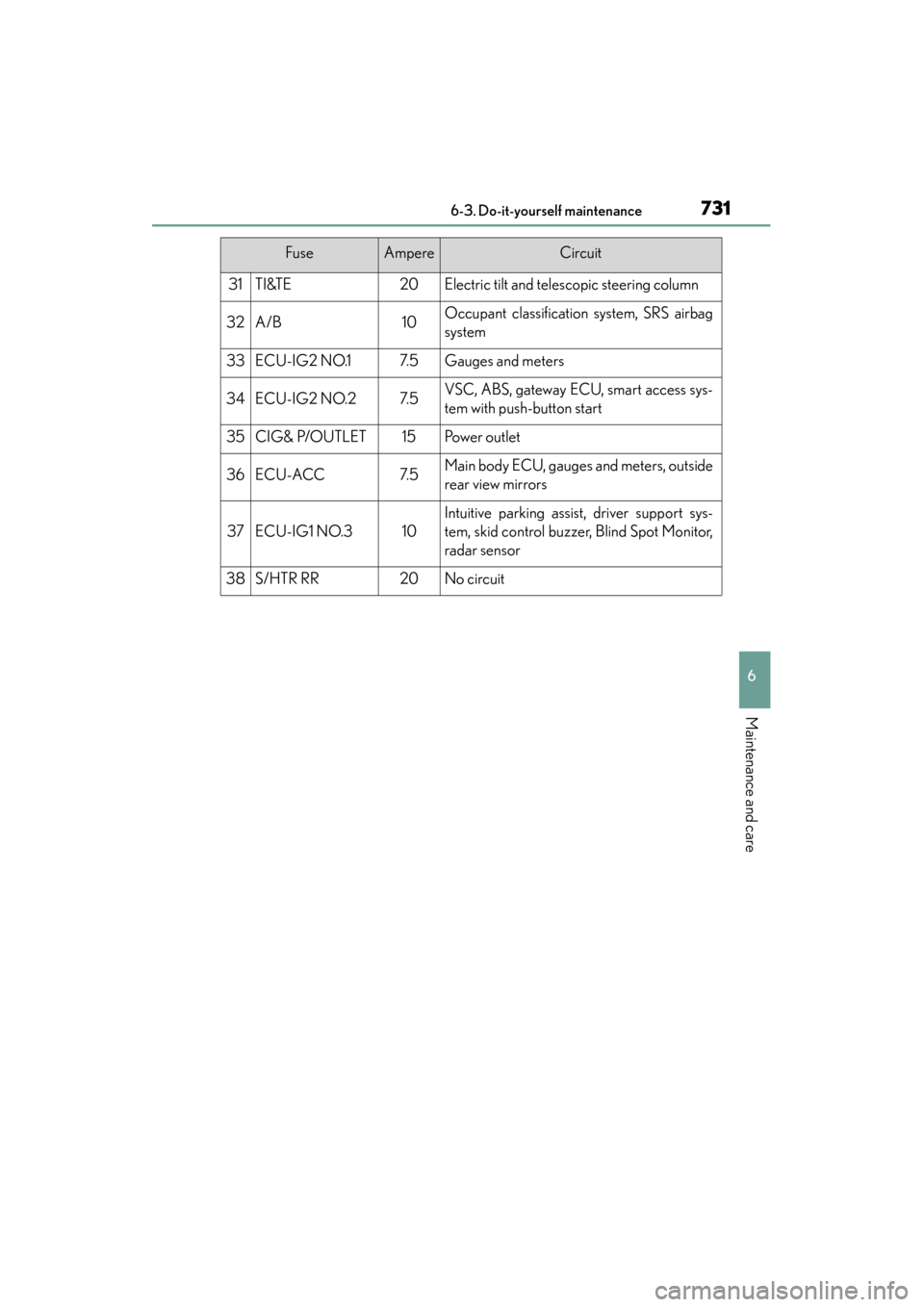

31TI&TE20Electric tilt and telescopic steering column
32A/B10Occupant classification system, SRS airbag
system
33ECU-IG2 NO.17. 5Gauges and meters
34ECU-IG2 NO.27. 5VSC, ABS, gateway ECU, smart access sys-
tem with push-button start
35CIG& P/OUTLET15Po w e r o u t l e t
36ECU-ACC7. 5Main body ECU, gauges and meters, outside
rear view mirrors
37ECU-IG1 NO.310
Intuitive parking assist, driver support sys-
tem, skid control buzzer, Blind Spot Monitor,
radar sensor
38S/HTR RR20No circuit
FuseAmpereCircuit

732
ES350_300h_OM_OM33A60U_(U)
6-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 7 3 3 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-
genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.

733
ES350_300h_OM_OM33A60U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care

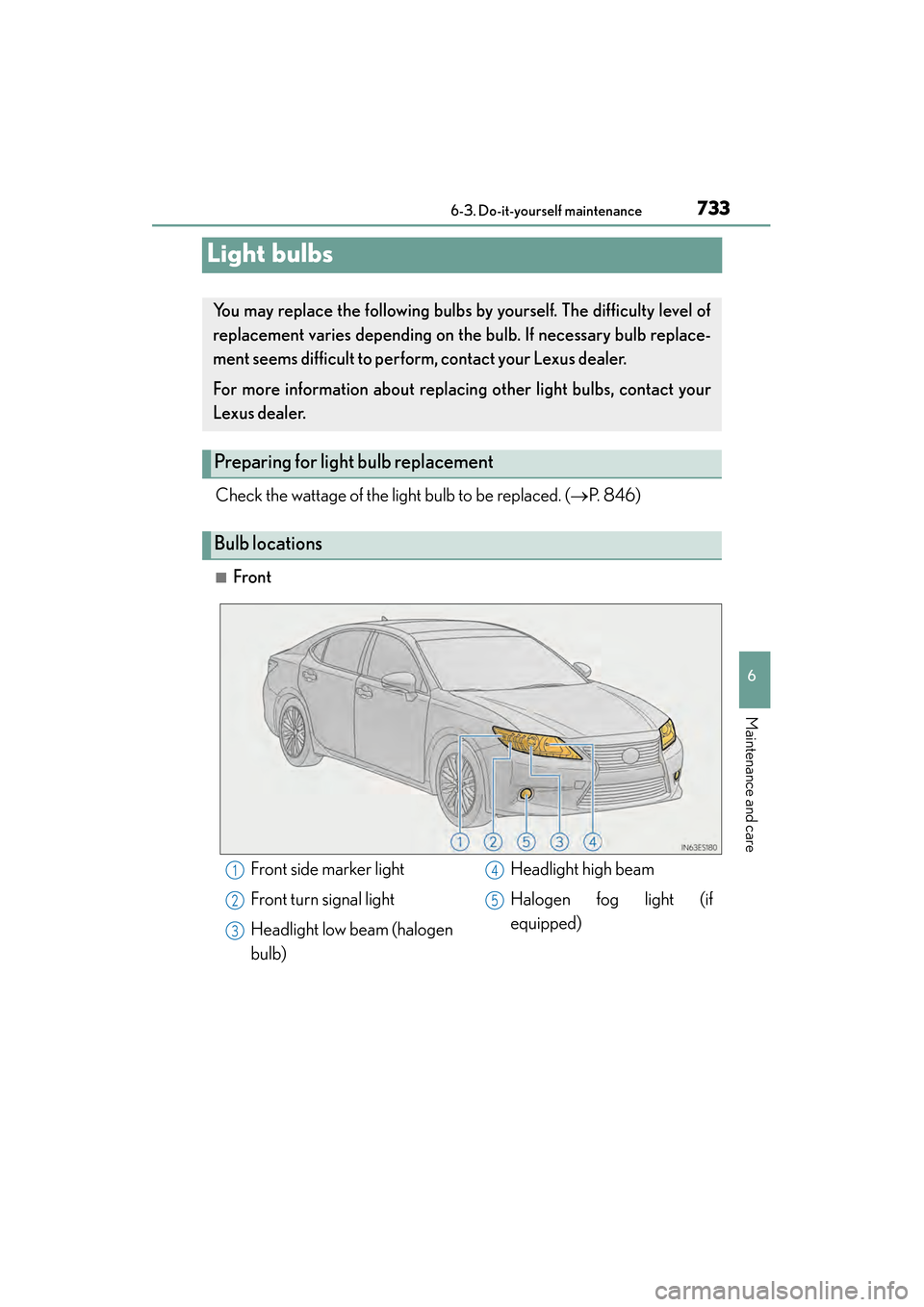

Light bulbs
Check the wattage of the light bulb to be replaced. (→P. 8 4 6 )
■Front
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replace-
ment seems difficult to perfor m, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replacement
Bulb locations
Front side marker light
Front turn signal light
Headlight low beam (halogen
bulb) Headlight high beam
Halogen fog light (if
equipped)1
2
3
4
5

734
ES350_300h_OM_OM33A60U_(U)
6-3. Do-it-yourself maintenance

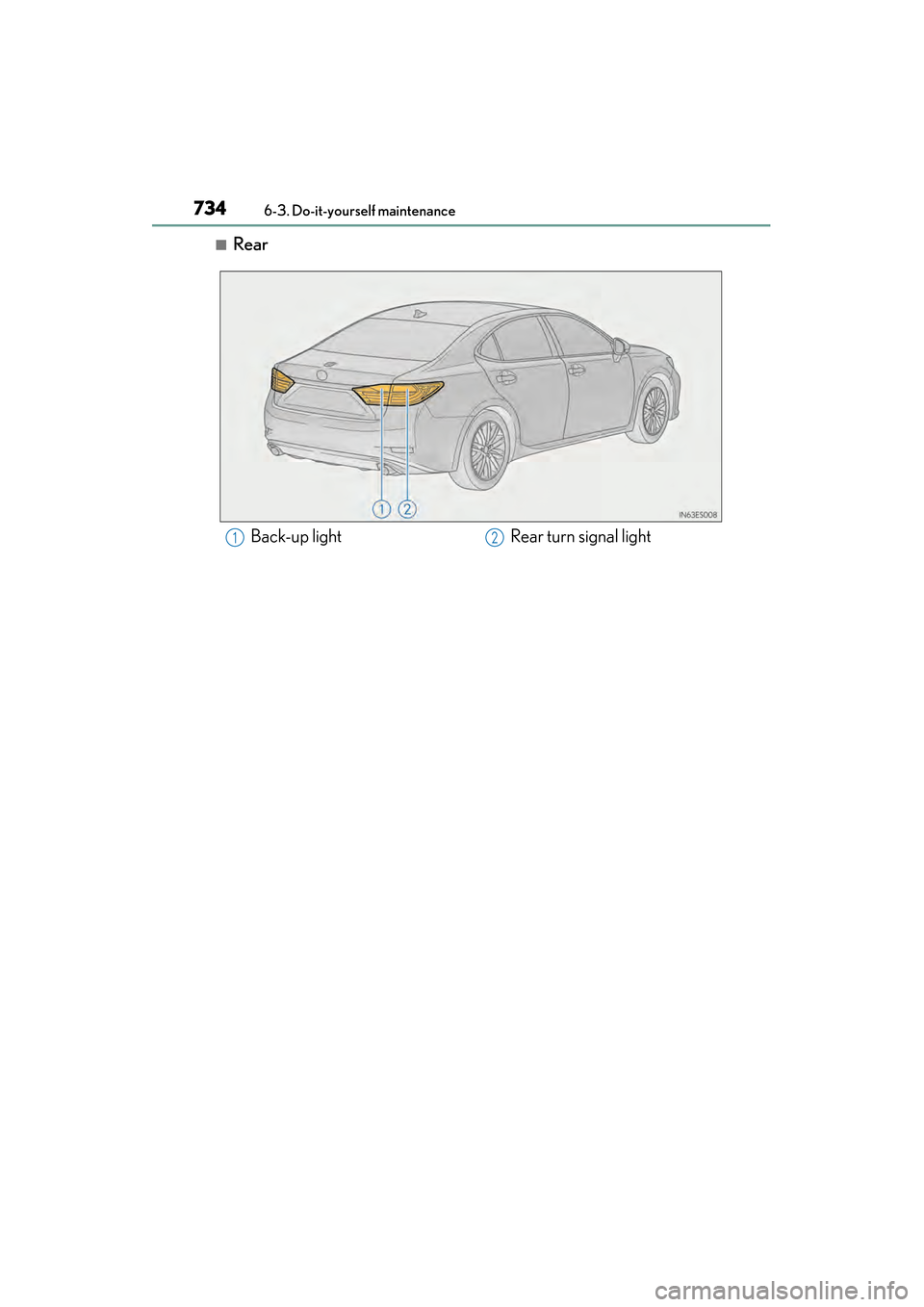

■Rear
Back-up lightRear turn signal light12

ES350_300h_OM_OM33A60U_(U)
7356-3. Do-it-yourself maintenance
6
Maintenance and care
■Headlight high beamTurn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Exchange the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
Replacing light bulbs
1
2
3
4

736
ES350_300h_OM_OM33A60U_(U)
6-3. Do-it-yourself maintenance
■Headlight low beam (halogen bulb)Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Exchange the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
1
2
3
4

ES350_300h_OM_OM33A60U_(U)
7376-3. Do-it-yourself maintenance
6
Maintenance and care

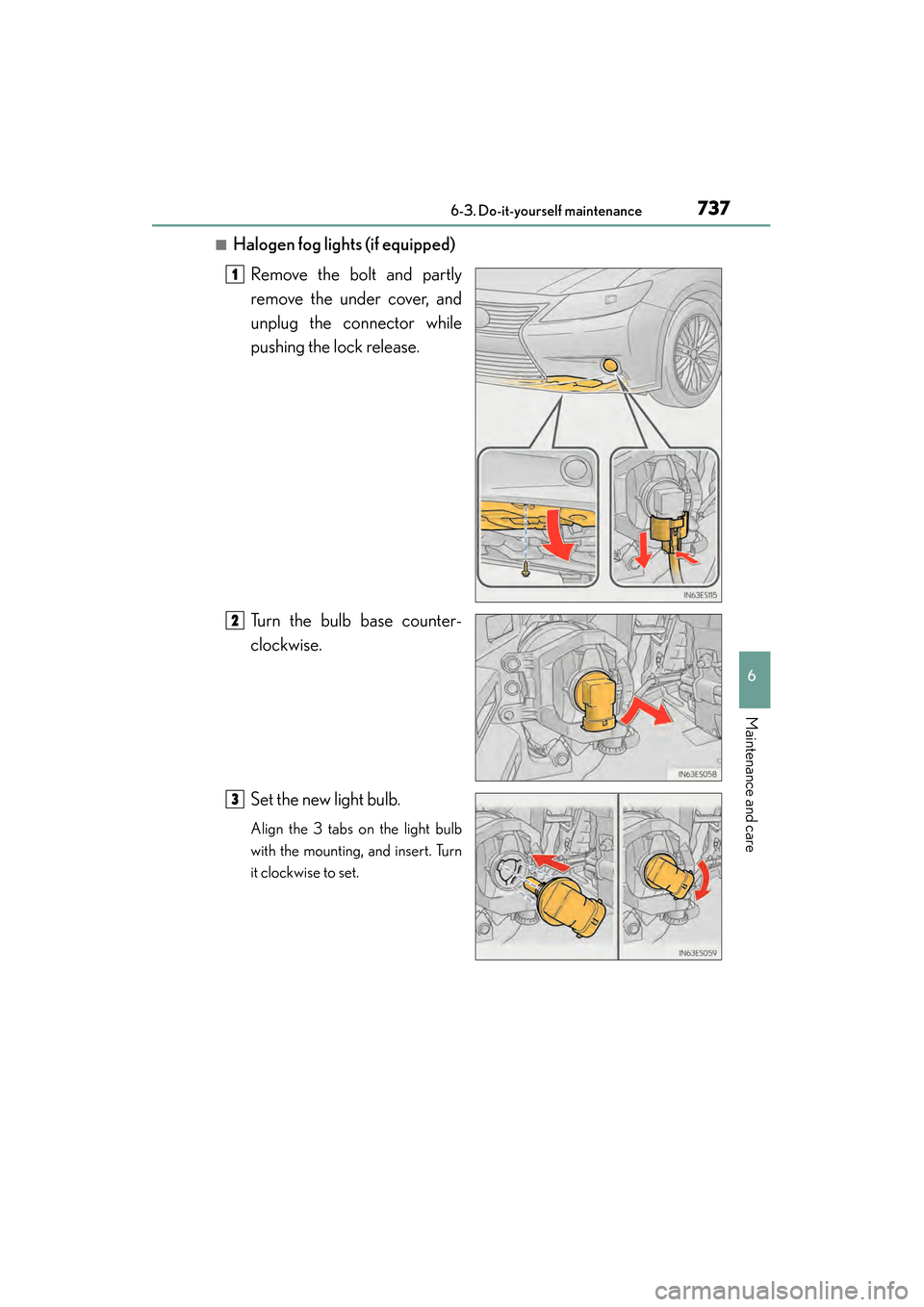

■Halogen fog lights (if equipped)Remove the bolt and partly
remove the under cover, and
unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert. Turn
it clockwise to set.
1
2
3

738
ES350_300h_OM_OM33A60U_(U)
6-3. Do-it-yourself maintenance

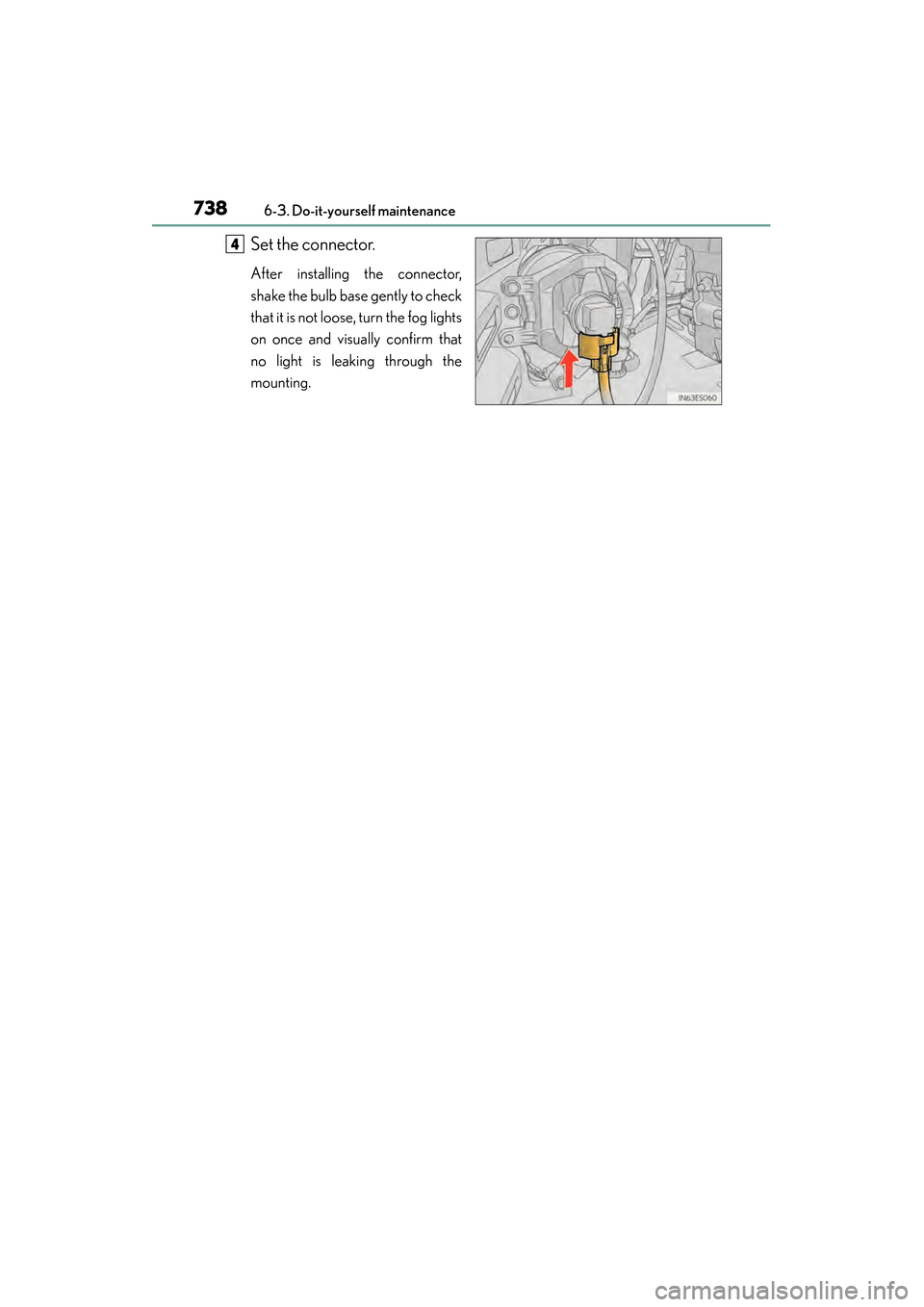

Set the connector.
After installing the connector,
shake the bulb base gently to check
that it is not loose, turn the fog lights
on once and visually confirm that
no light is leaking through the
mounting.
4

ES350_300h_OM_OM33A60U_(U)
7396-3. Do-it-yourself maintenance
6
Maintenance and care

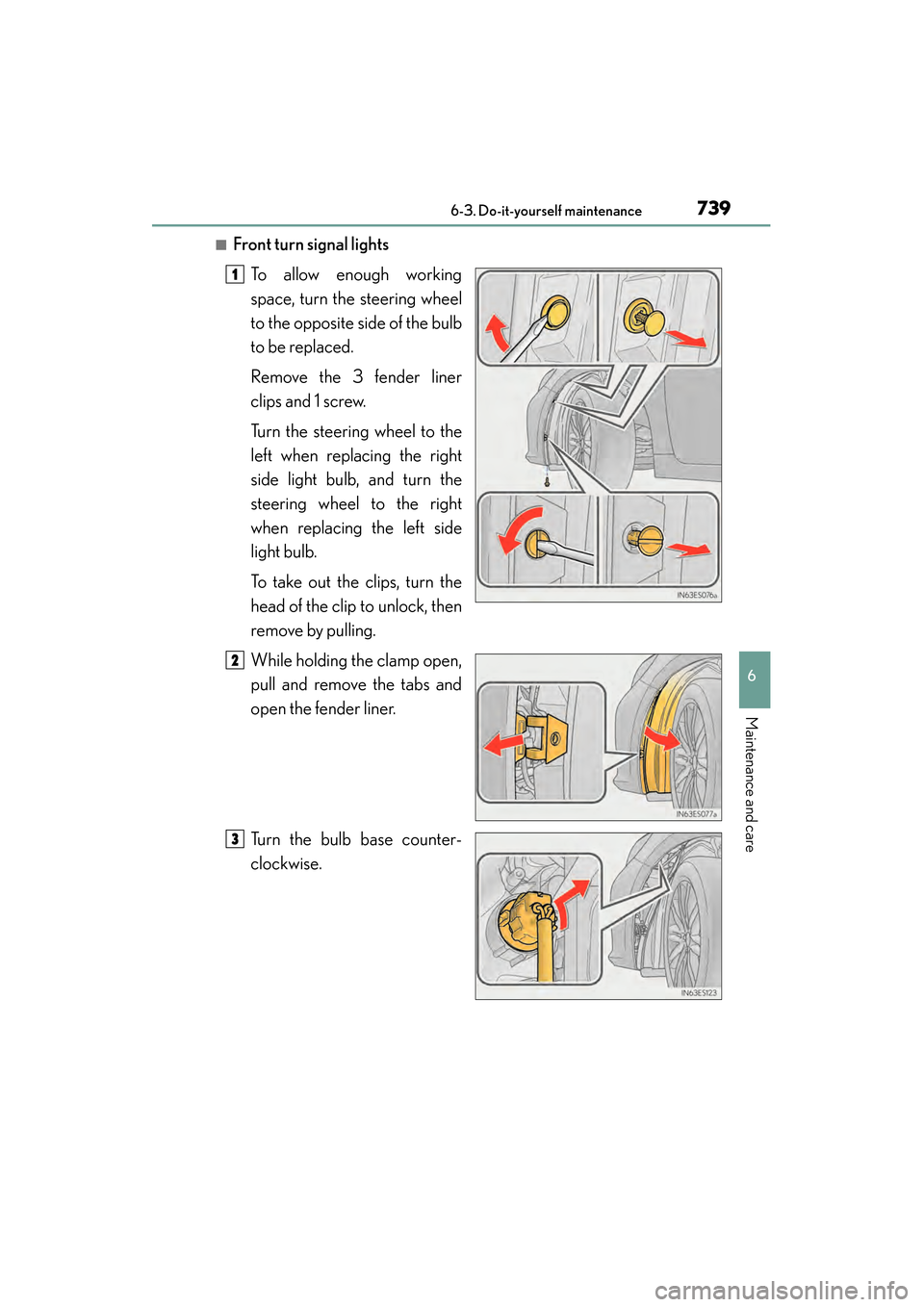

■Front turn signal lightsTo allow enough working
space, turn the steering wheel
to the opposite side of the bulb
to be replaced.
Remove the 3 fender liner
clips and 1 screw.
Turn the steering wheel to the
left when replacing the right
side light bulb, and turn the
steering wheel to the right
when replacing the left side
light bulb.
To take out the clips, turn the
head of the clip to unlock, then
remove by pulling.
While holding the clamp open,
pull and remove the tabs and
open the fender liner.
Turn the bulb base counter-
clockwise.
1
2
3
