Lexus ES300h 2015 Key information / Owner's Manual (OM33B99U)

431
ES350_300h_OM_OM33B99U_(U)
5-9. Bluetooth® Phone
5
Lexus Display Audio system
Using the steering wheel switches
Volume switch
During an incoming call: Adjusts
the ring tone volume
During speaking on the phone:
Adjusts in call volume
The voice guidance volume cannot be
adjusted using this button.
Talk switch
Press: Turns the voice command
system on
Press and hold: Turns the voice
command system off
Off-hook switch• Start call
• Receiving
• Phone top screen display
On-hook switch • End call
• Refuse call
The steering wheel switches can be used to operate a connected cellu-
lar phone.
Operating a telephone using the steering wheel switches
1
2
3
4

432
ES350_300h_OM_OM33B99U_(U)
5-9. Bluetooth® Phone
Bluetooth® phone settings
Go to “Phone/Message Settings”: “MENU” button  “Setup” 
“Phone”
Register and connect a
Bluetooth
® device. ( P. 4 0 7 )
Adjust the call volume and mes-
sage readout volume. ( P. 433)
Change the contact/call history
settings. ( P. 4 3 4 )
Change messaging settings.
( P. 4 3 8 )
Change phone display settings. ( P. 433)
You can adjust the hands-free system to your desired settings.
“Phone/Message Settings” screen
1
2
3
4
5

ES350_300h_OM_OM33B99U_(U)
4335-9. Bluetooth® Phone
5
Lexus Display Audio system
Go to “Sound Settings”: “MENU” button  “Setup”  “Phone” 
“Sound Settings”
Change the ring tone type
Adjust the ring tone volume
Adjust the message readout vol-
ume
Change the incoming SMS/
MMS tone type
Adjust the incoming SMS/MMS
tone volume
Change the inc oming e-mail
tone type
Adjust the incoming e-mail tone volume
Adjust in call tone volume
Go to “Phone Display Settings”: “MENU” button  “Setup” 
“Phone”  “Phone Display Settings”
Change the incoming call display
Set the phonebook/history trans-
fer status notification display on/off
■To return to the default volume settings
Move the controller to the left and then select “Default”.
Sound settings
1
2
3
4
5
6
Phone display settings
7
8
1
2

434
ES350_300h_OM_OM33B99U_(U)
5-10. Phonebook
Contact settings
Go to “Contact/Call History Settings”: “MENU” button  “Setup” 
“Phone”  “Contact/Call History Settings”
Select to set the automatic
phonebook download on/off
With this setting on, phonebook data
will be automatically transferred.
Depending on the cellular phone, call
history will be also transferred.
Update contacts
Change the sort contacts mode
Add a favorite ( P. 4 3 6 )
Delete a favorite ( P. 4 3 7 )
Select to set the display of con-
tact images on/off
Delete call history. (PBAP incom-
patible Bluetooth
® phones, or
compatible phones with “Auto-
matic Transfer” off)
Individual phonebooks can be regi stered for a maximum of 5 phones in
total. The data for 2500 contacts (up to 4 numbers per contact) can be
registered in each phonebook.
“Contact/Call History Settings” screen
1
2
3
4
5
6
7

ES350_300h_OM_OM33B99U_(U)
4355-10. Phonebook
5
Lexus Display Audio system
Add a new contact (PBAP incompatible Bluetooth® phones, or com-
patible phones with “Automatic Transfer” off)
Input the name, phone number and phon e number type to add a new contact.
Edit a contact (PBAP incompatible Bluetooth® phones, or compatible
phones with “Automatic Transfer” off)
Select the desired contact to edit.
Delete contacts ( P. 437) (PBAP incompatible Bluetooth® phones,
or compatible phones with “Automatic Transfer” off)
■Return to the default settings
Move the controller to the left and select “Default”.
8
9
10

4365-10. Phonebook
ES350_300h_OM_OM33B99U_(U)
You can transfer the phone numbers in your Bluetooth® phone to the sys-
tem. Operation methods differ betw een PBAP compatible and PBAP
incompatible Bluetooth
® phones. If your cellula r phone does not support
either PBAP or OPP services, you cannot transfer contacts.
Go to “Transfer Cont acts”: “MENU” button  “Setup”  “Phone” 
“Contact/Call History Settings”  “Update Contacts from Phone”
For PBAP compatible Bluetooth® phones when “Automatic Transfer” is
set to on
Start the update automatically.
For PBAP compatible Bluetooth® phones when “Automatic Transfer” is
set to off and PBAP incompatible Bluetooth
® phones
Select to transfer the contact
from the connected cellular
phone and replace the current
one.
Select to transfer the desired
contact data from the connected
cellular phone to add to the cur-
rent one.
You can register the desired contact from the phonebook. Up to 15 con-
tacts per phone can be registered. Go to “Add Favorite”: “MENU” button  “Setup”  “Phone”  “Con-
tact/Call History Settings”  “Add Favorite”
Choose the contact to register.
Transferring a phone number
1
2
Registering favorites
1
2

ES350_300h_OM_OM33B99U_(U)
4375-10. Phonebook
5
Lexus Display Audio system
Go to “Remove Favorite”: “MENU” button  “Setup”  “Phone” 
“Contact/Call History Settings”  “Remove Favorite”
Select the desired contacts.
You can select all contacts by selecting “Select All”.
Move the controller to the left and select “Remove”.
Go to “Delete Contac ts”: “MENU” button  “Setup”  “Phone” 
“Contact/Call History Settings”  “Delete Contacts”
Select the desired contacts.
You can select all contacts by selecting “Select All”.
Move the controller to the left and select “Delete”.
■Phonebook data
Phonebook data is managed separately fo r every registered phone. When another
phone is connected, you cannot read the registered data.
■When transferring contacts
Transfer contacts while the hybrid system is operating.
If the cellular phone is OPP or PBAP compatible, you may need to input “1234” on
the cellular phone for OBEX certification.
■When you have selected “Replace contacts” or “Add contact” to transfer contacts
If the cellular phone does not support OPP service, you cannot use these functions.
You can transfer the phonebook data only by operating your phone.
■Transferring contacts while Bluetooth® audio is playing
Bluetooth
® audio will disconnect. It will reconnect automatically when data transfer
finishes. It may not reconnect depend ing on the phone which is connected.
Removing favorites
Deleting the contacts data
1
2
3
1
2
3

438
ES350_300h_OM_OM33B99U_(U)
5-10. Phonebook
Messaging setting
Go to “Messaging Settings”: “MENU” button  “Setup”  “Phone” 
“Messaging Settings”
Set the message forwarding from
cellular phones on/off
Set the automatic message read
out function on/off
Set the new SMS/MMS notifica-
tion display on/off
Set the new e-mail notification
display on/off
Set the signature function on/off
Set the cellular phone’s message
read and unread status update
function on/off.
Change the incoming SMS/MMS display.
Change the incoming e-mail display.
Change the account name to “Servi ce name” (names from the con-
nected device) or “Fixed name” (pre-defined names).
■Restoring the default settings
Move the controller to the left then se lect “Default” on the “Messaging Settings”
screen.
1
2
3
4
5
6
7
8
9

439
ES350_300h_OM_OM33B99U_(U)
5-11. Bluetooth®
5
Lexus Display Audio system

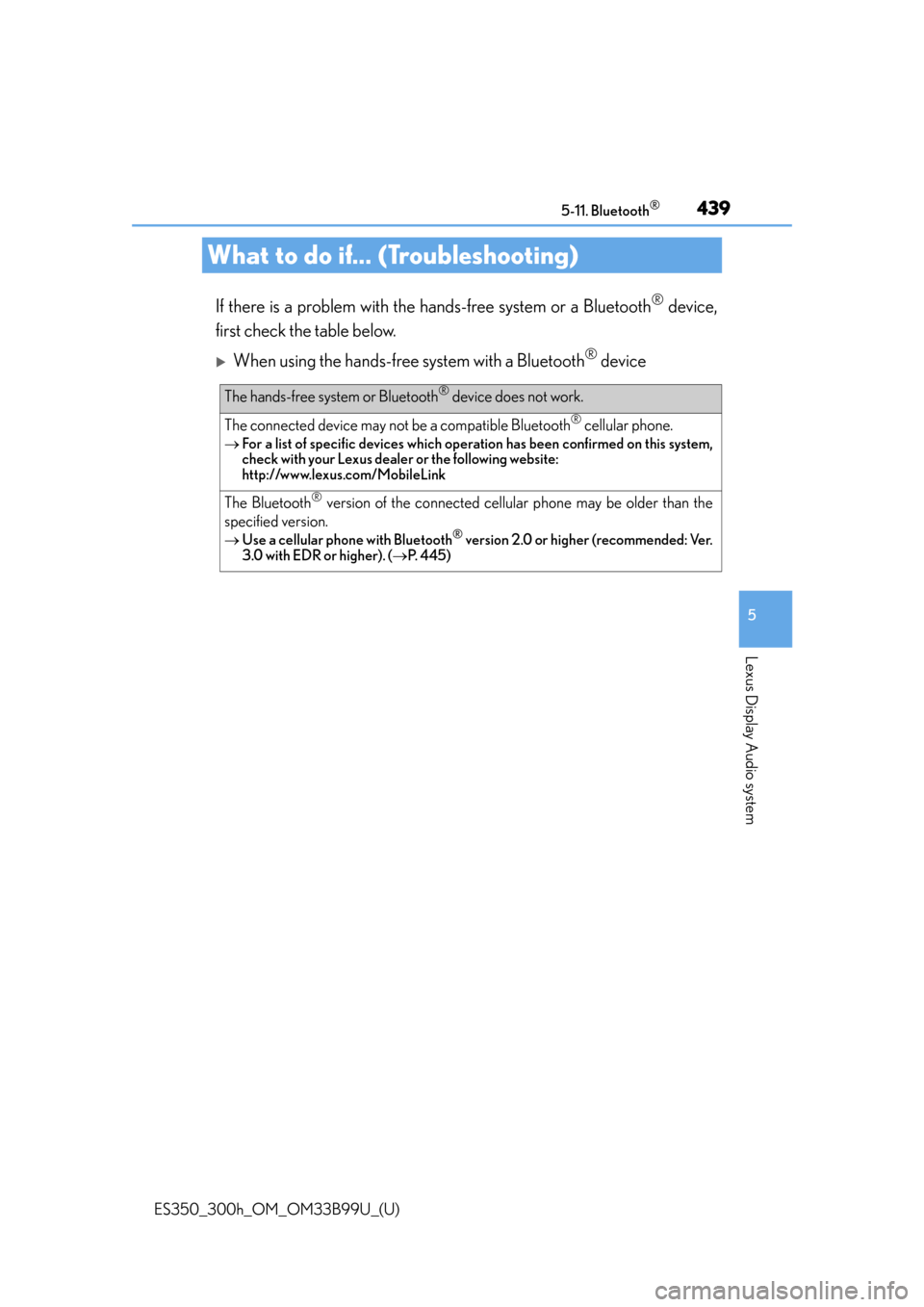

What to do if... (Troubleshooting)
If there is a problem with the hands-free system or a Bluetooth® device,
first check the table below.
When using the hands-free system with a Bluetooth® device
The hands-free system or Bluetooth® device does not work.
The connected device may not be a compatible Bluetooth® cellular phone.
 For a list of specific devices which operat ion has been confirmed on this system,
check with your Lexus dealer or the following website:
http://www.lexus.com/MobileLink
The Bluetooth® version of the connected cellul ar phone may be older than the
specified version.
 Use a cellular phone with Bluetooth® version 2.0 or higher (recommended: Ver.
3.0 with EDR or higher). ( P. 4 4 5 )

4405-11. Bluetooth®
ES350_300h_OM_OM33B99U_(U)

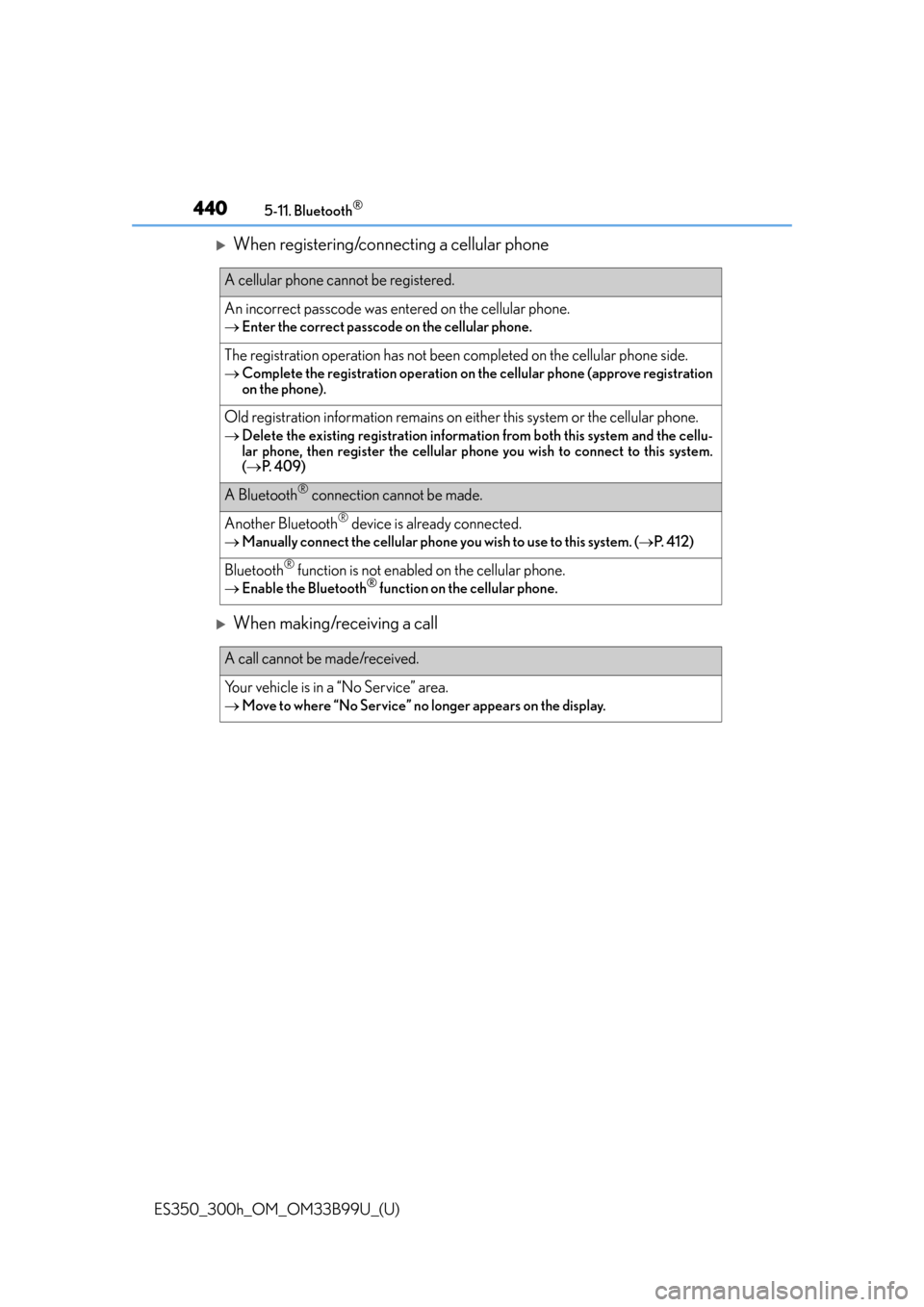

When registering/connecting a cellular phone
When making/receiving a call
A cellular phone cannot be registered.
An incorrect passcode was entered on the cellular phone.
Enter the correct passcode on the cellular phone.
The registration operation has not been completed on the cellular phone side.
Complete the registration operation on the cellular phone (approve registration
on the phone).
Old registration information remains on ei ther this system or the cellular phone.
Delete the existing registration informat ion from both this system and the cellu-
lar phone, then register the cellular phon e you wish to connect to this system.
(  P. 4 0 9 )
A Bluetooth® connection cannot be made.
Another Bluetooth® device is already connected.
 Manually connect the cellular phone you wish to use to this system. (P. 4 1 2 )
Bluetooth® function is not enabled on the cellular phone.
 Enable the Bluetooth® function on the cellular phone.
A call cannot be made/received.
Your vehicle is in a “No Service” area.
Move to where “No Service” no longer appears on the display.
