TABLE OF CONTENTS2
ES350_300h_OM_OM33B36U_(U)For your information ................................... 8
Reading this manual...................................14
How to search ..............................................15
Pictorial index ...............................................16
1-1. For safe use
Before driving................................. 28
For safety drive............................... 30
Seat belts .......................................... 32
SRS airbags ..................................... 38
Front passenger occupant classification system.................. 50
Safety information for children ....................................57
Child restraint systems ............... 58
Installing child restraints..............62
Exhaust gas precautions.............72
1-2. Hybrid system Hybrid system features (hybrid vehicles) ..........................73
Hybrid system precautions (hybrid vehicles) ..........................77
1-3. Theft deterrent system Engine immobilizer system (gasoline vehicles)..................... 84
Immobilizer system (hybrid vehicles) ......................... 86
Alarm .................................................88 2. Instrument cluster
Warning lights and indicators .............................. 92
Gauges and meters ......................97
Multi-information display ........ 102
Energy monitor/ consumption screen ................. 112
3-1. Key information Keys ................................................... 124
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start ............. 127
Wireless remote control ............ 141
Doors ................................................144
Trunk..................................................149
3-3. Adjusting the seats Front seats....................................... 157
Driving position memory..........159
Head restraints .............................165
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................169
Inside rear view mirror ............... 171
Outside rear view mirrors.........174
3-5. Opening, closing the windows and moon roof
Power windows ............................. 177
Moon roof ........................................ 181
1For safety and security
2Instrument cluster
3Operation of each
component

TABLE OF CONTENTS4
ES350_300h_OM_OM33B36U_(U)5-1. Basic Operations
Lexus Display Audio System .........................................350
Steering wheel audio switches .......................................357
USB/AUX ports ......................... 359
5-2. Setup Setup menu .................................... 361
General settings......................... 362
Voice settings .............................. 366
Display settings............................367
5-3. Using the audio system Selecting the audio source .......................................... 369
Optimal use of the audio system .......................................... 370
Audio settings ..............................372
Audio menu screen operation .....................................375
5-4. Using the radio Radio operation.......................... 378
5-5. Playing an audio CD and MP3/WMA/AAC discs
CD player operation ................ 387 5-6. Using an external device
Listening to an iPod................... 395
Using USB memory device .......................................... 399
Using the AUX port ................. 404
5-7. Connecting Bluetooth
®
Steps for using Bluetooth®
devices ........................................ 405
Registering a Bluetooth
®
device ..........................................408
Selecting a Bluetooth
®
device ........................................... 410
Connecting a Bluetooth
®
audio player ................................. 411
Connecting a Bluetooth
®
phone ............................................. 412
Displaying a Bluetooth
®
device details ..............................414
Detailed Bluetooth
®
settings ..........................................415
5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio ............................................. 417
5-9. Bluetooth
® Phone
Using a Bluetooth
®
Phone.............................................419
Making a call.................................. 421
Receiving a call ............................424
Speaking on the phone ........... 425
Using a Bluetooth
®
phone message ....................... 428
Using the steering wheel switches ........................................431
Bluetooth
® phone
settings ........................................ 432
5Lexus Display Audio system

5
ES350_300h_OM_OM33B36U_(U)
1
9 8
7
6 4 3
2
10
5
5-10. PhonebookContact settings ......................... 434
Messaging setting ..................... 438
5-11. Bluetooth
®
What to do if... (Troubleshooting) ................... 439
Bluetooth
®................................... 443
5-12. Other function “Information” screen................. 449
USB photo ......................................451
Weather information ................ 453
Voice command system .......... 455
Mobile Assistant......................... 459
LEXUS Enform Remote ........... 461
6-1. Using the air conditioning system and defogger
Automatic air conditioning system .......................................... 464
Heated steering wheel/ seat heaters/seat
ventilators.................................... 477
6-2. Using the interior lights Interior lights list ..........................479• Interior light............................480
• Personal lights .......................480 6-3. Using the storage features
List of storage features ............ 482• Glove box ............................... 484
• Console box .......................... 485
• Cup holders ........................... 486
• Auxiliary box.......................... 487
Trunk features ..............................488
6-4. Other interior features Sun visors and vanity mirrors ................... 490
Clock ................................................491
Power outlets ............................... 492
Armrest.......................................... 494
Rear sunshade/ rear door sunshades.............. 495
Trunk storage extension .......... 498
Coat hooks ................................... 499
Assist grips ...................................500
Garage door opener ................ 501
Compass .......................................508
LEXUS Enform Safety Connect........................................513
6Interior features

23Pictorial index
ES350_300h_OM_OM33B36U_(U)Seat heater and ventilator switches
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 478
Heated steering wheel switch
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 478
Rear sunshade switch
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 495
Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 311
EV drive mode switch
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Remote Touch
*1
Lexus Display Audio controller*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 113, 352
*1: For vehicles with a navigation system, refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
*2: If equipped
*3: Hybrid vehicles
1
2
3
4
5
6
7
8

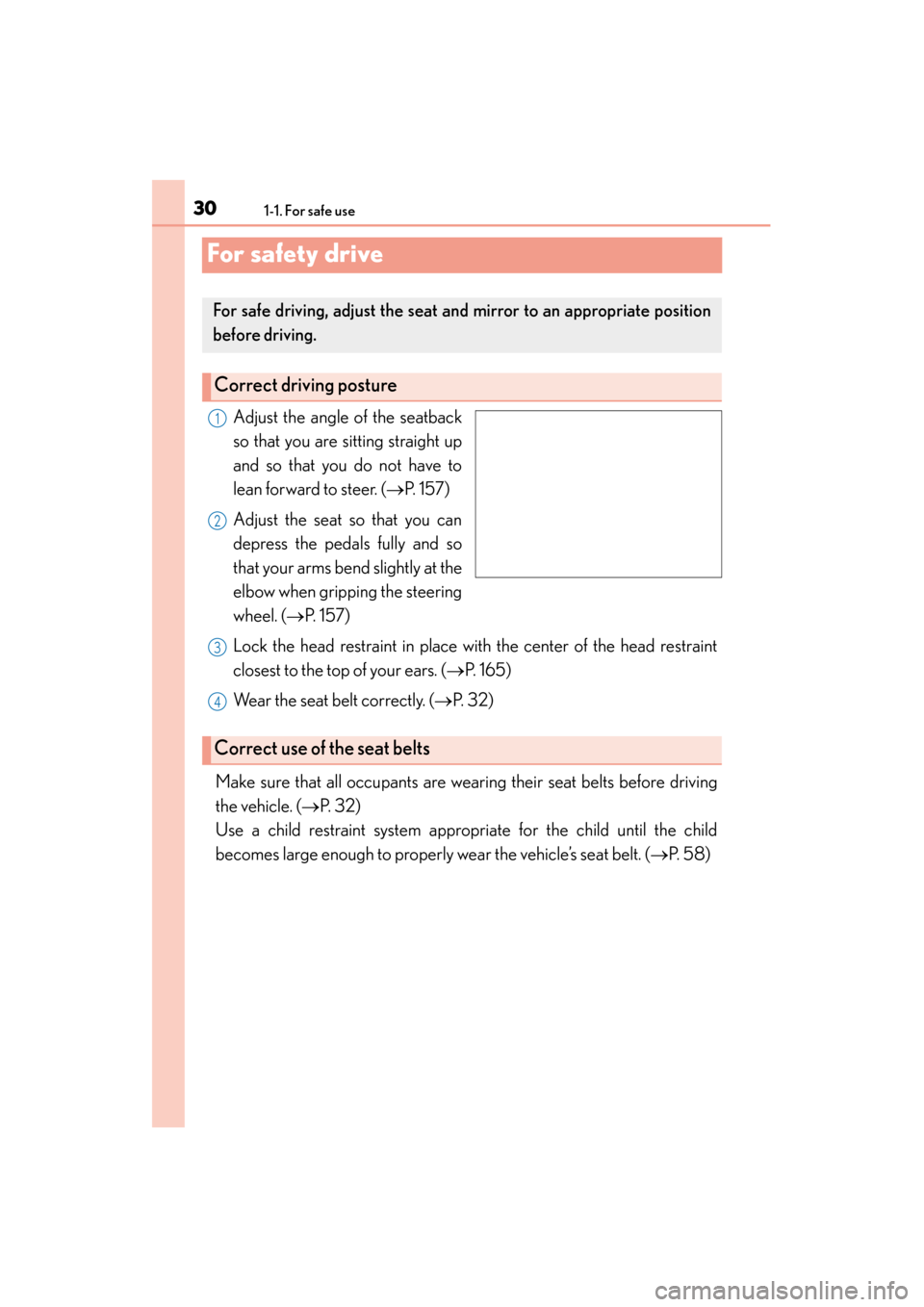

301-1. For safe use
ES350_300h_OM_OM33B36U_(U)
For safety drive
Adjust the angle of the seatback
so that you are sitting straight up
and so that you do not have to
lean forward to steer. (→P. 1 5 7 )
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at the
elbow when gripping the steering
wheel. ( →P. 1 5 7 )
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. ( →P. 165)
Wear the seat belt correctly. ( →P. 32)
Make sure that all occupants are we aring their seat belts before driving
the vehicle. ( →P. 32)
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt. ( →P. 58)
For safe driving, adjust the seat and mirror to an appropriate position
before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4

411-1. For safe use
ES350_300h_OM_OM33B36U_(U)
1
For safety and security
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag sen-
sor assembly (ECU) controls airbag deployment based on information
obtained from the sensors etc. shown in the system components diagram
above. This information includes crash severity and occupant information.
As the airbags deploy, a chemical reaction in the inflators quickly fills the
airbags with non-toxic gas to help restrain the motion of the occupants.
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag. The National
Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of
inflation, placing yourself 10 in. (250 mm) from your driver airbag provides you
with a clear margin of safety. This distance is measured from the center of the
steering wheel to your breastbone. If you sit less than 10 in. (250 mm) away now,
you can change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedalscomfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while still
maintaining control of the foot pedals, steering wheel, and your view of the
instrument panel controls.

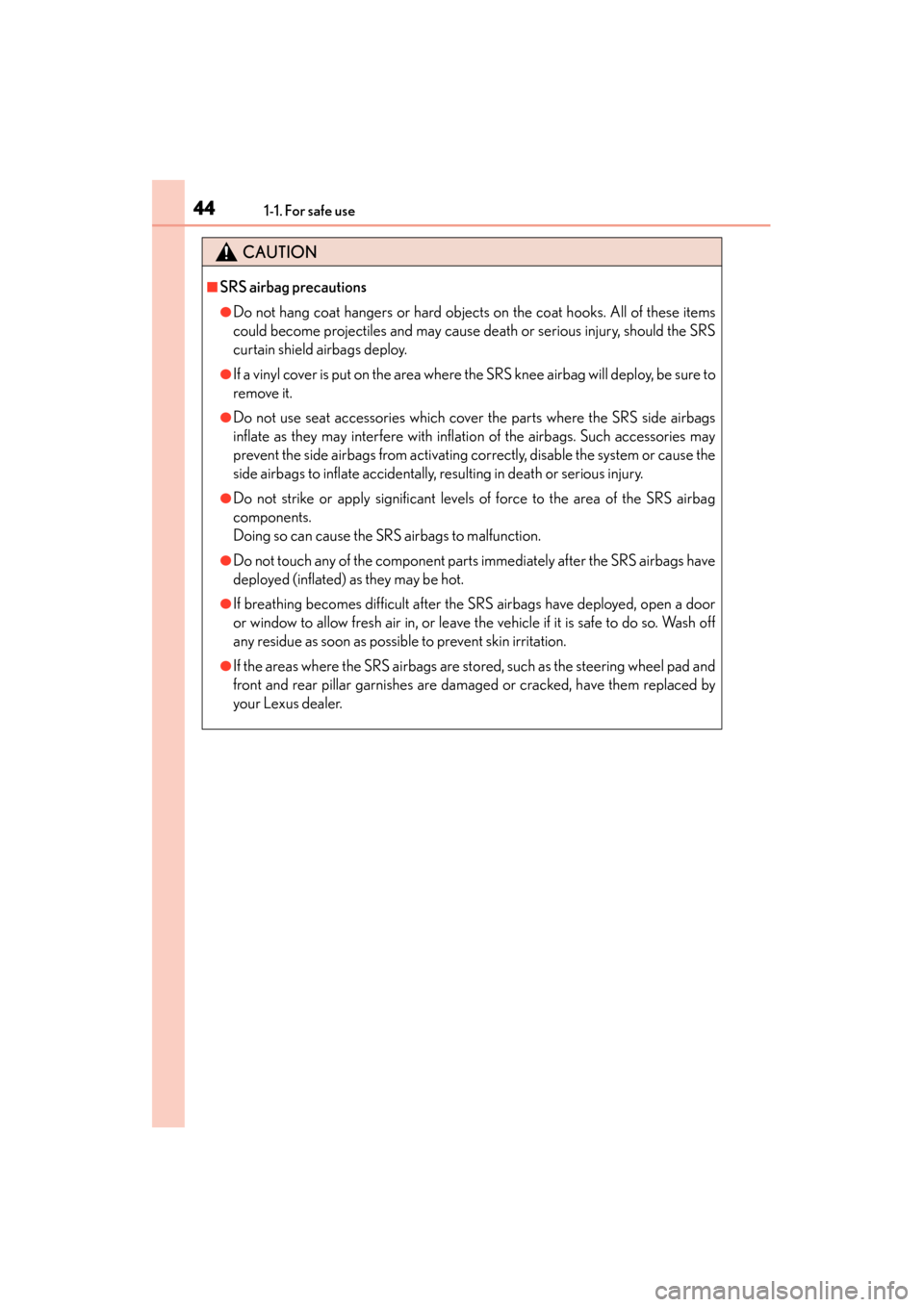

441-1. For safe use
ES350_300h_OM_OM33B36U_(U)
CAUTION
■SRS airbag precautions
●Do not hang coat hangers or hard objects on the coat hooks. All of these items
could become projectiles and may cause death or serious injury, should the SRS
curtain shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
●Do not use seat accessories which cover the parts where the SRS side airbags
inflate as they may interfere with inflation of the airbags. Such accessories may
prevent the side airbags from activating correctly, disable the system or cause the
side airbags to inflate accidentally, resulting in death or serious injury.
●Do not strike or apply significant levels of force to the area of the SRS airbag
components.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbags have deployed, open a door
or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off
any residue as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad and
front and rear pillar garnishes are damaged or cracked, have them replaced by
your Lexus dealer.

451-1. For safe use
ES350_300h_OM_OM33B36U_(U)
1
For safety and security
■If the SRS airbags deploy (inflate)
●Bruising and slight abrasions may result from contact with a deploying (inflating)
SRS airbag.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as
the seats, parts of the front and rear pillars, and roof side rails may be hot for several
minutes. The airbag itself may also be hot.
●The windshield may crack.
●For Lexus Enform Safety Connect subscribers, if the SRS airbags deploy or in the
event of a severe rear-end collision, the system is designed to send an emergency
call to the response center, notifying them of the vehicle’s location (without needing
to push the “SOS” button) and an agent will attempt to speak with the occupants to
ascertain the level of emergency and assistance required. If the occupants are
unable to communicate, the agent automatically treats the call as an emergency
and helps to dispatch the necessary emergency services. (→P. 5 1 3 )
CAUTION
■Modification and di sposal of SRS airbag system components
Do not dispose of your vehicle or perfor m any of the following modifications with-
out consulting your Lexus dealer. The SRS airbags may malfunction or deploy
(inflate) accidentally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, glove box, seats or seat upholstery, front, side and rear pillars
or roof side rails
●Repairs or modifications of the front fend er, front bumper, or side of the occupant
compartment
●Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or winches
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios and CD players
●Modifications to your vehicle for a person with a physical disability

481-1. For safe use
ES350_300h_OM_OM33B36U_(U)The SRS curtain shield airbags do not generally inflate if the vehicle is involved in a
rear collision, if it rolls over, or if it is involved in a low-speed side or low-speed frontal
collision.
■When to contact your Lexus dealer
In the following cases, the vehicle will require inspection and/or repair. Contact your
Lexus dealer as soon as possible.
●Any of the SRS airbags have been inflated.
●Collision from the rear
●Vehicle rollover
●The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS front airbags to inflate.
●A portion of a door is damaged or
deformed, or the vehicle was involved in an
accident that was not severe enough to
cause the SRS side and curtain shield air-
bags to inflate.
●The pad section of the steering wheel, dash-
board near the front passenger airbag or
lower portion of the instrument panel is
scratched, cracked, or otherwise damaged.

114
ES350_300h_OM_OM33B36U_(U)
2. Instrument cluster
XNavigation system screen
Press the “MENU” button on the
Remote Touch, then select “Info” on
the “Menu” screen, and then select
“Fuel Consumption”.
If the “Trip Information” or “Past
Record” screen is displayed, select
“Energy”.
XLexus Display Audio screen
Press the “MENU” button on the
Lexus Display Audio controller,
then select “Info” on the “Menu”
screen, and then select “Fuel Con-
sumption”.
If the “Energy Monitor” screen does
not appear, move the controller to the
right and select “Energy”.
XMulti-information display
Press the “DISP” button on the steering wheel several times to select the
energy monitor display.
Energy monitor (hybrid vehicles)
