Lexus ES300h 2016 Owner's Manual Quick Guide (OM33B89U)

101
ES300h_QG_OM33B89U_(U)
Door Locks
■Door lock switch
Locks all the doors
Unlocks all the doors
■Inside lock button
Locks the door
Unlocks the door
The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position.
1
2
1
2

102
ES300h_QG_OM33B89U_(U)
■Rear door child-protector lock
The door cannot be open ed from inside the
vehicle when the lock is set.
Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch to
lock both rear doors.
Powe r Wi n d ows
■Powe r w i n d o w s w i t c h e s
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, operate the
switch in the opposite direction.
■ Window lock switch
Press the switch down to lock the passen-
ger window.
Use this switch to prevent children from
accidentally opening or closing a pas-
senger window.
1
2
1
2
3
4

103
ES300h_QG_OM33B89U_(U)
Moon Roof
■Opening and closing
Opens the moon roof*
The moon roof stops slightly before the
fully open position to reduce wind
noise.
Press the switch again to fully open the
moon roof.
Closes the moon roof
*
*
: Lightly press either way of the moon roof
switch to stop the moon roof partway.
■ Tilting up and down
Tilts the moon roof up*
Tilts the moon roof down*
*
: Lightly press either way of the moon roof
switch to stop the moon roof partway.
1
2
1
2

104
ES300h_QG_OM33B89U_(U)
Fuel Tank Cap
■Before refueling the vehicle
● Turn the power switch off and ensure that all the doors and windows are closed.
● Confirm the type of fuel.
■Opening the fuel tank cap
Press the opener switch to open the
fuel filler door.
Turn the fuel tank cap slowly to open
and hang it on the back of the fuel filler
door.1
2

105
ES300h_QG_OM33B89U_(U)
Tr u n k
■Opening the trunk
● From inside the vehicle
Press the opener switch.If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully
Turn the main switch in the glove box off to
disable the trunk opener. On
Off
The trunk lid cannot be opened even with
the wireless remote control or the trunk
release button.
● From outside the vehicle
• Smart access system with push-button start
While carrying the electronic key, press the
button on the trunk lid.When all the doors are unlocked with
the power door lock system, the trunk
can be opened without carrying the
electronic key.
If the vehicle is equipped with power
trunk opener and closer, the trunk lid
automatically opens fully.
• Wireless remote control Press and hold the switchIf the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully.
1
2

106
ES300h_QG_OM33B89U_(U)
■Trunk easy closer (vehicles with power trunk opener and closer)
In the event that the trunk lid is left slightly open, the trunk easy closer will automatically
close it to the fully closed position.
■Trunk closer switch (vehicles with power trunk opener and closer)
Pressing the switch closes the trunk lid
automatically. (A buzzer sounds.)
Pressing the switch while the trunk lid is
closing opens the trunk lid again.

What to do if...
107
ES300h_QG_OM33B89U_(U)

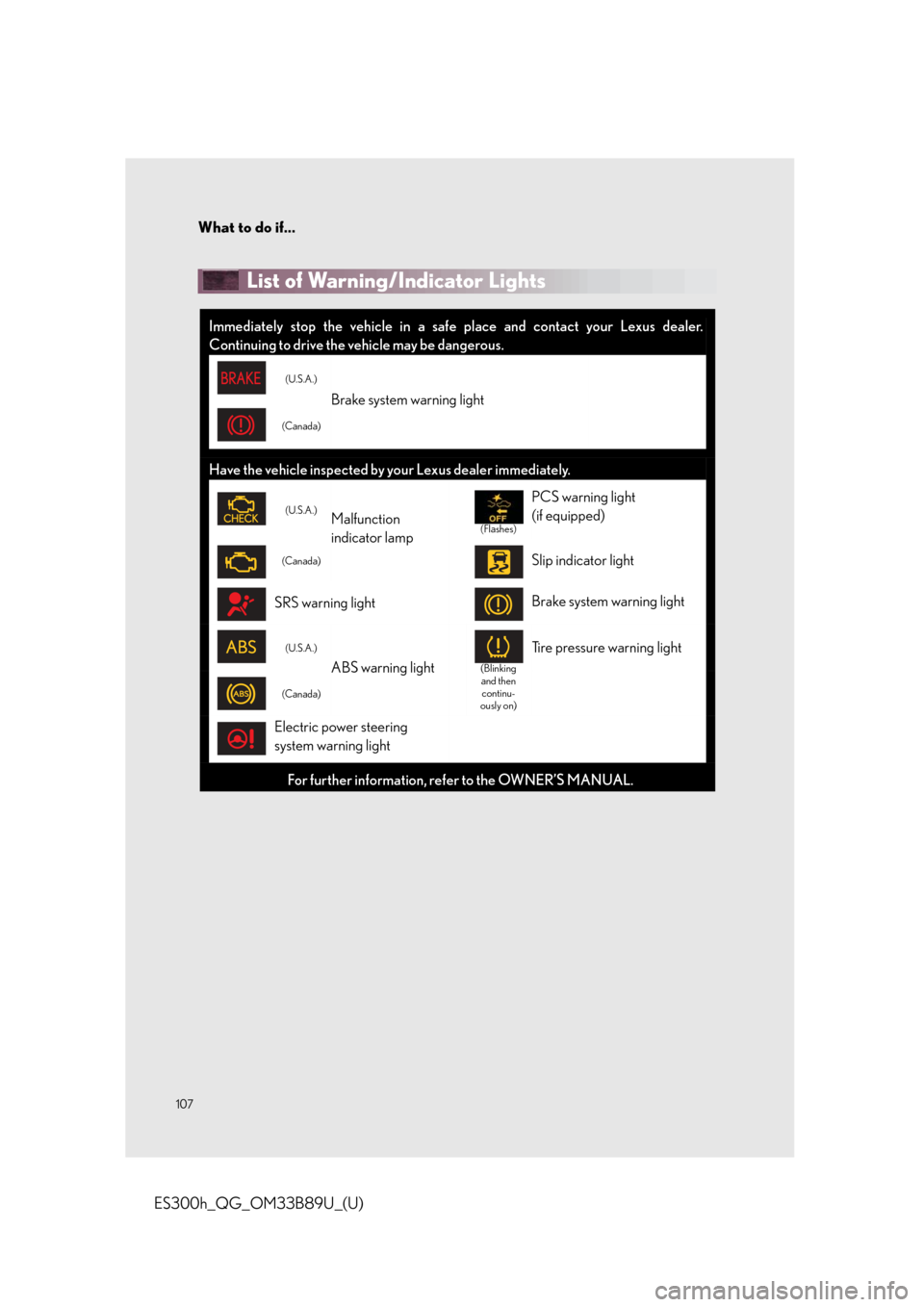

List of Warning/Indicator Lights
Immediately stop the vehicle in a safe place and contact your Lexus dealer.
Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Have the vehicle inspected by your Lexus dealer immediately.
(U.S.A.)Malfunction
indicator lamp(Flashes)
PCS warning light
(if equipped)
(Canada)Slip indicator light
SRS warning lightBrake system warning light
(U.S.A.)
ABS warning light(Blinking and then continu-
ously on)
Tire pressure warning light
(Canada)
Electric power steering
system warning light
For further information, refer to the OWNER’S MANUAL.

108
What to do if...
ES300h_QG_OM33B89U_(U)

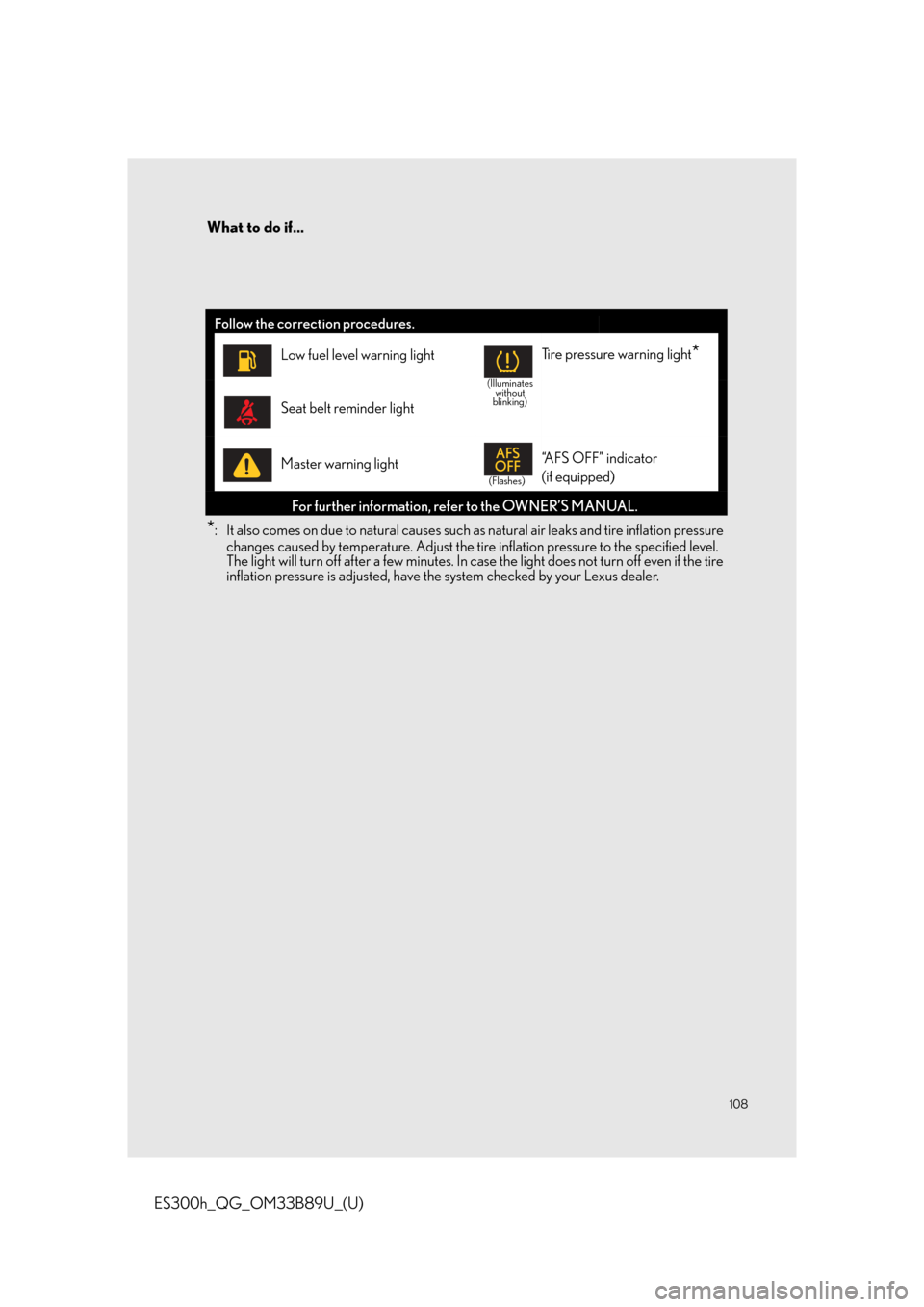

*: It also comes on due to natural causes such as natural air leaks and tire inflation pressure changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have th e system checked by your Lexus dealer.
Follow the correction procedures.
Low fuel level warning light
(Illuminates
without
blinking)
Tire pressure warning light*
Seat belt reminder light
Master warning light
(Flashes)
“AFS OFF” indicator
(if equipped)
For further information, re fer to the OWNER’S MANUAL.

What to do if...
109
ES300h_QG_OM33B89U_(U)

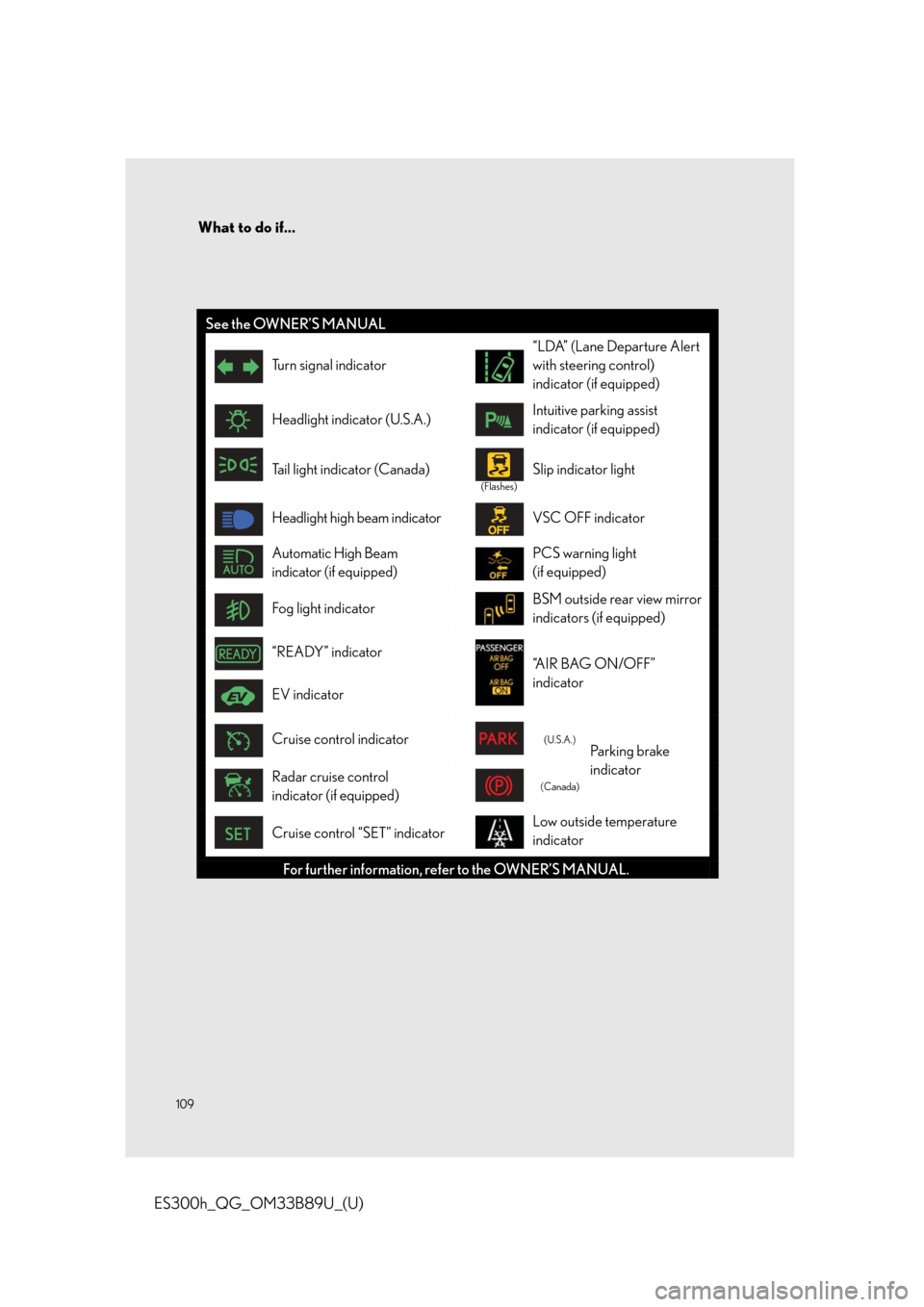

See the OWNER’S MANUAL
Turn signal indicator
“LDA” (Lane Departure Alert
with steering control)
indicator (if equipped)
Headlight indicator (U.S.A.)Intuitive parking assist
indicator (if equipped)
Tail light indicator (Canada)
(Flashes)
Slip indicator light
Headlight high beam indicatorVSC OFF indicator
Automatic High Beam
indicator (if equipped)PCS warning light
(if equipped)
Fog light indicatorBSM outside rear view mirror
indicators (if equipped)
“READY” indicator “AIR BAG ON/OFF”
indicator
EV indicator
Cruise control indicator(U.S.A.)Parking brake
indicator
Radar cruise control
indicator (if equipped)(Canada)
Cruise control “SET” indicatorLow outside temperature
indicator
For further information, refer to the OWNER’S MANUAL.

110
What to do if...
ES300h_QG_OM33B89U_(U)
If the electronic key does not operate properly
■Unlocking and locking the doors
Use the mechanical key ( P.1 8 ) i n o r d e r t o
perform the following operations:
Locks all the doors
Closes the windows and moon roof
*
(turn and hold)
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other doors.
Opens the windows and moon roof
*
(turn and hold)
*: This setting must be customized at yourLexus dealer.
■ Unlocking the trunk
Turn the mechanical key clockwise to open.
1
2
3
4
