21
ES300h_QG_OM33B89U_(U)
Front Seats

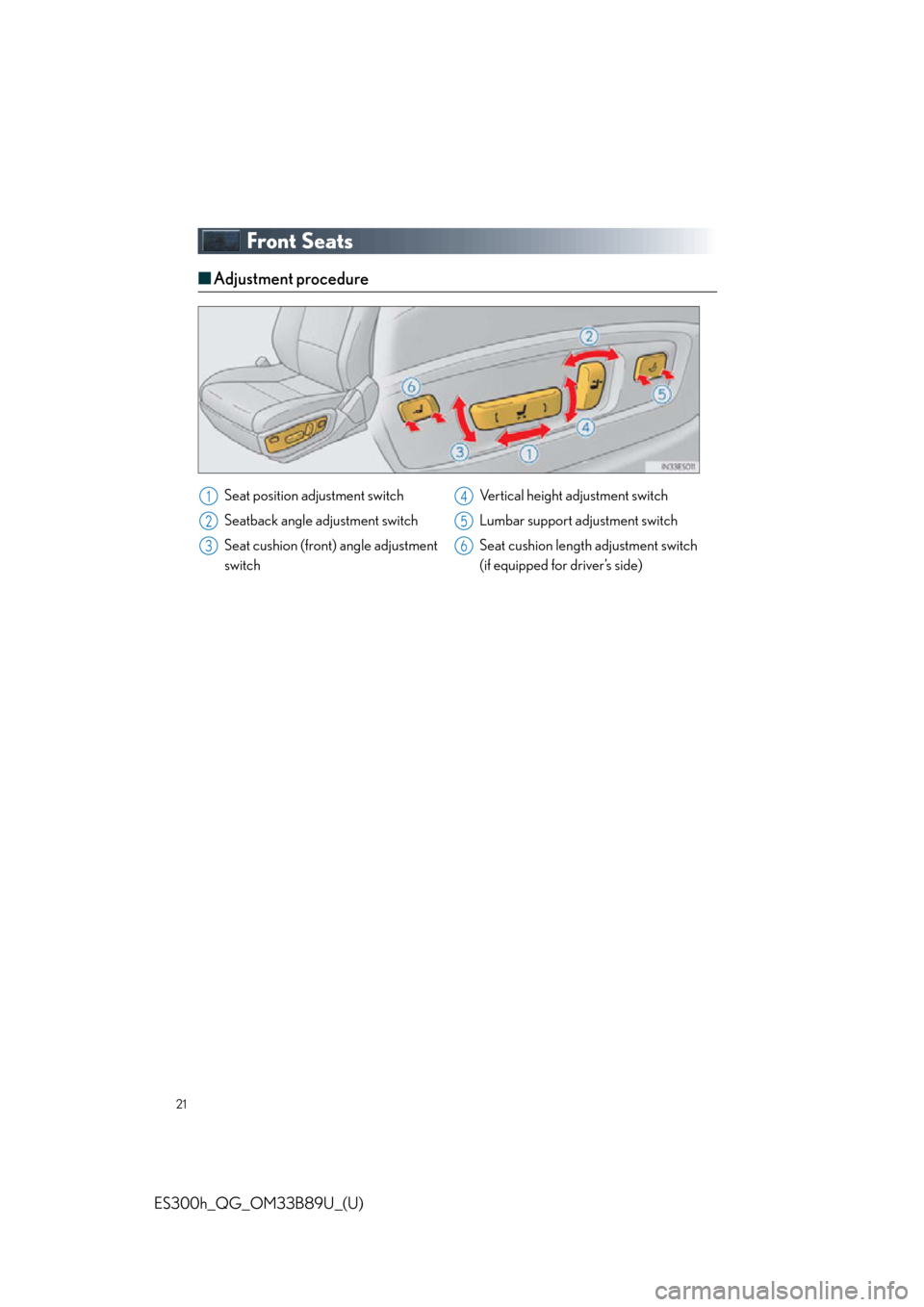

■Adjustment procedure
Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjustment
switch Vertical height adjustment switch
Lumbar support adjustment switch
Seat cushion length
adjustment switch
(if equipped for driver’s side)1
2
3
4
5
6
Page 22 of 114
22
ES300h_QG_OM33B89U_(U)
Head Restraints

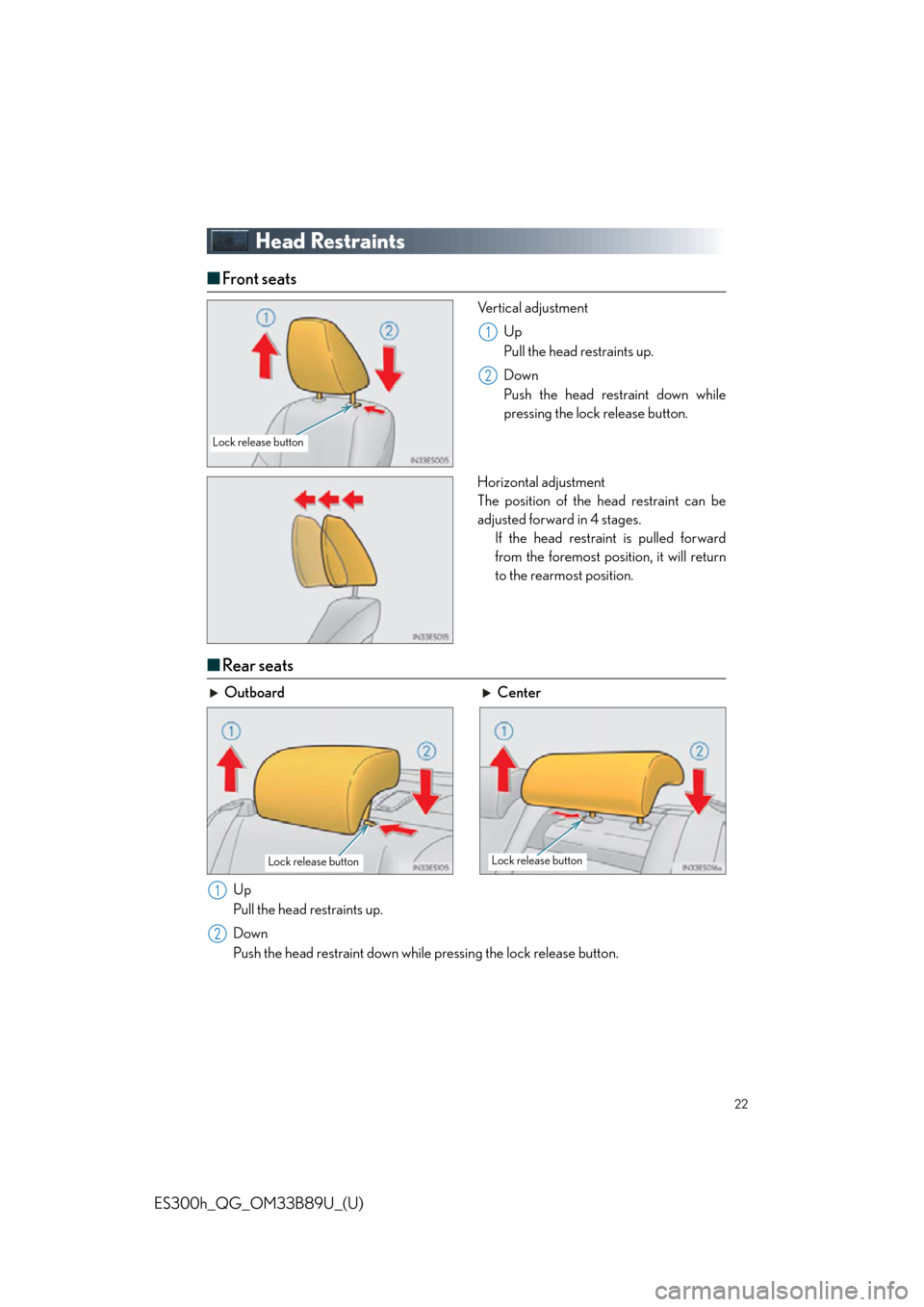

■Front seats
Vertical adjustment
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Horizontal adjustment
The position of the head restraint can be
adjusted forward in 4 stages. If the head restraint is pulled forward
from the foremost position, it will return
to the rearmost position.
■Rear seats
Lock release button
1
2
Outboard Center
Up
Pull the head restraints up.
Down
Push the head restraint down while pressing the lock release button.
Lock release buttonLock release button
1
2
Page 23 of 114
23
ES300h_QG_OM33B89U_(U)
Driving Position Memory (if equipped)

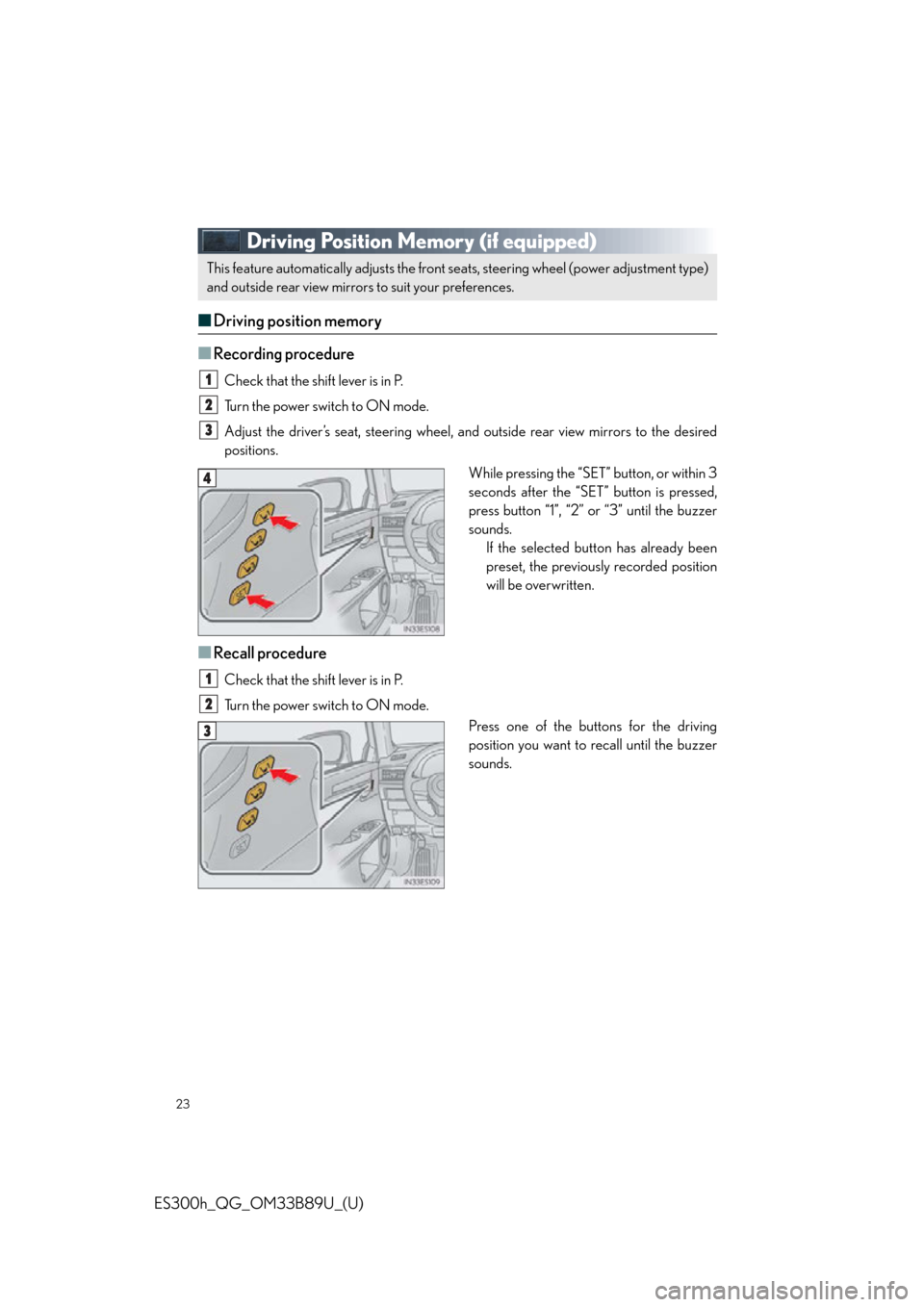

■Driving position memory
■
Recording procedure
Check that the shift lever is in P.
Turn the power switch to ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors to the desired
positions. While pressing the “SET” button, or within 3
seconds after the “SET” button is pressed,
press button “1”, “2” or “3” until the buzzer
sounds.If the selected button has already been
preset, the previously recorded position
will be overwritten.
■Recall procedure
Check that the shift lever is in P.
Turn the power switch to ON mode.
Press one of the buttons for the driving
position you want to recall until the buzzer
sounds.
This feature automatically adjusts the front se ats, steering wheel (power adjustment type)
and outside rear view mirrors to suit your preferences.
1
2
3
4
1
2
3
Page 24 of 114
24
ES300h_QG_OM33B89U_(U)
■Memory recall function (driver’s side only)
Each electronic key can be registered to recall your preferred driving position.
■Registering procedure
Check that the shift lever is in P.
Turn the power switch to ON mode.
Recall the driving position that you want to record.
While pressing the recalled button, press
and hold the door lock switch (either lock
or unlock) until the buzzer sounds.If the button could not be registered, the
buzzer sounds continuously for approxi-
mately 3 seconds.1
2
3
4
Page 25 of 114
25
ES300h_QG_OM33B89U_(U)

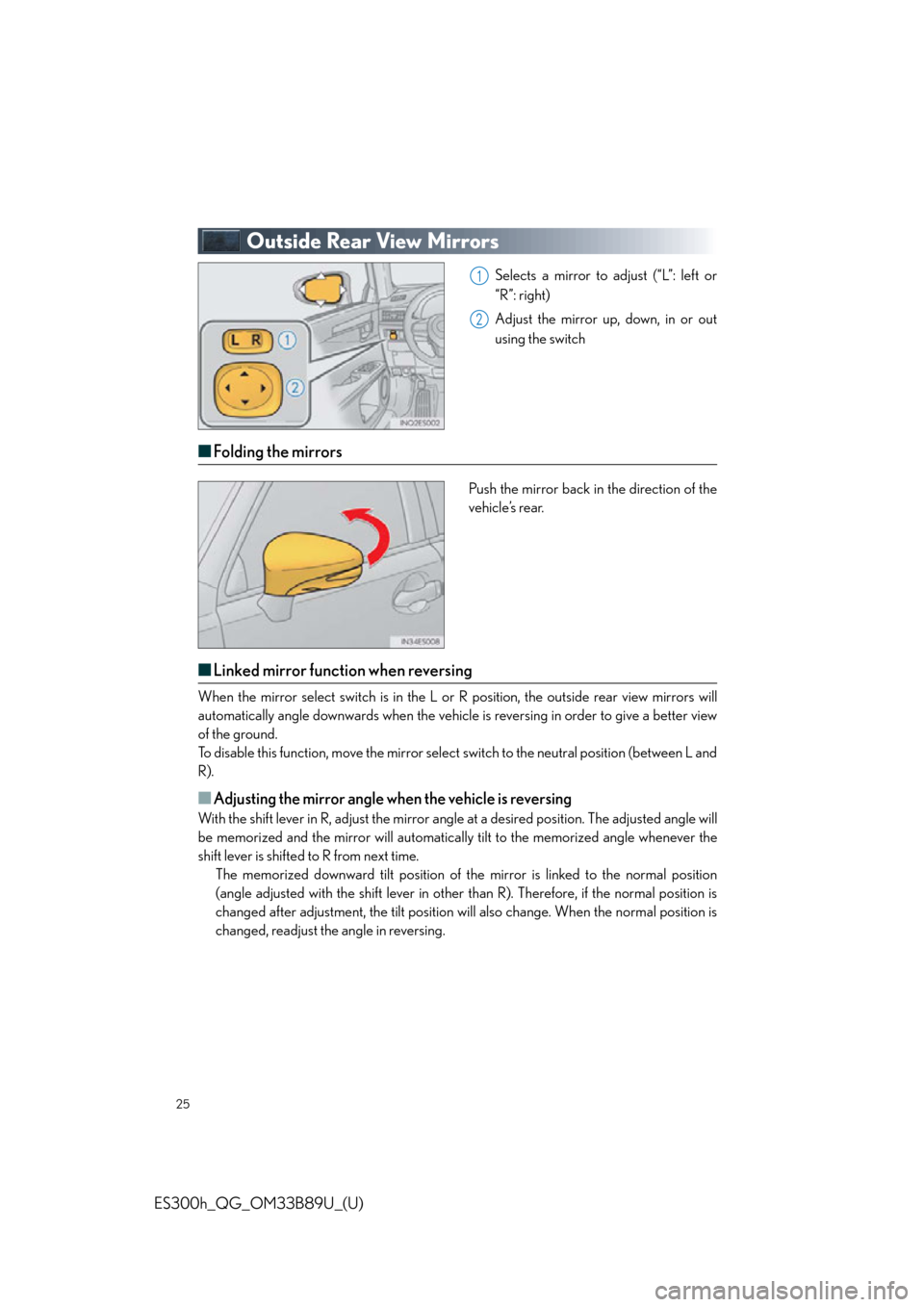

Outside Rear View Mirrors
Selects a mirror to adjust (“L”: left or
“R”: right)
Adjust the mirror up, down, in or out
using the switch
■Folding the mirrors
Push the mirror back in the direction of the
vehicle’s rear.
■Linked mirror function when reversing
When the mirror select switch is in the L or R position, the outside rear view mirrors will
automatically angle downwards when the vehicle is reversing in order to give a better view
of the ground.
To disable this function, move the mirror select switch to the neutral position (between L and
R).
■Adjusting the mirror angle when the vehicle is reversing
With the shift lever in R, adjust the mirror an gle at a desired position. The adjusted angle will
be memorized and the mirror will automatically tilt to the memorized angle whenever the
shift lever is shifted to R from next time. The memorized downward tilt position of the mirror is linked to the normal position
(angle adjusted with the shift lever in other than R). Therefore, if the normal position is
changed after adjustment, the tilt position w ill also change. When the normal position is
changed, readjust the angle in reversing.
1
2
Page 26 of 114
26
ES300h_QG_OM33B89U_(U)
Power (Ignition) Switch
■Starting the hybrid system
Check that the par king brake is set.
Check that the shift lever is in P.
Firmly depress the brake pedal.
will be displayed on the
multi-information display. If it is not
displayed, the hybrid system cannot
be started.
Press the power switch. If the “READY” indicator turns on, the
hybrid system will operate normally.
Continue depressing the brake pedal
until the “READY” indicator is illumi-
nated.
The hybrid system can be started
from any power switch mode.
Check that the “READY” indicator is
illuminated. The vehicle will not move when the
“READY” indicator is off.
Performing the following operations when carrying the electronic key on your person
starts the hybrid system or changes power switch modes.
1
2
3
4
5
Page 27 of 114
27
ES300h_QG_OM33B89U_(U)
■Stopping the hybrid system
Stop the vehicle completely.
Shift the shift lever to P.
Set the parking brake.
Press the power switch.
Release the brake pedal and check that “P OWER ON” on the multi-information dis-
play is off.
■ Changing power switch modes
Modes can be changed by pressing the power switch with the brake pedal released. (The
mode changes each time the switch is pressed.)
Off
*
The emergency flashers can be used.
ACCESSORY mode Some electrical components such as the
audio system can be used.
“POWER ON” will be displayed on the
multi-information display.
ON mode All electrical components can be used.
“POWER ON” will be displayed on the
multi-information display.
*: If the shift lever is in a position other than
P when turning off the hybrid system, the
power switch will be turned to ACCES-
SORY mode, not to off.
1
2
3
4
5
Page 28 of 114
28
ES300h_QG_OM33B89U_(U)

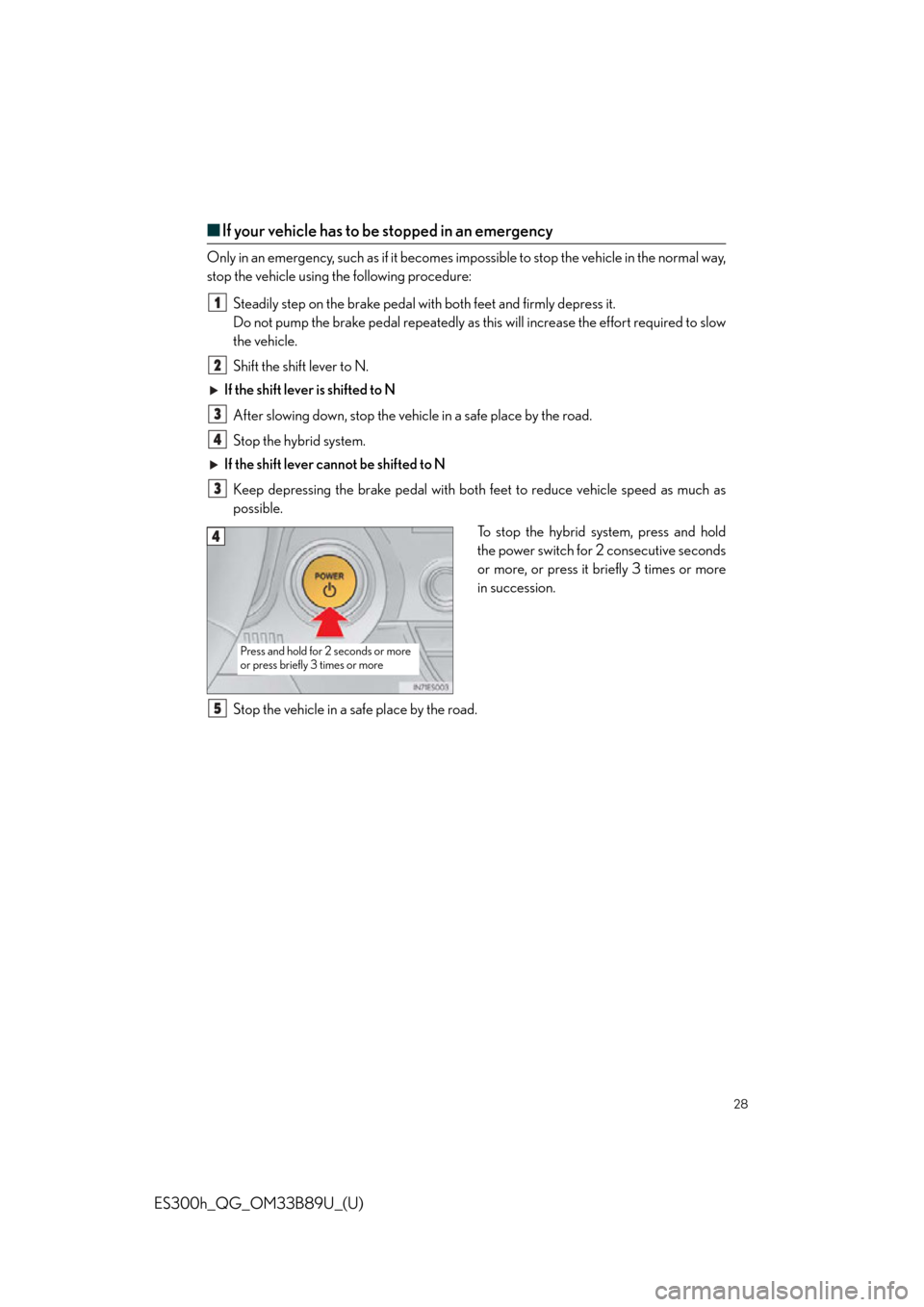

■If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes im possible to stop the vehicle in the normal way,
stop the vehicle using the following procedure:
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to slow
the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicl e in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as much as
possible. To stop the hybrid system, press and hold
the power switch for 2 consecutive seconds
or more, or press it briefly 3 times or more
in succession.
Stop the vehicle in a safe place by the road.
1
2
3
4
3
Press and hold for 2 seconds or more
or press briefly 3 times or more
4
5
Page 29 of 114
29
ES300h_QG_OM33B89U_(U)
EV Drive Mode
Tu r n s E V d r i v e m o d e o n /o f fWhen EV drive mode is turned on, the
EV drive mode indicator will come on.
Pressing the switch when in EV drive
mode will return the vehicle to normal
driving (using the gasoline engine and
electric motor [traction motor]).
In EV drive mode, electric power is supplied by the hybrid battery (traction battery), and
only the electric motor (traction motor) is used to drive the vehicle.
Page 30 of 114
30
ES300h_QG_OM33B89U_(U)
Hybrid Transmission
■Shifting the shift lever
While the power switch is in ON mode, mo ve the shift lever with the brake pedal
depressed.
When shifting the shift lever between P and D, make sure that the vehicle is com-
pletely stopped.
■ Shift position purpose
*1: To improve fuel efficiency and reduce noises, set the shift lever in D for normal driving.
*2: By selecting shift ranges using S mode, you can control engine braking forces.
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
DNormal driving*1
SS mode driving*2
