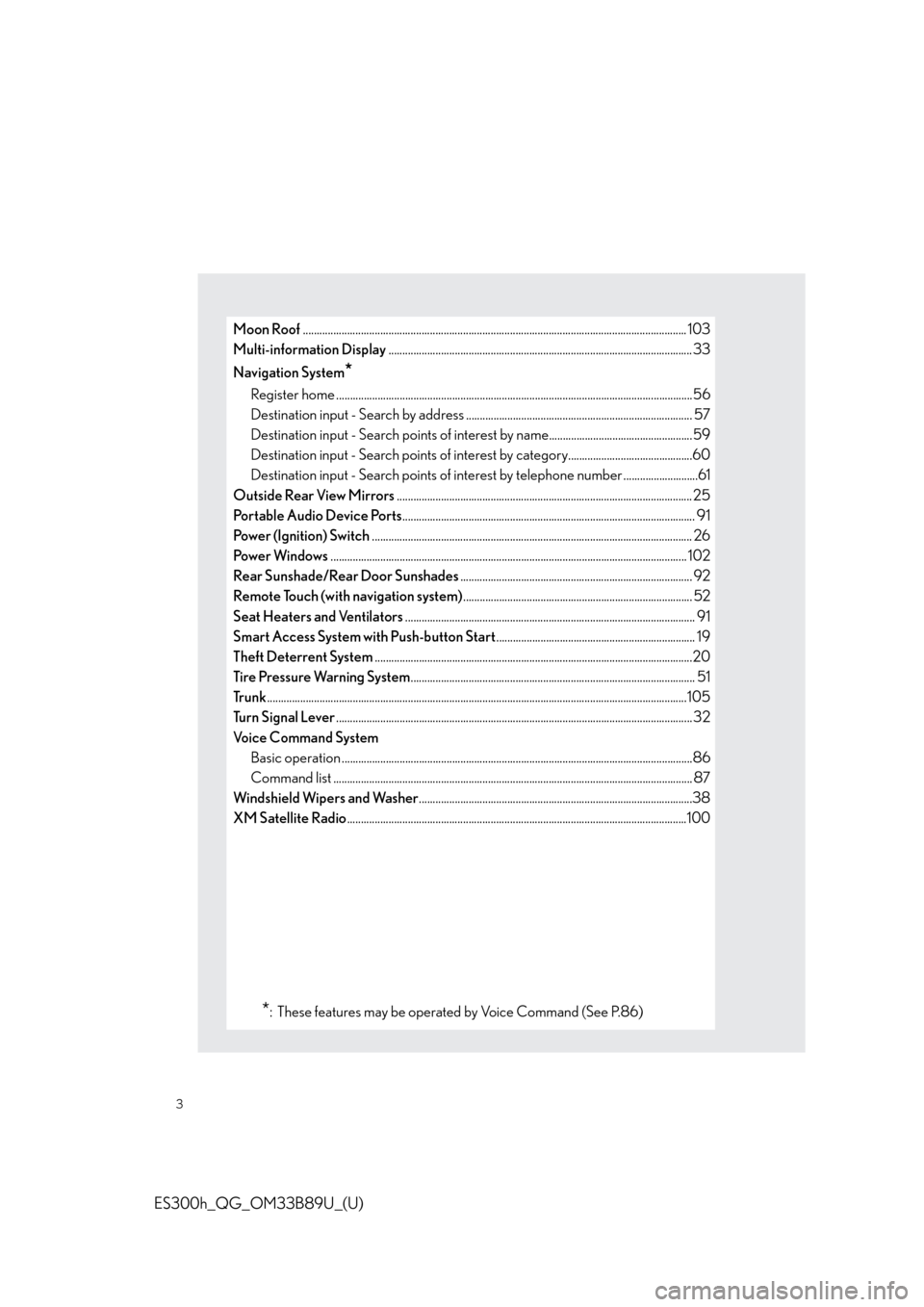

Page 3 of 114
3
ES300h_QG_OM33B89U_(U)
Moon Roof........................................................................................................................................... 103
Multi-information Display .............................................................................................................. 33
Navigation System
*
Register home .................................................................................................................. ...............56
Destination input - Search by address .................................................................................. 57
Destination input - Search points of interest by name....................................................59
Destination input - Search points of interest by category.............................................60
Destination input - Search points of interest by telephone number ...........................61
Outside Rear View Mirrors ........................................................................................................... 25
Portable Audio Device Ports .......................................................................................................... 91
Power (Ignition) Switch .................................................................................................................... 26
Po w e r Wi n d o w s ............................................................................................................................... .. 102
Rear Sunshade/Rear Door Sunshades .................................................................................... 92
Remote Touch (with navigation system) ................................................................................... 52
Seat Heaters and Ventilators ......................................................................................................... 91
Smart Access System with Push-button Start ........................................................................ 19
Theft Deterrent System ...................................................................................................................20
Tire Pressure Warning System ....................................................................................................... 51
Tr u n k ........................................................................................................................................................105
Turn Signal Lever ............................................................................................................................... .. 32
Voice Command System Basic operation ................................................................................................................ ...............86
Command list ................................................................................................................... ............... 87
Windshield Wipers and Washer ...................................................................................................38
XM Satellite Radio ...........................................................................................................................100
*: These features may be operated by Voice Command (See P.86)
Page 15 of 114
15
ES300h_QG_OM33B89U_(U)
●How to display on the multi-information display
Press or of the meter control switches and select , and then press or
to select the energy monitor display.
■Fuel Consumption
● Trip information
Navigation system screen
Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu” screen,
and then select “Fuel Consumption”.
If the “Trip Information” screen does not appear, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Regenerated energy in the past 15
minutes
One symbol indicates 50 Wh. Up to 5
symbols are shown.
Average vehicle speed since the hybrid
system was started
Elapsed time since the hybrid system
was started
Cruising range
The flow of energy is indicated by the movement of the
arrows on the multi-information display.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recoveryA light blue arrow appears when regenerative braking
occurs.
The displayed energy flow, battery level, etc. wi ll change in response to the current driving
conditions.
1
2
3
4
5
6
7
Page 18 of 114
18
ES300h_QG_OM33B89U_(U)
Keys
■Electronic key
Smart access system with push-button start
( P.1 9 , 2 6 )
Wireless remote control ( P.1 8 )
■Mechanical key
To take out the mechanical key, push the
release button and take the key out.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If
the electronic key battery is depleted or
the entry function does not operate
properly, you will need the mechanical
key.
■Wireless remote control
Locks the doors
Unlocks the doors
Opens the windows and moon roof
*
Opens the trunk
Sounds the alarm
*: This setting must be customized at your
Lexus dealer.
1
2
3
4
5
Page 97 of 114
97
ES300h_QG_OM33B89U_(U)
LEXUS Enform (for U.S.A., if equipped)
■Function achieved by using a cellular phone (with navigation system)
■
Services
Of the functions included with Lexus Enform, only LEXUS App Suite can be achieved by
using a cellular phone.
LEXUS App Suite is a service that enables the us able contents of a cellular phone to be dis-
played on and operated from the navigation screen. Before LEXUS App Suite can be used,
a few settings need to be performed.
● LEXUS App Suite
When LEXUS App Suite is activated, an app lication may need to update. By updating, an
application can be kept the latest version. To updating the application, it is necessary to
download the updated data and install it.
■Subscription
LEXUS App Suite will be available on a trial pe riod included upon purchase of a new vehi-
cle. User registration is required to start using the service.
When a trial period has elapsed after purchasing a new vehicle, a fee will be charged to
renew the contract. Services requiring a separa te contract can also be used. For details,
refer to http://www.lexus.com/enform/
or call 1-800-255-3987.
■ Function achieved by using DCM and the navigation system
(with navigation system)
■
Services
Of the functions included with Lexus Enform, LEXUS Enform Destinations (Destination
Assist, eDestination), and Le xus Insider can be achieved by making DCM cooperate with
the navigation system.
These are subscription-based telematics servic es that use Global Positioning System (GPS)
data, embedded cellular technology to provide safety and security as well as convenience
features to subscribers. The services are supp orted by Lexus’ designated response center,
which operates 24 hours a day, 7 days a week.
The services are available by subscription on select, telematics hardware-equipped vehi-
cles.
Lexus Enform is a service that includes Sa fety Connect, Remote, Destinations, Insider
and App Suite.
For details, refer to the “OWNER’S MANUAL” and “NAVIGATION SYSTEM
OWNER’S MANUAL”.
Page 105 of 114
105
ES300h_QG_OM33B89U_(U)
Tr u n k
■Opening the trunk
● From inside the vehicle
Press the opener switch.If the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully
Turn the main switch in the glove box off to
disable the trunk opener. On
Off
The trunk lid cannot be opened even with
the wireless remote control or the trunk
release button.
● From outside the vehicle
• Smart access system with push-button start
While carrying the electronic key, press the
button on the trunk lid.When all the doors are unlocked with
the power door lock system, the trunk
can be opened without carrying the
electronic key.
If the vehicle is equipped with power
trunk opener and closer, the trunk lid
automatically opens fully.
• Wireless remote control Press and hold the switchIf the vehicle is equipped with a power
trunk opener and closer, the trunk lid
automatically opens fully.
1
2
