Lexus ES300h 2017 Owner's Manual

ES300h_OM_OM33C75U_(U)

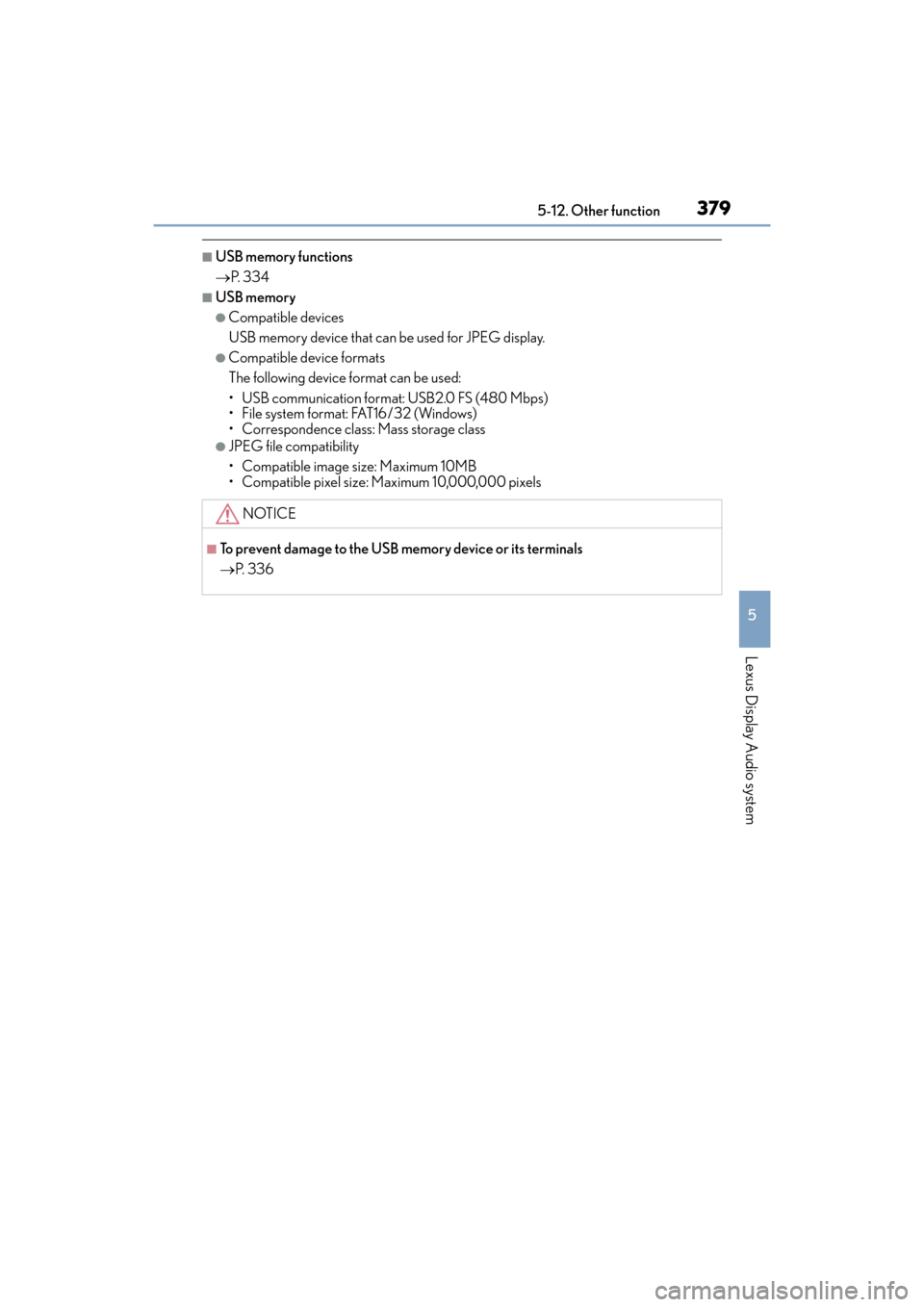

3795-12. Other function
5
Lexus Display Audio system
■USB memory functions
→P. 3 3 4
■USB memory
●Compatible devices
USB memory device that can be used for JPEG display.
●Compatible device formats
The following device format can be used:
• USB communication format: USB2.0 FS (480 Mbps)
• File system format: FAT16/32 (Windows)
• Correspondence class: Mass storage class
●JPEG file compatibility
• Compatible image size: Maximum 10MB
• Compatible pixel size: Maximum 10,000,000 pixels
NOTICE
■To prevent damage to the USB memory device or its terminals
→P. 3 3 6

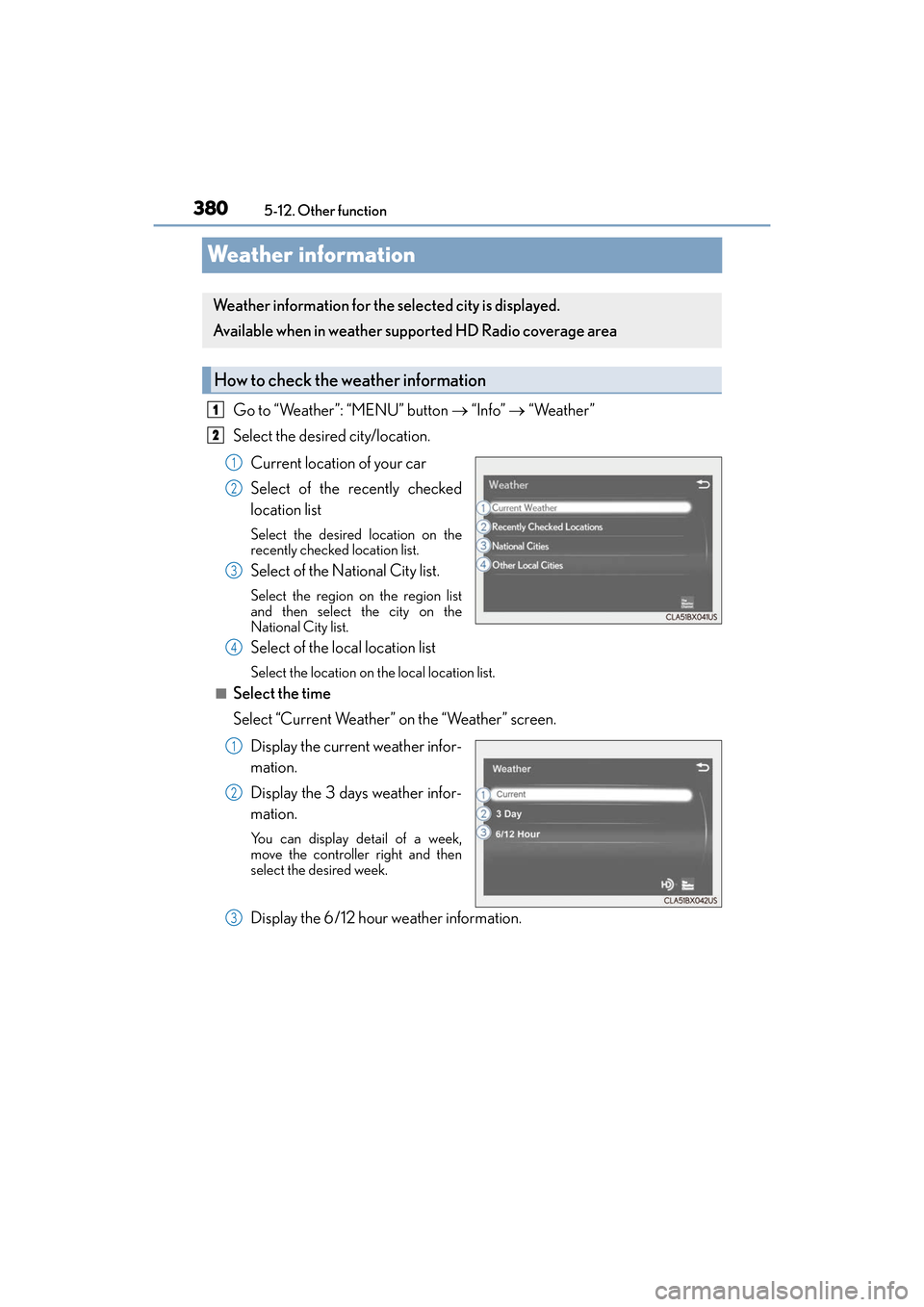

380
ES300h_OM_OM33C75U_(U)5-12. Other function
Weather information
Go to “Weather”: “MENU” button
→ “Info” → “Weather”
Select the desired city/location.
Current location of your car
Select of the recently checked
location list
Select the desired location on the
recently checked location list.
Select of the National City list.
Select the region on the region list
and then select the city on the
National City list.
Select of the local location list
Select the location on the local location list.
■Select the time
Select “Current Weather” on the “Weather” screen.Display the current weather infor-
mation.
Display the 3 days weather infor-
mation.
You can display detail of a week,
move the controller right and then
select the desired week.
Display the 6/12 hour weather information.
Weather information for the selected city is displayed.
Available when in weather supported HD Radio coverage area
How to check the weather information
1
2
1
2
3
4
1
2
3

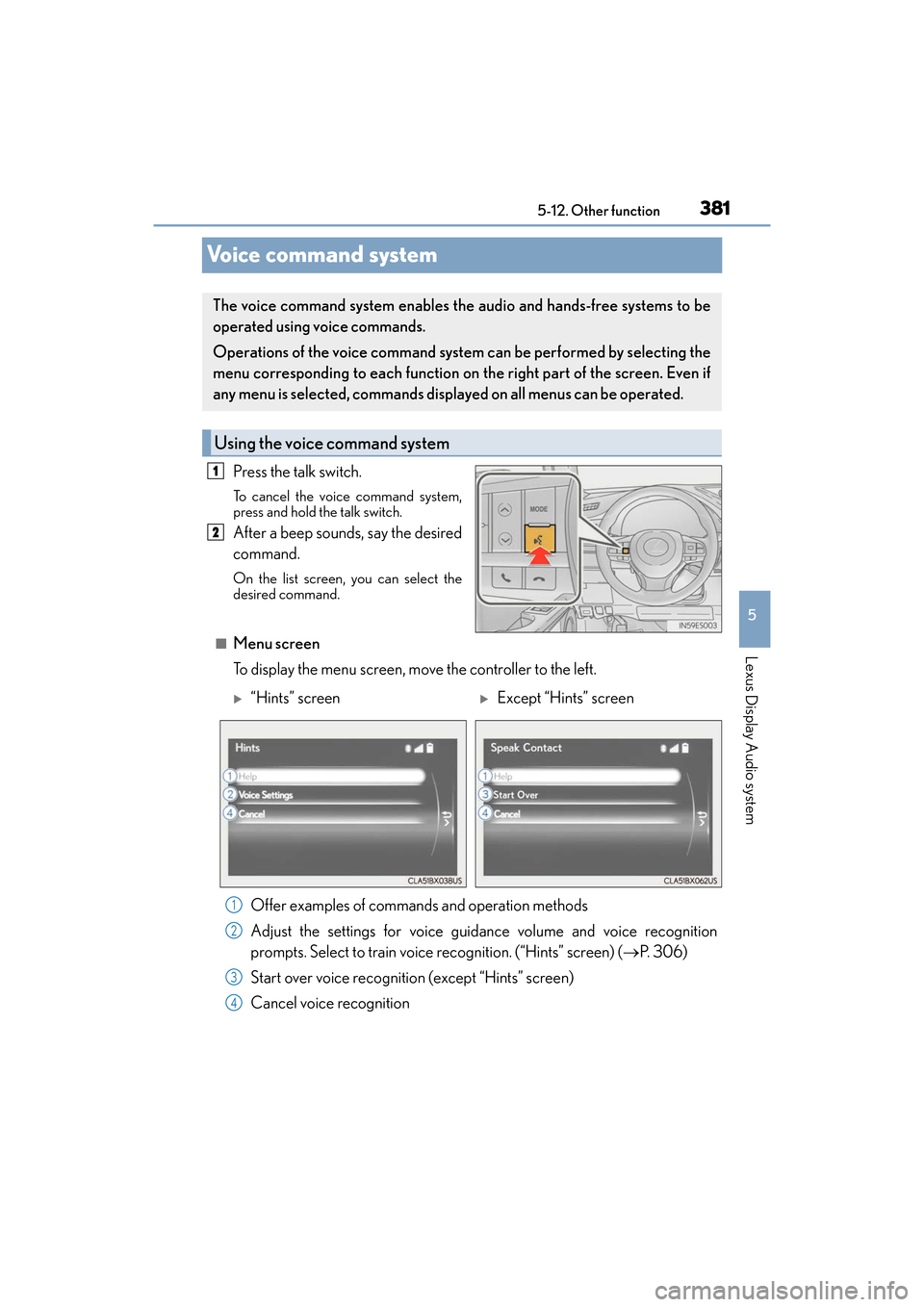

381
ES300h_OM_OM33C75U_(U)5-12. Other function
5
Lexus Display Audio system
Voice command system
Press the talk switch.
To cancel the voice command system,
press and hold the talk switch.
After a beep sounds, say the desired
command.
On the list screen, you can select the
desired command.
■Menu screen
To display the menu screen, move the controller to the left.
The voice command system enables the audio and hands-free systems to be
operated using voice commands.
Operations of the voice command system
can be performed by selecting the
menu corresponding to each function on the right part of the screen. Even if
any menu is selected, commands displayed on all menus can be operated.
Using the voice command system
1
2
X“Hints” screenXExcept “Hints” screen
Offer examples of commands and operation methods
Adjust the settings for voice guidance volume and voice recognition
prompts. Select to train voice recognition. (“Hints” screen) ( →P. 306)
Start over voice recognition (except “Hints” screen)
Cancel voice recognition
1
2
3
4

3825-12. Other function
ES300h_OM_OM33C75U_(U)
■Microphone
→ P. 3 5 0
■When using the microphone
●It is unnecessary to speak directly into the microphone when giving a command.
●Wait for the confirmation beep before speaking a command.
●Voice commands may not be recognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
●In the following conditions, the system ma y not recognize the command properly and
using voice commands may not be possible:
• The command is incorrect or unclear. Note that certain words, accents or speech
patterns may be diffi cult for the system to recognize.
• There is excessive background noise, such as wind noise.
■When searching for a track
●A USB memory or iPod must be connected to enable track searching and playback.
( → P. 2 9 9 )
●When a USB memory or iPod is connected, recognition data is created so tracks can
be searched using voice commands.
●Recognition data is updated under the following conditions:
• When the USB memory or iPod data has changed.
• When the voice recognition language is changed. (→ P. 303)
●While the recognition data is being created or being updated, a track search cannot be
performed using a voice command.
■The Gracenote® media database
→ P. 3 2 6
Due to natural language speech recognition technology, this system enables rec-
ognition of a command when spoken naturally. However, the system cannot rec-
ognize every variation of each command.
In some situations, it is possible to omit the command for the procedure and
directly state the desired operation.
This function is available in English, Spanish and French.
Casual speech recognition

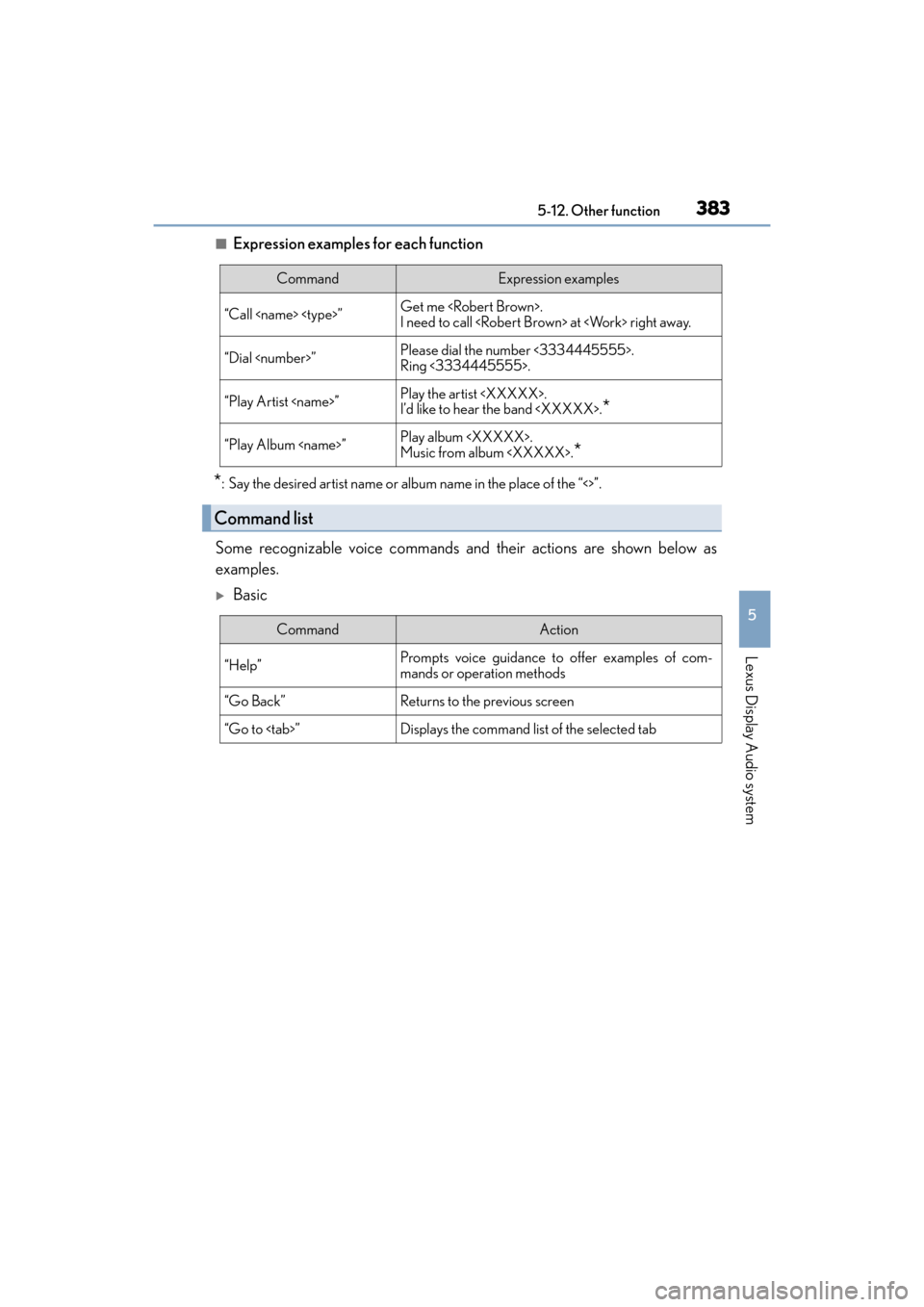

ES300h_OM_OM33C75U_(U)
3835-12. Other function
5
Lexus Display Audio system
■Expression examples for each function
*: Say the desired artist name or album name in the place of the “<>”.
Some recognizable voice commands and their actions are shown below as
examples.
XBasic
CommandExpression examples
“Call ”Get me .
I need to call at right away.
“Dial ”Please dial the number <3334445555>.
Ring <3334445555>.
“Play Artist ”Play the artist .
I’d like to hear the band .*
“Play Album ”Play album .
Music from album .
*
Command list
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
“Go to ”Displays the command list of the selected tab

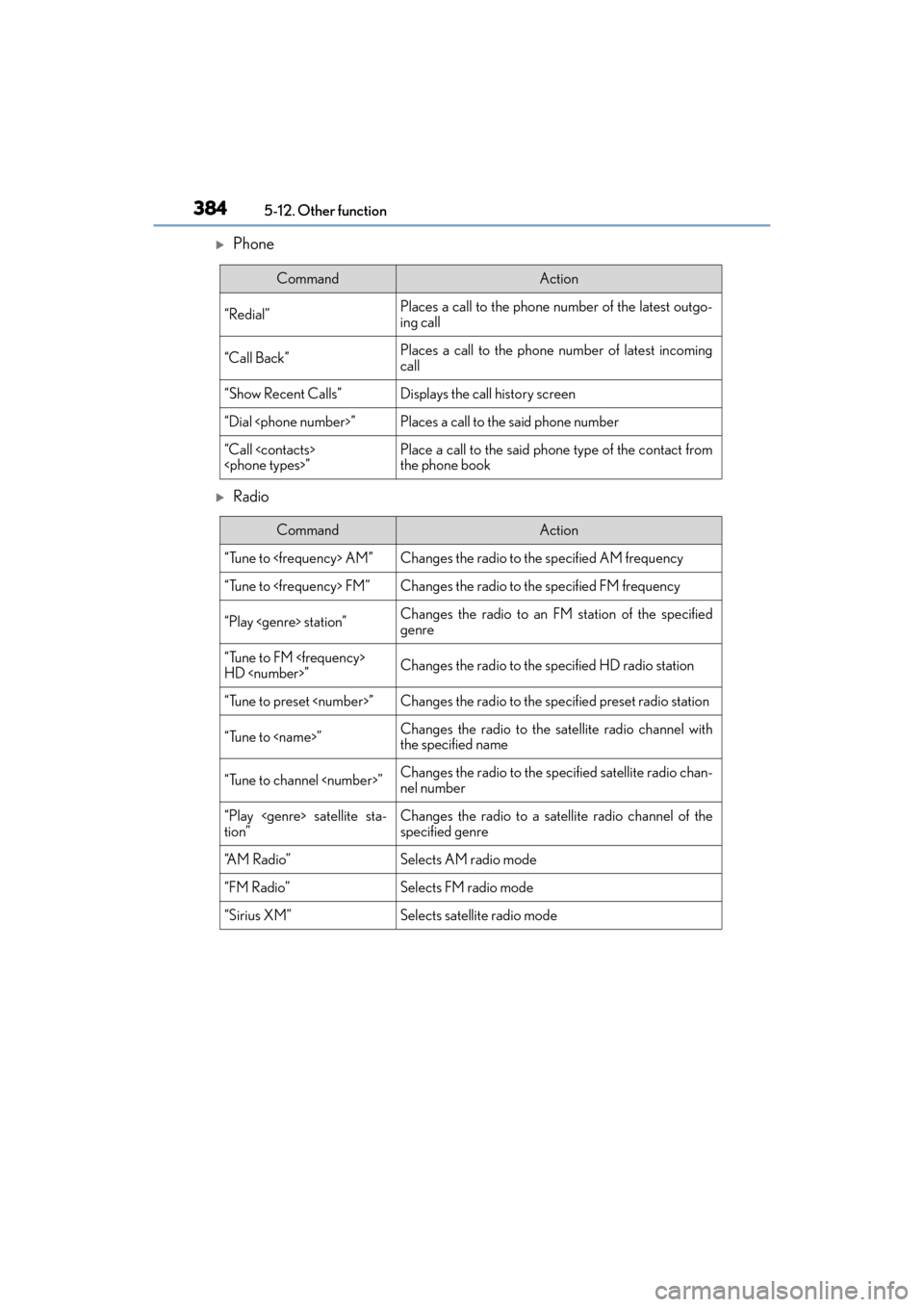

3845-12. Other function
ES300h_OM_OM33C75U_(U)
XPhone
XRadio
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Dial ”Places a call to the said phone number
“Call
”Place a call to the said phone type of the contact from
the phone book
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play station”Changes the radio to an FM station of the specified
genre
“Tune to FM
HD ”Changes the radio to the specified HD radio station
“Tune to preset ”Changes the radio to the specified preset radio station
“Tune to ”Changes the radio to the satellite radio channel with
the specified name
“Tune to channel ”Changes the radio to the sp ecified satellite radio chan-
nel number
“Play satellite sta-
tion”Changes the radio to a sate llite radio channel of the
specified genre
“A M R a d i o ”Selects AM radio mode
“FM Radio”Selects FM radio mode
“Sirius XM”Selects satellite radio mode

ES300h_OM_OM33C75U_(U)
3855-12. Other function
5
Lexus Display Audio system

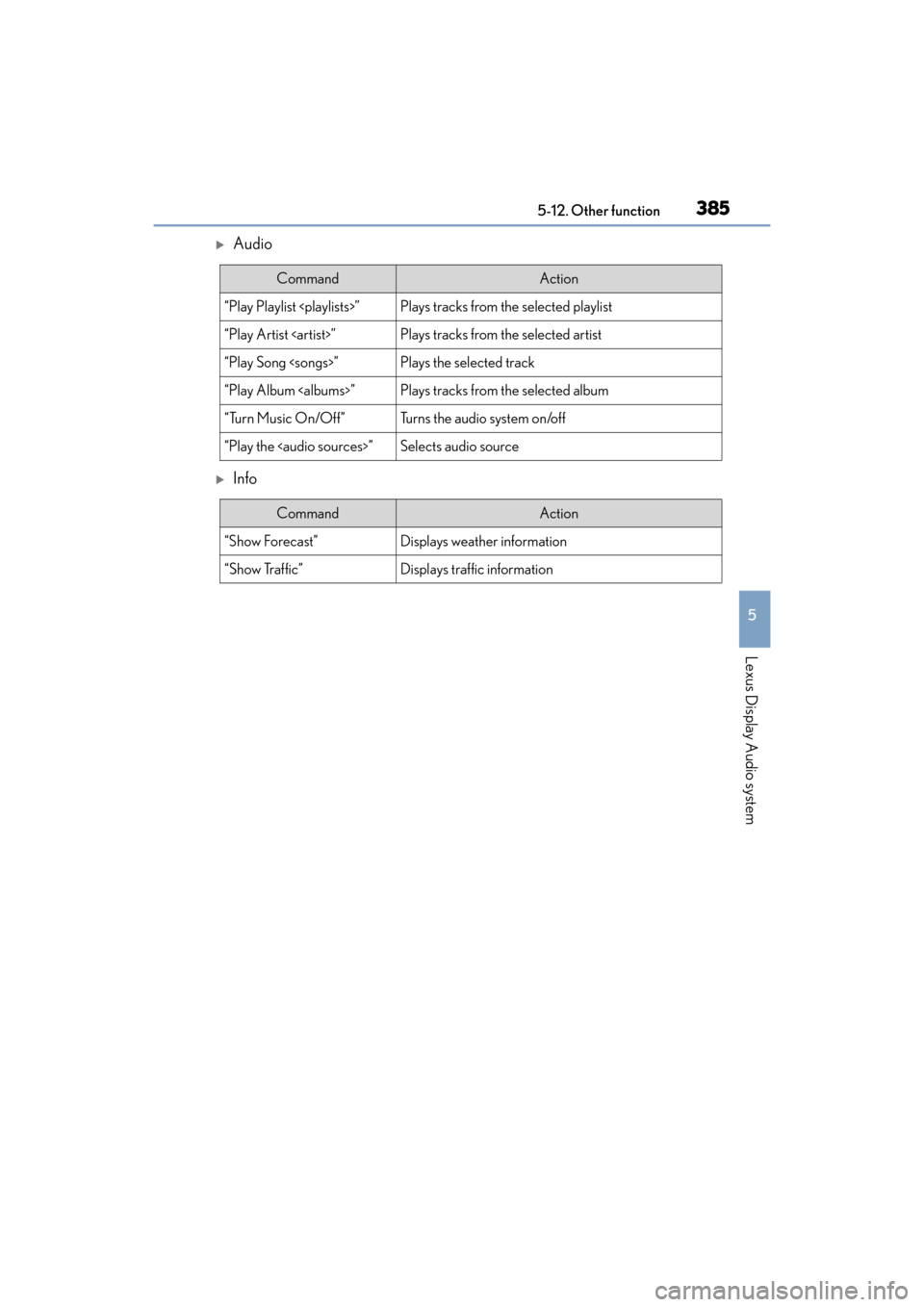

XAudio
XInfo
CommandAction
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
“Turn Music On/Off”Turns the audio system on/off
“Play the

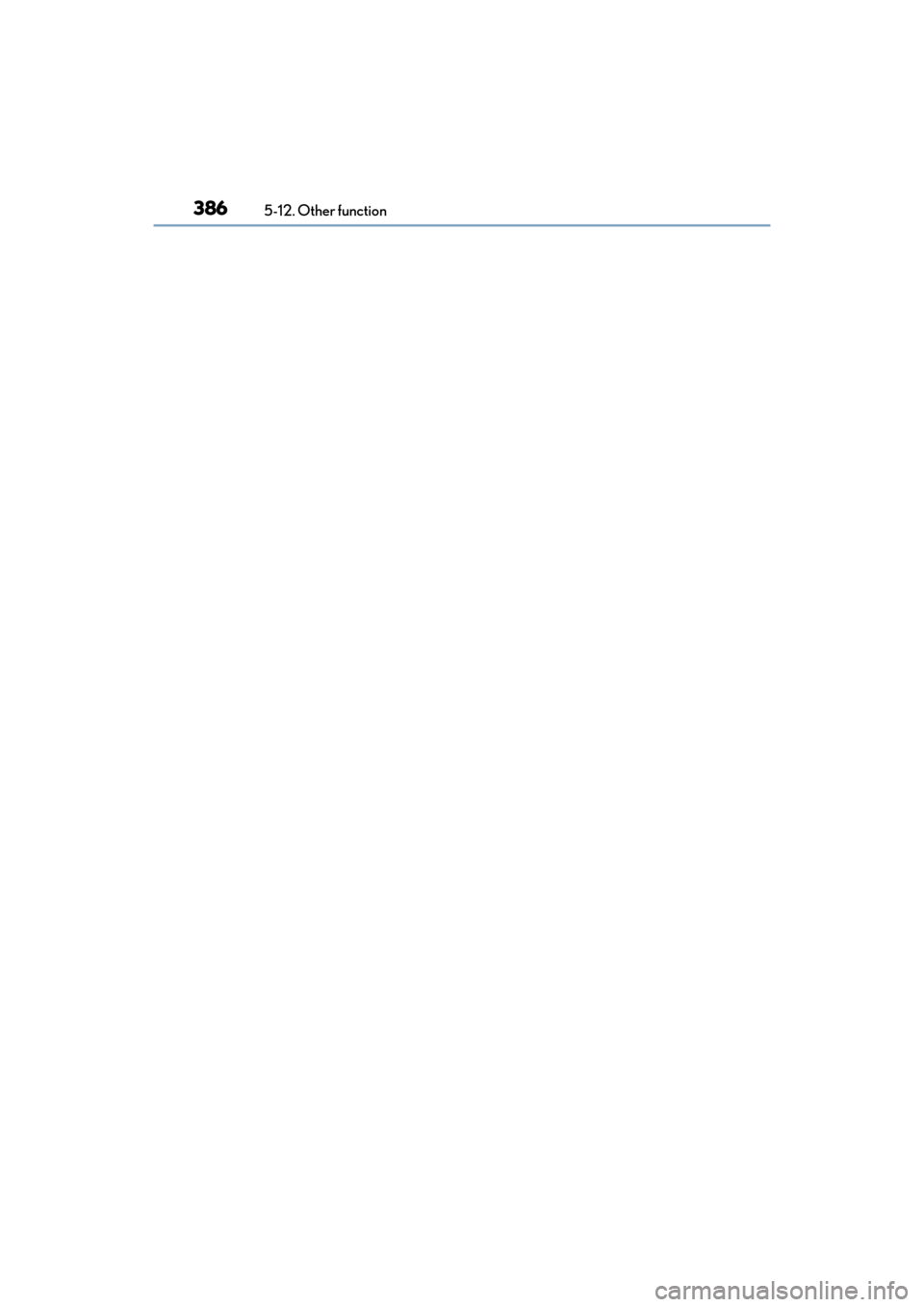

3865-12. Other function
ES300h_OM_OM33C75U_(U)

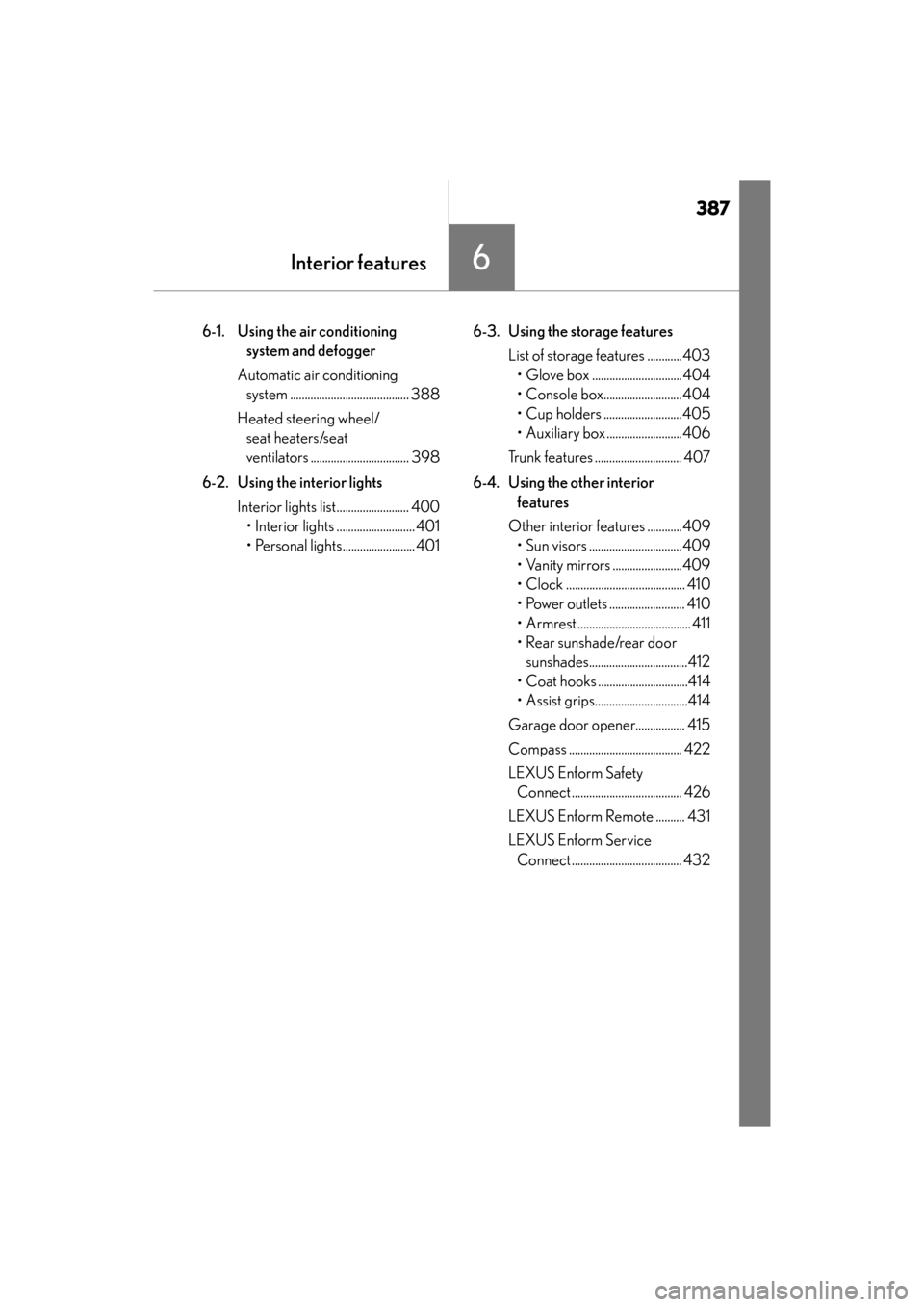

387
ES300h_OM_OM33C75U_(U)
6Interior features
6-1. Using the air conditioning system and defogger
Automatic air conditioning system ......................................... 388
Heated steering wheel/ seat heaters/seat
ventilators .................................. 398
6-2. Using the interior lights Interior lights list......................... 400• Interior lights ........................... 401
• Personal lights......................... 401 6-3. Using the storage features
List of storage features ............403• Glove box ...............................404
• Console box........................... 404
• Cup holders ...........................405
• Auxiliary box ..........................406
Trunk features .............................. 407
6-4. Using the other interior features
Other interior features ............409 • Sun visors ................................409
• Vanity mirrors ........................409
• Clock ......................................... 410
• Power outlets .......................... 410
• Armrest ....................................... 411
• Rear sunshade/rear door sunshades..................................412
• Coat hooks ...............................414
• Assist grips................................414
Garage door opener................. 415
Compass ....................................... 422
LEXUS Enform Safety Connect ...................................... 426
LEXUS Enform Remote .......... 431
LEXUS Enform Service Connect ...................................... 432

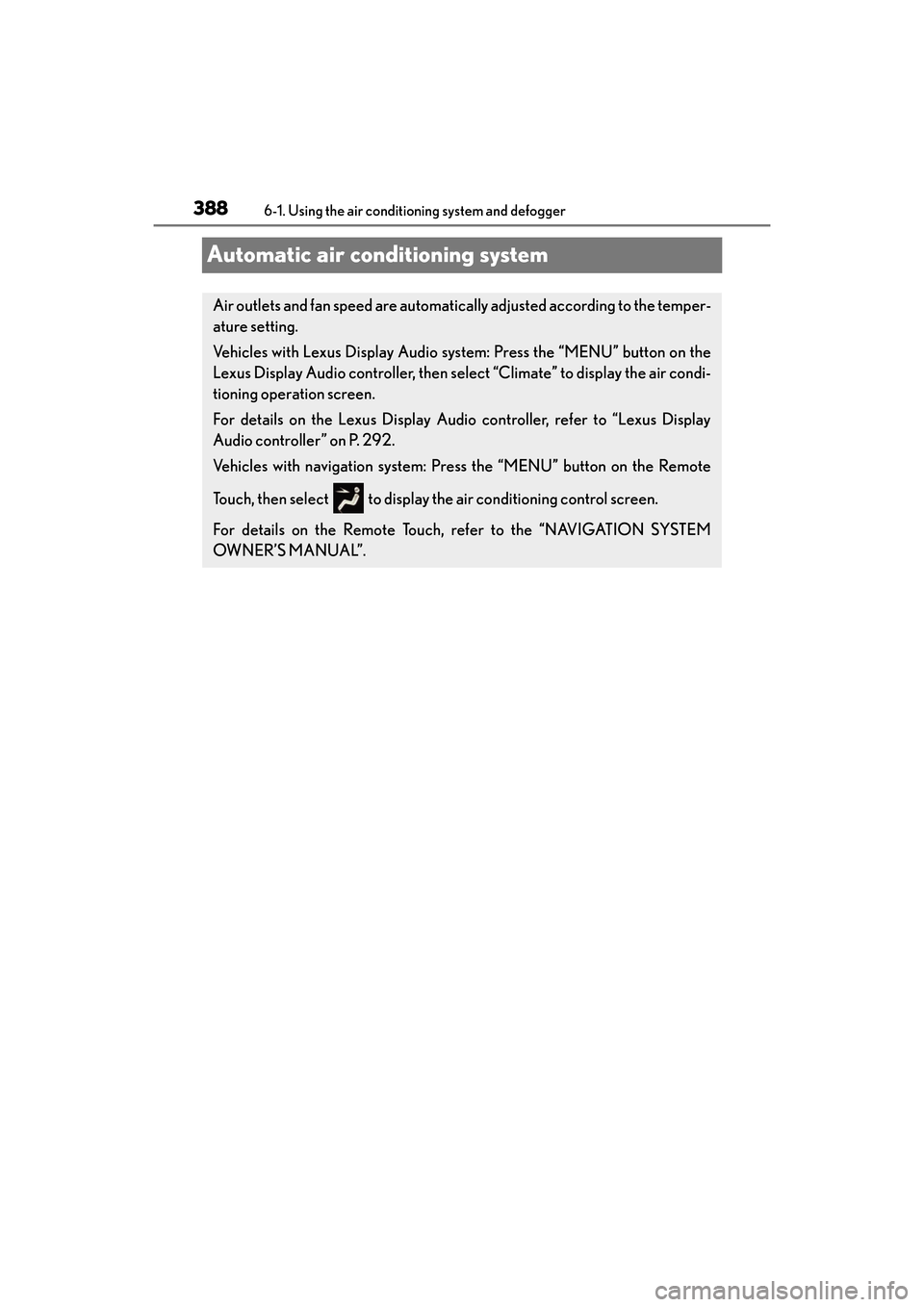

388
ES300h_OM_OM33C75U_(U)6-1. Using the air conditio
ning system and defogger
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the temper-
ature setting.
Vehicles with Lexus Display Audio system: Press the “MENU” button on the
Lexus Display Audio controller, then select “Climate” to display the air condi-
tioning operation screen.
For details on the Lexus Display Audio controller, refer to “Lexus Display
Audio controller” on P. 292.
Vehicles with navigation system: Press the “MENU” button on the Remote
Touch, then select to display the air conditioning control screen.
For details on the Remote Touch, refer to the “NAVIGATION SYSTEM
OW N ER’S M A NUA L”.
