Lexus ES300h 2018 Owner's Manual (OM33D45U)

ES300h_OM_OM33D45U_(U)
3015-2. Setup
5
Lexus Display Audio system
Go to “Delete Personal Data”: “MENU” button → “Setup” → “General” →
“Delete Personal Data”
Select “Delete”.
Check carefully beforeha nd, as data cannot be retrieved once deleted.
The following personal data will be dele ted or changed to its default settings.
• Phonebook data
• Call history data
•Favorite data
•Bluetooth
® devices data
• Phone sound settings
• Detailed Bluetooth
® settings
• Audio/video setting
• Customized image data
•FM info setting
• iPod tagging information
• Software update history
• Software update detail information
• Phone display setting
• Contact/call history setting
• Messaging setting
• Traffic information map
• Weather information
• Phonebook data for voice recognition
• Music data for voice recognition
NOTICE
■To prevent damage to the USB me mory device or its terminals
→ P. 332
Deleting personal data
1
2

302
ES300h_OM_OM33D45U_(U)5-2. Setup
Voice settings
Go to “Voice Settings”: “MENU” button →
“Setup” → “Voice”
Adjust the voice guidance volume
setting.
Set the voice recognition prompts
on/off.
Select to train voice recognition.
The voice command system adapt the
user accent.
■Return to the default settings
Move the controller to the left and select “Default”.
You can adjust the guidance volume setting.
1
2
3

303
ES300h_OM_OM33D45U_(U)5-2. Setup
5
Lexus Display Audio system
Display settings
Go to “Display”: “MENU” button
→ “Display”
Turn off screen.
Adjust screen quality.
Adjust screen quality of the rear
view monitor camera.
Change to day mode.
This setting turns the screen off. To tu rn it on, press any button such as the
“AUDIO” button or “MENU” button.
If a screen off image has been se t, the set image will be displayed.
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by selecting “Day Mode”.
The screen will stay in day mode when the headlights are turned on until “Day Mode”
is selected again.
Select “General” or “Camera” on the “D isplay” screen or select “Display” on
audio menu screen. ( →P. 309)
Adjust the display as desired by turning the controller clockwise (+) or coun-
terclockwise (-).
To select “Contrast”, “Brightness”, “Color” or “Tone”, move the controller to the left.
(“Color” and “Tone” are available when “Display” on the audio settings screen for
each audio source is selected.)
■Changing the sample image (when “General” is selected)
Move the controller to the right and select the desired sample image.
Settings are available for adjusting the contrast and brightness of the screen.
The display can also be turned off.
Screen for display settings
1
2
3
4
Screen off
Day mode
Adjusting the screen quality
1
2

304
ES300h_OM_OM33D45U_(U)5-3. Using the audio system
Selecting the audio source
Press the “AUDIO” button to
display the “Source” screen.
If the “Source” screen is not displayed, press the button again.
Select the desired audio source.
The audio source can be selected by pressing the “RADIO” or “MEDIA” button.
Press the “MODE” switch when the audio system is turned on. The audio source
changes each time the “MODE” switch is pressed.
■Rearranging the list
The listing order of the sour ce list can be rearranged.
Move the controller to the left while on the “Source” screen.
Select “Audio Source Select”.
Select an item you wish to move and th en select where to move the item to.
Switching between audio sources, such as the radio and CD, is explained in
this section.
Changing audio source
Using the steering wheel switches to change audio sources
1
2
1
2
3

305
ES300h_OM_OM33D45U_(U)5-3. Using the audio system
5
Lexus Display Audio system
Optimal use of the audio system
Go to “Sound Settings”: Move the contro
ller to the left on the audio top screen
→ “Sound Settings”
To change between the sound setting screen and DSP setting screen, move the
controller to the right then select the desired screen.
“Sound Settings”
Adjusts the treble, mid or
bass.
Adjusts the front/rear audio balance.
Adjusts the left/right audio balance.
“DSP”
Sets the automatic sound levelizer
(ASL) on/off
Sets the surround function on/off
■The sound quality level is adjusted individually
The treble, mid and bass levels can be adjusted for each audio mode separately.
■About Automatic Sound Levelizer (ASL)
ASL automatically adjusts the volume and to ne quality according to the vehicle speed.
On the “Sound Settings” screen, sound quality (Treble/Mid/Bass), volume
balance and DSP settings can be adjusted.
How to adjust the sound settings and sound quality
123
4
5
1
2

306
ES300h_OM_OM33D45U_(U)5-3. Using the audio system
Audio settings
Go to “Audio Settings”: “MENU” button
→ “Setup” → “Audio”
Change radio settings (→ P. 306)
Change iPod settings ( →P. 307)
Change A/V settings ( →P. 307)
Change the cover art settings
(→ P. 308)
Change USB settings ( →P. 308)
To display the radio settings screen in a different way, select “Radio Settings” on
the audio menu screen. ( →P. 309)
Set the displaying RBDS text mes-
sage on/off
Change the number of radio presets
Screen for audio settings
1
2
3
4
5
Changing radio settings
1
2

ES300h_OM_OM33D45U_(U)
3075-3. Using the audio system
5
Lexus Display Audio system
To display the iPod settings screen in a different way, select “iPod Settings” on the
audio menu screen. ( →P. 309)
Change the screen size (video
mode)
Change the cover art settings
(→ P. 308)
Adjust the screen quality (video
mode) (→ P. 303)
Change video sound input port
To display the A/V settings screen in a different way, select “External Video Set-
tings” on the audio menu screen. ( →P. 309)
Change the screen size
Change the video signal
Adjust the screen quality (video
mode) (→ P. 303)
Changing iPod settings
1
2
3
4
Changing A/V settings
1
2
3

3085-3. Using the audio system
ES300h_OM_OM33D45U_(U)
To display the cover art settings screen in a different way, select “Cover Art Set-
tings” on the audio menu screen. ( →P. 309)
Select to set the cover art display
on/off.
Select to set the priority of the Gra-
cenote database on/off.
To display the USB settings screen in a different way, select “USB Settings” on
the audio menu screen. ( →P. 309)
Change the cover art settings
(→ P. 308)
Changing the cover art settings
1
2
Changing USB settings
1

309
ES300h_OM_OM33D45U_(U)5-3. Using the audio system
5
Lexus Display Audio system
Audio menu screen operation
Go to audio menu screen: Move the contro
ller to the left on the audio top screen
Radio mode
You can change the settings and control functions for each audio source.
Audio menu screen
ButtonFunctionTarget
radio mode
“SCAN”Scans for receivable stationsAM, FM
“SEEK”Seeks a station of the nearest frequency (stops
when a station is found)AM, FM
“Tag”
Captures the song title and artist name information
for potential purchase (when the “HD)” indicator
on the selected st ation is appears)
FM
“Multicast”Changes the channel of HD Radio (HD2, HD3,
HD4 where applicable)FM
“Traffic”Seeks a station of th e traffic announcementFM
“HD Radio”Selects to set the station list shows of HD radio on/
offAM, FM
“Radio Settings”Changes radio settings (→ P. 306)All mode
“Sound Settings”Changes sound settings (→P. 305)All mode

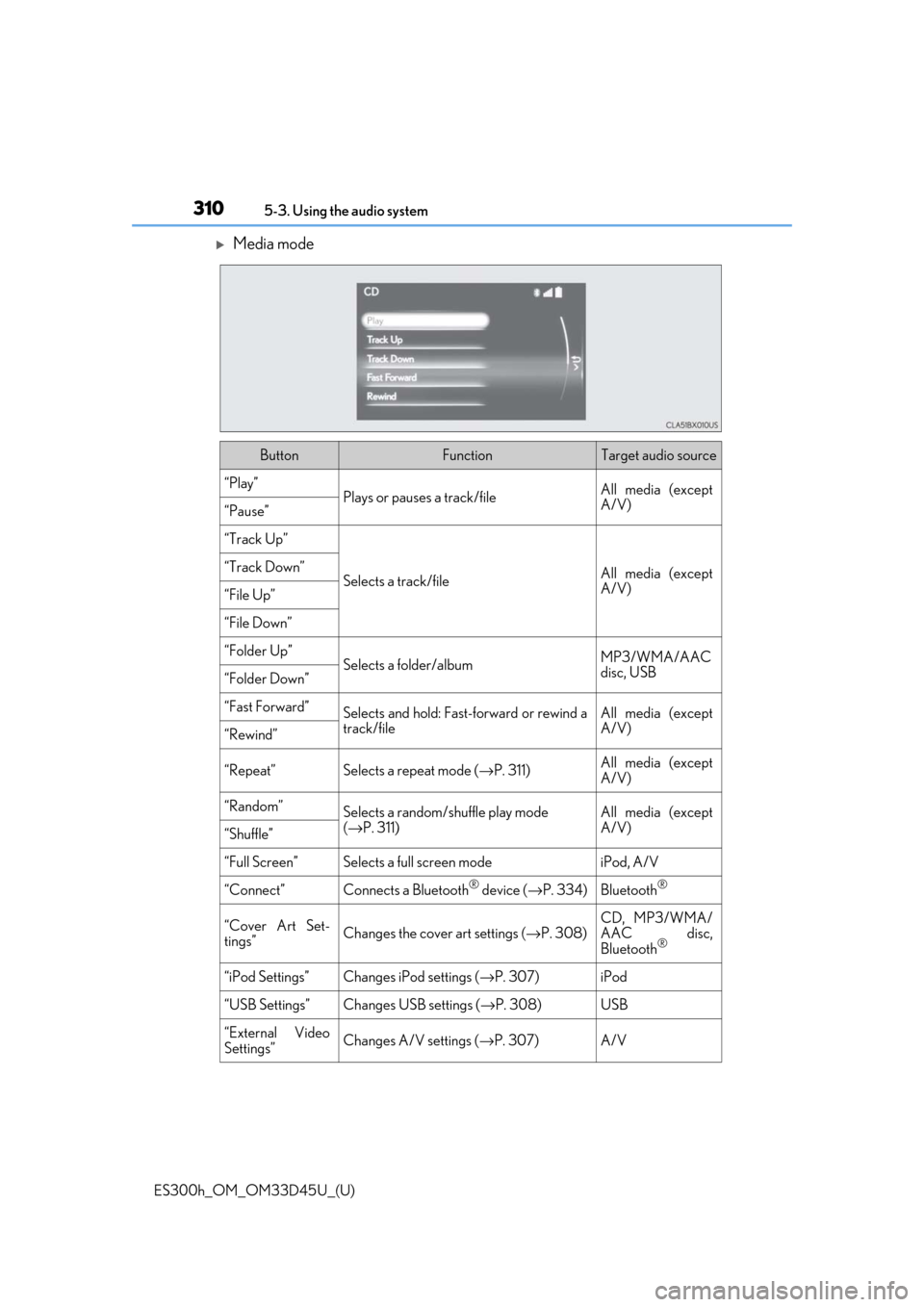

3105-3. Using the audio system
ES300h_OM_OM33D45U_(U)
Media mode
ButtonFunctionTarget audio source
“Play”Plays or pauses a track/fileAll media (except
A/V)
“Pause”
“Track Up”
Selects a track/fileAll media (except
A/V)“Track Down”
“File Up”
“File Down”
“Folder Up”Selects a folder/albumMP3/WMA/AAC
disc, USB
“Folder Down”
“Fast Forward”Selects and hold: Fast-f orward or rewind a
track/fileAll media (except
A/V)
“Rewind”
“Repeat”Selects a repeat mode ( →P. 311)All media (except
A/V)
“Random”Selects a random/shuffle play mode
(→ P. 311)All media (except
A/V)
“Shuffle”
“Full Screen”Selects a full screen modeiPod, A/V
“Connect”Connects a Bluetooth® device ( →P. 334)Bluetooth®
“Cover Art Set-
tings”Changes the cover art settings ( →P. 308)
CD, MP3/WMA/
AAC disc,
Bluetooth
®
“iPod Settings”Changes iPod settings ( →P. 307)iPod
“USB Settings”Changes USB settings (→ P. 308)USB
“External Video
Settings”Changes A/V settings (→P. 307)A/V
