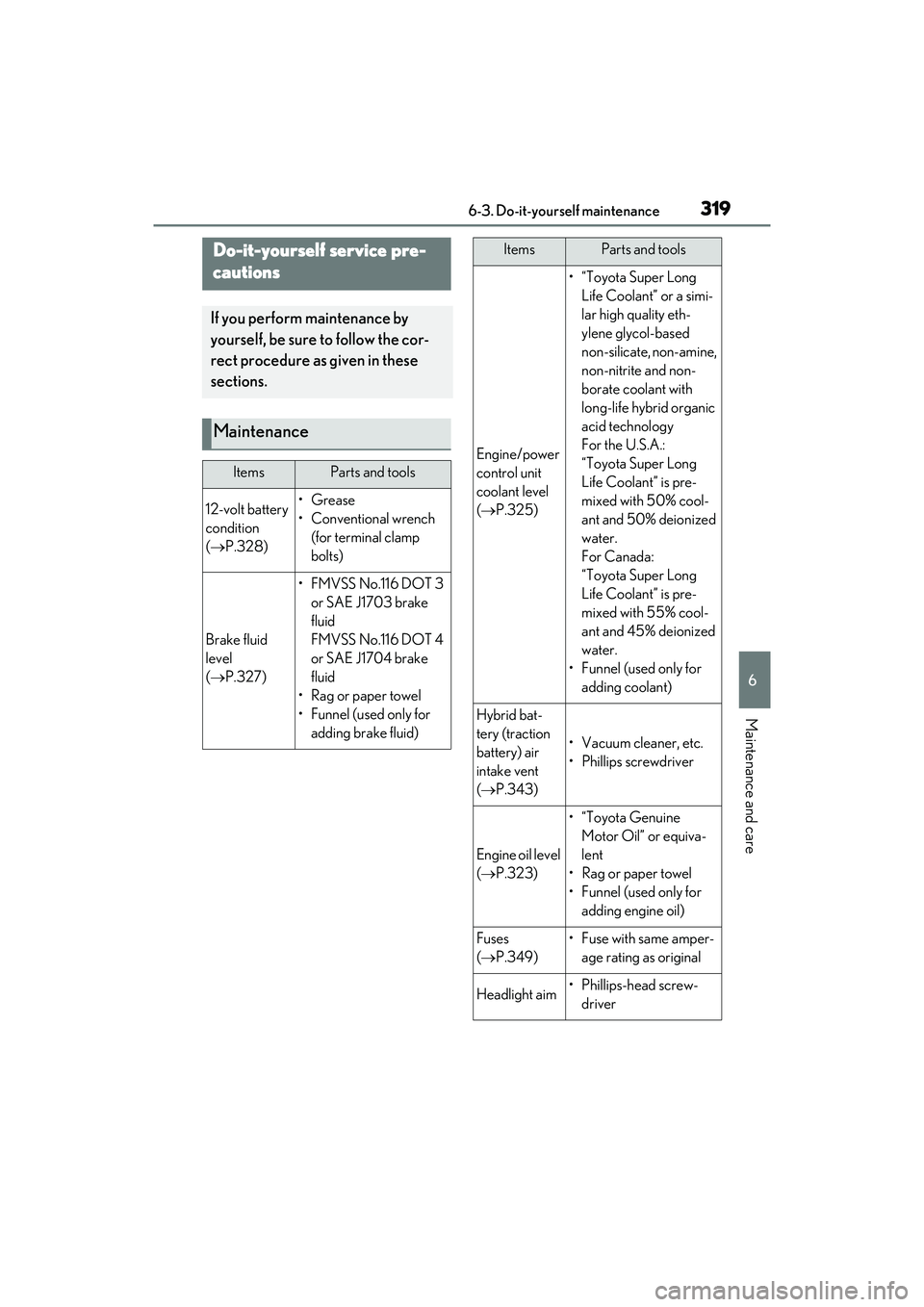

Do-it-yourself service pre-
cautions
If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.
Maintenance
ItemsParts and tools
12-volt battery
condition
( P.328)•Grease
• Conventional wrench
(for terminal clamp
bolts)
Brake fluid
level
( P.327)
• FMVSS No.116 DOT 3
or SAE J1703 brake
fluid
FMVSS No.116 DOT 4
or SAE J1704 brake
fluid
•Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/power
control unit
coolant level
( P.325)
•“Toyota Super Long
Life Coolant” or a simi-
lar high quality eth-
ylene glycol-based
non-silicate, non-amine,
non-nitrite and non-
borate coolant with
long-life hybrid organic
acid technology
For the U.S.A.:
“Toyota Super Long
Life Coolant” is pre-
mixed with 50% cool-
ant and 50% deionized
water.
For Canada:
“Toyota Super Long
Life Coolant” is pre-
mixed with 55% cool-
ant and 45% deionized
water.
• Funnel (used only for adding coolant)
Hybrid bat-
tery (traction
battery) air
intake vent
( P.343)
• Vacuum cleaner, etc.
• Phillips screwdriver
Engine oil level
( P.323)
•“Toyota Genuine
Motor Oil” or equiva-
lent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
( P.349)• Fuse with same amper-
age rating as original
Headlight aim• Phillips-head screw-driver
ItemsParts and tools

3206-3. Do-it-yourself maintenance
Light bulbs
( P.352)
• Bulb with same number
and wattage rating as
original
• Flathead screwdriver
Radiator and
condenser
(  P.326)

Tire inflation
pressure
( P.338)• Tire pressure gauge
• Compressed air source
Washer fluid
( P.327)
• Water or washer fluid
containing antifreeze
(for winter use)
• Funnel (used only for adding water or washer
fluid)
WARNING
The engine compartment contains many
mechanisms and fluids that may move
suddenly, become hot, or become elec-
trically energized. To avoid death or seri-
ous injury, observe the following
precautions.
QWhen working on the engine com-
partment
OMake sure that the “IGNITION ON”
on the multi-information display and
the “READY” indicator are both off.
OKeep hands, clothing and tools away
from the moving fan and engine drive
belt.
OBe careful not to touch the engine,
power control unit, radiator, exhaust
manifold, etc. right after driving as they
may be hot. Oil and other fluids may
also be hot.
ODo not leave anything that may burn
easily, such as paper and rags, in the
engine compartment.
ItemsParts and toolsODo not smoke, cause sparks or expose
an open flame to fuel. Fuel fumes are
flammable.
QWhen working near the electric cool-
ing fan or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the
electric cooling fan may automatically
start to run if the air conditioning is on
and/or the coolant temperature is high.
(  P.326)
QSafety glasses
Wear safety glasses to prevent flying or
falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
QIf you remove the air cleaner filter
Driving with the air cleaner filter
removed may cause excessive engine
wear due to dirt in the air.

3216-3. Do-it-yourself maintenance
6
Maintenance and care

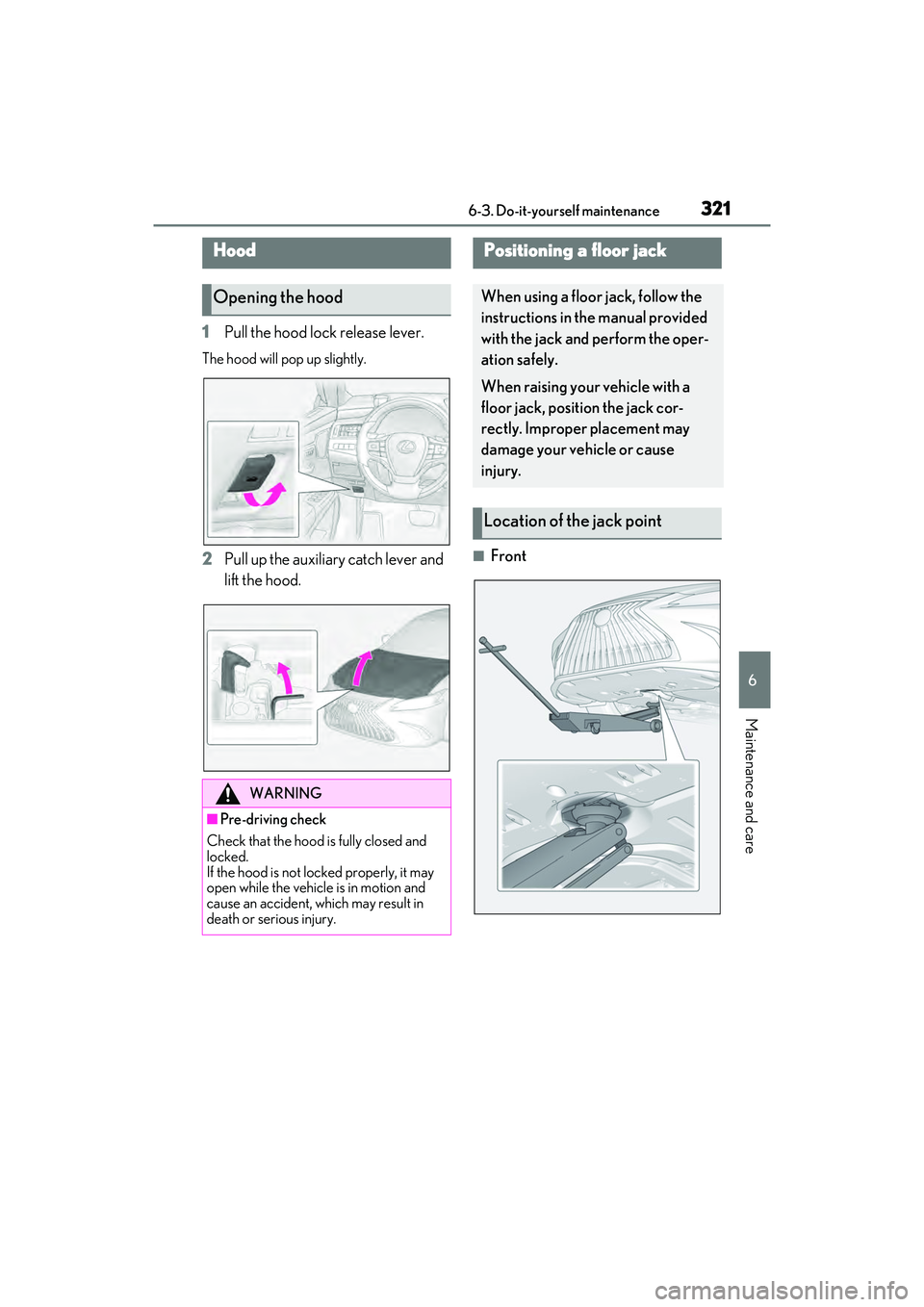

1Pull the hood lock release lever.
The hood will pop up slightly.
2Pull up the auxiliary catch lever and
lift the hood.QFront
Hood
Opening the hood
WARNING
QPre-driving check
Check that the hood is fully closed and
locked.
If the hood is not locked properly, it may
open while the vehicle is in motion and
cause an accident, which may result in
death or serious injury.
Positioning a floor jack
When using a floor jack, follow the
instructions in the manual provided
with the jack and perform the oper-
ation safely.
When raising your vehicle with a
floor jack, position the jack cor-
rectly. Improper placement may
damage your vehicle or cause
injury.
Location of the jack point

3226-3. Do-it-yourself maintenance

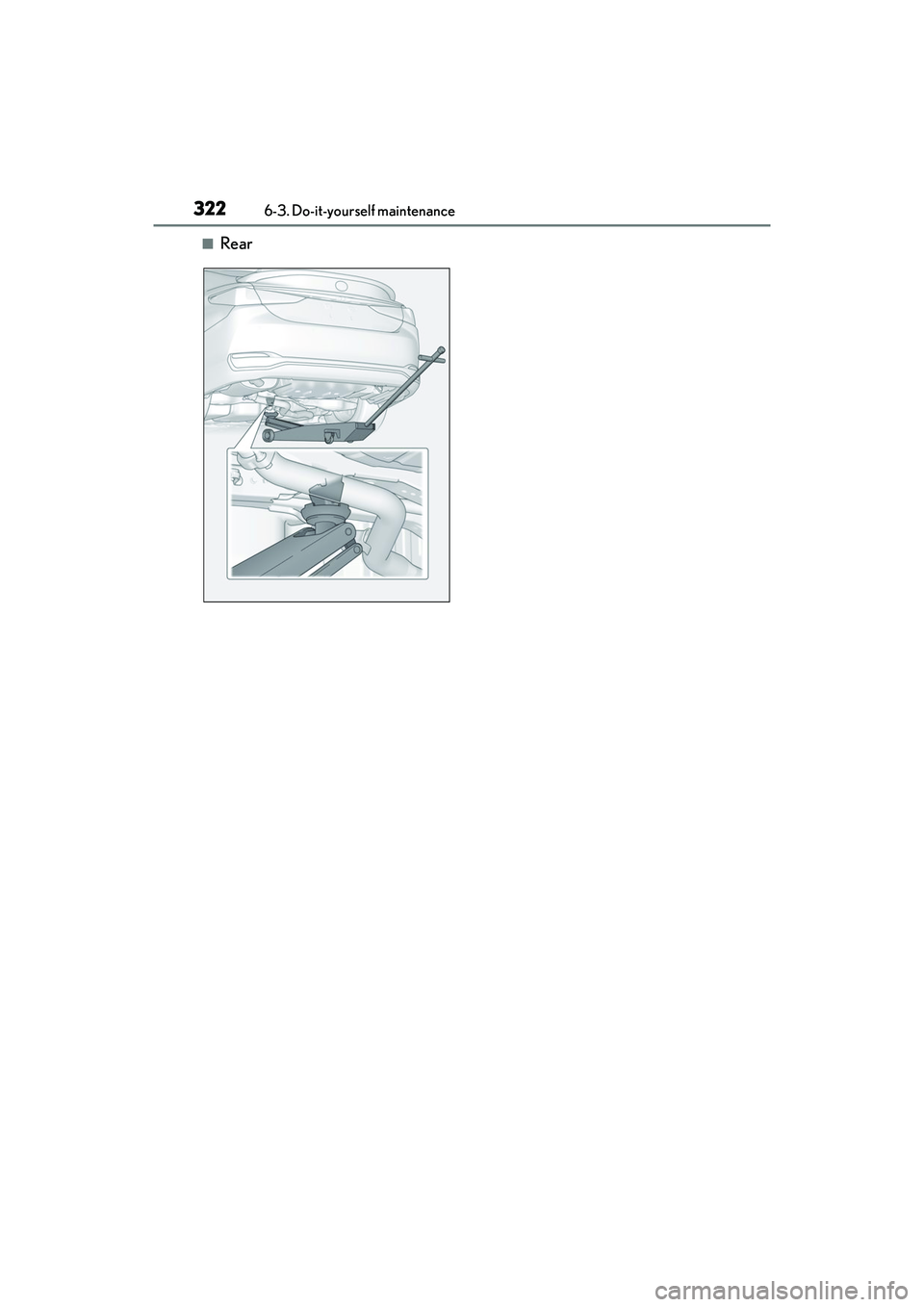

QRear

3236-3. Do-it-yourself maintenance
6
Maintenance and care
Fuse boxes (P.349)
Engine oil filler cap ( P.324)
Engine oil level dipstick ( P.323)
Brake fluid reservoir ( P.327)
Radiator ( P.326)
Electric cooling fan
Condenser ( P.326)
Power control unit coolant reservoir ( P.326)
Engine coolant reservoir ( P.325)
Washer fluid tank ( P.327)
Q12-volt battery
 P.328
With the engine at operating tempera-
ture and turned off, check the oil level
Engine compartment
Components
A
B
C
D
E
F
G
H
I
J

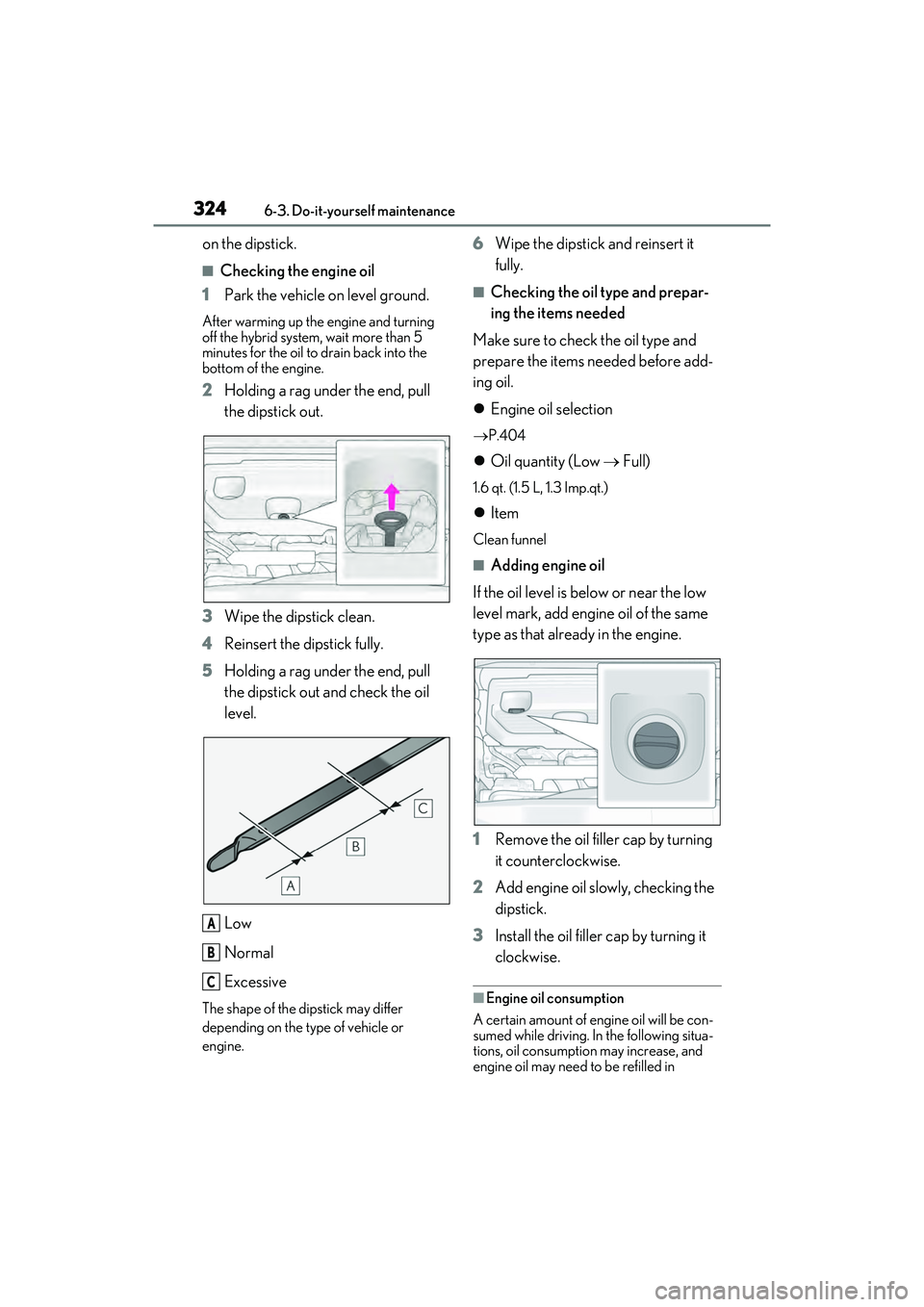

Checking and adding the engine
oil

3246-3. Do-it-yourself maintenance
on the dipstick.
QChecking the engine oil
1 Park the vehicle on level ground.
After warming up the engine and turning
off the hybrid system, wait more than 5
minutes for the oil to drain back into the
bottom of the engine.
2Holding a rag under the end, pull
the dipstick out.
3 Wipe the dipstick clean.
4 Reinsert the dipstick fully.
5 Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
Excessive
The shape of the dipstick may differ
depending on the type of vehicle or
engine.
6Wipe the dipstick and reinsert it
fully.
QChecking the oil type and prepar-
ing the items needed
Make sure to check the oil type and
prepare the items needed before add-
ing oil.
 Engine oil selection
P.404
 Oil quantity (Low  Full)
1.6 qt. (1.5 L, 1.3 Imp.qt.)
 Item
Clean funnel
QAdding engine oil
If the oil level is below or near the low
level mark, add engine oil of the same
type as that already in the engine.
1 Remove the oil filler cap by turning
it counterclockwise.
2 Add engine oil slowly, checking the
dipstick.
3 Install the oil filler cap by turning it
clockwise.
QEngine oil consumption
A certain amount of engine oil will be con-
sumed while driving. In the following situa-
tions, oil consumption may increase, and
engine oil may need to be refilled in
A
B
C

3256-3. Do-it-yourself maintenance
6
Maintenance and care
between oil maintenance intervals.
OWhen the engine is new, for example
directly after purchasing the vehicle or
after replacing the engine
OIf low quality oil or oil of an inappropriate
viscosity is used
OWhen driving at high engine speeds or
with a heavy load, or when driving while
accelerating or decelerating frequently
OWhen leaving the engine idling for a long
time, or when driving frequently through
heavy traffic
QAfter changing the engine oil
The engine oil maintenance data should be
reset. Perform the following procedures:
1 While the vehicle is stopped, press
of the meter control switches.
2 Press or of the meter control
switches, and select .
3 Press or of the meter control
switches, select “Vehicle Settings”, and
then press “OK”.
4 Press or of the meter control
switches, select “O il Maintenance”, and
then press “OK”.
5 Select “Yes” and then press “OK”.
A message will be displayed on the multi-
information display when the reset proce-
dure has been completed.
The coolant level is satisfactory if it is
between the “F”/“FULL” and
“L”/“LOW” lines on the reservoir when
the hybrid system is cold.
QEngine coolant reservoir
WARNING
QUsed engine oil
OUsed engine oil contains potentially
harmful contaminants which may
cause skin disorders such as inflamma-
tion and skin cancer, so care should be
taken to avoid prolonged and
repeated contact. To remove used
engine oil from your skin, wash thor-
oughly with soap and water.
ODispose of used oil an d filters only in a
safe and acceptable manner. Do not
dispose of used oil and filters in house-
hold trash, in sewers or onto the
ground.
Call your Lexus dealer, service station
or auto parts store for information
concerning recycling or disposal.
ODo not leave used engine oil within the
reach of children.
NOTICE
QTo prevent serious engine damage
Check the oil level on a regular basis.
QWhen replacing the engine oil
OBe careful not to spill engine oil on the
vehicle components.
OAvoid overfilling, or the engine could
be damaged.
OCheck the oil level on the dipstick
every time you refill the vehicle.
OBe sure the engine oil filler cap is prop-
erly tightened.
Checking the coolant

3266-3. Do-it-yourself maintenance
Reservoir cap
“F” line
“L” line
If the level is on or below the “L” line, add
coolant up to the “F” line. (P.396)

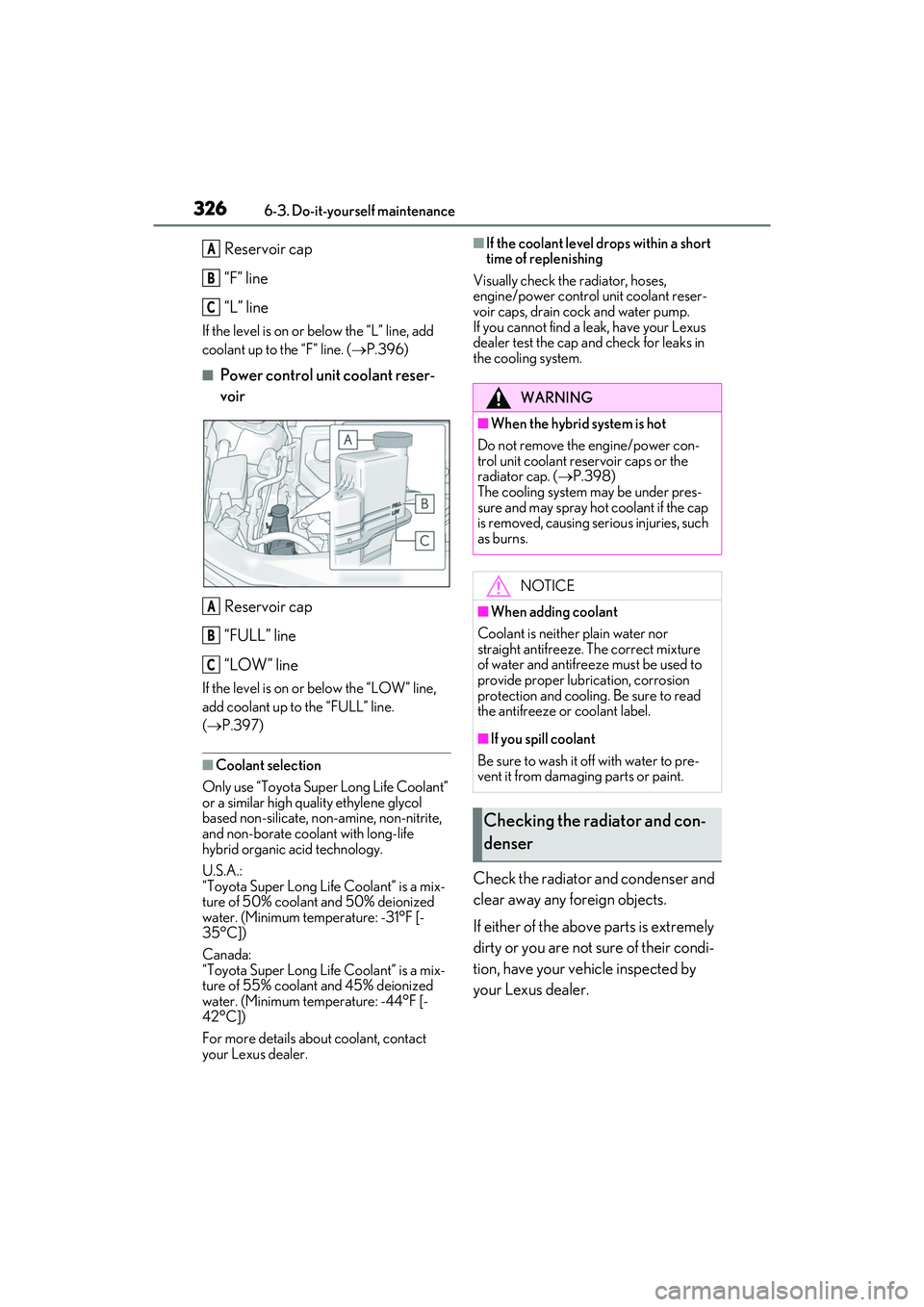

QPower control unit coolant reser-
voir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW” line,
add coolant up to the “FULL” line.
(  P.397)
QCoolant selection
Only use “Toyota Super Long Life Coolant”
or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite,
and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mix-
ture of 50% coolant and 50% deionized
water. (Minimum temperature: -31°F [-
35°C])
Canada:
“Toyota Super Long Life Coolant” is a mix-
ture of 55% coolant and 45% deionized
water. (Minimum temperature: -44°F [-
42°C])
For more details about coolant, contact
your Lexus dealer.
QIf the coolant level drops within a short
time of replenishing
Visually check the radiator, hoses,
engine/power control unit coolant reser-
voir caps, drain cock and water pump.
If you cannot find a leak, have your Lexus
dealer test the cap and check for leaks in
the cooling system.
Check the radiator and condenser and
clear away any foreign objects.
If either of the above parts is extremely
dirty or you are not sure of their condi-
tion, have your vehicle inspected by
your Lexus dealer.
A
B
C
A
B
C
WARNING
QWhen the hybrid system is hot
Do not remove the engine/power con-
trol unit coolant reservoir caps or the
radiator cap. ( P.398)
The cooling system may be under pres-
sure and may spray hot coolant if the cap
is removed, causing serious injuries, such
as burns.
NOTICE
QWhen adding coolant
Coolant is neither plain water nor
straight antifreeze. The correct mixture
of water and antifreeze must be used to
provide proper lubrication, corrosion
protection and cooling. Be sure to read
the antifreeze or coolant label.
QIf you spill coolant
Be sure to wash it off with water to pre-
vent it from damaging parts or paint.
Checking the radiator and con-
denser

3276-3. Do-it-yourself maintenance
6
Maintenance and care
QChecking fluid level
The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.
QAdding fluid
Make sure to check the fluid type and
prepare the necessary items.
 Fluid type
FMVSS No.116 DOT 3 or SAE J1703
brake fluid
FMVSS No.116 DOT 4 or SAE J1704
brake fluid
Item
Clean funnel
QBrake fluid can absorb moisture from
the air
Excess moisture in the brake fluid can
cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.
If any washer does not work or “Wind-
shield Washer Fluid Low” is shown on
the multi-information display, the
washer tank may be empty. Add
washer fluid.
WARNING
QWhen the hybrid system is hot
Do not touch the radiator or condenser
as they may be hot and cause serious
injuries, such as burns.
Checking and adding the brake
fluid
WARNING
QWhen filling the reservoir
Take care as brake fluid can harm your
hands and eyes and damage painted sur-
faces.
If fluid gets on your hands or in your eyes,
flush the affected area with clean water
immediately.
If you still experience discomfort, see a
doctor.
NOTICE
QIf the fluid level is low or high
It is normal for the brake fluid level to go
down slightly as the brake pads wear out
or when the fluid level in the accumulator
is high.
If the reservoir needs frequent refilling,
there may be a serious problem.
Adding the washer fluid
WARNING
QWhen adding washer fluid
Do not add washer fluid when the hybrid
system is hot or operating as washer fluid
contains alcohol and may catch fire if
spilled on the engine etc.

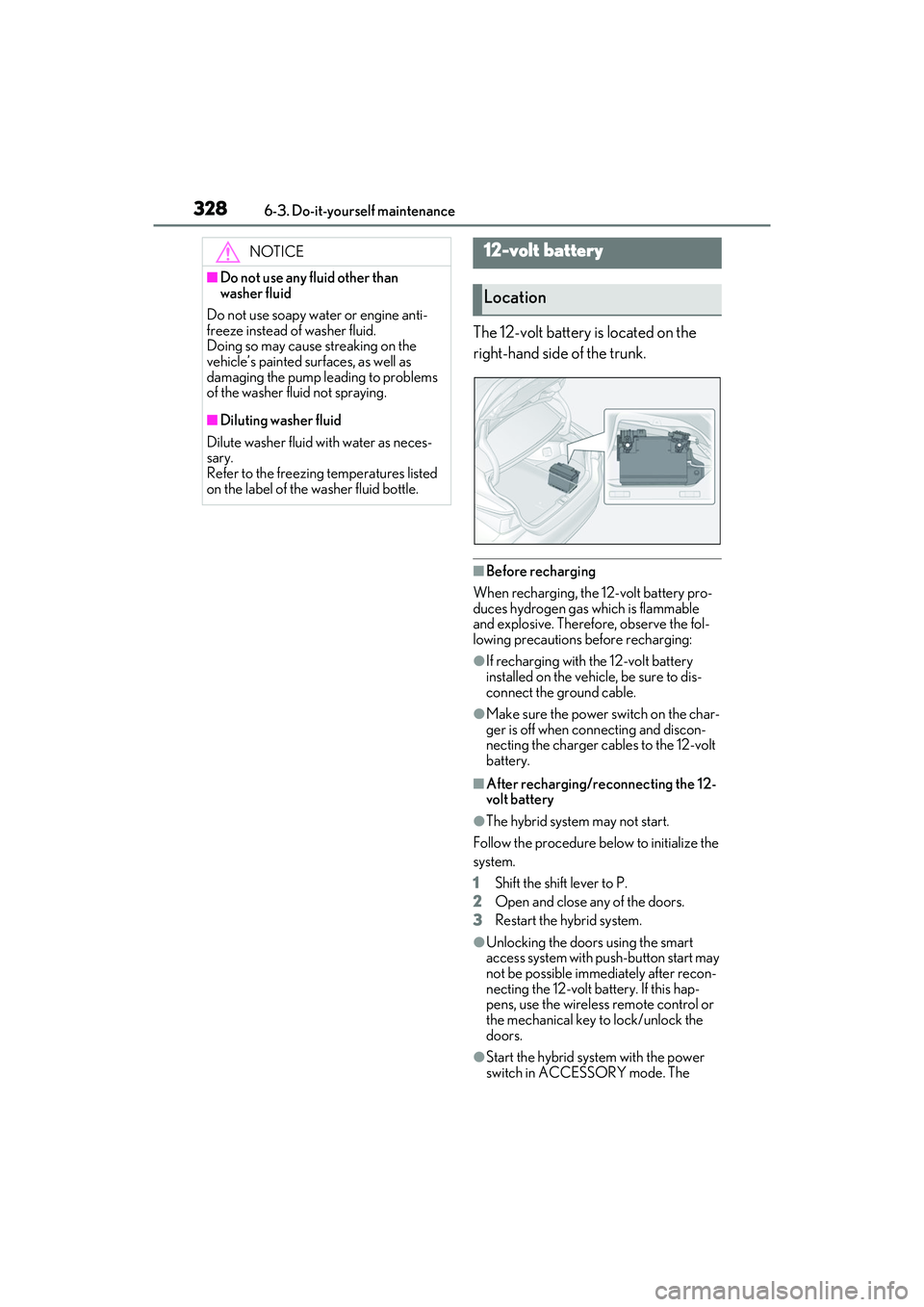

3286-3. Do-it-yourself maintenance
The 12-volt battery is located on the
right-hand side of the trunk.
QBefore recharging
When recharging, the 12-volt battery pro-
duces hydrogen gas which is flammable
and explosive. Therefore, observe the fol-
lowing precautions before recharging:
OIf recharging with the 12-volt battery
installed on the vehicle, be sure to dis-
connect the ground cable.
OMake sure the power switch on the char-
ger is off when connecting and discon-
necting the charger cables to the 12-volt
battery.
QAfter recharging/reconnecting the 12-
volt battery
OThe hybrid system may not start.
Follow the procedure below to initialize the
system.
1 Shift the shift lever to P.
2 Open and close any of the doors.
3 Restart the hybrid system.
OUnlocking the doors using the smart
access system with push-button start may
not be possible immediately after recon-
necting the 12-volt battery. If this hap-
pens, use the wireless remote control or
the mechanical key to lock/unlock the
doors.
OStart the hybrid system with the power
switch in ACCESSORY mode. The
NOTICE
QDo not use any fluid other than
washer fluid
Do not use soapy water or engine anti-
freeze instead of washer fluid.
Doing so may cause streaking on the
vehicle’s painted surfaces, as well as
damaging the pump leading to problems
of the washer fluid not spraying.
QDiluting washer fluid
Dilute washer fluid with water as neces-
sary.
Refer to the freezing temperatures listed
on the label of the washer fluid bottle.
12-volt battery
Location
