60
ES300h_QG_OM06257U_(U)
Lexus Climate Concierge can be operated using the air conditioning control screen on the
Center Display (P.62).
1Select in the main menu on the Center Display.
2Select “Climate”.
3Select “Front”.
4Select “Climate concierge”.
The indicator on the air conditioning control screen illuminates, and the automatic air condi-
tioning system, seat heaters and ventilators, and heated steering wheel operate in automatic
mode.
If any of the system is operated manually, the indicator turns off. However, all other functions
continue to operate in automatic mode.
Lexus Climate Concierge
The seat heaters (if equipped), seat ventilators (if equipped) and heated steering wheel (if
equipped) are each automatically controlled acc ording to the set temperature of the air
conditioning system, the outside and cabin temperature, etc. Lexus Climate Concierge
allows a comfortable condition to be maintained without adjusting each system.
Displaying the Lexus Climate Concierge
Turning on Lexus Climate Concierge

61
ES300h_QG_OM06257U_(U)
QControl panel
Left-hand side temperature control switch
Automatic mode switch
Off switch
Fan speed decrease switch
Fan speed increase switch
Airflow mode control switch
Windshield defogger switch
Rear window and outside rear view mirror defoggers switch
Outside/recirculated air mode switch
Right-hand side temperature control switch
QAdjusting the temperature
Operate the temperature control switch upwards to increase the temperature and down-
wards to decrease the temperature.
If the “A/C” indicator is turned off, the syst em will blow ambient temperature air or heated
air.
QSetting the fan speed
Operate the fan speed increase switch to increase the fan speed and the fan speed
decrease switch to decrease the fan speed.
Press the off switch to turn the fan off.
Automatic Air Conditioning System
The air conditioning system can be operated using the air conditioning control panel and
air conditioning control screen on the Center Display ( P.62).
Air conditioning controls
A
B
C
D
E
F
G
H
I
J

62
ES300h_QG_OM06257U_(U)
QChanging the air flow mode
P.62
QAir conditioning control screen
1
Select in the main menu on the Center Display.
2Select “Climate”.
3Select “Front”.
Sub menu
Selecting the sub menu item to switch
the screen display.
“Front”: Display the air conditioning
control screen
“Options”: Display the option screen
Select the air flow mode
Each time the switch is selected, the airflow mode is changed. : Air flows to the upper body
: Air flows to the upper body and feet
: Air flows to the feet
: Air flows to the feet and the windshield defogger operates
Turn the function on/off
Each of the following functions can be switched on and off.
When the function is on, the indicat or illuminates on the control screen.
“A/C”: Set cooling and dehumidification function
“Sync”: Adjust the temperature for driver se at and front passenger seat simultaneously
(“Sync” mode)
: Select front seat concentrated air flow mode (S-FLOW)
“Climate concierge”: Set Lexus Climate Concierge ( P.60)
Fan speed level display
The current fan speed level is displayed.
Air conditioning control screen
A
B
C
D

63
ES300h_QG_OM06257U_(U)

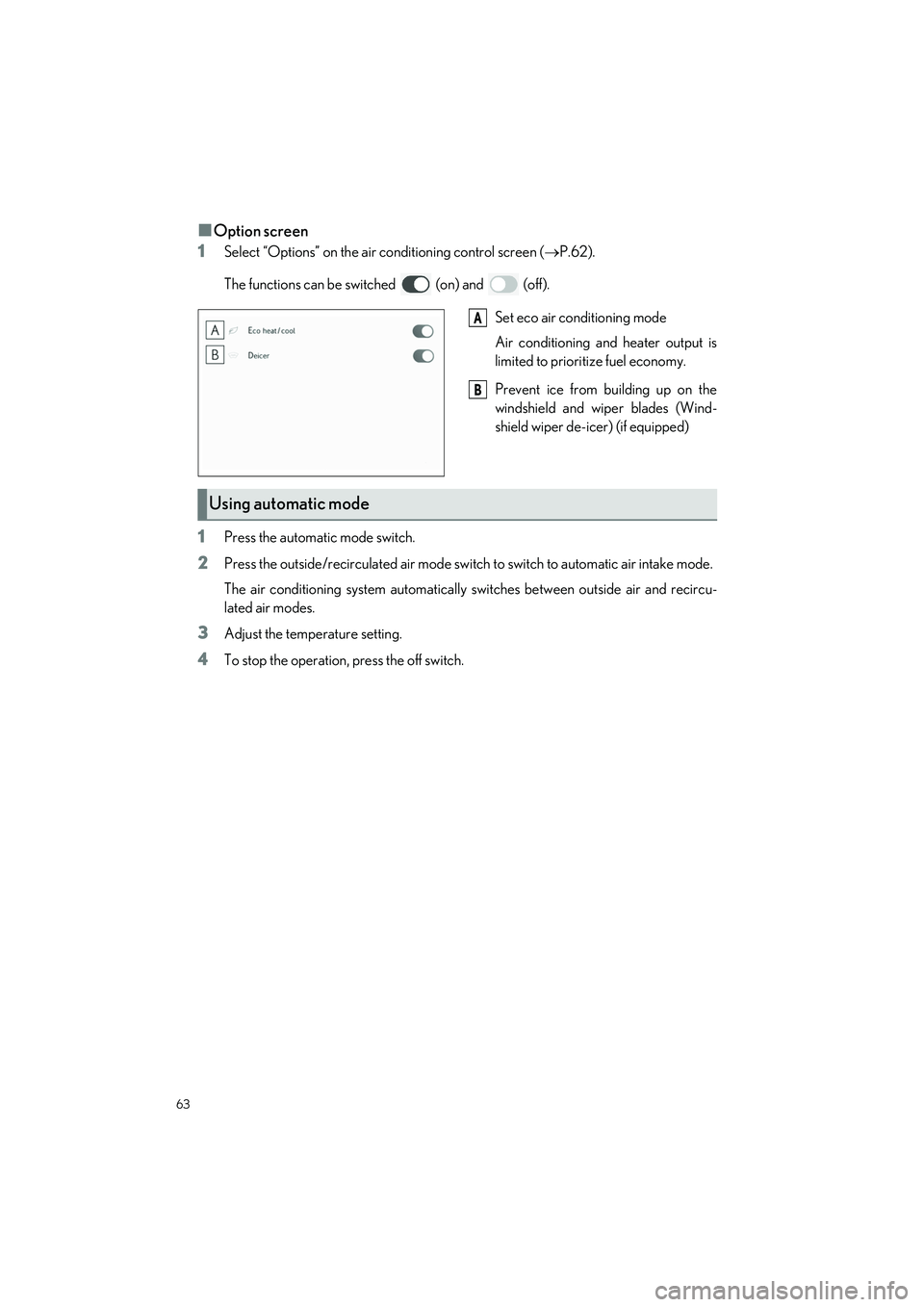

QOption screen
1
Select “Options” on the air conditioning control screen ( P.62).
The functions can be switched (on) and (off).
Set eco air conditioning mode
Air conditioning and heater output is
limited to prioritize fuel economy.
Prevent ice from building up on the
windshield and wiper blades (Wind-
shield wiper de-icer) (if equipped)
1Press the automatic mode switch.
2Press the outside/recirculated air mode switch to switch to automatic air intake mode.
The air conditioning system automatically switches between outside air and recircu-
lated air modes.
3Adjust the temperature setting.
4To stop the operation, press the off switch.
A
B
Using automatic mode

64
ES300h_QG_OM06257U_(U)

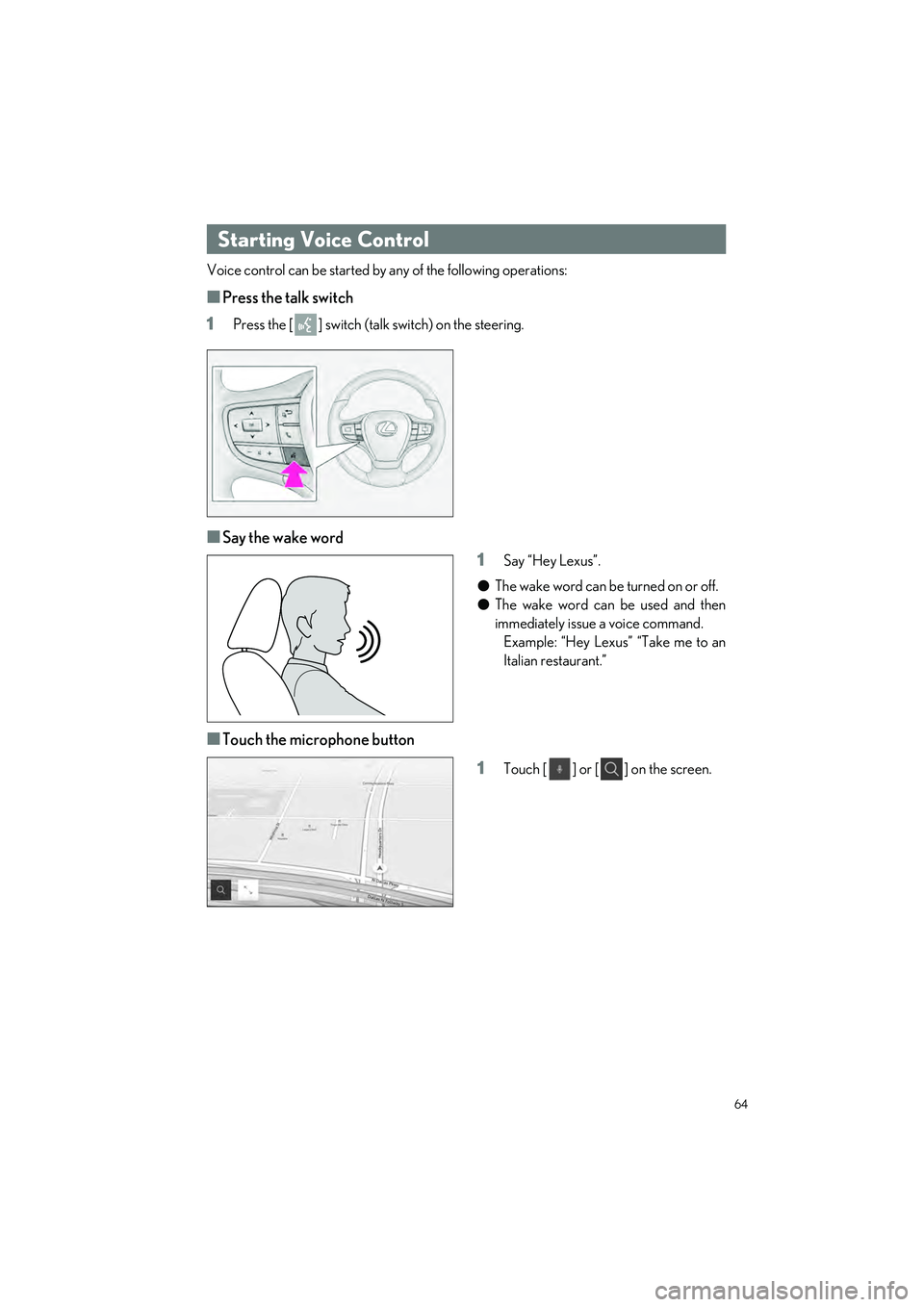

Voice control can be started by any of the following operations:
QPress the talk switch
1
Press the [ ] switch (tal k switch) on the steering.
QSay the wake word
1
Say “Hey Lexus”.
O The wake word can be turned on or off.
O The wake word can be used and then
immediately issue a voice command.
Example: “Hey Lexus” “Take me to an
Italian restaurant.”
QTouch the microphone button
1
Touch [ ] or [ ] on the screen.
Starting Voice Control

65
ES300h_QG_OM06257U_(U)
The following tables list frequently used commands for each function category.
OThe functions available may vary according to the system installed.
O Items with subscription will require Intelligent Assistant functionality.
QCommon
QNavigation
Intelligent Assistant system enables navigation voice search. This allows you with variety of
features such as searching a point of interest (P OI), navigate to an address as well as discov-
ering new POIs.
Function list
ActionExample voice commandSubscription
Shows list of general commands“Help”No
Stops the current con-versation and re-starts
at the beginning“Start over”No
Cancels the voice con- trol system“Cancel”No
FunctionExample voice commandSubscription
Destination search
“Take me to ”
“Take me to ”“Take me to

66
ES300h_QG_OM06257U_(U)
QMultimedia control
Allows you to engage in a dialog with the Intelligent Assistant to complete various multime-
dia tasks via voice input.
QHands-free phone operation
Allows you to engage in a dialog with the Intelligent Assistant to complete various tasks via
voice input, such as making a phone call to a contact, or calling Destination Assist.
QScreen display switching
Allows you to easily change to various function screen by voice.
FunctionExample voice commandSubscription
Radio“Tune to 99.5 FM”
“Tune to Rock on FM”
“Tune to channel 2 on SiriusXM”No
Media
“Mute audio”
“Next”
“Previous”
No
Media Streaming“Play ” “Play ”Yes
FunctionExample voice commandSubscription
Phone call
“Call ”
“Dial <555 212 1212>” “Call back”
“Redial”
No
Message“Send message to ” “Read message”No
FunctionExample voice commandSubscription
Navigation“Show map”Yes
Phone“Show recent calls”No
Multimedia“Show the FM station list”No
Settings“Show display settings”No

67
ES300h_QG_OM06257U_(U)

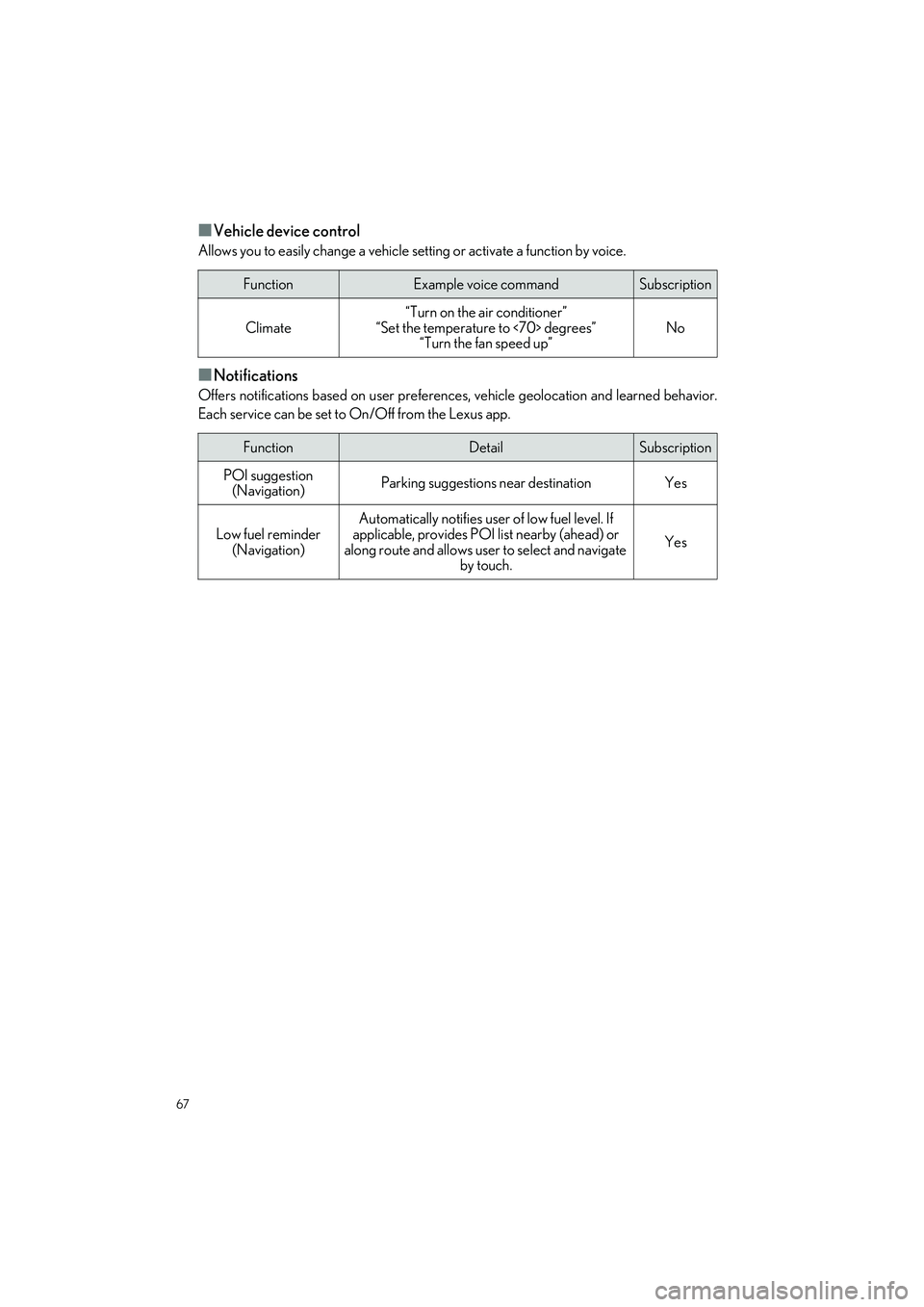

QVehicle device control
Allows you to easily change a vehicle setting or activate a function by voice.
QNotifications
Offers notifications based on user preferences, vehicle geolocation and learned behavior.
Each service can be set to On/Off from the Lexus app.
FunctionExample voice commandSubscription
Climate“Turn on the air conditioner”
“Set the temperature to <70> degrees” “Turn the fan speed up”No
FunctionDetailSubscription
POI suggestion (Navigation)Parking suggestions near destinationYes
Low fuel reminder
(Navigation)Automatically notifies user of low fuel level. If
applicable, provides POI list nearby (ahead) or
along route and allows user to select and navigate by touch.
Yes

68
ES300h_QG_OM06257U_(U)

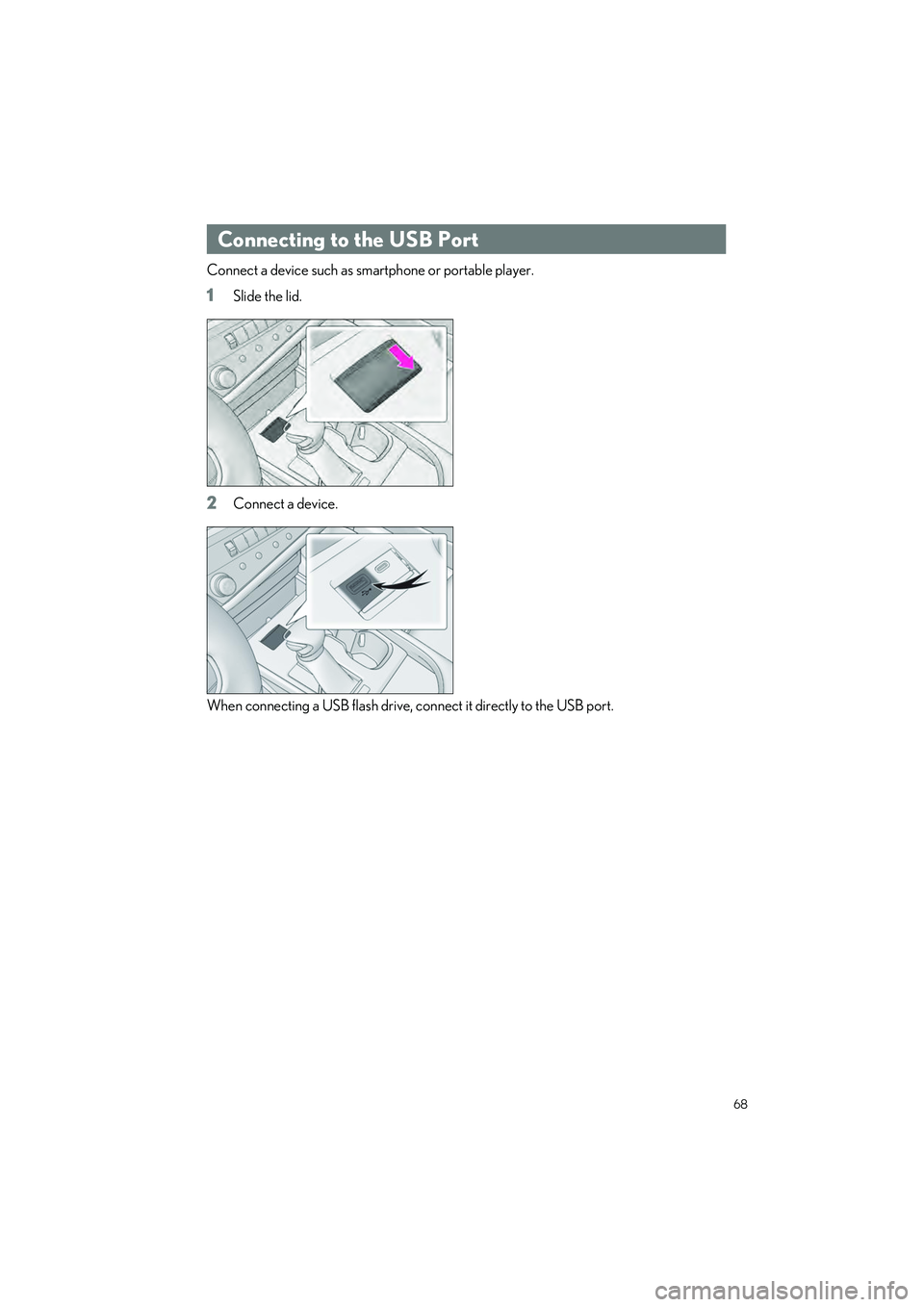

Connect a device such as smartphone or portable player.
1Slide the lid.
2Connect a device.
When connecting a USB flash drive, connect it directly to the USB port.
Connecting to the USB Port

69
ES300h_QG_OM06257U_(U)

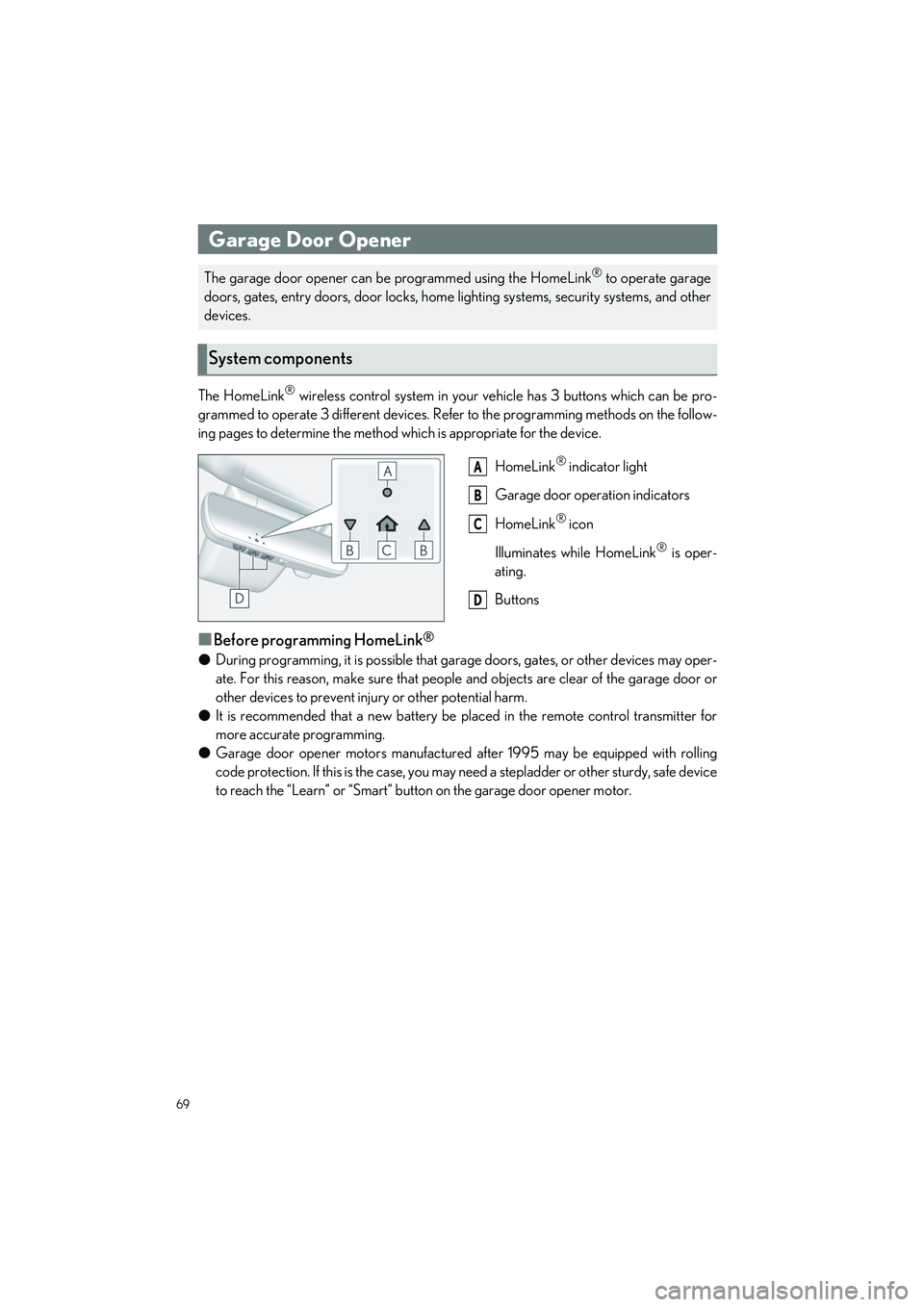

The HomeLink® wireless control system in your vehicle has 3 buttons which can be pro-
grammed to operate 3 different devices. Refer to the programming methods on the follow-
ing pages to determine the method which is appropriate for the device.
HomeLink
® indicator light
Garage door operation indicators
HomeLink
® icon
Illuminates while HomeLink
® is oper-
ating.
Buttons
QBefore programming HomeLink®
O During programming, it is possible that garage doors, gates, or other devices may oper-
ate. For this reason, make sure that people and objects are clear of the garage door or
other devices to prevent inju ry or other potential harm.
O It is recommended that a new battery be placed in the remote control transmitter for
more accurate programming.
O Garage door opener motors manufactured after 1995 may be equipped with rolling
code protection. If this is the case, you may need a stepladder or other sturdy, safe device
to reach the “Learn” or “Smart” button on the garage door opener motor.
Garage Door Opener
The garage door opener can be programmed using the HomeLink® to operate garage
doors, gates, entry doors, door locks, home lighting systems, security systems, and other
devices.
System components
A
B
C
D
