LEXUS ES300h 2023 Manual Online

80
ES300h_QG_OM06257U_(U)

What to do if...
81
ES300h_QG_OM06257U_(U)
List of Warning/Indicator Lights
Immediately stop the vehicle in a safe place and contact your Lexus dealer. Continu-
ing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Red)
(Canada)
Immediately stop the vehicle in a safe place and contact your Lexus dealer.
Charging system warning light(U.S.A.)Malfunction
indicator lamp
Low engine oil pressure warn-
ing light(Canada)
Have the vehicle inspected by your Lexus dealer immediately.
SRS warning light
(Flashes)
Brake hold operated indicator
(U.S.A.)
ABS warning light(Flashes)(U.S.A.)Parking brake
indicator
(Canada)
(Flashes)
(Canada)
(Red or yellow)
Electric power steering
system warning light
(Yellow)
Brake system warning light
(Flashes or
illuminates)PCS warning light
(Flashes)
RCTA OFF indicator
Slip indicator(Flashes or
illuminates)
RCD OFF indicator (if
equipped)
(Flashes)
Intuitive parking assist OFF
indicator (if equipped)
(Flashes)
PKSB OFF indicator (if
equipped)
For further information, refer to the “OWNER’S MANUAL”.

82
What to do if...
ES300h_QG_OM06257U_(U)

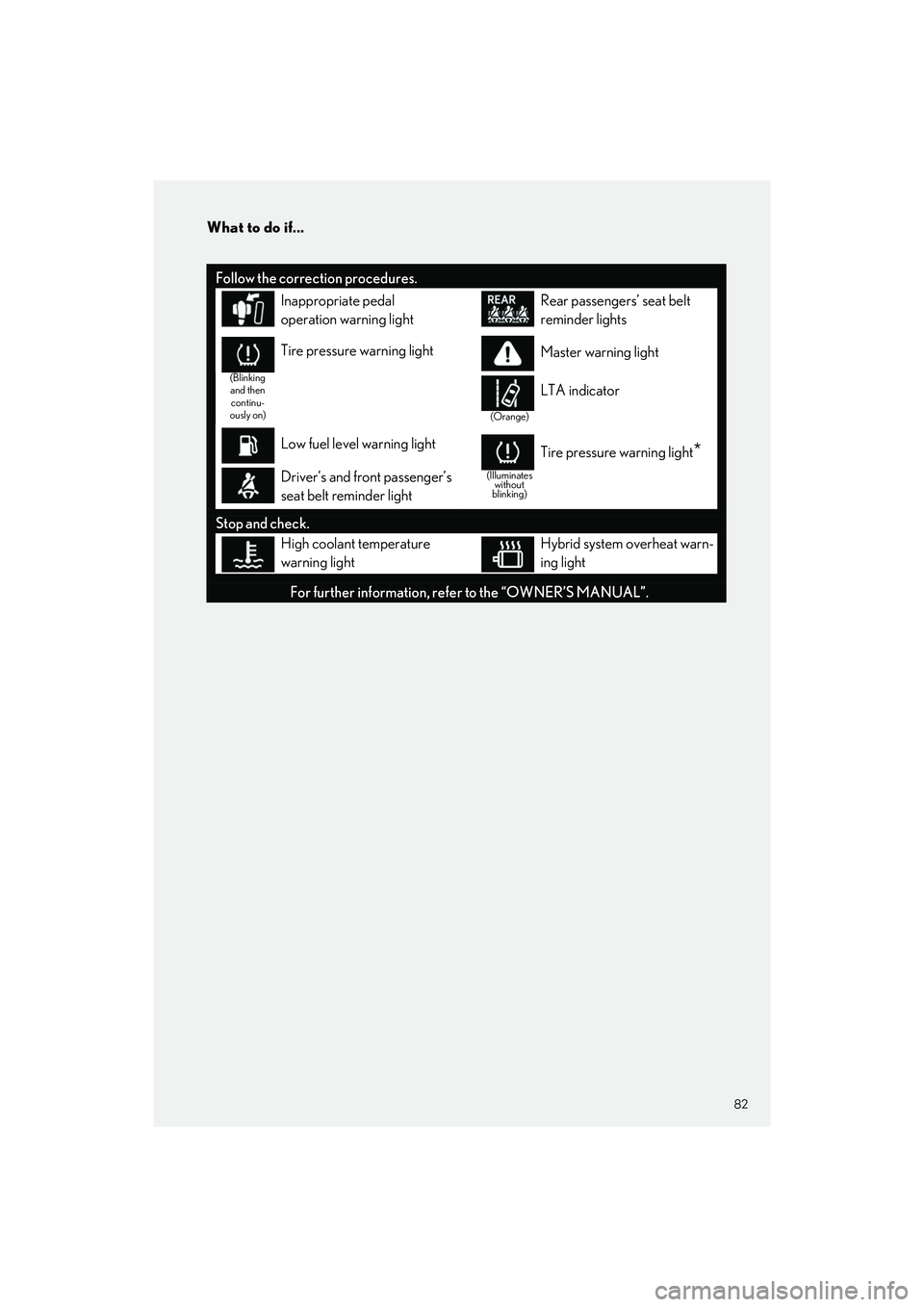

Follow the correction procedures.
Inappropriate pedal
operation warning lightRear passengers’ seat belt
reminder lights
(Blinking and then
continu-
ously on)
Tire pressure warning lightMaster warning light
(Orange)
LTA indicator
Low fuel level warning light
(Illuminates without
blinking)
Tire pressure warning light*
Driver’s and front passenger’s
seat belt reminder light
Stop and check.
High coolant temperature
warning lightHybrid system overheat warn-
ing light
For further information, refer to the “OWNER’S MANUAL”.

What to do if...
83
ES300h_QG_OM06257U_(U)

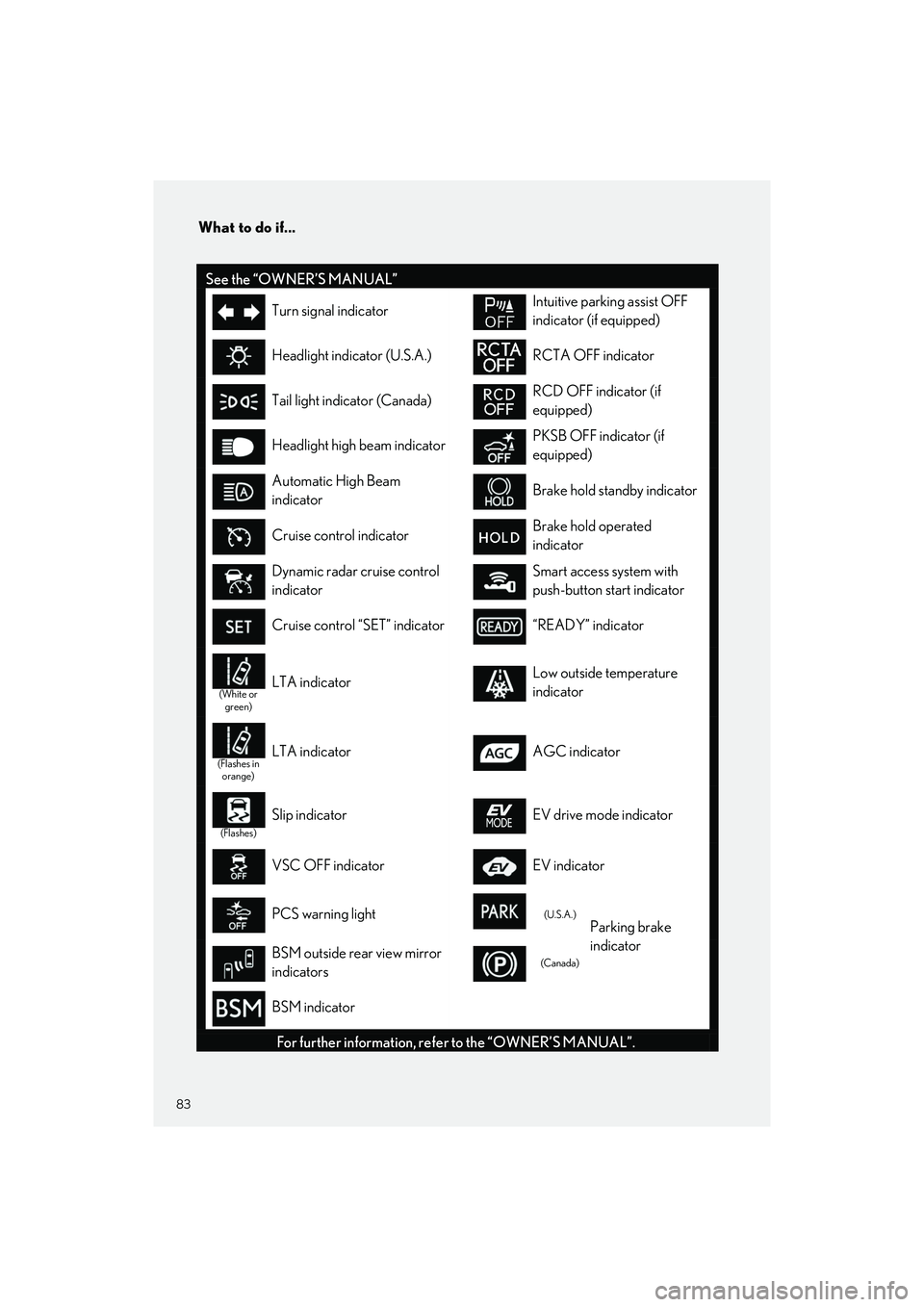

See the “OWNER’S MANUAL”
Turn signal indicatorIntuitive parking assist OFF
indicator (if equipped)
Headlight indicator (U.S.A.)RCTA OFF indicator
Tail light indicator (Canada)RCD OFF indicator (if
equipped)
Headlight high beam indicatorPKSB OFF indicator (if
equipped)
Automatic High Beam
indicatorBrake hold standby indicator
Cruise control indicatorBrake hold operated
indicator
Dynamic radar cruise control
indicatorSmart access system with
push-button start indicator
Cruise control “SET” indicator“READY” indicator
(White or green)LTA indicatorLow outside temperature
indicator
(Flashes in orange)LTA indicatorAGC indicator
(Flashes)
Slip indicatorEV drive mode indicator
VSC OFF indicatorEV indicator
PCS warning light(U.S.A.)Parking brake
indicator
BSM outside rear view mirror
indicators(Canada)
BSM indicator
For further information, refer to the “OWNER’S MANUAL”.

84
What to do if...
ES300h_QG_OM06257U_(U)

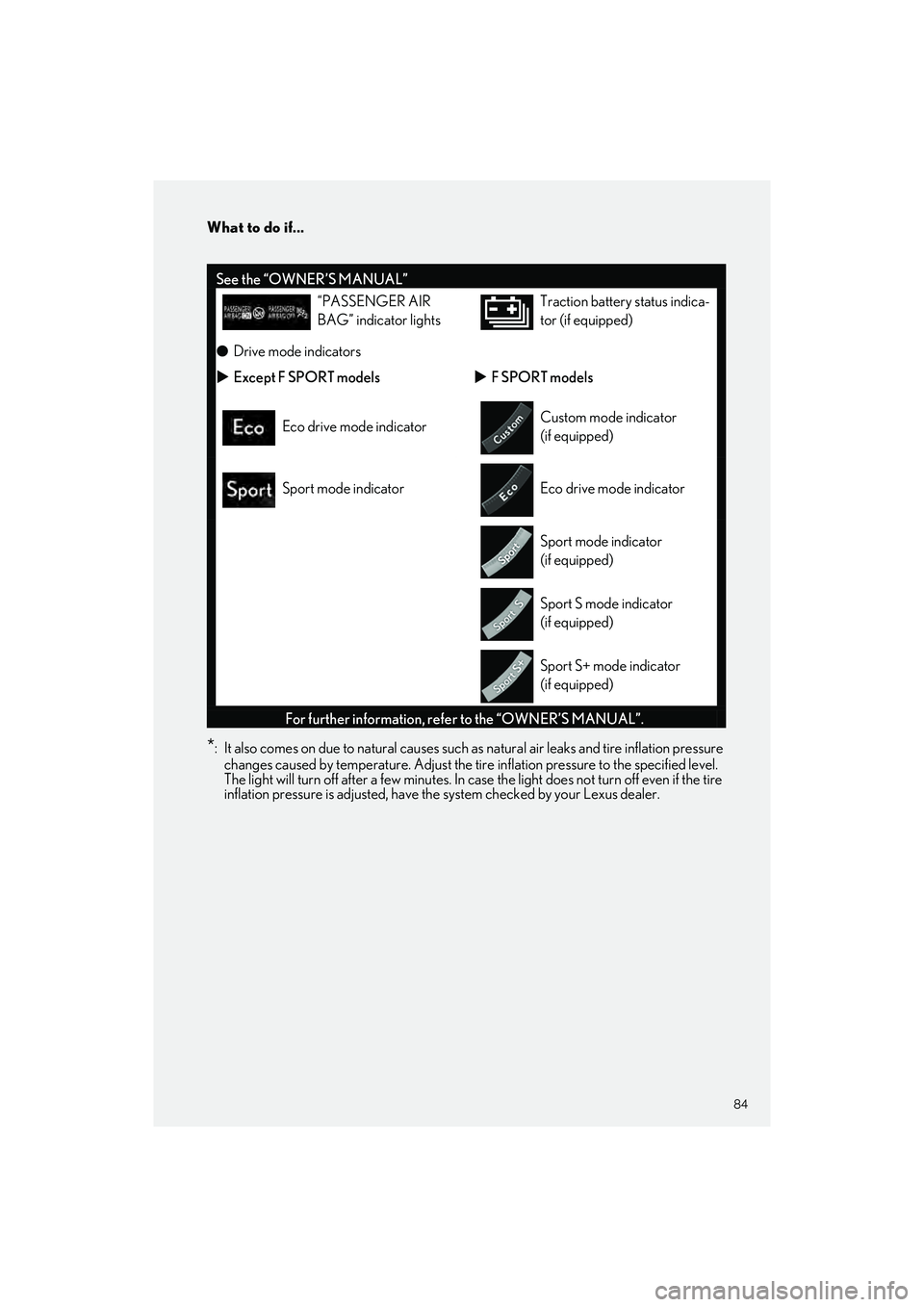

*: It also comes on due to natural causes such as natural air leaks and tire inflation pressure
changes caused by temperature. Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light does not turn off even if the tire
inflation pressure is adjusted, have th e system checked by your Lexus dealer.
See the “OWNER’S MANUAL”
“PASSENGER AIR
BAG” indicator lightsTraction battery status indica-
tor (if equipped)
ODrive mode indicators
Except F SPORT modelsF SPORT models
Eco drive mode indicatorCustom mode indicator
(if equipped)
Sport mode indicatorEco drive mode indicator
Sport mode indicator
(if equipped)
Sport S mode indicator
(if equipped)
Sport S+ mode indicator
(if equipped)
For further information, refer to the “OWNER’S MANUAL”.

What to do if...
85
ES300h_QG_OM06257U_(U)

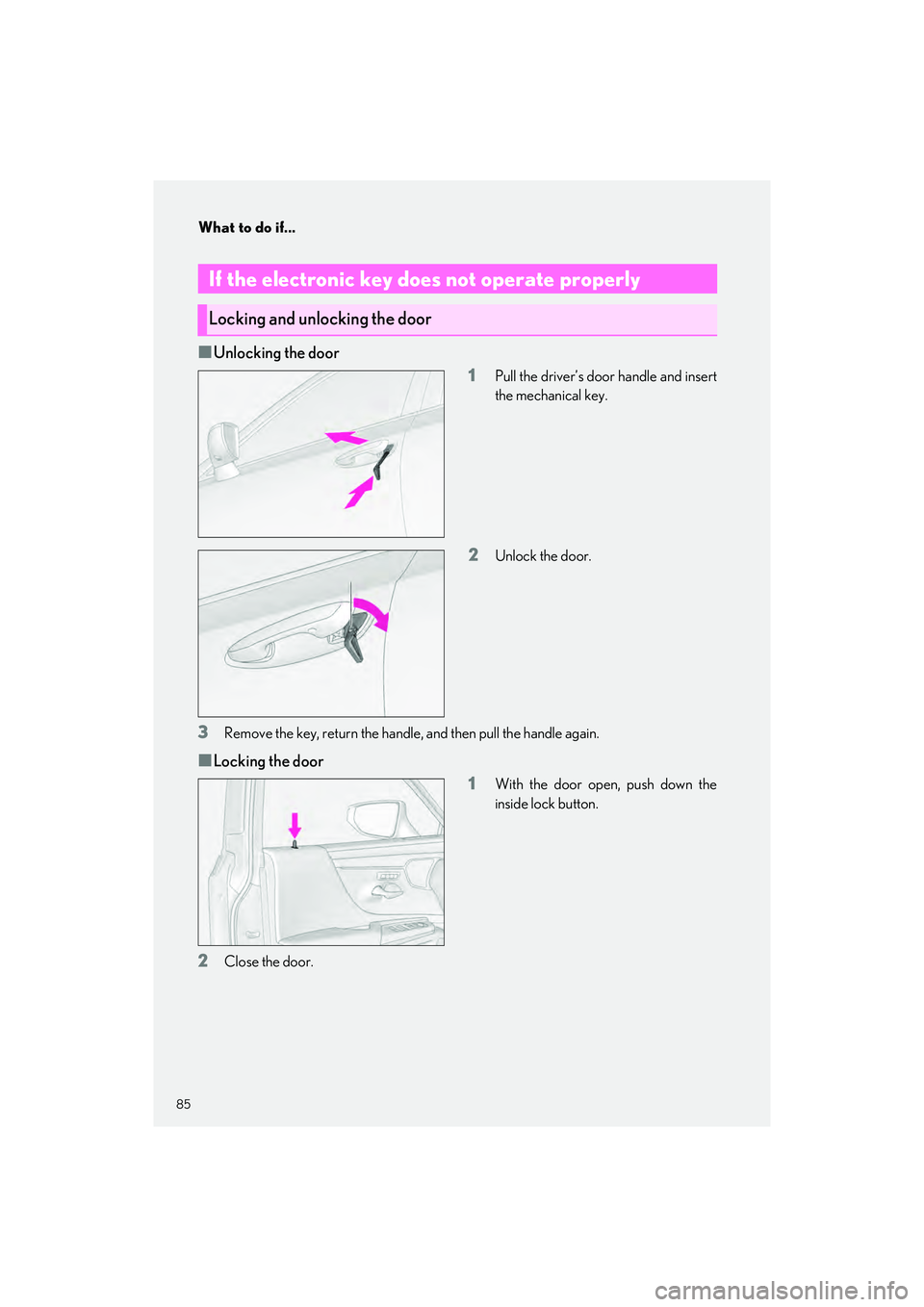

QUnlocking the door1
Pull the driver’s door handle and insert
the mechanical key.
2Unlock the door.
3Remove the key, return the handle, and then pull the handle again.
QLocking the door1
With the door open, push down the
inside lock button.
2Close the door.
If the electronic key does not operate properly
Locking and unlocking the door

86
What to do if...
ES300h_QG_OM06257U_(U)

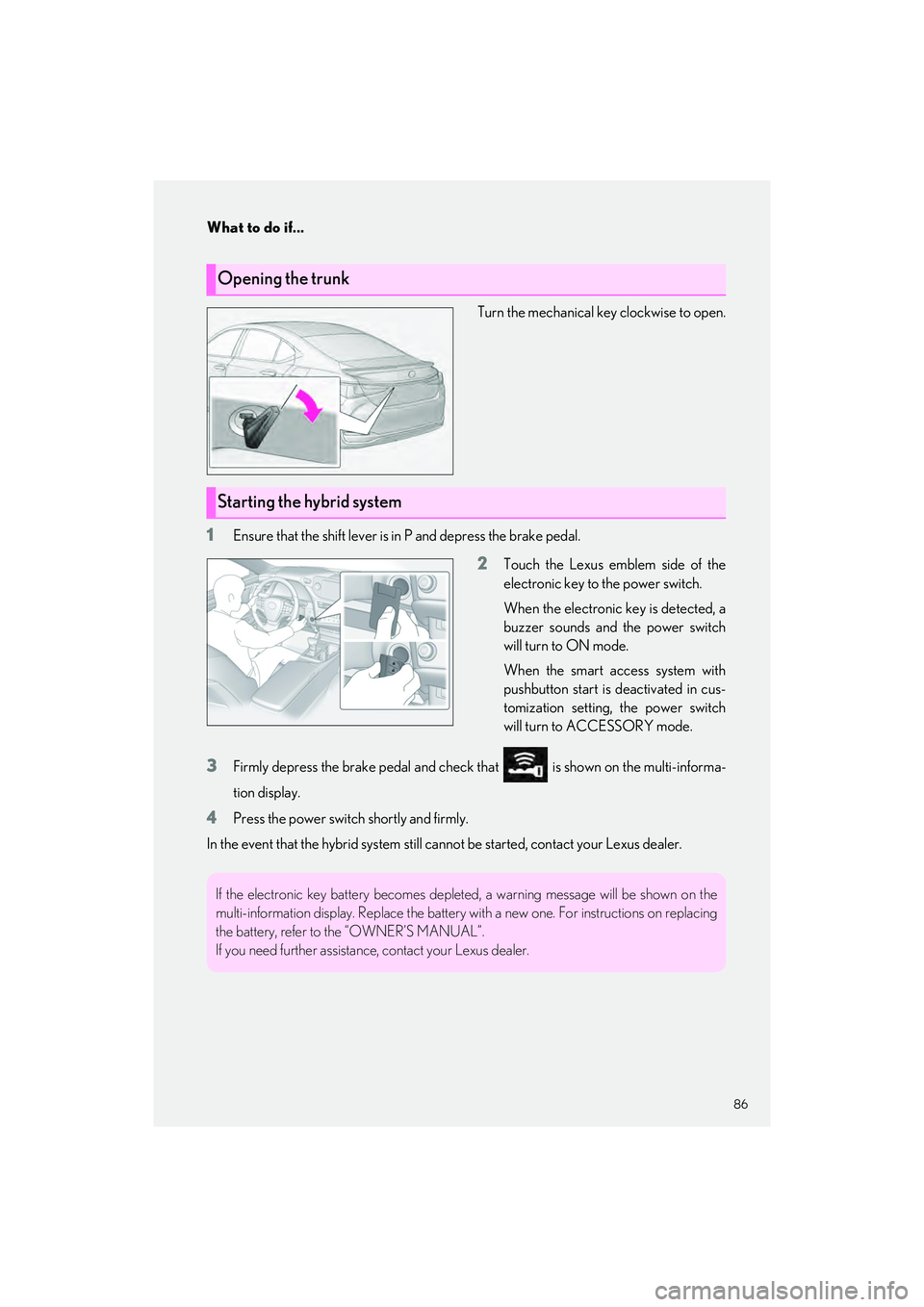

Turn the mechanical key clockwise to open.
1Ensure that the shift lever is in P and depress the brake pedal.
2Touch the Lexus emblem side of the
electronic key to the power switch.
When the electronic key is detected, a
buzzer sounds and the power switch
will turn to ON mode.
When the smart access system with
pushbutton start is deactivated in cus-
tomization setting, the power switch
will turn to ACCESSORY mode.
3Firmly depress the brake pedal and check that is shown on the multi-informa-
tion display.
4Press the power switch shortly and firmly.
In the event that the hybrid system still cann ot be started, contact your Lexus dealer.
Opening the trunk
Starting the hybrid system
If the electronic key battery becomes deplet ed, a warning message will be shown on the
multi-information display. Replace the battery with a new one. For instructions on replacing
the battery, refer to the “OWNER’S MANUAL”.
If you need further assistance, contact your Lexus dealer.

What to do if...
87
ES300h_QG_OM06257U_(U)

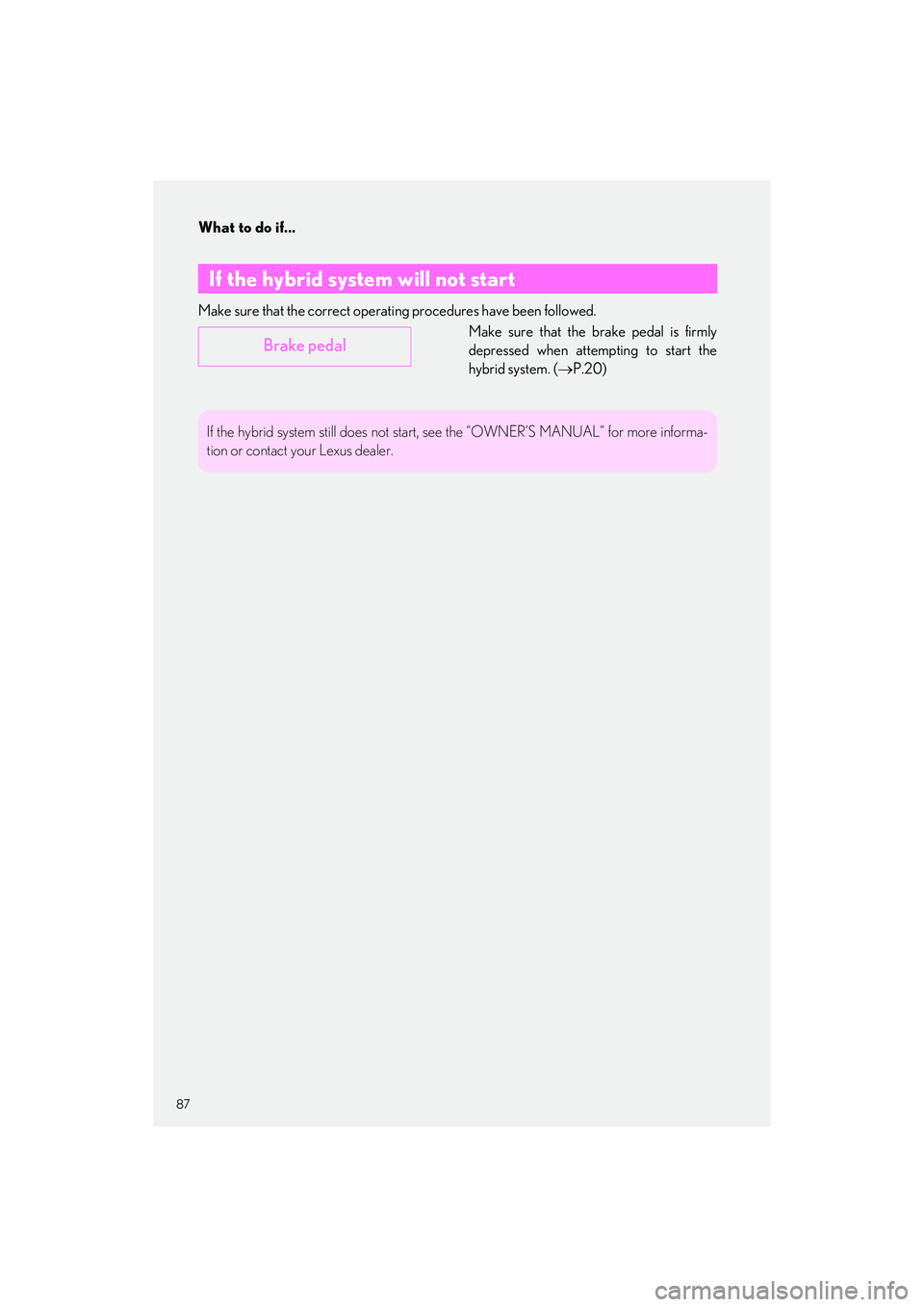

Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the
hybrid system. ( P.20)
If the hybrid system will not start
Brake pedal
If the hybrid system still does not start, see the “OWNER’S MANUAL” for more informa-
tion or contact your Lexus dealer.

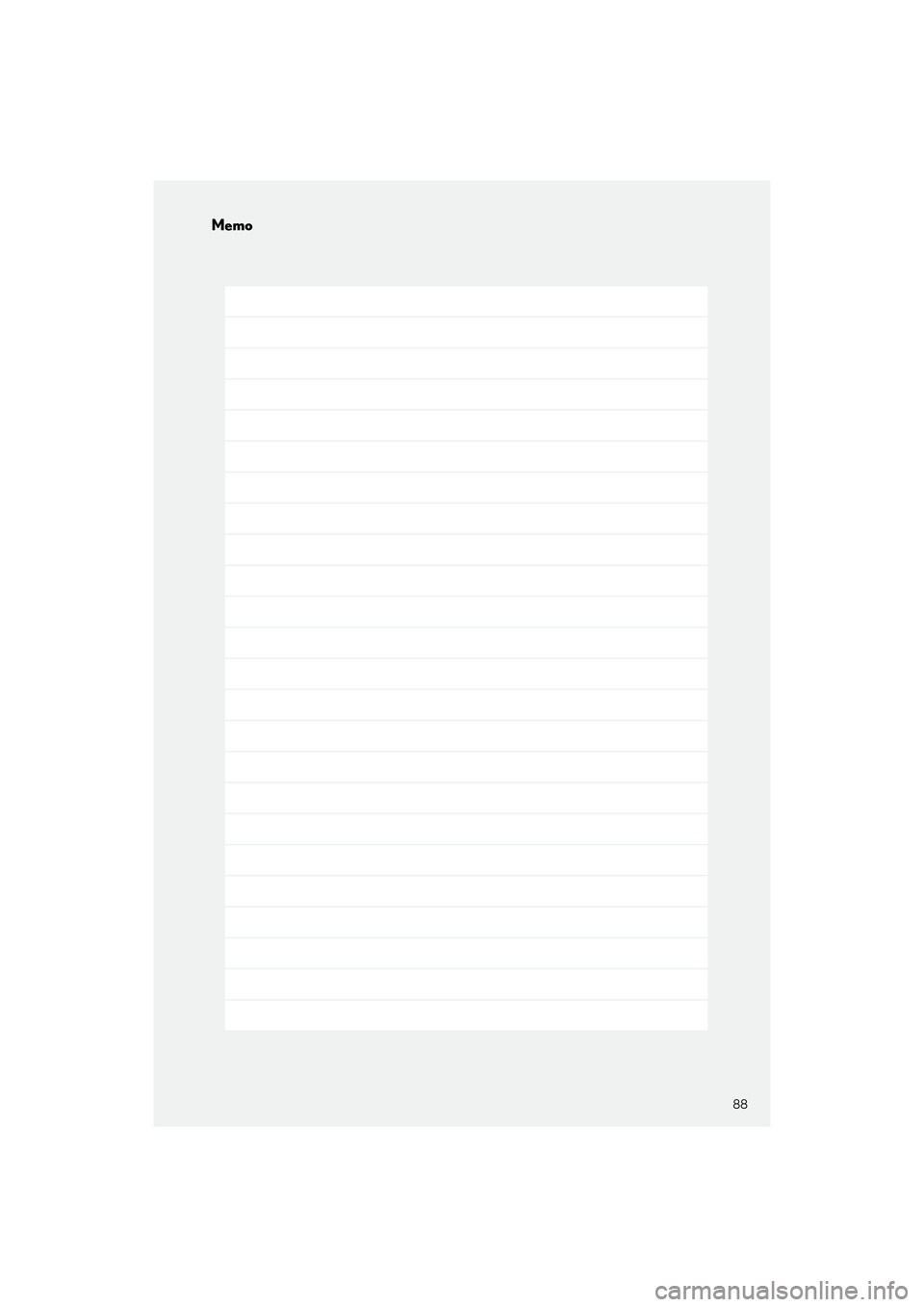

Memo
88
Memo
ES300h_QG_OM06257U_(U)

89
ES300h_QG_OM06257U_(U)
Memo
