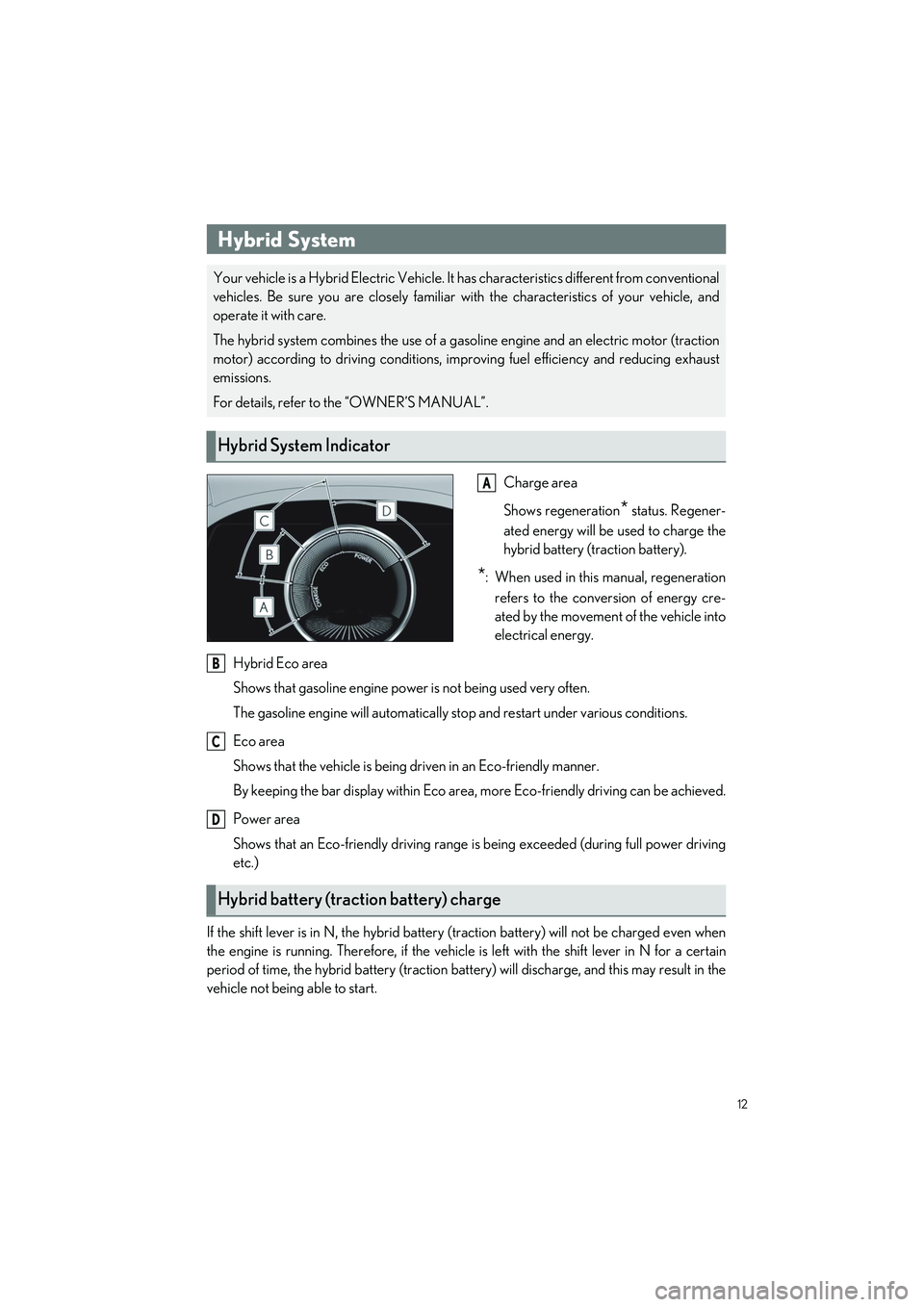

Hybrid System
Your vehicle is a Hybrid Electric Vehicle. It has characteristics different from conventional
vehicles. Be sure you are closely familiar with the characteristics of your vehicle, and
operate it with care.
The hybrid system combines the use of a gasoline engine and an electric motor (traction
motor) according to driving conditions, improving fuel efficiency and reducing exhaust
emissions.
For details, refer to the “OWNER’S MANUAL”.
Hybrid System Indicator
A
Hybrid battery (traction battery) charge
B
C
D

14
ES300h_QG_OM06257U_(U)

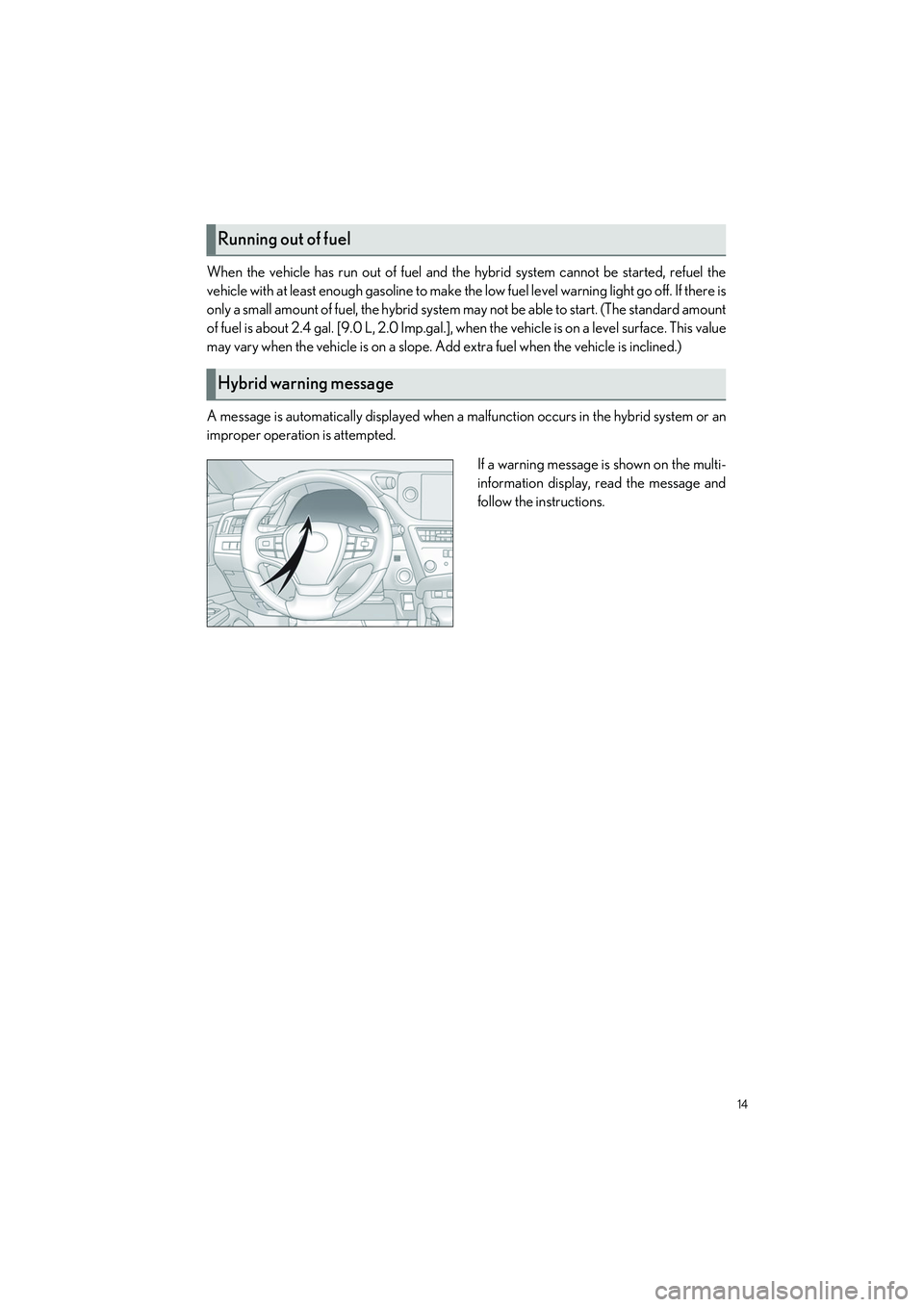

When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light go off. If there is
only a small amount of fuel, the hybrid system may not be able to start. (The standard amount
of fuel is about 2.4 gal. [9.0 L, 2.0 Imp.gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
A message is automatically displayed when a ma lfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-
information display, read the message and
follow the instructions.
Running out of fuel
Hybrid warning message

20
ES300h_QG_OM06257U_(U)
1Press the parking brake switch to
check that the parking brake is set.
( P.28)
Parking brake indicat or will come on.
2Check that the shift lever is in P.
3Firmly depress the brake pedal.
and a message will be dis-
played on the multi-information dis-
play. If it is not displayed, the hybrid
system cannot be started.
4Press the power switch shortly and firmly.
When operating the power switch, one short, firm press is enough. It is not necessary to
press and hold the switch.
If the “READY” indicator turns on, the hybr id system will operate normally. Continue
depressing the brake pedal until the “READY” indicator is illuminated.
The hybrid system can be started from any power switch mode.
5Check that the “READY” indicator is illuminated.
The vehicle will not move when the “READY” indicator is off.
Power (Ignition) Switch
Performing the following operations when carrying the electronic key on your person
starts the hybrid system or changes power switch modes.
Starting the hybrid system

21
ES300h_QG_OM06257U_(U)
1Stop the vehicle completely.
2Set the parking brake (P.28), and shift the shift lever to P ( P.24).
3Press the power switch.
4Release the brake pedal and check that “ACCESSORY” or “IGNITION ON” is not
shown on the meter.
Modes can be changed by pressing the power switch with the brake pedal released. (The
mode changes each time the switch is pressed.)
1Off*
The emergency flashers can be used.
2ACCESSORY mode
Some electrical components such as
the audio system can be used.
“ACCESSORY” will be displayed on
the meter.
3ON mode
All electrical components can be used.
“IGNITION ON” will be displayed on
the meter.
*: If the shift lever is in a position other than P when turning off the hybrid system, the
power switch will be turned to ACCES-
SORY mode, not to off.
Stopping the hybrid system
Changing power switch modes

25
ES300h_QG_OM06257U_(U)
*1: To improve fuel efficiency and reduce noise, set the shift lever in D for normal driving.You can choose shift range suitable for your driving situation by operating the paddle
shift switches.
*2: By selecting shift ranges using S mode, you can control accelerating force and engine
braking forces.
To drive using temporary shift range selection, operate the “-” paddle shift switch. The shift
range can then be selected by operating the “-” and “+” paddle shift switches.
1Upshifting
2Downshifting
The selected shift range, from D1 to D6, will
be displayed on the meter.
Shift position purpose and functions
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
DNormal driving*1
SS mode driving*2 (  P.26)
Selecting shift ranges in D position

26
ES300h_QG_OM06257U_(U)
To enter S mode, shift the shift lever to S. Shift ranges can be selected by operating the shift
lever or paddle shift switches, allowing you to drive in the shift range of your choosing.
1Upshifting
2Downshifting
The selected shift range, from S1 to S6, will
be displayed in the meter.
The initial shift range in S mode is set auto-
matically to S5 or S4 according to vehicle’s
speed.
Selecting shift ranges in S mode
Q Shift ranges and their functions
OYou can choose from 6 levels of accelerating force and engine braking force.
O A lower shift range will provide greater accelerating force and engine braking force
than a higher shift range, and the engine revolutions will also increase.
O If you accelerate while in ranges S1 to S4, the shift range may automatically increase
in accordance with the vehicle’s speed.

29
ES300h_QG_OM06257U_(U)
In automatic mode, the parking brake can be set or released automatically according to shift
lever operation. Also, even in automatic mode, the parking brake can be set or released
manually.
While the vehicle is stopped, press and hold
the parking brake switch until a message is
shown on the multi-information display
When the automatic mode is turned on, the
parking brake operates as follows.
O When the shift lever is shifted from P, the
parking brake will be released, and the
parking brake indicator light will turn off.
O When the shift lever is shifted to P, the
parking brake will be set, and the park-
ing brake indicator light will turn on.
Operate the shift lever with the vehicle stopped and the brake pedal depressed.
While the vehicle is stopped, pull and hold
the parking brake switch until a message is
shown on the multi-information display
Turning the automatic mode on
Turning the automatic mode off
