PICTORIAL INDEX
xii
INSTRUMENT CLUSTER (vehicles sold in Canada)

For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xiii
Page
1Tachometer 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Traction control system off indicator light 284. . . .
3Vehicle stability control system/traction control
system warning light 64. . . . . . . . . . . . . . . . . . . . . . . . . .
4Tail light indicator light 37. . . . . . . . . . . . . . . . . . . . . . . .
5Headlight high beam indicator light 40. . . . . . . . . . . .
6Turn signal indicator light 40. . . . . . . . . . . . . . . . . . . . .
7Fog light indicator light 41. . . . . . . . . . . . . . . . . . . . . . . .
8Cruise control indicator light 279. . . . . . . . . . . . . . . .
9Slip indicator light 283, 286. . . . . . . . . . . . . . . . . . . . . .
10Automatic headlight leveling system
warning light 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11Low fuel level warning light 64. . . . . . . . . . . . . . . . . . . .
12Automatic transmission indicator lights 272. . . . . .
13Engine coolant temperature gauge 51. . . . . . . . . . . . . Page
14Odometer and trip meter 54. . . . . . . . . . . . . . . . . . . . . .
15Trip meter reset knob 54. . . . . . . . . . . . . . . . . . . . . . . . .
16Fuel gauge 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Low washer fluid warning light 64. . . . . . . . . . . . . . . . .
18Low engine oil level warning light 60. . . . . . . . . . . . . .
19Multi-information display 66. . . . . . . . . . . . . . . . . . . . . .
20Rear light failure warning light 64. . . . . . . . . . . . . . . . .
21Low engine oil pressure warning light 59. . . . . . . . . .
22Brake system warning light 56. . . . . . . . . . . . . . . . . . . .
23Anti-lock brake system warning light 62. . . . . . . . . . .
24Driver's seat belt reminder light 57. . . . . . . . . . . . . . . .
25Discharge warning light 58. . . . . . . . . . . . . . . . . . . . . . .
26SRS warning light 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Open door warning light 63. . . . . . . . . . . . . . . . . . . . . . .
28Malfunction indicator lamp 61. . . . . . . . . . . . . . . . . . . .

PICTORIAL INDEX
xiv

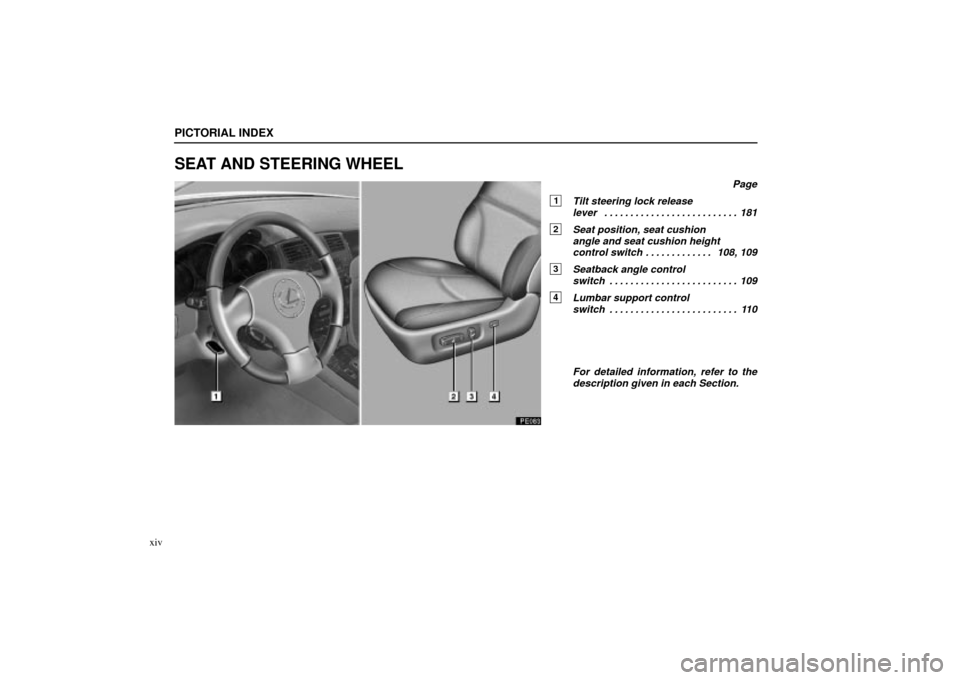

SEAT AND STEERING WHEEL
Page
1Tilt steering lock release
lever 181. . . . . . . . . . . . . . . . . . . . . . . . . .
2Seat position, seat cushion
angle and seat cushion height
control switch 108, 109. . . . . . . . . . . . .
3Seatback angle control
switch 109. . . . . . . . . . . . . . . . . . . . . . . . .
4Lumbar support control
switch 110. . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.

PICTORIAL INDEX
xv
EXTERIOR VIEW
Page
1Rear window defogger 49. . . . . . . . . . .
2Trunk lid 93. . . . . . . . . . . . . . . . . . . . . . . .
3Tire and wheel 389. . . . . . . . . . . . . . . . .
4Moon roof 99. . . . . . . . . . . . . . . . . . . . . .
5Outside rear view mirror 182. . . . . . . .
6Fuel filler door 96. . . . . . . . . . . . . . . . . .
7Door 26. . . . . . . . . . . . . . . . . . . . . . . . . . .
8Headlights 34, 37, 434. . . . . . . . . . . . . .
9Hood 92. . . . . . . . . . . . . . . . . . . . . . . . . . .
10Wiper and washer 41, 432. . . . . . . . . .
For detailed information, refer to the
description given in each Section.

PICTORIAL INDEX
xvi

BASIC OPERATION
1
QUICK REFERENCE
Driver's seat2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power adjustable pedals3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper switch6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Seat position
Head restraint
angle Head restraint
height Lumbar supportSeatback angleSeat cushion
height Seat cushion angle
To tilt the steering wheel up or down to the desired angle:
1. Pull the lever up while holding the steering wheel.
2. Tilt the steering wheel to the desired angle.
3. Release the lever.BE051
QUICK REFERENCE
2
1. DRIVER'S SEAT 2. TILT STEERING WHEEL

To adjust the position of the accelerator and brake pedals:
1. Set the parking brake firmly.
2. Turn the ignition key to the ONº position with the
automatic transmission selector lever in the Pº position.
3. Push the
º side of the switch to move the pedals to the
front most position.
4. Push the º side of the switch to move the pedals
toward you until you can fully depress the brake pedal.
5. After adjusting, depress the pedals a few times to get
used to the feel.BE065
QUICK REFERENCE
3
3. POWER ADJUSTABLE PEDALS

BE056
BE057
NOTE: When the cruise control is being used, even if you downshift from Dº to 4º, engine braking will not be enabled because
the cruise control is not cancelled. For the operation to decrease the vehicle speed, see page 281.
OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P:Parking, engine starting and key removal
position
R:Reverse position
N:Neutral position
D:Normal driving position
(shifting into overdrive possible)
4:Position for engine braking
(shifting into overdrive not possible)
3, 2:Position for more powerful engine braking
L:Position for maximum engine braking

Shift while pressing the brake pedal.
(Ignition switch must be in the ONº position.)
QUICK REFERENCE
4
4. AUTOMATIC TRANSMISSION

Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Daytime running light
system off Headlights turn on at full
intensity. Parking, tail, license plate,
side marker and instrument
panel lights turn on.
BE004
BE004
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Automatic light control Headlights also turn on.
Automatic light control Headlights turn on at full
intensity.
QUICK REFERENCE
5
5. HEADLIGHT AND TURN SIGNAL
SWITCH

HEADLIGHT SWITCH (U.S.A.)
With the ignition OFF
With the engine started and parking brake
released

HEADLIGHT SWITCH (Canada)
With the ignition OFF
With the engine started and parking brake
released
