stop start Lexus ES330 2004 Destination Input and Route Guidance / LEXUS 2004 ES330 (OM33633U) Owner's Guide

DRIVING TIPS
307 3. Release the parking brake and brake pedal and slowly pull
or back away from the wheel blocks. Stop and apply your
brakes.
4. Have someone retrieve the blocks.
CAUTION
Do not exceed 72 km/h (45 mph) or the posted towing
speed limit, whichever is lower. Because instability
(swaying) of a towing vehicle-trailer combination
usually increases as the speed increases, exceeding
72 km/h (45 mph) may cause loss of control.
Slow down and downshift before descending steep
or long downhill grades. Do not make sudden
downshifts.
Avoid holding the brake pedal down too long or too
frequently. This could cause the brakes to overheat
and result in reduced braking efficiency.
HOW TO SAVE FUEL AND MAKE
YOUR VEHICLE LAST LONGER
Improving fuel economy is easy Ð just take it easy. It will help
make your vehicle last longer, too. Here are some specific tips
on how to save money on both fuel and repairs:
Keep your tires inflated at the correct pressure. Check
the pressure every two weeks, or at least once a month.
Underinflation causes tire wear and wastes fuel.
Do not carry unneeded weight in your vehicle. Excess
weight puts a heavier load on the engine, causing greater
fuel consumption.
Avoid lengthy warm-up idling. Once the engine is
running smoothly, begin driving Ð but gently. Remember,
however, that on cold winter days this may take a little
longer.
Always drive with the automatic transmission selector
lever in the Dº position when engine braking is not
required. Driving with the overdrive off will reduce the fuel
economy. (For details, see Automatic transmissionº on
page 272.)
Accelerate slowly and smoothly. Avoid jackrabbit starts.
Avoid long engine idling. If you have a long wait and you
are not in traffic, it is better to turn off the engine and start
again later.

IN CASE OF AN EMERGENCY
316
NOTICE
Do not pull- or push-start the vehicle. It may damage
the vehicle or cause a collision when the engine starts.
Also the three-way catalytic converter may overheat
and become a fire hazard.
If the engine turns over at its normal speed but will not
start Ð
1. Turn the ignition key to ACCº or LOCKº and try starting the
engine again.
2. If the engine will not start, the engine may be flooded
because of repeated cranking. See (b) Starting a flooded
engineº for further instructions.
3. If the engine still will not start, it needs adjustment or repair.
Call a Lexus dealer, Roadside Assistance or Customer Service
Assistance. (See Forewordº.)(b) Starting a flooded engine
If the engine will not start, your engine may be flooded
because of repeated cranking.
If this happens, turn the key to STARTº with the accelerator
pedal fully depressed. Continue this operation for 30 seconds
and then stop cranking. Then try starting the engine with your
foot off the accelerator pedal.
If the engine does not start after 30 seconds of cranking,
release the key, wait a few minutes and try again.
If the engine still will not start, it needs adjustment or repair.
Call a Lexus dealer, Roadside Assistance or Customer Service
Assistance. (See Forewordº.)
NOTICE
Do not crank for more than 30 seconds at a time. This
may overheat the starter and wiring systems.

IN CASE OF AN EMERGENCY
320
CAUTION
When making the connections, to avoid serious injury,
do not lean over the battery or accidentally let the
jumper cables or clamps touch anything except the
correct battery terminals or the ground.
5. Start your engine in the normal way. After starting, run it at
about 2000 rpm for several minutes with the accelerator pedal
lightly depressed.
6. Carefully disconnect the cables in the exact reverse order:
the negative cable and then the positive cable.
7. Carefully dispose of the battery cover cloths which may now
contain sulfuric acid.
8. If removed, replace all the battery vent plugs.
If the cause of your battery discharging is not apparent (for
example, lights left on), you should have it checked at your
Lexus dealer.
IF YOU CANNOT INCREASE THE
ENGINE SPEED
If the engine speed does not increase with the accelerator
pedal depressed down, there may be a problem somewhere
in your electronic throttle control system.
At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to the ACCº or LOCKº position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.

IN CASE OF AN EMERGENCY
322
IF YOU HAVE A FLAT TIRE
1. Reduce your speed gradually, keeping a straight
line. Move cautiously off the road to a safe place
Ð well away from the traffic. Avoid stopping on the
center divider of a highway. Park on a level spot with
firm ground.
2. Stop the engine and turn on your emergency
flashers.
3. F i r m l y s e t t h e p a r k i n g b r a k e a n d p u t t h e
transmission in Pº.
4. Have everyone get out of the vehicle on the side
away from traffic.
5. Read the following instructions thoroughly.
CAUTION
When jacking, be sure to observe the following
to reduce the possibility of personal injury:
Follow jacking instructions.
Do not put any part of your body under a
vehicle supported by a jack. Otherwise,
personal injury may occur.
Do not start or run the engine while your
vehicle is supported by the jack.
Stop the vehicle on a level firm ground, firmly
set the parking brake and put the
transmission in Pº. Block the wheel
diagonally opposite to the one being changed
if necessary.
Make sure to set the jack properly in the jack
point. Raising the vehicle with jack
improperly positioned will damage the vehicle
or may allow the vehicle to fall off the jack
and cause personal injury.
Never get under the vehicle when the vehicle
is supported by the jack alone.
Use the jack only for lifting your vehicle
during wheel changing.
Do not raise the vehicle with someone in the
vehicle.
When raising the vehicle, do not place any
objects on top of or underneath the jack.
Raise the vehicle only high enough to remove
and change the tire.

INTRODUCTION
360

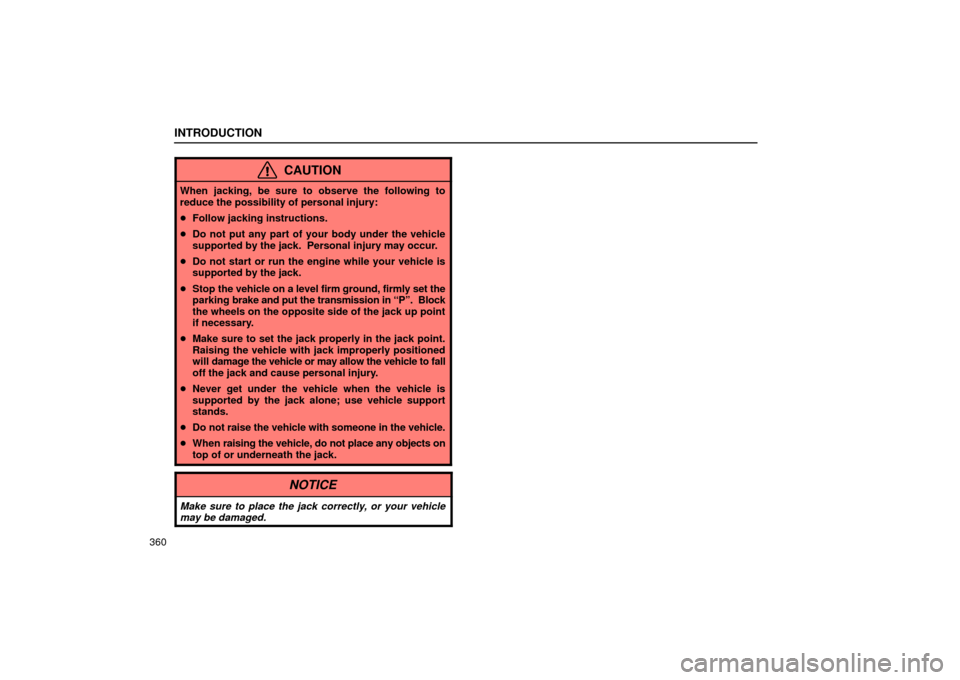

CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:
Follow jacking instructions.
Do not put any part of your body under the vehicle
supported by the jack. Personal injury may occur.
Do not start or run the engine while your vehicle is
supported by the jack.
Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in Pº. Block
the wheels on the opposite side of the jack up point
if necessary.
Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.
Never get under the vehicle when the vehicle is
supported by the jack alone; use vehicle support
stands.
Do not raise the vehicle with someone in the vehicle.
When raising the vehicle, do not place any objects on
top of or underneath the jack.
NOTICE
Make sure to place the jack correctly, or your vehicle
may be damaged.

ENGINE
367
Gasoline quality
In a very few cases, you may experience driveability problems
caused by the particular gasoline that you are using. If you
continue to have unacceptable driveability, try changing
gasoline brands. If this does not rectify your problem, then
consult your Lexus dealer.
NOTICE
Do not use gasohol other than stated above. It will
cause fuel system damage or vehicle performance
problems.
If drivability problems are encountered (poor hot
starting, vaporizing, engine knock, etc.), discontinue
its use.
Take care not to spill gasohol during refueling.
Gasohol may cause paint damage.
Fuel tank capacity
70 L (18.5 gal., 15.4 lmp. gal.)
FUEL PUMP SHUT OFF SYSTEM
The fuel pump shut off system stops supplying fuel to the
engine to minimize the risk of fuel leakage when the engine
stalls or an airbag inflates upon collision. To restart the engine
after the fuel pump shut off system activates, turn the ignition
switch to ACCº or LOCKº once and start it.
