FOREWORD
i Congratulations on your selection of this Lexus. In Lexus vehicles we have invested all our engineering and design resources; all
the know-how we have gained in over 60 years of making automobiles; the highest motivation of our most talented employees; and
our tradition of incessant striving toward ever greater quality.
This Owner's Manual explains the features of your new Lexus. Please read it and follow the instructions carefully so that you can
enjoy many years of safe motoring.
When it comes to service, remember that your Lexus dealer knows your vehicle best and is interested in your complete satisfaction.
Your Lexus dealer will provide quality maintenance and any other assistance you may require.
If there is not a Lexus dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS

When traveling in the U.S. mainland or Canada:
Lexus Roadside Assistance 1-800-25-LEXUS (Toll-Free)
(1-800-255-3987)

HAWAII:
Lexus Customer Service Assistance 1-800-25-LEXUS (Toll-Free)
(1-800-255-3987)
CANADIAN OWNERS

When traveling in Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service 1-800-26-LEXUS (Toll-Free)
(1-800-265-3987)
Please leave this Owner's Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of the Lexus policy
of continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find
some explanations for equipment not installed on your vehicle.

IMPORTANT INFORMATION ABOUT YOUR LEXUS
iii Lexus recommends you to read the provisions in Section 1-6
carefully and refer to them as needed during your time of
ownership of this vehicle.
New vehicle warranty
Your new vehicle is covered by the following Lexus limited
warranties:

New vehicle warranty

Emission control systems warranty

Others
For further information, please refer to the Owner's Guideº,
Owner's Manual Supplementº or Warranty Bookletº.
Your responsibility for maintenance
It is the owner's responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner's Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance information, please refer to the Owner's Manual
Supplement/Scheduled Maintenanceº.
Important health and safety information about
your Lexus
CAUTION

WARNING: Engine exhaust, some of its constituents,
and a wide variety of automobile components
contain or emit chemicals known to the State of
California to cause cancer and birth defects and
other reproductive harm. In addition, oils, fuels and
fluids contained in vehicles as well as waste
produced by component wear contain or emit
chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.

Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your hands
after handling. Used engine oil contains chemicals
that have caused cancer in laboratory animals.
Always protect your skin by washing thoroughly with
soap and water.

HOW TO USE THIS MANUAL
v
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner's Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION Ð QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 Ð INSTRUMENTS AND CONTROLS
The vehicle's equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Occupant restraint system
7. Steering wheel and mirrors
SECTION 2 Ð AIR CONDITIONING AND AUDIO
The features of the vehicle's air conditioning and audio are
explained in detail. Be sure to read this Section so that you can
make full use of them.
SECTION 3 Ð STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this Section, and remember Ð drive safely!
SECTION 4 Ð IN CASE OF AN EMERGENCY
This Section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner's Manual and follow the instructions given.
SECTION 5 Ð MAINTENANCE
This Section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 Ð SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.

For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xi
Page
1Tachometer 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Traction control system off indicator light 284. . . .
3Vehicle stability control system/traction control
system warning light 64. . . . . . . . . . . . . . . . . . . . . . . . . .
4Engine oil replacement reminder light 61. . . . . . . . . .
5Headlight indicator light 34. . . . . . . . . . . . . . . . . . . . . . .
6Headlight high beam indicator light 40. . . . . . . . . . . .
7Turn signal indicator light 40. . . . . . . . . . . . . . . . . . . . .
8Fog light indicator light 41. . . . . . . . . . . . . . . . . . . . . . . .
9Cruise control indicator light 279. . . . . . . . . . . . . . . .
10Slip indicator light 283, 286. . . . . . . . . . . . . . . . . . . . . .
11Automatic headlight leveling system
warning light 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Low fuel level warning light 64. . . . . . . . . . . . . . . . . . . .
13Automatic transmission indicator lights 272. . . . . .
14Engine coolant temperature gauge 51. . . . . . . . . . . . . Page
15Odometer and trip meter 54. . . . . . . . . . . . . . . . . . . . . .
16Trip meter reset knob 54. . . . . . . . . . . . . . . . . . . . . . . . .
17Fuel gauge 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Low washer fluid warning light 64. . . . . . . . . . . . . . . . .
19Low engine oil level warning light 60. . . . . . . . . . . . . .
20Multi-information display 66. . . . . . . . . . . . . . . . . . . . . .
21Rear light failure warning light 64. . . . . . . . . . . . . . . . .
22Low engine oil pressure warning light 59. . . . . . . . . .
23Brake system warning light 56. . . . . . . . . . . . . . . . . . . .
24Anti-lock brake system warning light 62. . . . . . . . . . .
25Driver's seat belt reminder light 57. . . . . . . . . . . . . . . .
26Discharge warning light 58. . . . . . . . . . . . . . . . . . . . . . .
27SRS warning light 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Open door warning light 63. . . . . . . . . . . . . . . . . . . . . . .
29Malfunction indicator lamp 61. . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xiii
Page
1Tachometer 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Traction control system off indicator light 284. . . .
3Vehicle stability control system/traction control
system warning light 64. . . . . . . . . . . . . . . . . . . . . . . . . .
4Tail light indicator light 37. . . . . . . . . . . . . . . . . . . . . . . .
5Headlight high beam indicator light 40. . . . . . . . . . . .
6Turn signal indicator light 40. . . . . . . . . . . . . . . . . . . . .
7Fog light indicator light 41. . . . . . . . . . . . . . . . . . . . . . . .
8Cruise control indicator light 279. . . . . . . . . . . . . . . .
9Slip indicator light 283, 286. . . . . . . . . . . . . . . . . . . . . .
10Automatic headlight leveling system
warning light 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11Low fuel level warning light 64. . . . . . . . . . . . . . . . . . . .
12Automatic transmission indicator lights 272. . . . . .
13Engine coolant temperature gauge 51. . . . . . . . . . . . . Page
14Odometer and trip meter 54. . . . . . . . . . . . . . . . . . . . . .
15Trip meter reset knob 54. . . . . . . . . . . . . . . . . . . . . . . . .
16Fuel gauge 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Low washer fluid warning light 64. . . . . . . . . . . . . . . . .
18Low engine oil level warning light 60. . . . . . . . . . . . . .
19Multi-information display 66. . . . . . . . . . . . . . . . . . . . . .
20Rear light failure warning light 64. . . . . . . . . . . . . . . . .
21Low engine oil pressure warning light 59. . . . . . . . . .
22Brake system warning light 56. . . . . . . . . . . . . . . . . . . .
23Anti-lock brake system warning light 62. . . . . . . . . . .
24Driver's seat belt reminder light 57. . . . . . . . . . . . . . . .
25Discharge warning light 58. . . . . . . . . . . . . . . . . . . . . . .
26SRS warning light 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Open door warning light 63. . . . . . . . . . . . . . . . . . . . . . .
28Malfunction indicator lamp 61. . . . . . . . . . . . . . . . . . . .

BE056
BE057
NOTE: When the cruise control is being used, even if you downshift from Dº to 4º, engine braking will not be enabled because
the cruise control is not cancelled. For the operation to decrease the vehicle speed, see page 281.

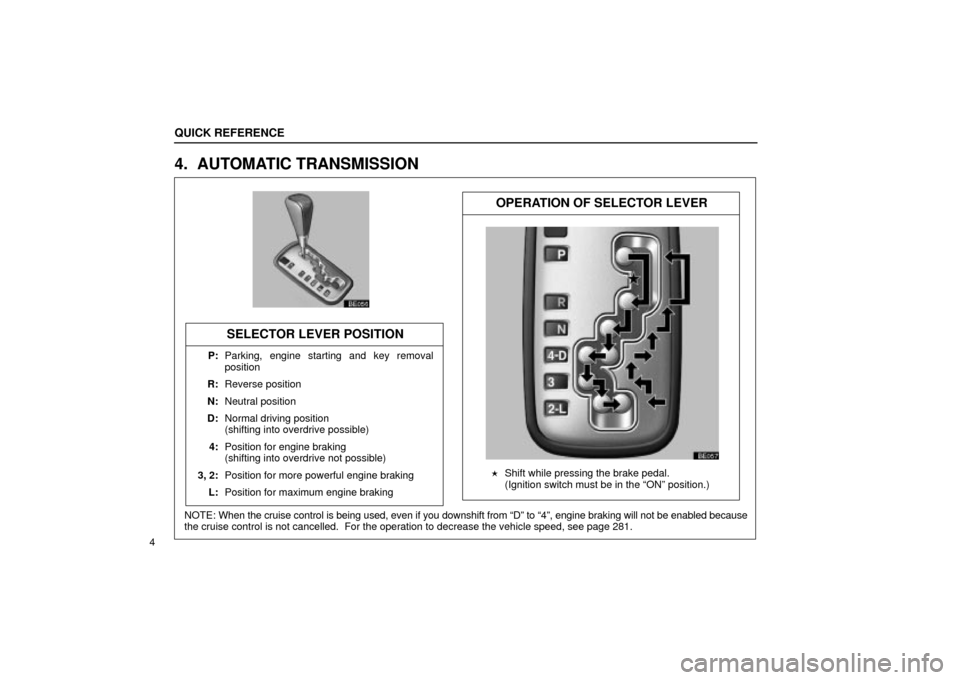

OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P:Parking, engine starting and key removal
position
R:Reverse position
N:Neutral position
D:Normal driving position
(shifting into overdrive possible)
4:Position for engine braking
(shifting into overdrive not possible)
3, 2:Position for more powerful engine braking
L:Position for maximum engine braking

Shift while pressing the brake pedal.
(Ignition switch must be in the ONº position.)
QUICK REFERENCE
4
4. AUTOMATIC TRANSMISSION

Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Daytime running light
system off Headlights turn on at full
intensity. Parking, tail, license plate,
side marker and instrument
panel lights turn on.
BE004
BE004
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Automatic light control Headlights also turn on.
Automatic light control Headlights turn on at full
intensity.
QUICK REFERENCE
5

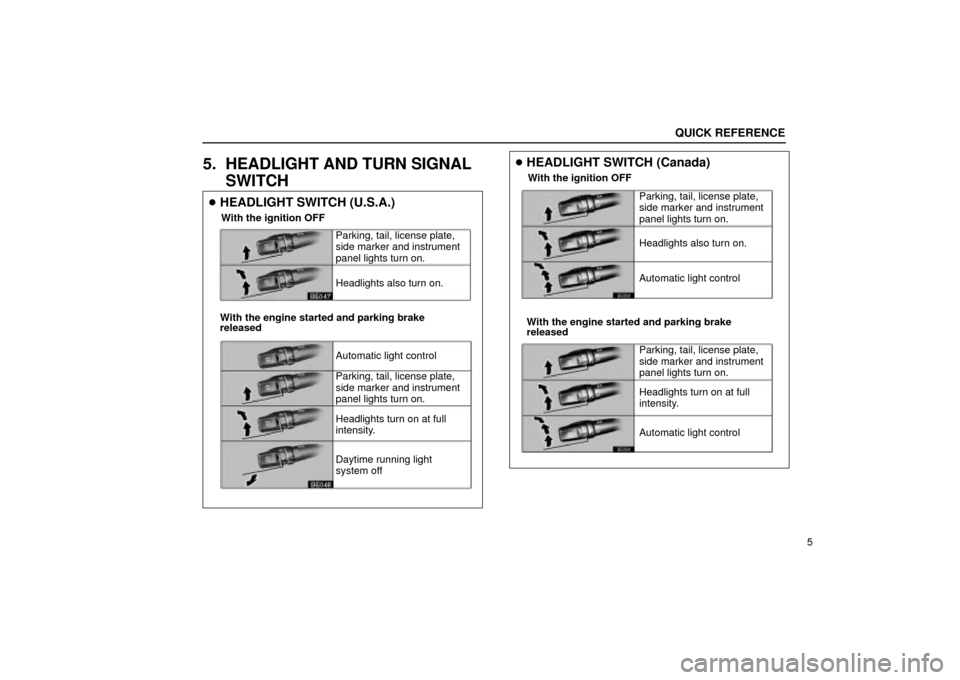

5. HEADLIGHT AND TURN SIGNAL
SWITCH

HEADLIGHT SWITCH (U.S.A.)
With the ignition OFF
With the engine started and parking brake
released

HEADLIGHT SWITCH (Canada)
With the ignition OFF
With the engine started and parking brake
released

SECTION 1 ± 1
9
INSTRUMENTS AND CONTROLS
Keys and doors
Keys10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

KEYS AND DOORS
10
KEYS
1Master keys (black) Ð These keys work in every lock.
For your Lexus dealer to make a new key with a
built-in transponder chip, your dealer will need one
of them.
2Sub key (gray) Ð This key will not open the glove box
and rear armrest door in the rear seat.
3Key number plate Ð Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for engine immobilizer system has been
placed in the head of the master and sub keys. These chips
are needed to enable the system to function correctly, so be
careful not to lose these keys. If you make your own duplicate
key, you will not be able to cancel the system or start the
engine.To protect items locked in the trunk or glove box when using
valet parking, leave the sub key with the attendant.
The trunk lid can be opened using a loop of wire in the trunk
even with the trunk lid opener main switch in the glove box
turned off. When keeping items in the trunk, be sure to turn off
the trunk lid opener main switch and lock the glove box and rear
armrest door. To turn off the main switch in the glove box, see
page 93. For locking the glove box, see page 77. For locking
the rear armrest door, see page 86.
Since the doors can be locked without a key, you should always
carry the flat key or spare master key in case you accidentally
lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.

KEYS AND DOORS
11
Flat key
As a transponder chip is built in its key case, you can start
the engine with this key.
The flat key works in every lock.
A transponder chip for engine immobilizer system has been
placed in the key case of the flat key. This chip is needed to
enable the system to function correctly, so be careful not to lose
this key. If you make your own duplicate key, you will not be
able to cancel the system or start the engine.
Insert your key plate in its key case as shown. We recommend
that you always carry this with you for emergency use. Do not
leave it in your vehicle.
Starting the engine using a flat key
1. Remove the key plate from the key case.
2. Insert the key plate into the ignition switch. The indicator
light keeps flashing.
3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobilizer system is
automatically canceled. (For details, see Engine immobilizer
systemº on page 16.) You can put the key case away then. You
cannot cancel the engine immobilizer system if 10 seconds
have past after you inserted the key plate. You need to remove
the key plate from the ignition switch and try it again from the
step 2.
4. Start the engine within 20 seconds after the security
indicator light goes out. You cannot start the engine if 20
seconds have past after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.
