STEERING WHEEL AND MIRRORS
186Displays
Directions
N
NE
E
SE
S
SW
W
NWNorth
Northeast
East
Southeast
South
Southwest
West
Northwest

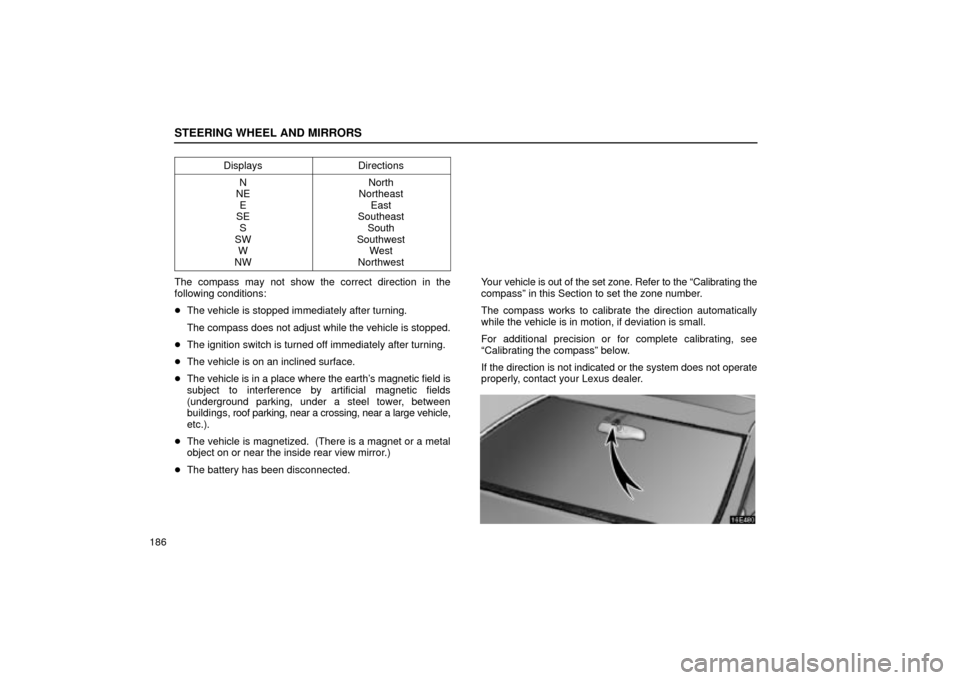

The compass may not show the correct direction in the
following conditions:
The vehicle is stopped immediately after turning.
The compass does not adjust while the vehicle is stopped.
The ignition switch is turned off immediately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the earth's magnetic field is
subject to interference by artificial magnetic fields
(underground parking, under a steel tower, between
buildings, roof parking, near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a magnet or a metal
object on or near the inside rear view mirror.)
The battery has been disconnected.Your vehicle is out of the set zone. Refer to the Calibrating the
compassº in this Section to set the zone number.
The compass works to calibrate the direction automatically
while the vehicle is in motion, if deviation is small.
For additional precision or for complete calibrating, see
Calibrating the compassº below.
If the direction is not indicated or the system does not operate
properly, contact your Lexus dealer.

STEERING WHEEL AND MIRRORS
188Calibrating the compass (deviation calibration)
The direction display on the compass deviates from the true
direction determined by the earth's magnetic field. The angle
of deviation varies according to the geographic position of the
vehicle.
To adjust this deviation, stop the vehicle, then push and hold
the COMPº switch until the zone number appears on the

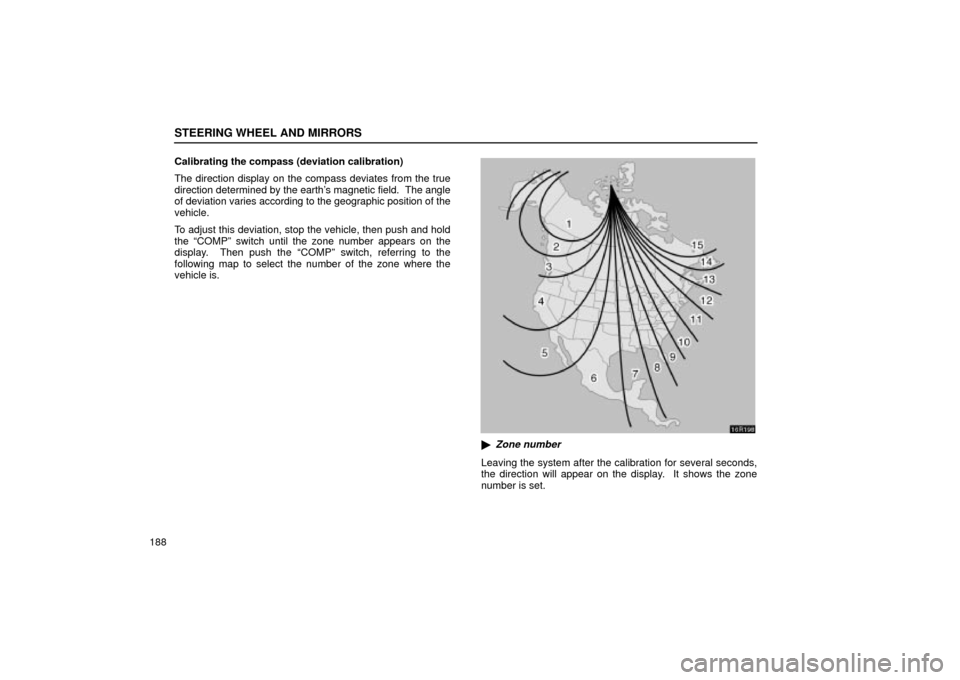

display. Then push the COMPº switch, referring to the
following map to select the number of the zone where the
vehicle is.
16R198
16R198

Zone number
Leaving the system after the calibration for several seconds,
the direction will appear on the display. It shows the zone
number is set.

STEERING WHEEL AND MIRRORS
189
CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.

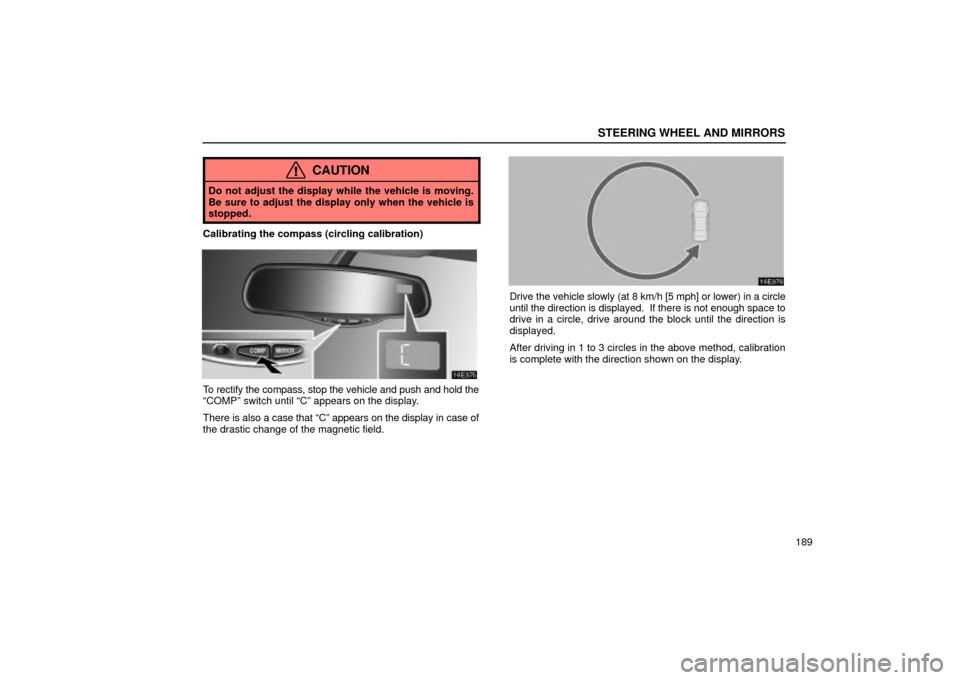

Calibrating the compass (circling calibration)
To rectify the compass, stop the vehicle and push and hold the
COMPº switch until Cº appears on the display.
There is also a case that Cº appears on the display in case of
the drastic change of the magnetic field.
Drive the vehicle slowly (at 8 km/h [5 mph] or lower) in a circle
until the direction is displayed. If there is not enough space to
drive in a circle, drive around the block until the direction is
displayed.
After driving in 1 to 3 circles in the above method, calibration
is complete with the direction shown on the display.

STEERING WHEEL AND MIRRORS
190Perform circling calibration just after you have purchased
your Lexus. And then always perform circling calibration
after the battery has been removed, replaced or
disconnected.
Do not perform circling calibration of the compass in a place
where the earth's magnetic field is subject to interference by
artificial magnetic fields (underground parking, under a steel
tower, between buildings, roof parking, near a crossing,
near a large vehicle, etc.).
During calibration, do not operate electric systems (moon
roof, power windows, etc.) as they may interfere with the
calibration.

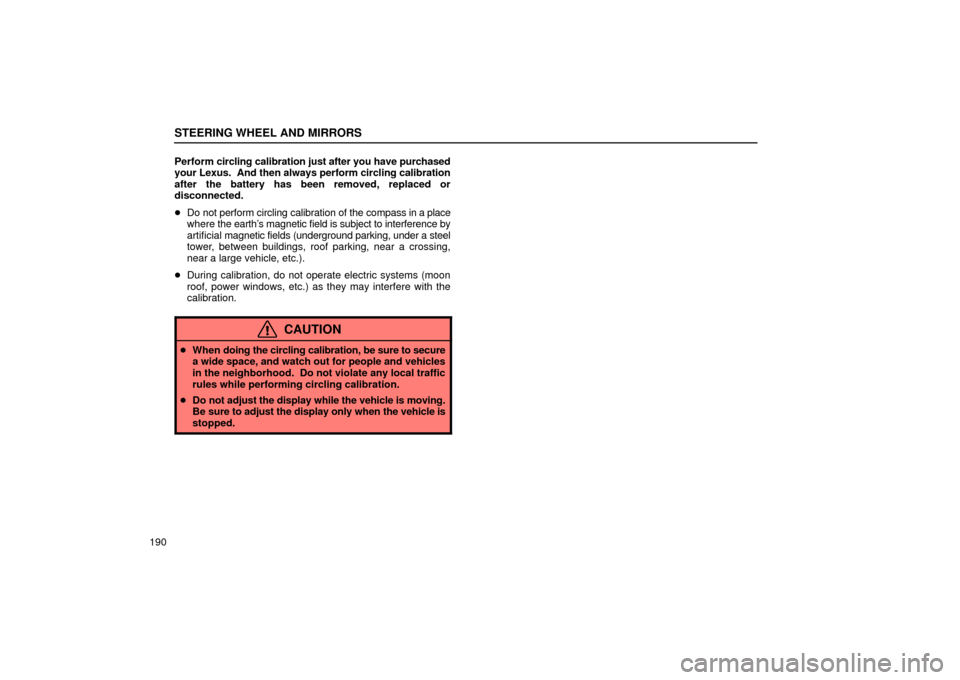

CAUTION
When doing the circling calibration, be sure to secure
a wide space, and watch out for people and vehicles
in the neighborhood. Do not violate any local traffic
rules while performing circling calibration.
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.

AIR CONDITIONING
194
1TEMPº (driver side temperature control) button
2Driver side temperature display (in degrees
Fahrenheit or Centigrade)
3Fan speed display
4Outside temperature display
5Air flow display
6Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
7PASSENGER TEMPº (passenger side temperature
control) button
8DUALº (temperature setting mode change) button
9Windshield air flow button
10MODEº(air flow control) button
11Air intake control button
12Fan speed control button
13OFFº button
14AUTOº button
15A/Cº button

AIR CONDITIONING
198If quick heating or cooling is desired Ð
Push the TEMPº or PASSENGER TEMPº button on either
side and hold it until MAX. HOTº or MAX. COLDº appears on
the display.

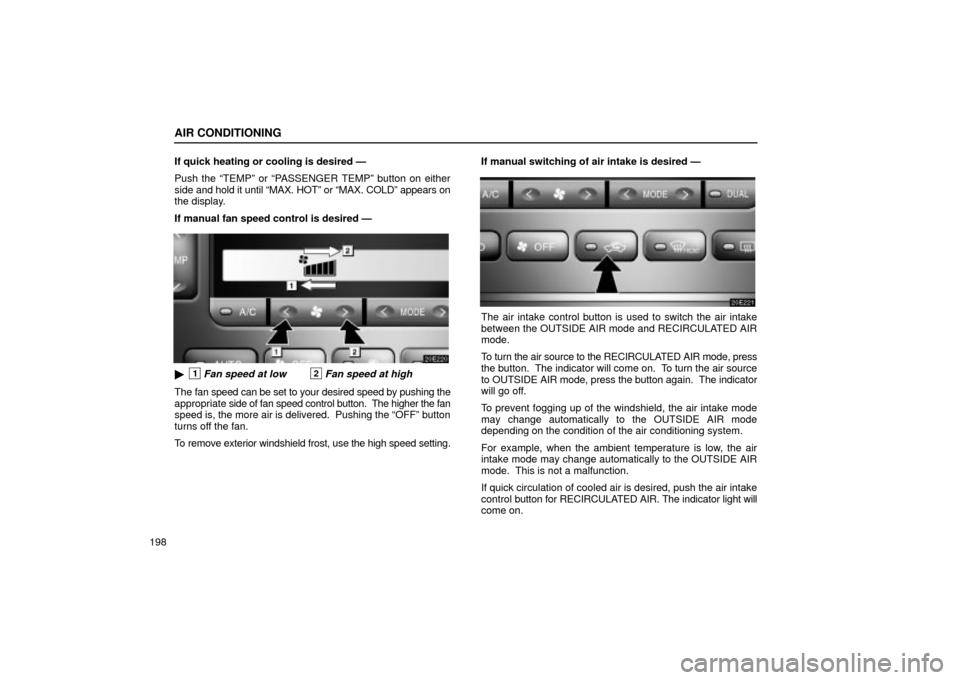

If manual fan speed control is desired Ð

1Fan speed at low2Fan speed at high
The fan speed can be set to your desired speed by pushing the
appropriate side of fan speed control button. The higher the fan
speed is, the more air is delivered. Pushing the OFFº button
turns off the fan.
To remove exterior windshield frost, use the high speed setting.If manual switching of air intake is desired Ð
The air intake control button is used to switch the air intake
between the OUTSIDE AIR mode and RECIRCULATED AIR
mode.
To turn the air source to the RECIRCULATED AIR mode, press
the button. The indicator will come on. To turn the air source
to OUTSIDE AIR mode, press the button again. The indicator
will go off.
To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.
If quick circulation of cooled air is desired, push the air intake
control button for RECIRCULATED AIR. The indicator light will
come on.

AIR CONDITIONING
199 For normal use, it is best to keep the air intake control button
set to OUTSIDE AIR mode. If recirculated air is used during
heating, the windows will fog up more easily.
If manual on-off of the air conditioning is desired Ð
Push the A/Cº button to turn the air conditioning on and push
it again to turn the air conditioning off.
The air conditioning does not work if the outside temperature
is lowered down to around 0C (32F).
If the system is used for ventilation, heating in dry weather or
removing frost or exterior fog on the windshield, turn the air
conditioning off once it is no longer required. This will improve
fuel economy. The air conditioning can be used for year-round
automatic temperature control including cooling and
dehumidifying operation.
If the air conditioning compressor does not operate, the
indicator of the A/Cº button will blink. If the indicator of the
A/Cº button blinks even when the A/Cº button is pushed
again, have the compressor checked by your nearest Lexus
dealer.
Displaying the outside temperature Ð
The temperature display ranges from -30C (-22F) up to
50C (122F).
(b) Windshield defogging and defrosting
To remove interior fog on the windshield Ð
Push the windshield air flow button.
To remove frost or exterior fog on the windshield Ð
1. Push the TEMPº button to set the maximum temperature.
2. Push the windshield air flow button.
3. Push the fan speed control button on the right side to obtain
a maximum air flow.
4. Leave the A/Cº button off.
When the windshield air flow button is pushed, air flows mainly
from the windshield vents and turns on the defogging function
with the purpose of clearing the front view.
Pushing this button once again returns the air flow mode to the
last one used.

AUDIO
211
AUDIO SYSTEM (type A)

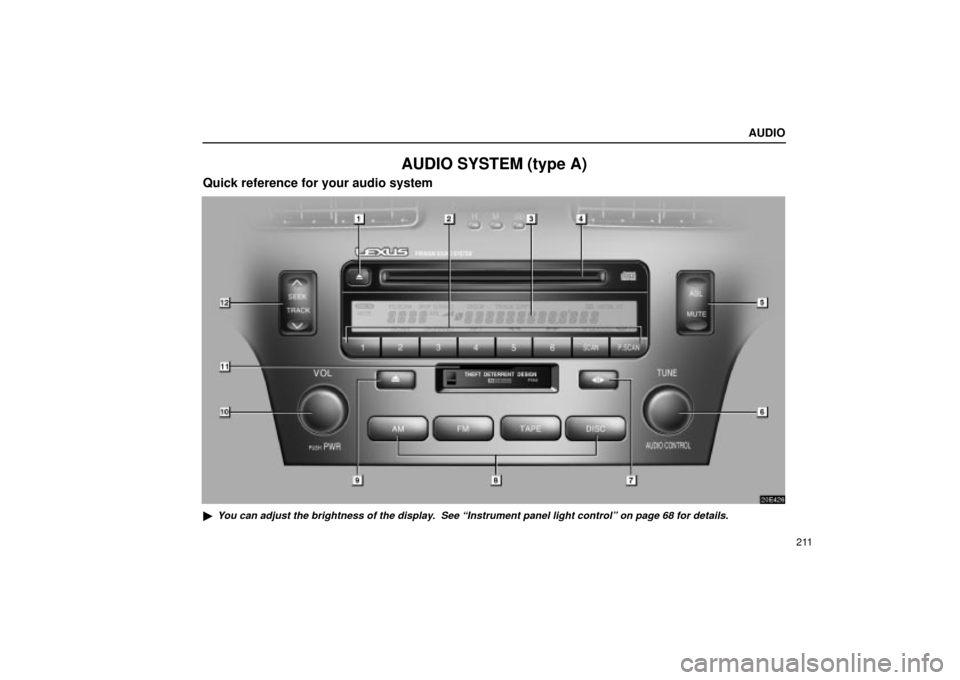

Quick reference for your audio system
20E426

You can adjust the brightness of the display. See Instrument panel light controlº on page 68 for details.

AUDIO
212
1Ejecting a compact disc
(See page 224 for details.)
2Function buttons
1 Ð 6:Station selector buttons
(See page 220 for details.)
SCAN:Scan tuning
(See page 221 for details.)
P.SCAN:Preset scan tuning
(See page 221 for details.)
3Display of functions in TAPE or CD mode
:DOLBY NR
(See page 222 for details.)
:Rewinding or reversing
(See page 222 or 227 for details.)


:Fast forwarding
(See page 222 or 227 for details.)
RPT:Automatic repeat
(See page 223 or 228 for details.)
SKIP:Automatic skip of blank portions of tape
(See page 223 for details.)
:Disc selection
(See page 226 for details.)
RAND:Random access
(See page 228 for details.)
SCAN:Scan selection
(See page 227 for details.)
4Compact disc slot
(See page 224 for details.)
5Automatic sound levelizer/Mute
(See page 214 or 216 for details.)
6TUNE/AUDIO CONTROL knob
(See page 215 for details.)
7

:Side change
(See page 222 for details.)
8Mode selectors
(See page 215 for details.)
9Stopping and ejecting a cassette tape
(See page 221 for details.)
10Turning the system on and adjusting the volume
(See page 214 for details.)
11Cassette tape slot
(See page 221 for details.)
12Radio mode:Seek tuning
(See page 220 for details.)
TAPE mode:Direct access to a desired program
(See page 223 for details.)
CD mode:Direct access to a desired program
(See page 227 for details.)

AUDIO
215

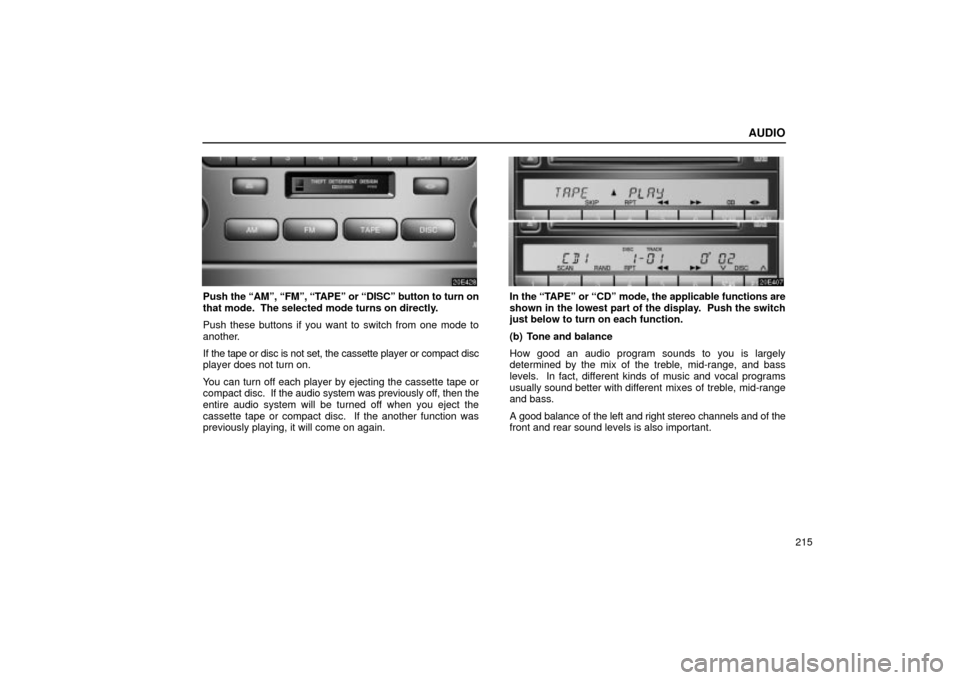

Push the AMº, FMº, TAPEº or DISCº button to turn on
that mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or disc is not set, the cassette player or compact disc
player does not turn on.
You can turn off each player by ejecting the cassette tape or
compact disc. If the audio system was previously off, then the
entire audio system will be turned off when you eject the
cassette tape or compact disc. If the another function was
previously playing, it will come on again.In the TAPEº or CDº mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid-range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid-range
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.
