AUDIO
228(f) Repeating a track or a disc

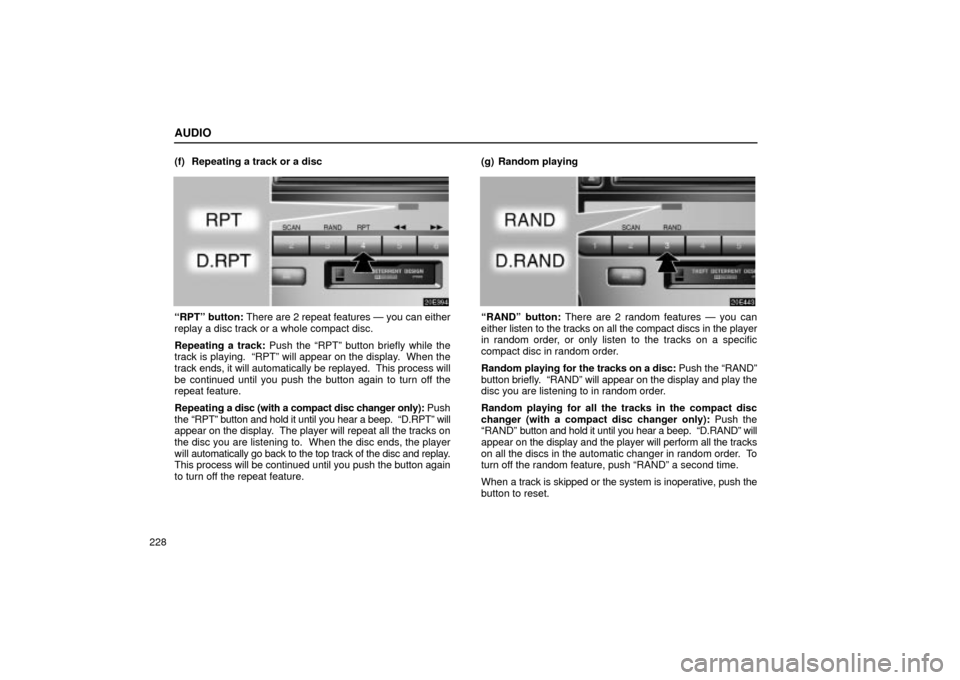

RPTº button: There are 2 repeat features Ð you can either
replay a disc track or a whole compact disc.
Repeating a track: Push the RPTº button briefly while the
track is playing. RPTº will appear on the display. When the
track ends, it will automatically be replayed. This process will
be continued until you push the button again to turn off the
repeat feature.
Repeating a disc (with a compact disc changer only): Push
the RPTº button and hold it until you hear a beep. D.RPTº will
appear on the display. The player will repeat all the tracks on
the disc you are listening to. When the disc ends, the player
will automatically go back to the top track of the disc and replay.
This process will be continued until you push the button again
to turn off the repeat feature.(g) Random playingRANDº button: There are 2 random features Ð you can
either listen to the tracks on all the compact discs in the player
in random order, or only listen to the tracks on a specific
compact disc in random order.
Random playing for the tracks on a disc: Push the RANDº
button briefly. RANDº will appear on the display and play the
disc you are listening to in random order.
Random playing for all the tracks in the compact disc
changer (with a compact disc changer only): Push the
RANDº button and hold it until you hear a beep. D.RANDº will
appear on the display and the player will perform all the tracks
on all the discs in the automatic changer in random order. To
turn off the random feature, push RANDº a second time.
When a track is skipped or the system is inoperative, push the
button to reset.

AUDIO
229 (h) If the player malfunctions
If the player or another unit equipped with the player
malfunctions, your audio system will display one of the four
following error messages.
If WAITº appears on the display: It indicates that the inside
of the player unit may be too hot due to the very high ambient
temperature. Remove the disc from the player and allow the
player to cool down.
If ERROR 1º appears on the display: It indicates that the
disc is dirty, damaged, or it was inserted up-side down. Clean
the disc or insert it correctly.
If ERROR 3º or ERROR 4º appears on the display: It
indicates there is a trouble inside the system. Eject the disc.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer.
Car audio system operating hints
NOTICE
To ensure correct audio system operations:
Be careful not to spill beverages over the audio
system.
Do not put anything other than a cassette tape or
compact disc into the cassette tape slot or compact
disc slot.
The use of a cellular phone inside or near the vehicle
may cause a noise from the speakers of the audio
system which you are listening to. However, this
does not indicate a malfunction.

AUDIO
235
AUDIO SYSTEM (type B)
Quick reference for your audio system
20E444

You can adjust the brightness of the display. See Instrument panel light controlº on page 68 for details.
If a Mark Levinson brand audio system is installed, the Mark Levinsonº logo is shown on the panel.

AUDIO
236

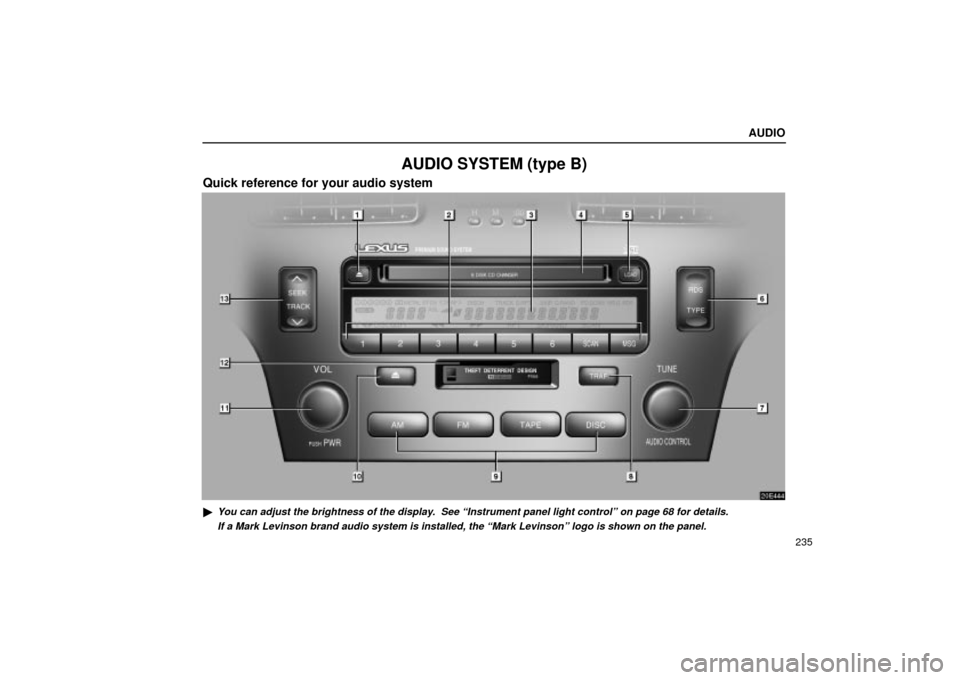

1Ejecting a compact disc
(See page 250 for details.)
2Function buttons
1 Ð 6:Station selector buttons
(See page 243 for details.)
SCAN:Scan tuning
(See page 244 for details.)
MSG:Message button
(See page 246 for details.)
3Display of functions in TAPE or CD mode

:Side change
(See page 248 for details.)
:DOLBY NR
(See page 247 for details.)
:Rewinding or reversing
(See page 248 or 253 for details.)


:Fast forwarding
(See page 248 or 253 for details.)
RPT:Automatic repeat
(See page 248 or 253 for details.)
SKIP:Automatic skip of blank portions of tape
(See page 248 for details.)
:Disc selection
(See page 252 for details.)SCAN:Scan selection
(See page 252 for details.)
4Compact disc slot
(See page 250 for details.)
5Compact disc load button
(See page 250 for details.)
6Radio data system/program type
(See page 244 for details.)
7TUNE/AUDIO CONTROL knob
(See page 239 for details.)
8Traffic announcement
(See page 245 for details.)
9Mode selectors
(See page 238 for details.)
10Stopping and ejecting a cassette tape
(See page 247 for details.)
11Turning the system on and adjusting the volume
(See page 238 for details.)
12Cassette tape slot
(See page 247 for details.)
13Radio mode:Seek tuning
(See page 243 for details.)
TAPE mode:Direct access to a desired program
(See page 249 for details.)
CD mode:Direct access to a desired program
(See page 253 for details.)

AUDIO
239

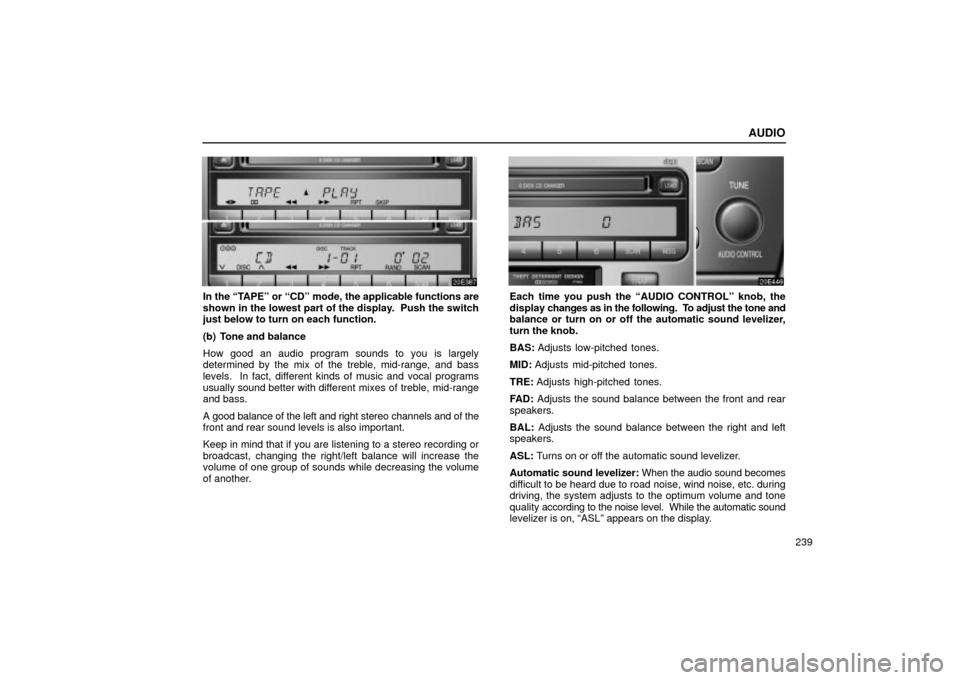

In the TAPEº or CDº mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid-range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid-range
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.
Keep in mind that if you are listening to a stereo recording or
broadcast, changing the right/left balance will increase the
volume of one group of sounds while decreasing the volume
of another.Each time you push the AUDIO CONTROLº knob, the
display changes as in the following. To adjust the tone and
balance or turn on or off the automatic sound levelizer,
turn the knob.
BAS: Adjusts low-pitched tones.
MID: Adjusts mid-pitched tones.
TRE: Adjusts high-pitched tones.
FAD: Adjusts the sound balance between the front and rear
speakers.
BAL: Adjusts the sound balance between the right and left
speakers.
ASL: Turns on or off the automatic sound levelizer.
Automatic sound levelizer: When the audio sound becomes
difficult to be heard due to road noise, wind noise, etc. during
driving, the system adjusts to the optimum volume and tone
quality according to the noise level. While the automatic sound
levelizer is on, ASLº appears on the display.

AUDIO
241 (e) Your compact disc player with changer
Your compact disc player with changer can store up to 6 discs
and play selected discs or continuously play all the discs set in
the player.
When you set discs into the player, make sure their labels face
up. If not, the player will display ERROR 1º and the disc
number.
NOTICE

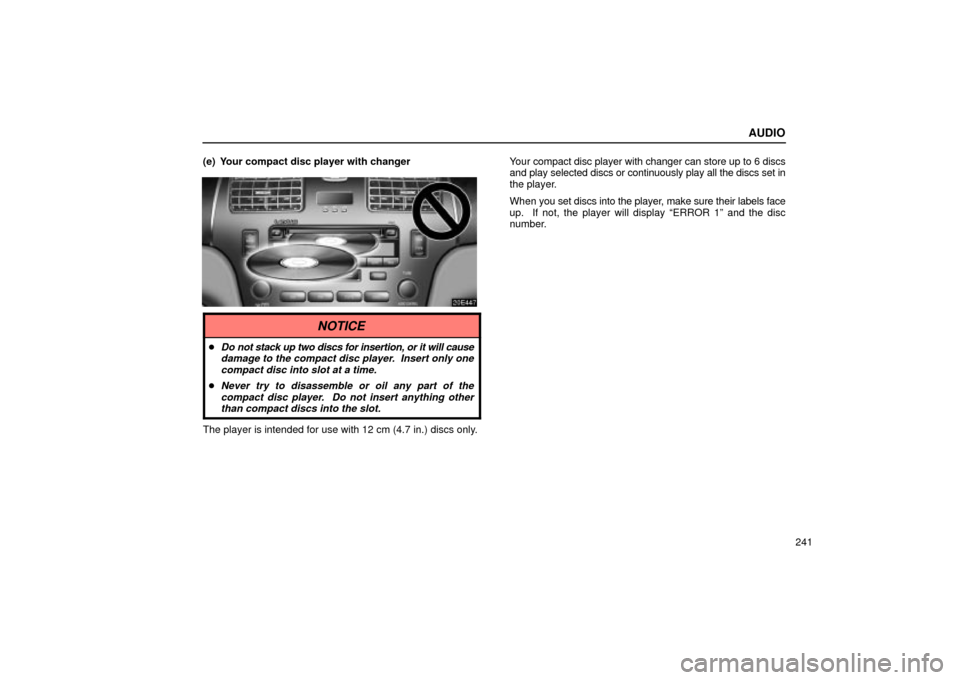

Do not stack up two discs for insertion, or it will cause
damage to the compact disc player. Insert only one
compact disc into slot at a time.
Never try to disassemble or oil any part of the
compact disc player. Do not insert anything other
than compact discs into the slot.
The player is intended for use with 12 cm (4.7 in.) discs only.

AUDIO
242
Radio operation
(a) Listening to the radio

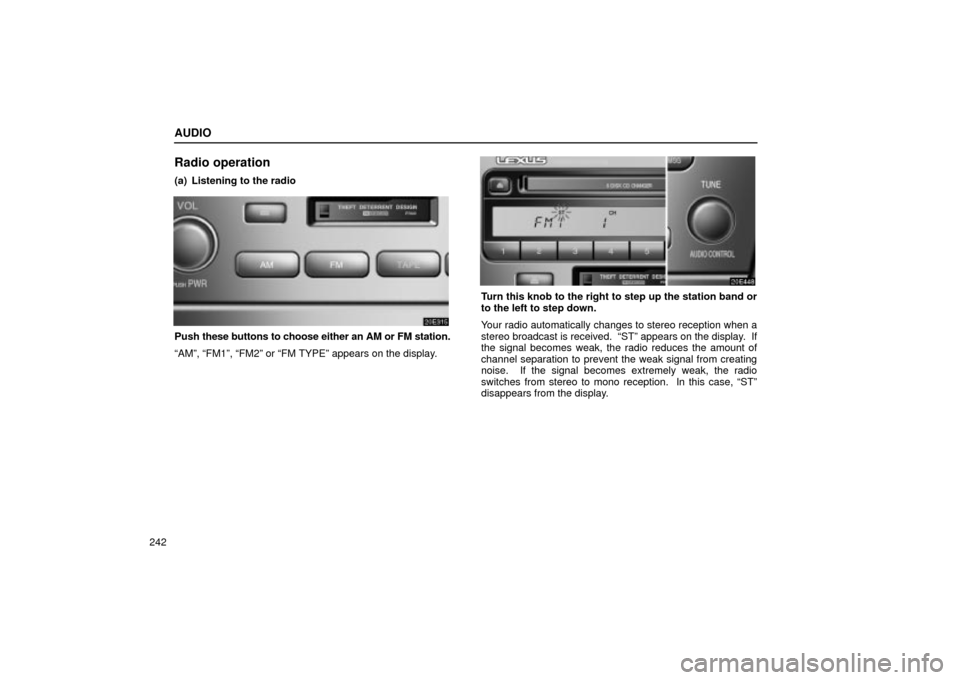

Push these buttons to choose either an AM or FM station.
AMº, FM1º, FM2º or FM TYPEº appears on the display.
Turn this knob to the right to step up the station band or
to the left to step down.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. STº appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, STº
disappears from the display.

AUDIO
243 (b) Presetting a station
1. Tune in the desired station.

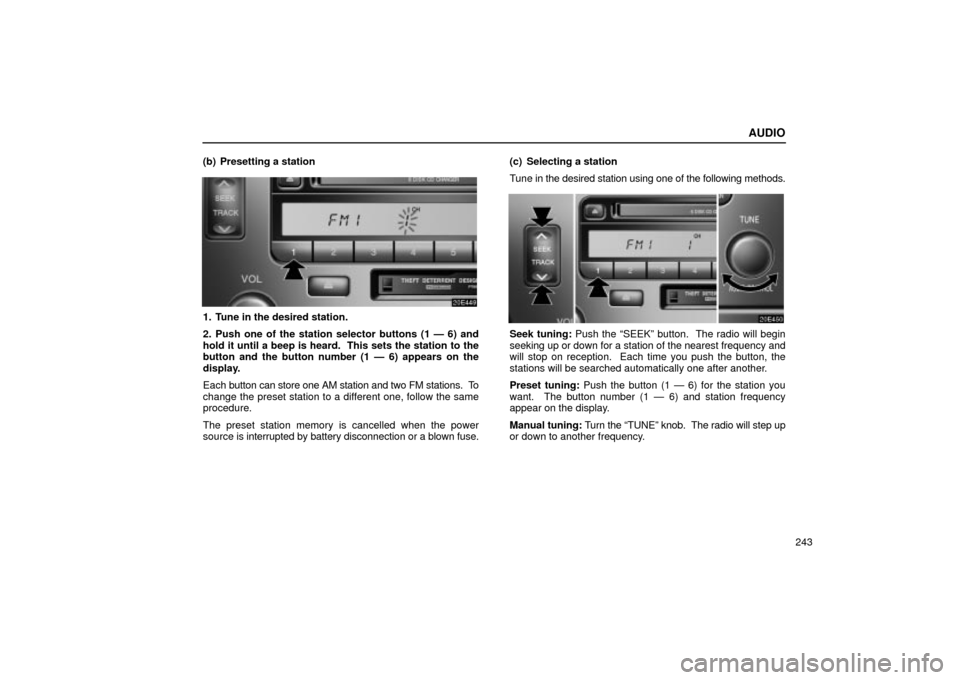

2. Push one of the station selector buttons (1 Ð 6) and
hold it until a beep is heard. This sets the station to the
button and the button number (1 Ð 6) appears on the
display.
Each button can store one AM station and two FM stations. To
change the preset station to a different one, follow the same
procedure.
The preset station memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse.(c) Selecting a station
Tune in the desired station using one of the following methods.
Seek tuning: Push the SEEKº button. The radio will begin
seeking up or down for a station of the nearest frequency and
will stop on reception. Each time you push the button, the
stations will be searched automatically one after another.
Preset tuning: Push the button (1 Ð 6) for the station you
want. The button number (1 Ð 6) and station frequency
appear on the display.
Manual tuning: Turn the TUNEº knob. The radio will step up
or down to another frequency.

AUDIO
244

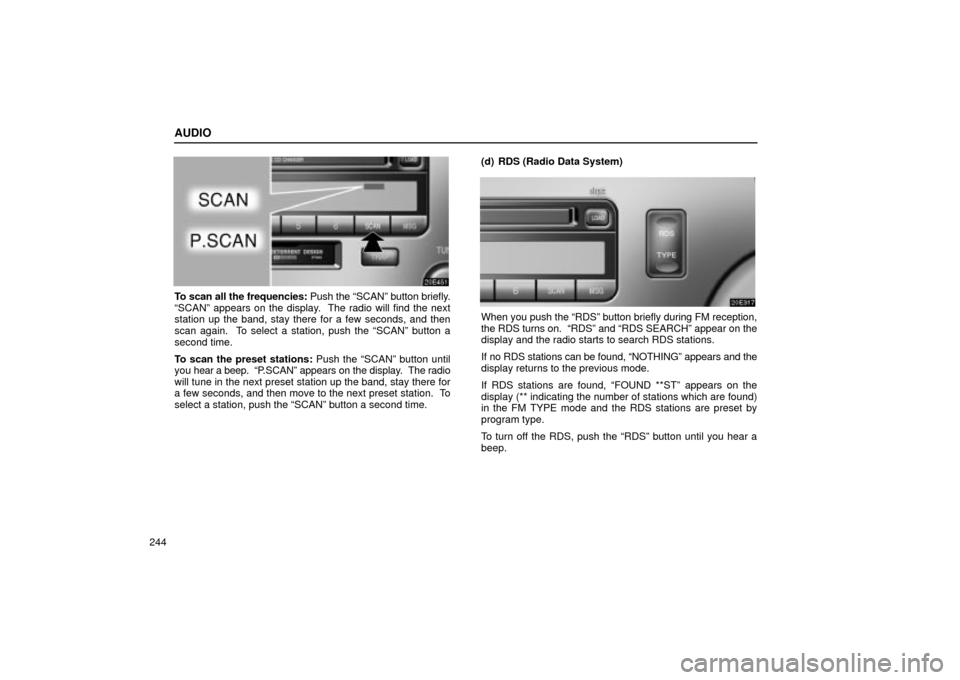

To scan all the frequencies: Push the SCANº button briefly.
SCANº appears on the display. The radio will find the next
station up the band, stay there for a few seconds, and then
scan again. To select a station, push the SCANº button a
second time.
To scan the preset stations: Push the SCANº button until
you hear a beep. P.SCANº appears on the display. The radio
will tune in the next preset station up the band, stay there for
a few seconds, and then move to the next preset station. To
select a station, push the SCANº button a second time.(d) RDS (Radio Data System)
When you push the RDSº button briefly during FM reception,
the RDS turns on. RDSº and RDS SEARCHº appear on the
display and the radio starts to search RDS stations.
If no RDS stations can be found, NOTHINGº appears and the
display returns to the previous mode.
If RDS stations are found, FOUND **STº appears on the
display (** indicating the number of stations which are found)
in the FM TYPE mode and the RDS stations are preset by
program type.
To turn off the RDS, push the RDSº button until you hear a
beep.

AUDIO
245 TYPE (Program type):
When you push the TYPEº button while receiving an RDS
station, the current program type appears on the display.
Each time you push the TYPEº button, the program type
changes as in the following:
ROCK
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGION
MISC
ALERT (Emergency message)TRAF (Traffic) function: A station that regularly
broadcasts traffic information is automatically located.
When you push the TRAFº button, TRAF SEEKº appears on
the display and the radio will start seeking any traffic program
station.
If no traffic program station is found, NO TRAF INFOº appears
on the display for a few seconds and the display returns to the
previous mode.
