SWITCHES
34
HEADLIGHT SWITCH
(U.S.A.)
AUTOº position
The headlights and all other lights automatically turn on
depending on the darkness of the surroundings when the
ignition key is in the ONº position.*
NOTE:
* The sensitivity of the automatic light control sensor can be
changed.
Ask your Lexus dealer for details.

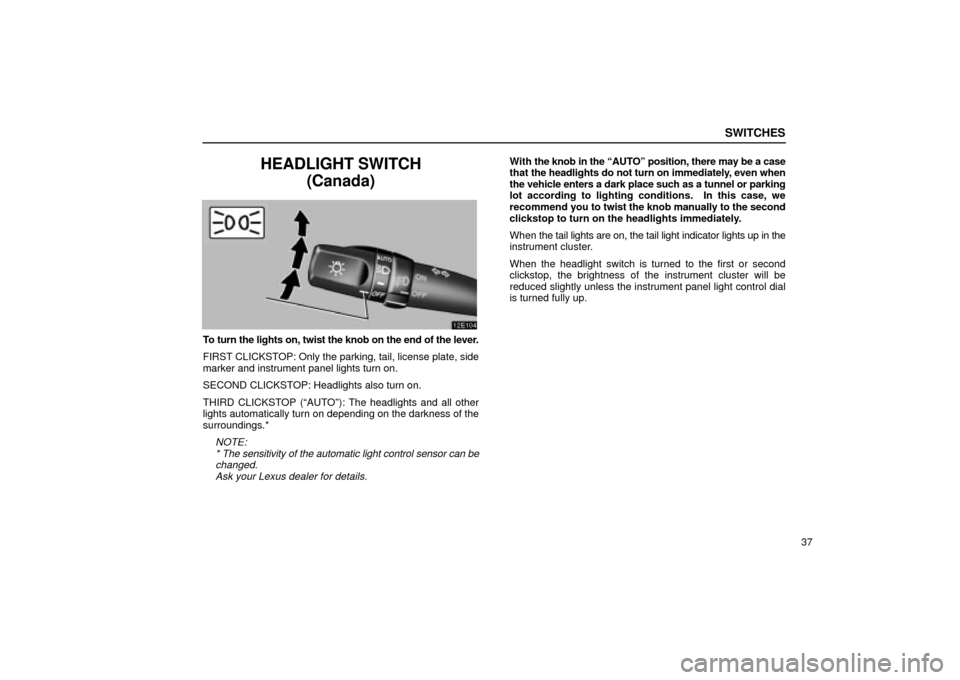

To turn on the lights manually, twist the knob on the end
of the lever.
First clickstop: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
Second clickstop: Headlights also turn on.When the headlights are on, the headlight indicator lights up in
the instrument cluster.
With the knob in the AUTOº position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control dial
is turned fully up.
DRL OFFº position
The daytime running light (DRL) system does not work
when the knob is set in this position.
For details, see the following Daytime Running Light (DRL)
Systemº.

SWITCHES
35
The automatic light control sensor is on the top of the driver's
side instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights are on, they automatically turn off about
30 seconds after any door or trunk lid is opened and closed with
the ignition key turned to the ACCº or LOCKº position.* If you
want to turn off the lights immediately, push the LOCKº button
on the wireless remote control key twice. The lights also can
be turned off immediately by pushing the LOCKº button on the
wireless remote control key with all the doors locked and the
trunk lid closed.
NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details.
When only the tail lights are on, they automatically turn off with
the driver's door opened and the ignition key turned to the
ACCº or LOCKº position.To turn on the lights again, turn the ignition key to the ONº
position, or twist the knob on the end of lever to the AUTOº
position and then twist the knob until the first or second
clickstop.
If you are going to park for over one week, make sure the knob
is in the AUTOº or DRL OFFº position.
Daytime Running Light (DRL) System
When the knob is set in the AUTOº position, the headlights
turn on at reduced intensity when the parking brake is released
with the engine started. They will not go off until the ignition
switch is turned off.
The headlights will automatically adjust to full intensity and/or
turn on the other lights depending on the darkness of the
surroundings.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
To cancel the DRL system, twist the knob to the DRL OFFº
position.

SWITCHES
37
HEADLIGHT SWITCH
(Canada)

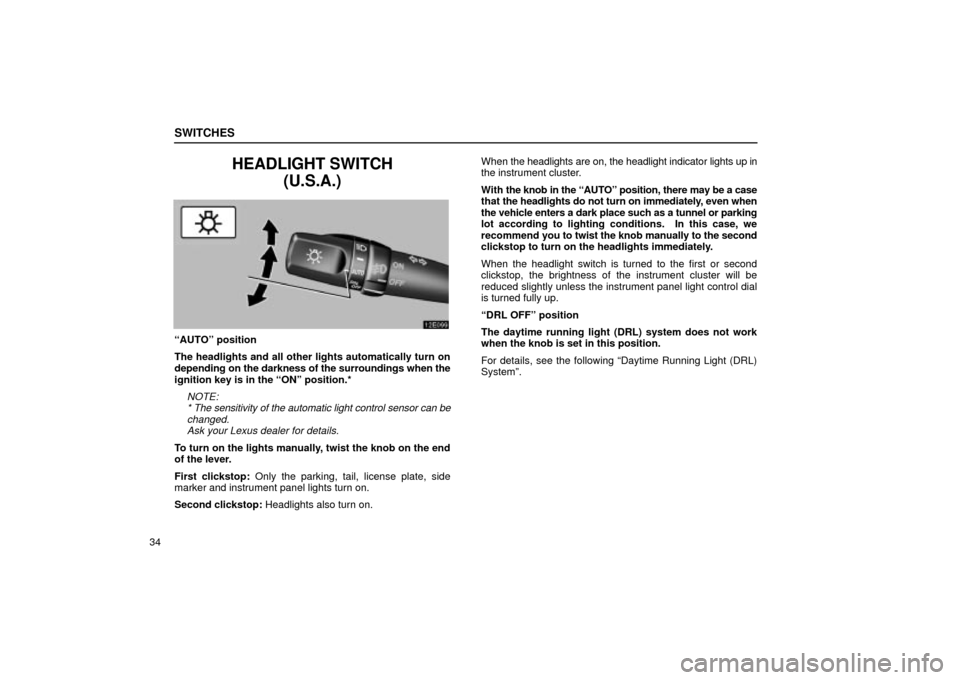

To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (AUTOº): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.*
NOTE:
* The sensitivity of the automatic light control sensor can be
changed.
Ask your Lexus dealer for details.
With the knob in the AUTOº position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the tail lights are on, the tail light indicator lights up in the
instrument cluster.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control dial
is turned fully up.

SWITCHES
38
The automatic light control sensor is on the top of the driver's
side instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights are on, they automatically turn off about
30 seconds after any door or trunk lid is opened and closed with
the ignition key turned to the ACCº or LOCKº position.* If you
want to turn off the lights immediately, push the LOCKº button
on the wireless remote control key twice. The lights also can
be turned off immediately by pushing the LOCKº button on the
wireless remote control key with all the doors locked and the
trunk lid closed.
NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details.
When only the tail lights are on, they automatically turn off with
the driver's door opened and the ignition key turned to the
ACCº or LOCKº position.To turn on the lights again, turn the ignition key to the ONº
position, or turn the headlight switch off and then twist the knob
until the first or second clickstop.
If you are going to park for over one week, make sure the
headlight switch is off.
Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the OFFº position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (AUTOº), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.

SWITCHES
44

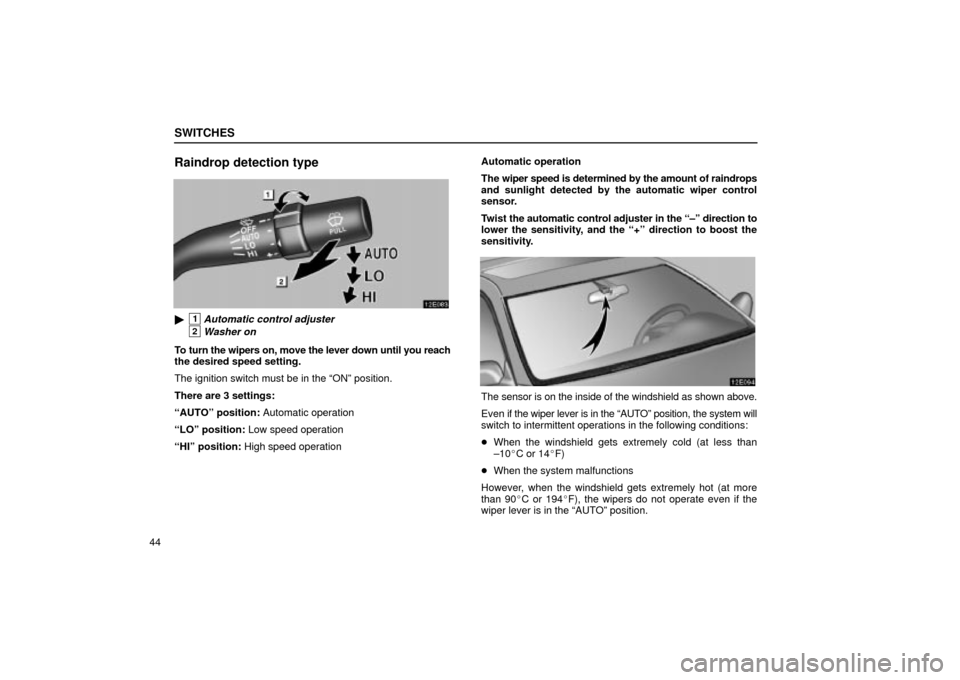

Raindrop detection type

1Automatic control adjuster
2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition switch must be in the ONº position.
There are 3 settings:
AUTOº position: Automatic operation
LOº position: Low speed operation
HIº position: High speed operationAutomatic operation
The wiper speed is determined by the amount of raindrops
and sunlight detected by the automatic wiper control
sensor.
Twist the automatic control adjuster in the ±º direction to
lower the sensitivity, and the +º direction to boost the
sensitivity.
The sensor is on the inside of the windshield as shown above.
Even if the wiper lever is in the AUTOº position, the system will
switch to intermittent operations in the following conditions:
When the windshield gets extremely cold (at less than
±10C or 14F)
When the system malfunctions
However, when the windshield gets extremely hot (at more
than 90C or 194F), the wipers do not operate even if the
wiper lever is in the AUTOº position.

SWITCHES
45 When the ignition switch is turned off with the wiper lever in the
AUTOº position, and then the ignition switch is turned on
again, the automatic operation may not work even if raindrops
are on the windshield.
In this case, move the lever to another position and return it to
the AUTOº position again.

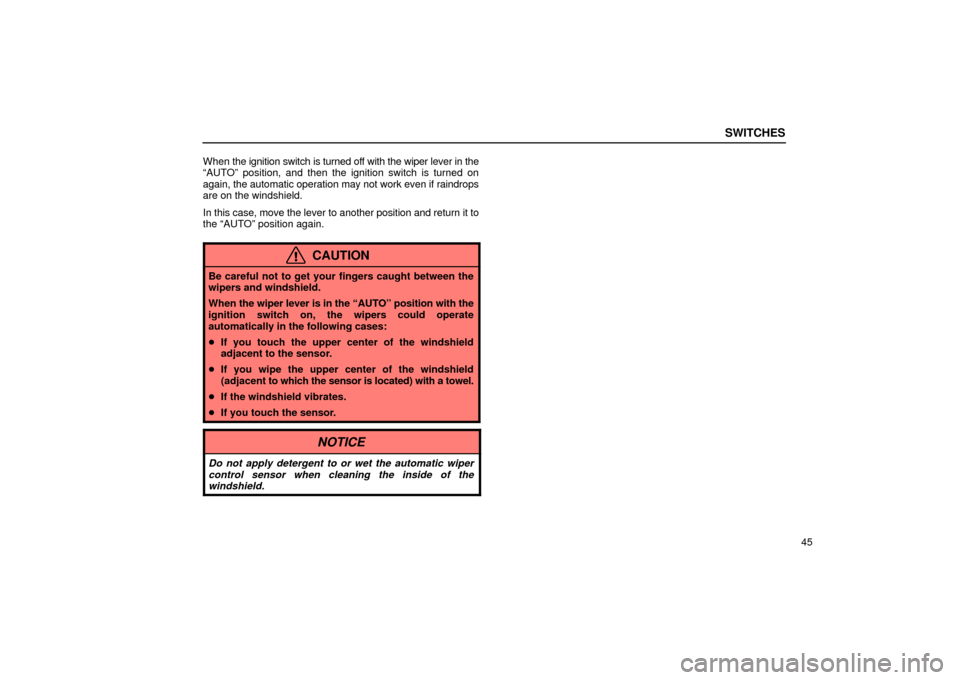

CAUTION
Be careful not to get your fingers caught between the
wipers and windshield.
When the wiper lever is in the AUTOº position with the
ignition switch on, the wipers could operate
automatically in the following cases:
If you touch the upper center of the windshield
adjacent to the sensor.
If you wipe the upper center of the windshield
(adjacent to which the sensor is located) with a towel.
If the windshield vibrates.
If you touch the sensor.
NOTICE
Do not apply detergent to or wet the automatic wiper
control sensor when cleaning the inside of the
windshield.

Finish
GAUGES, METERS AND SERVICE REMINDER INDICATORS
57
CAUTION
If either of the following conditions occurs, immediately
stop your vehicle at a safe place and contact your Lexus
dealer.
The light does not turn off even after the parking
brake is released while the engine is running.
In this case, the brakes may not work properly and
your stopping distance will become longer. Depress
the brake pedal firmly and bring the vehicle to an
immediate stop.
The brake system warning light remains on together
with the ABSº warning light.
In this case, not only the anti-lock brake system will
fail but also the vehicle will become extremely
unstable during braking.
(b) Driver's Seat Belt Reminder Light and Buzzer
This light and buzzer remind you to buckle up the driver's seat
belt.
Once the ignition key is turned to ONº or STARTº, the
reminder light and buzzer come on if the driver's seat belt is not
fastened. Unless the driver fastens the belt, the light stays on
and the buzzer stops after about 4 to 8 seconds.
(c) Front Passenger's Seat Belt Reminder Light
This light reminds you to buckle up the front passenger's seat
belt.
Once the ignition key is turned to the ONº position, the
reminder light flashes if a front passenger sits in the front
passenger seat and does not fasten the seat belt.
If luggage or other load is placed on the front passenger seat,
depending on its weight, the reminder light may come on.

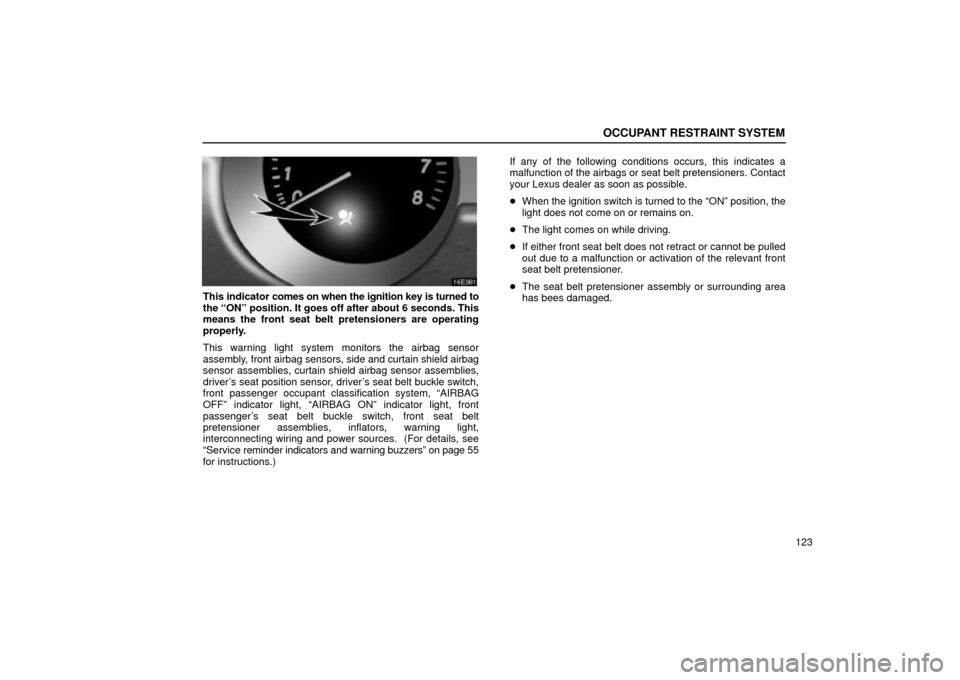

(d) SRS Warning Light
This light comes on when the ignition key is turned to the
ONº position. It goes off after about 6 seconds. This
means the SRS airbags and front seat belt pretensioners
are operating properly.

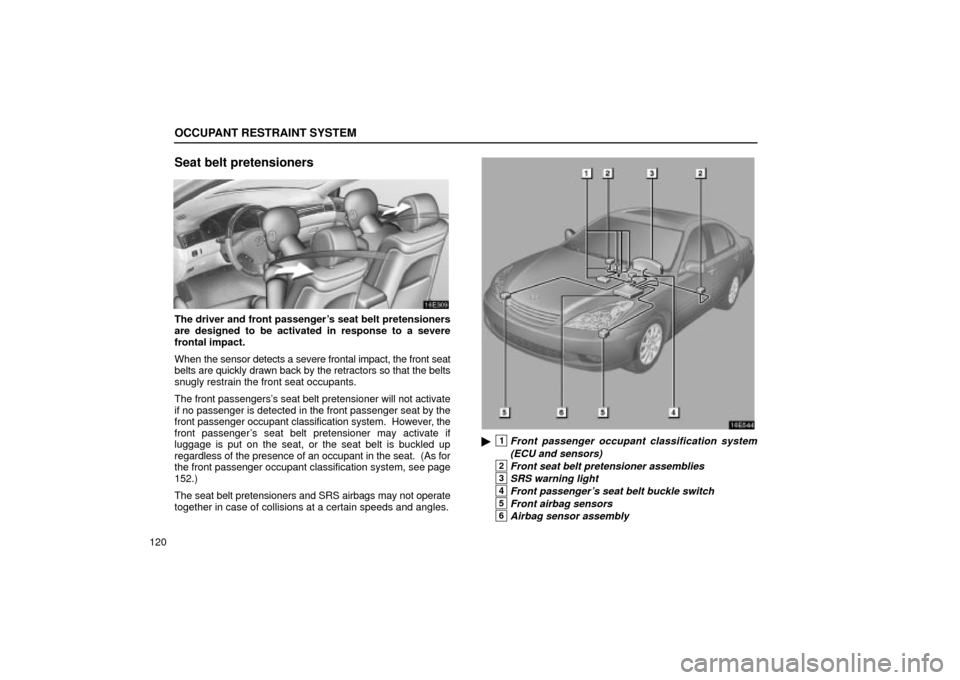

This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front passenger occupant classification system, AIRBAG
OFFº indicator light, AIRBAG ONº indicator light, front
passenger's seat belt buckle switch, front seat belt
pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources.

OCCUPANT RESTRAINT SYSTEM
120
Seat belt pretensioners

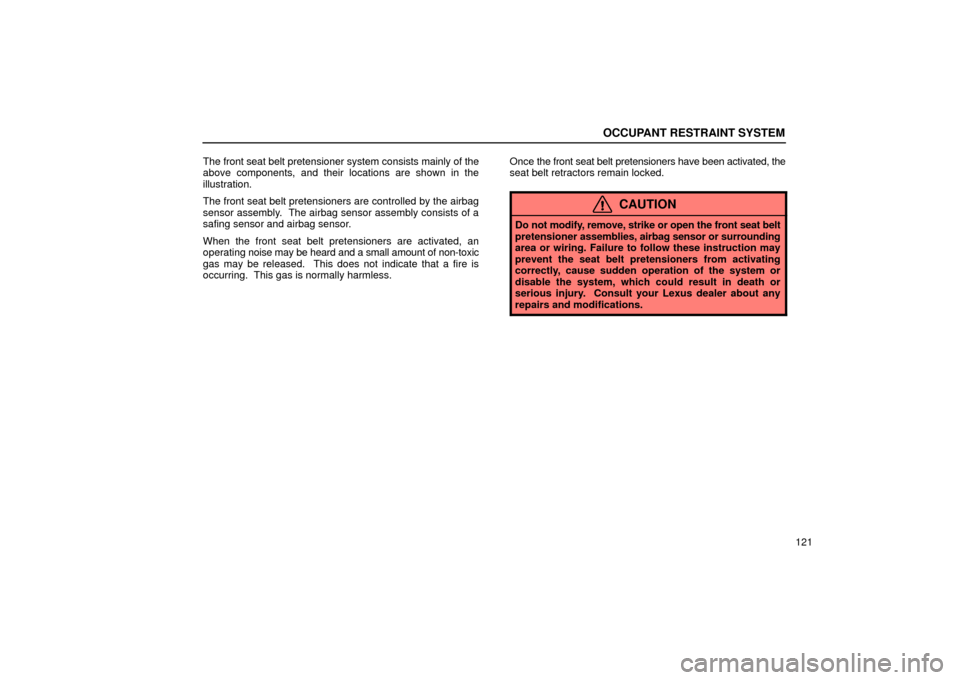

The driver and front passenger's seat belt pretensioners
are designed to be activated in response to a severe
frontal impact.
When the sensor detects a severe frontal impact, the front seat
belts are quickly drawn back by the retractors so that the belts
snugly restrain the front seat occupants.
The front passengers's seat belt pretensioner will not activate
if no passenger is detected in the front passenger seat by the
front passenger occupant classification system. However, the
front passenger's seat belt pretensioner may activate if
luggage is put on the seat, or the seat belt is buckled up
regardless of the presence of an occupant in the seat. (As for
the front passenger occupant classification system, see page
152.)
The seat belt pretensioners and SRS airbags may not operate
together in case of collisions at a certain speeds and angles.
16E544

1Front passenger occupant classification system
(ECU and sensors)
2Front seat belt pretensioner assemblies
3SRS warning light
4Front passenger's seat belt buckle switch
5Front airbag sensors
6Airbag sensor assembly

OCCUPANT RESTRAINT SYSTEM
121 The front seat belt pretensioner system consists mainly of the
above components, and their locations are shown in the
illustration.
The front seat belt pretensioners are controlled by the airbag
sensor assembly. The airbag sensor assembly consists of a
safing sensor and airbag sensor.
When the front seat belt pretensioners are activated, an
operating noise may be heard and a small amount of non-toxic
gas may be released. This does not indicate that a fire is
occurring. This gas is normally harmless.Once the front seat belt pretensioners have been activated, the
seat belt retractors remain locked.
CAUTION
Do not modify, remove, strike or open the front seat belt
pretensioner assemblies, airbag sensor or surrounding
area or wiring. Failure to follow these instruction may
prevent the seat belt pretensioners from activating
correctly, cause sudden operation of the system or
disable the system, which could result in death or
serious injury. Consult your Lexus dealer about any
repairs and modifications.

OCCUPANT RESTRAINT SYSTEM
123
This indicator comes on when the ignition key is turned to
the ONº position. It goes off after about 6 seconds. This
means the front seat belt pretensioners are operating
properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver's seat position sensor, driver's seat belt buckle switch,
front passenger occupant classification system, AIRBAG
OFFº indicator light, AIRBAG ONº indicator light, front
passenger's seat belt buckle switch, front seat belt
pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources. (For details, see
Service reminder indicators and warning buzzersº on page 55
for instructions.)If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.
When the ignition switch is turned to the ONº position, the
light does not come on or remains on.
The light comes on while driving.
If either front seat belt does not retract or cannot be pulled
out due to a malfunction or activation of the relevant front
seat belt pretensioner.
The seat belt pretensioner assembly or surrounding area
has bees damaged.
