Lexus ES330 2005 Gauges, Meters and Service Reminder Indicators /

IN CASE OF AN EMERGENCY
314
10. After changing the wheel, check the air
pressure of the replaced tire. Stow all the tools,
jack and flat tire securely.
If the pressure of the replaced tire is low, drive slowly
to the nearest service station and fill to the correct
pressure.
Do not forget to reinstall the tire valve cap as dirt and
moisture could get into the valve core and possibly
cause air leakage. If the cap is missing, put a new
one on as soon as possible.
This is the same procedure for changing or rotating
your tires.
CAUTION
Before driving, make sure all the tools, jack and
flat tire are securely in place in their storage
location to reduce the possibility of personal
injury during a collision or sudden braking.
IF YOUR VEHICLE BECOMESSTUCK
If your vehicle becomes stuck in snow, mud, sand, etc.,
then you may attempt to rock the vehicle free by moving
it forward and backward.
Vehicles with traction control system — Turn off the
traction control system to become unstuck to allow the
tires to spin enough to remove the vehicle from the
obstruction. (For details, see “Traction control system”
on page 269.)
CAUTION
Do not attempt to rock the vehicle free by moving it
forward and backward if people or objects are anywhere
near the vehicle. During the rocking operation the
vehicle may suddenly move forward or backward as it
becomes unstuck, causing injury or damage to nearby
people or objects.

IN CASE OF AN EMERGENCY
315
NOTICE
If you rock your vehicle, observe the following
precautions to prevent damage to the transmission and
other parts.
 Do not depress the accelerator pedal while shifting
the selector lever or before the transmission is
completely shifted to forward or reverse gear.
 Do not race the engine and avoid spinning the
wheels.
 If your vehicle remains stuck after rocking the vehicle
several times, consider other ways such as towing.
IF YOUR VEHICLE NEEDS TO BE
TOWED
If towing is necessary, we recommend you to have it done
by your Lexus dealer or a commercial tow truck service.
In consultation with them, have your vehicle towed using
either (a) or (b).
(a) Towing with a wheel lift type truck
(b) Using a flat bed truck
(c) Never tow with a sling type truck
Only when you cannot receive a towing service from a
Lexus dealer or commercial tow truck service, tow your
vehicle carefully in accordance with the instructions
given in “(d) Emergency towing” on page 319.
Proper equipment will help ensure that your vehicle is not
damaged while being towed. Commercial operators are
generally aware of the state/provincial and local laws
pertaining to towing.
Your vehicle can be damaged if it is towed incorrectly. Although
most operators know the correct procedure, it is possible to
make a mistake. To avoid damage to your vehicle, make sure
the following precautions are observed. If necessary, show
this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing, and abide by the
state/provincial and local laws. The wheels and axle on the
ground must be in good condition. If they are damaged, use
a towing dolly.

IN CASE OF AN EMERGENCY
316
(a) Towing with a wheel lift type truck
From front
Release the parking brake.
NOTICE
When lifting wheels, take care to ensure adequate
ground clearance for towing at the opposite end of the
raised vehicle. Otherwise, the bumper and/or
underbody of the towed vehicle will be damaged during
towing.
From rear
Use a towing dolly under the front wheels.
NOTICE
Never tow a vehicle with an automatic transmission
from the rear with front wheels on the ground, as this
may cause serious damage to the transmission.

IN CASE OF AN EMERGENCY
317

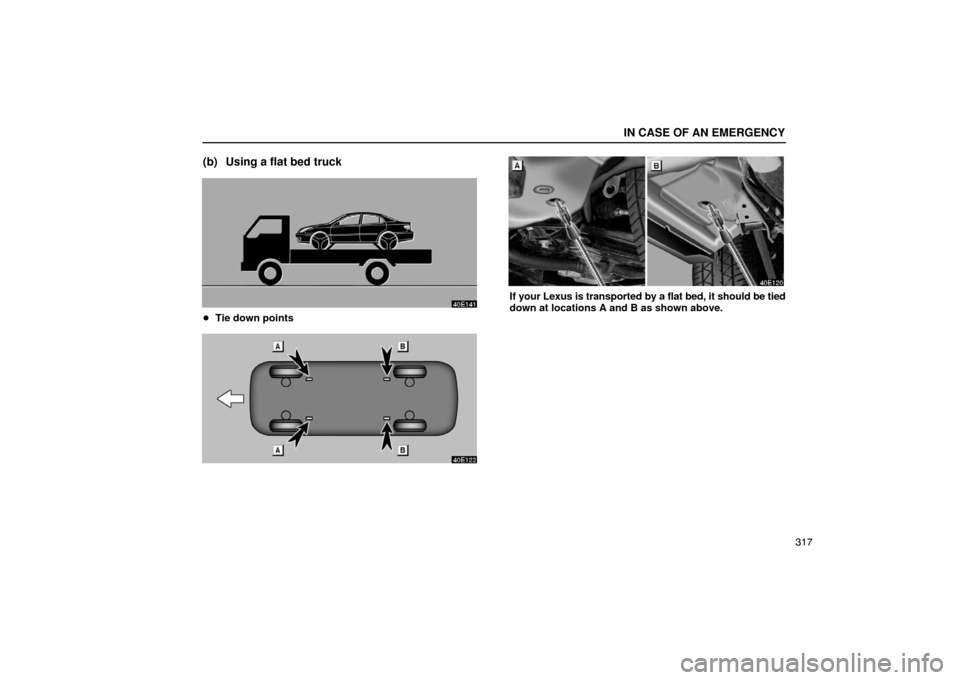

(b) Using a flat bed truck
Tie down points
If your Lexus is transported by a flat bed, it should be tied
down at locations A and B as shown above.

IN CASE OF AN EMERGENCY
318
Rear emergency towing eyelets
NOTICE
Do not use the rear emergency towing eyelets.
Tie down angle
If you use chains or wires to tie down your vehicle, the
angles shaded black must be at 45.

IN CASE OF AN EMERGENCY
319
(c) Towing with a sling type truck
NOTICE
Do not tow with a sling type truck, either from the front
or rear. This may cause body damage.
(d) Emergency towing
If towing is necessary, we recommend you to have it done
by your Lexus dealer or a commercial tow truck service.
If towing service is not available in an emergency, your
vehicle may be temporarily towed by a cable or chain
secured to the emergency towing eyelet. Use extreme
caution when towing the vehicle.
To install the front towing eyelet, see “(e) Installing front towing
eyelet” on page 320.
NOTICE
 Only use specified towing eyelet; otherwise your
vehicle may be damaged.
 Never tow a vehicle from the rear with four wheels on
the ground. This may cause serious damage to the
transmission.

IN CASE OF AN EMERGENCY
320A driver must be in the vehicle to steer it and operate the
brakes.
Towing in this manner may be done only on hard
−surfaced
roads for a short distance and at low speeds. Also, the wheels,
axles, drive train, steering and brakes must all be in good
condition.
CAUTION
Use extreme caution when towing the vehicle. Avoid
sudden starts or erratic driving maneuvers which would
place excessive stress on the emergency towing eyelet
and towing cable or chain. The eyelet and towing cable
or chain may break and cause serious injury or damage.
NOTICE
Use only a cable or chain specifically intended for use
in towing vehicles. Securely fasten the cable or chain
to the towing eyelet provided.
Before towing, release the parking brake and put the
transmission in “N”. The ignition key must be in “ACC” (engine
off) or “ON” (engine running).
CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work so steering and
braking will be much harder than usual.
(e) Installing front towing eyelet
1. Remove the front towing eyelet cover on the front bumper
using a flat−bladed screwdriver. To protect the bodywork,
place a piece of rag over the cover.

IN CASE OF AN EMERGENCY
321
2. Use the front towing eyelet in the trunk. Secure it to the hole
on the bumper by turning clockwise. (For the eyelet location,
see page 306.)3. Tighten the front towing eyelet securely by a wheel nut
wrench.
CAUTION
When installing the eyelet on the vehicle, be sure to
tighten the front eyelet securely. If the eyelet is loose,
it may come off when being towed and result in death or
serious injury.

IN CASE OF AN EMERGENCY
322
IF YOU CANNOT SHIFT AUTOMATICTRANSMISSION SELECTOR LEVER
If you cannot shift the selector lever out of “P” position to
other positions even though the brake pedal is d epressed,
use the shift lock override button as follows:
1Turn the ignition key to “LOCK”. Make sure the parking
brake is applied.
2Pry up the cover with a flat−bladed screwdriver or
equivalent.
3Push down the shift lock override button. You can shift out
of “P” position only while pushing the button.
4Shift into “N” position.
Insert the cover. Start the engine. For your safety, keep
the brake pedal depressed.
Be sure to have the system checked by your Lexus dealer as
soon as possible.

IN CASE OF AN EMERGENCY
323
IF YOU LOSE YOUR KEYS ORLOCK YOURSELF OUT
You can purchase a new key at your Lexus dealer if you
can give them the key number and master key, because
your vehicle is equipped with the engine immobilizer
system.
Even if you lose only one key, contact your Lexus dealer to
make a new key. However, if you lose all your master keys, the
dealer cannot duplicate key but only replace the whole system.
See the suggestion given in “Keys” on page 10.
You can use the wireless remote control system with the new
key. Contact your Lexus dealer for detailed information.
If your keys are locked in the vehicle and you cannot get a
duplicate, many Lexus dealers can still open the door for you,
using their special tools. If you must break a window to get in,
we suggest breaking the smallest side window because it is the
least expensive to replace. Be extremely cautious to avoid
cuts from the glass.
