Oil identification marks
SOIL11
API Service Symbol ILSAC Certification Mark
Either or both API registered marks are added to some oil
containers to help you select the oil you should use.
 The API Service Symbol is located anywhere on the outside
of the container.
The top portion of the label shows the oil quality by API
(American Petroleum Institute) designation such as SL.
The center portion of the label shows the SAE viscosity
grade such as SAE 5W −30. “Energy− Conserving”, shown
in the lower portion, indicates that the oil has fuel −saving
capabilities.
 The ILSAC (International Lubricant Standardization and
Approval Committee) Certification Mark is displayed on the
front of the container. To ensure excellent lubrication performance for your engine,
“Toyota Genuine Motor Oil” is available, which has been
specifically tested and approved for all Lexus engines.
Please contact your Lexus dealer for further details about
“Toyota Genuine Motor Oil”.

ENGINE
355
CHECKING THE ENGINE COOLANTLEVEL

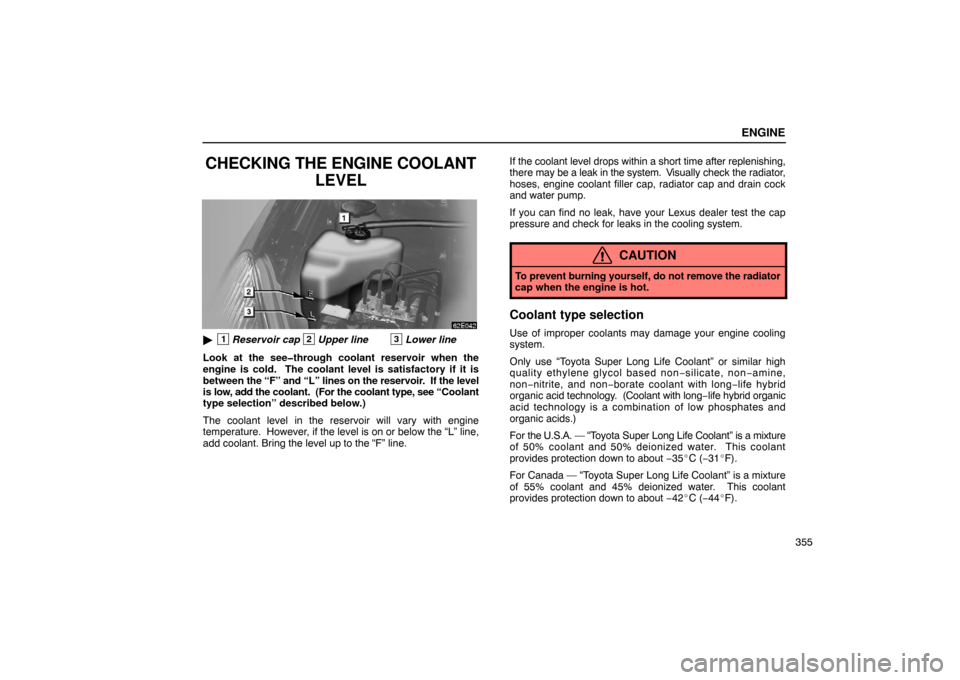

1Reservoir cap2Upper line3Lower line
Look at the seethrough coolant reservoir when the
engine is cold. The coolant level is satisfactory if it is
between the “F” and “L” lines on the reservoir. If the level
is low, add the coolant. (For the coolant type, see “Coolant
type selection” described below.)
The coolant level in the reservoir will vary with engine
temperature. However, if the level is on or below the “L” line,
add coolant. Bring the level up to the “F” line. If the coolant level drops within a short time after replenishing,
there
may be a leak in the system. Visually check the radiator,
hoses, engine coolant filler cap, radiator cap and drain cock
and water pump.
If you can find no leak, have your Lexus dealer test the cap
pressure and check for leaks in the cooling system.
CAUTION
To prevent burning yourself, do not remove the radiator
cap when the engine is hot.
Coolant type selection
Use of improper coolants may damage your engine cooling
system.
Only use “Toyota Super Long Life Coolant” or similar high
quality ethylene glycol based non −silicate, non −amine,
non− nitrite, and non −borate coolant with long −life hybrid
organic acid technology. (Coolant with long −life hybrid organic
acid technology is a combination of low phosphates and
organic acids.)
For the U.S.A. — “T oyota Super Long Life Coolant” is a mixture
of 50% coolant and 50% deionized water. This coolant
provides protection down to about −35C (− 31F).
For Canada — “Toyota Super Long Life Coolant” is a mixture
of 55% coolant and 45% deionized water. This coolant
provides protection down to about −42C (− 44F).

ENGINE
356
NOTICE
Do not use plain water alone.
Lexus recommends “Toyota Super Long Life Coolant”, which
has been tested to ensure that it will not cause corrosion nor
result in malfunction of your engine coolant system with proper
usage. “Toyota Super Long Life Coolant” is formulated with
long−life hybrid organic acid technology and has been
specifically designed to avoid engine cooling system
malfunction on Lexus vehicles.
Please contact your Lexus dealer for further details.
CHECKING THE RADIATOR AND CONDENSER
If either of the above parts are extremely dirty or you are not
sure of their condition, take your vehicle to a Lexus dealer.
CAUTION
To prevent burning yourself, be careful not to touch the
radiator, condenser or intercooler when the engine is
hot.
NOTICE
To prevent damage to the radiator and condenser, do
not perform the work by yourself.

ENGINE
357
SPARK PLUGS
Your engine is fitted with iridiumtipped spark plugs.
NOTICE
Use only iridiumtipped spark plugs and do not adjust
gaps for your engine performance and smooth
drivability.

ENGINE
358

SECTION 6 – 3
359
SERVICE PROCEDURES AND
SPECIFICATIONS
Chassis
Specifications360
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking brake fluid 364
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Checking power steering fluid 365
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire inflation pressure 366
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire information 370
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Types of tires 379
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Rotating tires 380
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Checking and replacing tires 381
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing snow tires and chains 383
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 385
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Aluminum wheel precautions 386
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension and chassis 387
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHASSIS
360
SPECIFICATIONS
— AUTOMATIC TRANSAXLEFluid capacity Drain and refill
3.5 L (3.7 qt., 3.1 Imp. qt.)
Fluid typeToyota Genuine ATF Type TIV*
*: Change automatic transmission fluid only as necessary.
Generally, it is necessary to change automatic transmission
fluid only if your vehicle is driven under one of the Special
Operating Conditions listed in your “Owner’s Manual
Supplement/Scheduled Maintenance”. When changing the
automatic transmission fluid, use only “Toyota Genuine ATF
Type T−IV” (ATF JWS3309 or NWS6500) to aid in assuring
optimum transaxle performance.NOTICE
Using automatic transmission fluid other than “Toyota
Genuine ATF Type TIV” may cause deterioration in
shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the
automatic transmission of your vehicle.
Please contact your Lexus dealer for further details.

CHASSIS
361
— BRAKES
Pedal clearance Fixed type
Adjustable type (in frontmost position)
70 mm (2.8 in.) Min. *1
59 mm (2.3 in.) Min. *1
Pedal free playFixed type
Adjustable type (in frontmost position)1 — 6 mm (0.04 — 0.24 in.)
1 — 8 mm (0.04 — 0.31 in.)
Brake pad wear limit1.0 mm (0.04 in.)
Parking brake lining wear limit1.0 mm (0.04 in.)
Parking brake adjustment3 — 6 clicks *2
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
*1: Minimum pedal clearance when depressed with the force of 490 N (50 kg\
f, 110 lbf) with the engine running
*2: Parking brake adjustment when depressed with the force of 294 N (30 k\
gf, 66 lbf)
— STEERING Wheel free play
Less than 30 mm (1.2 in.)
Power steering fluid typeAutomatic transmission fluid DEXRONII or III

CHASSIS
362
— TIRES AND WHEELS (type A)Tire size
P215/60R16 94V
Tire inflation pressure Recommended cold tire inflation
pressure
Front 200 kPa (2.0 kgf/cm2 or bar, 29 psi)
Rear 200 kPa (2.0 kgf/cm2 or bar, 29 psi)
For sustained high speeds above 160 km/h (99 mph), in
countries where such speeds are permitted by law, add 40
kPa (0.4 kgf/cm
2 or bar, 6 psi) to the front tires and rear
tires, but never exceed the maximum cold tire inflation
pressure molded on the tire sidewall.
Wheel size16  6 1/2 JJ
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
NOTE:
For a complete information on tires (e.g. replacing tires or replacing \
wheels), see “Checking tire inflation pressure”
through “Aluminum wheel precautions” on pages 366 through 386.

CHASSIS
363
— TIRES AND WHEELS (type B)Tire size
P215/55R17 93V
Tire inflation pressure Recommended cold tire inflation
pressure Normal driving
Trailer towing
Front 210 kPa (2.1 kgf/cm2 or bar, 30 psi)
Rear 210 kPa (2.1 kgf/cm2 or bar, 30 psi)
For sustained high speeds above 160 km/h (99 mph), in
countries where such speeds are permitted by law, add 30
kPa (0.3 kgf/cm
2 or bar, 4 psi) to the front tires and rear
tires, but never exceed the maximum cold tire inflation
pressure molded on the tire sidewall.
Front 220 kPa (2.2 kgf/cm
2 or bar, 32 psi)
Rear 220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size17  7 JJ
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
NOTE:
For a complete information on tires (e.g. replacing tires or replacing \
wheels), see “Checking tire inflation pressure”
through “Aluminum wheel precautions” on pages 366 through 386.
