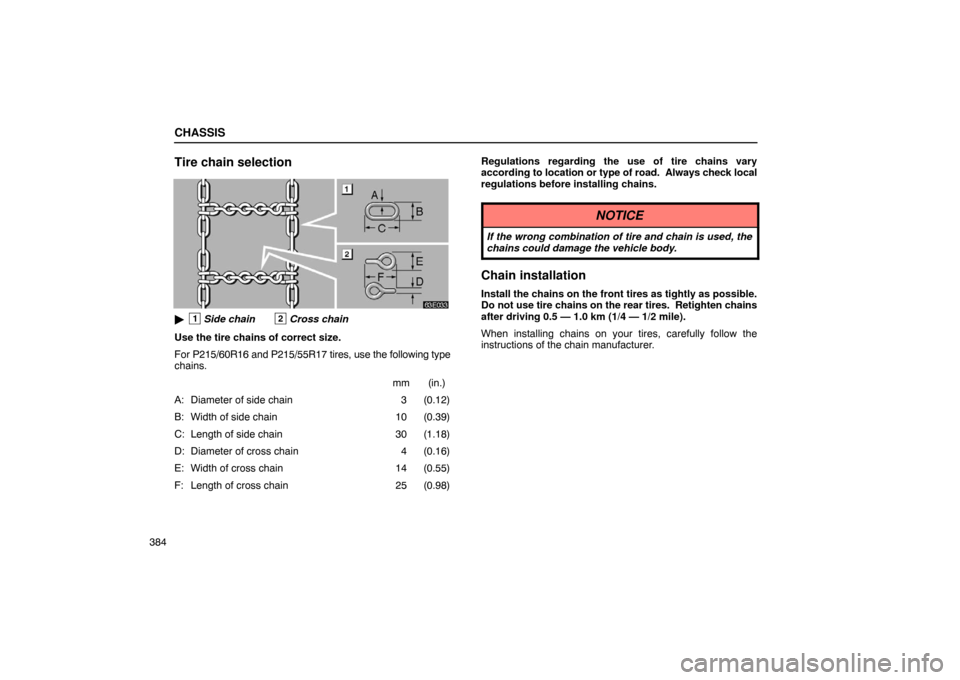

Tire chain selection
1Side chain2Cross chain
Use the tire chains of correct size.
For P215/60R16 and P215/55R17 tires, use the following type
chains. mm (in.)
A: Diameter of side chain 3 (0.12)
B: Width of side chain 10 (0.39)
C: Length of side chain 30 (1.18)
D: Diameter of cross chain 4 (0.16)
E: Width of cross chain 14 (0.55)
F: Length of cross chain 25 (0.98)Regulations regarding the use of tire chains vary
according to location or type of road. Always check local
regulations before installing chains.
NOTICE
If the wrong combination of tire and chain is used, the
chains could damage the vehicle body.
Chain installation
Install the chains on the front tires as tightly as possible.
Do not use tire chains on the rear tires. Retighten chains
after driving 0.5 — 1.0 km (1/4 — 1/2 mile).
When installing chains on your tires, carefully follow the
instructions of the chain manufacturer.

CHASSIS
385

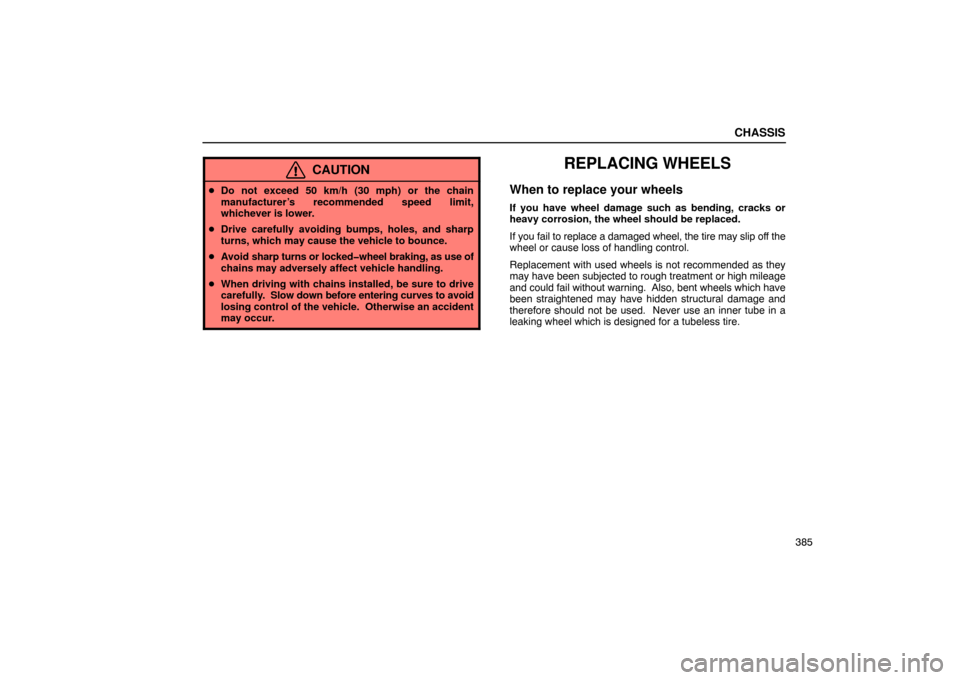

CAUTION
Do not exceed 50 km/h (30 mph) or the chain
manufacturer’s recommended speed limit,
whichever is lower.
 Drive carefully avoiding bumps, holes, and sharp
turns, which may cause the vehicle to bounce.
 Avoid sharp turns or lockedwheel braking, as use of
chains may adversely affect vehicle handling.
 When driving with chains installed, be sure to drive
carefully. Slow down before entering curves to avoid
losing control of the vehicle. Otherwise an accident
may occur.
REPLACING WHEELS
When to replace your wheels
If you have wheel damage such as bending, cracks or
heavy corrosion, the wheel should be replaced.
If you fail to replace a damaged wheel, the tire may slip off the
wheel or cause loss of handling control.
Replacement with used wheels is not recommended as they
may have been subjected to rough treatment or high mileage
and could fail without warning. Also, bent wheels which have
been straightened may have hidden structural damage and
therefore should not be used. Never use an inner tube in a
leaking wheel which is designed for a tubeless tire.

CHASSIS
386
Wheel selection
When replacing wheels, care should be taken to ensure
that they are equivalent to those removed in load capacity,
diameter, rim width, and offset.
Correct replacement wheels are available at your Lexus
dealer.
A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability, headlight
aim, bumper height, vehicle ground clearance, and tire or snow
chain clearance to the body and chassis.
CAUTION
Do not use wheels other than the manufacturer’s
recommended size, as this may cause dangerous
handling characteristics resulting in loss of control.
Otherwise, an accident may occur resulting in death or
serious injuries.
ALUMINUM WHEEL PRECAUTIONS
 When installing aluminum wheels, check that the wheel nuts
are tight after driving your vehicle the first 1600 km (1000
miles).
 If you have rotated, repaired, or changed your tires, check
that the wheel nuts are still tight after driving 1600 km (1000
miles).
 When using tire chains, be careful not to damage the
aluminum wheels.
 Use only Lexus wheel nuts and wrench designed for your
aluminum wheels.
 When balancing your wheels, use only Lexus balance
weights or equivalent and a plastic or rubber hammer.
 As with any wheel, periodically check your aluminum
wheels for damage. If damaged, replace immediately.

CHASSIS
387
SUSPENSION AND CHASSIS
CAUTION
Do not modify the suspension/chassis with lift kits,
spacers, springs, etc. It can cause dangerous handling
characteristics, resulting in loss of control.

CHASSIS
388

SECTION 6 – 4
389
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications390
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking battery condition 396
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 399
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 399
. . . . . . . . . . . . . . . .
Checking the cartridge type fuses 402
. . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 403
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Checking the headlight aim 404
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 405
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

ELECTRICAL COMPONENTS
390
SPECIFICATIONS
— FUSE LOCATIONS
1Engine compartment
2Driver’s side instrument panel

ELECTRICAL COMPONENTS
391
— FUSES
1Engine compartment
64E165
2Driver’s side instrument panel

ELECTRICAL COMPONENTS
392
No.FUSEAMPERECIRCUIT
1A/F25Multiport fuel injection
system/sequential multiport
fuel injection system
2DOOR125
Multiplex communication
system (power door lock
system, auto−door locking
system, wireless remote
control system)
3TEL5No circuit
4AM230All components in “IGN” and
“IG2” fuses and starting system
5EFI20Multiport fuel injection
system/sequential multiport
fuel injection system
6ALTS5Charging system
7HEAD LH
UPR10Left −hand headlight (high
beam)
No.FUSEAMPERECIRCUIT
8ETCS10Multiport fuel injection
system/sequential multiport
fuel injection system
9HORN10Horns
10IGN15Starting system
11HEAD RH
UPR10Right −hand headlight (high
beam)
12HAZ15Emergency flashers
13D.C.C30All components in “ECU− B”,
“RAD NO.1” and “DOME” fuses
14IG210
Multiport fuel injection
system/sequential multiport
fuel injection system, SRS
airbag system, seat belt
pretensioners, cruise control
system
15ST5Starting system
16ADJ PDL30Power adjustable pedals
17CDS30Electric cooling fan

ELECTRICAL COMPONENTS
393
No.FUSEAMPERECIRCUIT
18ABS No.240
Anti−lock brake system,
vehicle stability control system,
traction control system, brake
assist system
19MAIN40
All components in “HEAD LH
LWR”, “HEAD RH LWR”, “HEAD
LH UPR”, “HEAD RH UPR” and
“DRL” fuses
20ABS No.330
Anti −lock brake system,
vehicle stability control system,
traction control system, brake
assist system
21HTR50Air conditioning system
22RDI30Electric cooling fan
23SPARE5Spare fuse
24SPARE10Spare fuse
No.FUSEAMPERECIRCUIT
25ABS NO.150
All components in “RDI FAN”,
“ABS No.2”, “ABS No.3”, “CDS”,
“HTR (50 A)” and “ADJ PDL”
fuses and anti −lock brake
system, vehicle stability control
system, traction control
system, brake assist system
26ALT120
All components in “DEF”, “PWR
NO.1”, “PWR NO.2”, “PWR
NO.3”, “PWR NO.4”, “STOP”,
“DOOR NO.2”, “OBD”, “PWR
SEAT”, “FUEL OPEN”, “FOG”,
“AMP”, “PANEL”, “TAIL”,
“AM1”, “CIG”, “POWER
POINT”, “RAD NO.2”,
“ECU− ACC”, “GAUGE1”,
“GAUGE2”, “ECU− IG”,
“WIPER”, “WASHER”, “HTR
(10 A)”, “SEAT HTR” and
“SUN− SHADE” fuses
27SPARE15Spare fuse
28A/C10No circuit
29DRL5Daytime running light system
30HEAD RH
LW R15Right −hand headlight (low
beam)
31HEAD LH
LW R15Left −hand headlight (low
beam) and front fog lights
