FOREWORD
1
Congratulations on your selection of this Lexus.
In Lexus vehicles we have invested all our
engineering and
design resources; all the know
how we have gained in over 60 years of making
automobiles; the highest motivation of our most
talented employees; and our tradition of
incessant striving toward ever greater quality.
This Owner’s Manual explains the features of your new
Lexus. P lease read it and follow the instructions carefully
so that you can enjoy many years of safe motoring.
When it comes to service, remember that your
Lexus dealer knows your vehicle very well and is
interested in your complete satisfaction. Your
Lexus dealer will provide quality maintenance
and any other assistance you may require.
If there is not a Lexus dealer near you, please call
the following number:
U.S. OWNERS If you need emergency assistance for any reason,
please call the following number.
 When traveling in the U.S. mainland or Canada:
Lexus Roadside Assistance
Tollfree:180025LEXUS or 18002553987
 Hawaii:
Servco Automotive Roadside Assistance/Customer
Services
Tollfree:180025LEXUS or 18002553987
CANADIAN OWNERS  When traveling in Canada or the U.S. mainland: Lexus Roadside Assistance/Customer Service
Tollfree:180026LEXUS or 18002653987
Please leave this Owner’s Manual in this vehicle at the
time of resale. The next owner will need this information
also. All information and specifications in this manual
are current at the time of printing. However,
because of the Lexus policy of continual product
improvement, we reserve the right to make
changes at any time without notice.
Please note that this manual applies to all models and
explains all equipment, including options. Therefore, you
may find some explanations for equipment not installed
on your vehicle.
Please access our websites for further
information.
 The U.S. mainland www.lexus.com
 Hawaii www.servcolexus.com
 Canada www.lexus.ca

IMPORTANT INFORMATION ABOUT YOUR LEXUS
4Lexus recommends you to read
the provisions in Section 1−6
carefully and refer to them as needed during your time of
ownership of this vehicle.
Event data recorder
Your vehicle has computers that monitor and control certain
aspects of your vehicle. These computers assist in driving and
maintaining optimal vehicle performance. Besides storing
data useful for troubleshooting, there is a system to record data
in a crash or a near car crash event. This is called an Event
Data Recorder (EDR).
The SRS airbag sensor assembly contains the EDR. In a crash
or a near car crash event, this device may record some or all
of the following information:
 Engine speed
 Whether the brake pedal was applied or not
 Vehicle speed
 To what extent the accelerator pedal was depressed
 Position of the transmission selector lever
 Whether the driver and front passenger wore the seat belts
or not
 Driver’s seat position
 Front passenger’s occupant classification
 SRS airbag deployment data
 SRS airbag system diagnostic data If your vehicle is equipped with a vehicle stability control (VSC)
system,
its Electronic Control Unit (ECU) may contain another
EDR. There are a variety of driving situations which include
activating the VSC under which the VSC EDR will record
certain information. The VSC EDR may record some or all of
the following information:
 Behavior of the vehicle
 Steering wheel angle
 Vehicle speed
 To what extent the accelerator pedal was depressed
 To what extent the brake pedal was applied
 To what extent the ECU controlled the condition of the 4
wheels
 Vehicle stability control system diagnostic data
The information above is intended to be used for the purpose
of improving vehicle safety performance. Unlike general data
recorders, the EDR does not record sound data such as
conversation between passengers.
Lexus will not disclose the data recorded in an EDR to a third
party except when:
 An agreement from the vehicle’s owner (or the leasing
company for a leased vehicle) is obtained
 Officially requested by the police or other authorities
 Used as a defense for Lexus in a law suit
 Ordered by the court

IMPORTANT INFORMATION ABOUT YOUR LEXUS
5
However, if necessary Lexus will:

Use the data for research on Lexus vehicle safety
performance
 Disclose the data to a third party for research purposes
without disclosing details of the vehicle owner, and only
when it is deemed necessary
 Disclose summarized data cleared of vehicle identification
information to a non −Lexus organization for research
purposes
New vehicle warranty
Your new vehicle is covered by the following Lexus limited
warranties:
 New vehicle warranty
 Emission control systems warranty
 Others
For further information, please refer to the “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.
Your responsibility for maintenance
It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance information, please refer to the “Owner’s Manual
Supplement/Scheduled Maintenance”.
Important health and safety information about
your Lexus

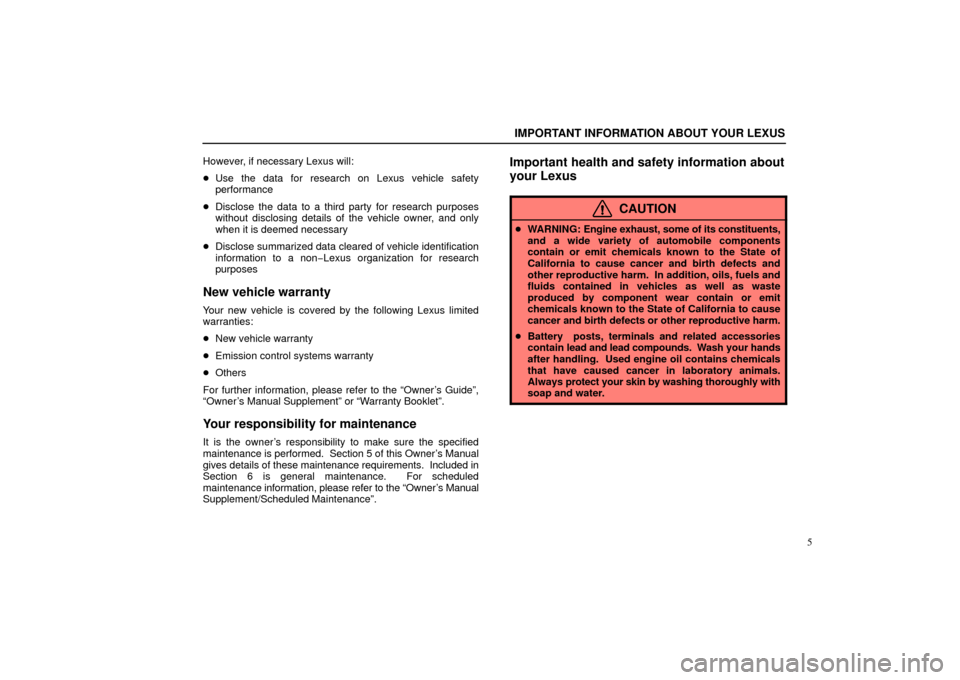

CAUTION
 WARNING: Engine exhaust, some of its constituents,
and a wide variety of automobile components
contain or emit chemicals known to the State of
California to cause cancer and birth defects and
other reproductive harm. In addition, oils, fuels and
fluids contained in vehicles as well as waste
produced by component wear contain or emit
chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
 Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your hands
after handling. Used engine oil contains chemicals
that have caused cancer in laboratory animals.
Always protect your skin by washing thoroughly with
soap and water.

HOW TO USE THIS MANUAL
7
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly
on this page to help you make the best use of the
manual. Please read this page and the rest of the
Owner’s Manual carefully to make sure you fully
understand the operation of your vehicle.
This will help you enjoy safe and comfortable
driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION — QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 — INSTRUMENTS AND CONTROLS
The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Occupant restraint systems 7. Steering wheel and mirrors
SECTION 2 — AIR CONDITIONING AND AUDIO
The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to r
ead this Section so that you can
make full use of them.
SECTION 3 — STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this Section, and remember — drive safely!
SECTION 4 — IN CASE OF AN EMERGENCY
This Section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire, etc.
If such a problem occurs, check the contents of this Owner’s
Manual and follow the instructions given.
SECTION 5 — MAINTENANCE
This Section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 — SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.

BE056
BE057
NOTE: When the cruise control is being used, even if you downshift from “D”\
to “4”, engine braking will not be enabled because
the cruise control is not cancelled. For the operation to decrease the \
vehicle speed, see page cclxxi.
OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal
position
R: Reverse position
N: Neutral position
D: Normal driving position
(shifting into overdrive possible)
4: Position for engine braking
(shifting into overdrive not possible)
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking

Shift while pressing the brake pedal.
(Ignition switch must be in the “ON” position.)
QUICK REFERENCE
3
4. AUTOMATIC
TRANSMISSION

QUICK REFERENCE
4

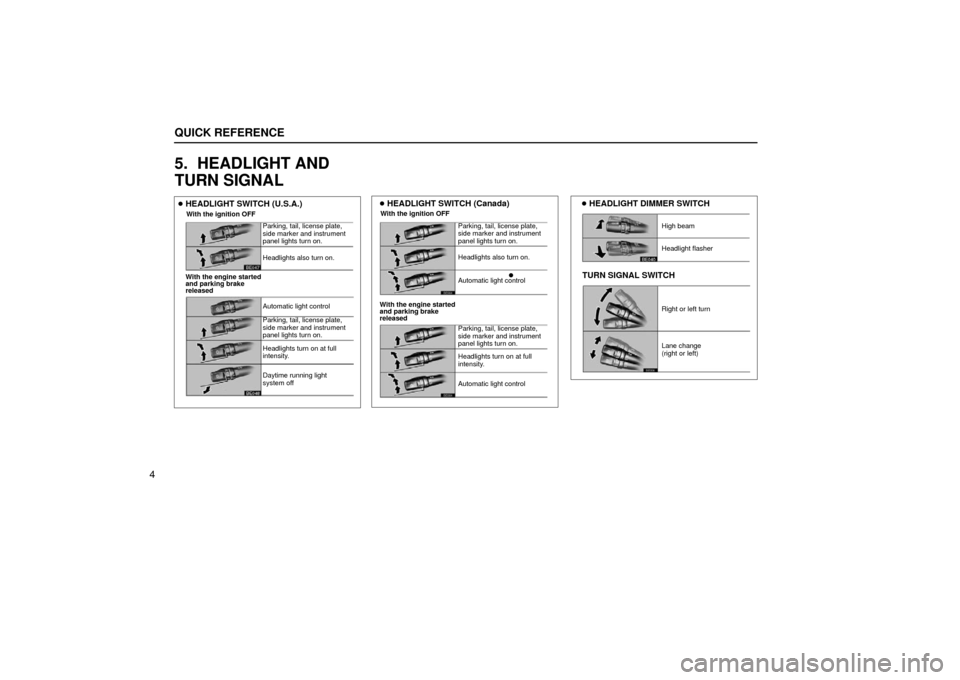

5. HEADLIGHT AND
TURN SIGNAL
Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Daytime running light
system off Headlights turn on at full
intensity. Parking, tail, license plate,
side marker and instrument
panel lights turn on.
BE004
BE004
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Automatic light control Headlights also turn on.
Automatic light control Headlights turn on at full
intensity.High beam
Right or left turn
Lane change
(right or left) Headlight flasher
 HEADLIGHT SWITCH (U.S.A.) With the ignition OFF
With the engine started
and parking brake
released HEADLIGHT SWITCH (Canada)With the ignition OFF
With the engine started
and parking brake
released HEADLIGHT DIMMER SWITCH
 TURN SIGNAL SWITCH

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
ivPage
1Tachometer
lvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Traction control system off indicator light cclxxiv .
3Vehicle stability control system/traction control
system warning light lxvi. . . . . . . . . . . . . . . . . . . . . . . .
4Engine oil replacement reminder light lxiii
. . . . . . . .
5Headlight indicator light xxxiii
. . . . . . . . . . . . . . . . . . . .
6Headlight high beam indicator light xxxviii . . . . . . . .
7Turn signal indicator light xxxviii
. . . . . . . . . . . . . . . . .
8Fog light indicator light xxxix
. . . . . . . . . . . . . . . . . . . . .
9Cruise control indicator light cclxix
. . . . . . . . . . . . . .
10Slip indicator light cclxxiii, cclxxvi
. . . . . . . . . . . . . . .
11Automatic headlight leveling system
warning light lxvii . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Low fuel level warning light lxvii
. . . . . . . . . . . . . . . . . .
13Automatic transmission indicator lights cclxiii . . . .
14Engine coolant temperature gauge lvi
. . . . . . . . . . . . . Page
15Odometer and trip meter
lvii
. . . . . . . . . . . . . . . . . . . . .
16Trip meter reset knob lvii
. . . . . . . . . . . . . . . . . . . . . . . .
17Fuel gauge lv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Low washer fluid warning light lxvii
. . . . . . . . . . . . . . .
19Low engine oil level warning light lxiii
. . . . . . . . . . . .
20Multiinformation display lxviii
. . . . . . . . . . . . . . . . . . .
21Rear light failure warning light lxvi
. . . . . . . . . . . . . . .
22Low engine oil pressure warning light lxii
. . . . . . . . .
23Brake system warning light lx
. . . . . . . . . . . . . . . . . . . .
24Antilock brake system warning light lxv
. . . . . . . . . .
25Driver’s seat belt reminder light lxi
. . . . . . . . . . . . . . . .
26Charging system warning light lxii
. . . . . . . . . . . . . . . .
27SRS warning light lxi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Open door warning light lxvi
. . . . . . . . . . . . . . . . . . . . .
29Malfunction indicator lamp lxiv
. . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
viPage
1Tachometer
lvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Traction control system off indicator light cclxxiv .
3Vehicle stability control system/traction control
system warning light lxvi. . . . . . . . . . . . . . . . . . . . . . . .
4Tail light indicator light xxxv
. . . . . . . . . . . . . . . . . . . . .
5Headlight high beam indicator light xxxviii . . . . . . . .
6Turn signal indicator light xxxviii
. . . . . . . . . . . . . . . . .
7Fog light indicator light xxxix
. . . . . . . . . . . . . . . . . . . . .
8Cruise control indicator light cclxix
. . . . . . . . . . . . . .
9Slip indicator light cclxxiii, cclxxvi
. . . . . . . . . . . . . . .
10Automatic headlight leveling system
warning light lxvii . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11Low fuel level warning light lxvii
. . . . . . . . . . . . . . . . . .
12Automatic transmission indicator lights cclxiii . . . .
13Engine coolant temperature gauge lvi
. . . . . . . . . . . . . Page
14Odometer and trip meter
lvii
. . . . . . . . . . . . . . . . . . . . .
15Trip meter reset knob lvii
. . . . . . . . . . . . . . . . . . . . . . . .
16Fuel gauge lv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Low washer fluid warning light lxvii
. . . . . . . . . . . . . . .
18Low engine oil level warning light lxiii
. . . . . . . . . . . .
19Multiinformation display lxviii
. . . . . . . . . . . . . . . . . . .
20Rear light failure warning light lxvi
. . . . . . . . . . . . . . .
21Low engine oil pressure warning light lxii
. . . . . . . . .
22Brake system warning light lx
. . . . . . . . . . . . . . . . . . . .
23Antilock brake system warning light lxv
. . . . . . . . . .
24Driver’s seat belt reminder light lxi
. . . . . . . . . . . . . . . .
25Charging system warning light lxii
. . . . . . . . . . . . . . . .
26SRS warning light lxi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Open door warning light lxvi
. . . . . . . . . . . . . . . . . . . . .
28Malfunction indicator lamp lxiv
. . . . . . . . . . . . . . . . . .

SECTION 1 – 1
x
INSTRUMENTS AND CONTROLS
Keys and doors
Keysxi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Engine immobilizer system xv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control xvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors xxiv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Theft deterrent system xxix
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

KEYS AND DOORS
xi
KEYS
1Master keys (black) — These keys work in every lock.
For your Lexus dealer to make a new key with a
builtin transponder chip, your dealer will need one
of them.
2Valet key (gray) — This key will not open the glove
box and rear armrest door in the rear seat.
3Key number plate — Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for engine immobilizer system has been
placed in the head of the master and valet keys. These chips
are needed to enable the system to function correctly, so be
careful not to lose these keys. If you make your own duplicate
key, you will not be able to cancel the system or start the
engine. To protect items locked in the trunk or glove box when using
valet parking, leave the valet key with the attendant.
The trunk lid can be opened using a loop of wire in the trunk
even with the trunk lid opener main switch in the glove box
turned off.
When keeping items in the trunk, be sure to turn off
the trunk lid opener main switch and lock the glove box and rear
armrest door. To turn off the main switch in the glove box, see
page xcv. For locking the glove box, see page lxxviii. For
locking the rear armrest door, see page lxxxviii.
Since the doors can be locked without a key, you should always
carry the flat key or spare master key in case you accidentally
lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.
