206AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
Selecting a menu item
Enter the menu item using ,
,  and
 buttons and touch Enterº.
The changer starts playing video for that
menu item. (For details, see the manual
that comes with the DVD video disc pro-
vided separately.)
Each time you touch Move Buttonsº, the
controls on the screen move upward and
downward.
When you touch < will disappear. To display them again,
touch >>ONº.
When you touch
, the previous
screen returns.
Searching by title
DVD video only Ð
Enter the title number and touch En-
terº.
The player starts playing video for that title
number.
When you push the
º or º button of
SEEK/TRACKº, you can select a chap-
ter.
If you enter the wrong numbers, touch
Clearº to delete the numbers.
When you touch
, the previous
screen returns.

215
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM

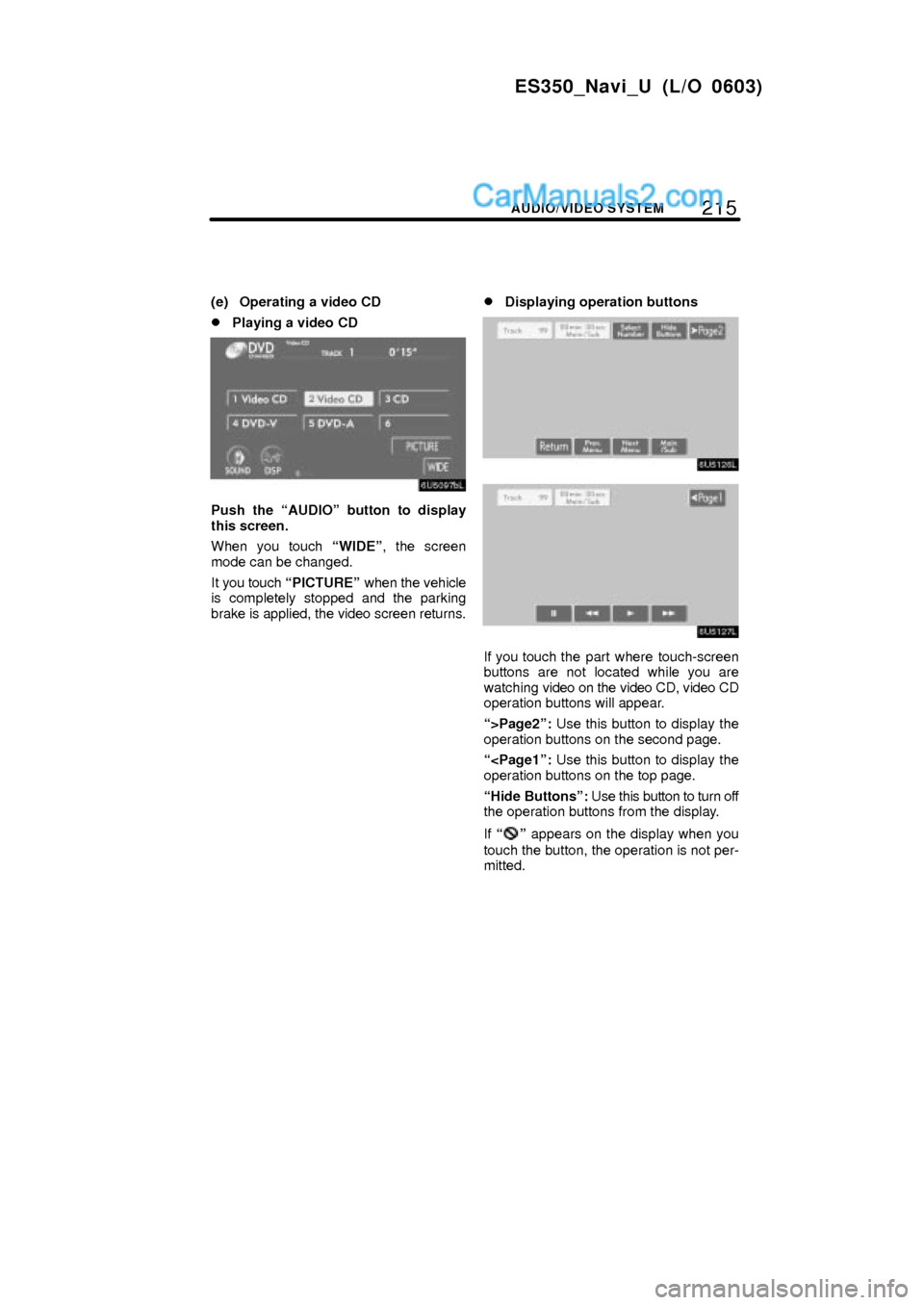

(e) Operating a video CD
Playing a video CD
Push the AUDIOº button to display
this screen.
When you touch WIDEº, the screen
mode can be changed.
It you touch PICTUREº when the vehicle
is completely stopped and the parking
brake is applied, the video screen returns.
Displaying operation buttons
If you touch the part where touch-screen
buttons are not located while you are
watching video on the video CD, video CD
operation buttons will appear.
>Page2º: Use this button to display the
operation buttons on the second page.
 operation buttons on the top page.
Hide Buttonsº: Use this button to turn off
the operation buttons from the display.
If
º appears on the display when you
touch the button, the operation is not per-
mitted.

216AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)

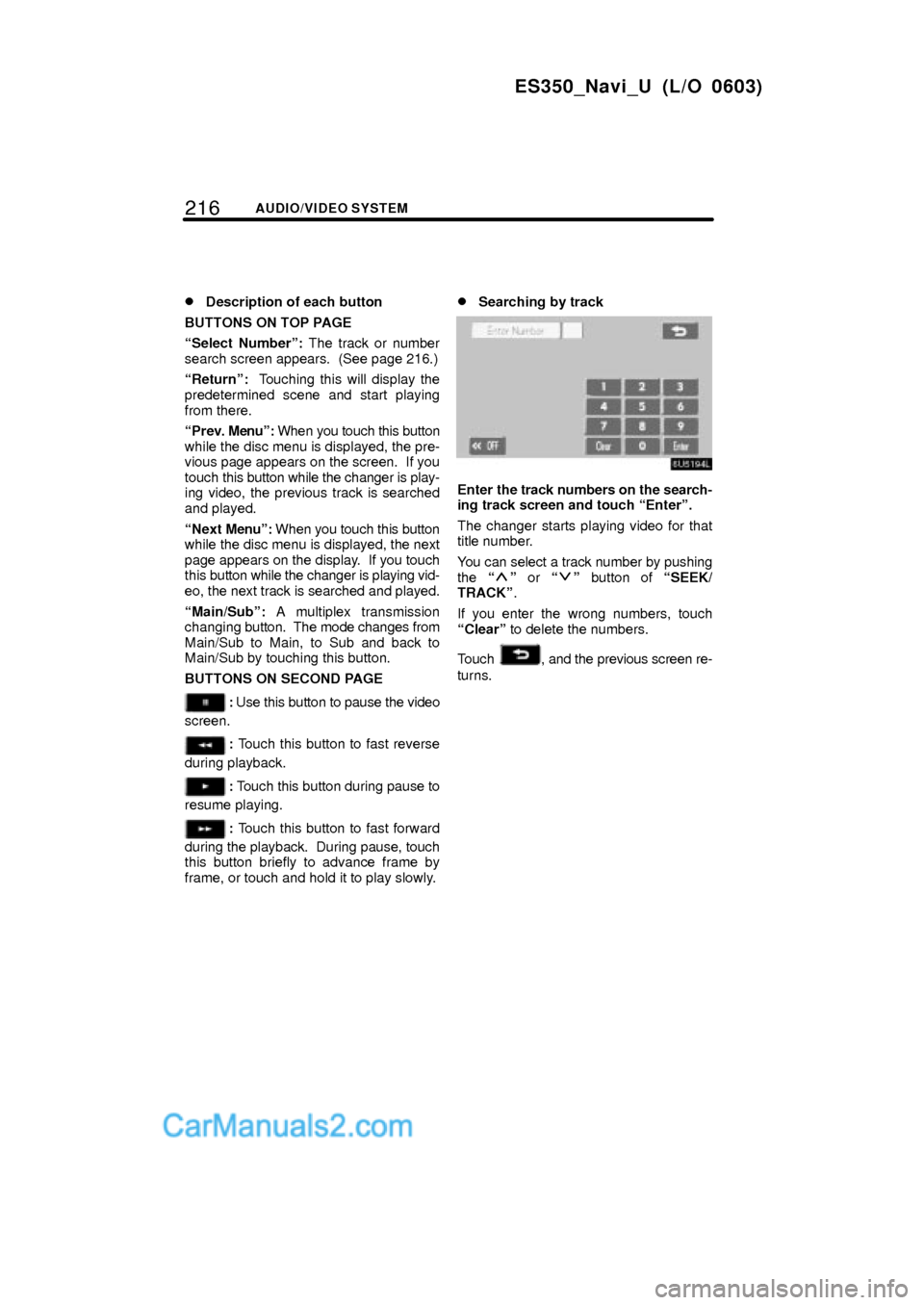

Description of each button
BUTTONS ON TOP PAGE
Select Numberº: The track or number
search screen appears. (See page 216.)
Returnº: Touching this will display the
predetermined scene and start playing
from there.
Prev. Menuº: When you touch this button
while the disc menu is displayed, the pre-
vious page appears on the screen. If you
touch this button while the changer is play-
ing video, the previous track is searched
and played.
Next Menuº: When you touch this button
while the disc menu is displayed, the next
page appears on the display. If you touch
this button while the changer is playing vid-
eo, the next track is searched and played.
Main/Subº: A multiplex transmission
changing button. The mode changes from
Main/Sub to Main, to Sub and back to
Main/Sub by touching this button.
BUTTONS ON SECOND PAGE
: Use this button to pause the video
screen.
: Touch this button to fast reverse
during playback.
: Touch this button during pause to
resume playing.
: Touch this button to fast forward
during the playback. During pause, touch
this button briefly to advance frame by
frame, or touch and hold it to play slowly.
Searching by track
Enter the track numbers on the search-
ing track screen and touch Enterº.
The changer starts playing video for that
title number.
You can select a track number by pushing
the
º or º button of SEEK/
TRACKº.
If you enter the wrong numbers, touch
Clearº to delete the numbers.
Touch
, and the previous screen re-
turns.

217
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM

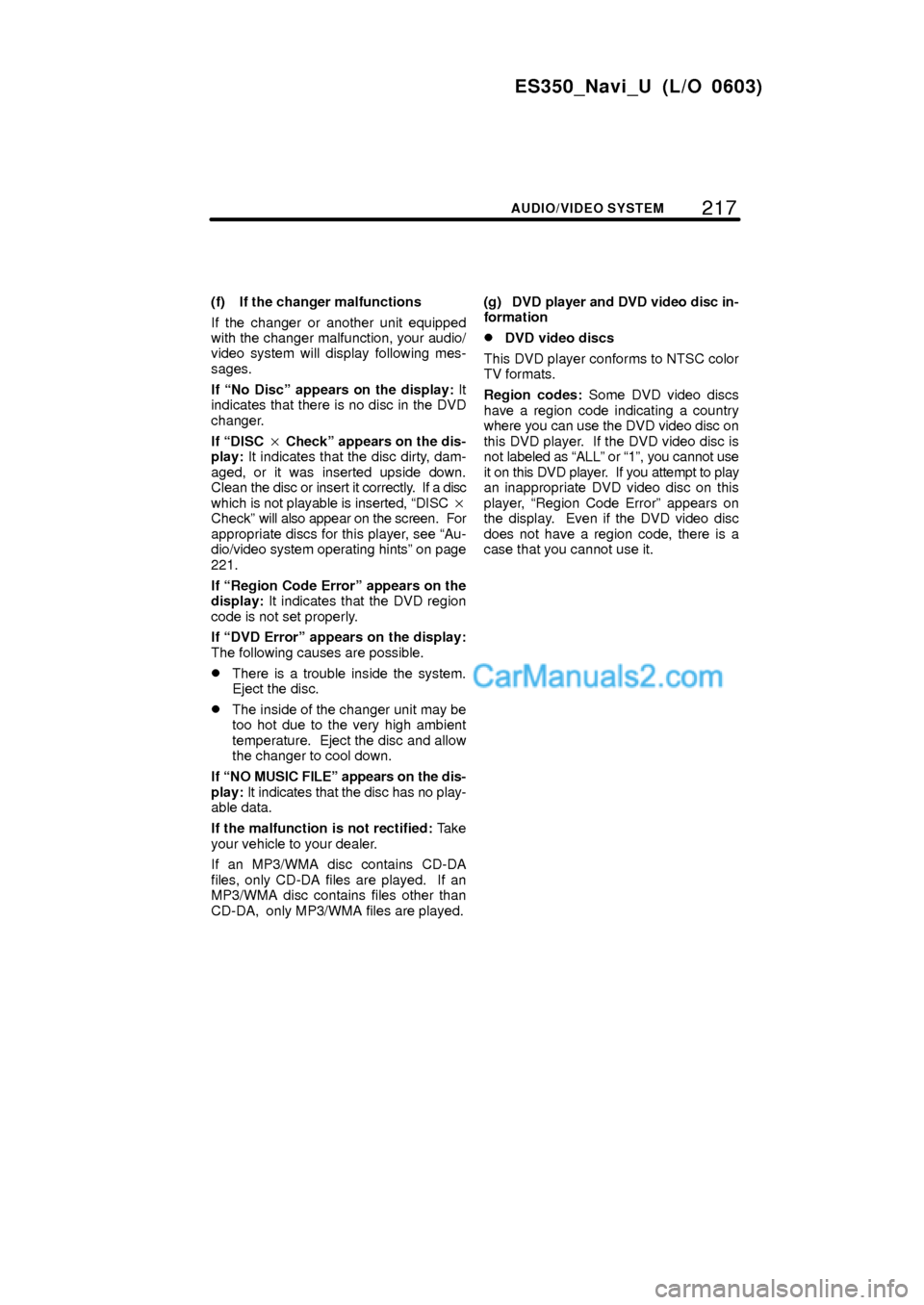

(f) If the changer malfunctions
If the changer or another unit equipped
with the changer malfunction, your audio/
video system will display following mes-
sages.
If No Discº appears on the display: It
indicates that there is no disc in the DVD
changer.
If DISC
Checkº appears on the dis-
play: It indicates that the disc dirty, dam-
aged, or it was inserted upside down.
Clean the disc or insert it correctly. If a disc
which is not playable is inserted, DISC

Checkº will also appear on the screen. For
appropriate discs for this player, see Au-
dio/video system operating hintsº on page
221.
If Region Code Errorº appears on the
display: It indicates that the DVD region
code is not set properly.
If DVD Errorº appears on the display:
The following causes are possible.
There is a trouble inside the system.
Eject the disc.
The inside of the changer unit may be
too hot due to the very high ambient
temperature. Eject the disc and allow
the changer to cool down.
If NO MUSIC FILEº appears on the dis-
play: It indicates that the disc has no play-
able data.
If the malfunction is not rectified: Take
your vehicle to your dealer.
If an MP3/WMA disc contains CD-DA
files, only CD-DA files are played. If an
MP3/WMA disc contains files other than
CD-DA, only MP3/WMA files are played.(g) DVD player and DVD video disc in-
formation
DVD video discs
This DVD player conforms to NTSC color
TV formats.
Region codes: Some DVD video discs
have a region code indicating a country
where you can use the DVD video disc on
this DVD player. If the DVD video disc is
not labeled as ALLº or 1º, you cannot use
it on this DVD player. If you attempt to play
an inappropriate DVD video disc on this
player, Region Code Errorº appears on
the display. Even if the DVD video disc
does not have a region code, there is a
case that you cannot use it.

220AUDIO/VIDEO SYSTEM
ES350_Navi_U (L/O 0603)
1Volume control switch
Push +º side to increase the volume. The
volume continues to increase while the
switch is being pressed.
Push -º side to decrease the volume.
The volume continues to decrease while
the switch is being pressed.
2º º switches
Radio
To select a preset station:
Quickly push and release the
º or º
switch. Do this again to select the next pre-
set station.
To seek a station:
Push and hold the
º or º switch until
you hear a beep. Do this again to find the
next station. If you push either the
º or
º switch in seek mode, the seek mode
will cancel.
Cassette tape player
To skip to a different track in either direc-
tion:
Quickly push and release the
º or º
switch. FF 1º or REW 1º will appear on
the display.
Next, push the
º or º switch until the
track you want to listen to is set. If you
push the switch ten times, the skip function
will turn off. (You can skip up to nine tracks
at a time.)
When counting the number of the tracks
you want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two before
the song you are listening to, push the
º
button three times.
If you push the switch further than you
wanted to, push the other side of the
switch. The track number will be increased
or reduced.The track number you select is not valid if
it is higher than the number of the tracks re-
maining on the current side of the cassette.
When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the switch to
work correctly. In addition, the feature may
not work well with some spoken, live, or
classical recordings.
To fast-forward or reverse:
Push and hold the
º switch to fast-for-
ward a cassette tape. FFº will appear on
the display. Push and hold the
º switch
to rewind a tape. REWº will appear on the
display.
To stop the tape while it is fast-forwarding,
push the
º switch . To stop the tape
while it is rewinding, push the º switch.
If a tape rewinds completely, the cassette
tape player will stop and then play that
same side. If a tape fast-forwards com-
pletely, the cassette will play the other side
of the tape using the auto-reverse feature.
CD changer or DVD changer
Use this button to skip up or down to a dif-
ferent track, file or chapter in either direc-
tion.
To select a desired track, file or chapter:
Quickly push and release the
º or º
switch until the track, file or chapter you
want to play is set. If you want to return to
the beginning of the current track, file or
chapter, push the
º switch once, quick-
ly.
To select a desired disc:
Push and hold the
º or º switch until
you hear a beep to change to the next or
the previous disc. Repeat this operation
until you reach the disc you want to listen
to.

223
ES350_Navi_U (L/O 0603)
AUDIO/VIDEO SYSTEM
MP3/WMA files
MP3 (MPEG Audio Layer 3) and WMA
(Windows Media Audio) are audio
compression standards.
The MP3/WMA player can play MP3
and WMA files on CD-ROM, CD-R
and CD-RW discs.
The unit can play disc recordings com-
patible with ISO 9660 level 1 and level
2 and with the Romeo and Joliet file
system.
When naming an MP3 or WMA file, add
the appropriate file extension (.mp3 or
.wma).
The MP3/WMA player plays back files
with .mp3 or .wma file extensions as
MP3 or WMA files. To prevent noise
and playback errors, use the appropri-
ate file extensions.
The player can play only the first ses-
sion using multi-session compatible
CDs.
MP3 files are compatible with the ID3
Tag Ver. 1.0, Ver. 1.1, Ver. 2.2, and Ver.
2.3 formats. The unit cannot display
disc title, track title and artist name in
other formats.
WMA files can contain a WMA tag that
is used in the same way as an ID3 tag.
WMA tags carry information such as
track title, artist name.
The emphasis function is available
only when playing MP3/WMA files re-
corded at 32, 44.1 and 48 kHz. (The
system can play MP3 files with sam-
pling frequencies of 16, 22.05, and 24
kHz. However, the emphasis function
is not available for files recorded at
these frequencies.)
The sound quality of MP3/WMA files
generally improves with higher bit rate-
s. In order to achieve a reasonable lev-
el of sound quality, discs recorded with
a bit rate of at least 128 kbps are rec-
ommended.
Playable bit rates
MP3 files:
MPEG1 LAYER3Ð64 to 320 kbps
MPEG2 LSF LAYER3Ð64 to 160 kbps
WMA files:
Ver. 7, 8 CBRÐ48 to 192 kbps
Ver. 9 CBRÐ48 to 320 kbps
The MP3/WMA player does not play
back MP3/WMA files from discs re-
corder using packet write data transfer
(UDF format). Discs should be re-
corded using pre-masteringº software
rather than packet-write software.
The m3u playlists are not compatible
with the audio player.
MP3i (MP3 interactive) and MP3PRO
formats are not compatible with the au-
dio player.
The MP3 player is compatible with
VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast-forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.
MP3/WMA files in folders up to 8 levels
deep can be played. However, the
start of playback may be delayed when
using discs containing numerous lev-
els of folders. For this reason, we rec-
ommend creating discs with no more
than two levels of folders.
It is possible to play up to 192 folders or
255 files on one disc.
